Howard Wright PACIFIC ST 2.1 User manual

PACIFIC SHOWERBATHING TROLLEY
INSTRUCTIONS FOR USE

Instructions For Use Purpose
These instructions contain helpful information and important safety instructions for safe and proper operation and
servicing of the Pacific Shower-Bathing Trolley (hereinafter the PSBT or shower trolley). Read these instructions
carefully and fully understand before operating or servicing the shower trolley.
Standard Warranty
Thank you for purchasing your product from Howard Wright Limited.
Please refer to our website for our warranty terms:
• www.howardwrightcares.com
• www.howardwrightcares.co.uk
Howard Wright Limited’s Policy
Howard Wright Limited has a policy of continuous improvement and reserves the right to change product specifications
and information referred to in this document without notice.
All rights reserved.
No part of this publication may be reproduced without the prior written permission of Howard Wright Limited.
© Copyright – Howard Wright Limited, 2008.
This product shall be accepted and used in accordance with national requirements.
IMPORTANT: The responsible organisation suppling a shower trolley to an end user/lay person must ensure
these instructions for use are understood by the end user and they have sufficient training to
ensure the safe operation of the shower trolley.
IMPORTANT: Any serious event should be reported by the user and/or patient to Howard Wright Limited, and
when within the European Union, the Competent Authority of the member state.
NOTE: In these instructions, the term patient refers to one who receives medical attention, care or
treatment.
NOTE: If assistance is required to set up, use or maintain the shower trolley please contact Howard
Wright Limited using the contact details below.
NOTE: If the shower trolley experiences any unexpected operation or event, stop using the product and
contact Howard Wright Limited using the contact details below.
NOTE: Inspection and maintenance must be performed on the shower trolley every year. This must be
conducted by a qualified person. Please contact Howard Wright Limited using the contact
details below for an authorised service dealer.
NOTE: The unpacking and commissioning of the shower trolley must be completed by a competent
person.
17 Paraite Road, Bell Block PO Box 2786
PO Box 3003, Fitzroy Taren Point,
New Plymouth, 4341 New South Wales
New Zealand 2229, Australia
T. [phone] T. 1800 120 727
F. [phone] F. 1800 120 717
Advena Limited. Tower Business
Centre, 2nd Flr., Tower Street,
Swatar, BKR 4013. Malta.
Advena Limited.
Pure Offices, Plato Close,
Warwick, CV34 6WE, UK.
UK
Responsible
Person
EC REP

Pacific Shower-Bathing Trolley Instructions For Use (ST9902, Version 7, 2021-10) 1
CONTENTS
CHAPTER
1. INTRODUCTION......................................................................................................................................................................... 2
2. PRECAUTIONS........................................................................................................................................................................... 4

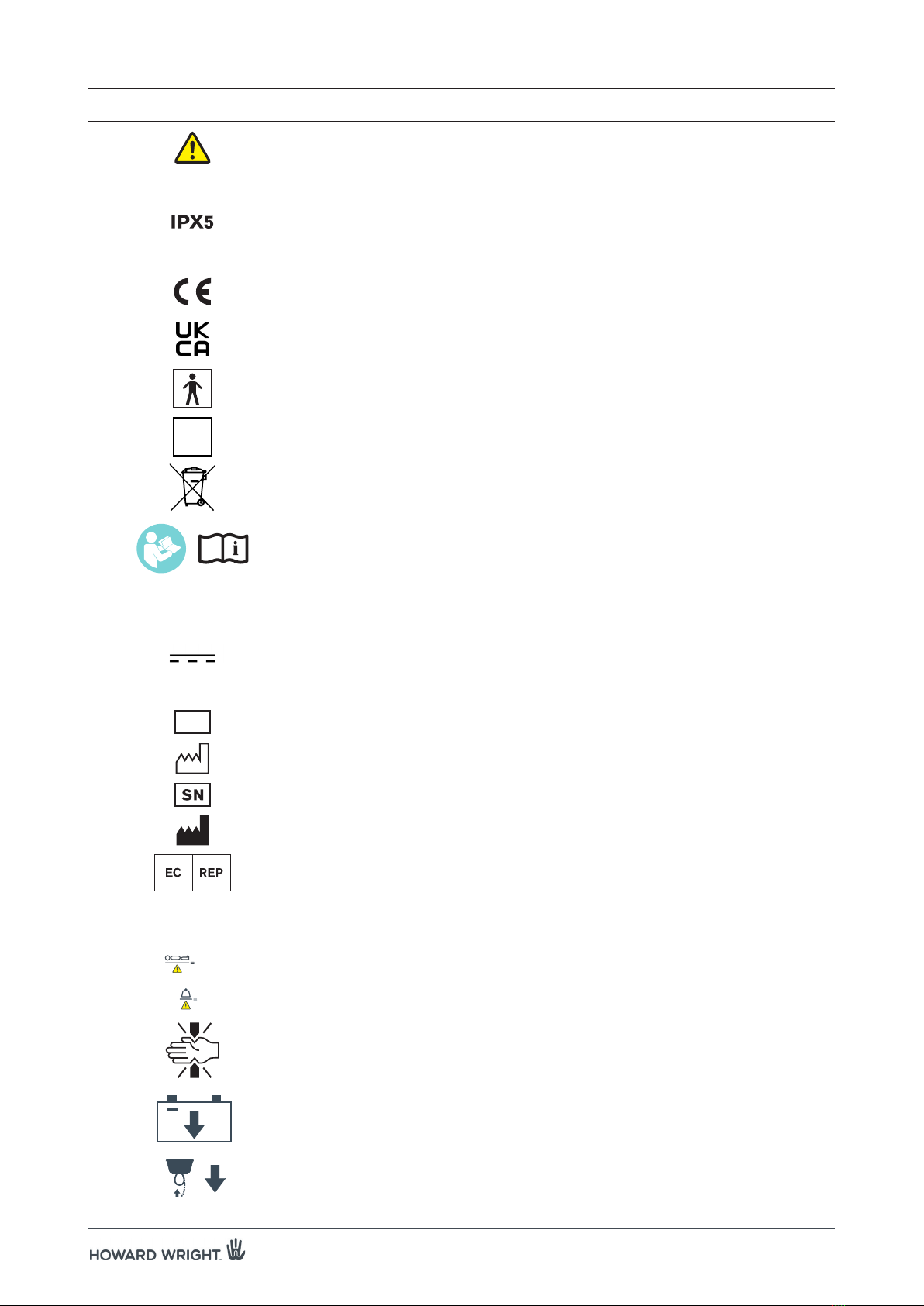

3. ABBREVIATIONS, SYMBOLS & TERMINOLOGY............................................................................................................6

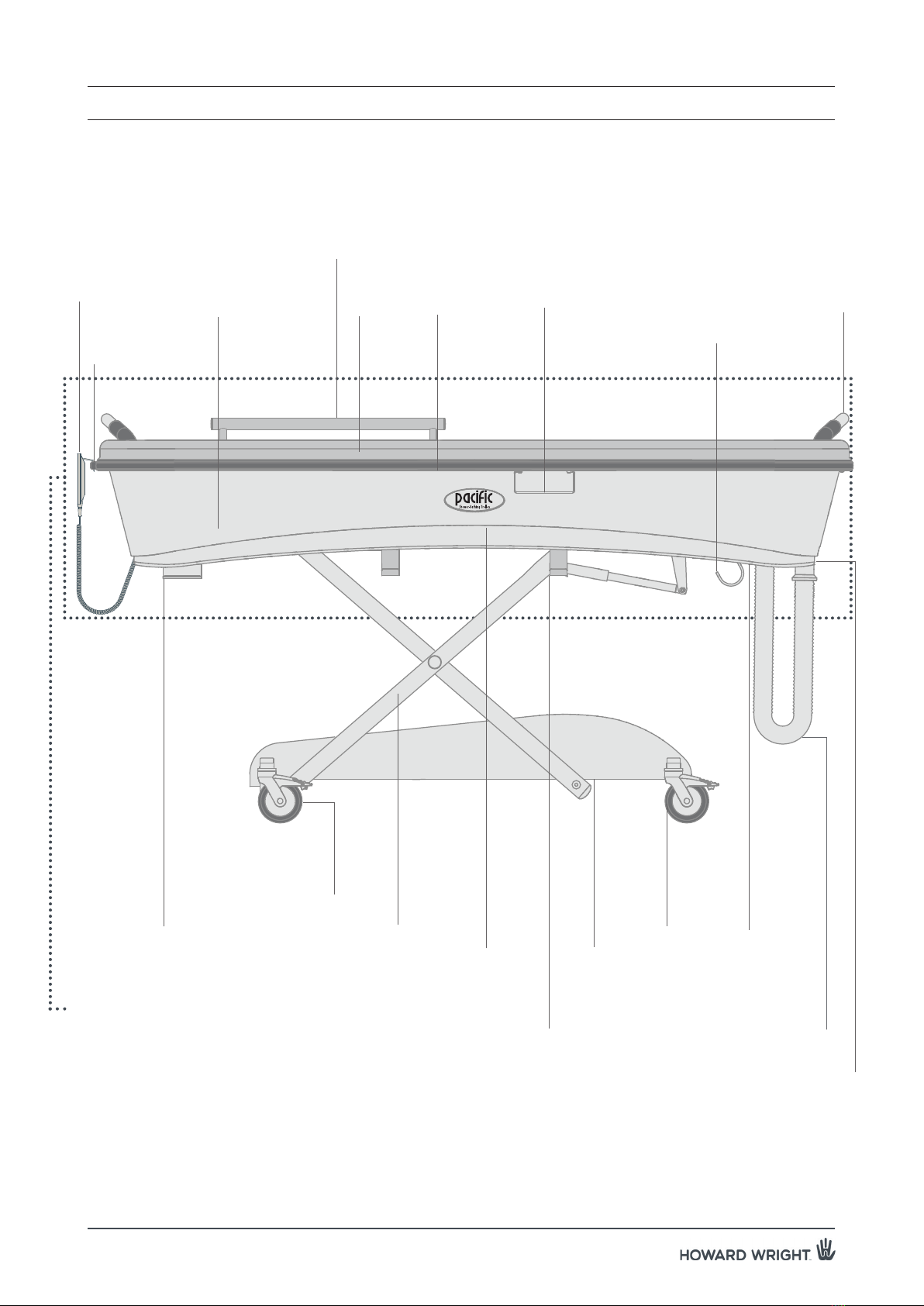

4. PART IDENTIFICATION ............................................................................................................................................................8
5. UNPACKING & COMMISSIONING .....................................................................................................................................9
6. OPERATION...............................................................................................................................................................................10
7. CLEANING..................................................................................................................................................................................18
8. PACKING FOR TRANSPORT OR STORAGE..................................................................................................................20
9. ELECTRIC CONTROL PROBLEM SOLVER....................................................................................................................21
10. MAINTENANCE & SERVICING..........................................................................................................................................22
11. SPECIFICATIONS and ELECTROMAGNETIC COMPATIBILITY ............................................................................25
12. CONFORMITY........................................................................................................................................................................27
13. INDEX ........................................................................................................................................................................................28
PAGE

2 Pacific Shower-Bathing Trolley Instructions For Use (ST9902, Version 7, 2021-10)
1. INTRODUCTION
1.1 HOWARD WRIGHT LIMITED
Congratulations on choosing a Howard Wright Limited product. Established in the 1950’s, Howard Wright Limited
has built a reputation based on product quality and design innovation. Today our equipment is found in healthcare
institutions worldwide.
1.2 INTENDED USE
The Pacific Shower Bathing Trolley is mainly used in assisting the prevention, treatment and alleviation of disease,
or compensation for an injury or disability. The Pacific Shower Bathing Trolley is designed to be used by trained
health professionals and lay persons where the Pacific Shower Bathing Trolley is located in a home environment.
The Pacific Shower Bathing Trolley is used generally within a hospital ward, nursing home or any other medical
institution as a means of bathing and showering of patients and transporting patients from one area to another for
the purpose of bathing or showering. In the home healthcare environment, the Pacific Shower Bathing Trolley is
generally stationary.
The Pacific Shower Bathing Trolley is intended to support one patient up to a weight not exceeding 200kg (including
the mass of water and accessories).
1.3 TECHNICAL SUMMARY
1.3.1 VERSIONS
Two versions of the shower trolley are available.
Standard bogie height and raised bogie height. Raised bogie height provides additional clearance for patient
lifters.
The shower trolley is supplied with electric operation only.
1.3.2 CONSTRUCTION
The shower trolley has a LINAK control box. An onboard removable sealed lead-acid battery provides power to
operate LINAK actuators at 24V DC. Control buttons are located on a handset for adjustment of the tub sides and
patient platform heights.
The shower trolley push handles, buffer rails, castors and bogie are all manufactured from stainless steel, aluminium
or hard wearing plastic to resist rust and chemical attack. Other structural parts of the shower trolley where water
runs off easily are made of powdercoated fabricated steel.
The upholstered tub is a seamless design made from fabric reinforced stretch polyurethane with foam padding for
extra patient comfort. The fabric provides thermal insulation to give warmth at first touch.
Plastics used are PE (PolyEthylene), PP (PolyPropylene), PU (PolyUrethane) Nylon, PVC (Poly Vinyl Chloride) and
ABS (Acrylonitrile Butadiene Styrene). Latex rubber is not used.
The waterproof pillow is PFC Vinyl Nitrile Foam (closed cell) with a Polyvinyl coating.

Pacific Shower-Bathing Trolley Instructions For Use (ST9902, Version 7, 2021-10) 3
1. INTRODUCTION
1.4 APPLICATION ENVIRONMENT
The Pacific Shower-Bathing Trolley is only intended for use in these environments:
APPLICATION ENVIRONMENT 3:
Long-term care in a medical area where medical supervision is required and monitoring is provided
if necessary and ME equipment used in medical procedures may be provided to help maintain or
improve the condition of the patient.
APPLICATION ENVIRONMENT 4:
Care provided in a domestic area where ME equipment is used to alleviate or compensate for an
injury, disability or disease.
APPLICATION ENVIRONMENT 5
Outpatient (ambulatory) care, which is provided in a hospital or other medical facility, under medical
supervision where ME equipment, is provided for the need of persons with illness, injury or disability
for treatment, diagnosis or monitoring.
NOTE: This includes use in nursing homes, rehabilitation and geriatric facilities.
1.5 SAFE WORKING LOAD (SWL)
Maximum patient weight = SWL minus weight of accessories and the weight of the water.
The shower trolley siderails and head pillow are the only accessories. The weight of these is negligible.
NOTE: The density of water and the density of a human body can be taken as identical.
Howard Wright Limited, Paraite Road, New Plymouth, NEW ZEALAND
Part # 1: ST9802
Part # 2:
PSBT LABEL SET
Description:
Parent Product: PSBT
Drawing Size: A3
Material:Rev
Colours: Pantone 637
Drawn ChkdDate New Artwork:
Adhesive:
Tooling:
Drawing Scale: 1:1
New Artwork Required
ORAFLO 1325 LSE TYPE 60 MICRON
Polycarb .175 G/G 8010
UV653 Match to Permark sample 264 Pink Line = CUTLINE
Grey White Background on all labels as per sample. Except where yellow.
200kg 200kgMAX
Internally Powered Medical
Electrical Equipment
Ensure that the handset cord is positioned
so it cannot become damaged during
PSBT adjustment.
Do not use in oxygen rich environments.
Keep battery
charged at all times
Mode: Max. 2min/20min
24 V DC
GAS STRUT IS
PRESSURISED
+
200kg 200kgMAX
New Artwork P1307 D
15.04.19 DAB
Mode changed
C 17.06.10 AJW
PINK BOX IS
CLEAR, NO PRINT
COLOUR
Howard Wright Limited, Paraite Road, Bell Block, New Plymouth, New Zealand.
Model :
Date:
IPX5
:
SN
Australia: 1800 120 727 New Zealand: 0508 751 751 UK: 0845 094 9894
Mode: Max. 2min/20min
24 V DC
Distributed in the USA by:
SUREHANDS Lift and Care Systems
Pine Island, NY 10969
Phone: [phone]
[email protected]
Distributed in Europe by:
Handi-Move International nv
B-9400 Ninove - Belgium
Phone: [phone]
[email protected]
UK
UNITED
KINGDOM
UK label added E 25.07.19 DAB

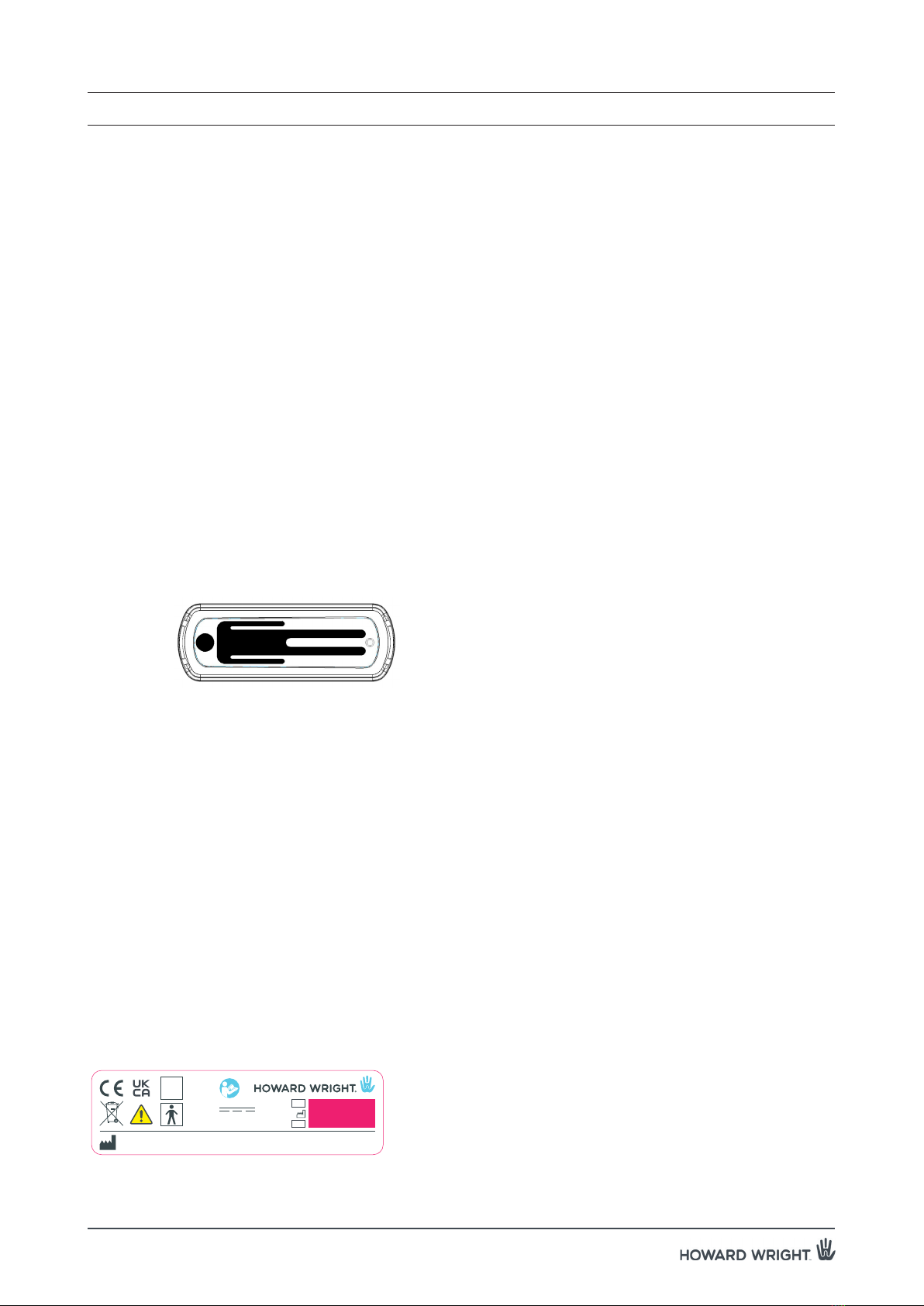

Figure 1. Safe Working Load

4 Pacific Shower-Bathing Trolley Instructions For Use (ST9902, Version 7, 2021-10)
2. PRECAUTIONS
2.1 CONVENTIONS
The following conventions are used in this publication:
WARNING: Gives instructions or information intended to ensure the safety of the patient, caregiver and
other personnel. The consequence of not following a warning can include death or serious injury.
CAUTION: Gives instructions or information intended to avoid damage to the Pacific Shower Bathing Trolley or
its accessories.
NOTE: Gives additional instructions or information intended to make the Pacific Shower Bathing Trolley
easier to use.
2.2 USER EDUCATION AND TRAINING
OPERATOR:Must be trained in the use of the shower trolley and fully understand these Instructions For Use.
PATIENT: A suitable risk assessment must be performed before the patient is placed on the shower trolley
and/or given access to the shower trolley control and the patient must fully understand the handset
functions before they can operate the shower trolley by themselves.
RESPONSIBLE ORGANISATION:
The responsible organisation suppling a shower trolley to an end user/lay person must ensure these
Instructions For Use are understood by the end user and they have sufficient training to ensure
the safe operation of the shower trolley.
2.3 GENERAL WARNINGS & CAUTIONS
WARNING: Read and understand these Instructions For Use before using or servicing the shower trolley.
WARNING: A risk assessment in accordance with the hospital, medical facility or responsible organisations risk
management policy must be completed before placing a patient on the shower trolley and only used
as the “Intended Use” states.
WARNING: Use the shower trolley to support one patient only. The shower trolley could become unstable if
more than one patient is on the shower trolley.
WARNING: DROWNING HAZARD:
• Never leave a patient unattended.
• Never place a patient face down.
• Never overfill the tub.
WARNING: STRANGULATION HAZARD:
• Never leave a child unattended in the vicinity of the shower trolley.
• Never leave the handset cord, drainage hose or plug chain in such a situation that can lead to
strangulation.
WARNING: ELECTROCUTION HAZARD:
• Never use electrical items in the vicinity of the shower trolley.
• Always position the wall battery charger away from the vicinity of the shower trolley area of use.
WARNING: BURNING HAZARD:
• A skin burn can occur as low as 44ºC (111ºF). Ensure the water temperature is correct before
placing a patient into the water or adding water. Ensure the water is below 38°C (100ºF).

Pacific Shower-Bathing Trolley Instructions For Use (ST9902, Version 7, 2021-10) 5
WARNING: Never transport or bath/shower a patient without the tub sides in the raised position.
WARNING: Patient, caregiver and other personnel must keep body parts clear of the elevator system.
WARNING: To prevent unwanted or accidental operation of the shower trolley, remove the battery.
WARNING: Do not use the shower trolley for cyclic or repetitive manipulations of the patient.
WARNING: If the shower trolley is found to have sustained any damage it must be removed from use
immediately.
WARNING: Do not sit on the shower trolley ends. This may result in injury to the patient or personnel as well as
damage to the shower trolley.
WARNING: All castors must be locked when transferring a patient on or off the shower trolley and during
bathing operations.
WARNING: To avoid damage to the drain hose or injury to the patient or personnel, the hose should be placed
in the cutaway storage location when not in use.
WARNING: When raising or lowering the platform or tub sides keep the handset cord clear of the elevator
mechanisms.
WARNING: Never operate the electric functions when cleaning the shower trolley or its accessories.
WARNING: Do not position the shower trolley under any object where possible raising of the patient platform or
tub sides could result in jamming.
WARNING: Follow cleaning and disinfection instructions for safe infection control.
WARNING: Check undertrolley clearance space to confirm compatibility with mobile patient hoist before use.
WARNING: Do not use in an oxygen rich environment.
WARNING: Do not use in any flammable gas environments.
WARNING: Do not modify any shower trolley components and/or accessories without prior authorisation from
Howard Wright Limited.
WARNING: Do not transport patients where the shower trolley may become unstable. For example, inclines over
10 degrees.
WARNING: Never route cables from other equipment onto or around the shower trolley.
WARNING: The safe working load of the shower trolley is 200kg (440lbs). This includes the mass of the patient,
the water in the tub and any accessories.
CAUTION: When not in use the shower trolley should be stored with the tub sides down.
CAUTION: Keep the handset out of the tub. Store the handset on the head end bracket at the head end of the
tub or on either side on the storage rails.
CAUTION: Use only approved cleaning products. For a list of approved cleaning products visit Howard Wright
Limited’s website www.howardwrightcares.com
CAUTION: Do not use abrasive sponges, cloths, substances or sharp objects on any shower trolley surfaces.
CAUTION: Do not use water above 50°C (122°F) on the tub surface.
2. PRECAUTIONS

6 Pacific Shower-Bathing Trolley Instructions For Use (ST9902, Version 7, 2021-10)
3. ABBREVIATIONS, SYMBOLS & TERMINOLOGY
3.1 ABBREVIATIONS
ABS Acrylonitrile Butadiene Styrene
AS/NZS Australian/New Zealand Standard
CE European Conformity
DC Direct Current
EEC European Economic Community
IEC International Electrotechnical Commission
IP Ingression Protection
LED Light Emitting Diode
PE PolyEthylene
PFC Vinyl Nitrile Foam
PP PolyPropylene
PU PolyUrethane
PVC PolyVinyl Chloride
SWL Safe Working Load
3.2 SHOWER TROLLEY ORIENTATION TERMINOLOGY
NOTE: The terms head end, drain end, left and right used in these instructions are referenced with
respect to a patient lying face up on their back as follows.
3.3 LABELS
Labels are placed on the shower trolley to provide information, cautions and warnings.
Read all labels before using the shower trolley.
3.4 SERIAL NUMBER LABEL
The serial number label is located on the drain end right elevator leg of the shower trolley.
When making service or repair enquiries, please provide the following information:
• PSBT model.
• PSBT date of manufacture.
• PSBT serial number.
Drain endHead end
Left
Right
Howard Wright Limited, Paraite Road, New Plymouth, NEW ZEALAND
Part # 1: ST9802
Part # 2:
PSBT LABEL SET
Description:
Parent Product: PSBT
Drawing Size: A3
Material:Rev
Colours: Pantone 637
Drawn ChkdDate New Artwork:
Adhesive:
Tooling:
Drawing Scale: 1:1
New Artwork Required
ORAFLO 1325 LSE TYPE 60 MICRON
Polycarb .175 G/G 8010
Permark UV653 Match to Permark sample 264 Pink Line = CUTLINE
Grey White Background on all labels as per sample. Except where yellow.
200kg 200kgMAX
Internally Powered Medical
Electrical Equipment
Ensure that the handset cord is positioned
so it cannot become damaged during
PSBT adjustment.
Do not use in oxygen rich environments.
Keep battery
charged at all times
Mode: Max. 2min/20min
24 V DC
GAS STRUT IS
PRESSURISED
+
200kg 200kgMAX
PINK BOX IS
CLEAR, NO PRINT
COLOUR
Howard Wright Limited, 17 Paraite Road, Bell Block, New Plymouth, New Zealand.
IPX5
Australia: 1800 120 727 New Zealand: 0508 751 751 UK: 0845 094 9894
Mode: Max. 2min/20min
24 V DC
MD
:
:
:
SN
#
UNITED
KINGDOM
ECR628 UK label added E 25.07.19 DAB
UNITED
KINGDOM
ECR763 MD UKCA EC added F 18.05.21 DAB
Distributed in the USA by:
SUREHANDS Lift and Care Systems
Pine Island, NY 10969
Phone: [phone]
[email protected]
Distributed in Europe by:
Handi-Move International nv
B-9400 Ninove - Belgium
Phone: [phone]
[email protected]
Advena Limited.
Tower Business Centre, 2nd Flr.,
Tower Street, Swatar, BKR 4013 Malta.
EC REP
Advena Ltd
Pure Offices, Plato Close,
Warwick, CV34 6WE, United Kingdom.
UK
Responsible
Person
ST9802 REV G
ECR763 - Symbols & 17 added. G 12.10.21 AJB
AJB
AJB
DAB
Figure 2. Orientation
Figure 3. Serial Number Label

Pacific Shower-Bathing Trolley Instructions For Use (ST9902, Version 7, 2021-10) 7
3. ABBREVIATIONS, SYMBOLS & TERMINOLOGY
Warning.
Ingression protection (IP) rating as per BS EN 60529:1992, specification of degrees
of protection provided by enclosures.
•The number (5) refers to the degree of “water ingression protection” i.e. the shower
trolley is protected from low pressure water jets from all directions, e.g. water from a
shower.
Indicates compliance with the applicable European requirements.
Indicates compliance with the applicable UK requirements.
Type BF applied part.
MD Indicates the product is a Medical Device.
WEEE, Waste Electrical and Electronic Equipment.
Read and understand the instructions for use (IFU) before using the shower trolley.
Power Input:: Input current (maximum), supply voltage range, supply frequency range.
~ Alternating current.
Direct current.
Mode: The shower trolley is intended for intermittent operation. The ratio of the operating time
to the sum of the operating time and ensuing time should not exceed that specified.
#Reference code (model number).
Date of manufacture.
Serial number.
Manufacturer.
European Authorised Representative.
3.5 OTHER SYMBOLS & TERMINOLOGY
Howard Wright Limited, Paraite Road, New Plymouth, NEW ZEALAND
Part # 1: ST9802
Part # 2:
PSBT LABEL SET
Description:
Parent Product: PSBT
Drawing Size: A3
Material:Rev
Colours: Pantone 637
Drawn ChkdDate New Artwork:
Adhesive:
Tooling:
Drawing Scale: 1:1
New Artwork Required
ORAFLO 1325 LSE TYPE 60 MICRON
Polycarb .175 G/G 8010
UV653 Match to Permark sample 264 Pink Line = CUTLINE
Grey White Background on all labels as per sample. Except where yellow.
200kg 200kgMAX
Internally Powered Medical
Electrical Equipment
Ensure that the handset cord is positioned
so it cannot become damaged during
PSBT adjustment.
Do not use in oxygen rich environments.
Keep battery
charged at all times
Mode: Max. 2min/20min
24 V DC
GAS STRUT IS
PRESSURISED
+
200kg 200kgMAX
New Artwork P1307 D
15.04.19 DAB
Mode changed
C 17.06.10 AJW
PINK BOX IS
CLEAR, NO PRINT
COLOUR
Howard Wright Limited, Paraite Road, Bell Block, New Plymouth, New Zealand.
Model :
Date:
IPX5
:
SN
Australia: 1800 120 727 New Zealand: 0508 751 751 UK: 0845 094 9894
Mode: Max. 2min/20min
24 V DC
Distributed in the USA by:
SUREHANDS Lift and Care Systems
Pine Island, NY 10969
Phone: [phone]
[email protected]
Distributed in Europe by:
Handi-Move International nv
B-9400 Ninove - Belgium
Phone: [phone]
[email protected]
UK
UNITED
KINGDOM
UK label added E 25.07.19 DAB
Maximum patient weight, kg.
Howard Wright Limited, Paraite Road, New Plymouth, NEW ZEALAND
Part # 1: ST9802
Part # 2:
PSBT LABEL SET
Description:
Parent Product: PSBT
Drawing Size: A3
Material:Rev
Colours: Pantone 637
Drawn ChkdDate New Artwork:
Adhesive:
Tooling:
Drawing Scale: 1:1
New Artwork Required
ORAFLO 1325 LSE TYPE 60 MICRON
Polycarb .175 G/G 8010
UV653 Match to Permark sample 264 Pink Line = CUTLINE
Grey White Background on all labels as per sample. Except where yellow.
200kg 200kgMAX
Internally Powered Medical
Electrical Equipment
Ensure that the handset cord is positioned
so it cannot become damaged during
PSBT adjustment.
Do not use in oxygen rich environments.
Keep battery
charged at all times
Mode: Max. 2min/20min
24 V DC
GAS STRUT IS
PRESSURISED
+
200kg
200kg
MAX
New Artwork P1307 D
15.04.19 DAB
Mode changed
C 17.06.10 AJW
PINK BOX IS
CLEAR, NO PRINT
COLOUR
Howard Wright Limited, Paraite Road, Bell Block, New Plymouth, New Zealand.
Model :
Date:
IPX5
:
SN
Australia: 1800 120 727 New Zealand: 0508 751 751 UK: 0845 094 9894
Mode: Max. 2min/20min
24 V DC
Distributed in the USA by:
SUREHANDS Lift and Care Systems
Pine Island, NY 10969
Phone: [phone]
[email protected]
Distributed in Europe by:
Handi-Move International nv
B-9400 Ninove - Belgium
Phone: [phone]
[email protected]
UK
UNITED
KINGDOM
UK label added E 25.07.19 DAB
Maximum safe working load (SWL), kg.
Warning: potential squeezing/shearing point.
Howard Wright Limited, Paraite Road, New Plymouth, NEW ZEALAND
Part # 1: ST9802
Part # 2:
PSBT LABEL SET
Description:
Parent Product: PSBT
Drawing Size: A3
Material:Rev
Colours: Pantone 637
Drawn ChkdDate New Artwork:
Adhesive:
Tooling:
Drawing Scale: 1:1
New Artwork Required
ORAFLO 1325 LSE TYPE 60 MICRON
Polycarb .175 G/G 8010
UV653 Match to Permark sample 264 Pink Line = CUTLINE
Grey White Background on all labels as per sample. Except where yellow.
200kg 200kgMAX
Internally Powered Medical
Electrical Equipment
Ensure that the handset cord is positioned
so it cannot become damaged during
PSBT adjustment.
Do not use in oxygen rich environments.
Keep battery
charged at all times
Mode: Max. 2min/20min
24 V DC
GAS STRUT IS
PRESSURISED
+
200kg 200kgMAX
New Artwork P1307 D
15.04.19 DAB
Mode changed
C 17.06.10 AJW
PINK BOX IS
CLEAR, NO PRINT
COLOUR
Howard Wright Limited, Paraite Road, Bell Block, New Plymouth, New Zealand.
Model :
Date:
IPX5
:
SN
Australia: 1800 120 727 New Zealand: 0508 751 751 UK: 0845 094 9894
Mode: Max. 2min/20min
24 V DC
Distributed in the USA by:
SUREHANDS Lift and Care Systems
Pine Island, NY 10969
Phone: [phone]
[email protected]
Distributed in Europe by:
Handi-Move International nv
B-9400 Ninove - Belgium
Phone: [phone]
[email protected]
UK
UNITED
KINGDOM
UK label added E 25.07.19 DAB
Battery location.
Howard Wright Limited, Paraite Road, New Plymouth, NEW ZEALAND
Part # 1: ST9802
Part # 2:
PSBT LABEL SET
Description:
Parent Product: PSBT
Drawing Size: A3
Material:Rev
Colours: Pantone 637
Drawn ChkdDate New Artwork:
Adhesive:
Tooling:
Drawing Scale: 1:1
New Artwork Required
ORAFLO 1325 LSE TYPE 60 MICRON
Polycarb .175 G/G 8010
UV653 Match to Permark sample 264 Pink Line = CUTLINE
Grey White Background on all labels as per sample. Except where yellow.
200kg 200kgMAX
Internally Powered Medical
Electrical Equipment
Ensure that the handset cord is positioned
so it cannot become damaged during
PSBT adjustment.
Do not use in oxygen rich environments.
Keep battery
charged at all times
Mode: Max. 2min/20min
24 V DC
GAS STRUT IS
PRESSURISED
+
200kg 200kgMAX
New Artwork P1307 D
15.04.19 DAB
Mode changed
C 17.06.10 AJW
PINK BOX IS
CLEAR, NO PRINT
COLOUR
Howard Wright Limited, Paraite Road, Bell Block, New Plymouth, New Zealand.
Model :
Date:
IPX5
:
SN
Australia: 1800 120 727 New Zealand: 0508 751 751 UK: 0845 094 9894
Mode: Max. 2min/20min
24 V DC
Distributed in the USA by:
SUREHANDS Lift and Care Systems
Pine Island, NY 10969
Phone: [phone]
[email protected]
Distributed in Europe by:
Handi-Move International nv
B-9400 Ninove - Belgium
Phone: [phone]
[email protected]
UK
UNITED
KINGDOM
UK label added E 25.07.19 DAB
Drain hose storage location.

8 Pacific Shower-Bathing Trolley Instructions For Use (ST9902, Version 7, 2021-10)
4.1 PART IDENTIFICATION - PACIFIC SHOWER-BATHING TROLLEY
4. PART IDENTIFICATION
Area of applied part
Other items supplied:
• Waterproof pillow
• Wall mounted battery charger
• Electric power cord for battery charger
Elevators
Drain hose
Battery & control
box (underneath tub
skirt)
Brake
castors (x3)
Push
handles (x2)
Handset Patient
platform (inside)
Drain
hole
& plug
Tub skirt
Steer
castor (x1)
Bogie
Tub
sides
Handset Storage
rail
Buffer rail
& rubber
Head end bracket
Storage hook
for drain hose
Drain hose
storage location
Storage hook for
siderail (x2)
Figure 4. Part Identification - Pacific Shower Bathing Trolley
Siderail (if fitted)
HEAD END FOOT END

Pacific Shower-Bathing Trolley Instructions For Use (ST9902, Version 7, 2021-10) 9
5. UNPACKING & COMMISSIONING
WARNING: Ensure that the handset cord is positioned so that it cannot become damaged during shower trolley
adjustment.
CAUTION: Ensure that all transport ties have been cut and removed before using the shower trolley.
CAUTION: Charge the battery as often as possible (minimum recommendation: six hours once every three
months). Fully discharging the battery will reduce its life.
CAUTION: Do not use near open fires or radiant heaters.
NOTE: To manoeuvre the shower trolley, release the brakes by setting the castors into the neutral position.
(see section 6.1).
To unpack and commission the shower trolley:
1. Remove any external packaging.
2. Cut and remove the transport ties.
(The locations of these ties will vary depending on how the shower trolley has been transported).
3. It will be necessary to fit the shower trolley’s castors if the shower trolley has been packaged in a carton. Fit the
steer castor at the right hand side, drain end. Special care must be taken so that it tracks in line with the shower
trolley. Fitment of the castors is only to be conducted by a competent person. Use a 19mm spanner.
4. In extreme temperatures allow 24 hours for the shower trolley to reach inside ambient temperature.
5. Install the battery (see section 6.3).
6. Check that the shower trolley is operating correctly (see section 6).

10 Pacific Shower-Bathing Trolley Instructions For Use (ST9902, Version 7, 2021-10)
6. OPERATION
6.1 CASTORS
see figures 5-7
WARNING: All castors must be locked when transfering a patient on or off the shower trolley and during bathing
operations.
CAUTION: Do not attempt to push the shower trolley sideways when the steer castor is in the steer position.
CAUTION: Ensure that the steer castor trails the direction of movement.
CAUTION: When moving the shower trolley from room to room, take care that handrails on hallway walls or
other sharp extrusions do not damage the upholstered top (tub
surface).
CAUTION: When moving the shower trolley from room to room, the patient
platform should be at, or near, its fully raised height to prevent
the drain hose from dragging on the floor.
CAUTION: Do not try to lock the shower trolley’s castors on a grade of more
than five degrees. The shower trolley is designed to operate
and lock in level situations only.
NOTE: To ensure that the steer castor locks in a position that trails the
direction of shower trolley’s movement:
1. Push the shower trolley a short distance in the intended
direction of travel, to align the castors.
2. Push the steer castor tab down towards the floor to lock.
3. Continue to push the shower trolley. An audible ‘click’ will
be heard when the steer castor locks in position.
NOTE: The steer castor is located on the right hand side at the drain
end and has a dark grey pedal. The other castor pedals are
light grey.
1. Brake position - All pedals down
In this position the castors are locked and cannot swivel or roll.
This prevents the shower trolley from moving during patient transfer, bathing
or clinical intervention.
1. To lock the castors, press each castor pedal down.
2. To release the brakes (neutral position) flip the castor pedals up.
2. Neutral position - All pedals up
In this position, the castors can swivel and roll freely and the shower trolley
can be pushed in any direction.
3. Steer position - steer pedal (dark grey) down
In this position, the steer castor cannot swivel and is locked to roll in line with
the length of the shower trolley.
This allows the shower trolley to be more easily steered. If pushed from either
end, the shower trolley will track in line with its length.

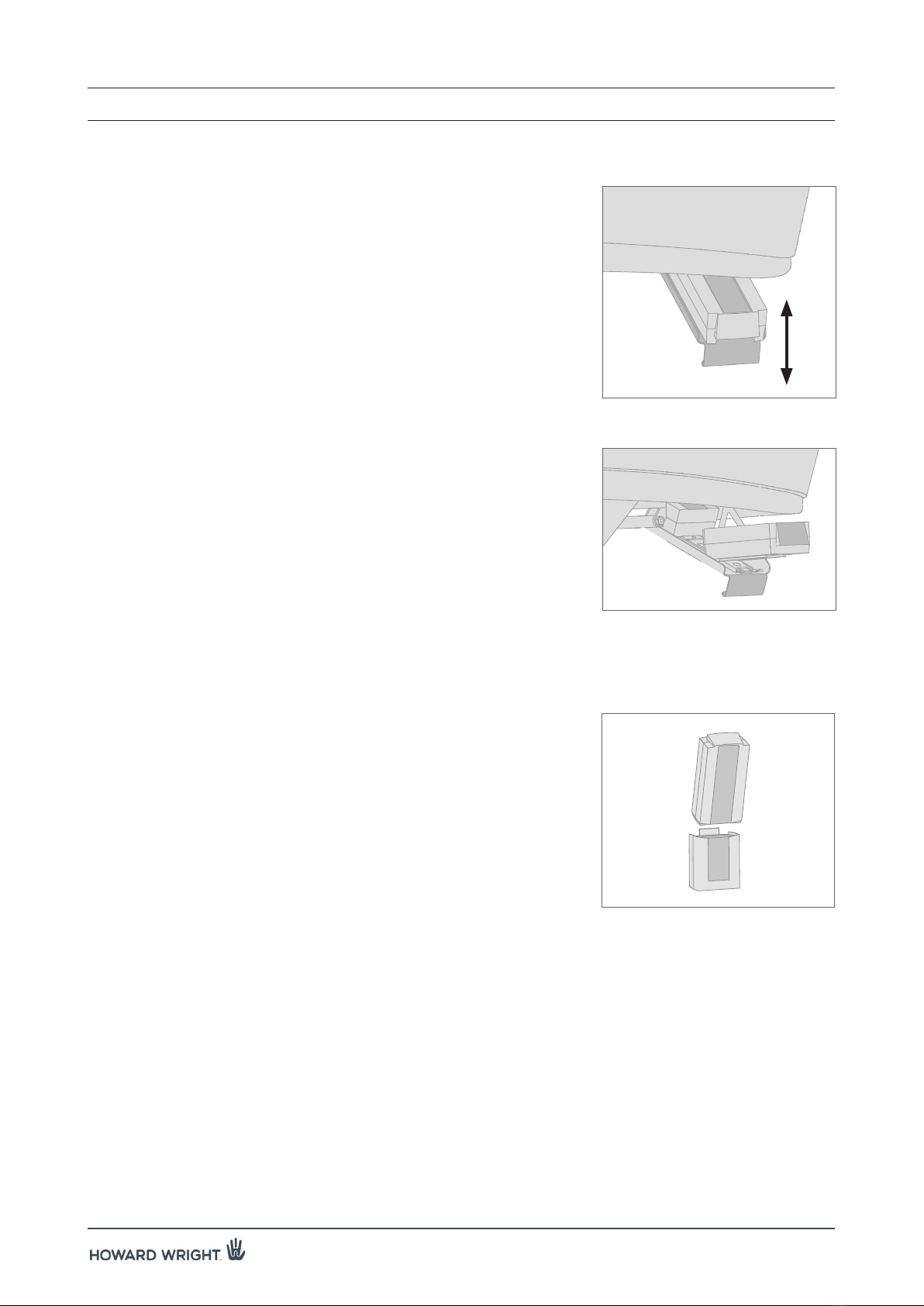

Figure 5. Castor pedal in brake position
Figure 6. Castor pedal in neutral position
Figure 7. Steer castor pedal in steer position

Pacific Shower-Bathing Trolley Instructions For Use (ST9902, Version 7, 2021-10) 11
6. OPERATION
6.2 ELECTRIC CONTROLS
WARNING: Do not operate the shower trolley controls so that moving parts of the shower trolley contact people
or surrounding objects.
WARNING: When left unattended, remove the battery to ensure no unauthorised use of the shower trolley
occurs.
WARNING: Never leave a patient unattended.
WARNING: Never insert the battery and touch the patient at the same time.
WARNING: When lowering the tub sides ensure that:
• The patient’s feet are clear of the drain end push handle.
• The patients arms or legs are not caught in the gutter between the tub sides and the
patient platform.
CAUTION: Do not operate the shower trolley controls for more than 2 minutes during a 20 minute period (i.e.
do not exceed the mode/duty cycle).
NOTE: It takes approximately 30 seconds to raise the patient platform or tub sides from the lowest to
the highest position. This also applies when lowering from the highest to the lowest position.
NOTE: Height adjustment will stop automatically when the tub reaches its maximum or minimum height.
Patient platform and tub side adjustments are powered by electric actuators.
Two actuators are used; one for each of the following functions:
1. Patient platform height.
2. Tub sides height.
The actuators are controlled by buttons on the handset.
6.2.1 HANDSET LOCATION
see figures 8-9
The handset can be stored on the head end bracket or at either side on the storage rails.

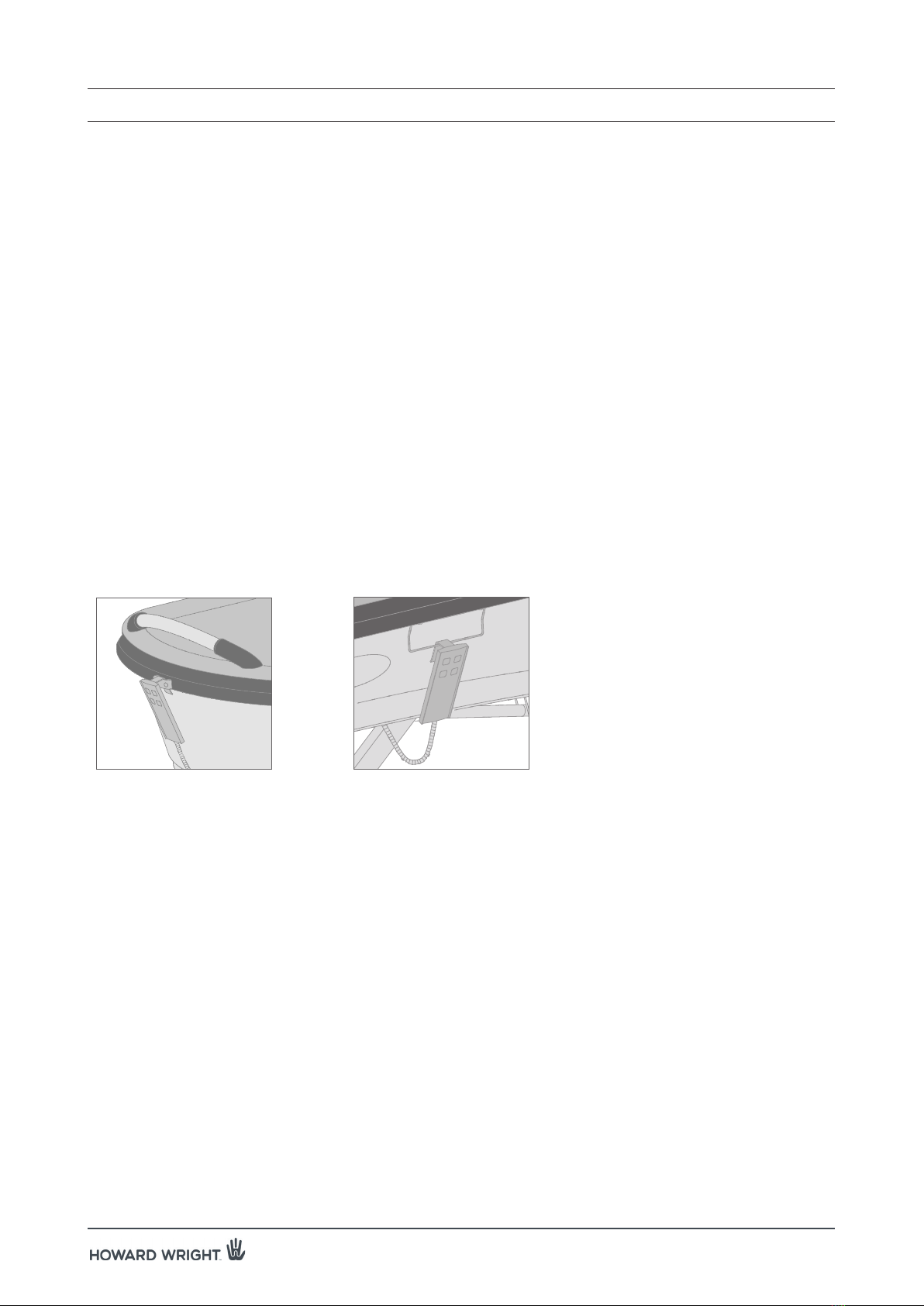

Figure 8. Head end bracket Figure 9. Storage rail

12 Pacific Shower-Bathing Trolley Instructions For Use (ST9902, Version 7, 2021-10)
6. OPERATION
6.2.2 BUTTON OPERATION
see figure 10
Adjustment occurs only while a button is pressed. Adjustment will stop when the button is released or the moving
actuator reaches the end of its range of adjustment.
To raise and lower the patient platform:
1. Before raising or lowering the patient platform, ensure all the castors are locked.
2. To raise the platform height, press the ”Patient platform up” button on the handset
3. To lower the platform height, press the ”Patient platform down” button on the handset.
To raise and lower the tub sides:
1. Before raising or lowering tub sides, ensure all shower trolley castors are locked.
2. To raise the tub sides, press the ”Tub sides up” button on the handset.
3. To lower tub sides, press ”Tub sides down” button on the handset.
+ -
Patient platform up Patient platform down
Tub sides down
Tub sides up
Low battery indicator light
Figure 10. Handset

Pacific Shower-Bathing Trolley Instructions For Use (ST9902, Version 7, 2021-10) 13
6. OPERATION
6.3 BATTERY AND BATTERY CHARGER
see figures 11-13
WARNING: The battery is heavy and should be supported with both hands
when releasing from the mount bracket.
WARNING: The battery should be charged regularly. Charge the battery
when the low level indicator light comes on.
WARNING: Before placing a patient onto the shower trolley ensure that
the battery is charged and the low battery indicator light on the
handset is off.
CAUTION: Fully discharging the battery will reduce its life.
CAUTION: Charge the battery as often as possible for a minimum of six
hours each time or until the “charge” LED extinguishes.
CAUTION: Do not expose the battery to an open flame or immerse it in
liquid.
NOTE: After reinstalling a charged battery check that all electric
functions operate. If no functions operate it is possible that the
battery has not been installed properly. Reinstall the battery as
described above.
NOTE: A green LED on the handset will illuminate and the control box
will ‘beep’ audibly during adjustment of either of the electric
functions when the battery charge is low.
NOTE: The charger will display the following LED lights:
• A yellow “Charge” LED on the charger indicates
whether the battery is charging.
• A green “On” LED on the charger indicates whether the
charger is connected to the power supply.
NOTE: The number of full load high-low (200kg) cycles (raising and
lowering the shower trolley) achievable using a new fully
charged battery is approximately 30. The number of tub up
and tub down cycles using a new fully charged battery is
approximately 100.
The battery is at the head end of the shower trolley, on a pull down battery
compartment, located behind the tub skirt.
The battery is a sealed lead-acid battery type and should be charged regularly
and not be allowed to discharge fully. Fully discharging the battery will reduce
its life.
The battery charger supplied with the shower trolley should be fitted to a wall
using the brackets supplied and be connected to a power supply.
Figure 11. Pulling down battery compartment
Figure 12. Attaching/removing battery to/
from battery compartment
Figure 13. Attaching/removing battery and
charger

14 Pacific Shower-Bathing Trolley Instructions For Use (ST9902, Version 7, 2021-10)
6. OPERATION
To remove the battery from the shower trolley for charging:
1. Pull down on the battery compartment handle to gain access to the battery (see figure 11).
2. Squeeze the battery release lever to disengage the battery from the mount bracket and lift. The battery will
disconnect from the control box (see figure 12).
3. Lift the battery out with both hands.
4. Return the battery compartment to its raised position to protect it from being knocked.
To charge the battery:
1. Hold the battery with one hand squeezing the release lever while using your other hand to hold or support the
front side of the battery.
2. Place the lower end of the battery onto the wall mounted battery charger with the upper (lever) side of the battery
slightly out from the bracket (see figure 13).
3. Push the upper (lever) side of the battery towards the wall bracket and release the lever. Ensure that the battery
clicks into place and that the yellow “Charge” LED (Light Emitting Diode) on the charger illuminates.
4. Ensure that the battery charger is connected to the power supply (as indicated by the green “On” LED on the
charger.
NOTE: The yellow “Charge” LED will extinguish once the battery has reached full charge.
To attach the battery to the shower trolley:
1. Ensure that the battery compartment is in its lowered position (see figure 11).
2. Using two hands to support the battery, slide the battery on the mount bracket up towards the control box.
Ensure that the battery latches securely (it should “click” into place).
3. Return the battery compartment to its raised position.
6.3.1 PLUG OPTION
To charge the battery please ensure you use the correct plug for your country/ region.
Australia, New Zealand
Japan
Europe
United Kingdom
North America

Pacific Shower-Bathing Trolley Instructions For Use (ST9902, Version 7, 2021-10) 15
6. OPERATION
6.4 DRAIN HOSE
see figures 14-15
The drain hose is located at the drain end of the shower trolley and can be stored
in the cutaway in the skirt (see figure 14). If needed the hose can be lifted off
the floor and placed into the storage hook for better clearance (see figure 14).
The drain hose is designed so that water can be drained away from the bathing
tub into a suitable wastewater collecting receptable such as a floor mounted
drain, toilet or basin.
To Drain Water from the shower trolley:
1. Ensure that the loose end of the drain hose is placed into the drainage area.
Make sure the drainage area is located lower in height than the patient platform
drain hole (raise the patient platform if necessary).
2. Remove the plug from the shower trolley’s drain hole to drain the water.
WARNING: When not in use the drain hose should be stored to avoid damage
to the hose or injury to the patient or personnel.
CAUTION: Ensure the drain hose end is placed into the drainage area before
bathing the patient.
NOTE: Curl the drain hose by gently twisting/turning the hose at the hose
end before stowing in the skirt cutaway. This will loop the hose and
prevent it from dragging on the floor during transportation/storage.
6.5 WATERPROOF PILLOW
A waterproof pillow is supplied with all shower trolleys. It is designed to provide comfort to the patient while being
bathed and gives support while washing the patient’s hair. (See section 6.7 Showering and bathing).
6.6 TRANSFERRING THE PATIENT TO THE SHOWER TROLLEY
WARNING: It is recommended that two caregivers transfer the patient to the shower trolley.
WARNING: Ensure the patient’s head is opposite the drain end of the shower trolley when transferring.
WARNING: Do not sit on the shower trolley ends. This may result in injury to the patient or personnel as well as
damage to the shower trolley.
WARNING: All castors must be locked when transferring a patient on or off the shower trolley and during bathing
operations.
WARNING: Remove both siderails before transferring the patient.
WARNING: Do not exceed the Safe Working Load (SWL) rating. The safe working load of the shower trolley is
200kg/440lbs. This includes the mass of the patient, the water in the tub and any accessories.
1. Place the shower trolley beside the patient’s bed.
2. Orientate the shower trolley so that the drain end is at the foot end of the patient’s bed.
3. Set all castors to the brake position.
4. Fully lower the tub sides and remove siderails if fitted.
5. Raise or lower the patient platform height to align with the height of the patient’s bed.
6. Transfer the patient.
7. Fully raise the tub sides and place the waterproof pillow under the patient’s head (if required).
Figure 14. Cutaway storage location for
drain hose
Figure 15. Storage hook for drain hose

16 Pacific Shower-Bathing Trolley Instructions For Use (ST9902, Version 7, 2021-10)
6. OPERATION
6.7 SHOWERING AND BATHING THE PATIENT
WARNING: Do not use water above 38°C (100°F) for bathing or showering a patient. Check the water
temperature BEFORE any water touches the patient. If a thermometer is unavailable hold your hand
above the water to initially check the temperature, then dip your elbow into the water to test.
WARNING: The shower mixer/device used in conjunction with the shower trolley must have a built-in safeguard
against the possible discharge of excessively hot water.
WARNING: The shower trolley is designed for bathing one patient at a time only.
WARNING: All castors must be locked when transferring a patient on or off the shower trolley and during
bathing operations.
WARNING: Use extreme caution if razors are being used while the patient is in shower trolley.
WARNING: The Safe Working Load is 200kg/440lbs.
CAUTION: Ensure the loose end of the drain hose is placed into the drainage area before bathing the patient.
NOTE: The drain plug can be used and the tub semi filled for immersion bathing or burns treatment.
NOTE: Patients can be showered or bathed wherever there is a suitable supply of water and drainage.
NOTE: The tub must be higher than the water drainage area so that water drains away naturally through the
drain hose.
1. If the patient is mobile lower the shower trolley to its low height to allow the patient to lie on the shower trolley.
2. Raise the tub sides so that the patient is contained within the shower trolley.
3. Raise the patient platform to a convenient height.
4. Ensure the free end of the drain hose is placed into the drainage area.
5. Place the waterproof pillow under the patients head (if required).
6. Shower the patient with a handheld spray head.
To wash the patient’s Hair:
1. Place the waterproof pillow under the patient’s head area, with the highest part of pillow placed under the patient’s
neck.
This allows the patient’s head to tilt back slightly providing better access to the patient’s hair.
2. Proceed to wash the patient’s hair.
To dry the patient:
1. Remove the drain plug (if in use) and drain the water from the tub.
2. Raise the patient platform to its highest height.
3. Dry and dress the patient on the raised shower trolley or lower the patient platform and tub sides to allow mobile
patients to get off the shower trolley with assistance for drying and dressing.

Pacific Shower-Bathing Trolley Instructions For Use (ST9902, Version 7, 2021-10) 17
6. OPERATION
6.8 SIDERAILS OPTION
see figures 16-19
WARNING: Siderails are not intended to be used as patient restraints or
to prevent the patient rolling off the platform.
CAUTION: Siderails should be removed during patient transfer.
CAUTION: Do not sit or stand on siderails.
NOTE: Siderails should always be stored in the storage hooks when
not in use.
The siderails are located on either side of the shower trolley.
The siderails are designed to aid the patient during the bathing process i.e.
the patient can hold on to the siderail for support when lying on their side
or rolling over.
To release:
1. Press the release buttons on the siderail legs and lift the siderail out of its
sockets (see Figure 16 and 17).
The siderails should be placed on the storage hooks on either side of the
shower trolley when not in use.
Figure 16. Siderail in use
Figure 17. Siderail release buttons
Figure 18. Siderail released
Figure 19. Siderail storage position

18 Pacific Shower-Bathing Trolley Instructions For Use (ST9902, Version 7, 2021-10)
7. CLEANING
WARNING: Clean and disinfect the shower trolley after each use.
CAUTION: Before cleaning, set the castors to the brake position.
CAUTION: Do not use abrasive cleaning products.
CAUTION: Do not use a water temperature of more than 50°C (122°F).
CAUTION: Do not use excessive water.
CAUTION: Do not use a steam cleaner, washing tunnel, high-pressure spray, or hose.
CAUTION: Do not direct water underneath the bogie cover or underneath the tub skirt.
CAUTION: Do not immerse the product in water.
CAUTION: Do not clean or degrease the steel shafts of the actuators.
CAUTION: Use only approved cleaning products. If bleach is necessary strictly adhere to the BLEACH
CLEANING instructions (section 7.3).
CAUTION: Keep sharp objects such as razors etc. away from the tub top.
CAUTION: Do not use oil based products.
CAUTION: Do not unplug the handset or actuators from the control box for cleaning.
NOTE: For a list of approved cleaning products go to the Howard Wright Limited website
http://www.howardwrightcares.com
7.1 CLEANING ALL SURFACES
To wash:
• Raise the tub sides to full height so that the fabric is taut.
Ensure the free end of the drain hose is placed in drainage area.
• Flush the whole surface with fresh warm water (less than 50°C, 122°F).
• Wipe bogie and frame with a sponge or soft cloth wetted with warm water containing soap or mild detergent.
To dry:
• Leave the tub sides raised to drain and dry.
• Wipe dry with a clean, soft cloth or sponge.
• Lower the tub sides after drying is complete.
To disinfect the tub:
• Wash the surface.
• Wipe the surface with a sponge or soft cloth wetted with an approved disinfectant.
• Flush the whole surface with fresh warm water (less than 50°C,122°F)
• Wipe off residual water using a soft cloth or sponge.
• Dry.
