System Unit
1 Front bezel assembly with sub panel, 5.25” bezel
blank, and diskette drive bezel (unpainted, for Blue
Angel use only)
336441-001
1 Front bezel assembly with sub panel, 5.25” bezel
blank, and diskette drive bezel 336443-001
2 Computer access panel 336444-001
3 Chassis assembly not spared
4Power supply, PFC 308615-001
Mass Storage Devices (not illustrated)
40 GB\5400 RPM Hard drive 236921-001
80 GB\5400 RPM Hard drive 292208-001
40 GB\7200 RPM Hard drive 286692-001
80 GB\7200 RPM Hard drive 250185-001
160 GB/7200 RPM Hard drive 325306-001
Diskette drive with mounting screws 333505-001
48X CD-ROM drive with mounting screws 326773-001
48X/24X/48X CDRW 325308-001
48X/24X/48X +16X DVD/CD-RW 325309-001
4X DVD+R/RW 325317-001
16/40X DVD ROM Drive 325313-001
Zip 250 Drive with mounting bracket 333504-001
Zip 250 drive without mounting bracket 326772-001
PC MCIA drive bay reader 331589-001
MultiBay drive adapter 335805-001
24X/10X/24X/8X CD-RW/DVD-ROM MultiBay
drive 325312-001
24X CED-ROM MultiBay drive 325314-001
24/10/24X CD-RW MultiBay drive 325315-001
8X/24X DVD-ROM MultiBay drive 325316-001
Easy Access Keyboards (not illustrated)
PS/2 325445-xxx
Danish -081 International -B31
French -051 Italian -061
German -041 Swedish -101
Easy Access Keyboards (not illustrated)
PS/2
Wireless
USB
USB
323686-xxx
323745-xxx
324634-xxx
323746-xxx
Arabic -171 Japanese -291
Belgian -181 Korean (Hanguel) -AD1
BHCSY -B41 LA Spanish -161
Brazilian Portuguese -181 Norwegian -091
Czech -221 PRC -AA1
Danish -081 Polish# -241
Finnish -351 Portuguese -131
French -051 Russian -251
French Arabic* -DE1 Slovakian -231
French Canadian -121 Spanish -071
German -041 Swedish -101
Greek -151 Swiss## -111
Hebrew -BB1 Taiwanese -AB1
Hungarian**# -211 Thai -281
International -B31 Turkish -141
International** -021 U.S. -001
Italian -061 U.K. -031
*not for 323686-xxx
**for 324634-xxx only #for 323686-xxx only ##not for 324634-xxx
Cables
1IDE cable, 15.25”, two device (108950-047) 336448-001
2Power switch/LED cable with switch holder 336447-001
3Diskette drive cable (143218-006) 333875-001
4IDE cable, 12.5”, two device (108950-046) 333876-001
*# DVI graphics cable 285380-001
*# VGA graphics cable 285379-001
*# DVI-VGA graphics adapter 202997-001
*CD-ROM Audio cable (387527-001) 149806-001
*Not shown
#Use with 322893-001, 274623-001, and 274622-001
Miscellaneous Screw Kit (not illustrated)
Miscellaneous screw kit 337237-001
M3 x 5mm, hitop (263585-001) 4 ea
#6-32 x .250, hitop (262508-001) 8 ea
#6-32 x .250, pan head (101517-037) 3 ea
#6-32 x .312, hitop (262508-002) 4 ea
#6-19 x .312, pan head (101346-068) 2 ea
#6-19 x .315, T15 head (331310-001) 2 ea
© 2003 Hewlett-Packard Development Company, L.P.
HP and the HP logo are trademarks of Hewlett-Packard
Development Company, L.P.
All other product names mentioned herein may be
trademarks of their respective companies.
HP shall not be liable for technical or editorial errors or
omissions contained herein. The information in this
document is provided “as is” without warranty of any kind
and is subject to change without notice. The warranties for
HP products are set forth in the express limited warranty
statements accompanying such products. Nothing herein
should be construed as constituting an additional
warranty.
May 2003
Document Number
335683-002
hp compaq d530 Series Personal
Computer

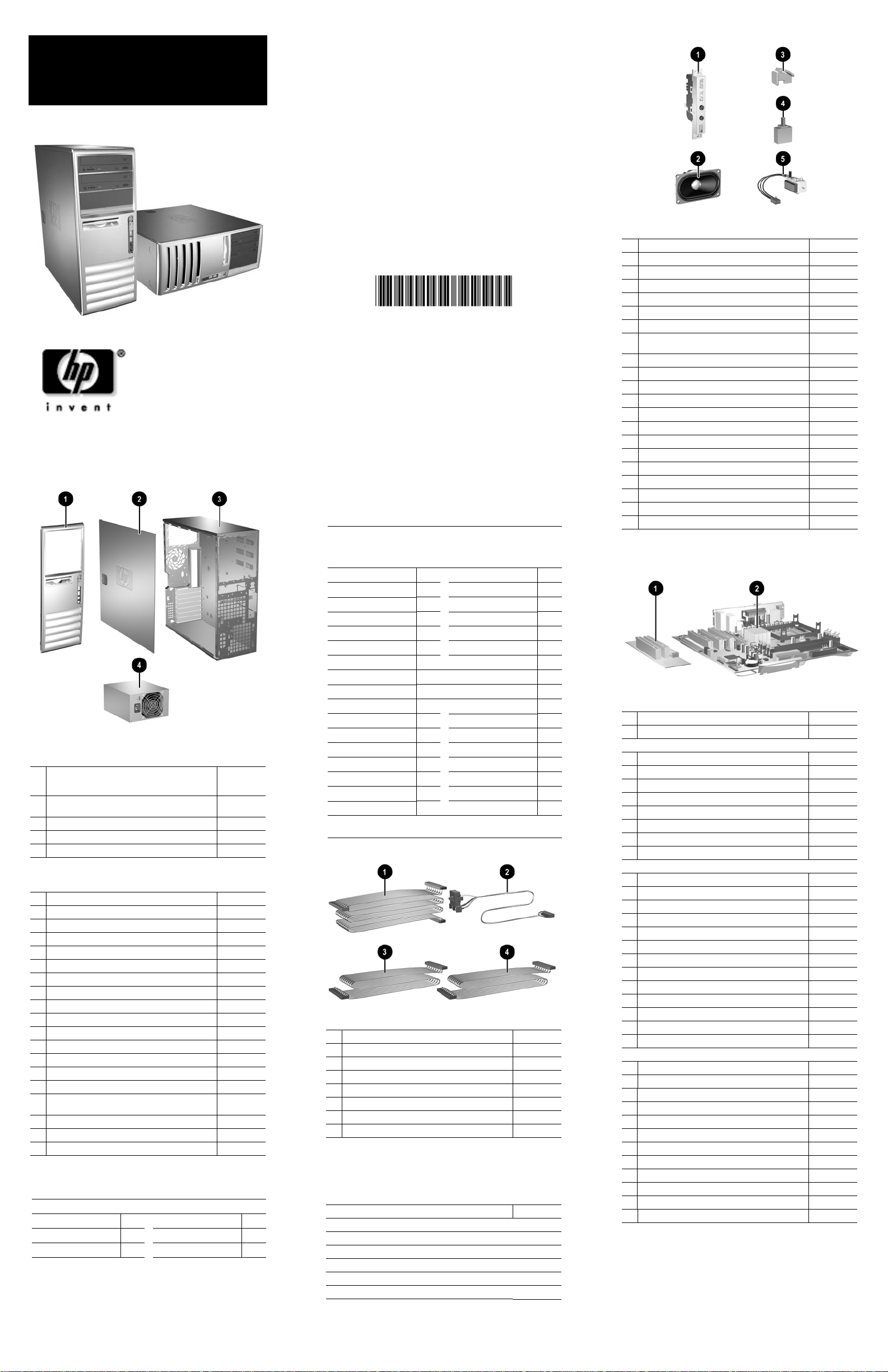

illustrated parts map
convertible minitower
Miscellaneous Parts
1Front I/O device 336446-001
2 Speaker 326776-001
3 PCI latch kit 339808-001
4 Hood sensor 267529-001
5 Solenoid lock with cable 336442-001
* 5.25” Bay bezel blank 335937-001
* Diskette drive bay bezel blank 336581-001
*# Heatsink with thermal grease and alcohol pad (see
reverse side) 333866-001
* Chassis fan 330457-001
* Mouse, 2-Button, PS/2 with scroll wheel 323614-001
* Mouse, 2-Button, USB, optical with scroll wheel 323617-001
* Mouse, 2-Button, wireless with scroll wheel 323616-001
* Mouse, 2-Button, USB, with scroll wheel 323615-001
* Rubber foot (4 ea) 336445-001
* Drive Key, 16 MB 324780-001
* Drive Key, 64 MB 331465-001
* Drive Key, 128 MB 331466-001
* Return kit with buns 337910-001
* Real-time-clock battery 153099-001
* Port control cover 340400-001
* PCI extender card tray 335817-001
*Not shown
#See back side for more information
Standard and Optional Boards
1PCI extender card 252609-001
2System board with alcohol pad and thermal grease 323091-001
Memory Modules
* 128 MB/400 MHz FSB 335697-001
* 256 MB/400 MHz FSB 335698-001
* 512 MB/400 MHz FSB 335699-001
* 1.0 GB/400 MHZ FSB 335700-001
* 128 MB/333 MHz FSB 314795-001
* 256 MB/333 MHz FSB 314793-001
* 512 MB/333 MHz FSB 314796-001
* 1.0 GB/333 MHZ FSB 314794-001
Intel Processors with alcohol pad and thermal grease
* Celeron 2.0 GHz processor 309578-001
* Celeron 2.2 GHz processor 321723-001
* Celeron 2.3 GHz processor 335136-001
* Pentium 2.4 GHz processor 288689-001
* Pentium 2.53 GHz processor 333485-001
* Pentium 2.66 GHz processor 305579-001
* Pentium 2.8 GHz processor 305051-001
* Pentium 3.0 GHz processor 315637-001
* Pentium 2.4 GHz processor with Hyperthreading 335812-001
* Pentium 2.6 GHz processor with Hyperthreading 333863-001
* Pentium 2.8 GHz processor with Hyperthreading 333864-001
* Pentium 3.0 GHz processor with Hyperthreading 333865-001
* Pentium 3.2 GHz processor with Hyperthreading 335813-001
Other Cards
* TPM security module 320163-001
* Broadcom Gigabit NIC 321793-001
* Intel Gigabit NIC 314901-001
* Wireless LAN PCI Adapter (802.11) 332963-001
* nVidia GeForce2 MX400, 32 M, ATX bkt 309492-001
* nVidia GeForce4 MX440, 64 M, ATX bkt 322891-001
* nVidia Quadro4 400 NVS, 64M, ATX bkt 274623-001
* nVidia Quadro4 200 NVS, 32 M, ATX bkt 274622-001
* nVidia Quadro4 100 NVS, 64 M, ATX bkt 322893-001
* nVidia Quadro4 100 NVS, PCI, 64 M, ATX bkt 322892-001
* AGP card with DVI output, low profile bkt 335815-001
* DVI ADD 4-layer card 325833-001
*Not shown

Interchangeable Heatsinks
Heat Sink Removal
System Board Connectors and Jumpers (position of some untitled components may vary in location)
E49 Password jumper P21 Secondary IDE
J20 PCI slot 1 P23 Front audio/USB
J21 PCI slot 2 P27 Miulti Bay
J22 PCI slot 3 P29 SCSI LED
J30 PCI slot extender P30 Primary Serial ATA (SATA) Port
J40 AGP slot P31 Secondary Serial ATA (SATA) Port
P1 Main power (20 pin) P54 Serial Port “B”
P3 CPU regulator power (4 pin) P70 CPU fan
P5 Front panel P124 Hood lock
P6 Internal chassis speaker P125 Hood sensor
P7 CD audio in SW50 CMOS button
P8 Chassis fan XBT1 Battery
P10 Diskette drive XMM1 Memory socket
P11 Aux audio in XMM2 Memory socket
P14 Boot block XMM3 Memory socket
P16 Power supply fan control XMM4 Memory socket
P20 Primary IDE XU100 Security
PCI Extender Card Connectors and Jumpers
J23 PCI slot 4 P30 Male expansion plug
J24 PCI slot 5
System Hardware Interrupts
IRQ System Function IRQ System Function
0Timer Interrupt 8 Real-Time Clock
1Keyboard 9 Unused
2Interrupt Controller Cascade 10 Unused, available for PCI
3Serial Port (COM B) 11 Unused, available for PCI
4Serial Port (COM A) 12 Mouse
5Unused, available for PCI 13 Coprocessor
6Diskette Drive 14 Primary ATA (IDE) Controller
7Parallel Port (LPT 1) 15 Secondary ATA (IDE) Controller
Computer Diagnostic LEDs (on front of computer)
LED Color LED Activity State/Message
Power Green On (S0) Computer on
Power Green 1 blink every 2 seconds (S1) Suspend Mode
Power Green 1 blink every 2 seconds (S3) Suspend to RAM
Power Green Off (S4) Suspend to Disk (if applicable)
Power Clear Off (S5) Computer off
Power Red 1 blink followed by 2-second
pause - Repeat Power Supply failure
Power Red* 2 blinks 1 second apart CPU thermal shutdown
Power Red* 3 blinks 1 second apart CPU not installed
Power Red* 4 blinks 1 second apart Power supply overload ( crow bar)
Power Red* 5 blinks 1 second apart No memory
Power Red* 6 blinks 1 second apart No graphics
Power Red* 7 blinks 1 second apart System board failure (detected prior to video)
Power Red* 8 blinks 1 second apart Invalid ROM
Hard Drive Green Blinking Hard drive activity
*Blinking codes are repeated after a 2 second pause.
Keyboard Diagnostic LEDs, PS/2 Keyboards O nly
LED Color LED Activity State/Message
Num, Caps,
Scroll Lock Green On (Rising Tone) ROM reflashed successfully
Num Lock Green On ROMPaq diskette not present, is bad, or drive
not ready.*
Caps Lock Green On Enter password.
Num, Caps,
Scroll Lock Green Blink On in sequence, one at a time - N, C, SL Keyboard locked in network mode
* Insert valid ROMPaq diskette in drive A. Turn power switch off, then on to reflash ROM. If ROM flash is successful, all
three keyboard LEDs will light up, and you will hear a rising tone series of beeps. Remove diskette and turn power off,
then on to restart the computer. For more information about flashing the ROM, refer to the Troubleshooting guide.
Clearing CMOS*
The computer's configuration (CMOS) may occasionally be corrupted. If it is, it is necessary to clear the CMOS
memory using switch SW50.
To clear and reset the configuration, perform the following procedure:
1. Prepare the computer for disassembly.
ÄCAUTION: The power cord must be disconnected from the power source before pushing the Clear CMOS
Button (NOTE: All LEDs on the board should be OFF). Failure to do so may damage the system board
2. Remove the access panel.
3. Press the CMOS button located on the system board and keep it depressed for 5 seconds.
4. Replace the access panel.
5. Turn the computer on and run F10 Computer Setup (Setup-utility) to reconfigure the system.
*When the CMOS button is pushed or the jumper is removed, both the power-on password and the setup password
become invalid because both are stored in the configuration memory. You will need to reset the passwords.
Disabling or Clearing the Power-On and Setup Passwords*
1. Turn off the computer and any external devices, and disconnect the power cord from the power outlet.
2. Remove the access panel.
3. Locate the header and jumper labeled E49.
4. Remove the jumper from pins 1 and 2. Place the jumper over pin 2 only, in order to avoid losing it.
5. Replace the access panel.
6. Plug in the computer and turn on power. Allow the operating system to start.
NOTE: Placing the jumper on pin 2 clears the current passwords and disables the password features.
7. To re-enable the password features, repeat steps 1-3, then replace the jumper on pins 1 and 2.
8. Repeat steps 5-6, then establish new passwords.
Refer to the Computer Setup (F10 Setup) instructions to establish new passwords.
*When the CMOS button is pushed or the jumper is removed, both the power-on password and the setup password
become invalid because both are stored in the configuration memory. You will need to reset the passwords.
Computer Setup (F10) Utility Features (not all features may be available)
File System Information About
Set Time and date
Save to Diskette
Restore From Diskette
Set defaults and Exit
Ignore Changes and Exit
Save Changes and Exit
Storage Device Configuration
Options IDE DPS Self-Test Controller Order SCSI Narrow Termination Boot Order
Security Setup Password
Power-On Password
Password Options
Smart Cover
Smart Sensor
DriveLock
Master Boot Record Security
Save Master Boot Record
Restore Master Boot Record
Device Security
Network Service Boot
System IDs
Advanced Power-On Options
Onboard devices PCI Devices Bus Options Devise Options PCI VGA Configuration
Note: See Computer Setup (F10) Utility Guide on the Documentation Library CD.
