Component identificationComponent identification
Component identification 8

Front panel componentsFront panel components

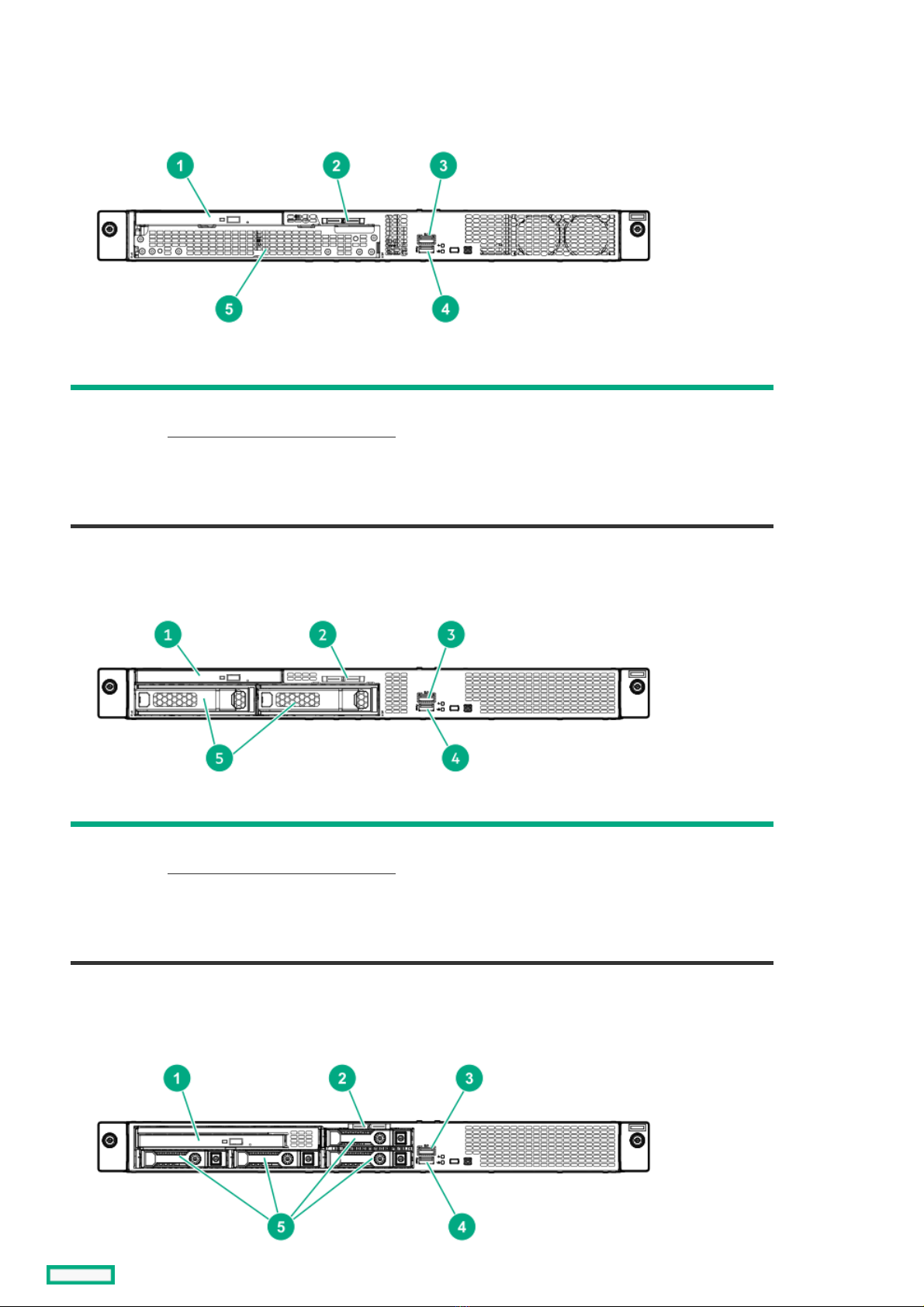

Two-bay LFF non-hot-plug drive modelTwo-bay LFF non-hot-plug drive model
ItemItem DescriptionDescription
1 Optical drive (optional)
2 Serial number/iLO information pull tab
3 iLO Service Port
4 USB 3.0 port
5 LFF non-hot-plug drive cage
Two-bay LFF hot-plug drive modelTwo-bay LFF hot-plug drive model
ItemItem DescriptionDescription
1 Optical drive (optional)
2 Serial number/iLO information pull tab
3 iLO Service Port
4 USB 3.0 port
5 LFF hot-plug drives
Four-bay SFF hot-plug drive modelFour-bay SFF hot-plug drive model
Front panel components 9

ItemItem DescriptionDescription
1 Media bay
2 Serial number/iLO information pull tab
3 iLO Service Port
4 USB 3.0 port
5 SFF hot-plug drives
The media drive bay supports an optical drive or a two-bay SFF drive cage.
Six-bay SFF hot-plug drive modelSix-bay SFF hot-plug drive model
ItemItem DescriptionDescription
1 Serial number/iLO information pull tab
2 iLO Service Port
3 USB 3.0 port
4 SFF hot-plug drives
1
1
Front panel components 10

Serial number/iLO information pull tabSerial number/iLO information pull tab
The serial number/iLO information pull tab is double-sided. One side shows the server serial number and the customer asset tag label.
The other side shows the default iLO account information and QR code label.
Use a mobile device to scan the QR code label to display the server mobile product page ( https://www.hpe.com/qref/dl20gen10https://www.hpe.com/qref/dl20gen10). This
page contains links to server setup information, spare part numbers, QuickSpecs, troubleshooting resources, and other useful product
links.
Serial number/iLO information pull tab 11

Front panel LEDs and buttonsFront panel LEDs and buttons

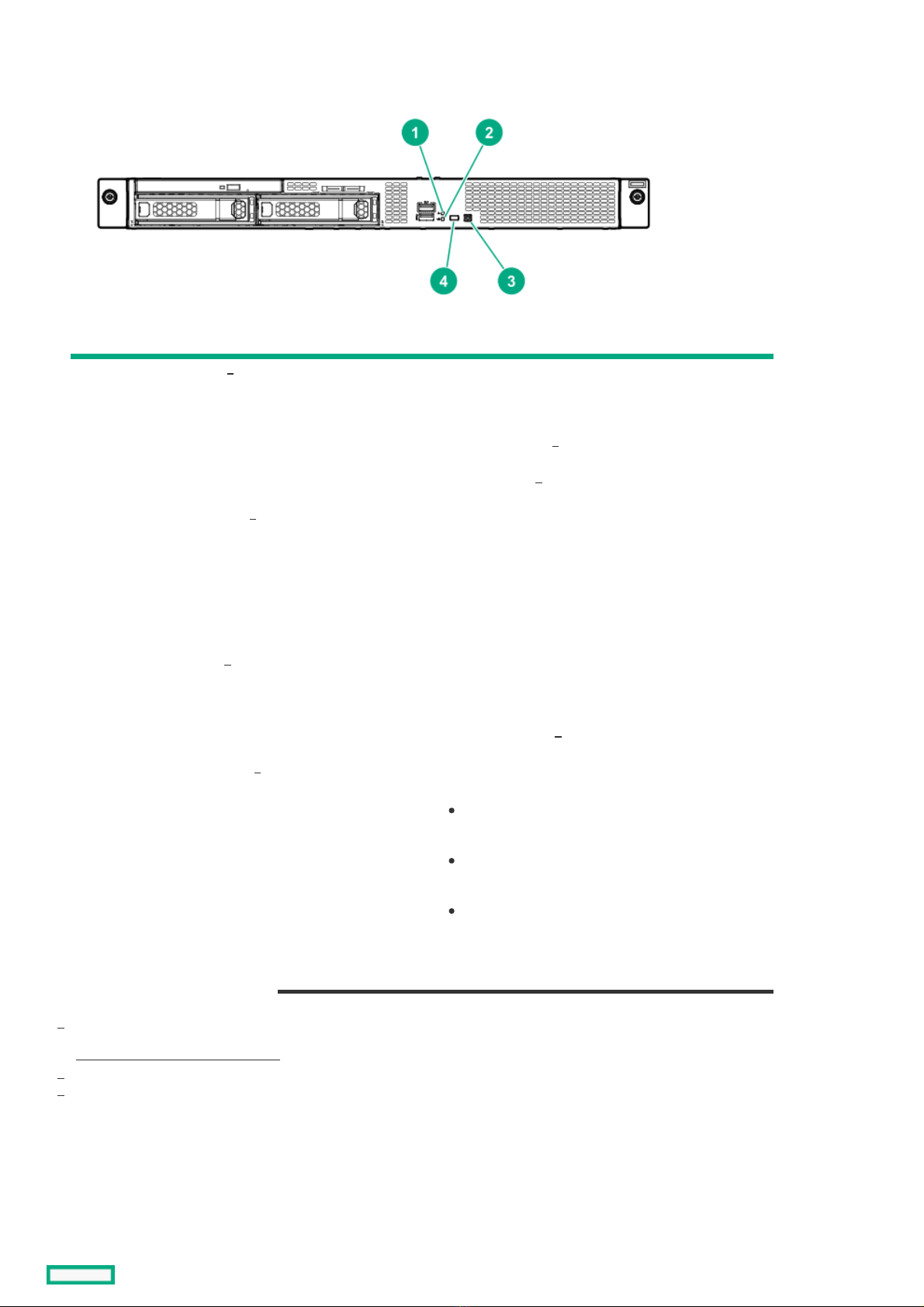

ItemItem DescriptionDescription StatusStatus DefinitionDefinition
1 Health LED Solid green Normal
Flashing green iLO is rebooting
Flashing amber System degraded
Flashing red System critical
2 NIC status LED Solid green Linked to network
Flashing green Network active
Off No network activity
3 Power On/Standby
button and system
power LED
Solid green System on
Flashing green Performing power-on sequence
Solid amber System in standby
Off No power present
4 UID button/LED Solid blue Activated
Flashing blue 1 flash per second = Remote management or
firmware upgrade in progress
4 flashes per second = iLO manual reboot sequence
initiated
8 flashes per second = iLO manual reboot sequence
in progress
Off Deactivated
When the LEDs described in this table flash simultaneously, a power fault has occurred. For more information, see
Front panel LED power fault codes
.
If the health LED indicates a degraded or critical state, review the system IML or use iLO to review the system health status.
Facility power is not present, power cord is not attached, no power supplies are installed, or power supply failure has occurred.
1
2
2
1
1
3
1
1
2
3
Front panel LEDs and buttons 12

Server UID LEDServer UID LED
The UID LED is used to locate a particular server when it is deployed in a dense rack with other equipment. Activating the UID LED helps
an on-site technician to quickly identify a server for maintenance tasks.
Server UID LED 13

UID button functionalityUID button functionality
The UID button can be used to display the Server Health Summary when the server will not power on. For more information, see the iLO
user guide on the Hewlett Packard Enterprise website (https://www.hpe.com/support/ilo-docshttps://www.hpe.com/support/ilo-docs).
UID button functionality 14

Front panel LED power fault codesFront panel LED power fault codes
The following table provides a list of power fault codes, and the subsystems that are affected. Not all power faults are used by all
servers.
SubsystemSubsystem LED behaviorLED behavior
System board 1 flash
Processor 2 flashes
Memory 3 flashes
Riser board PCIe slots 4 flashes
FlexibleLOM 5 flashes
Storage controller 6 flashes
System board PCIe slots 7 flashes
Power backplane 8 flashes
Storage backplane 9 flashes
Power supply 10 flashes
PCIe expansion cards installed in riser board 11 flashes
Chassis 12 flashes
GPU card 13 flashes
Front panel LED power fault codes 15

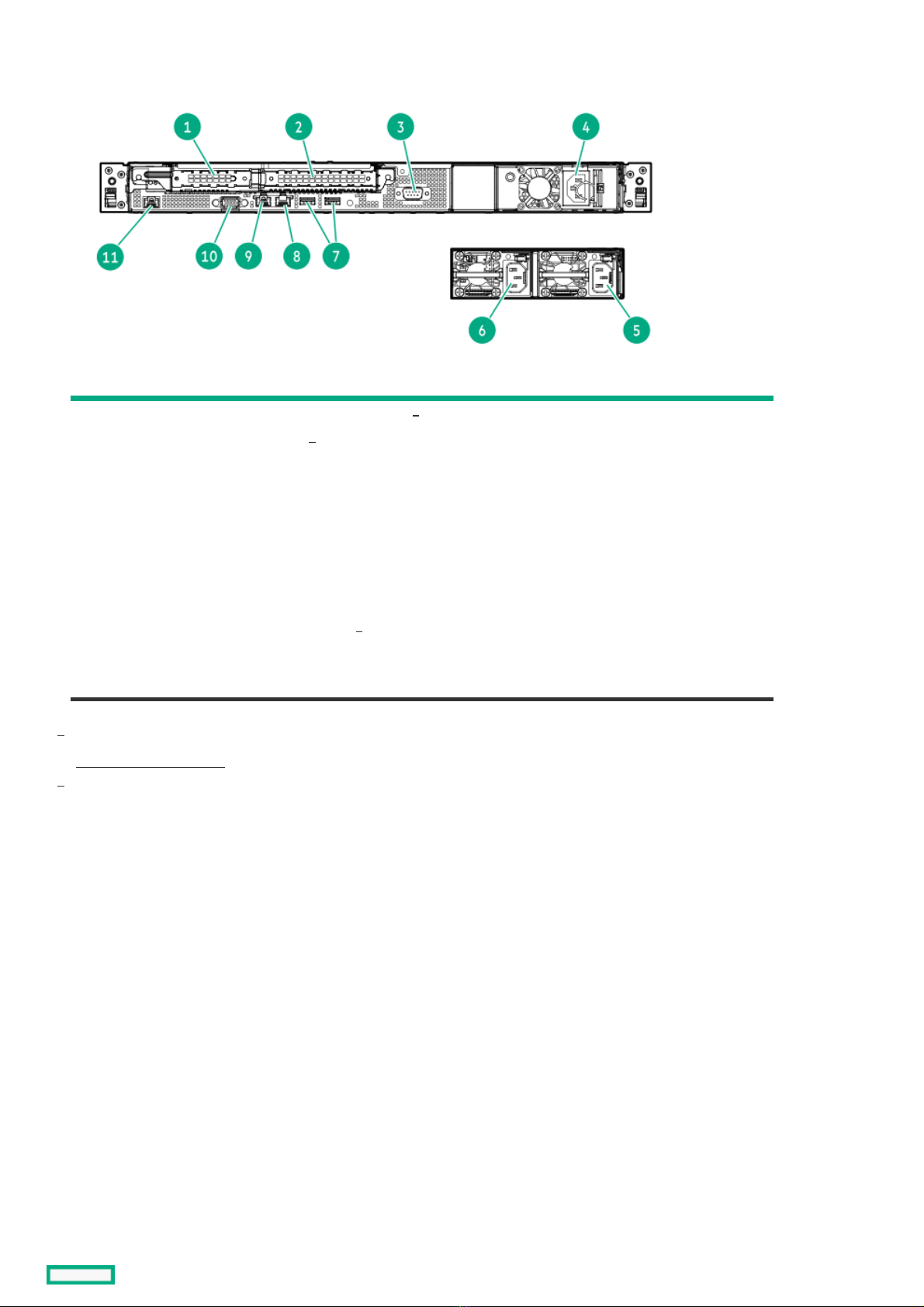

Rear panel componentsRear panel components
ItemItem DescriptionDescription
1 Slot 1 PCIe3 x8 (8, 4, 1)/FlexibleLOM slot
2 Slot 2 PCIe3 x8 (8, 4, 1)
3 Serial port (optional)
4 Non-hot-plug power supply
5 Hot-plug power supply bay 1 (optional)
6 Hot-plug power supply bay 2 (optional)
7 USB 3.0 ports (2)
8 NIC port 2
9 NIC 1/iLO Shared Network Port
10 VGA port
11 iLO Dedicated Network Port (optional)
For more information, see
PCIe riser slot definitions
.
When a FlexibleLOM adapter is installed in a server with default iLO settings, the shared iLO port function is assigned to port 1 of the
FlexibleLOM adapter.
1
1
2
1
2
Rear panel components 16

Rear panel LEDsRear panel LEDs
ItemItem LEDLED StatusStatus DefinitionDefinition
1 UID Solid blue Activated
Flashing blue System is being managed remotely.
Off Deactivated
2 Power supply Solid green Normal
Off System is off or power supply has failed.
3 NIC/iLO status Solid green Linked to network
Flashing green Network active
Off No network activity
4 NIC link Solid green Network link
Off No network link
5 iLO status Solid green Linked to network
Flashing green Network active
Off No network activity
6 iLO link Solid green Network link
Off No network link
Rear panel LEDs 17

System board componentsSystem board components
ItemItem DescriptionDescription
1 PCIe riser connector
2 System maintenance switch
3 M.2 SSD slot
4 Controller backup power connector for slot 1
5 Fan connector 2
6 Fan connector 1
7 System battery
8 Chassis intrusion detection switch
9 Non-hot-plug or Flexible Slot power supply connector
10 Two-bay SFF drive sideband connector
11 Energy pack connector
12 Non-hot-plug or Flexible Slot power supply sideband connector
13 Flexible Slot power supply connector
14 x1 SATA port 2
15 Drive backplane and optical drive power connector
16 x1 SATA port 1
17 x4 SATA port (Mini-SAS connector)
1
System board components 18

18 Fan connector 3
19 Controller backup power connector for slot 2
20 TPM connector
21 Smart Array modular controller connector (AROC)
22 Internal USB 3.0 connector
ItemItem DescriptionDescription
For more information on the supported riser board slots, see
PCIe riser slot definitions
.
1
System board components 19

System maintenance switch descriptionsSystem maintenance switch descriptions
PositionPosition DefaultDefault FunctionFunction
S1 Off Off = iLO 5 security is enabled.
On = iLO 5 security is disabled.
S2 Off Reserved
S3 Off Reserved
S4 Off Reserved
S5 Off Off = Power-on password is enabled.
On = Power-on password is disabled.
S6 Off Off = No function
On = Restore default manufacturing settings
S7 Off Reserved
S8 — Reserved
S9 — Reserved
S10 — Reserved
S11 — Reserved
S12 — Reserved
To access the redundant ROM, set S1, S5, and S6 to On.
When the system maintenance switch position 6 is set to the On position, the system is prepared to restore all configuration settings
to their manufacturing defaults.
When the system maintenance switch position 6 is set to the On position and Secure Boot is enabled, some configurations cannot be
restored. For more information, see Secure Boot.
1
1
1,2,3
1
2
3
System maintenance switch descriptions 20
