Feed CDs through the slot in the
safety element only.
english
The shredder is designed exclusively for de-
stroying paper. Depending on the cutting type, it
can also handle small quantities of the following
materials:
Shred width (mm) 3.9 5.8 1.9x15 4.5x30
Credit and charge cards ●●●●
CDs ●●
Its sturdy drive mechanism is not damaged by
paper clips and staples.
The warranty period for the document shredder
is 2 years. In addition, there is a 10 year guar-
antee on the solid steel blade rollers. This war-
ranty and guarantee exclude wear and damage
caused by improper handling or actions taken
by third parties.
Keep paper shredder out of the
reach of children. Do not let the
shredder run if the person using it
is not present.
Switch the shredder off and dis-
connect it from the mains if it is
damaged, not working correctly or
before relocating or cleaning it.
Service work may only be carried
out by HSM Customer Service or
by the service technicians of our
contractual partners.
• Make sure the mains plug is easily accessi-
ble.
• Before plugging in the mains plug, check
that the voltage and frequency of your local
mains supply correspond to those stated on
the type plate.
• This paper shredder should never be placed
near or over a radiator or heat source. The
ventilation slots must not be blocked or cov-
ered and they must be at a distance of at
least 5 cm away from walls or furniture.
•
Make sure no liquid is spilled on or in the paper
shredder.
• Read the operating instructions before
switching on the document shredder. Save
these instructions for later use.
• Follow all warnings and instructions marked
on the product!
Risk of injury!
Do not reach into the paper feed
slot.
Risk of injury from being pulled
in!
Keep long hair, loose articles of
clothing, ties, scarves, jewellery,
etc. away from feed opening.
Material with the tendency to form
loops, e.g. tapes, strapping mate-
rial, etc. must not be shredded.
Danger of injury by splinters!
Feed CDs through the slot in the
safety element only.
1 Proper use, warranty
2 Safety instructions
Translation of the original operating instructions
0804 9
http://www.monomachines.com
http://www.monomachines.com

english
1 Safety instructions
2 Feed opening for CDs
3 Safety element / splinter protection
4 Operating and display unit
5 Name plate
6 Shredded material container
7 Feed opening for paper and credit cards
8 Light barrier
3 Machine components
Operating and display elements
Reverse button
Display options:
Container full
Cutting unit blocked
Container open
Ready for operation
Operation button
Switching on the shredder
• Press the operation button.
hThe “Ready for operation” indicator lights up.
Shredding paper
• When you feed paper, the light barrier auto-
matically starts the cutting unit.
hTwo seconds after the light barrier in the
paper feed opening is free again, the cut-
ting unit is switched off automatically and the
shredder switches to standby.
Note:
You can fold the safety
element upwards to
shred larger quantities
of paper. This makes it
easier to access the feed
opening.
Shredding CDs
(only in cut size: 3.9 mm, 5.8 mm)
• Switch the shredder to permanent mode:
Press the operation button for four seconds.
• Only feed the material
into the insertion slot of
the safety element (splin-
ter protection).
• Switch off permanent mode: Press the
operation button.
Shredding credit cards
Feed the cards through the CD slot when the
cut size is 3.9 mm and 5.8 mm. For other ma-
chines, use the opening for paper.
Switching off the shredder
• Press the operation button.
hThe “Ready for operation” indicator goes out.
4 Operation
7
2
5
4
1
8
3
6
10 0804
http://www.monomachines.com
http://www.monomachines.com

Other function modes: • Sleep mode
• Brief mode 10 s
Application: Shredding foils, credit cards and
small bits of paper
Function: The cutting unit runs for approx.
10 seconds and is then switched off auto-
matically.
Start: Press the operation button for two
Function: Two minutes after the last paper
feed operation, all consumers that are not
required are switched off automatically.
The "Ready for operation" indicator flashes
briefly at regular intervals.
The shredder starts automatically when pa-
per is fed in.
seconds. • Automatic shutdown
Premature cancellation: Press the operation Function: If the shredder is not used for four
button. hours, it shuts down completely and there-
• Permanent mode
Application: Shredding CDs and large quanti-
ties of paper and foils
fore does not consume any more electricity
(at night, at the weekend).
Restart: Press the operation button.
Function: Cutting unit runs continuously.
If no material is fed in within a period of
2 minutes, the cutting unit shuts down and
the shredder switches to standby.
Start: Press the operation button for four
seconds.
Premature cancellation: Press the operation
button.

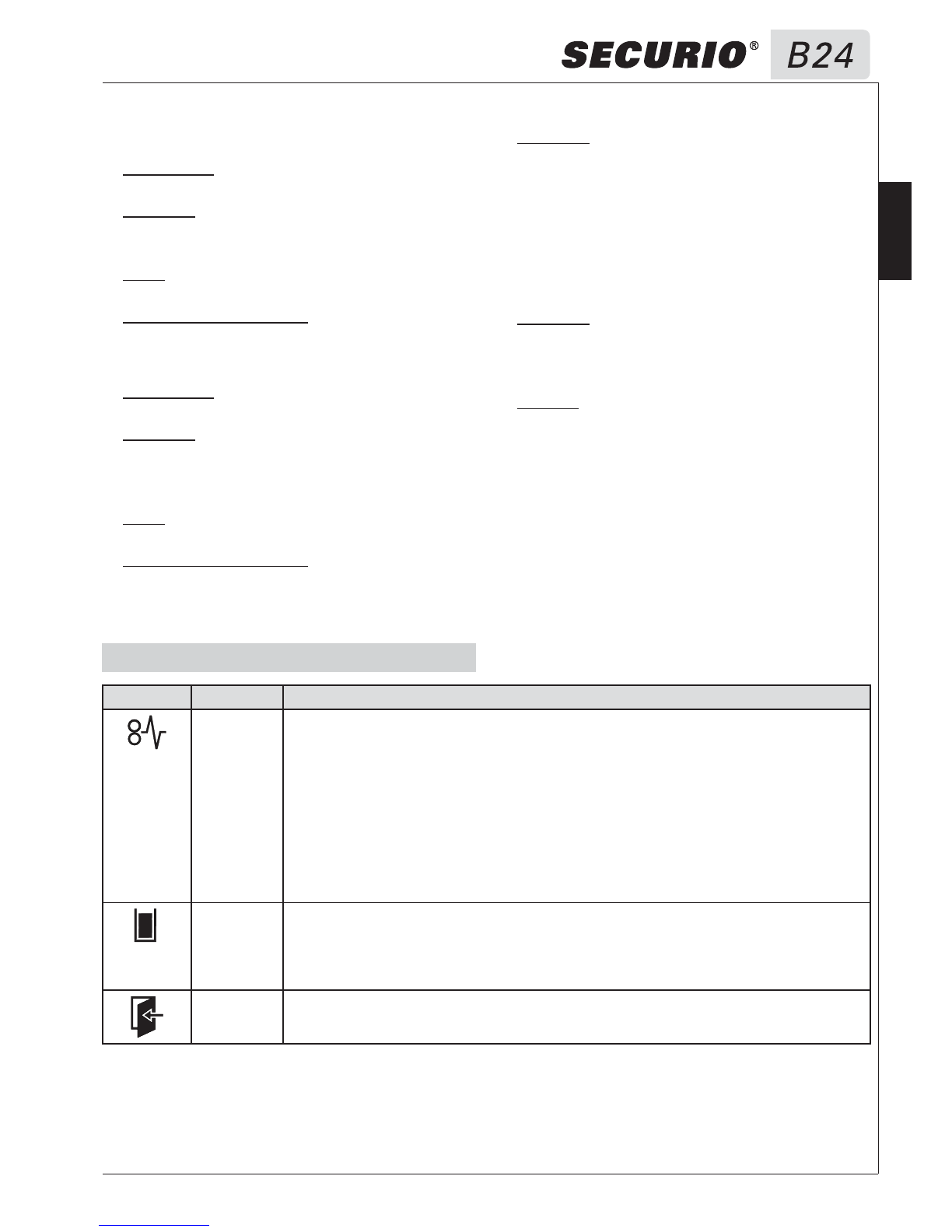

5 Troubleshooting
Display Problem Measure
Paper You have fed in too much paper.
jam hThe cutting unit runs in reverse for a few seconds and pushes the pa-
per back out again.
• If necessary, press the reverse button “R” to remove the stack of paper.
• Take half the stack of paper.
• Feed the paper in portions.
Note:
This indicator lamp also lights up when the motor is overloaded. In this
case, let the shredder cool down for 20 minutes before using it again.
Shredded • Empty the shredded material container.
material Note:
container If you press the reverse button briefly before removing the container,
full part of the material is pulled back into the cutting apparatus.
Container
open
• Insert the shredded material container correctly in the base cabinet.
english
0804 11
http://www.monomachines.com
http://www.monomachines.com

english
6 Cleaning and maintenance
Switch off the shredder and pull out the mains
plug. When cleaning only use a soft cloth and
a mild soap-water solution. However, no water
must enter the equipment.
Check that the container contact is working
properly
Warning!
If the following procedure cannot be
performed, switch off the document
shredder, disconnect the mains plug
and contact customer service.
• Insert the mains plug and switch on the
shredder.
• Feed in a sheet of paper and tilt out the con-
tainer while the paper is being drawn in.
hThe cutting unit must switch off immediately
and the “container open” indicator must light
up.
• Insert the shredded material container again
fully.
hThe cutting unit must not yet restart.
• Pull the paper out of the feed opening. The
light barrier must be clear.
• Switch off the machine and then switch back
on.
hThe cutting unit starts when paper is fed in.
Oil the cutting unit when
cutting performance de-
creases or the device be-
comes noisy, or every time
you empty the waste con-
tainer (Cross cut only):
• Spray special cutting block oil through paper
feed opening across the whole width of the
cutting system blades.
• Let the cutting unit run without paper in brief
mode.
hPaper dust and particles are shaken off.
Note:
Oiling the cutting unit also improves the cutting
performance of devices with strip cut.
7 Scope of delivery
• Document shredder, ready for connection,
packed in a carton
• 5 waste bags
• 1 bottle of special cutting apparatus oil
(50 ml) for devices with particle cut
• Operating instructions
Accessories:
• Waste bag, order no. 1.661.995.050
• Special cutting apparatus oil (250 ml)
order no. 1.235.997.403
12 0804
http://www.monomachines.com
http://www.monomachines.com

8 Technical data
english
Cutting type Strip cut Cross cut
Security level DIN 32757 - 1 2 2 3 4
Weight 18 kg 20.5 kg
Intake width 240 mm
Size W x D x H (mm) 395 x 317 x 605
Noise emission (idle running / under load) 56 dB(A) / 59 - 63 dB(A)
Cut size (mm) 5.8 3.9 4.5 x 30 1.9 x 15
Cutting capacity (sheets), A4 70 g/m228 - 30 22 - 24 17 - 19 11 - 13
80 g/m2 25 - 27 19 - 21 14 - 16 9 - 11
Cutting speed 65 mm/s
Power supply 230 V, 50 Hz 100 V, 50/60 Hz – 115 V, 60 Hz
Power consumption with max. number of sheets 500 W 580 W
Shredded material container volume 34 litres
EC declaration of conformity
Machinery directive 98 / 37 / EC
EMC directive 89 / 336 / EEC
Low voltage directive 73 / 23 / EEC
The manufacturer – HSM GmbH + Co. KG, Bahnhofstrasse 115, D-88682 Salem, Germany – hereby declares that the
document shredder SECURIO B24 complies with the EC directives listed above, including all modifications that apply.
Applied standards and technical specifications:
• EN 55014-1:2000 + A1:2001 + A2:2002 • EN 61000-4-4:1995 + A1:2001 + A2:2001
• EN 55014-2:1997 + A1:2001 • EN 61000-4-5:1995 + A1:2001
• EN 61000-3-2:2000 • EN 61000-4-6:1996 + A1:2001
• EN 61000-3-3:1995 + A1:2001 • EN 61000-4-11:1994 + A1:2001
• EN 61000-4-2:1995 + A1:1998 + A2:2001 • EN 60950-1:2006
• EN 294:1992
Salem, 02.01.2007
Rolf Gasteier - Technical Director
The machine type was tested for compliance with the requirements of the EC Machinery Directive by the test and cer-
tification board of the Technical Administation Committee, c/o Verwaltungs-Berufsgenossenschaft, Deelbögenkamp 4,
D-22297 Hamburg, Germany. This test centre is responsible according to Appendix V of the EC Machinery Directive.
0804 13
