HTW HTWS026IX80SR32-I Service manual

OWNER’S AND INSTALLATION
MANUAL
INDOOR UNIT SPLIT
ENGLSIH
IX80S-R32
HTWS026IX80SR32-I |HTWS035IX80SR32-I
HTWS052IX80SR32-I |HTWS071IX80SR32-I
Thanks for choosing our product.
Please, read carefully this manual
before using the product.

Operation Notices
Precautions ........................................................................................................ 1
Parts name.......................................................................................................... 6
Maintenance
Clean and maintenance..................................................................................... 7
Malfunction
Malfunction analysis........................................................................................ 9
Safety operation of flammable refrigerant..................................................... 12
Installation Notice
Installation drawing ......................................................................................... 14
Installation prepare.......................................................................................... 15
Installation
Installation of indoor unit................................................................................ 18
Check after installation ................................................................................... 23
Test operation................................................................................................... 24
Content
This marking indicates that this product should not be disposed with other
household wastes throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material resources. To return
your used device, please use the return and collection systems or contact
the retailer where the product was purchased. They can take this product for
environmental safe recycling.
If it needs to install, move or maintain the air conditioner, please contact dealer or local
service center to conduct it at rst. Air conditioner must be installed, moved or maintained
by appointed unit. Otherwise, it may cause serious damage or personal injury or death.
R32:675

1
Precautions
Please read this operating manual carefully before operating the unit.
Appliance lled with ammable gas R32.
Before use the appliance, read the owner's manual rst.
Befoer install the appliance, read the installation manual rst.
Befoer repair the appliance, read the service manual rst.
The gures in this manual may be different with the material objects, please refer to the
material objects for reference.
To realize the function of the air conditioner unit, a special refrigerant circulates in the system.
The used refrigerant is the uoride R32, which is specially cleaned. The refrigerant is
ammable and inodorous. Furthermore, it can leads to explosion under certain condition.
But the ammability of the refrigerant is very low. It can be ignited only by re.
Compared to common refrigerants, R32 is a nonpolluting refrigerant with no harm to the
ozonosphere. The inuence upon the greenhouse effect is also lower. R32 has got very
good thermodynamic features which lead to a really high energy efciency. The units
therefore need a less lling.
The Refrigerant
WARNING:
Do not use means to accelerate the defrosting process or to clean, other than those
recommended by the manufacture. Should repair be necessary, contact your nearest
authorized Service Center.
Any repairs carried out by unqualied personnel may be dangerous.
The appliance shall be stored in a room without continuously operating ignition sources.
(For example: open ames, an operating gas appliance or an operating electric heater.)
Do not pierce or burn.
Appliance shall be installed, operated and stored in a room with a oor area larger than
“X”m2 (see table 1). (only applies to appliances that are not xed appliances)
Appliance lled with ammable gas R32. For repairs, strictly follow manufacturer's
instructions only.
Be aware that refrigerants not contain odour.
Read specialist’s manual.

2
This appliance can be used by children aged of 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision.
Do not connect air conditioner to multi-purpose socket.
Otherwise, it may cause re hazard.
Do disconnect power supply when cleaning air conditioner.
Otherwise, it may cause electric shock.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualied persons in
order to avoid a hazard.
Do not wash the air conditioner with water to avoid electric
shock.
Do not spray water on indoor unit. It may cause electric shock
or malfunction.
After removing the lter, do not touch ns to avoid injury.
Do not use re or hair dryer to dry the lter to avoid deformation
or re hazard.
Maintenance must be performed by qualied professionals.
Otherwise, it may cause personal injury or damage.
Do not repair air conditioner by yourself. It may cause electric
shock or damage. Please contact dealer when you need to
repair air conditioner.
Do not extend ngers or objects into air inlet or air outlet. It may
cause personal injury or damage.
Precautions
Operation and Maintenance
WARNING

3
Attachment
Installation must be performed by qualied professionals.
Otherwise, it may cause personal injury or damage.
Must follow the electric safety regulations when installing the
unit.
According to the local safety regulations, use qualied power
supply circuit and circuit break.
Do install the circuit break. If not, it may cause malfunction.
An all-pole disconnection switch having a contact separation of
at least 3mm in all poles should be connected in xed wiring.
Air Conditioner should be properly grounded. Incorrect
grounding may cause electric shock.
Do not block air outlet or air inlet. It may cause malfunction.
Do not spill water on the remote controller, otherwise the
remote controller may be broken.
When below phenomenon occurs, please turn off air conditioner
and disconnect power immediately, and then contact the dealer
or qualied professionals for service.
● Power cord is overheating or damaged.
● There’s abnormal sound during operation.
● Circuit break trips off frequently.
● Air conditioner gives off burning smell.
● Indoor unit is leaking.
If the air conditioner operates under abnormal conditions, it
may cause malfunction, electric shock or re hazard.
When turning on or turning off the unit by emergency operation
switch, please press this switch with an insulating object other
than metal.
Precautions WARNING

4
Including an circuit break with suitable capacity, please note the
following table.Air switch should be included magnet buckle
and heating buckle function, it can protect the circuit-short and
overload.
Don't use unqualied power cord.
Make sure the power supply matches with the requirement of
air conditioner.Unstable power supply or incorrect wiring or
malfunction. Please install proper power supply cables before
using the air conditioner.
Properly connect the live wire, neutral wire and grounding wire
of power socket.
Be sure to cut off the power supply before proceeding any work
related to electricity and safety.
Do not put through the power before nishing installation.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualied persons in
order to avoid a hazard.
The temperature of refrigerant circuit will be high, please keep
the interconnection cable away from the copper tube.
The appliance shall be installed in accordance with national
wiring regulations.
Installation must be performed in accordance with the
requirement of NEC and CEC by authorized personnel only.
The air conditioner is the rst class electric appliance. It must
be properly grounding with specialized grounding device
by a professional. Please make sure it is always grounded
effectively, otherwise it may cause electric shock.
The yellow-green wire in air conditioner is grounding wire,
which can't be used for other purposes.
The grounding resistance should comply with national electric
safety regulations.
Precautions WARNING

5
Working temperature range
NOTE:
The operating temperature range (outdoor temperature) for cooling is 18°C ~43°C ; Heating
temperature range for the model without electric heating belt for chassis is -15°C ~ 24°C ;
Heating temperature range for the model with electric heating belt for chassis is
-20°C ~24°C .
Indoor side DB/WB(°C) Outdoor side DB/WB(°C)
Maximum cooling 32/23 43/26
Maximum heating 27/- 24/18
The appliance must be positioned so that the plug is accessible.
All wires of indoor unit and outdoor unit should be connected
by a professional.
If the length of power connection wire is insufcient, please
contact the supplier for a new one. Avoid extending the wire by
yourself.
For the air conditioner with plug, the plug should be reachable
after nishing installation.
For the air conditioner without plug, an circuit break must be
installed in the line.
If you need to relocate the air conditioner to another place, only
the qualied person can perform the work. Otherwise, it may
cause personal injury or damage.
Select a location which is out of reach for children and far away
from animals or plants.If it is unavoidable, please add the fence
for safety purpose.
The indoor unit should be installed close to the wall.
Precautions WARNING

6

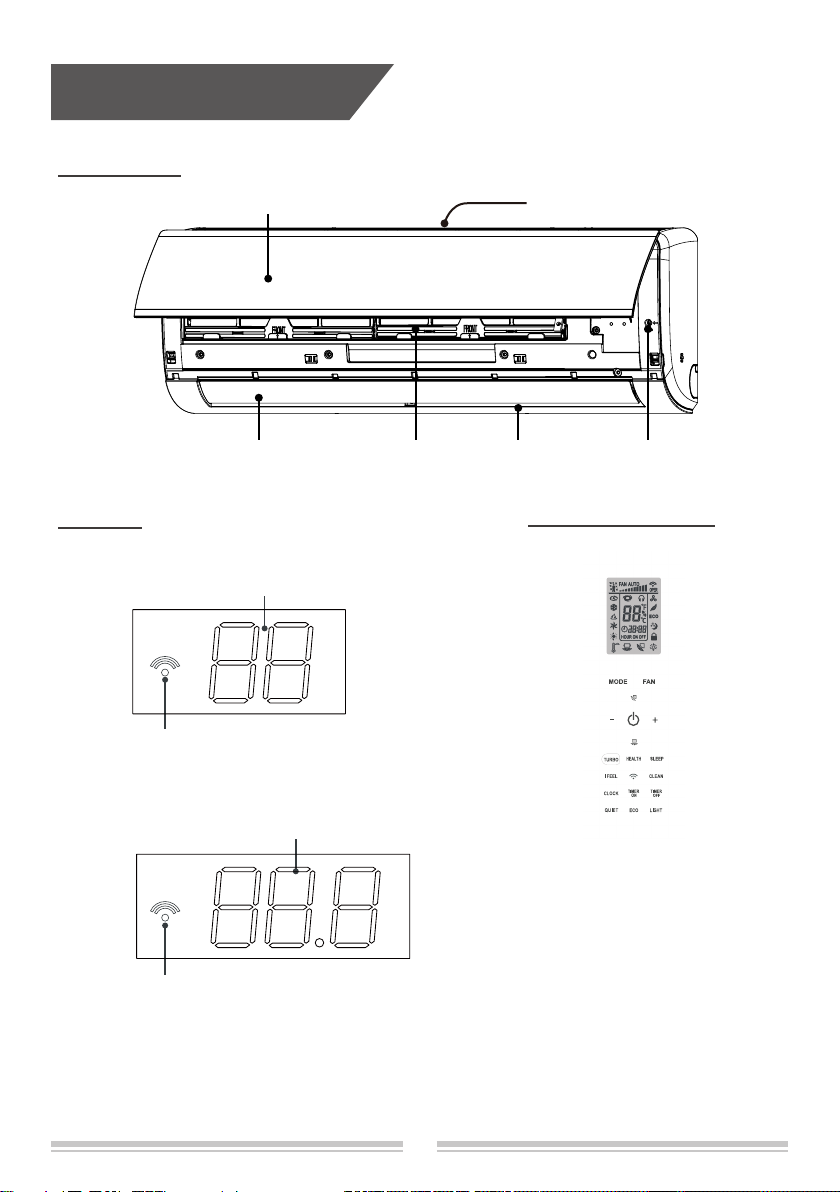

Parts name
Panel
Horizontal louver Aux.button
Air inlet
Filter Air outlet
Indoor unit
Remote controller
Actual product may be different from above graphics,please refer to actual products.
NOTE:
Display
Temp.indicator
Temp.indicator
Wi-Fi indicator
Wi-Fi indicator
For some model:
For some model:

7
Indoor unit address inquiry
● If match with MULTI-S outdoor unit, when units has malfunction and need to inquire the
address to maintainance, the step is as below:
Remote controller aims to the indoor display, press "Light" and "-" buttons at the same time
for 3s , then will display the indoor unit address(1~5) for 3s.
WARNING
■ Turn off the air conditioner and disconnect the power before cleaning the
air conditioner to avoid electric shock.
■ Do not wash the air conditioner with water to avoid electric shock.
■ Do not use volatile liquid to clean the air conditioner.
Clean surface of indoor unit
When the surface of indoor unit is dirty, it is
recommended to use a soft dry cloth or wet
cloth to wipe it.
Note:
Do not remove the panel when cleaning it.
Clean lter
Open panel Remove lter
Pull out the panel to a certain angle as
shown in the g.
Remove the lter as indicated in the g.
1 2
Clean and maintenance

8
NOTE:
● The lter should be cleaned every three months. If there is much dust in the operation
environment, clean frequency can be increased.
● After removing the lter, do not touch ns to avoid injury.
● Do not use re or hair dryer to dry the lter to avoid deformation or re hazard.
Checking before use-season
1. Check whether air inlets and air outlets are blocked.
2. Check whether air switch, plug and socket are in good condition.
3. Check whether lter is clean.
4. Check whether drainage pipe is damaged.
Checking after use-season
1. Disconnect power supply.
2. Clean lter and indoor unit's panel .
Notice for recovery
1. Most of packing materials are recyclable materials.
Please dispose them in appropriate recycling unit.
2. If you want to dispose the air conditioner, please contact local dealer or consultant
service center for the correct disposal method.
Clean and maintenance
Clean lter Installation lter
Use dust catcher or water to clean the
lter. when the lter is very dirty, use
the water (below 45°C) to clean it, and
then put it in a shady and cool place to
dry.
Installtion the lter and then close the
panel cover tightly.
3 4

9
General phenomenon analysis
Please check below items before asking for maintenance. If the malfunction still can't be
eliminated,please contact local dealer or qualied professionals.
Phenomenon Check items Solution
Indoor unit can’t
receive remote
controller’s signal
or remote
controller has no
action.
Whether it's interfered severely
(such as static electricity, stable
voltage)?
Pull out the plug. Reinsert the plug
after about 3min, and then turn on
the unit again.
Whether remote controller is
within the signal receiving range? Signal receiving range is 8m.
Whether there are obstacles? Remove obstacles.
Whether remote controller is
pointing at the receiving window?
Select proper angle and point the
remote controller at the receiving
window on indoor unit
Is sensitivity of remote controller
low; fuzzy display and no display?
Check the batteries. If the power of
batteries is too low,please replace
them.
No display when operating
remote controller?
Check whether remote controller
appears to be damaged. If yes,
replace it.
Fluorescent lamp in room?
Take the remote controller close to
indoor unit.
Turn off the uoresent lamp and then
try it again.
No air emitted
from indoor unit.
Air inlet or air outlet of indoor unit
is blocked? Eliminate obstacles.
Under heating mode, indoor
temperature is reached to set
temperature?
After reaching to set temperature,
indoor unit will stop blowing out air.
Heating mode is turned on just
now?
In order to prevent blowing out cold
air, indoor unit will be started after
delaying for several minutes, which is
a normal phenomenon.
Air conditioner
can’t operate
Power failure? Wait until power recovery.
Is plug loose? Reinsert the plug.
Circuit break trips off or fuse is
burnt out?
Ask professional to replace circuit
break or fuse.
Wiring has malfunction? Ask professional to replace it
Unit has restarted immediately
after stopping operation?
Wait for 3min, and then turn on the
unit again.
Whether the function setting for
remote controller is correct? Reset the function.
Malfunction analysis

10
Phenomenon Check items Solution
Mist is emitted
from indoor unit’s
air outlet.
Indoor temperature and humidity
is high?
Because indoor air is cooled rapidly.
After a while, indoor temperature and
humidity will be decrease and mist
will disappear.
Set temperature
can’t be adjusted
Unit is operating under auto
mode?
Temperature can’t be adjusted under
auto mode.
Please switch the operation mode if
you need to adjust temperature.
Your required temperature
exceeds the set temperature
range?
Set temperature range:
16℃~31℃
Cooling (heating)
effect is not good.
Voltage is too low? Wait until the voltage resumes
normal.
Filter is dirty? Clean the lter.
Set temperature is in proper
range? Adjust temperature to proper range.
Door and window are open? Close door and window.
Odours are
emitted
Whether there’s odour
source,such as furniture and
cigarette, etc.
Clean the lter.
Eliminate the odour source.
Air conditioner
operates normally
suddenly
Whether there’s interference,such
as thunder, wireless devices, etc.
Disconnect power, put back
power, and then turn on the
unit again.
“ Water owing”
noise
Air conditioner is turned on or
turned off just now?
The noise is the sound of refrigerant
owing inside the unit, which is a
normal phenomenon.
Cracking noise
Air conditioner is turned on or
turned off just now?
This is the sound of friction caused by
expansion and/or contraction of panel
or other parts due to the change of
temperature.
Malfunction analysis
When below phenomenon occurs, please turn off air conditioner and disconnect power
immediately, and then contact the dealer or qualied professionals for service.
● Power cord is overheating or damaged.
● Air conditioner gives off burning smell.
● There’s abnormal sound during operation.
● Circuit break trips off frequently.
● Indoor unit is leaking.
Do not repair or ret the air conditioner by yourself.
If the air conditioner operates under abnormal conditions, it may cause malfuntion, electric
shock or re hazard.
Contact us

11
Error Code
When air conditioner status is abnormal, temperature indicator on indoor unit will blink to
dispiay corresponding error code. Please refer to below list for identication of error code.
Below listed error codes are only part error codes. Please refero to error code list in serive
manual for more information.
If there're other error codes, please contact qualied professionals for service.
Malfunction analysis
Error
code Troubleshooting Solution
CL Filter lth blockage alert
Power off,clean lter.If the lter is not dirtey, turn off
the air conditioner for 2s then restart,the code will be
removed automatically.
E1 Overheat protection Turn off,restart after 5min,if the code occurs again after
a few minutes, please contact the professional person.
E2 Overcurrent protection Turn off,restart after 5min,if the code occurs again after
a few minutes, please contact the professional person.
HE Auxiliary heat control
circuit malfunction
Pull out the plug, please contact the professional
person.
L0 Jumper malfunction Pull out the plug, restart after 10s, if the code occurs
again , please contact the professional person.
L1
PG motor(indoor)zero-
crossing detecting circuit
malfunction
Turn off,restart after a few seconds, if the code
occurs again after a few minutes, please contact the
professional person.
L2 No feedback signal of
indoor unit fan
Turn off,restart after a few seconds, if the code
occurs again after a few minutes, please contact the
professional person.
L3/L6 Communication
malfunction
Power off the unit, restart after 10s, if the code occurs
again ,please check the communication wire of indoor
unit and outdoor unit is correct of not, then power on
again.
U0 Short/open circuit of indoor
environment sensor
Power off the unit, restart after 10s, if the code occurs
again , please contact the professional person.
U1 Short/open circuit of indoor
unit tube sensor
Power off the unit, restart after 10s, if the code occurs
again , please contact the professional person.
U6 Liquid pipe temp. sensor
malfunction
Power off the unit, restart after 10s, if the code occurs
again , please contact the professional person.
U7 Gas pipe temp. sensor
malfunction
Power off the unit, restart after 10s, if the code occurs
again , please contact the professional person.
PC Mode conict
The mode of this indoor unit is conicting with other
indoor units, please turn off other indoor units or
change the mode to non-conicted mode.

12
Safety operation of ammable refrigerant
Qualication requirement for installation and maintenance man
All the work men who are engaging in the refrigeration system should bear the valid certication
awarded by the authoritative organization and the qualicationfor dealing with the refrigeration
system recognized by this industry. If it needs other technician to maintain and repair the
appliance, they should be supervisedby the person who bears the qualication for using the
ammable refrigerant. It can only be repaired by the method suggested by the equipment’s
manufacturer.
Installation notes
1.The air conditioner is not allowed to use in a room that has running re (such as resource,
working coal gas ware, operating heater).
2.It is not allowed to drill hole or burn the connection pipe.
3.The air conditioner must be installed in a room that is larger than the minimum roomarea.
The minimum room area is shown on the nameplate or following table 1.
4.Leak test is a must after installation.
Minimum
room area
( m2 )
Charge amount (kg) ≤1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2.0 2.1 2.2 2.3 2.4 2.5
oor location /14.5 16.8 19.3 22.0 24.8 27.8 31.0 34.4 37.8 41.5 45.4 49.4 53.6
window mounted / 5.2 6.1 7.0 7.9 8.9 10.0 11.2 12.4 13.6 15 16.3 17.8 19.3
wall mounted / 1.6 1.9 2.1 2.4 2.8 3.1 3.4 3.8 4.2 4.6 5 5.5 6.0
ceiling mounted / 1.1 1.3 1.4 1.6 1.8 2.1 2.3 2.6 2.8 3.1 3.4 3.7 4.0
Maintenance notes
Check whether the maintenance area or the room area meet the requirement of the
nameplate.
— It’s only allowed to be operated in the rooms that meet the requirement of the
nameplate.
Check whether the maintenance area is well-ventilated.
— The continuous ventilation status should be kept during the operation process.
Check whether there is re source or potential re source in the maintenance area.
— The naked ame is prohibited in the maintenance area; and the “no smoking” warning
board should be hanged.
Check whether the appliance mark is in good condition.
— Replace the vague or damaged warning mark.
Table 1:Minimum room area (m2)

13
Safety operation of ammable refrigerant
Filling the refrigerant
1. Use the refrigerant lling appliances specialized for R32. Make sure that different kinds
of refrigerant won’t contaminate with each other.
2. The refrigerant tank should be kept upright at the time of lling refrigerant.
3. Stick the label on the system after lling is nished (or haven’t nished).
4. Don’t overlling.
5. After lling is nished, please do the leakage detection before test running; another time
of leak detection should be done when it’s removed.
Safety instructions for transportation and storage
1. Please use the ammable gas detector to check before unload and open the container.
2. No re source and smoking.
3. According to the local rules and laws.
Welding
If you should cut or weld the refrigerant system pipes in the process of maintaining, please
follow the steps as below:
1. Shut down the unit and cut power supply.
2. Eliminate the refrigerant.
3. Vacuuming.
4. Clean it with N2 gas.
5. Cutting or welding.
6. Carry back to the service spot for welding.
The refrigerant should be recycled into the specialized storage tank.
Make sure that there isn’t any naked ame near the outlet of the vacuum pumpand it’s
well-ventilated.

14
Installation drawing
Selection of location
Basic requirement
Installing the unit in the following places maycause malfunction. If it is unavoidable, please
consult the local dealer:
1. The place with strong heat sources,vapors,ammable or explosive gas,or volatile objects
spread in the air.
2. The place with high-frequency devices (such as welding machine,medical equipment).
3. The place near coast area.
4. The place with oil or fumes in the air.
5. The place with sulfureted gas.
6. Other places with special circumstances.
7. The appliance shall not be installed in the laundry.
Indoor unit
1. There should be noobstruction near air inlet and air outlet.
2. Choose a place where the condensation water can be dispersed easily and won't affect
other people.
3. Choose a place which is convenient to connect the outdoor unit and near the power
socket.
4. Choose a place which is out of the reach of children.
5. The place should be ableto withstand the weight of indoor unit and won't increase noise
and vibration.
6. The appliance must be installed 2.5m above oor.
7. Don't install the indoor unit right above the electric appliance.
8. Please try your best to keep way from uorescent lamp.
At least 250cm
At least 15cm
Space to the ceilin
g
At least 15cm
At least 15cm
Space to the wall
Space to the wal
l
At least 300cm
Space to the obstruction
Space to the floor

15
Installation prepare
1 Level meter 2 Screw driver 3 Impact drill
4 Drill head 5 Pipe expander 6 Torque wrench
7 Open-end wrench 8 Pipe cutter 9 Leakage detector
10 Vacuum pump 11 Pressure meter 12 Universal meter
13 Inner hexagon spanner 14 Measuring tape
Tools
Safety precaution
1. Must follow the electric safety regulations when installing the unit.
2. According to the local safety regulations, use qualied power supply circuit and circuit
break.
3. Make sure the power supply matches with the requirement of air conditioner. Unstable
power supply or incorrect wiring or malfunction. Please install proper power supply cables
before using the air conditioner.
4. Properly connect the live wire, neutral wire and grounding wire of power socket.
5. Be sure to cut off the power supply before proceeding any work related to electricity and
safety.
6. Do not connect the power before nishing inatallation.
7. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualied persons in order to avoid a hazard.
8. The temperature of refrigerant circuit will be high, please keep the interconnection cable
away from the copper tube.
9. The appliance shall be installed in accordance with national wiring regulations.
10. Installation must be performed in accordance with the requirement of NEC and CEC by
authorized personnel only.
11. Appliance shall be installed, operated and stored in a room with a oor area larger than
“X”m2 (see table 1).
Please notice that the unit is filled with flammable gas R32. Inappropriate
treatment of the unit involves the risk of severe damages of people
andmaterial. Details to this refrigerant are found in chapter "refrigerant".

16
Installation prepare
1. When installing or relocating the unit, be sure to keep the refrigerant circuit free
from air or substances other than the specied refrigerant.
— Any presence of air or other foreign substance in the refrigerant circuit will cause system
pressure rise or compressor rupture, resulting in injury.
2. When installing or moving this unit, do not charge the refrigerant which is not
comply with that on the nameplate or unqualied refrigerant.
— Otherwise, it may cause abnormal operation, wrong action, mechanical malfunction or
even series safety accident.
3. When refrigerant needs to be recovered during relocating or repairing the unit,
be sure that the unit is running in cooling mode. Then, fully close the valve at high
pressure side (liquid valve). About 30-40 seconds later, fully close the valve at low
pressure side (gas valve), immediately stop the unit and disconnect power. Please
note that the time for refrigerant recovery should not exceed 1 minute.
— If refrigerant recovery takes too much time, air may be sucked in and cause pressure
rise or compressor rupture, resulting in injury.
4. During refrigerant recovery, make sure that liquid valve and gas valve are fully
closed and power is disconnected before detaching the connection pipe.
— If compressor starts running when stop valve is open and connection pipe is not yet
connected, air will be sucked in and cause pressure rise or compressor rupture, resulting
in injury.
To ensure safety, please be mindful of the following precautions.
WARNING
Safety precautions for installing and relocating the unit
Grounding requirement
1. The air conditioner is the rst class electric appliance. It must be properly grounding with
specialized grounding device by a professional. Please make sure it is always grounded
effectively, otherwise it may cause electric shock.
2. The yellow-green wire in air conditioner is grounding wire, which can't be used for other
purposes.
3. The grounding resistance should comply with national electric safety regulations.
4. The appliance must be positioned so that the plug is accessible.
5. An all-pole disconnection switch having a contact separation of at least 3mm in all poles
should be connected in xed wiring. For models with a power plug, make sure the plug is
within reach after installation.

17
5. When installing the unit, make sure that connection pipe is securely connected
before the compressor starts running.
— If compressor starts running when stop valve is open and connection pipe is not yet
connected, air will be sucked in and cause pressure rise or compressor rupture,
resulting in injury.
6. Prohibit installing the unit at the place where there may be leaked corrosive gas or
ammable gas.
— If there leaked gas around the unit, it may cause explosion and other accidents.
7. Do not use extension cords for electrical connections. If the electric wire is not
long enough, please contact a local service center authorized and ask for a proper
electric wire.
— Poor connections may lead to electric shock or re.
8. Use the specied types of wires for electrical connections between the indoor
and outdoor units. Firmly clamp the wires so that their terminals receive no
external stresses.
— Electric wires with insufcient capacity, wrong wire connections and insecure wire
terminals may cause electric shock or re.
Installation prepare

18
Step 1: Choosing installation location
Recommend the installation location to the client and then conrm it with the client.
Step 2: Install wall-mounting frame
1. Hang the wall-mounting frame on the wall; adjust it in horizontal position with the level
meter and then point out the screw xing holes on the wall .
2. Drill the screw xing holes on the wall with impact drill (the specication of drill head
should be the same as the plastic expansion particle) and then ll the plastic expansion
particles in the holes.
3. Fix the wall-mounting frame on the wall with tapping screws (ST4.2X25TA) and then
check if the frame is rmly inatalled by pulling the frame. If the plastic expansion particle
is loose, please drill another xing hole nearby.
Step 3: Open piping hole
1. Choose the position of piping hole according to the direction of outlet pipe. The position
of piping hole should be a little lower than the wall-mounted frame, shown as below.
Left
Wall
Φ55/Φ70
Right
Mark in the middle of it Level meter
Rear piping hole
Wall
Space
to the
wall
above
150mm
Space
to the
wall
above
150mm
Φ55/Φ70
Rear piping hole
Dimension: 1081x327x248
Left
Wall
Φ55
Right
Mark in the middle of it Level meter
Rear piping hole
Wall
Space
to the
wall
above
150mm
Space
to the
wall
above
150mm
Φ55
Rear piping hole
Left
Wall
Φ55
Right
Mark in the middle of it Level meter
Rear piping hole
Wall
Space
to the
wall
above
150mm
Space
to the
wall
above
150mm
Φ55
Rear piping hole
Dimension: 721x274x195 Dimension: 792x279x195
Left
Wall
Φ55
Right
Mark in the middle of it Level meter
Rear piping hole
Wall
Space
to the
wall
above
150mm
Space
to the
wall
above
150mm
Φ55
Rear piping hole
Left
Wall
Φ55/Φ70
Right
Mark in the middle of it Level meter
Rear piping hole
Wall
Space
to the
wall
above
150mm
Space
to the
wall
above
150mm
Φ55/Φ70
Rear piping hole
Dimension: 850x291x203
Dimension: 972x302x224
Installation of indoor unit
