Huawei B315s-608 User manual

Huawei WiFi Gateway 4G
(B315s-608)
Quick Start Guide

1
1Device Overview
Power indicator Network status indicator
Wi-Fi®/WPS indicator LAN/WAN indicator
Signal strength indicator SIM card slot
External antenna sockets WPS button
Power button Reset button
Power input Network ports
USB port

2
2Device Setup
Insert a full size SIM card into the SIM card slot as shown in the preceding
diagram and then connect the power adapter to the device. The device will
turn on automatically and search for the Vodafone mobile data network.
The following indicators will turn on when the device has successfully
connected to a network.
Cyan/blue/yellow:
Connected to a mobile
network.
White: More signal bars
indicate a stronger signal.
Do not insert or remove a SIM card when the device is switched on
, as this
may affect performance or damage the SIM card.

3
3Connecting to the Device’s Wi-Fi
network
Once the device has connected to the Vodafone mobile data network, you
can connect your computer, mobile phone or tablet to the device’s Wi-Fi
network to access the Internet. Please refer to the label on the bottom of
the router for the default wireless network name (SSID) and password
(WIFI KEY).
SSID：....................
WIFI KEY：............
abcdefg
XXXXXXXX
WIFI KEY：
YYYYYYYY
XXXXXXXX
WIFI KEY：
YYYYYYYY
When the indicator is steady on, Wi-Fi is enabled. To enable or
disable Wi-Fi, refer to the help section on the device’s web-based
management page.
Ensure that you promptly change the Wi-Fi network name and
password on the web-based management page to prevent
unauthorized access to your Wi-
Fi network. Once you have changed the
password, you will need to reconnect to the device’s Wi-Fi network.

4
4Configuring your Device

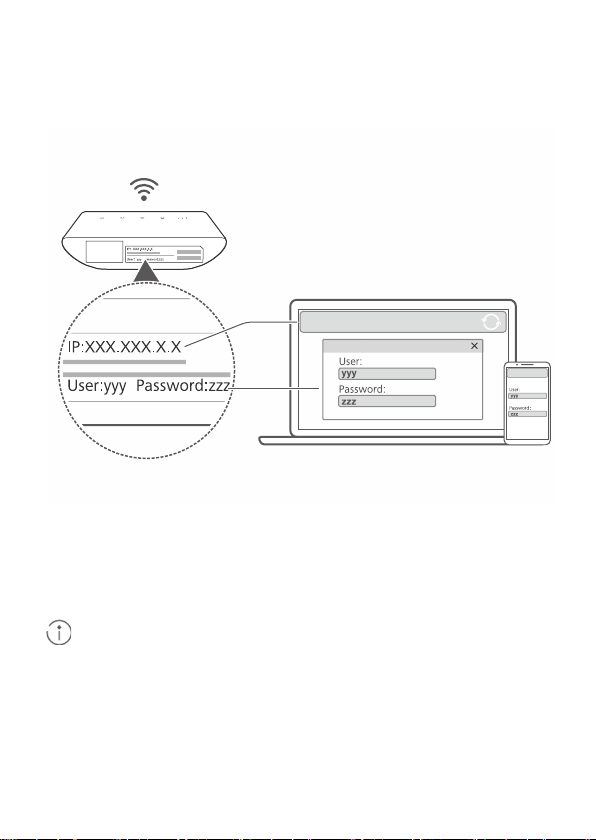

You can configure the device using the web-based management page.
Please refer to the label on the bottom of the device for the default IP
address, user name, and password.
More information can be found in the help section of the web-based
management page.
XXX.XXX.X.X
XXX.XXX.X.X
Ensure that you promptly change the default login password for the web-
based management page to prevent unauthorized users from changing
the device’s settings.

5
5Optional Configuration
1. Connecting Multiple Devices
You can connect a computer or USB storage device to the device to access
the Internet, share files, and more.
The features described in this section are for reference purposes only. The
device may not support all of these features.
31508404_01

6

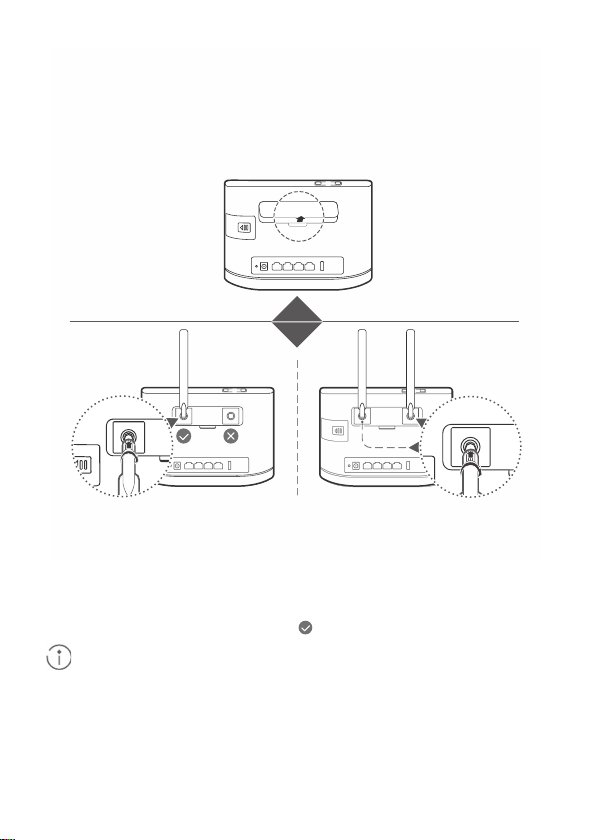

2. Installing External Antennas
You can install external antennas to improve signal reception. If you only
require one antenna, plug it into the socket.
1
2
Turn off the device and unplug the power adapter before installing any
external antennas.
External antennas are only suitable for indoor use. Do not use external
antennas during thunderstorms.
The external antenna port type for this device is SMA-J1.5.

7

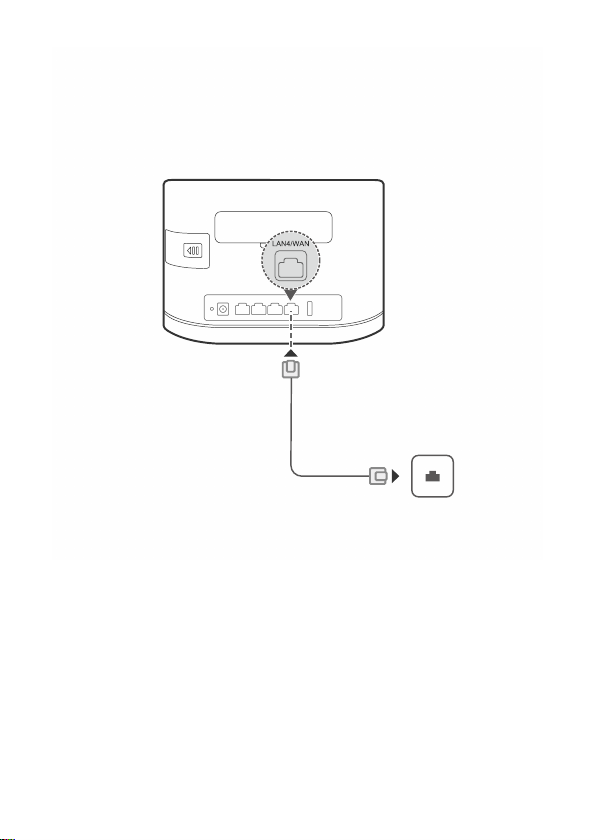

3. Accessing the Internet through an Ethernet port
You can connect the device to a wall-mounted Ethernet port using an
Ethernet cable to connect to the Internet when you have used up your
mobile data allowance.
Configure the relevant settings on the web-based management page
before connecting to the Internet through an Ethernet port. More
information can be found in the help section of the web-based
management page.

8

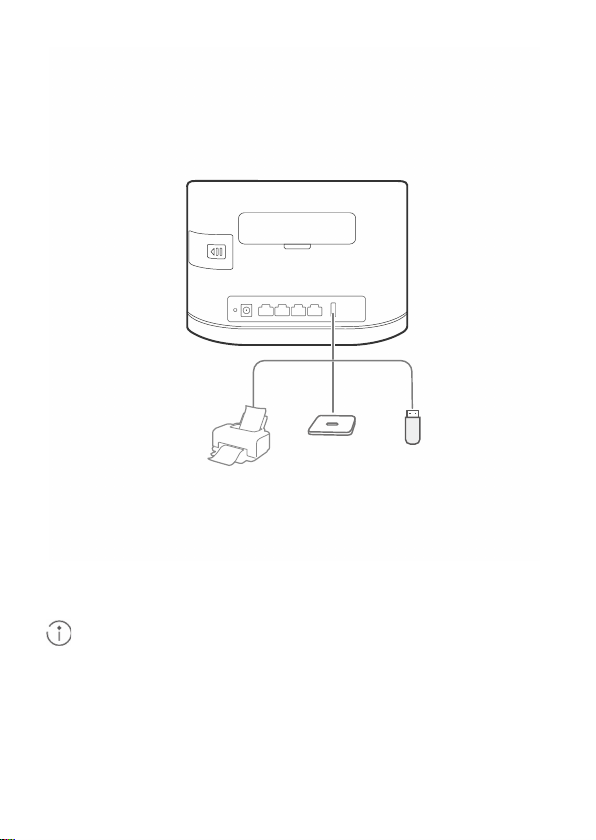

4. Using the USB Port
The device has an in-built USB Port (2.0) which you can use as follows:
Connect an external storage device to access and share media. Please
note only FAT32 memory format is supported
Connect a compatible USB printer. Please refer to the Printer’s User
Manual for more information.

9
5. Downloading the Huawei HiLink App
Scan the above QR code to download the Huawei HiLink app to easily
configure the device from your compatible phone or tablet.

10
6Additional Information
If you are experiencing any issues with the device:
Restart the device.
Refer to the help section on the web-based management page.
Restore the device to its factory settings.
Contact your network service provider.
Please visit http://consumer.huawei.com/en/support/hotline for the most
recent hotline and email address contact information in your country or
region.
7FAQs
How do I restore factory settings?
When the device is turned on, press the reset button for approximately 3
seconds using a pointed object until the indicator starts to blink.
Please note - restoring factory settings will clear all your customized
settings. Proceed with caution.
How can I connect to the router using Wi-Fi Protected Setup
(WPS)?
To connect a WPS-enabled device to your device using the WPS button:
1. Press and hold the WPS button on the device for at least 2 seconds until
the indicator starts to blink.
2. Enable WPS on your primary device within 2 minutes to connect to the
Gateway’s Wi-Fi network.
The illustrations in this guide are for reference purposes only and may not
reflect the exact appearance of your product. Please contact your network
service provider for more detailed information.

11
8Troubleshooting
Why is the indicator red after I have finished
configuring the router?
1. Make sure you have a working SIM card and ensure that it is inserted
properly.
2. Move the device to an open space free from obstruction and make sure
you have an available mobile network signal.
3. If the problem persists, please contact your network service provider.
Why is the indicator status steady on cyan, blue, or
yellow, but the indicator is off?
Your mobile network has poor reception. Move the device to a place with
better reception.
Why can't I access the device's web-based management
page?
1. Ensure that your computer, phone or tablet is connected to the device
through an Ethernet cable or Wi-Fi.
2. Ensure that your computer is set to obtain an IP address and DNS server
address automatically.
3. Restart your browser, or try using another browser.
4. If the problem persists, restore the device to its factory settings.

12
9Safety information
This section contains important information about the operation of your
device. It also contains information about how to use the device safely.
Read this information carefully before using your device.
Electronic device
Do not use your device if using the device is prohibited. Do not use the
device if doing so causes danger or interference with other electronic
devices.
Interference with medical equipment
Follow rules and regulations set forth by hospitals and health care
facilities. Do not use your device where prohibited.
Some wireless devices may affect the performance of hearing aids or
pacemakers. Consult your service provider for more information.
Pacemaker manufacturers recommend that a minimum distance of 15
cm be maintained between a device and a pacemaker to prevent
potential interference with the pacemaker. If using a pacemaker, hold
the device on the side opposite the pacemaker and do not carry the
device in your front pocket.
Areas with flammables and explosives
Do not use the device where flammables or explosives are stored (in a
gas station, oil depot, or chemical plant, for example). Using your device
in these environments increases the risk of explosion or fire. In addition,
follow the instructions indicated in text or symbols.
Do not store or transport the device in containers with flammable liquids,
gases, or explosives.
Operating environment
Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using
the device in these environments may result in circuit malfunctions.
Before connecting and disconnecting cables, stop using the device and
disconnect it from the power supply. Ensure that your hands are dry
during operation.

13
Place the device on a stable surface.
Keep the device away from electronic appliances that generate strong
magnetic or electric fields, such as a microwave oven or refrigerator.
During thunderstorms, power off your device and remove all cables
connected to it to protect against lightning strikes.
Do not use your device during thunderstorms to protect your device
against any danger caused by lightning.
Ideal operating temperatures are 0°C to 40°C. Ideal storage
temperatures are -20°C to +70°C. Extreme heat or cold may damage
your device or accessories.
Keep the device and accessories in a well-ventilated and cool area away
from direct sunlight. Do not enclose or cover your device with towels or
other objects. Do not place the device in a container with poor heat
dissipation, such as a box or bag.
To protect your device or accessories from fire or electrical shock hazards,
avoid rain and moisture.
Keep the device away from sources of heat and fire, such as a heater,
microwave oven, stove, water heater, radiator, or candle.
Do not place any object, such as a candle or a water container, on the
device. If any foreign object or liquid enters the device, immediately stop
using it, power it off, and remove all cables connected to it. Then,
contact an authorized service center.
Do not block device openings. Reserve a minimum of 10 cm around the
device to dissipate heat.
Stop using your device or applications for a while if the device is
overheated. If skin is exposed to an overheated device for an extended
period, low temperature burn symptoms, such as red spots and darker
pigmentation, may occur.
Do not touch the device's antenna. Otherwise, communication quality
may be reduced.
Do not allow children or pets to bite or suck the device or accessories.
Doing so may result in damage or explosion.
Observe local laws and regulations, and respect the privacy and legal
rights of others.
The device should be installed and operated with a minimum distance of

14
20 cm between the radiator and your body.
Keep the device in a place with good reception. The distance between
the device and other metal materials (such as metal brackets or metal
doors and windows) should be greater than 25 cm and the distance
between the device should be greater than 30 cm.
Child's safety
Comply with all precautions with regard to child's safety. Letting children
play with the device or its accessories may be dangerous. The device
includes detachable parts that may present a choking hazard. Keep away
from children.
The device and its accessories are not intended for use by children.
Children should only use the device with adult supervision.
Accessories
Using an unapproved or incompatible power adapter, charger or battery
may cause fire, explosion or other hazards.
Choose only accessories approved for use with this model by the device
manufacturer. The use of any other types of accessories may void the
warranty, may violate local regulations and laws, and may be dangerous.
Please contact your retailer for information about the availability of
approved accessories in your area.
Power adapter safety
The power plug is intended to serve as a disconnect device.
For pluggable devices, the socket-outlet shall be installed near the
devices and shall be easily accessible.
Unplug the power adapter from electrical outlets and the device when
not in use.
Do not drop or cause an impact to the power adapter. If it is damaged,
take it to an authorized service center for inspection.
If the power cable is damaged (for example, the cord is exposed or
broken), or the plug loosens, stop using it at once. Continued use may
lead to electric shocks, short circuits, or fire.
Do not touch the power cord with wet hands or pull the power cord to
disconnect the power adapter.
Do not touch the device or the power adapter with wet hands. Doing so

15
may lead to short circuits, malfunctions, or electric shocks.
If your power adapter has been exposed to water, other liquids, or
excessive moisture, take it to an authorized service center for inspection.
Ensure that the power adapter meets the requirements of Clause 2.5 in
IEC60950-1/EN60950-1/UL60950-1 and has been tested and approved
according to national or local standards.
Cleaning and maintenance
During storage, transportation, and operation of the device, keep it dry
and protect it from collision.
Keep the device and accessories dry. Do not attempt to dry it with an
external heat source, such as a microwave oven or hair dryer.
Do not expose your device or accessories to extreme heat or cold. These
environments may interfere with proper function and may lead to fire or
explosion.
Avoid collision, which may lead to device malfunctions, overheating, fire,
or explosion.
If the device is not going to be used for an extended period of time,
power it off, and remove all cables connected to it.
If anything unusual occurs (for example, if the device emits smoke or any
unusual sound or smell), immediately stop using it, power it off, remove
all cables connected to it, and contact an authorized service center.
Do not trample, pull, or excessively bend any cable. Doing so may
damage the cable, causing the device to malfunction.
Before you clean or maintain the device, stop using it, stop all
applications, and disconnect all cables connected to it.
Do not use any chemical detergent, powder, or other chemical agents
(such as alcohol and benzene) to clean the device or accessories. These
substances may cause damage to parts or present a fire hazard. Use a
clean, soft, and dry cloth to clean the device and accessories.
Do not place magnetic stripe cards, such as credit cards and phone cards,
near the device for extended periods of time. Otherwise the magnetic
stripe cards may be damaged.
Do not dismantle or remanufacture the device and its accessories. This
voids the warranty and releases the manufacturer from liability for
damage. In case of damage, contact an authorized service center for

16
assistance or repair.
Emergency calls
The availability of emergency calls is subject to your cellular network quality,
service provider policy, and local laws and regulations. Never rely solely on
your device for critical communications like medical emergencies.
Disposal and recycling information
This symbol (with or without a solid bar) on the device, batteries
(if included), and/or the packaging, indicates that the device and its
electrical accessories (for example, a headset, adapter, or cable) and
batteries should not be disposed of as household garbage. These items
should not be disposed of as unsorted municipal waste and should be
taken to a certified collection point for recycling or proper disposal.
For more detailed information about device or battery recycling, contact
your local city office, household waste disposal service, or retail store.
Disposal of the device and batteries (if included) is subject to WEEE
Directive Recast (Directive 2012/19/EU) and Battery Directive (Directive
2006/66/EC). The purpose of separating WEEE and batteries from other
waste is to minimize the potential environmental impacts and human
health risk of any hazardous substances that may be present.
Reduction of hazardous substances
This device is compliant with the REACH Regulation [Regulation (EC) No
1907/2006] and RoHS Directive Recast (Directive 2011/65/EU). Batteries (if
included) are compliant with the Battery Directive (Directive 2006/66/EC).
For up-to-date information about REACH and RoHS compliance, please visit
the web site http://consumer.huawei.com/certification.
EU regulatory conformance
Statement
Hereby, Huawei Technologies Co., Ltd. declares that this device is in
compliance with the essential requirements and other relevant provisions
of Directive 1999/5/EC.
The most recent, effective version of the DoC can be viewed at
http://consumer.huawei.com/certification.

17
The following marking is included in the product:
This device may be operated in all member states of the EU.
Observe national and local regulations where the device is used.
This device may be restricted for use, depending on the local network.
Restrictions in the 2.4 GHz band:
Norway: This subsection does not apply for the geographical area within a
radius of 20 km from the centre of Ny-Ålesund.
Warning: This equipment may not work when mains power fails.

18
10 Legal Notice
Copyright © Huawei Technologies Co., Ltd. 2017. All rights
reserved.
No part of this manual may be reproduced or transmitted in any form or by
any means without prior written consent of Huawei Technologies Co., Ltd.
and its affiliates ("Huawei").
The product described in this manual may include copyrighted software of
Huawei and possible licensors. Customers shall not in any manner
reproduce, distribute, modify, decompile, disassemble, decrypt, extract,
reverse engineer, lease, assign, or sublicense the said software, unless such
restrictions are prohibited by applicable laws or such actions are approved
by respective copyright holders.
Trademarks and Permissions
, , and are trademarks or registered trademarks of
Huawei Technologies Co., Ltd.
LTE is a trademark of ETSI.
Wi-Fi®, the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are trademarks of
Wi-Fi Alliance.
Other trademarks, product, service and company names mentioned may be
the property of their respective owners.
Notice
Some features of the product and its accessories described herein rely on
the software installed, capacities and settings of local network, and
therefore may not be activated or may be limited by local network
operators or network service providers.
Thus, the descriptions herein may not exactly match the product or its
accessories which you purchase.
Huawei reserves the right to change or modify any information or
specifications contained in this manual without prior notice and without
any liability.

19
DISCLAIMER
ALL CONTENTS OF THIS MANUAL ARE PROVIDED "AS IS". EXCEPT AS
REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR
CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO
EVENT SHALL HUAWEI BE LIABLE FOR ANY SPECIAL, INCIDENTAL,
INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOSS OF PROFITS,
BUSINESS, REVENUE, DATA, GOODWILL SAVINGS OR ANTICIPATED
SAVINGS REGARDLESS OF WHETHER SUCH LOSSES ARE FORSEEABLE OR
NOT.
THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO
LIABILITY FOR PERSONAL INJURY TO THE EXTENT APPLICABLE LAW
PROHIBITS SUCH A LIMITATION) OF HUAWEI ARISING FROM THE USE OF
THE PRODUCT DESCRIBED IN THIS MANUAL SHALL BE LIMITED TO THE
AMOUNT PAID BY CUSTOMERS FOR THE PURCHASE OF THIS PRODUCT.
Import and Export Regulations
Customers shall comply with all applicable export or import laws and
regulations and be responsible to obtain all necessary governmental
permits and licenses in order to export, re-export or import the product
mentioned in this manual including the software and technical data therein.
Privacy Policy
To better understand how we protect your personal information, please
see the privacy policy at http://consumer.huawei.com/privacy-policy.
