Huawei SUN2000-63KTL-JPH0 User manual

HUAWEI TECHNOLOGIES CO., LTD.
SUN2000-63KTL-JPH0
Quick Guide
Issue: 06
Part Number: 31509805
Date: 2023-12-20

1Copyright © Huawei Technologies Co., Ltd.
2023. All rights reserved.
1Overview
•The information in this document is subject to change without notice. Every effort has been
made in the preparation of this document to ensure accuracy of the contents, but all
statements, information, and recommendations in this document do not constitute a warranty
of any kind, express or implied.
•Only qualified and trained electrical technicians are allowed to operate the device. Operators
should understand the composition and working principles of the grid-tied PV power system
and local standards.
•Before installing the device, read the user manual carefully to get familiar with product
information and safety precautions. Huawei shall not be liable for any consequences caused
by the violation of the storage, transportation, installation, and operation regulations specified
in this document and the user manual.
•Use insulated tools when installing the device. For personal safety, wear proper personal
protective equipment (PPE).
(1) Maintenance compartment door
(2) LED indicators
(3) Host panel
(4) Mounting bracket
(5) Heat sink
(6) Communications cable glands
(
COM1/COM2/COM3)
(7) USB port (USB)
(8) Auxiliary handles
(9) DC input terminals (+/
–; controlled by DC
SWITCH 1)
(10) DC input terminals (+/
–; controlled by DC
SWITCH 2)
(11) AC output cable gland (AC OUTPUT)
(12) Reserved cable gland (RESERVE)
(13) DC switch 1 (DC SWITCH 1)
(14) DC switch 2 (DC SWITCH 2)
1 2 3 4 5
6 7 8 9 10 8
11 12 13 14 IS09W00003

2
2Installation Requirements
Dimensions
Angle Space
For ease of installing the SUN2000 on the mounting bracket, connecting cables to the bottom
of the SUN2000, and maintaining the SUN2000 in future, it is recommended that the bottom
clearance be greater than or equal to 300 mm and less than or equal to 730 mm. If the site
cable is hard, the space at the bottom is recommended to be within the range of 600 mm and
730 mm. If you have any questions about the distance, consult the local technical support
engineers.
IS07H00036
≥ 300 mm
≥ 300 mm
≥ 200 mm
≥ 300 mm
≤ 15°
IS07W00017
330 mm
310 mm
605 mm
1075 mm
890 mm
34 mm
34 mm
226 mm
φ14 mm
75 mm

3
IS06H00040

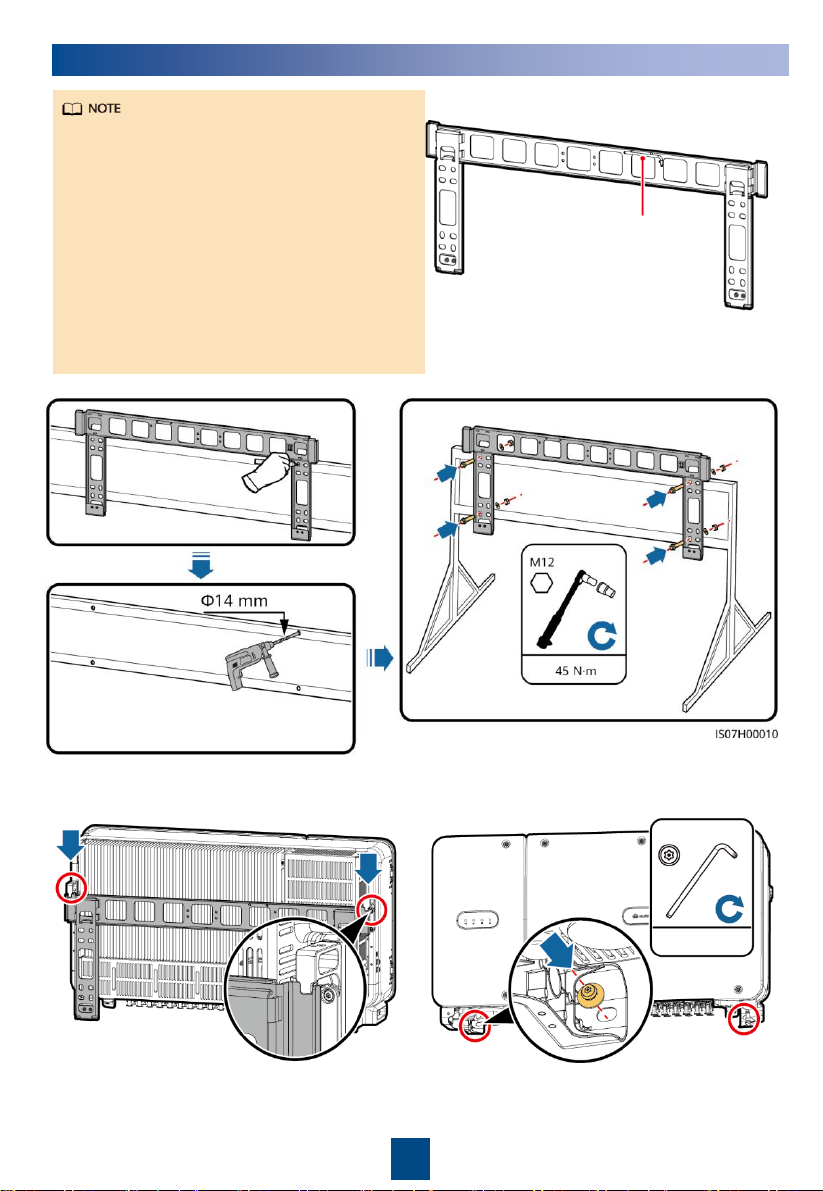

1. Install the mounting bracket.
2. Install the SUN2000 on the mounting
bracket.
3. Tighten security Torx screws.
You are advised to
apply anti-rust paint on the
hole positions for protection.
3Installing the SUN2000
•The M12x40 bolt assemblies are delivered
with the SUN2000. If the bolt assembly
length does not meet the installation
requirements, prepare M12 bolt assemblies
by yourself and use them together with the
delivered M12 nuts.
•Before installing the mounting bracket,
remove the security Torx wrench from the
mounting bracket and save it for later use.
•This document introduces how to install the
SUN2000 on a support as an example. For
details about wall-mounted installation, see
the user manual.
Position for bundling
a security Torx
wrench
IS07H00011
5 N·m
M6

4
No.
Cable
Type
Conductor Cross-
Sectional Area
Range
(Recommended)
Outer
Diameter
1
PE cable
Outdoor copper cable and M8 OT/DT
terminals
≥
16 mm2
-
2
AC output
power cable
•
If you connect a PE cable to the PE
point on the enclosure, you are
advised to use a three-core (U, V,
and W) outdoor copper cable and
M10 OT/DT terminals (U, V, and W).
•
If you connect a PE cable to the PE
point in the maintenance
compartment, you do not need to
prepare a PE cable separately but are
advised to use a four-core (U, V, W,
and PE) outdoor copper cable, M10
OT/DT terminals (U, V, and W), and
M8 OT/DT terminals (PE).
•
U, V, W: 35
mm2
•
PE: ≥ 16 mm2
24
–57
mm
3
DC input power
cable
1500 V copper multi
-strand twisted PV
cable
[1][2]
4
mm2
4.5
–7.8
mm
4
RS485
communications
cable
(connected to a
terminal block;
recommended)
Multi
-paired, individually foil shielded
cable that complies with local standards
and M6 OT/DT terminals
1
mm2
14
–18
mm
RS485
communications
cable
(connected to a
network port)
CAT 5E outdoor shielded network cable
with internal resistance ≤ 1.5 ohms/10
m, as well as the shielded RJ45
connector
-
7
–9 mm
Note [1]: Do not connect aluminum or aluminum alloy DC power cables directly to the DC
terminals of the inverter.
Note [2]: The 1500 V PV cables must comply with IEC 62930 or EN 50618.
Preparing Cables
4.1
4Electrical Connections
Connect cables in accordance with the local installation laws and regulations.

5

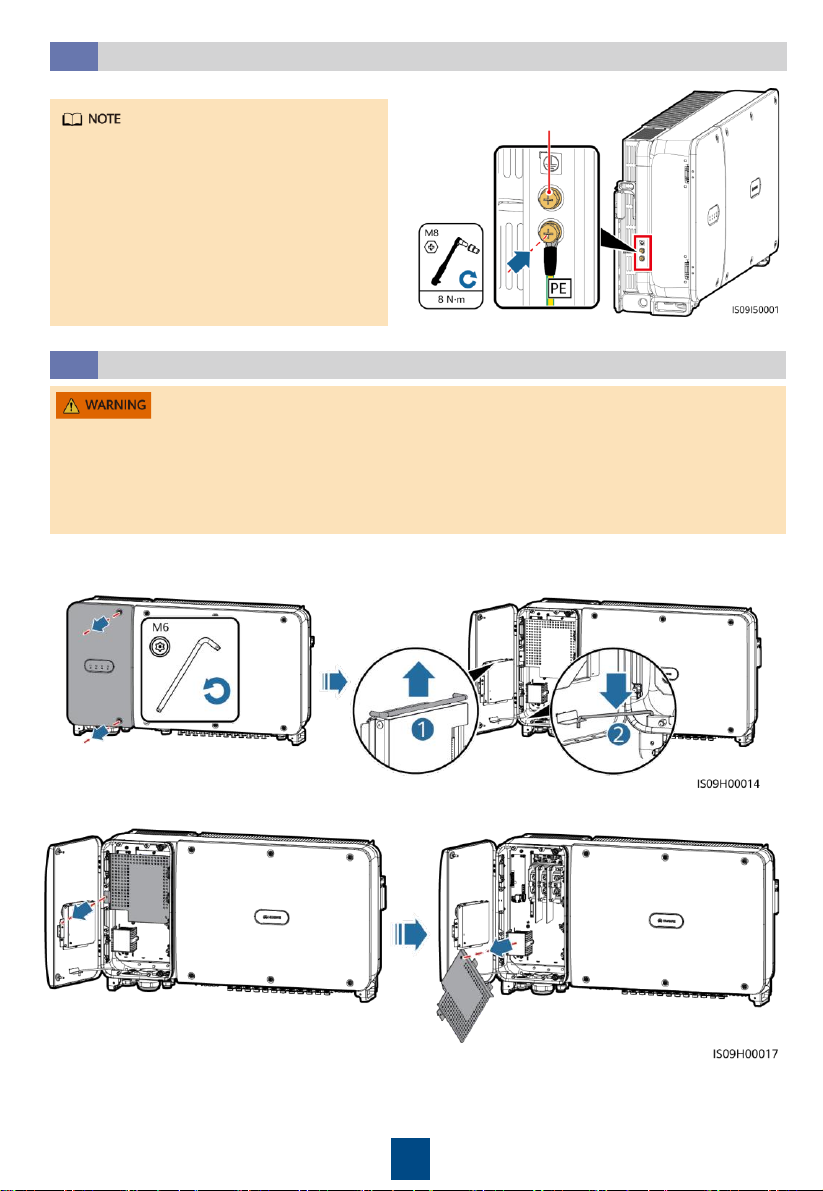

Reserved PE point
Installing the PE Cable (on the Enclosure)
4.2
•It is recommended that the PE cable
be connected to a nearby PE point.
Connect the PE points of all
SUN2000s in the same PV array to
ensure equipotential connections to
PE cables.
•To enhance the corrosion resistance
of a ground terminal, you are advised
to apply silica gel or paint on it after
connecting the PE cable.
1. Loosen the screws on the maintenance
compartment door.
Opening the Maintenance Compartment Door
4.3
•Do not open the host panel of the SUN2000.
•Before opening the SUN2000 maintenance compartment door, turn off the downstream AC
output switch and two DC switches at the bottom.
•Do not open the maintenance compartment door in rainy or snowy days. If you must, take
protective measures to prevent rain or snow from entering the maintenance compartment.
•Do not leave unused screws in the maintenance compartment.
2. Open the maintenance compartment door
and adjust the support bar.
3. Remove the cover and hang it on the hook of the enclosure door.

6
Installing the AC Output Power Cable
4.4
•This document introduces how to install the four-core AC output power cable, which can be a
reference for installing the three-core cable. The three-core cable does not need a PE cable
installed in the maintenance compartment.
•To avoid damaging the rubber liner, do not route a cable with a crimped OT terminal directly
through it.
•Do not adjust the cable when the sealing nut is tightened. Otherwise, the rubber liner will
shift, which affects the IP rating of the device.
•Ensure that AC terminations are secured. Failing to do so may cause the SUN2000 to
malfunction or damage to its terminal block by issues such as overheating.
•If the SUN2000 is insecurely installed and the AC output power cable bears the pulling force,
ensure that the last cable bearing the force is the PE cable.
After the AC output power cable is installed, seal the cable gland.
Installing the DC Input Power Cable
4.5

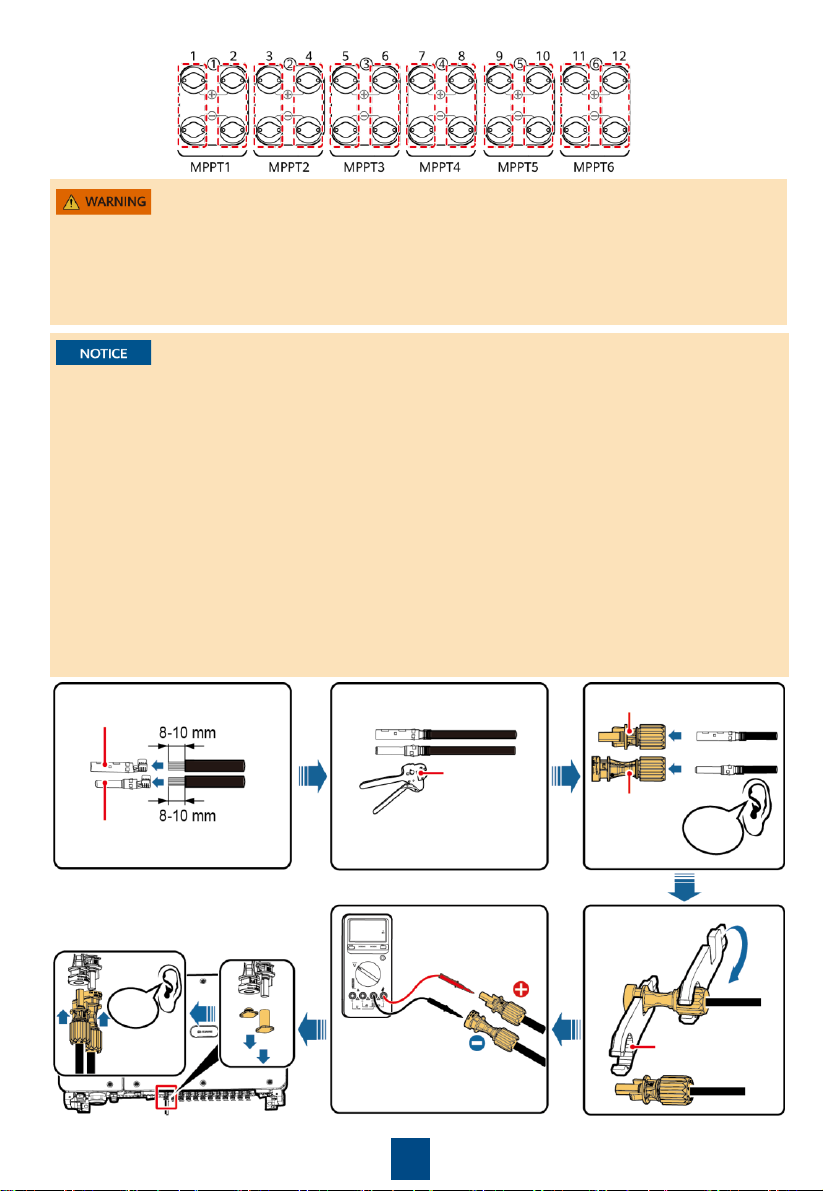

Requirements for selecting DC input terminals
1. Evenly distribute DC input power cables on the DC input terminals controlled by the two DC
switches.
2. Maximize the number of connected MPPT circuits.

7
Positive connector
Negative
connector
Positive metal contact
Negative metal contact Ensure that the cable
cannot be pulled out after
being crimped.
UTXTC0003
(Amphenol)
Click
Ensure that the
locking nut is
secured.
UTXTWA001
(Amphenol)
Click
DC voltage
measurement range
≥ 1500 V DC
1. Crimp the metal contacts using crimping tool UTXTC0003 (Amphenol, recommended) or
UTXTC0002 (Amphenol).
2. Use the positive and negative Amphenol UTX metal contacts and DC connectors supplied with
the SUN2000. Using other positive and negative metal contacts and DC connectors may result
in serious consequences. The caused device damage is not covered under any warranty.
3. Before connecting the DC input power cable, label the cable polarities to ensure correct cable
connections. Otherwise, the SUN2000 may be damaged.
4. Measure the voltage at the DC input end using a multimeter. If the voltage is a negative value,
the DC input polarity is incorrect. Correct the polarity. If the voltage is greater than 1500 V, too
many PV modules are configured to the same string. Remove some PV modules.
5. If the DC input power cable is reversely connected and the DC switch is turned on, do not
perform operations on the DC switch or the positive/negative connectors immediately.
Otherwise, the device may be damaged. The caused device damage is not covered under any
warranty. Wait until the night when solar irradiance declines and the PV string current drops
to below 0.5 A. Then turn the two DC switches to the OFF position, remove the positive and
negative DC input power connectors, and correct the polarity of the DC input power cable.
•Ensure that the PV module output is well insulated to ground.
•Before inserting the positive and negative connectors respectively into the positive and negative
DC input terminals of the SUN2000, ensure that the DC voltage does not exceed 1500 V DC
using a multimeter and that the cable polarities are correct. Otherwise, the SUN2000 will be
damaged.
IS09I30002

8

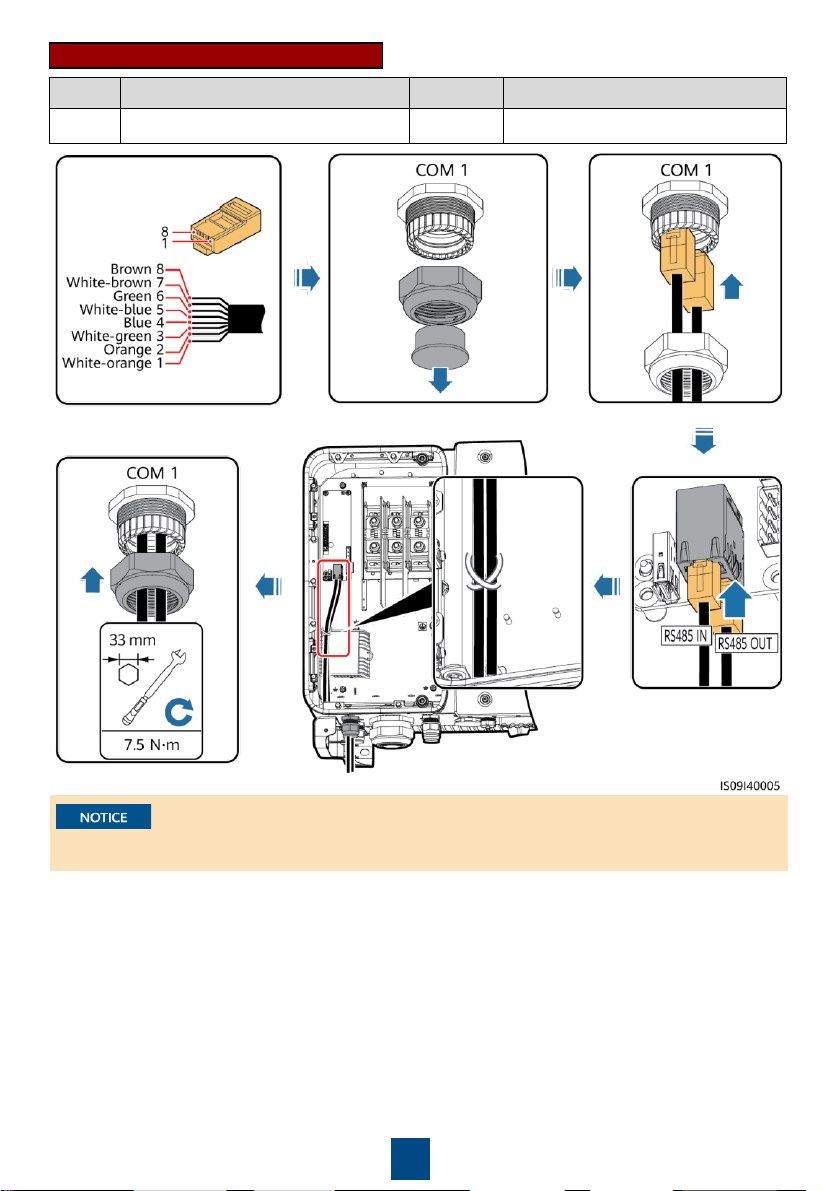

Installing the RS485 Communications Cable
4.6
1. When routing the communications cable, separate it from power cables and connect the
shield layer to the ground point to prevent communication from being affected.
2. The RS485 communications cable can connect to a terminal block or an RJ45 network port.
Select one in actual installation.
Connecting to a Terminal Block (Recommended)
No.
Definition
Description
No.
Definition
Description
1
RS485A IN
RS485A, RS485
differential signal+
2
RS485A OUT
RS485A, RS485
differential signal+
3
RS485B IN
RS485B, RS485
differential signal
–
4
RS485B OUT
RS485B, RS485
differential signal
–
After the RS485 communications cable is installed, seal the cable gland.

9
No.
Definition
No.
Definition
1, 4
RS485A, RS485 differential signal+
2, 5
RS485B, RS485 differential signal
–
Connecting to an RJ45 Network Port
After the RS485 communications cable is installed, seal the cable gland.

10

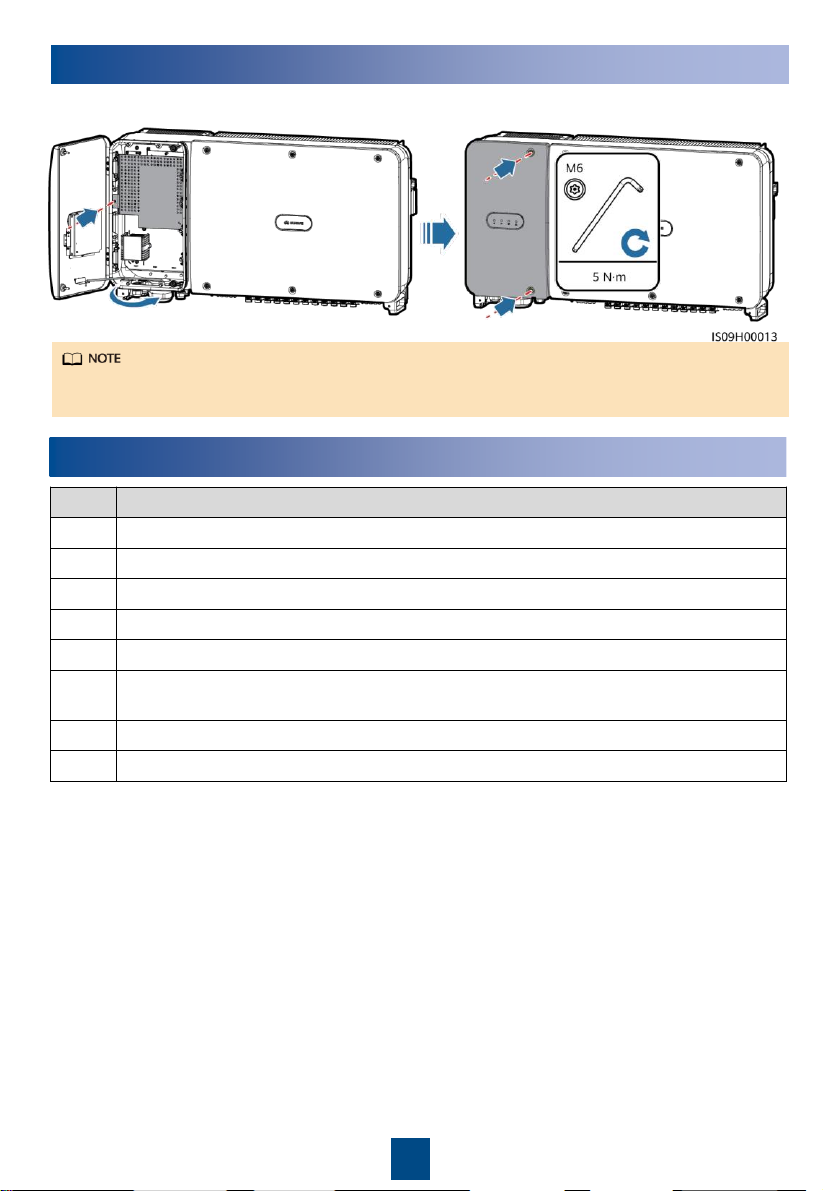

5Closing the Maintenance Compartment Door
1. Install the cover and adjust the support bar. 2. Close the maintenance compartment
door.
If the screws on the enclosure door are lost, obtain the spare screws from the fitting bag tied
at the enclosure bottom.
6Verifying Installation
No.
Acceptance Criteria
1
The SUN2000 is installed correctly and securely.
2
The DC switches and downstream AC switch are set to OFF.
3
All cables are connected correctly and securely.
4
Used cable glands are sealed and sealing nuts are tightened.
5
Unused terminals and ports are locked by watertight caps.
6
The installation space is proper, and the installation environment is clean and tidy,
without foreign matter.
7
The AC terminal cover is reinstalled.
8
The maintenance compartment door is closed and the door screws are tightened.

11

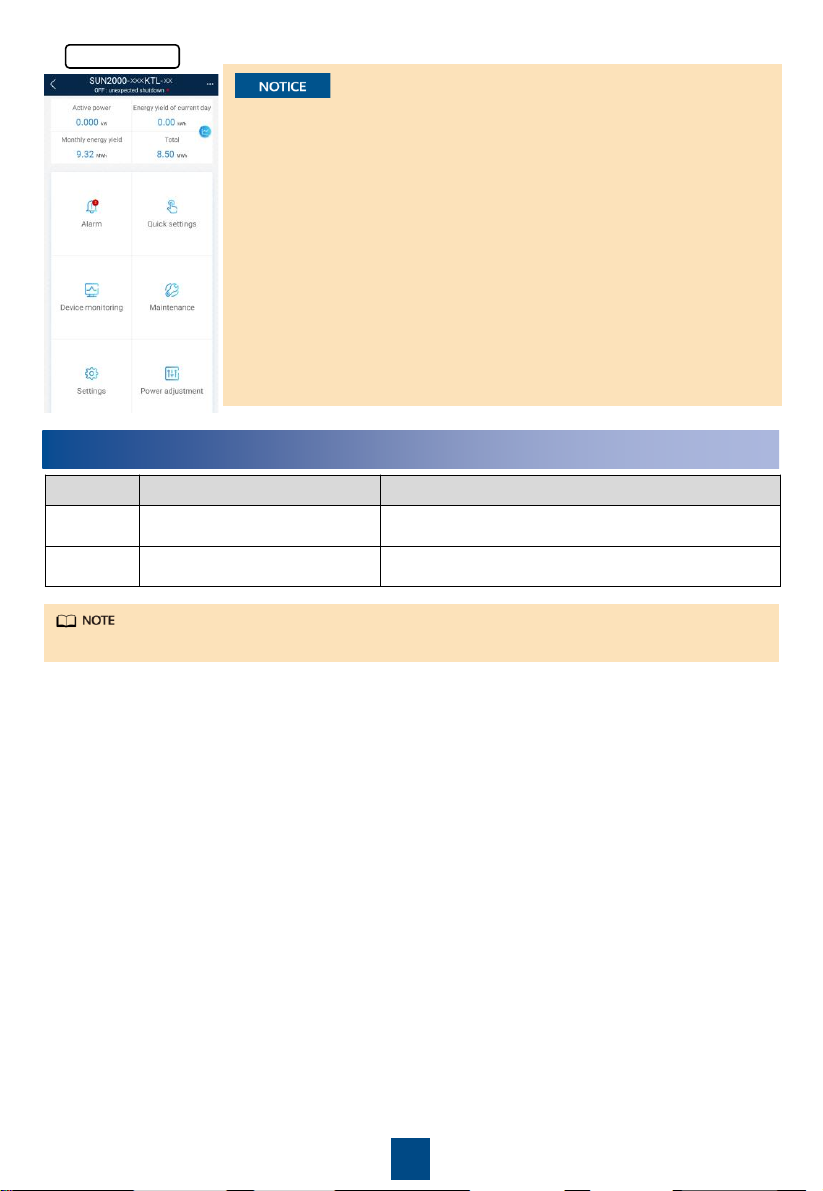

7Powering On the System
1. Turn on the AC switch between the SUN2000 and the power grid.
2. Turn the two DC switches at the bottom of the SUN2000 to the ON position.
3. Observe the LED indicators to check the SUN2000 operating status.
Before turning on the AC switch between the SUN2000 and the power grid, check that the AC
voltage is within the specified range using a multimeter.

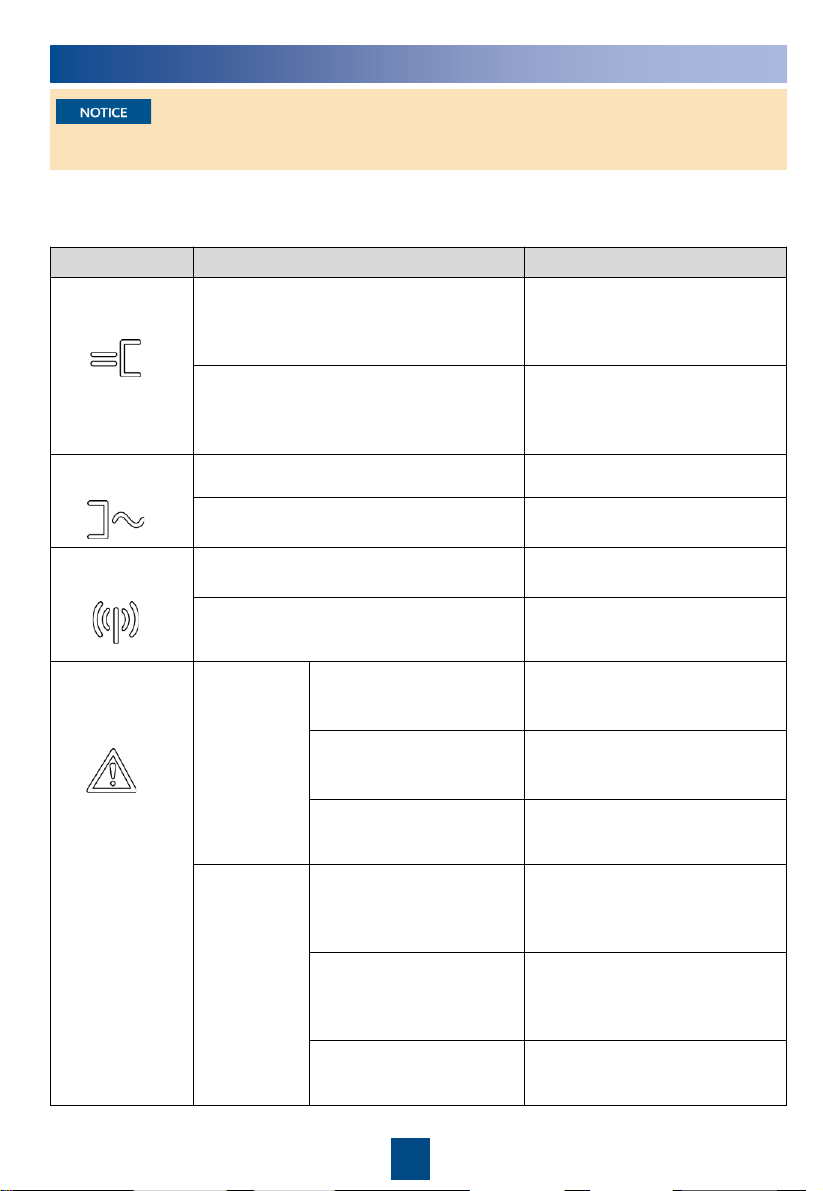

Indicator
Status
Description
PV connection
indicator
Steady green
At least one PV string is properly
connected, and the DC input
voltage of the corresponding
MPPT circuit is at least 600 V.
Off
The SUN2000 disconnects from
all PV strings, or the DC input
voltage of each
MPPT circuit is
less than 600 V.
Grid
-tied
indicator
Steady green
The SUN2000 is in grid
-
tied mode.
Off
The SUN2000 is not in grid
-tied
mode.
Communications
indicator
Blinking green
The SUN2000 receives
communications data normally.
Off
The SUN2000 receives no
communications data for 10s.
Alarm/
Maintenance
indicator
Alarm status
The red indicator is blinking
at long intervals (on for 1s
and then off for 4s).
A warning alarm is generated.
The red indicator is blinking
at short intervals (on for 0.5s
and then off for 0.5s).
A minor alarm is generated.
Steady red
A major alarm is generated.
Local
maintenance
status
The green indicator is
blinking at long intervals
(on for 1s and then off for
1s).
Local maintenance is in progress.
The green indicator is
blinking at short intervals
(on for 0.125s and then off
for 0.125s).
Local maintenance failed.
Steady green
Local maintenance succeeds.

12
SUN2000 App
8
Bluetooth Module or WLAN Module
Connection USB Data Cable Connection
Scan the QR
code to
download
the app
(Android).
1. The SUN2000 app is a mobile phone app that communicates with the solar
inverter over a WLAN module, a Bluetooth module, or a USB data cable. As
a convenient local monitoring and maintenance platform, it allows for
querying alarms, configuring parameters, and performing routine
maintenance. The app is named SUN2000.
2. Go to Huawei app store, search for SUN2000, and download the app
installation package. You can also scan the QR code to download the
installation package.
3. Connect the WLAN module, Bluetooth module, or USB data cable to the
USB port on the solar inverter to ensure that the solar inverter can
communicate with the SUN2000 app.
Android Android
Login Page Select Connection Mode Select User Quick Settings

13
9Grid Codes
No.
Grid Code
Description
1
Japan-MV550-50Hz Japan power grid (550 V/50 Hz)
2
Japan-MV550-60Hz Japan power grid (550 V/60 Hz)
The grid codes are subject to change. The listed codes are for your reference only.
Function Menu
•The screenshots in this document correspond to app version
3.2.00.013 (this app is available only on Android phones currently).
•When the WLAN connection is used, the initial name of the WLAN
hotspot is Adapter-WLAN module SN, and the initial password is
Changeme.
•The initial password to log in to the app for Common User,
Advanced User, and Special User is 00000a.
•Use the initial password upon first power-on and change it
immediately after login. To ensure account security, change the
password periodically and keep the new password in mind. Not
changing the initial password may cause password disclosure. A
password left unchanged for a long period of time may be stolen or
cracked. If a password is lost, devices cannot be accessed. In these
cases, the user is liable for any loss caused to the PV plant.
•Set the correct grid code based on the application area and scenario
of the solar inverter.

Huawei Technologies Co., Ltd.
Huawei Industrial Base, Bantian, Longgang
Shenzhen 518129 People's Republic of China
www.huawei.com
