1 Placing the Device
NO TE
● Do not install the ONT outdoors or in an outdoor cabinet.
● The ONT can be mounted onto a wall or placed on a desk. Do not install the ONT in
other modes, such as ceiling.
● Keep 10 cm clearance on all sides to ensure adequate ventilation.
● It is recommended that the computer and ONT be put far away from electric appliances
that generate strong magnetic or electric elds, such as microwave ovens.

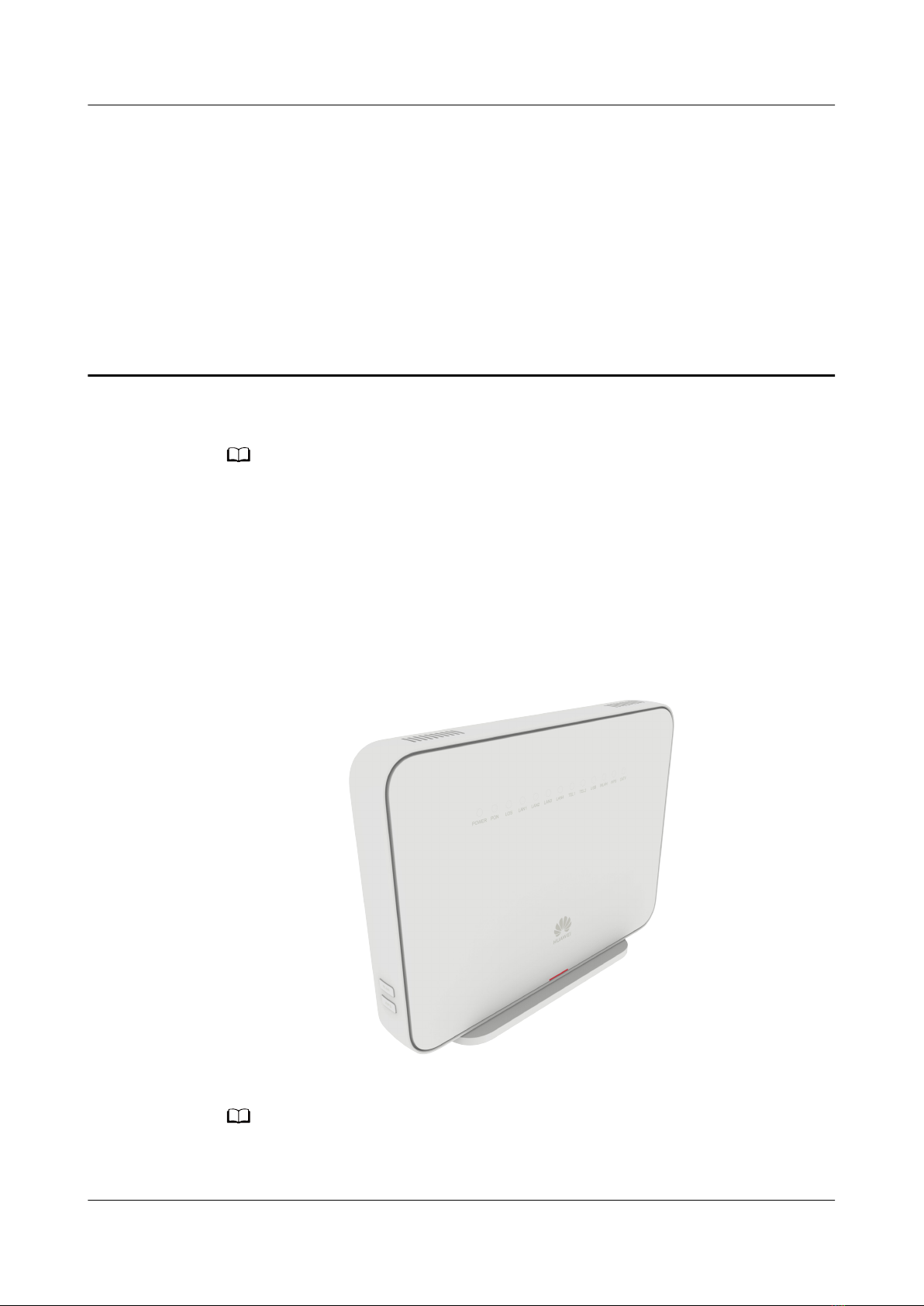

Mounting an ONT on the desk
The gure below shows an ONT that is horizontally placed on a desk.
NO TE
The appearance shown in this document may be dierent from the actual appearance of
the product. The actual product prevails.
EchoLife EG8247W5-8T
Quick Start for QR code 1 Placing the Device
Issue 01 (2020-05-07) Copyright © Huawei Technologies Co., Ltd. 1

Mounting an ONT onto the wall
1. Mark two positions with the same spacing as that between the two mounting
holes of the ONT using a marker on a wall.
2. Select a proper drill bit according to the outer diameter of the screws. Use a
hammer drill to drill the marked positions on the wall. Then clean the holes
and install two expansion bolts.
3. Use a screwdriver to fasten the screws into the expansion bolts, reserving 13
mm ends out of the wall, and mount the ONT onto the screws.
NO TE
It is recommended that the screw be about 4 mm in diameter and longer than 30 mm.
EchoLife EG8247W5-8T
Quick Start for QR code 1 Placing the Device
Issue 01 (2020-05-07) Copyright © Huawei Technologies Co., Ltd. 2

2 Connecting Cables
EchoLife EG8247W5-8T
Quick Start for QR code 2 Connecting Cables
Issue 01 (2020-05-07) Copyright © Huawei Technologies Co., Ltd. 3

NO TE
● The ber connector connected to the optical port on the wall varies depending on
actual conditions.
● To ensure normal use of bers, make sure that the ber bending radius is larger than 30
mm.
No. Item Description
1 CATV Connects to a TV.
2 TEL1-TEL2 Connects to the ports on a telephone or fax machine.
3 USB Connects to USB storage devices.
4 LAN1-
LAN4
Connects to PCs or IP set-top boxes (STBs).
5 Reset Press the button for a short time to reset the device, or
press the button for a long time (longer than 10s) to
restore the device to the default settings and reset the
device.
NOTE
Reset Huawei ONTs with caution. Otherwise, the ONTs may fail to
access the Internet. If an ONT cannot access the Internet after a
reset, contact your Internet service provider.
6On/O Powers the ONT on or o.
7 Power Connects to a power adapter.
8 WLAN Used to enable or disable the WLAN function
- When the WLAN is disabled, press the WLAN button (>
3s) and release the button to enable the WLAN.
- When the WLAN is enabled, press the WLAN button (>
3s) and release the button to disable the WLAN.
9 WPS When the WLAN is on, press the WPS button (> 3s) and
release the button to start Wi-Fi protected setup (WPS)
negotiation.
10 Optical
port
The optical port is equipped with a rubber plug and
connected to a ber for upstream transmission.
The type of the optical connector connected to the optical
port can be SC/APC.
EchoLife EG8247W5-8T
Quick Start for QR code 2 Connecting Cables
Issue 01 (2020-05-07) Copyright © Huawei Technologies Co., Ltd. 4

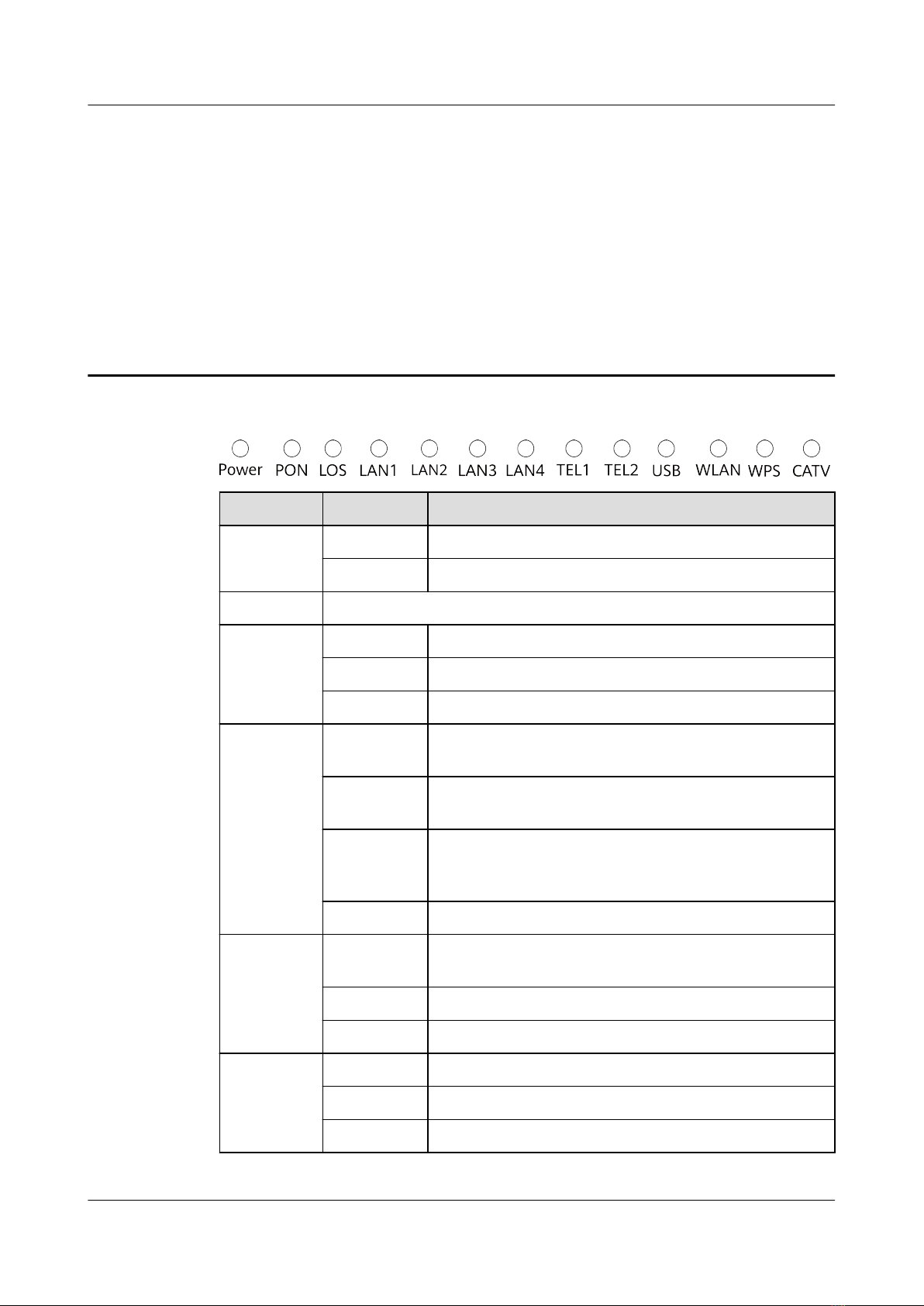

3 Indicator Description
Indicator Status Description
Power Steady on The ONT is powered on.
O The power supply is cut o.
PON/LOS See the following table .
LAN1-
LAN4
Steady on The Ethernet connection is in the normal state.
Blinking Data is being transmitted over the Ethernet port.
O The Ethernet connection is not set up.
TEL1-TEL2 Steady on The ONT is registered with the softswitch but no
service ows are transmitted.
Blinks twice
a second
The ONT is registered with the softswitch, and data
is being transmitted on the port.
Blinks once
every 2
seconds
The ONT fails to be registered with the softswitch.
O The POTS port is disabled.
USB Steady on The USB port is connected and working in the host
mode, but no data is transmitted.
Blinking Data is being transmitted on the USB port.
O The USB port is not connected.
WLAN Steady on The WLAN function is enabled.
Blinking Data is being transmitted over the WLAN port.
O The WLAN function is disabled.
EchoLife EG8247W5-8T
Quick Start for QR code 3 Indicator Description
Issue 01 (2020-05-07) Copyright © Huawei Technologies Co., Ltd. 5

Indicator Status Description
WPS Steady on The WPS function is enabled.
Blinking A Wi-Fi terminal is accessing the system.
O The WPS function is disabled.
CATV Steady on The CATV function is enabled and CATV signals are
received.
O The CATV function is disabled or no CATV signal is
received.
Status
No.
PON
Status
LOS
Status
Description
1O O The ONT is prohibited by the upper-layer
device or blinks abnormally. Contact the
service provider for help.
2 Blinks twice
a second
Blinks
twice a
second
3 Blinks twice
a second
O The ONT attempts to set up a connection
with its upper-layer device.
4 Steady on O A connection is set up between the ONT and
its upper-layer device.
5O Blinks
once
every 2
seconds
The ONT is not connected to bers or does
not receive optical signals.
6 Blinks once
every 2
seconds
Blinks
once
every 2
seconds
The hardware is faulty.
NO TE
If the ONT is not powered on or the power switch is turned o, all indicators are o.
EchoLife EG8247W5-8T
Quick Start for QR code 3 Indicator Description
Issue 01 (2020-05-07) Copyright © Huawei Technologies Co., Ltd. 6

4 Technical Specications
Product Function
EG8247W5-8T ● 4 Ethernet ports
● 2 POTS ports
● 1 USB port
● 1 CATV port
● 2.4 GHz & 5 GHz Wi-Fi
● Power adapter input: See the nameplate on the adapter.
● System power supply: See the nameplate on the device.
● Ambient temperature: 0ºC to +40ºC
● Ambient humidity: 5%–95% (non-condensing)
● Dimensions (H x W x D): 192 mm x 255 mm x 80 mm (with the base); 185
mm x 255 mm x 38 mm (without the base)
● Weight: < 1500g
● Maximum system power consumption: 28W
EchoLife EG8247W5-8T
Quick Start for QR code 4 Technical Specications
Issue 01 (2020-05-07) Copyright © Huawei Technologies Co., Ltd. 7

5 FAQs
NO TE
The following web page is only for reference. The actual web page of the product prevails.
How do I log in to the Huawei ONT web page?

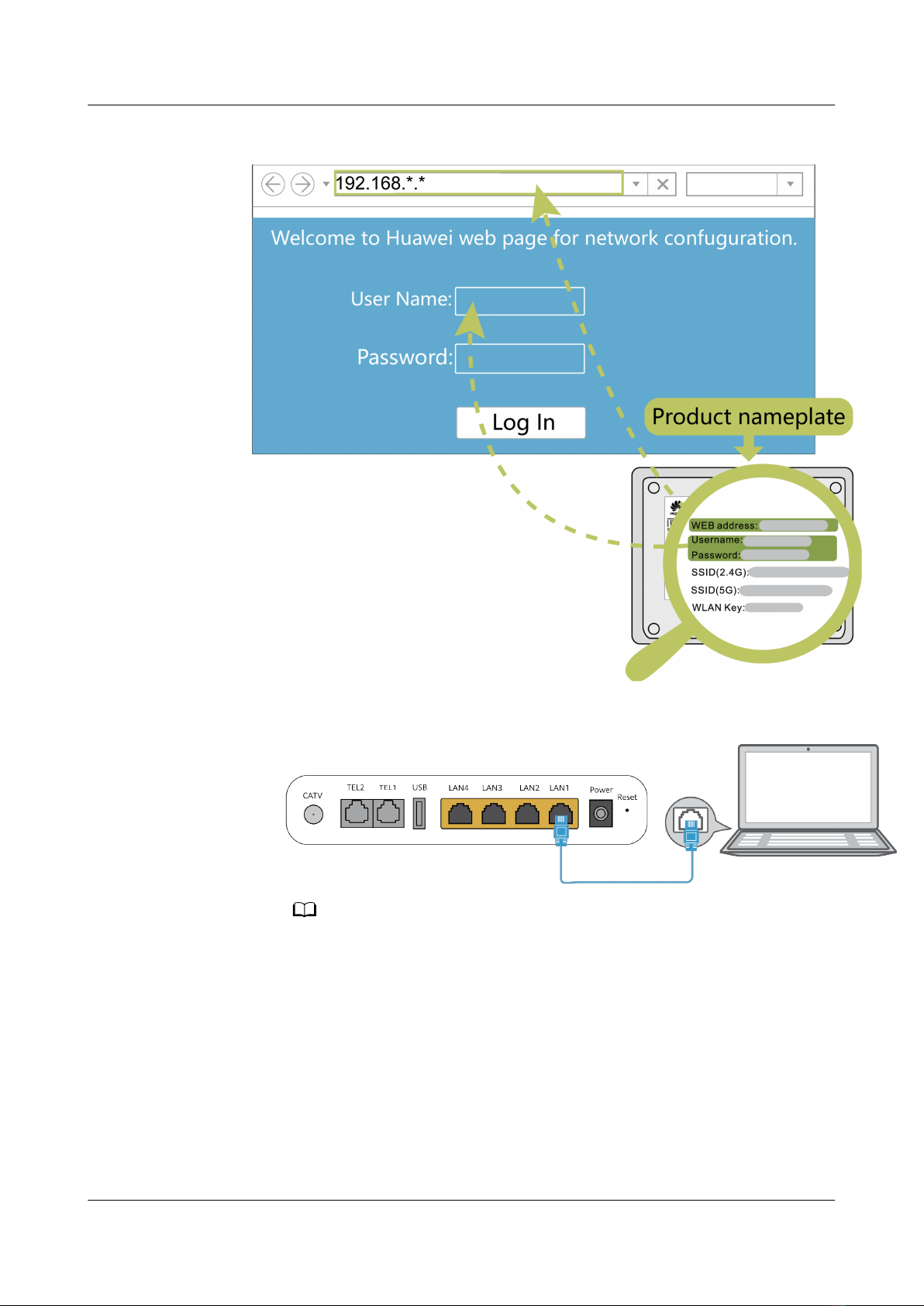

● Wireless login
a. Connect your mobile phone, pad, or PC to the Wi-Fi network of the
Huawei ONT.
b. Enter the IP address in the address box of a browser and press Enter. On
the displayed login page, enter the username and password. (For details
about the IP address, login username, and password, see the product
nameplate.)
EchoLife EG8247W5-8T
Quick Start for QR code 5 FAQs
Issue 01 (2020-05-07) Copyright © Huawei Technologies Co., Ltd. 8

● Wired login
a. Use a network cable to connect a PC to the Huawei ONT.
NO TE
The preceding cable connection diagram and login pages are only for reference,
and those of the actual product prevail.
b. Set the IP address of the PC in the same subnet as the web address of the
Huawei ONT.
For example, if the web address of the Huawei ONT is
192.168.100.1 (for the web address of the Huawei ONT, see the product
nameplate), set the IP address of the PC to 192.168.100.100.
c. Log in to the web conguration page.
i. Open a browser. In the address box, enter the web address (printed
on the nameplate of the Huawei ONT). Press Enter.
ii. Enter the login user name and password (printed on the nameplate
of the Huawei ONT). Click Log In.
EchoLife EG8247W5-8T
Quick Start for QR code 5 FAQs
Issue 01 (2020-05-07) Copyright © Huawei Technologies Co., Ltd. 9

NO TE
● If you do not perform any operations after logging in to the system within
five minutes, you will be logged out, and the system automatically returns to
the login interface.
● The system will be locked for one minute if you input incorrect user name
and password for three consecutive times.
● Change the initial password after logging in to the web page for the rst
time.
How do I change the Wi-Fi password?
1. Log in to the Huawei ONT web page using your mobile phone, pad, or PC. For
details, see "How do I log in to the Huawei ONT web page?"
2. Choose the Advanced Conguration > WLAN tab and choose 2.4G Basic
Network Settings. (If you want to congure 5G Wi-Fi, choose 5G Basic
Network Settings.).
What can I do if I forget the Wi-Fi password?
1. Log in to the Huawei ONT web page using your PC by wired login. For details,
see "How do I log in to the Huawei ONT web page?"
2. Choose the Advanced Conguration > WLAN tab and choose 2.4G Basic
Network Settings. (If you want to congure 5G Wi-Fi, choose 5G Basic
Network Settings.).
EchoLife EG8247W5-8T
Quick Start for QR code 5 FAQs
Issue 01 (2020-05-07) Copyright © Huawei Technologies Co., Ltd. 10

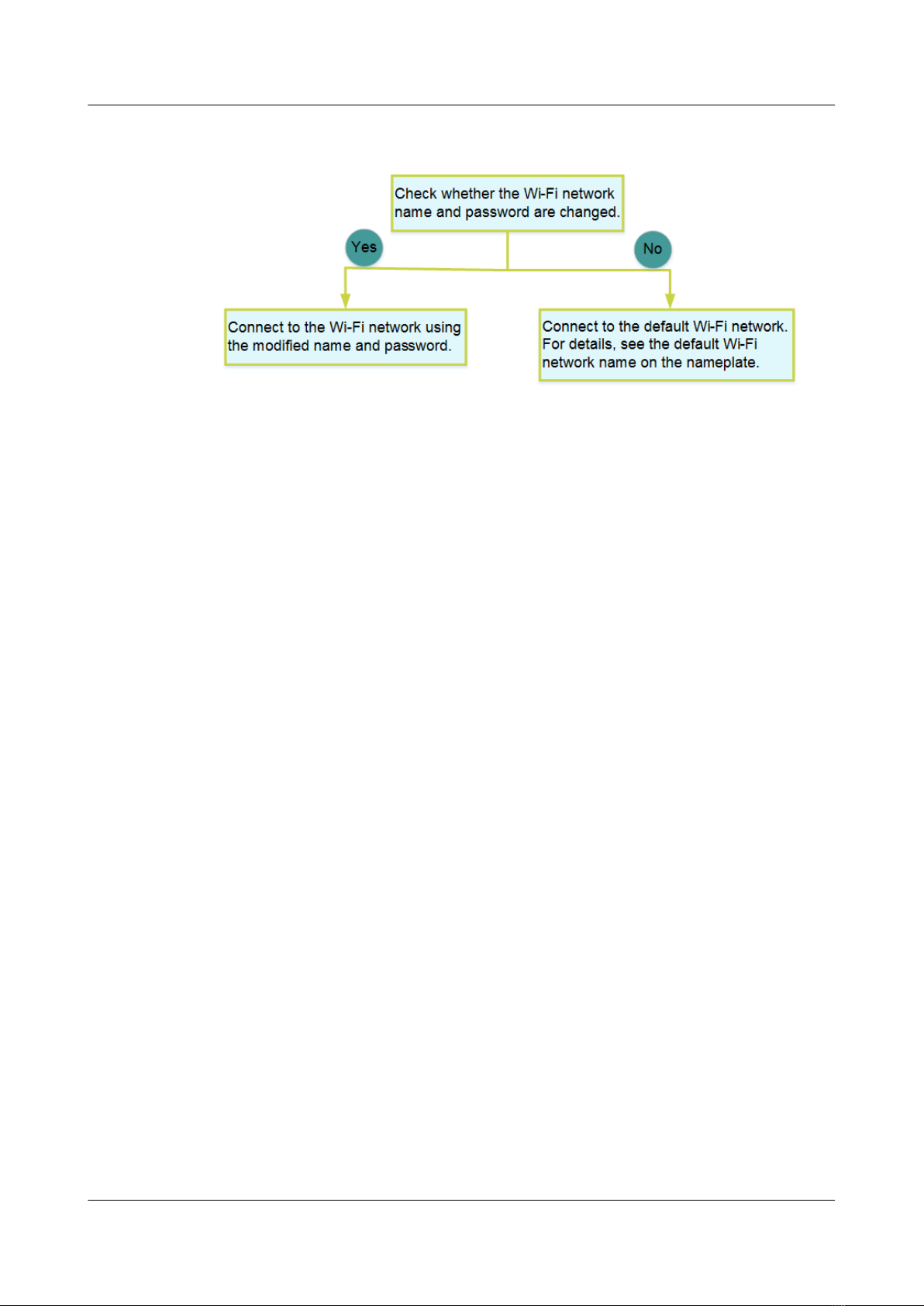

What can I do if I cannot connect to the Wi-Fi network?
How to improve the Wi-Fi speed of a Huawei ONT?
1. Wi-Fi speed relies on the bandwidth provided by the ISP, so the simplest way is
to upgrade to faster broadband.
2. Wi-Fi speed is aected by the Wi-Fi signal strength and quality. Ensure that the
Huawei ONT is far away from interference sources such as TVs, microwave ovens,
refrigerators, cordless phones, and Bluetooth devices, and reduce the number of
obstacles between the Huawei ONT and Wi-Fi devices (such as pads, mobile
phones, and laptops). You are advised to use repeaters to enhance the Wi-Fi
coverage if the area is large.
3. Using the correct radio channel. Generally, the Huawei ONT automatically
selects the optimal channel. If the network is slow or the quality turns poor from
time to time, you can use a Wi-Fi scanner such as Wi-Fi Stumbler or Wi-Fi
Analyzer to search for the optimal channel.
4. To prevent unauthorized network access, log in to the web interface of the
router and select MAC address ltering based on your requirements.
What can I do if the network speed is slow?
1. Check whether network cables are properly connected. Remove and then
insert the network cables. Then, check whether the network speed is normal.
2. Check whether downloading, network video watching, or other operations
occupy a large amount of bandwidth. Due to bandwidth restrictions, if some
network applications occupy a large amount of network bandwidth, the
network speed is slow.
3. Use another PC, mobile phone, or pad to check whether the network speed is
normal.
A phone does not ring upon an incoming call but communication is in
normal state when the phone is in o-hook state.
● The ONT supports a maximum of 60 V AC ringing current voltage. Check
whether the ringing current voltage of the phone is higher than 60 V AC. If it
is higher than 60 V AC, replace the phone.
EchoLife EG8247W5-8T
Quick Start for QR code 5 FAQs
Issue 01 (2020-05-07) Copyright © Huawei Technologies Co., Ltd. 11

How do I restore the Huawei ONT to factory setting?
Press Reset by using a needle-type object for longer than 10s to restore factory
defaults and reset the Huawei ONT. If the indicator is o and then is lit, the
system restarts successfully.
NO TE
Exercise caution when restoring factory settings. This function may cause the loss of ONT
conguration information and further cause an Internet access failure. If this problem
occurs, contact your service provider for help.
How can I download Huawei ONT rmware or ONT software?
Huawei ONT is used with an OLT and NMS of a required version. If the versions
are not the required ones, the ONT may not work.
If required, contact your internet service provider to obtain the correct ONT
rmware or software.
EchoLife EG8247W5-8T
Quick Start for QR code 5 FAQs
Issue 01 (2020-05-07) Copyright © Huawei Technologies Co., Ltd. 12
