OptiX RTN 950A Radio Transmission System
V100R010
IDU Quick Installation Guide (Indoor)
Issue: 01
Date: 2017-05-30

Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website: http://www.huawei.com
Email: [email protected]
No part of this document may be reproduced or transmitted in any form or by any means without prior
written consent of Huawei Technologies Co., Ltd.
Copyright © Huawei Technologies Co., Ltd. 2017. All rights reserved.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective
holders.
Notice
The purchased products, services and features are stipulated by the contract made between Huawei and
the customer. All or part of the products, services and features described in this document may not be
within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements,
information, and recommendations in this document are provided "AS IS" without warranties, guarantees
or representations of any kind, either express or implied.
The information in this document is subject to change without notice. Every effort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute a warranty of any kind, express or implied.

2
Installation Process
Before You Start PrecautionsPage 2
Start
Instructions and
Precautions for
Handling Boards
Page 3
Instructions and
Precautions for
Handling Power
Cable Terminals
Page 4
Precautions for
Handling the Toggle
Lever Switch
Page 5
Introduction to the
RTN 950A
Equipment
Page 9
Installing the RTN
950A
Pages
11 to 17
Optional: Installing
the E1 Panel
Pages
17 to 18
Installing BoardsPage 19
Installing IDU
Cables
Pages
19 to 31
Checking the
Installation
Page 38
End
Installing Power
Cables
Pages
19 to 21
Installing PGND
Cables
Page19
Installing Ethernet
Service Cables
Page 23
Installing E1 Cables
Pages
21 to 22
Installing IF
Jumpers
Page 24
Installing XPIC
Cables
Page 23
Installing STM-1e
Cables
Page 26
Installing Fibers
Pages
25 to 26
Installing Orderwire
Phone Cables
Page 27
Installing NM
Cables
Pages
26 to 27
Installing
Asynchronous and
Synchronous Data
Cables
Page 29
Installing External
Clock Cables
Page 28
Cable Layout
Effectiveness
Page 31
Installing External
Alarm Cables
Page 30
Installing the
Chassis in the 19-
Inch Cabinet
Pages
10 to11
Installing the
Chassis in the
ETSI Cabinet
Pages
11 to 12
Wall-Mounting the
Chassis
Pages
12 to 14
Desk-Mounting the
Chassis
Page 15
Tools for InstallationPage 8
Precautions for
Handling IF Cables
Page 6
Precautions for
Handling IF
Jumpers
Page 6
Precautions for
Handling IF Boards
Page 7

1
Commissioning Process
Powering On the
Equipment
Page 35
Start
Configuring the NE
Data (by Using the
USB Flash Drive)
Page 36
Configuring the NE
Data (by Using the
Web LCT / Hand-
Held Tool)
Page 37
Aligning the
Antennas
Pages
38 to 40
Checking the Radio
Link Status
Page 40 Aligning the Dual-
Polarized Antennas
Pages
39 to 40
Aligning the Single-
Polarized Antennas
Pages
38 to 39
End

2
Precautions
This document provides quick guidelines for hardware installation.
This document does not describe pre-delivery assembly. This document describes only procedures for
onsite installation.

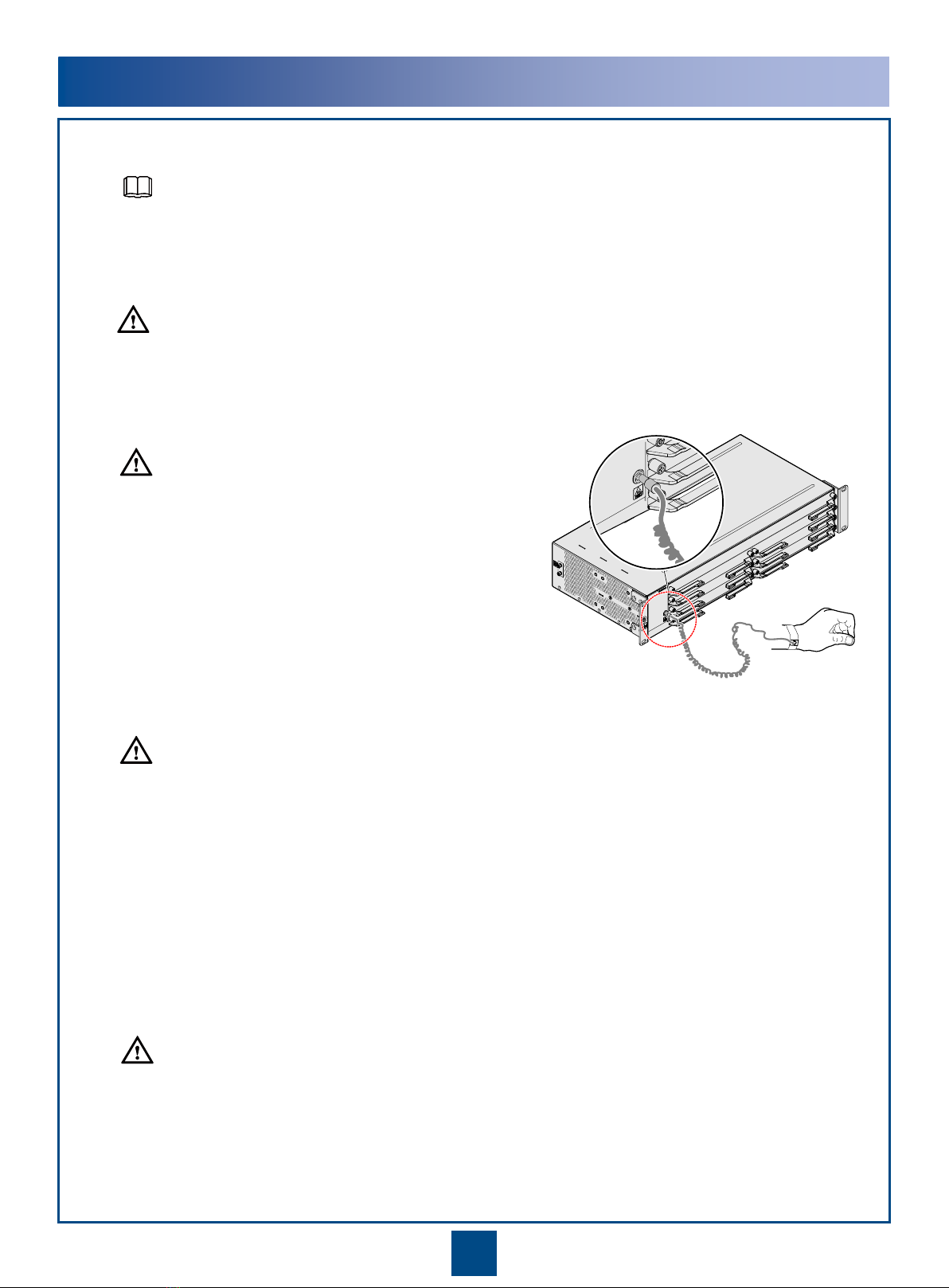

Electrostatic Discharge
Wear ESD gloves or an ESD wrist strap prior to contact
with the equipment or before handling the plug-boards,
boards, and IC chips to prevent damage to sensitive
components caused by electrostatic discharge from the
human body. Ensure that the other end of the ESD wrist
strap is properly grounded.
Binding Cables
Binding intervals between cable ties or optical fiber binding straps inside the cabinet cannot exceed 250
mm. (The distance cannot exceed 200 mm for user cables).
Binding intervals between cable ties for all cables and corrugated pipes outside the cabinet are
determined according to the distance between the two horizontal beams. If the cable trough does not
contain any beams, the binding intervals between cable ties cannot exceed 250 mm.
Pre-installation Check
Check the telecommunications room, cabinet, power supply, ground wires, optical cables, and
associated facilities prior to installation. Start the installation according to the engineering design
documents after verifying that conditions are met.
NOTE
CAUTION
CAUTION
CAUTION
Power Supply
The equipment uses a -48 V/-60 V DC power supply. An AC power supply or a high-voltage power
supply may cause equipment damage or even human injuries and therefore is forbidden.
CAUTION

3
Do not hold a board without hand protection. Wear an ESD wrist strip or ESD gloves before handling a board.
Insert filler panels into vacant slots on an NE to prevent foreign matters from getting into the NE, which
may result in faults on the NE.
Boards are fragile and valuable. When handling or placing a board, exercise caution and put it into a
dedicated packing box.
Holding a board without hand protectionWearing ESD gloves Wearing an ESD strip
Hold the front panel of a board with hands.
Instructions and Precautions for Handling Boards
CAUTION
CAUTION
CAUTION

4

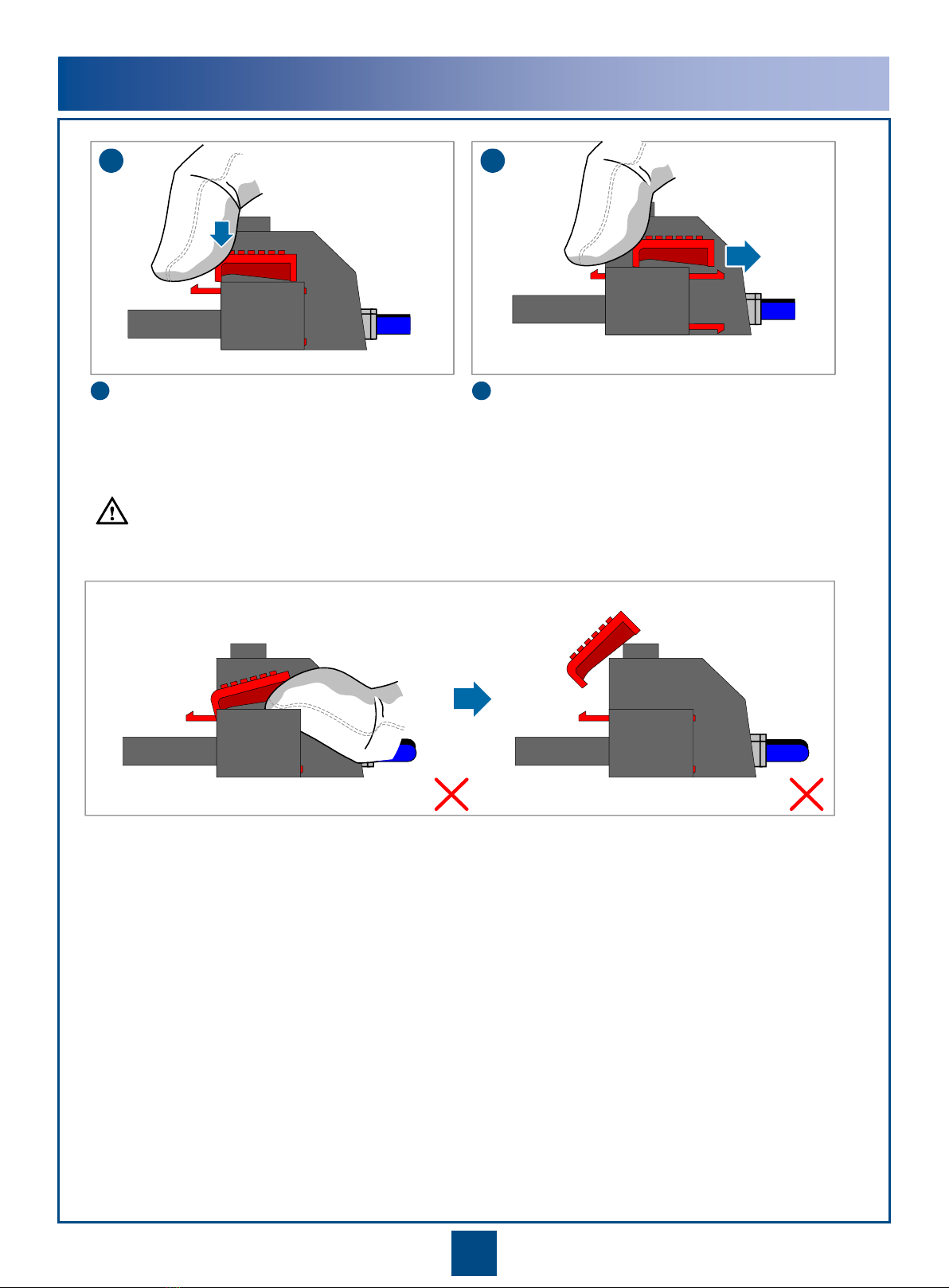

Instructions and Precautions for Handling Power Cable
Terminals
Do not pick up the tail end of the red latch by using a finger or a screwdriver to avoid damage.
Press the front of the red latch. Properly move the red latch outwards.
2
2
1
1
CAUTION

5

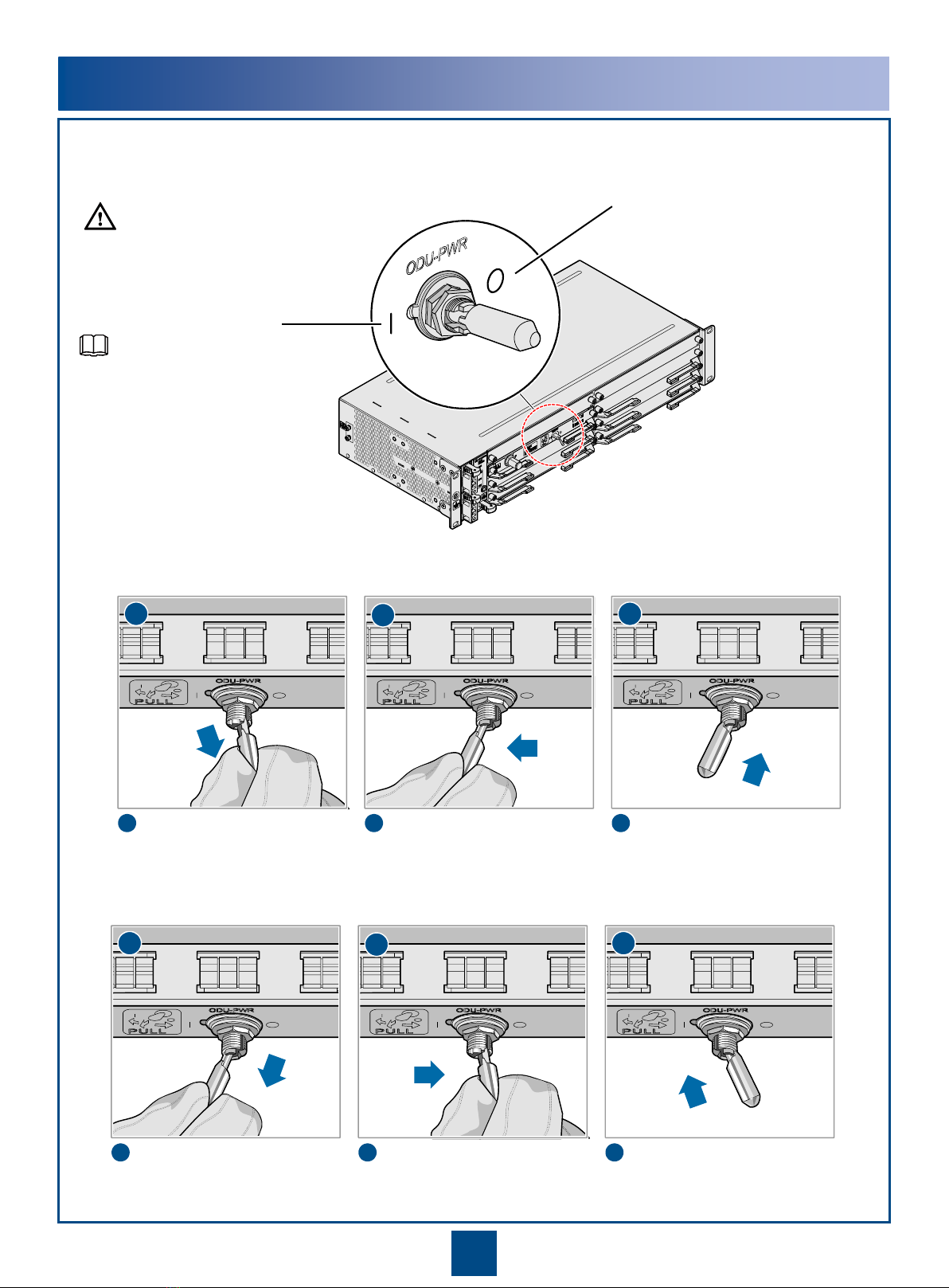

Precautions for Handling the Toggle Lever Switch
Turn the toggle lever switch only
after gently pulling it out.
•Position and description of the toggle lever switch
I : ON
O: OFF
•Turning on the switch
•Turning off the switch
Pull the switch out gently. Turn the switch. Release the switch.
Pull the switch out gently. Turn the switch. Release the switch.
1
1
2
2
3
3
1
1
2
2
3
3
CAUTION
A dual-channel IF board does not
have a toggle lever switch.
NOTE

6

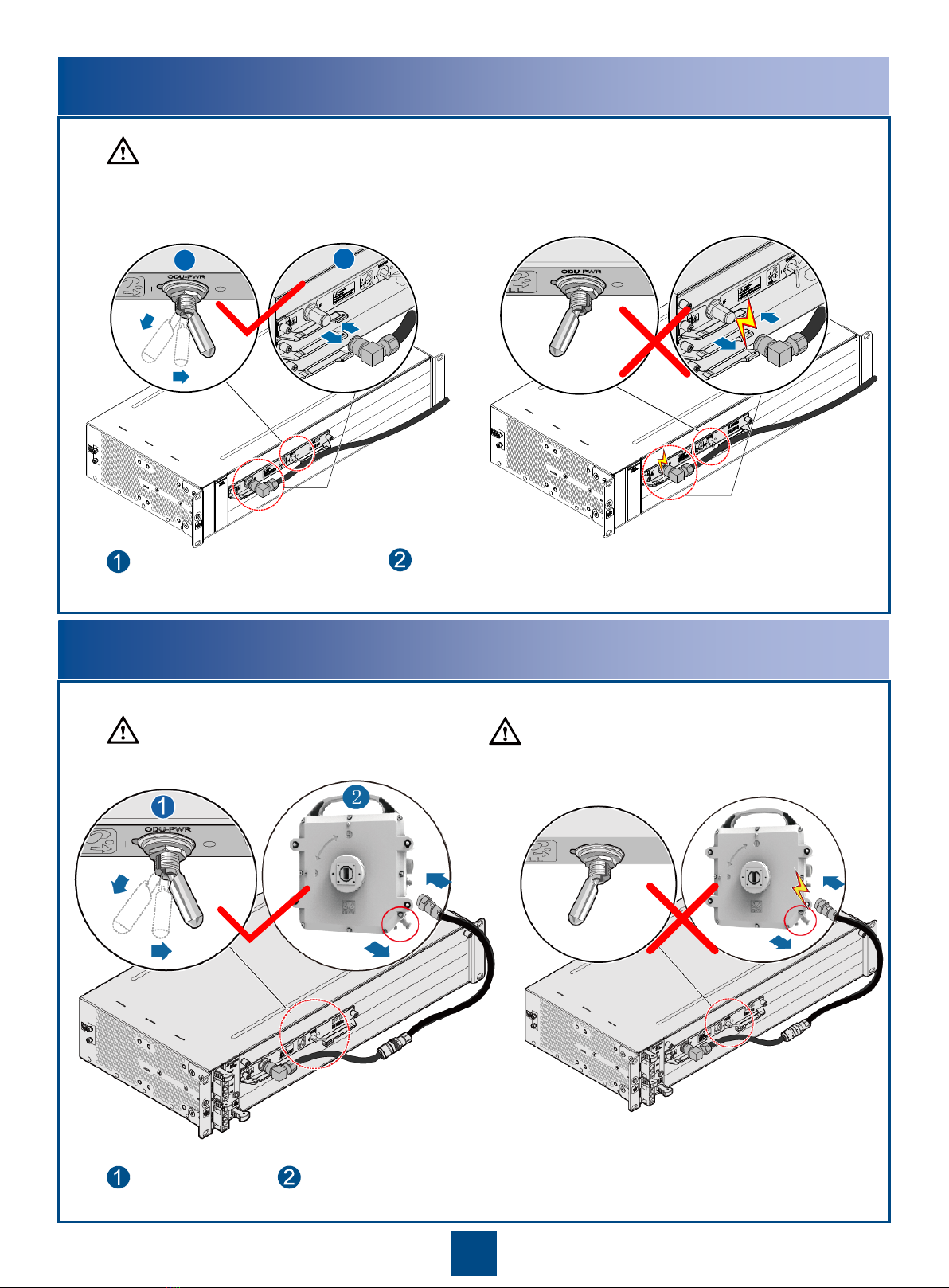

Power off the ODU. Connect or disconnect the IF cable .
Connect or disconnect an IF cable only after
powering off the ODU. Do not connect or disconnect an IF cable when the
ODU is powered on.
Connect or disconnect an IF cable only
after powering off the ODU. Do not connect or disconnect an IF cable when the
ODU is powered on.
Power off the ODU. Connect or disconnect the IF cable.
CAUTION
CAUTION CAUTION
2
1
Precautions for Handling IDU-side IF Cables (Single-
Channel IF Board)
Precautions for Handling ODU-side IF Cables (Single-
Channel IF Board)

7

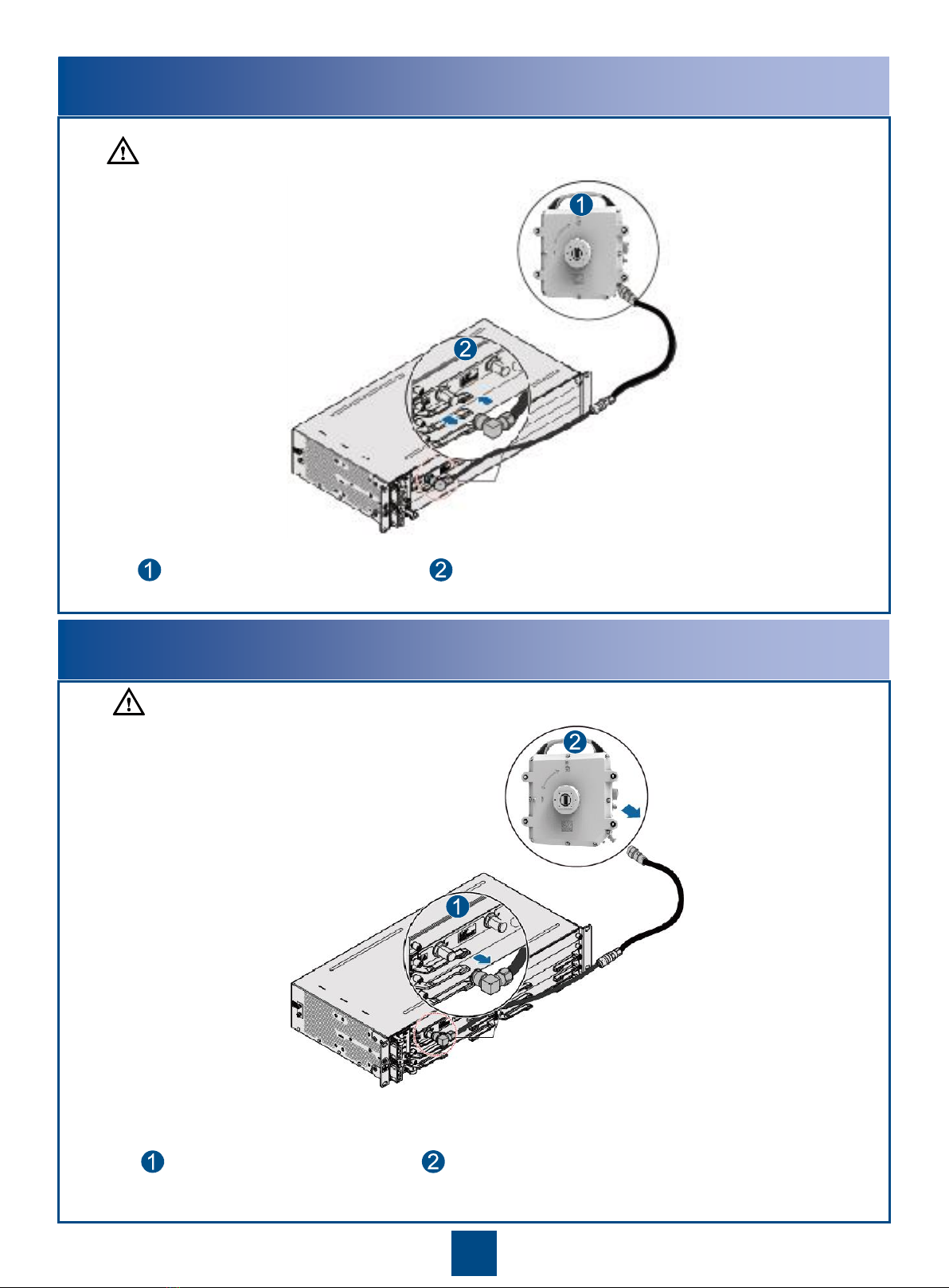

Precautions for Installing IF Cables (Dual-Channel IF Board)
Precautions for Removing IF Cables (Dual-Channel IF
Board)
CAUTION
When installing an IF cable, connect one end of the cable
to the ODU and then connect the other end of the cable to
the IDU.
Connect the IF cable to the ODU. Connect the IF cable to the IDU.
CAUTION
When removing or replacing an IF cable, disconnect one
end of the cable from the IDU and then disconnect the
other end of the cable from the ODU.
Disconnect the IF cable from the IDU. Disconnect the IF cable from the ODU.

8
Remove the IF
board.
Power off the ODU. Disconnect the IF jumper. Remove or insert the IF board.
Precautions for Handling IF Boards
Remove or insert an IF board only after powering off the ODU.
Insert the IF board.
Do not remove or insert an IF board when the ODU is powered on.
CAUTION
CAUTION
3
21
3
Skip this step if a dual-channel IF
board is concerned.

9

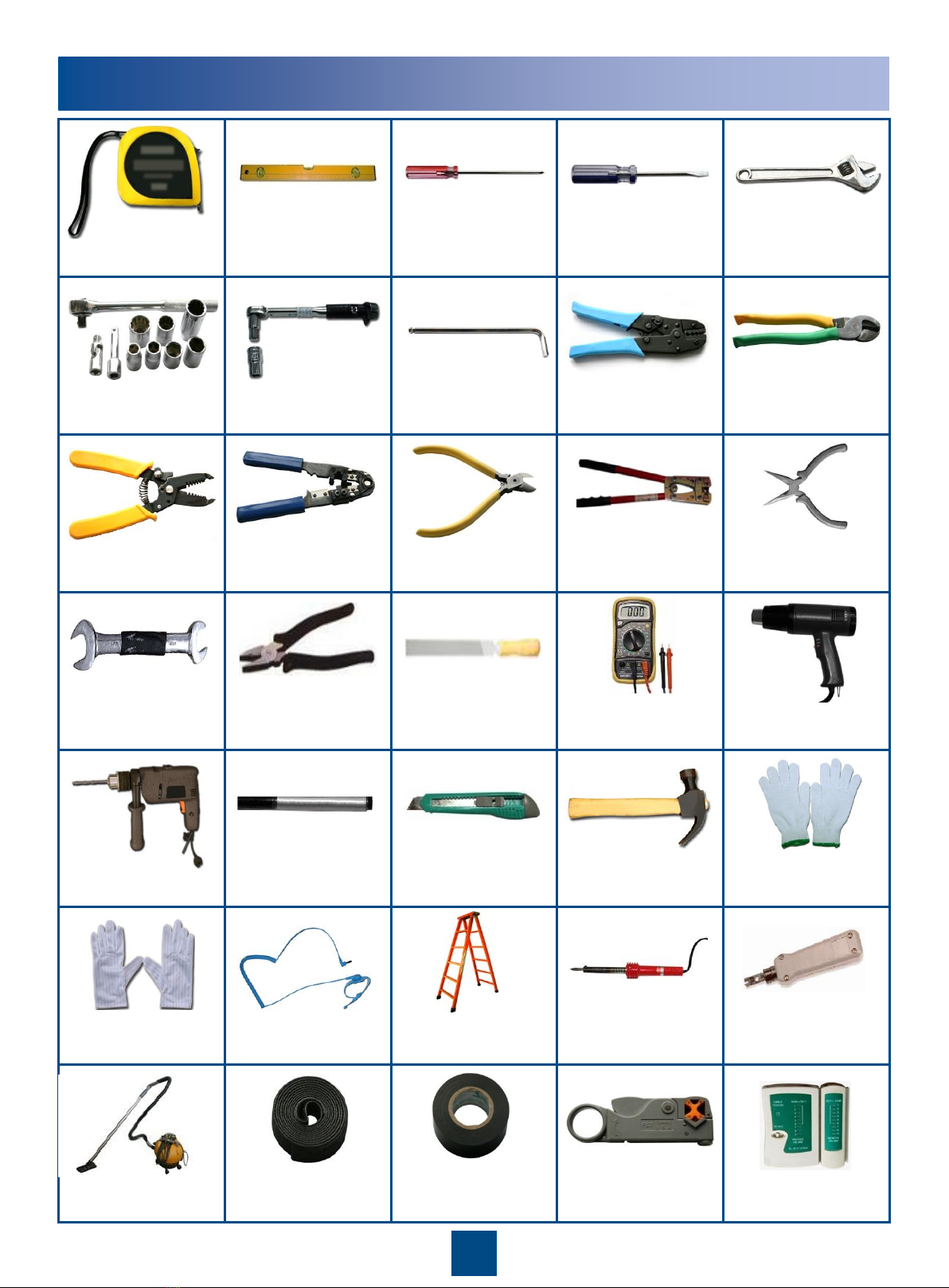

Tools for Installation
Network cable testerCoax stripper
Measuring tape Phillips screwdriver Flat-head screwdriver Adjustable wrenchLevel
COAX crimping tool
Socket wrench Torque wrench Hex key Wire clippers
Wire stripper RJ45 crimping tool Diagonal pliers Cold press pliers Needle-nose pliers
Combination pliersBayonet wrench
Utility knife Claw hammerHammer drill Marker
Ladder Soldering iron
ESD gloves
Heat gunMultimeter
ESD gloves
Binding strap Insulation tape
ESD wrist strap Impact tool
File
Vacuum cleaner

10
1Ports

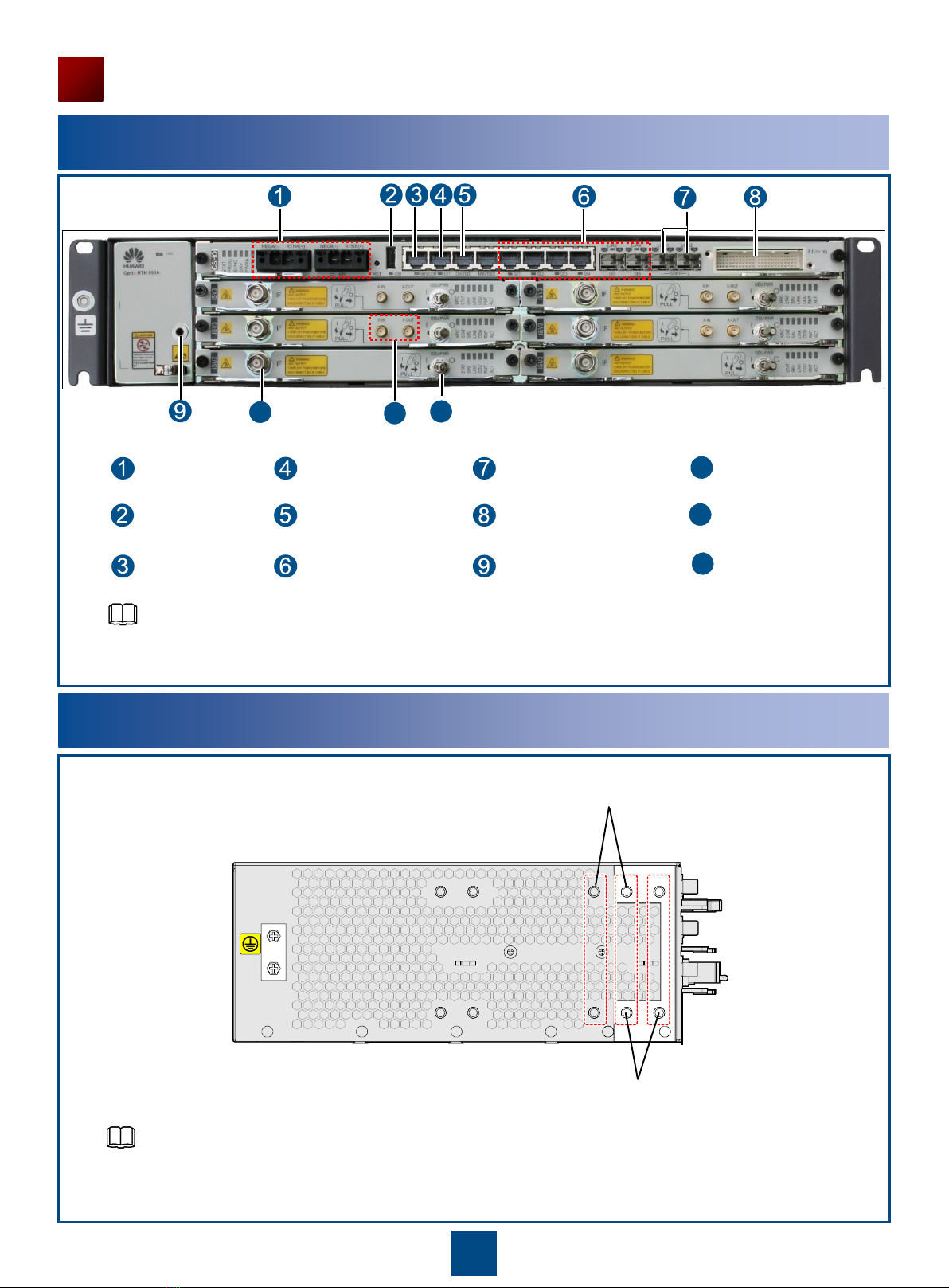

Introduction to the RTN 950A Equipment
2Installation Holes on Both Sides of the Chassis
Input power port
Ethernet service port
NM/COM port
Based on different board configurations, the positions of the actual IDU ports may be different from the
positions shown in the figure.
Holes for installation in the N63E/19-inch cabinet
Before installing the chassis in the ETSI cabinet, adjust the holes for installing mounting ears based on the
type of the cabinet.
Holes for installation in the T63/T66/N66T cabinet
NE concatenation port
NOTE
NOTE
10
11
STM-1 service port
ESD port
External clock port/External
time port 1/Bypass E1 port XPIC input/output ports
10 12
11
USB port
12
IF port
E1 port
ODU power switch

11

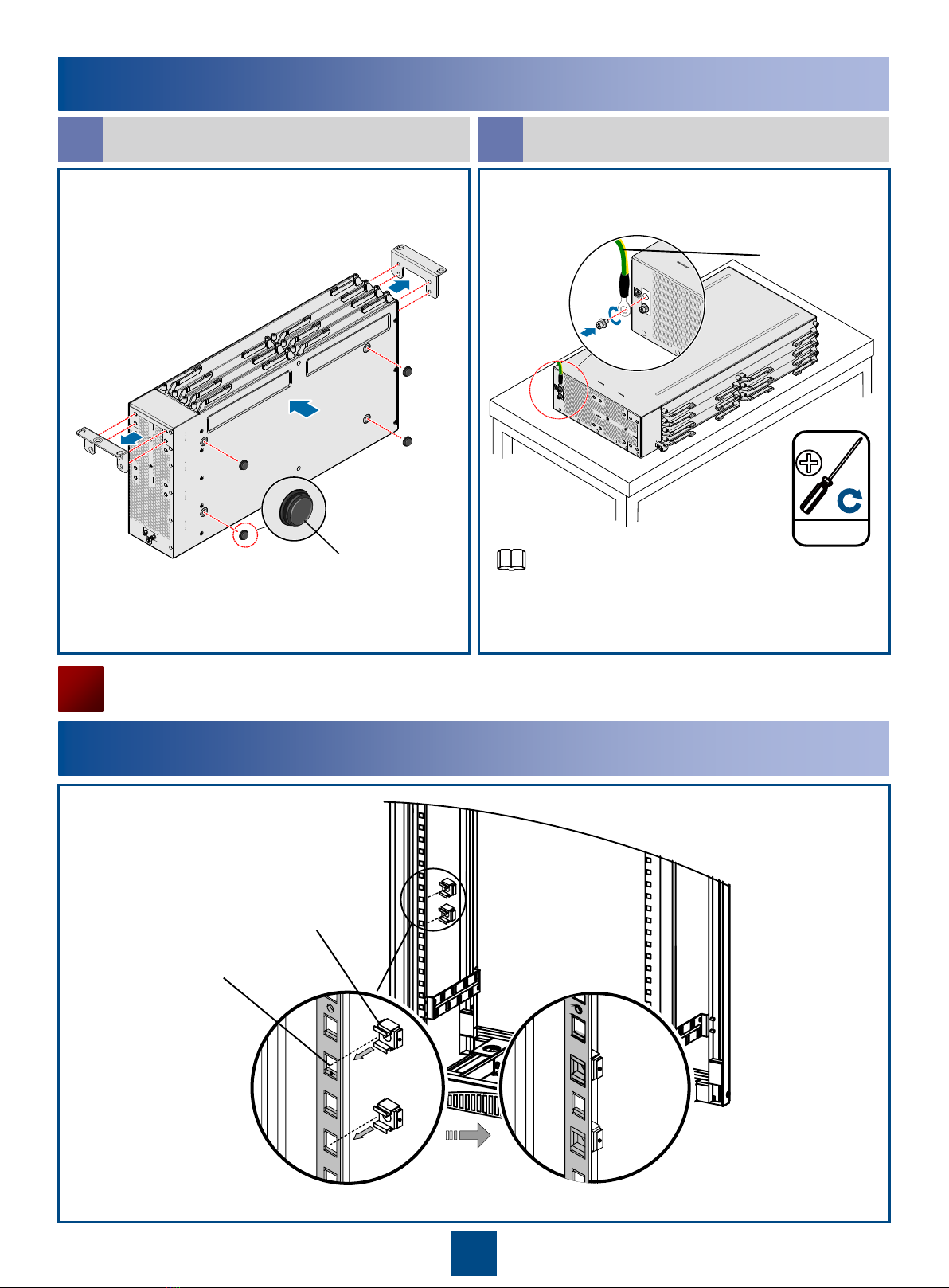

1Installing the Chassis in the 19-Inch Cabinet
Installation hole
Store the removed screws properly for installing PGND cables.
When tightening floating nuts, ensure a minimum of 25 mm space on the left and right sides of the RTN
950A for ventilation.
Floating nut
Fixing Floating Nuts
a
Removing Screws
b
Installing the RTN 950A
NOTE
NOTE

12
Before installing the chassis in an ETSI cabinet, adjust
the holes for installing mounting ears based on the type
of the cabinet.
Installing the Chassis in the
Cabinet
cInstalling PGND Cables d
Connect PGND cables by using the removed screws.

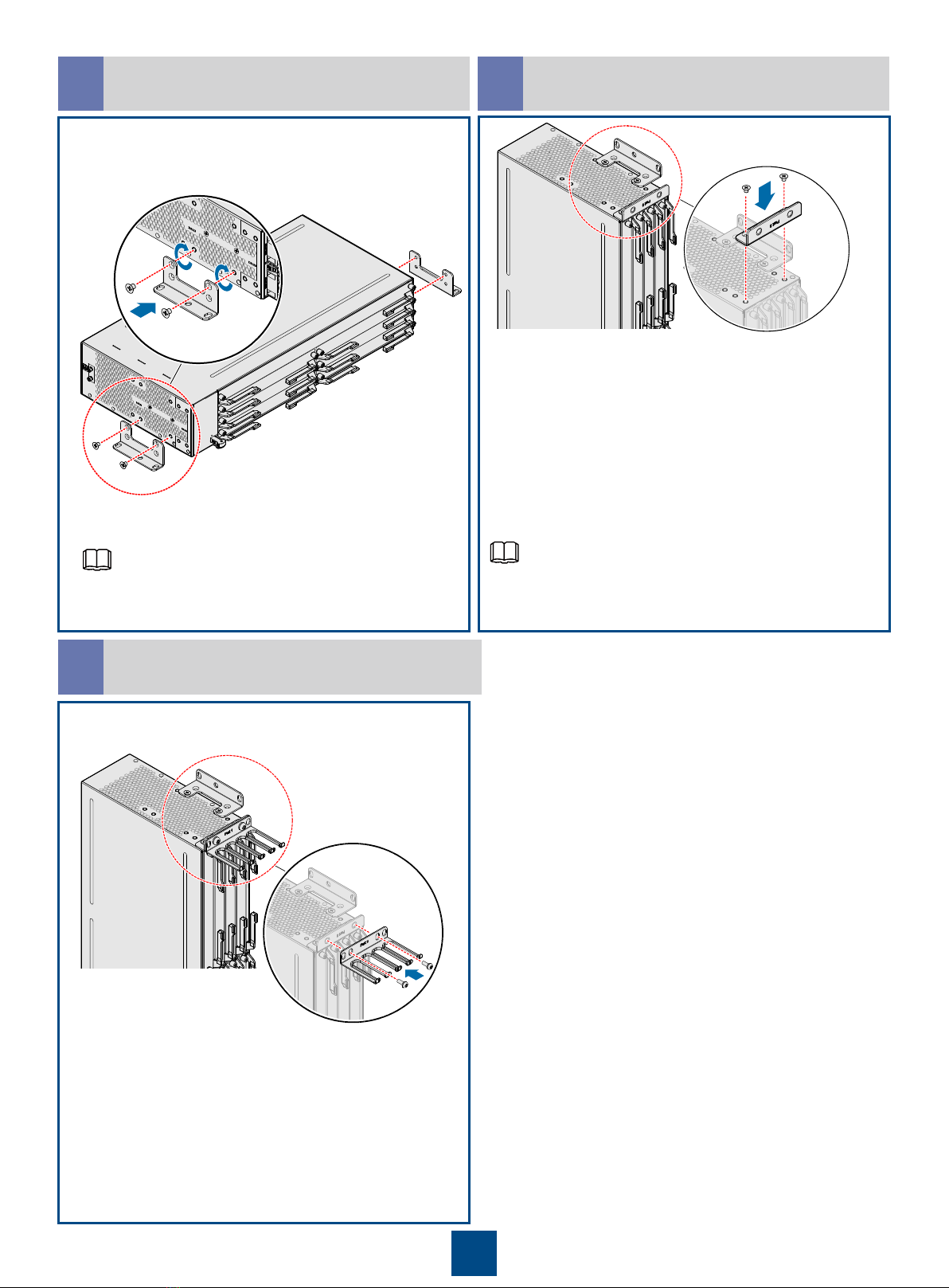

Installing Mounting Ears
a b
2Installing the Chassis in the ETSI Cabinet
Fixing Floating Nuts
Mounting ears
When tightening floating nuts, ensure a minimum of 25
mm space on the left and right sides of the IDU for
ventilation.
2.0±0.2 N·M
M6
1.4±0.14 N·M
M4
3.0±0.3 N·M
M6
Floating nut
Installation hole
To the ground point on the column of the
cabinet or the indoor ground bar
Install the cable tray if provided.
NOTE
NOTE
cable tray

13

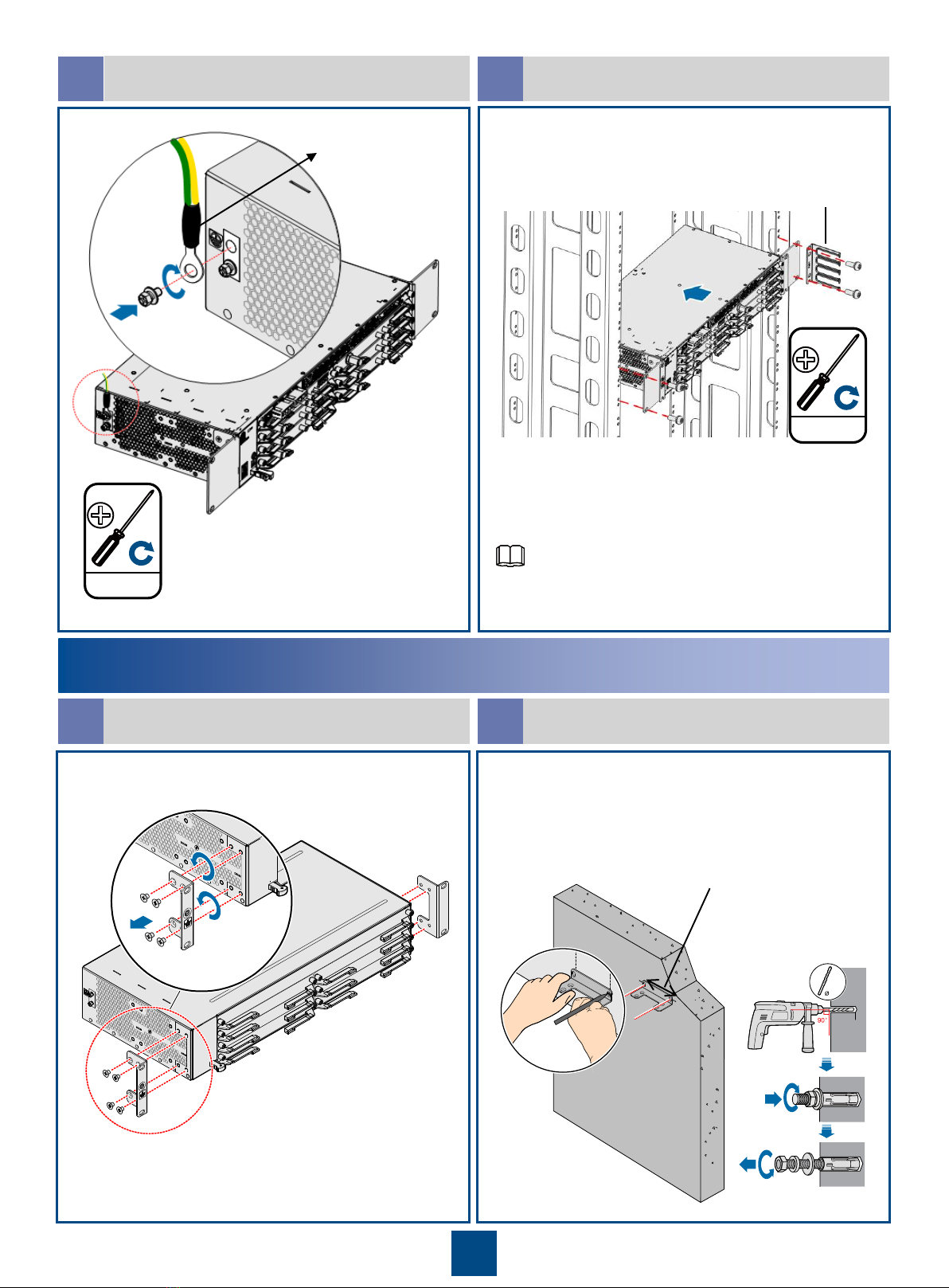

cInstalling PGND Cables dInstalling the Chassis in the
Cabinet
Connect PGND cables by using the
removed screws.
Removing Mounting Ears
aInstalling Mounting Ears b
3Installing the Chassis in the 23-Inch Cabinet
1.4±0.14 N·M
M4
To the ground point on the
column of the cabinet or the
indoor ground bar
Install the cable tray if provided.
NOTE
2.0±0.2 N·M
M6
cable tray
3.0±0.3 N·M
M6
Store the removed screws properly for installing 23-
inch mounting ears.
NOTE 23-inch mounting ears

14
cInstalling PGND Cables dInstalling the Chassis in the
Cabinet
Removing Mounting Ears
aMarking and Drilling Holes (1) b
4Wall-Mounting the Chassis
8
Place the chassis on the wall and then mark the positions
of the holes for installing mounting ears. Drill the holes in
the marked positions and install the bolts. After the
installation, ensure a minimum of 50 mm space on the
upper and lower sides of the IDU for ventilation.
≥300 mm
1.4±0.14 N·M
M4
To the ground point
on the column of the
cabinet or the indoor
ground bar
Install the cable tray if provided.
NOTE
2.0±0.2 N·M
M6
cable tray

Installing the Cable Tray
(Optional)
15
Rotate mounting ears to 90 degrees and install
them in the direction shown in the figure.
cInstalling Mounting Ears dInstalling the Cable Tray
(Optional)
e
If the cable tray is provided, install it according to the
illustration in the figure. Otherwise, go to Step g.
NOTE NOTE

16
8
When wall-mounting the chassis, place the fan assembly in the lower part of the chassis for heat dissipation.
Marking and Drilling Holes (2)
g
Drill 8 mm diameter
holes with a depth
ranging from 52
mm to 60 mm.
Place the equipment on the wall and then mark the positions of the holes for installing mounting ears.
Remove the equipment and drill the holes at the marked positions.
Installing the Chassis on the Wall
hInstalling PGND Cables i
Fan assembly M6x60 expansion bolt
Nut
Big flat washer
Small flat
washer PGND cable
Mark the hole positions.
1.4±0.14 N·M
M4
NOTE

17
Installing Plastic Feet
aInstalling PGND Cables b
5Desk-Mounting the Chassis
Do not place any items around the ventilation holes
on the two sides of the cabinet to avoid impacts on
heat dissipation.
Plastic foot
PGND cable
Connect PGND cables by using the removed screws.
1Fixing Floating Nuts
Optional: Installing the E1 Panel
Remove mounting ears and install plastic feet.
1.4±0.14 N·M
M4
Floating nut
Installation hole
NOTE
