Huawei ATN 910C-K User manual

(IEC 19-inch & ETSI 21-inch Cabinet)
1 U Quick Installation Guide
This document applies to the installation of the ATN 910C-K/M/G,
ATN 910D-A, NetEngine 8000 M1A/M1C, and OptiX PTN 916-F.
Issue：01

Device Overview
1
DC chassis
AC chassis
DC and AC Chassis are installed in the same way. For installation
details, see the corresponding installation guide.
Figures in the document are for reference only and may be dierent
from actual devices.
The type and quantity of items in an installation accessory package
vary according to the device model. Check the delivered items
against the actual packing list.
NOTE
DC and AC power modules can be installed in any of the power module
slots on the ATN 910C-K/M and ATN 910D-A.
NOTE
Packing list
Insulation tape Serial cable
Label cable tie
Fiber binding tape
Panel screw (M6x12)Floating nut (M6)
Signal cable label
Cable tie (300 x 3.6 mm)
Power cable label
Cable management frame
Corrugated pipe ESD wrist strap

Device Overview
1
Technical Specifications
Item
Chassis height
[U]
Maximum input
current [A]
Input voltage
range [V]
Maximum input
current [A]
DC Chassis
1 U
44.45 mm x 442 mm x 220
mm(1.75 in. x 17.4 in. x 8.66
in.)
OptiX PTN 916-F: 4.0 kg
NetEngine 8000 M1A: 3.9 kg
NetEngine 8000 M1C：3.8 kg
ATN 910C-K: 4.0 kg
ATN 910C-M: 3.8 kg
ATN 910C-G: 3.9 kg
ATN 910D-A: 4.2 kg
OptiX PTN 916-F: 2.5 A
NetEngine 8000 M1A: 4 A
NetEngine 8000 M1C: 10 A
ATN 910C-K/M: 10 A
ATN 910C-G: 4 A
ATN 910D-A: 10 A
-48 V/-60 V
-40 V to -72 V 100 V to 240 V
OptiX PTN 916-F/NetEngine
8000 M1A/ATN 910C-G:
110 V/220 V
NetEngine 8000 M1C/ATN
910C-K/M/ATN 910D-A: 200 V
to 240 V/100 V to 127 V dual
live wires, support 240V HVDC
AC Chassis
1 U
44.45 mm x 442 mm x 220
mm(1.75 in. x 17.4 in. x 8.66
in.)
OptiX PTN 916-F: 3.6 kg
NetEngine 8000 M1A: 4.5 kg
NetEngine 8000 M1C：3.9 kg
ATN 910C-K: 4.1 kg
ATN 910C-M: 3.9 kg
ATN 910C-G: 4.5 kg
ATN 910D-A: 4.3 kg
OptiX PTN 916-F: 1.5 A
NetEngine 8000 M1A: 1.5 A
NetEngine 8000 M1C: 4 A
ATN 910C-K/M: 4 A
ATN 910C-G: 1.5 A
ATN 910D-A: 4 A
Dimensions
without
packaging (H
x W x D)
[mm(in.)]
Weight without
packaging (base
configuration)
[kg(lb)]

Safety Guidelines
2
Observe all safety regulations and precautions
Only trained and qualified personnel are allowed to install, operate
or maintain the equipment. Familiarize yourself with all safety pre-
cautions before performing any operation on the equipment.
Operator qualifications
To ensure personal and equipment safety, observe all the safety
precautions on the equipmentand in this document.
and and items do not cover all the safety precautions and
are only supplementary to the safety precautions.
Follow all the safety precautions and instructions provided by Huawei.
The safety precautions outlined in this document are only requirements
of Huawei and do not cover general safety regulations. Huawei is not
liable for any consequence that results from violation of regulation
spertaining to safe operations or safety codes pertaining to design,
production, and equipment use.
DANGER WARNING
CAUTION NOTICE
Do not install or remove the equipment or power cables while power is on.
To ensure equipment and personal safety, ground the equipment before
powering it on.
DANGER
Use multiple persons to move or lift a chassis and take measures to
protect personal safety.
Laser beams will cause eye damage. Do not look into bores of optical
modules or opticalfibers without eye protection.
WARNING
During equipment transport and installation, prevent the equipment
from colliding with objects like doors, walls, or shelves.
Move an unpacked chassis upright. Do not drag it with it lying down.
Do not touch unpainted surfaces of the equipment with wet or
contaminated gloves.
Do not open the ESD bags of cards and modules until they are delivered
to the equipmentroom. When taking a card out of the ESD bag, do not
use the connector to support the card's weight because this operation
will distort the connector and make the pins on the backplane connector
bend.
NOTICE
Before installing, operating, or maintaining the
equipment, wear an ESD wrist strap and insert the other
end into the ESD jack on the chassis or cabinet. Remove
conductive objects like jewelry and watches to prevent
damages to the equipment and cards caused by
electrostatic discharge.
ESD Protection

Site Requirements
3
To ensure personal and equipment safety, observe all the safety
precautions on the equipmentand in this document.
and and items do not cover all the safety precautions and
are only supplementary to the safety precautions. The device needs to be installed in a clean, dry, well ventilated, and
temperature-controllable standard equipment room.In addition, the
equipment room must be free from leaking or dripping water, heavy
dew, and condensing.
Dustproof measures must be taken in the installation site. This is
because dust will cause electrostatic discharges on the device and aect
connections of metal connectors and joints, shortening the service life
of the device and even resulting in device failures.
The installation site must be free from acidic, alkaline, and other types
of corrosive gases.
The device that is operating may cause radio interference. If this is the
case, relevant measures may be needed to reduce the interference.
Generally, devices such as wireless antennas should not be installed in
the equipment room. If such devices must be installed indoors, ensure
that the electromagnetic environment meets relevant requirements or
take necessary electromagnetic shielding measures.
The device to be installed must be used indoors. To ensure normal
operation and long service life of the device, the following requirements
must be met:
The temperature and humidity in the installation site must meet device
requirements described in the following table.
Long-term operating
temperature [°C]
Relative operating
humidity [RH]
–40°C to +65°C
≤ 4000 m (For the altitude in the range of 1800 m to
4000 m, the operating temperature ofthe device
decreases by 1°C every time the altitude increases
by 220 m.)
Item Requirements
Storage temperature
[°C] –40°C to +70°C
Relative storage
humidity [RH]
Long-term operating
altitude [m]
Storage altitude [m] < 5000 m
OptiX PTN 916-F: Long-term: 10% to 90% RH,
non-condensing Short-term: N/A
Other devices: Long-term: 5% to 85% RH,
non-condensing Short-term: N/A
OptiX PTN 916-F: 10% to 100% RH, non-condensing
Other devices: 5% to 100% RH, non-condensing

Cabinet Requirements
4
NOTE
The device must be installed in an IEC 19-inch cabinet or an ETSI 21-inch
cabinet.
Huawei A63E cabinet is recommended. If customers choose to purchase
cabinets by themselves, the cabinets must meet the following
requirements:
1. 19-inch or 21-inch cabinet with a depth of greater than or equal to
300 mm.
2. The cabling space in front of the cabinet complies with the cabling
space requirements of boards. It is recommended that the distance
between the cabinet door and any device board be greater than or equal
to 120 mm. If the cabling space is insucient, cables will block the
cabinet door from closing. Therefore, a cabinet with broader cabling
space is recommended, such as a cabinet with a convex door.
3. The device draws air from the left side and exhausts from the right
side. Therefore, if the device is installed in a 19-inch cabinet, there must
be a clearance of at least 75 mm at the left and right sides of the
cabinet to ensure good ventilation.
4. The porosity of each cabinet door must be greater than 50%, meeting
heat dissipation requirements of devices.
5. The cabinet has installation accessories, such as guide rails, floating
nuts, and screws.
6. The cabinet has a ground terminal to connect to the device.
7. The cabinet has a cable outlet on the top or at the bottom for
overhead or underfloor cabling.
The cabinet may be installed on an ESD floor or a concrete floor. For
details about how to install a cabinet, see the Cabinet Installation
Guide delivered with a cabinet.
For cabinets with left-to-right air channels, such as open racks,
installing cabinets side by side may cause cascaded heating. Therefore,
you are advised to install cabinets with left-to-right air channels verti-
cally at dierent levels rather than side by side. If side-by-side installa-
tion cannot be avoided, it is recommended that the distance between
cabinets be at least 500 mm (19.67 in.).
If the device requires optical modules or attenuators with a puller,
ensure that sucient space is available for routing optical fibers. For a
convex door or open rack, it is recommended that the distance
between the cabinet door and the front panel of the board be greater
than or equal to 120 mm (4.72 in.).

Installing a Device
5
5.1 Installing a Device in an IEC 19-Inch Cabinet
1Install floating nuts onto the cabinet.
When installing a device in a cabinet, ensure that the total heat
consumption of all devices in the cabinet does not exceed the heat
dissipation capability of the cabinet.
To prevent air return from aecting heat dissipation, leave at least 2 U
space between devices in the cabinet.
Do not block the heat dissipation holes on panels.
A device that needs to share the same cabinet with other devices
cannot be installed near the air exhaust vents of those devices.
Consider the impact of a device's air exhaust vent on adjacent devices
to prevent high temperature.
When fastening floating nuts, ensure that there is at least 75 mm
space on the left and right sides of the device for ventilation after
device installation.
CAUTION
Installation hole
Floating nut
NOTE
Certain steps support two installation modes. Select a proper PGND
cable installation mode according to cabling requirements. The PGND
cable can be connected to either the front or side face of the device.
Connecting the cable to the side face is preferred.
Figures in the document are for reference only, and the actual device
appearance may vary depending on the exact device model.

Installing a Device
5
M4
PWR2 PWR1
2Connect the PGND cable to the front or side face of the device.
Connecting the cable to the side face is preferred.

Installing a Device
5
M6
3Install the device into the cabinet.
ATN 910D-A
CLK/TOD
ETH/OAM
ALM/ALMO
RST
STAT
CLK/TEST
ALM
012345678910 11 12 13 14 15 16 17 18 19 20 21 22 23
10GE/FE/(0~7) 25GE/10GE/GE(8~23) BREAKOUT 012324 25
100GE/50GE
26 27
PWR2 PWR1

Installing a Device
5
5.2 Installing a Device in an ETSI 21-Inch Cabinet
with Front Columns

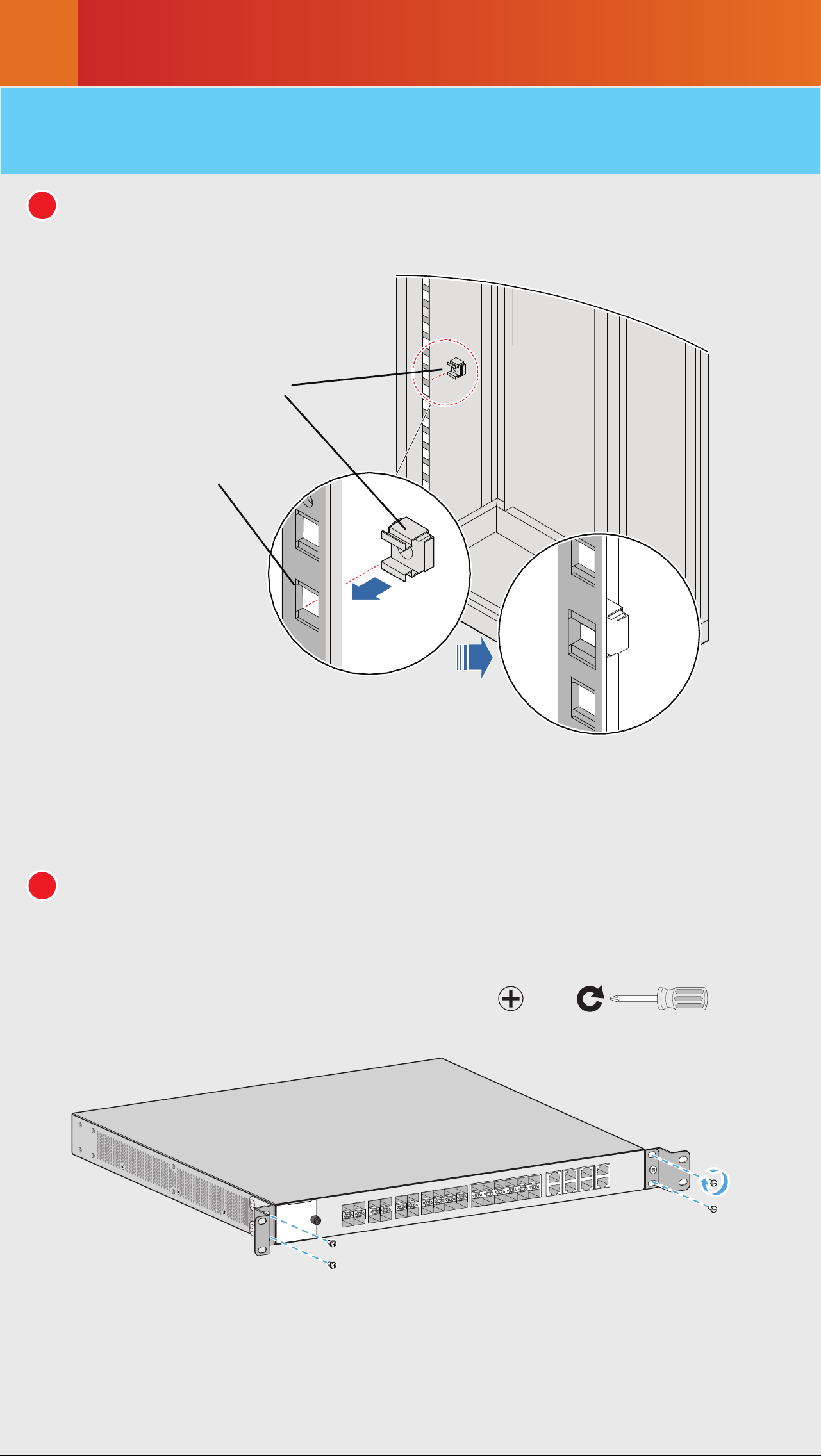

1Install floating nuts onto the cabinet.
2Install the conversion mounting ears on both sides of the chassis.
Installation hole
Floating nut
M6

Installing a Device
5

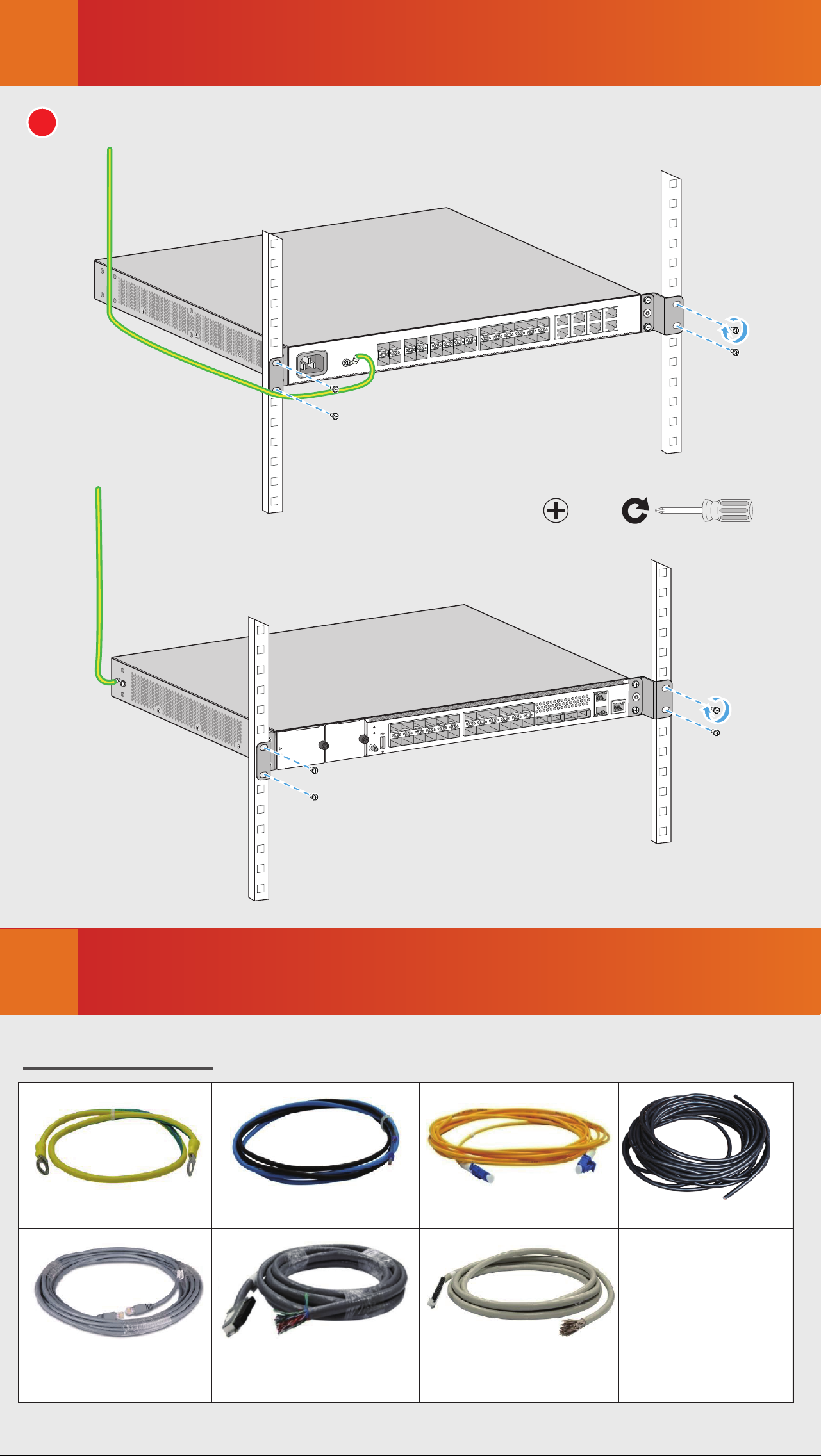

3Connect the PGND cable to the front or side face of the device.
Connecting the cable to the side face is preferred.
M4
ATN 910D-A
CLK/TOD
ETH/OAM
ALM/ALMO
RST
STAT
CLK/TEST
ALM
PWR2 PWR1
012345678910 11 12 13 14 15 16 17 18 19 20 21 22 23
10GE/FE/(0~7) 25GE/10GE/GE(8~23) BREAKOUT 012324 25
100GE/50GE
26 27
PWR2 PWR1

Installing a Device
5
Connecting Cables
6
Common Cables
4Install the device into the cabinet.
PGND cable Optical fiberDC power cable AC power cable
Shielded Ethernet
cable
120-ohm 16 x E1
cable
75-ohm 16 x E1
cable
M6
ATN 910D-A
CLK/TOD
ETH/OAM
ALM/ALMO
RST
STAT
CLK/TEST
ALM
012345678910 11 12 13 14 15 16 17 18 19 20 21 22 23
10GE/FE/(0~7) 25GE/10GE/GE(8~23) BREAKOUT 012324 25
100GE/50GE
26 27
PWR2 PWR1

Connecting Cables
6
Cable layout for a DC device
Cable layout for an AC device
Routing Planning
To ensure that power cables are connected in order, you are advised
to plan power cable routing.
It is recommended that power cables and ground cables be routed
on the left side of thecabinet.It is recommended that cables, such as
optical fibers and Ethernet cables, be on the right side of the cabinet.
If cables are routed on the rear of a device, ensure that the cables do
not block the air vents of the device to achieve proper heat
dissipation.
Before routing cables, make temporary labels and attach them to the
cables. After the cables are routed, make formal labels and attach
them to the cables as required.
Do not bundle or route outdoor cables (such as outdoor antenna
feeders and outdoor power cables) and indoor cables together in the
cabinet or cable tray.
NOTE

Connecting Cables
6

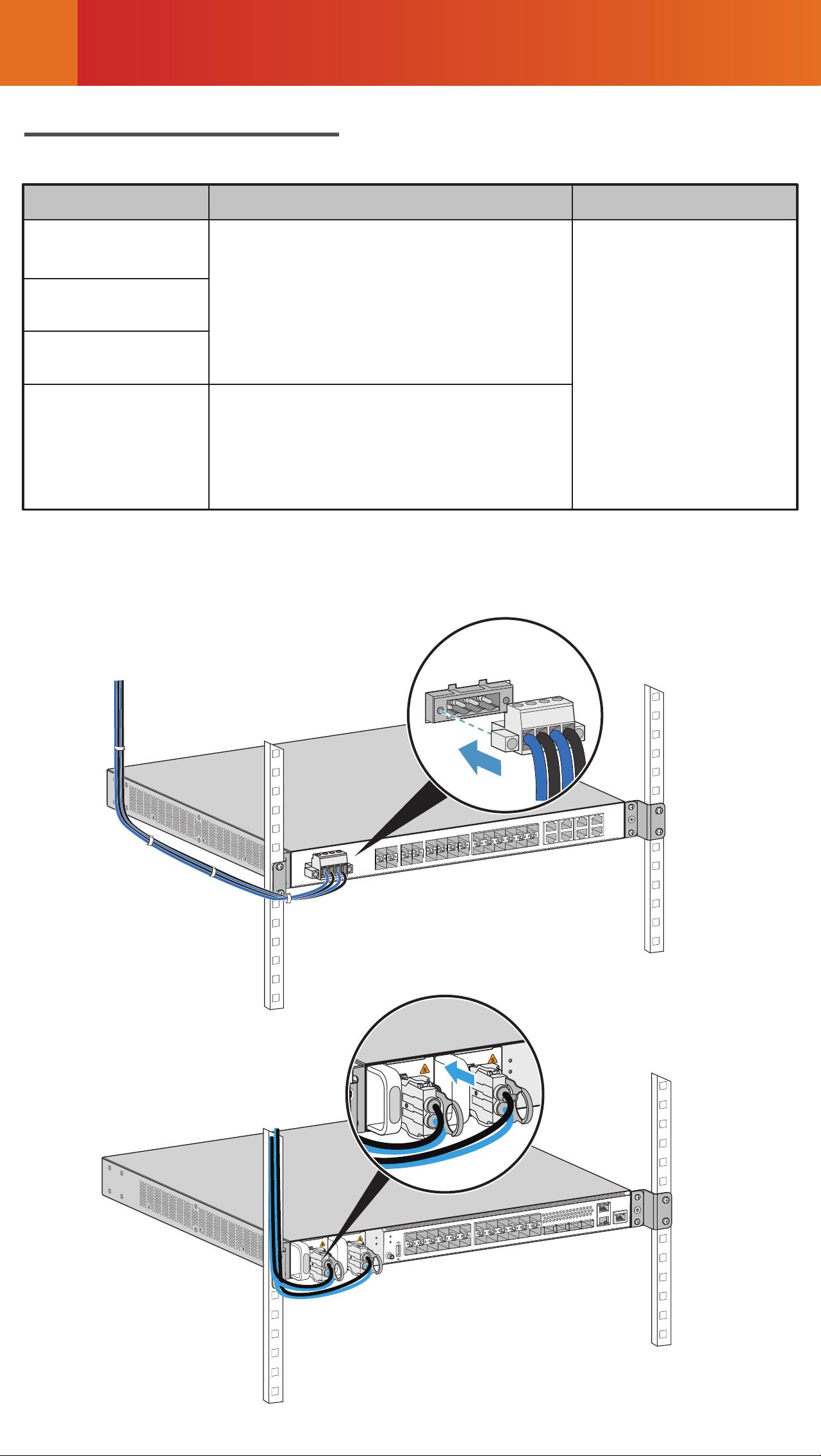

Installing DC Power Cables
Check the fuse capacity of the external power supply.
Select a cabling mode according to the actual DC power supply port type
of the device.
NEG1 RTN1 NEG2 RTN2
(-) (+) (-) (+)
Device Model Maximum Cable SizeRecommended Fuse Capacity
NetEngine 8000
M1A/M1C
OptiX PTN 916-F
4 mm²
ATN 910C-G/K/M
ATN 910D-A
≥4 A
For hierarchical power supplying
protection, the current of the circuit
breaker at the user side should be no
less than 4 A.
≥6 A
For hierarchical power supplying
protection, the current of the circuit
breaker at the user side should be no
less than 6 A.

Connecting Cables
6
Installing AC Power Cables
Check the fuse capacity of the external power supply.
Select a cabling mode according to the actual AC power supply port type
of the device.
Device Model Recommended Fuse Capacity
NetEngine 8000 M1A
ATN 910C-G
NetEngine 8000 M1C
OptiX PTN 916-F
ATN 910C-K/M
ATN 910D-A
≥1.5 A
For hierarchical power supplying protection, the current
of the circuit breaker at the user side should be no less
than 1.5 A.
≥2 A
For hierarchical power supplying protection, the current
of the circuit breaker at the user side should be no less
than 2 A.
≥4 A
For hierarchical power supplying protection, the current
of the circuit breaker at the user side should be no less
than 4 A.
2
1
1

Connecting Cables
6
The bending radius of a single-mode G.657A2 optical fiber is no less
than 10 mm, and that of a multi-mode A1b optical fiber is no less
than 30 mm.
After laying out optical fibers, use binding straps to bind the fibers
neatly without squeezing them.
After the optical fibers are connected, the optical ports and optical
connectors that are not used must be covered by dustproof plugs and
dustproof caps, respectively.
Do not use an open-end corrugated pipe to hold excessive optical
fibers. It is recommended that an open-end corrugated pipe with a
diameter of 32 mm accommodate a maximum of 60 fibers with a
diameter of 2 mm.
It is recommended that the length of a corrugated pipe inside a cabi-
net be about 100 mm.
NOTE
Installing Optical Fibers
When performing operations such as installing or maintaining optical
fibers, do not move your eyes close to or look into the optical fiber
outlet without eye protection.
WARNING
CAUTION
Before routing internal optical fibers, install fixed optical attenuators
at the corresponding optical ports on devices according to the fixed
optical attenuator installation table.
Handling Corrugated Pipes
1
2

Connecting Cables
6
Installing an E1 Cable
This step is required only for the ATN 910C-K chassis. It is recommended
that E1 cables and Ethernet cables be routed in interleaving mode.
NOTE
Installing Optical Fibers
12

Connecting Cables
6
It is recommended that the ATN 910C-K chassis use Ethernet cables
crimped onsite.
Bundle the network cables in a rectangle shape. Ensure that the cable
ties are evenly spaced and face the same direction.
Before bundling network cables, use a network cable tester to test cable
connectivity.
In a 300 mm deep cabinet with a flat door, common shielded network
cables are not recommended when electrical modules are used. Instead,
use Huawei-customized conversion short pigtail shielded network
cables.
NOTE
Installing Ethernet Cables

Checking the Installation
7
Check Before Power-on
If the power supply voltage does not meet requirements, do not power
on the device.
Check whether fixed optical attenuators have been added in accor-
dance with corresponding configuration rules.
Check whether the fuse capacity of the external power supply meets
requirements.
Check whether the external power supply voltage is normal.
CAUTION
Before performing a power-on check, turn o all the switches on the
device and external power supply system.
If indicators are in specified abnormal states after you power on the
device, handle the abnormalities onsite.
WARNING
Hardware Module
Steady green
Chassis o
Steady green
STAT
ALM
PWR/STAT
Indicator
Working status indicator
Alarm indicator
Power supply status indicator
Name State
Power-on Check
For more information about device indicators, see
in the corresponding product documentation.
The following table describes the states of indicators when the device
is operating properly.
NOTE
Hardware Description

Obtaining Product Documentation
and Technical Support
8
Log in to Huawei enterprise technical support website
(https://support.huawei.com/enterprise) and select a specific product
model and version to find its documentation.
Log in to Huawei enterprise support community
(https://forum.huawei.com/enterprise), and post your questions in the
community.
Log in to Huawei carrier technical support website
(https://support.huawei.com/carrier), and select a specific product
model and version to find its documentation.
Log in to carrier enterprise support community
(https://forum.huawei.com/carrier) and post your questions in the
community.
For enterprise users:
For carrier usesrs:
Huawei Carrier Technical Support
Huawei Enterprise Technical Support
Trademarks and Permissions
All other trademarks and trade names mentioned in this document are
the property of their respective holders.
Copyright © Huawei Technologies Co., Ltd. 2021. All rights reserved.
No part of this document may be reproduced or transmitted in any form
or by any means without prior written consent of Huawei Technologies
Co., Ltd.
and other Huawei trademarks are trademarks of Huawei
Technologies Co., Ltd.
