Huawei HG8245H Technical specifications

EchoLife ONT GPON Terminal
HG8245H
Product Description
Issue 01
Date 2013-05-20
HUAWEI TECHNOLOGIES CO., LTD.

Issue 01 (2013-05-20) Huawei
Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
i
Copyright © Huawei Technologies Co., Ltd. 2013. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior
written consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective
holders.
Notice
The purchased products, services and features are stipulated by the contract made between Huawei and
the customer. All or part of the products, services and features described in this document may not be
within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements,
information, and recommendations in this document are provided "AS IS" without warranties, guarantees or
representations of any kind, either express or implied.
The information in this document is subject to change without notice. Every effort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute a warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website: http://www.huawei.com
Email: [e-mail]

EchoLife ONT GPON Terminal
Product Description Contents
Issue 01 (2013-05-20) Huawei
Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
ii
About This Document
Overview
GPON terminal EchoLife ONT is an indoor optical network terminal (ONT) designed for
home users. This document provides the appearance, key features, and technical
specifications of the ONT, which helps you know the ONT quickly.
Symbol Conventions
The following symbols may be found in this document. They are defined as follows:
Symbol Description
DANGER indicates a hazard with a high level or
medium level of risk which, if not avoided, could result
in death or serious injury.
WARNING indicates a hazard with a low level of risk
which, if not avoided, could result in minor or moderate
injury.
CAUTION indicates a potentially hazardous situation
that, if not avoided, could result equipment damage, data
loss, performance degradation, or unexpected results.
Indicates a tip that may help you solve a problem or save
your time.
Provides additional information to emphasize or
supplement important points of the main text.

EchoLife ONT GPON Terminal
Product Description Contents
Issue 01 (2013-05-20) Huawei
Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
iii
Contents
About This Document .................................................................................................................... ii
1 About This Document .................................................................................................................. 4
2 Introduction.................................................................................................................................... 5
2.1 Product Positioning..........................................................................................................................................5
2.2 Network Applications.......................................................................................................................................5
2.3 Product Overview.............................................................................................................................................6
Product Functions and Features ............................................................................................... 1
4 Product Highlights ...................................................................................................................... 15
4.1 Comprehensive Triple Play Service ...............................................................................................................15
4.2 Secure and Reliable Wi-Fi Access..................................................................................................................16
4.3 Convenient Home Network Attached Storage and File Sharing Services......................................................17
4.4 Secure and Powerful Gateway Functions.......................................................................................................18
4.5 Convenient Automatic Provisioning, Maintenance, and Management of the Remote Service ......................18
5 Port Specifications ...................................................................................................................... 19
5.1 GPON Port Specifications..............................................................................................................................19
5.2 GE Port Specifications ...................................................................................................................................20
5.3 POTS port ......................................................................................................................................................20
5.4 USB Port........................................................................................................................................................21
5.5 Wireless Network Access...............................................................................................................................21
6 Acronyms and Abbreviations ................................................................................................... 22

EchoLife ONT GPON Terminal
Product Description 1 About This Document
Issue 01 (2013-05-20) Huawei
Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
4
1 About This Document
Overview
GPON terminal EchoLife ONT is an indoor optical network terminal (ONT) designed for
home users. This document provides the appearance, key features, and technical
specifications of the ONT, which helps you know the ONT quickly.
Symbol Conventions
The following symbols may be found in this document. They are defined as follows:
Symbol Description
DANGER indicates a hazard with a high level or
medium level of risk which, if not avoided, could result
in death or serious injury.
WARNING indicates a hazard with a low level of risk
which, if not avoided, could result in minor or moderate
injury.
CAUTION indicates a potentially hazardous situation
that, if not avoided, could result equipment damage, data
loss, performance degradation, or unexpected results.
Indicates a tip that may help you solve a problem or save
your time.
Provides additional information to emphasize or
supplement important points of the main text.

EchoLife ONT GPON Terminal
Product Description 2 Introduction
Issue 01 (2013-05-20) Huawei
Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
5
2 Introduction
2.1 Product Positioning
2.2 Network Applications
2.3 Product Overview
2.1 Product Positioning
EchoLife GPON terminal HG8245H is an indoor optical network terminal (ONT) designed
for home users. Its upper shell adopts the natural heat dissipation material, and its optical port
adopts the dust-proof design with a rubber plug. The ONT is eye-pleasing and
energy-efficient. It can be deployed on a workbench or mounted on a wall, meeting users'
deployment requirements in different scenarios.
The ONT provides the more convenient and efficient remote management function. It
supports the TR-069 and ONT Management and Control Interface (OMCI) protocols and
manages all home terminals in a unified manner, implementing remote fault diagnosis, service
provisioning, and performance statistics.
By using the Gigabit-capable Passive Optical Network (GPON) technology, the ONT
provides a high-speed data channel through a single optical fiber with an upstream rate of
1.244 Gbit/s and a downstream rate of 2.488 Gbit/s. In this way, you can enjoy the high-speed
data service, quality voice service, and superior video service.Apart from that, you can also
enjoy the secure and reliable wireless access service and the convenient home network
attached storage and file sharing services.
2.2 Network Applications
As a network terminal, the ONT is deployed at the GPON access layer and connects the home
users users to the Internet through the optical upstream port.
Figure 2-1 shows the position of the ONT on a network.

EchoLife ONT GPON Terminal
Product Description 2 Introduction
Issue 01 (2013-05-20) Huawei
Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
6
Figure 2-1 Network topology of the ONT
In the upstream direction, the ONT is connected to the optical splitter and the
networkside OLT through the passive optical network (PON) port, namely the OPTICAL
port, to provide the integrated access service.
In the downstream direction, the ONT is connected to various terminals through the
abundant LAN-side ports, implementing the triple play service.
−Ethernet ports, which can be connected to terminals such as the PC, STB, and video
phone to provide the high-speed data and video services.
Each Ethernet port allows only 1 user access.
−TEL ports, which can be connected to the telephone set or fax machine to provide the
superior and cost-effective voice over IP (VoIP), fax over IP (FoIP), and modem over
IP (MoIP) services.
Each TEL port allows only 1 user access.
−Wi-Fi, which can be connected to a Wi-Fi terminal through wireless connection to
provide a secure and reliable high-speed wireless network.
Each ONT allows up 6 wireless connections.
−USB port, which can be connected to a USB storage device to provide convenient
home network attached storage and file sharing services.
2. Product Overview
Introduced the appearance, interfaces, LEDs and device parameters of the HG8245H.

EchoLife ONT GPON Terminal
Product Description 2 Introduction
Issue 01 (2013-05-20) Huawei
Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
7
Appearance

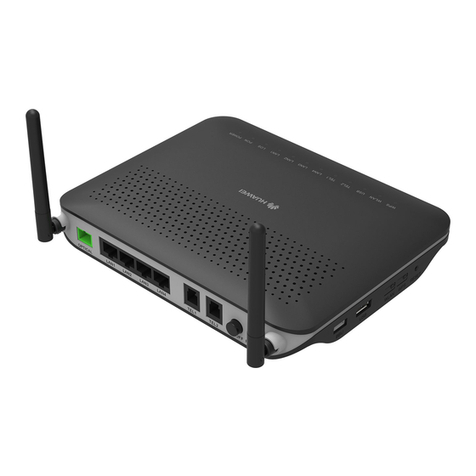

Figure 2-2 Appearance of the HG8245H
Port/Button
Figure 2-13 and Figure 2-14 show the ports on the rear panel and side panel of the HG8245H
respectively.
Figure 2-3 Ports and buttons on the rear panel of the HG8245H
Table 2-1 Description of ports and buttons on the rear panel of the HG8245H
Port/Button Function
ON/OFF Indicates the power button. It is used to power on or power
off the device.

EchoLife ONT GPON Terminal
Product Description 2 Introduction
Issue 01 (2013-05-20) Huawei
Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
8
Port/Button Function
POWER Indicates the power port, used to connect to the power
adapter or backup battery unit.
USB Indicate USB host ports, used to connect to USB storage
devices.
TEL1–TEL2 Indicate VoIP telephone ports (RJ-11), used for connecting to
the ports on telephone sets.
LAN1–LAN4 Indicate auto-sensing 10/100/1000M Base-T Ethernet ports
(RJ-45), used to connect to PCs or IP set-top boxes (STBs).
Figure 2-4 Ports and buttons on the side cover of the HG8245H
Table 2-2 Description of ports and buttons on the side cover of the HG8245H
Port/Button Function
Reset
Indicates the reset button. Press the button for a short time to
reset the device; press the button for a long time (longer than
10s) to restore the device to the default settings and reset the
device.
WLAN Indicates the WLAN button, used to enable or disable the
WLAN function.
WPS Indicates the WLAN data encryption switch.
Figure 2-15 shows optical ports on the HG8245H.

EchoLife ONT GPON Terminal
Product Description 2 Introduction
Issue 01 (2013-05-20) Huawei
Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
9
Figure 2-5 Optical ports on the HG8245H
Table 2-3 Description of optical ports on the HG8245H
Port/Button Function
OPTICAL
Indicates an optical port. The optical port is equipped with a
rubber plug and is connected to an optical fiber for upstream
transmission.
The type of the optical connector connected to the OPTICAL
port is SC/APC.

EchoLife ONT GPON Terminal
Product Description 2 Introduction
Issue 01 (2013-05-20) Huawei
Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
10
LEDs
Figure 2-6 LEDs on the HG8245H
Table 2-4 Indications of the LEDs on the HG8245H
LED Description Status Description
POWER Power supply
LED
Always on The device is powered on.
Off The power supply is cut off.
PON Authentication
LED See Table 2-17.
LOS Connection
LED See Table 2-17.
LAN1–LAN4 Ethernet port
LED
Always on The Ethernet connection is in the
normal state.
Blinking Data is being transmitted on the
Ethernet port.
Off The Ethernet connection is not set
up.
TEL1–TEL2 Voice
telephone port Always on The HG8245H is registered with the softswitch but no service

EchoLife ONT GPON Terminal
Product Description 2 Introduction
Issue 01 (2013-05-20) Huawei
Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
11
LED Description Status Description
LED flows are transmitted.
Blinking Service flows are transmitted.
Off The HG8245H is not powered on
or fails to be registered to the
softswitch.
USB USB port LED
Always on The USB port is connected and is
working in the host mode, but no
data is transmitted.
Blinks quickly
(twice per
second)
Data is being transmitted on the
USB port.
Off The system is not powered on or
the USB port is not connected.
WLAN WLAN LED
Always on The WLAN function is enabled.
Blinking Data is being transmitted on the
WLAN port.
Off The WLAN function is disabled.
WPS WPS LED
Always on The WPS function is enabled.
Blinking A Wi-Fi terminal is accessing the
system.
Off The WPS function is disabled.
Table 2-5 Indications of the PON and LOS LEDs
No.
LED Status
Description
PON LOS
1 Off Off The ONT is disabled by the OLT.
2 Blinks quickly
(twice per
second)
Off The ONT is attempting to set up
a connection to the OLT.
3 Always on Off The connection between the ONT
and the OLT is set up.
4 Off Blinks slowly
(once two
seconds)
The Rx optical power of the ONT
is lower than the optical receiver
sensitivity.The ONT is not
connected to optical fibers or
does not send optical signals.
5 Blinks quickly
(twice per Blinks quickly (twice per The OLT detects that the device

EchoLife ONT GPON Terminal
Product Description 2 Introduction
Issue 01 (2013-05-20) Huawei
Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
12
No.
LED Status
Description
PON LOS
second) second) is a rogue ONT.
6 Blinks quickly
(twice per
second)
Blinks slowly
(once two
seconds)
The Rx optical power of the ONT
does not within the range (–27
dBm to –8 dBm) of the Rx
sensitivity.
Device parameters
The device parameters include the ONT's size, weight, operating environment, and power
parameters and equipment power consumption.
Table 2-6 HG8245H device parameters
Parameter Specifications
Dimensions (length x width x height) 176 mm x 138.5 mm x 28 mm
Weight About 500 g
Working environment Operating temperature: 0 to +40℃ ℃
Environment humidity: 5% RH to 95% RH
(non-condensing)
Pressure environment: 86 kPa to 106 kPa
Altitude: 2000 m
Power specifications Power adapter input: 100–240 V AC, 50–60
Hz
System power supply: 11–14 V DC, 2 A
Power consumption

Static power: 5 W

Maximum power consumption: 15.5 W

EchoLife ONT GPON Terminal
Product Description 3 Product Functions and Features
Issue 01 (2013-05-20) Huawei
Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
13
Product Functions and Features
This chapter describes the key characteristics of the HG8245H.
Type Features
GPON features

Class B+ optical power budget

Authentication modes of SN, password,
and SN+password
Gateway features

NAT

Internet, IPTV and VoIP services
automatically bound to the ONT port

Virtual Server, Port Trigger

Port trigger and DMZ
Broadband features

Any port any service

Smart pipe

Intelligent hotspot
Voice features

Session Initiation Protocol (SIP), H.248

Voice media streams and signaling
streams separation
Multicast features

IGMP V2&V3 Snooping

Dynamically controllable multicast

IGMP Proxy
Security features

MAC address filtering, IP address
filtering, URL address filtering

Anti-DoS
Device maintenance

Local service configuration, query, and
software upgrade on the Web page

Automatic remote service provisioning,
device management, and software
upgrade through OMCI

Query of the information about the ONT
optical transceiver

EchoLife ONT GPON Terminal
Product Description 3 Product Functions and Features
Issue 01 (2013-05-20) Huawei
Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
14
Type Features

Loop line test and circuit test

Dual system protection of the software
(normal system and mini system)

Intelligent monitoring
Reliable features

Dual system protection of the software
(normal system and mini system)
Ethernet features

VLAN filtering, VLAN transparent
transmission

VLAN N:1 aggregation and VLAN 1:1
switch
Power-saving features

Dynamic power adjustment
For details about the features, see the Feature Description.

EchoLife ONT GPON Terminal
Product Description 4 Product Highlights
Issue 01 (2013-05-20) Huawei
Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
15
4 Product Highlights
4.1 Comprehensive Triple Play Service
On the LAN side, the ONT provides abundant hardware ports to implement multiple access
services, including the home network attached storage, Internet access, voice, and video
services, providing users with the comprehensive triple play service.
4.2 Secure and Reliable Wi-Fi Access
The ONT helps users build a secure and reliable wireless network based on the 802.11 b/g/n
Wi-Fi access.
4.3 Convenient Home NetworkAttached Storage and File Sharing Services
The ONT provides one USB port, which can be used to connect to a USB storage device to
provide convenient home network attached storage and file sharing services.
4.4 Secure and Powerful Gateway Functions
The ONT can function as a home gateway, which features the secure and powerful gateway
functions.
4.5 Convenient Automatic Provisioning, Maintenance, and Management of the Remote
Service
The ONT applies the TR-069 and OMCI management, manages terminal services without
additional IP networks, which facilitates automatic provisioning, maintenance, and
management of the remote service.
4.1 Comprehensive Triple Play Service
On the LAN side, the ONT provides abundant hardware ports to implement multiple access
services, including the home network attached storage, Internet access, voice, and video
services, providing users with the comprehensive triple play service.

EchoLife ONT GPON Terminal
Product Description 4 Product Highlights
Issue 01 (2013-05-20) Huawei
Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
16
Figure 4-1 Comprehensive Triple Play Service
Each Ethernet port allows only 1 user access.
Each TEL port allows only 1 user access.
Each ONT allows up 6 wireless connections.
4.2 Secure and Reliable Wi-Fi Access
The ONT helps users build a secure and reliable wireless network based on the 802.11 b/g/n
Wi-Fi access.

EchoLife ONT GPON Terminal
Product Description 4 Product Highlights
Issue 01 (2013-05-20) Huawei
Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
17
Figure 4-2 Wi-FiAccess
The Wi-Fi access of the ONT has the following features:
Supports four SSIDs. The user can select different wireless networks by setting different
SSIDs.
Compatible with IEEE 802.11b/802.11g/802.11n, passing the authentication of Wireless
Fidelity (Wi-Fi) Alliance and featuring good compatibility with other WLAN devices.
Supports multiple authentication and encryption modes, providing users with the secure
and reliable wireless access.
4. Convenient Home Network Attached Storage and File
Sharing Services
The ONT provides one USB port, which can be used to connect to a USB storage device to
provide convenient home network attached storage and file sharing services.
The USB storage function of the ONT has the following features:
The USB port supports Universal Plug and Play (UPnP) and hot plugging.
The USB function can be configured on the local Web page, which facilitates home
network attached file sharing.
The USB port implements the FTP client for home storage, that is, downloading files
from the FTP server in a public network to the USB storage device.

EchoLife ONT GPON Terminal
Product Description 4 Product Highlights
Issue 01 (2013-05-20) Huawei
Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
18
4.4 Secure and Powerful Gateway Functions
The ONT can function as a home gateway, which features the secure and powerful gateway
functions.
The gateway features of the ONT are as follows:
Forwarding rate up to 900 Mbit/s, meeting service requirements for a high quality.
Functioning as a DHCP server or a DHCP client, meeting various requirements in
different scenarios.
Configuration of anti-DoS attack, MAC address filtering, IP address filtering, URL
address filtering, firewall, and ONT ACL, making the ONT more secure and reliable
when it functions as a gateway.
4.5 Convenient Automatic Provisioning, Maintenance, and
Management of the Remote Service
The ONT applies the TR-069 and OMCI management, manages terminal services without
additional IP networks, which facilitates automatic provisioning, maintenance, and
management of the remote service.
The remote service management of the ONT has the following features:
Supports configuring the global profile and issuing the XML configuration file on the
NMS. To provision ONT services in batches and adjust the network, only a few changes
are required.
Supports user-defined upgrade policies configured through the NMS. The device is
automatically upgraded after being powered on and no manual operation is required.
Supports remote performance management of the ONT through the NMS. By collecting
the performance data, the network performance exception can be monitored in real time.
Supports remote fault locating of the ONT through the NMS. Through alarm reporting
and remote loopback diagnosis, the fault can be located remotely, which decreases the
maintenance cost.

EchoLife ONT GPON Terminal
Product Description 5 Port Specifications
Issue 01 (2013-05-20) Huawei Proprietary and Confidentia
l
Copyright © Huawei Technologies Co., Ltd.
19
5 Port Specifications
Introduced the interface indicators parameter of the ONT.
5.1 GPON Port Specifications
Introduced the GPON interfaces indicators of the ONT.
5.2 GE Port Specifications
This topic describes the specifications and standards compliance of Gigabit Ethernet (GE)
ports.
5.3 POTS port
This section describes the specifications and standards for the plain old telephone service
(POTS) port supported by the ONT.
5.4 USB Port
This topic introduces the specifications of the USB port on the ONT.
5.5 Wireless Network Access
This topic introduces the wireless network access indicators of the ONT.
5.1 GPON Port Specifications
Introduced the GPON interfaces indicators of the ONT.
Table 5-1 GPON port specifications
Parameter Specifications
Transmission rate Rx: 2.488 Gbit/s
Tx: 1.244 Gbit/s
Connector SC/APC
Maximum reach 20 km
Standard compliance ITU-T G.984.2 CLASS B+
Center wavelength Tx: 1310 nm
