Hubble Nursery Pal Deluxe User manual

USER’S GUIDE
Nursery Pal Deluxe, Nursery Pal Deluxe Twin
The features described in this user’s guide are subject to modifications without prior notice.

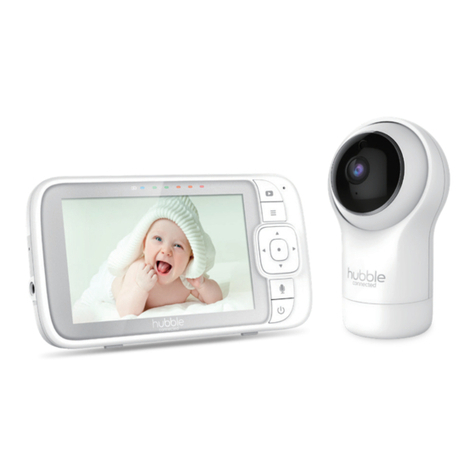

5" Smart HD Baby Monitor with Touch Screen Viewer &
Portable Camera

Welcome...
to your new Hubble Smart Video Baby
Monitor!
Thank you for purchasing the Smart Video Baby Monitor. Now you can see
and hear your baby sleeping in another room or you can monitor your older
children in their play room. Our Connected Baby Monitor let you see your
baby from the hand-held viewer, or from your smartphone. Watch over and
communicate with your baby from anywhere in the world.
Please retain your original dated sales receipt for your records. For warranty
service of your Hubble product, you will need to provide a copy of your
dated sales receipt to confirm warranty status. Registration is not required
for warranty coverage.
For product related questions, please contact:
Live Chat: hubbleconnected.com
Email: [email protected]
https://hubbleconnected.com/warranty
https://hubbleconnected.com/apps/product-registration
Visit support.hubbleconnected.com to download the User Guide with
instructions, answers to frequently asked questions, and more to help you
get the most from your product.
Got everything?
• 1 x Parent Unit
• 1 x Baby Unit (Camera)
• 1 x Power adaptor for Parent Unit
• 1 x Power adaptor for Baby Unit
• 1 x Bumper
• 1 x Quick Start Guide
• 1 x Hubble Grip
In multi-camera packs, you will find one or more additional Baby Units with
power adaptors and Hubble Grip.

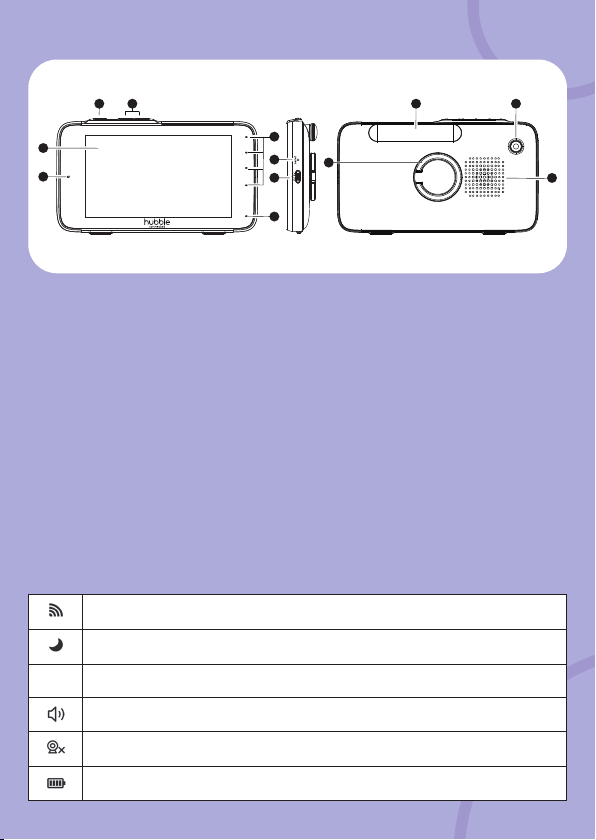

Overview of the Parent Unit
Display icons
Signal Level (4 Levels)
Night Vision Mode (Video also changes to Black/White).
VIndicates the screen off timer is set.
Volume Level Control (8 Levels).
No Baby Unit detected.
Battery Level Indication (4 Levels).
1
34
2
5
8
11 12
7
69
10
1. Microphone
2. Touch screen display
3. Power button
Press and Hold to turn the Parent
Unit ON/OFF.
Once press to turn the Power
Saving Mode ON/OFF.
4. Volume Up/Down botton
Press to decrease / increase
Volume level.
5. Sound Level LEDs (Green, Green,
Amber, Red)
6. Reset pin hole (recessed - use
small pin)
7. Power Socket
8. Power LED
RED when Power OFF charging.
GREEN when Power ON with
battery only.
ORANGE when Power ON
charging.
9. Ring Stand
10. Speaker
11. Antenna
12. Flashlight

Overview of Your Baby Unit
Important guidelines for installing your Smart Video Baby Monitor
• To use your Video Monitor Baby and Parent Units together, you must be able to
establish a radio link between them, and the range will be affected by environmental
conditions.
• Any large metal object, like a refrigerator, a mirror, a ling cabinet, a metallic door
or reinforced concrete, between the Baby Unit and Parent Unit may block the radio
signal.
• The signal strength may also be reduced by other solid structures, like walls, or by
radio or electrical equipment, such as TVs, computers, cordless or mobile phones,
uorescent lights or dimmer switches.
• Other 2.4GHz products, such as wireless networks (Wi-Fi® routers), Bluetooth™
systems, microwave ovens or other Baby Monitors, may cause interference with
this product, so keep the Baby Monitor at least 5ft (1.5m) away from these types of
product, or switch them off if they appear to be causing interference.
• If the signal is weak, try moving the Parent and/or the Baby Unit to different
positions in the rooms.

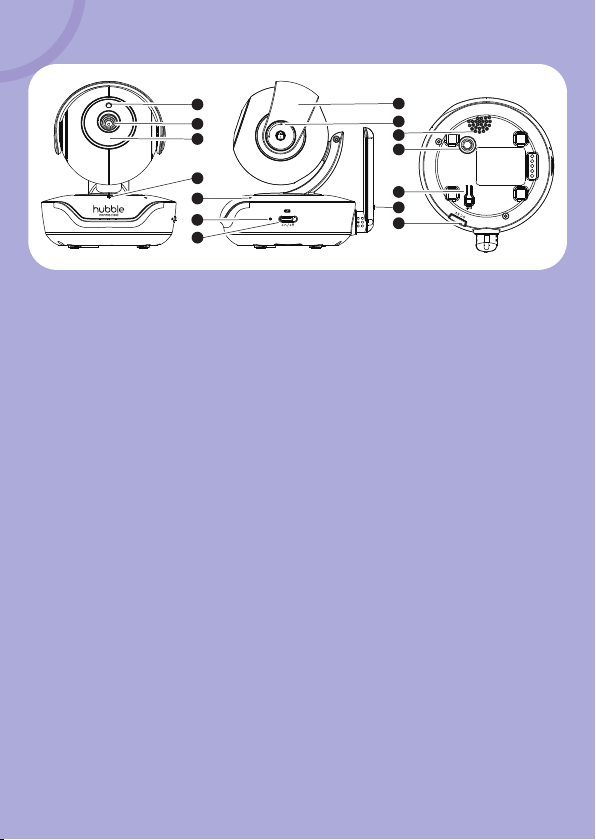

1. Light Sensor
2. Camera Lens
3. Infrared LEDs (x 8, for night
vision)
4. Power LED
On when linked to Parent Unit
Flashes when searching for
Parent Unit
5. Microphone
6. Camera Battery LED
On when AC power is connected
to camera.
Flashes when the battery level of
the camera is low.
7. POWER ON/OFF switch
8. Privacy Protector
9. Protector Knob
10. Speaker
11. Star Grip mounting screw hole
12. PAIR button
13. Temperature Sensor
14. Power Adaptor Socket
1
2
3
4
5
7
8
10
13
9
12
14
11
6

5
English
Table of contents
1. Safety Instructions ............................................................................... 7
2. Getting Started ................................................................................... 10
2.1 Connecting the Power Supply of the Baby Unit..............................10
2.2 Connecting the Power Supply of the Parent Unit. ..........................11
2.3 Desktop Stand of the Parent Unit.................................................... 11
2.4 Registration (Pairing)........................................................................ 12
3. Using the Baby Monitor ..................................................................... 13
3.1 Touch screen operation....................................................................13
3.2 Brightness ........................................................................................14
3.3 Zoom................................................................................................14
3.4 Audio Media ....................................................................................14
3.4.1 Personal Recording Playback................................................14
3.4.2 Lullaby/Soothing Sounds Playback .......................................14
3.4.3 Audio Book Playback ............................................................14
3.4.4 Volume Level of Audio Playback...........................................15
3.5 Flashlight..........................................................................................15
3.6 Alarm................................................................................................15
3.7 Talk Mode.........................................................................................15
3.8 Camera Control................................................................................16
3.8.1 Add (pair) a camera...............................................................16
3.8.2 View a camera ......................................................................16
3.8.3 Delete a camera....................................................................16
3.8.4 Scan cameras.........................................................................16
3.9 Temperature.....................................................................................17
3.10 Power Saving mode........................................................................17
3.11 Games and Videos..........................................................................17
Table of contents

6
Table of contents
4. Wi-Fi® Internet Viewing ..................................................................... 18
4.1 Minimum System Requirements ......................................................18
4.2 Getting started - Connecting Devices .............................................18
4.3 Setup................................................................................................19
4.4 User Account and Camera Setup on Android™ Devices or iPhone®/
iPad® ...............................................................................................19
4.4.1 Power ON and Connect the Camera....................................19
4.4.2 Download HubbleClub by Hubble Connected App............. 19
4.4.3 Sign up with Hubble on your smart device...........................20
4.4.4 Add the Camera to your account ........................................21
5. Disposal of the Device (environment) ............................................ 24
6. Cleaning ................................................................................................. 24
7. Help.......................................................................................................... 25
8. General Information ........................................................................... 32
9. Technical Specifications .................................................................... 36

7
Safety Instructions
English
1. Safety Instructions

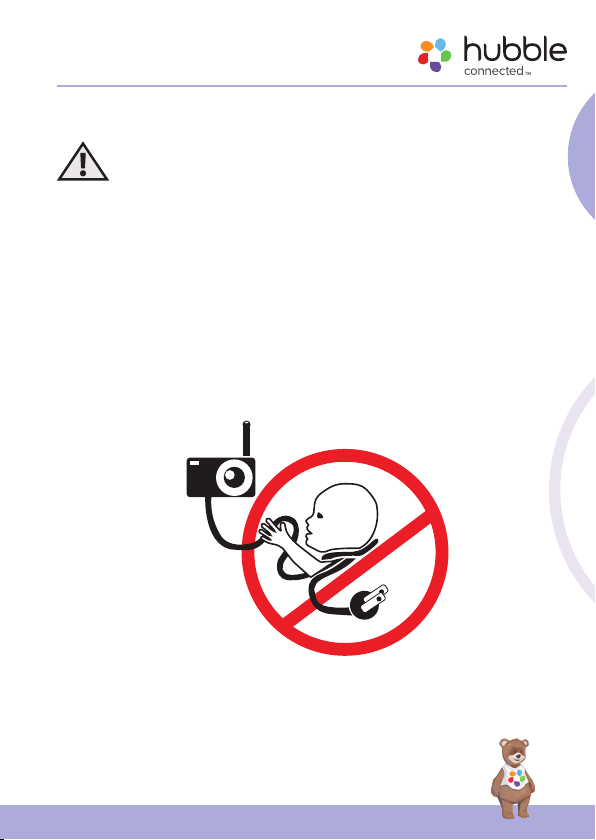

WARNING:
Strangulation Hazard: Children have
STRANGLED on cords. Keep this cord out
of the reach of children (more than 3ft (1m)
away). Never use extension cords with
AC Adaptors. Only use the AC Adaptors
provided.

8Safety Instructions
Baby Unit SET UP & USE:
• Choose a location for the Baby Unit that will provide the best view
of your baby in their crib.
• Place the Baby Unit on a flat surface, such as a dresser, desk, or
shelf or mount the Unit securely using the Flexible Grip or Tripod
mount screw hole on the underside of the stand.
• NEVER place the Baby Unit or cords in the crib or within reach of
the baby (the unit and cords should be more than 3 feet away).
WARNING
This Smart Baby Monitor is compliant with all relevant standards regarding
electromagnetic fields and is, when handled as described in the User's
Guide, safe to use. Therefore, always read the instructions in this User's
Guide carefully before using the device.
• Adult assembly is required. Keep small parts away from children when
assembling.
• This product is not a toy. Do not allow children to play with it.
• This Baby Monitor is not a substitute for responsible adult supervision.
• Keep this User’s Guide for future reference.
• Do not place the Baby Unit or cords in the crib or within reach of the baby
(the unit and cords should be more than 3 feet away).
• Keep the cords out of reach of children.
• Do not cover the Baby Monitor with a towel, blanket, or other item that
will stop air circulation.
• Never use extension cords with power adaptors. Only use the power
adaptors provided.
• Test this monitor and all its functions so that you are familiar with it prior to
actual use.
• Do not use the Baby Monitor near water or allow water or other foreign
substances to enter the power port or adaptor.
• Do not place the Baby Monitor near a heat source.

9
Safety Instructions
English
• Only use the chargers and power adaptors provided. Do not use other
chargers or power adaptors as this may damage the device and battery
packs.
• Do not touch the plug contacts with sharp or metal objects.
• The Unit should be set up and used so that parts of the user's body
other than the hands are maintained at a distance of approximately 8
inches (20 cm) or more.
CAUTION
The Parent Unit and Baby Unit include a built-in, lithium-ion rechargeable
battery pack, which is not a user-accessible item. If you think the batteries
need replacing, please contact the helpline. Do not try to replace them
yourself. Risk of explosion if battery is replaced by an unapproved battery
type.

10 Getting Started
2. Getting Started
2.1 Connecting the Power Supply of the Baby Unit
• Connect the USB type-C plug of the
power adaptor to the Baby Unit and the
other end to a suitable electrical outlet.
• Only use the included adaptor (5V DC /
1500mA).
• Ensure the ON/OFF switch is at the
"ON" position.
IMPORTANT: The Baby Unit is able to operate
without mains power for up to 3 hours with
the support of a built-in rechargeable battery
(Lithium-ion battery 3.7V, 1200mAh).
Please charge the unit at least 4 hours before
rst time use.
Privacy Protector
This is to disable the live camera video feed
by blocking the camera lens.
• Press the knob to release the lock.
• You can move the protector to its open
or closed position after the lock is
released.
• When you hear the click sound the
protector is at its proper positions.
IMPORTANT: Make sure the privacy
protector does not cover the camera lens
when in use.
Sound is NOT disabled when the protector
covers the camera lens.
The privacy cover shall only to pull up,
if pull down in excess force, it will break
stopper.

11
Getting Started
English

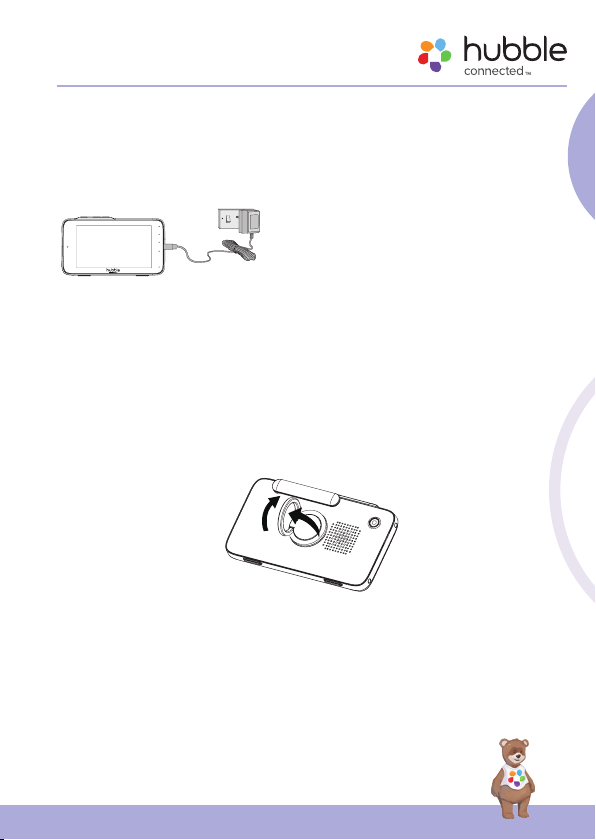

2.2 Connecting the Power Supply of the Parent Unit.
• Connect the USB Type-C plug of the
power adaptor to the parent unit and the
other end to the electrical outlet. Only use
the included adaptor (5V DC / 1500mA).
• A rechargeable battery (Lithium-ion battery
2100mAh) inside the Parent Unit allows
portability to the parent unit. The battery
provides up to 4 hours operation of the
Parent Unit. We recommend charging for
at least 4 hours before rst use, and when
the Parent Unit indicates the battery is low.
• Press and hold the POWER button on the
top of the Parent Unit to turn it ON.
2.3 Desktop Stand of the Parent Unit
• Flip out the stand on the back of the Parent Unit and rotate it by 90
degrees to set up the desktop stand.

12 Getting Started
2.4 Registration (Pairing)
The Baby Monitor is pre-registered to your Parent Unit. You do not need to
register it again unless the Baby Unit loses its link with the Parent Unit.
To re-register your Baby Unit, or register a new Baby Unit, follow the
procedure below:
1. Tap the in the menu bar.
2. Tap , Camera / / / will appear.
3. Tap / / / to select the desired Camera number, the parent
unit will begin searching for a camera to pair to.
Note: If a camera is currently paired with the Parent Unit, its camera
location (in dark grey colour) cannot be selected for a new registration.
4. Press and hold the PAIR button on the underside of the Baby Unit until
the Parent Unit nds the camera, beeps and PAIR OK appears on the
screen. The video from the camera will then appear.
Note:
A camera can only be registered to one Parent Unit at any one time.

13
Using the Baby Monitor
English
3. Using the Baby Monitor
3.1 Touch screen operation
25 °C

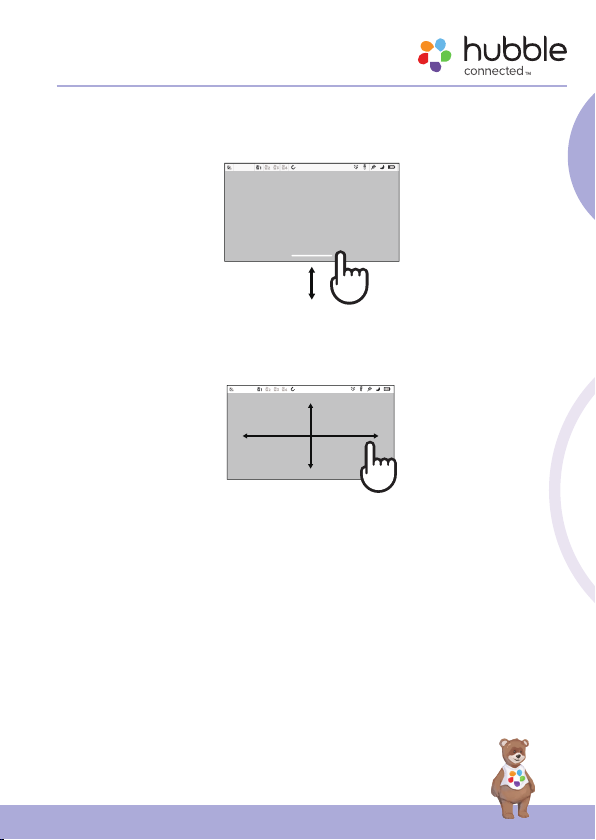

Swipe up on the bottom of the screen to view the menu bar.
Swipe down on the bottom of the screen to hide the menu bar.
Swipe left/right on the menu bar to see all the options.
25 °C
Swipe left/right to pan the camera view.
Swipe up/down to tilt the camera view.
Note:
Pan & Tilt is only operational when in viewing mode, when menu is active you
cannot pan & tilt.

14 Using the Baby Monitor
3.2 Brightness
1. Tap the in the menu bar to adjust brightness.
2. Tap the or to select the desired brightness from level 1 ~ 8. (The
default brightness is level 4.)
3.3 Zoom
1. Tap the in the menu bar to zoom.
2. Tap the or button to select 1X to 4X zoom.
3.4 Audio Media
You can playback audio content - Lullabies, Soothing Sounds and Audio
Book on the Baby Unit. You have 10 preloaded lullabies/soothing sounds
and 8 audio books in the Baby Unit.
3.4.1 Personal Recording Playback
The unit allows playback of your personal audio to soothe your baby. Before
playback, record a personal audio via HubbleClub by Hubble Connected
App.
1. Tap the in the menu bar.
2. Tap the >to view the desired Personal Recording. The Personal
Recording names appear on the screen.
3. Tap the desired recording to play the selection to soothe your baby.
3.4.2 Lullaby/Soothing Sounds Playback
1. Tap the in the menu bar.
2. Tap the to view the desired Lullaby/Soothing Sounds. The song
names appear on the screen.
3. Tap the desired Lullaby to play the selection to soothe your baby.
3.4.3 Audio Book Playback
1. Tap the in the menu bar.
2. Tap the to view the desired Audio Book. The book titles appear on
the screen.
3. Tap the desired Audio Book to play the selection.

15
Using the Baby Monitor
English
3.4.4 Volume Level of Audio Playback
1. Tap the in the menu bar.
2. Tap the or to select the desired Volume Level from level 1 ~ 4. (The
default volume is level 3.)
3.5 Flashlight
Tap the in the menu bar to turn the ashlight on, the will appear on the
notication bar. Tap the in the menu to turn the ashlight off.
3.6 Alarm
1. Tap the in the menu bar.
2. Tap on to turn the alarm on then tap the +or -to select the timer
time.
3. Conrm the timer duration by tapping set, the will appear on status
bar.
4. If timer is selected, the Parent Unit will beep, press any key or tap
screen to stop the alarm.
3.7 Talk Mode
1. Tap Ton the menu bar, T Touch to Talk will display on the screen.
2. Tap Tto talk to your baby through the Baby Unit's speaker.
3. Tap to stop talkback.
Note: you will not hear sounds from the baby unit while the talk back mode
is on.

16 Using the Baby Monitor
3.8 Camera Control
3.8.1 Add (pair) a camera
1. Tap the in the menu bar.
2. Tap , / / / will appear.
3. Tap / / / to select the desired Camera location.
Note: If a camera is currently paired with the Parent Unit, its camera
location (in dark grey colour) cannot be selected for a new registration.
4. Press and hold the PAIR button on the underside of the Baby Unit until
the Parent Unit nds the camera, beeps and PAIR OK appears on the
screen. The video from the camera will then appear.
Note:
A camera can only be registered to one Parent Unit at any one time.
3.8.2 View a camera
1. Tap the in the menu bar.
2. Tap , / / / will appear.
3. Tap / / / to select the desired Camera.
3.8.3 Delete a camera
1. Tap the in the menu bar.
2. Tap , / / / will appear.
3. Tap / / / to select the desired Camera and tap Press to
delete button to delete that registration.
Note:
You cannot delete the camera if there is only one registered camera in
the Parent Unit.
3.8.4 Scan cameras
This function is only available when you have more than 1 Baby Unit
(Camera).
1. Tap the in the menu bar.
2. Tap , / / / will appear.
3. The parent unit will scan between registered cameras stopping briey
on each registered camera for approx. 12 seconds.

17
Using the Baby Monitor
English
3.9 Temperature
1. Swipe to the left, tap the in the menu bar, the temperatue format °C
or °F will appear.
2. Tap °C or °F to select temperature format.
3.10 Power Saving mode
1. Tap the in the menu bar, the screen off timer options are 5 mins, 15
mins or 30 mins.
2. Select video off after 5 mins, 15 mins or 30 mins (screen timer active
when in battery mode only).
Note:
The audio is still on, you can press the power key or touch the screen
to resume video feed.
3.11 Games and Videos
The unit comes packed with entertaining content (videos, picture books
games and more).
Tap to access Hubble Baby entertaining games and videos.

18 Wi-Fi® Internet Viewing
4. Wi-Fi® Internet Viewing
4.1 Minimum System Requirements
Android™ System
• Version 8.0 or above
iPhone®/iPad® iOS
• Version 12.0 or above
High Speed (Wi-Fi®) Internet
• At least 0.6 Mbps upload bandwidth per camera (you can test your
internet speed on this site: http://www.speedtest.net)
4.2 Getting started - Connecting Devices

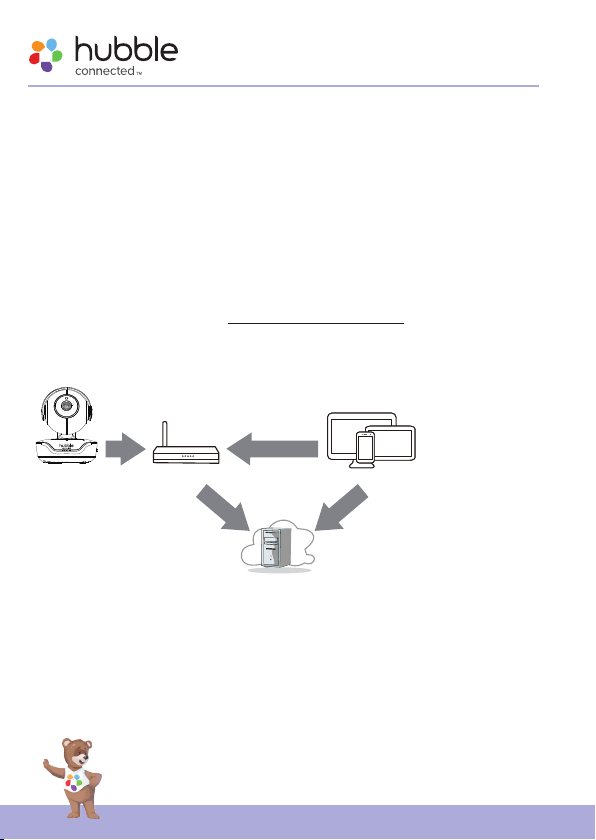

How does it work?
Access your
Camera locally
View your Camera from any
compatible device remotely
Wi-Fi RouterWi-Fi®
Camera
Hubble
Service
When a user tries to access the Camera, our Hubble server authenticates
the user’s identity and permits access to the Camera.

19
Wi-Fi® Internet Viewing
English
4.3 Setup

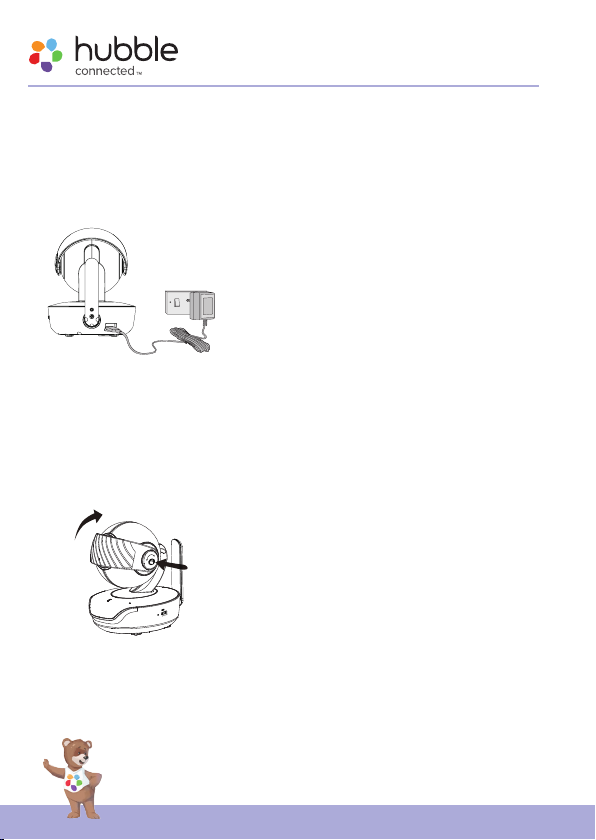

Connect the Wi-Fi® Camera to the Power Adaptor, then plug into mains power.
The Camera must be within range of the Wi-Fi® router with which you want to
connect. Make sure the password of the router is available for entering during
the in-app setup process.
Status of LED Indication:
- Pair / Setup state: LED is Green and Red Flashing alternately.
- Unconnected state: LED is Red and Flashing.
- Connected state: LED is Green and always on.
- Video streaming: LED is Green and always on.
Note:You can setup via a compatible smartphone or tablet only.
4.4 User Account and Camera Setup on Android™ Devices or
iPhone®/iPad®
What you need
• Wi-Fi® Camera Unit
• Power adaptor for the Camera
• Device with Android™ system version 8.0 and above
• Or iPhone®/iPad® with iOS version 12.0 and above
4.4.1 Power ON and Connect the Camera
• Switch the parent unit off before connect the camera to Wi-Fi®.
• Connect the power adaptor to mains power and insert the plug into the
power socket on the back of the Camera Unit, the unit turns on.
4.4.2 Download HubbleClub by Hubble Connected App
• Scan the QR code with your smart device
and download HubbleClub by Hubble
Connected App from the App Store for iOS
devices or from the Google Play™ Store for
Android™ devices.
• Install HubbleClub by Hubble Connected App
on your device.

20 Wi-Fi® Internet Viewing
4.4.3 Sign up with Hubble on your smart device
• Ensure that your smart device is connected to your Wi-Fi® router.

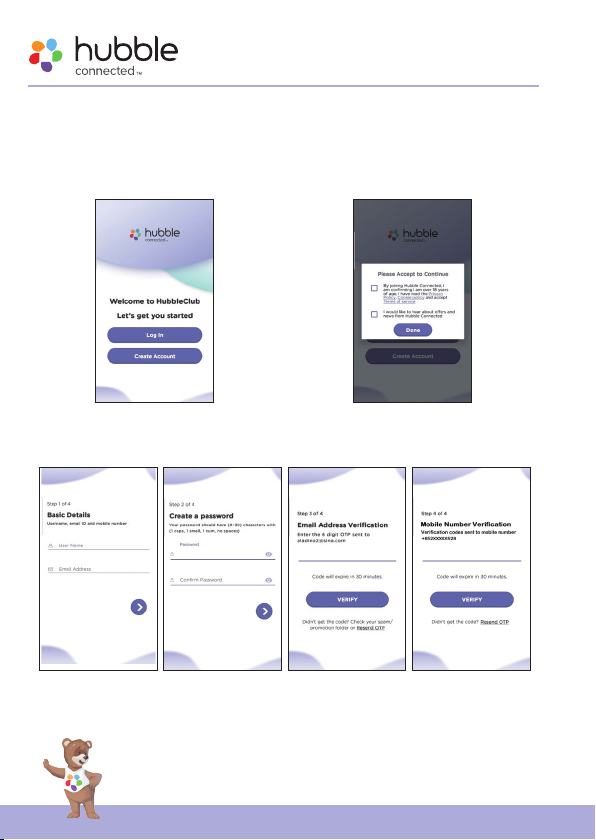

• Run HubbleClub by Hubble Connected App, tap Create Account with
Hubble (fig.1), read through the Privacy Policy, Terms and Conditions, by
signing up you agree to our terms of service, tap Done (fig.2).
g.1 g.2
• Follow the steps to enter your account information and sign up with
Hubble (fig.3-6).
g.3 g.4 g.5 g.6
Note: If you already have a HubbleClub by Hubble Connected App
account, please tap Log in with Hubble to go to the next steps.
