Hunter Electronics GPS-DTR 25000 User manual

DOG TRAINING COLLAR WITH GPS TRACKER
MODELS: GPS-DTR 25000-25002-25003 (GPS and training function)
GPS 25000-25002-25003 (no training function)
PREPARING THE COLLAR FOR FIRST USE:
Charge the collar for 7-8 hours. The battery has a standby time of 20 hours when fully charged. Connect the small USB adapter to the USB cable,
and then the cable to the USB charger. Then connect the charger to the collar, lift the orange plastic protective cover and connect the charger. Now
turn on the collar. To turn it on, hold the remote control part (where the built-in magnet is located) at the point where the collar indicator led is loc-
ated for 1 second. Then remove the remote control. The red indicator led on the collar will flash fast during the charging .Then the collar will turn
off after 2 minutes for saving power purpose. The led will continuously indicate ON once the collar battery is full. In order to check the led status
during the charging process, you should turn on the collar using the magnet. After 7-8 hours of charging remove the charger. To turn off the collar,
hold the remote control part (where the built-in magnet is located) for 4 seconds at the point where the collar indicator led is located. The remote
control should be charged for 4-5 hours. Connect the charger to the remote control on the USB connector on the top.
PAIRING AND USE THE COLLAR:
The collar you purchased is already paired with its remote control. If you want to pair it again, follow the instructions below. The remote control
can control up to 9 collars. The remote control has + and - buttons for collar selection to which you can send commands. Turn on the remote control
from the ON / OFF button, then turn on the collar. When the collar is turned on, the red indicator led of the collar flashes. Press for 4-5 seconds the
display light button, and the speaker icon on the screen will start flashing. The remote control is in tuning mode. Then hold the back of the remote
control (where the built-in magnet is located) for 10 seconds at the point where the collar indicator led is located. Remove the remote control from the
collar after 10 seconds and if you hear 3 consecutive beeps from the collar, then press the shock command button for 2 seconds. You will hear a beep,
indicating that the sync was successful. Repeat the same procedure if you want to sync other collars. After you finish adjusting the collars, press the
audio command button to return the remote control to normal operation. When you press the remote control shock button, a shock command is sent to
the corresponding collar. Each time you press the audio command or the push button or the audio + shock button, the screen flashes, indicating that
the command is being sent to the collar. The level of shock fluctuates with the increasing number of buttons on the remote control from 1 to
8. Level 1 is the lowest and level 8 is the highest. After use, you can turn off the remote control using the ON / OFF switch.
The device is specially designed for hunting dogs and works under harsh conditions (rain, dense vegetation etc). It is lightweight, durable and ideal
for both small and large dog breeds. The collar should be positioned on the bottom of the dog's neck. The two pins should touch the dog's skin so that
it can feel the stimulus. Place it tight on the neck and if the dog has long fur, trim the fur slightly so that the pins make contact with the skin. You
need to find the right power level for your dog. Start from level 1 and if you see no reaction use level 2. Increase the level until you see a reaction
from the dog. When the dog reacts then this is the level you need to use. If you use level 8 which is the highest and you see no reaction from the dog
then the collar has not been properly placed on the neck. It should be tight and if the dog has long fur, trim it so that the pins make contact with the
skin. Use either the short or long pins depending on the dog's fur. Always be present during the charging process of the devices. It is recommended to
charge once per month during the period when you do not use the device. Charged in a dry environment with temperatures below 40 degrees. We ad-
vise you to charge the collar and the remote control before each use.
during the charging process of the devices. It is recommended to charge onve per month during the period when you do not use the device. Charged
in a dry environment with temperatures below 40 degrees
We advise you to charge the collar and remote control before each use.
the remote control to normal operation. When you press the remote control shockr button, a shock command is sent
to the corresponding collar. Each time you press the audio command or the push button or the audio + shock button,
the screen flashes, indicating that the command is being sent to the collar. The level of excitement fluctuates with the
increasing number of buttons on the remote control from 1 to 8. Level 1 is the lowest and level 8 is the highest. After
use, you can turn off the remote control using the ON / OFF switch.
INCLUDING Training Collar, USB Charger, USB Cable, USB Remote Antenna Adapter, Short and long spikes.
want to sync other collars. When you have finished adjusting the collars, press the audio command button to return
the remote control to normal operation. When you press the remote control shockr button, a shock command is sent
to the corresponding collar. Each time you press the audio command or the push button or the audio + shock button,
the screen flashes, indicating that the command is being sent to the collar. The level of excitement fluctuates with the
increasing number of buttons on the remote control from 1 to 8. Level 1 is the lowest and level 8 is the highest. After
use, you can turn off the remote control using the ON / OFF switch.
INCLUDING Training Collar, USB Charger, USB Cable, USB Remote Antenna Adapter, Short and long spikes.
INCLUDES:
GPS Collar, USB Charger, USB Cable, USB
Adapter, Remote Control Antenna , Short
and long spikes(for GPS-DTR-25000 only).

TIPS FOR USING GPS-DOG TRAINING COLLAR
GPS TRACKER:
The collar has a build in GPS antenna and the remote control a Bluetooth module.
The remote control communicates with a mobile phone or tablet via Bluetooth.
The mobile phone or tablet used must be Android 5.0 or later and Bluetooth version 4 or 5.
To synchronize the remote with your mobile, follow these steps:
1. Download and install the app on your mobile.
2. Turn on the remote control from the switch.
3. Start the application.

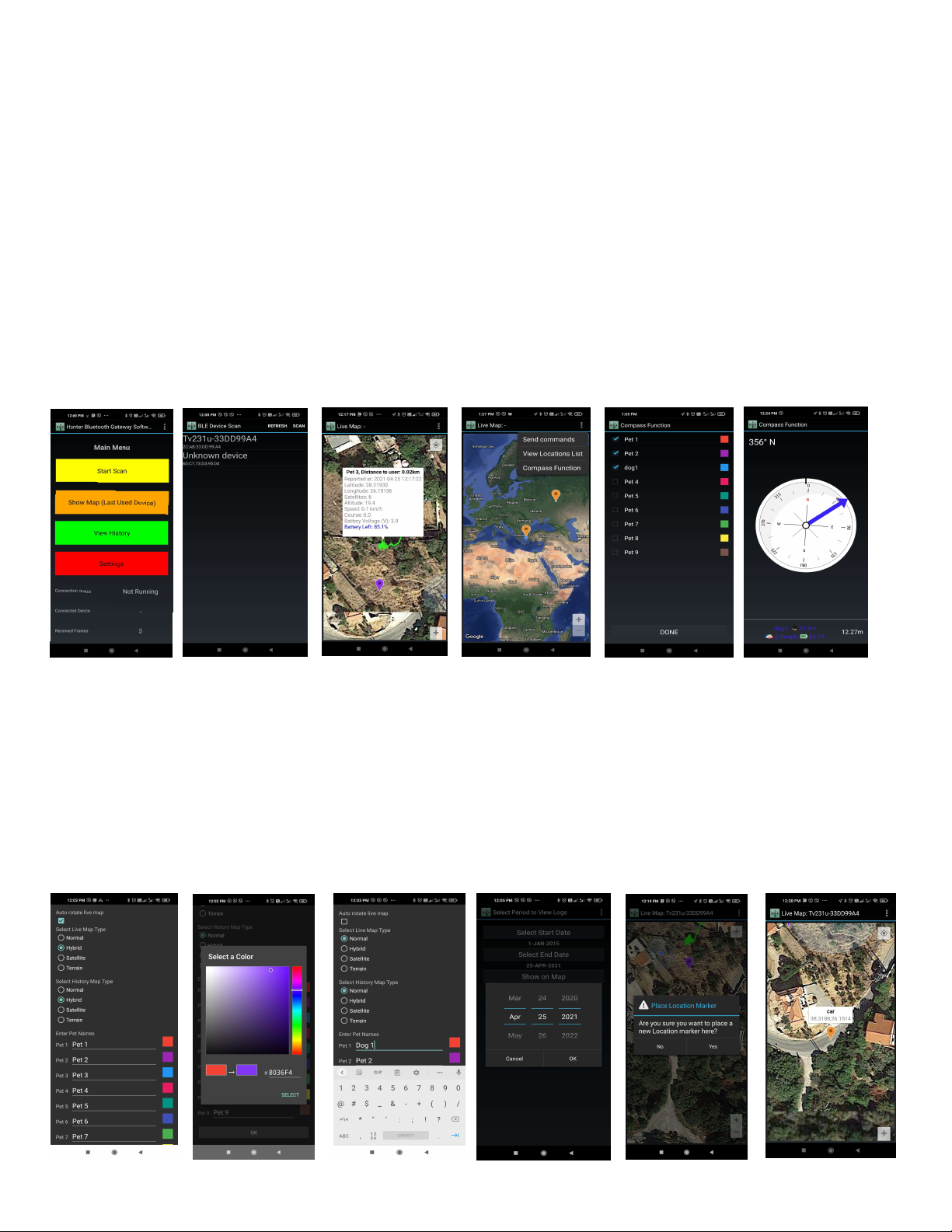

4. You will see the picture below (first). Select START SCAN and then tap the Bluetooth icon (second image TV231u-......) and you will go
straight to the map.
5. You can see on the map a dog's head icon indicating the dog's position (the collar must be outdoors and the orange GPS antenna must look to
the sky).
6. By tapping the dog's head icon on the application you can see the distance between the user and the collar.
7. By tapping on menu on the right (3 dots), as shown on the fourth picture you can choose Compass function, Select max 3 Dogs and press
DONE (picture 5). Then you will see the screen on sixth picture. It wll show an arrow for each dog which shows the direction, dog name, battery
level, altitude, speed, distance from user, for each dog you have selected.
1 2 3 4 5 6
SETTINGS MENU:
By tapping on Main menu (picture 1) on Settings you can set:
a. AUTO ROTATE Live Map (picture 7).
b. select map style (Normal, Satellite, Hybrid, terrain) for LIVE and History map (picture 7) .
c. select color by taping on dog color icon on the right (picture 8).
d. name each dog icon (picture 9).
Then save by tapping OK(at the bottom).
7 8 9 10 11 12

HISTORYMENU:
1. By tapping on #View History#button on main menu (picture 1) you will go to History screen.Then select #start date#and #end date#(picture
10) and by tapping OKyou will see the history route of the dog.
SAVE LOCATIONS:
1 .By touching continuously for 1 sec on the map on interest place it will open a dialogue window (picture 11, 12). You can save and name interest
position on map.
13 14 15 16 17 18
SEND COMMANDS:

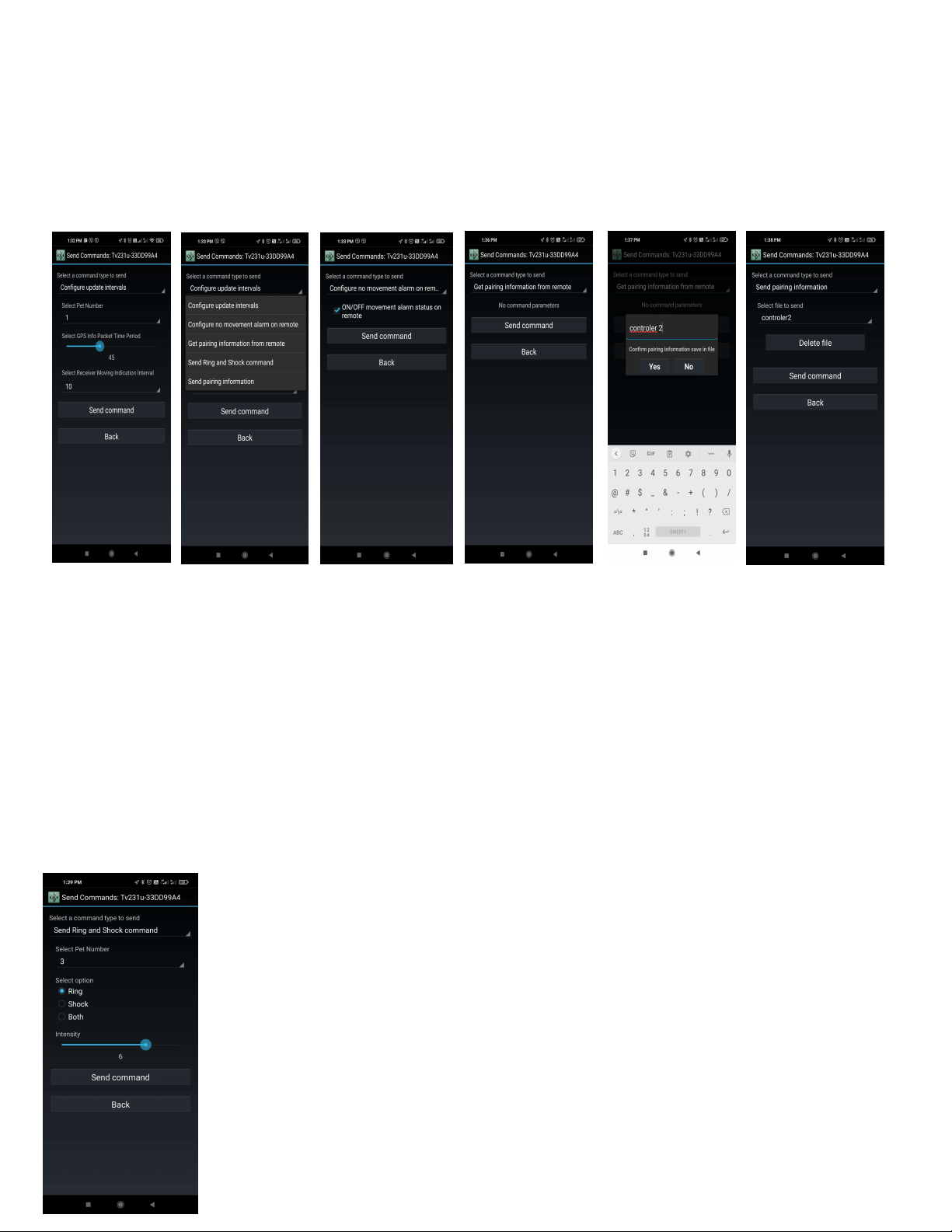

1.Select the time period for the GPS info from 1 sec to 120 sec, then tap SEND command button (picture 13).
The "Receiver Moving Indivcation Interval"leave it as it is. It is not used in your device.
2. By tapping on Configure update intervals opens a window with 6 options (picture 14).
3. Select "Configure no movement alarm on remote"to enable/disable the alarm sound on remote control (picture 15).
PAIR MORE REMOTE CONTROLS FOR COLLARS:
1. In order to pair more remote controls for same collars select "Get Pairing info from Remote"(picture 16) then tap on "Send Command", a win-
dow will open on which you can type the name of the extra remote control, then tap "Yes"(picture 17).
2. To connect the new remote control, detect it on the app by tapping "Start scan"(picture 1). Then go to "Send command"Menu (picture 4) and
select "Send Pairing Information"(picture 14) then tap "Send Command".
3. New remote control is now paired with the collars. By this way you can use more remote controls for same collars at the same time.
SEND TONE AND SHOCKCOMMANDS FromAPP:
1.Shock Function is used ONLY on GPS-DTR 25000 model, GPS-25000 has only Tone function.
2. Select the "Send Ring and Shock command".
3. Select Pet Number.
4. Select Ring or Shock or Both(Shock and Tone) option.
5. Select Level (1-8) for Shock Function (1-3 level is very low). Then Tap "Send command".
19

Tips for connecting GPS collar to Satellites:
1. Collar should be outside in open area, away from walls and buildings.
2. The orange GPS box antenna should be looking the sky.
3. Turn on the collar and it will connect in 1-5 minutes, then the dog icon will be visible on the map.
4. In order to save battery power you can set the interval "GPS info packet time period"from 10 to 120 sec.
5. If you are using more than 2 collars set from 10-120 sec as well.
WARRANTY:
Product is designed and manufactured by Hunter Electronics Limited. In every step of manufacturing process, every component and part
is checked thoroughly before and after assembly. Devices are checked thoroughly also after final assembly for all functions and a final
check is done before sending the order.
If you encounter any issue please contact our customer service on channel from which you have made the purchase. We will help solve
any problem you might have.
The products have 1 year warranty, except battery which has 3 months warranty.
Battery has 500 circles life of charge/discharge.
For periods which the devices are not used you must charge the batteries once every month for 8 hours.
Store the devices in a cool and dry place in temperatures up to 35 Celcius degrees.
We offer after sales service during and after warranty.
