Hunter 42743-01 User manual

42743-01 • 04/15/07
For Your Records and Warranty
Assistance
Model Name: _____________________
Catalog/Model No.: ________________
Serial No.: ________________________
Date Purchased: ___________________
Where Purchased: _________________
For reference also attach your receipt or a
copy of your receipt to the manual. TYPE 2 Models

2
Table of Contents
1 • Getting Ready ...................................................4
2 • Installing the Ceiling Plate..........................5
3 • Assembling and Hanging the Fan..........6
4 • Wiring the Fan..................................................7
5 • Installing the Canopy and
Canopy Trim Ring............................................8
6 • Assembling the Blades.................................9
7 • Completing Your Installation................ 10
8 • Operating and Cleaning
Your Ceiling Fan.............................................11
9 • Troubleshooting ........................................... 13
Welcome
© 2007 Hunter Fan Company
Hunter Fan Company 42743-01 • 04/15/07
Your new Hunter®ceiling fan is an addition to your home or office that
will provide comfort and performance for many years. is installation
and operation manual gives you complete instructions for installing
and operating your fan.
We are proud of our work. We appreciate the opportunity to supply
you with the best ceiling fan available anywhere in the world.
Before installing your fan, for your records and warranty assistance,
record information from the carton and Hunter nameplate label
(located on the top of the fan motor housing).
Cautions and Warnings
•READ THIS ENTIRE MANUAL CAREFULLY BEFORE BEGINNING
INSTALLATION. SAVE THESE INSTRUCTIONS.
• Use only Hunter replacement parts.
• To reduce the risk of personal injury, attach the fan directly to the
support structure of the building according to these instructions,
and use only the hardware supplied.
• To avoid possible electrical shock, before installing your fan,
disconnect the power by turning off the circuit breakers to the
outlet box and associated wall switch location. If you cannot lock
the circuit breakers in the off position, securely fasten a prominent
warning device, such as a tag, to the service panel.
• All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualified electrician.
• To reduce the risk of personal injury, do not bend the blade
attachment system when installing, balancing, or cleaning the fan.
Never insert foreign objects between rotating fan blades.
• To reduce the risk of fire, electrical shock, or motor damage, do not
use a solid-state speed control with this fan. Use only Hunter speed
controls.

3
Installer’s Choice and Optional Accessories
42743-01 • 04/15/07 Hunter Fan Company
Understanding Mounting and Installer’s Choice®
Hunter’s patented 3-position mounting system provides you maximum
installation flexibility and ease. You can install your Hunter fan in one
of three ways, depending on ceiling height and your preference: Low
Profile, Standard, or Angle mounting. e steps in this manual include
instructions for all three Installer’s Choice mounting methods.
Considering Optional Accessories
Consider using Hunter’s optional accessories, including a wall-mounted
or remote speed control. To install and use the accessories, follow
the instructions included with each product. For quiet and optimum
performance of your Hunter fan, use only Hunter speed controls.
For ceilings higher than 8 feet, you can purchase
Hunter extension downrods. All Hunter fans use
sturdy 3/4” diameter pipe to assure stability and
wobble-free performance.
Standard Mounting hangs from the
ceiling by a downrod (included).
Angle Mounting recommended for a
vaulted or angled ceiling
Support Brace
Standard
Mounting
Style
Ceiling
Outlet Box
Support Brace
Ceiling
Outlet Box
Angle
Mounting
Style
Low Profile Mounting fits close to the
ceiling, recommended for ceilings less
than 8 feet high
Support Brace
Low Profile
Mounting
Style
Ceiling
Outlet Box
8
12
CAUTION: To
reduce the risk of
personal injury, attach
the fan directly to the
support structure of
the building according
to these instructions,
and use only the
hardware supplied.

4
To install a ceiling fan, be sure you can do the following:
• Locate the ceiling joist or other suitable support in ceiling.
• Drill holes for and install wood screws.
• Identify and connect electrical wires.
• Lift 40 pounds.
If you need help installing the fan, your Hunter fan dealer can direct
you to a licensed installer or electrician.
Gathering the Tools
You will need the following tools for installing the fan:
• Electric drill with 9/64” bit
• Standard screwdriver (magnetic tip recommended)
• Phillips-head screwdriver (magnetic tip recommended)
• Wrench or pliers
• Ladder (height dependent upon installation site)
Checking Your Fan Parts

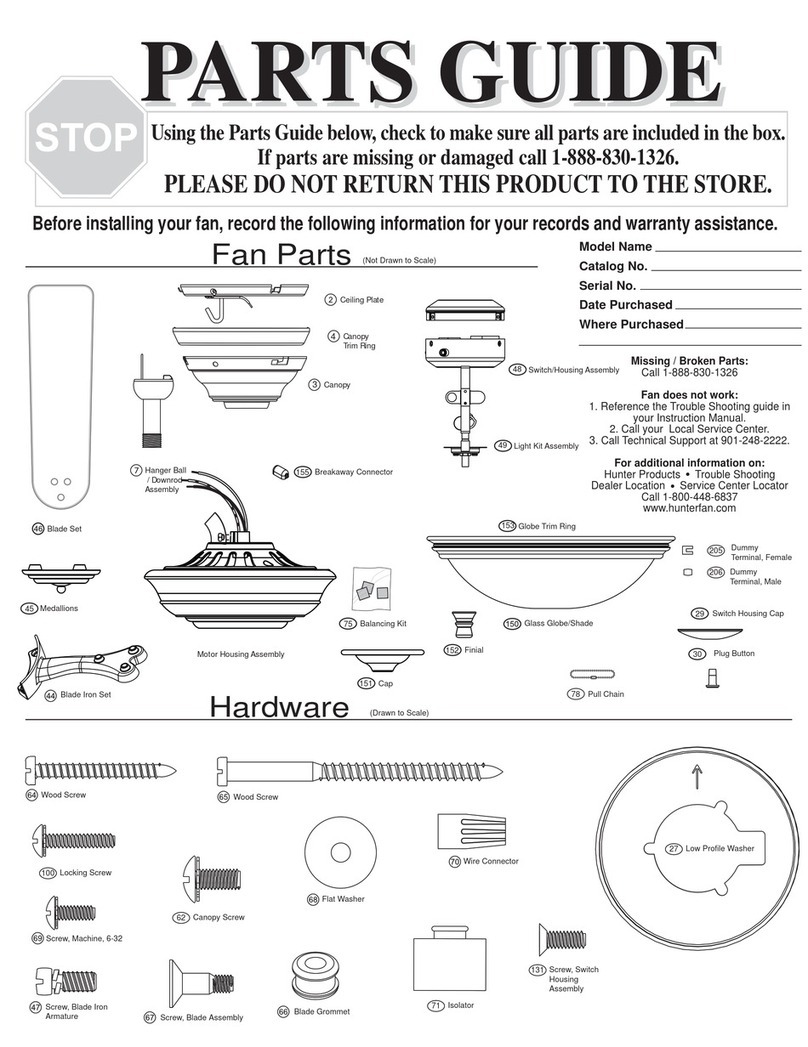

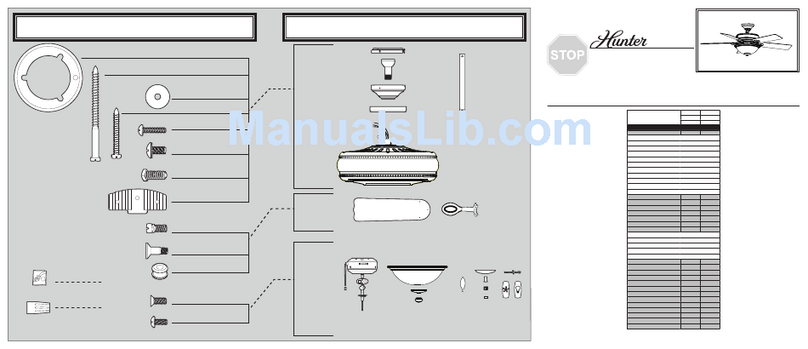

Carefully unpack your fan to avoid damage to the fan parts. Refer to
the included Parts Guide. Check for any shipping damage to the motor
or fan blades. If any parts are missing or damaged, contact your Hunter
dealer or call Hunter Technical Support Department at 888-830-1326.
Preparing the Fan Site
Before you begin installing the fan, follow all the instructions in
the pullout sheet called “Preparing the Fan Site.” Proper ceiling fan
location and attachment to the building structure are essential for
safety, reliable operation, maximum efficiency, and energy savings.
1 • Getting Ready
Installing Multiple Fans?
If you are installing more than
one fan, keep the fan blades and
blade irons (if applicable) in sets,
as they were shipped.
Hunter Fan Company 42743-01 • 04/15/07

5
2-1. Drill two pilot holes into the wood support structure through the
outermost holes in the outlet box. e pilot holes should be 9/64”
in diameter.
2-2. Your fan comes with four neoprene noise isolators (“Isolators”).
Position the isolators between the ceiling plate and ceiling by
inserting the raised areas on each isolator into the holes in the
ceiling plate.
2-3. read the lead wires from the outlet box down through the hole
in the middle of the ceiling plate.
2-4. Align the slotted holes in the ceiling plate with the pilot holes you
drilled in the wood support structure. For proper alignment use
slotted holes directly across from each other.
Note: e isolators should be flush against the ceiling.
2-5. Place a flat washer on each of the two 3” wood screws and pass
the screws through the slotted holes in the ceiling plate into the
pilot holes you drilled.
Tighten the screws into the 9/64” pilot holes; do not use lubricants
on the screws. Do not over tighten.
Step 2-2
Flat Washer
3” Wood Screw
Steps 2-3 – 2-5
2 • Installing the Ceiling Plate
For Angled Ceilings: Be sure to
orient the ceiling plate so that the
arrows printed on the ceiling plate are
pointing towards the ceiling peak.
Ceiling
Plate
Isolator
42743-01 • 04/15/07 Hunter Fan Company

6
3 • Assembling and Hanging the Fan
Steps 3-4 – 3-5
Low Profile Washer
You can assemble your fan for standard mounting (steps 3-1 – 3-2) or
for low profile mounting (steps 3-3 – 3-5).
3-1. To assemble fan to hang down from a flat or angled ceiling, insert
the downrod through the canopy and canopy trim ring. Feed the
wires from the fan through the downrod.
3-2. Loosen the set screw on the adapter to install the pipe and ball
assembly. Note: When the pipe and ball assembly is fully installed,
2-3 threads on the pipe will still be visible; this is normal. Securely
retighten the set screw with a wrench or pliers. Skip to Step 3-6.
CAUTION: e adapter has a special coating on the threads. Do
not remove this coating; the coating prevents the downrod from
unscrewing. Once assembled, do not remove the downrod.
3-3. Remove the set screw from the adapter.
3-4. Place the low profile washer (lip up) into the canopy. Be sure the
green ground wire is pointing up toward the ceiling.
Note: For low profile mounting, the downrod is replaced with the
low profile washer. See Steps 3-3 – 3-5.
3-5. Align the holes in the washer with the holes in the adapter.
Assemble securely with three #8-32 x 3/4” screws.
3-6. Raise the fan and place the hook on the ceiling plate through the
U-shaped hole in the rim. Go to 4 • Wiring the Fan.
WARNING: Fan may fall if not assembled as directed in these
installation instructions.
Steps 3-1 – 3-2
Downrod
Canopy
Canopy
Trim Ring
Set Screw
#8-32 x 3/4” Screw
Step 3-6
U-shaped
Hole
Hunter Fan Company 42743-01 • 04/15/07

7
4 • Wiring the Fan
All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualified electrician.
Wall switches are not included. Select an acceptable general-use switch
in accordance with national and local electrical codes.
4-1. Disconnect the power by turning off the circuit breakers to the
outlet box and associated wall switch location.
4-2. Decide how you want to set up the fan and light controls. You
can control the fan and/or lights together or separately using one
or two wall switches. Follow Step 4-3 OR Step 4-4, depending on
what you decide.
Note: If you are not installing a light kit, follow step 4-4.
4-3. If you want to, you can control the fan and light separately using
two wall switches, connect the wires as follows: connect the green
ground wire to the ground wire, connect white wire to white wire,
connect black wire to black wire, and connect the black/white
wire from the fan to the wire for the wall switch.
4-4. Alternatively, you can control both fan and light with one switch.
To do so connect the wires as follows: connect the green ground
wire to the ground wire, connect white wire to white wire,
connect the black and the black/white wire from the fan to the
black wire in the ceiling.
4-5. To connect the wires, hold the bare metal leads together and place
a wire nut over them, then twist clockwise until tight.
CAUTION: Be sure no bare wire or wire strands are visible after
making connections.
4-6. Push all wires and wire nuts back through the ceiling plate hole
into the outlet box.
Wire Nut
Step 4-3
Step 4-4
42743-01 • 04/15/07 Hunter Fan Company

8
5 • Installing the Canopy and Canopy Trim Ring
5-1. Holding the canopy, raise the fan off the hook.
5-2. Align the slots in the canopy with the tabs on the ceiling plate.
5-3. Raise the canopy over the ceiling plate. Rotate the canopy
clockwise until the tabs on the ceiling plate totally engage with
the slots in the canopy.
5-4. Loosely assemble the three canopy screws into the canopy one at
a time. Once all three screws are in, tighten them.
5-5. Using both hands, push the canopy trim ring up to the top of the
canopy. e canopy trim ring will snap and lock into place.
Should you need to remove the canopy
trim ring, follow these steps:
1. Locate the tab indicators, small
bumps on top of tabs.
2. Press firmly on opposite sides of the
ring towards the canopy. e tabs
will flex out releasing the trim ring
from the canopy
Canopy
Screw
Step 5-2
Canopy Trim
Ring
Canopy
Ceiling Plate
Step 5-3
Steps 5-4 – 5-5
Hunter Fan Company 42743-01 • 04/15/07

9
6 • Assembling the Blades
Hunter fans use several styles of fan blade irons (brackets that hold the
blade to the fan).
6-1. Your fan may include blade grommets. If your fan has grommets,
insert them by hand into the holes on the blades.
6-2. Attach each blade to a blade iron using three blade assembly
screws. If you used grommets, the blades may appear slightly loose
after screws are tightened. is is normal.
6-3. Some blade mounting screws are installed in the motor to
secure shipping blocks. Remove the blade mountings screws and
rubber bumpers from the motor. Save the screws and discard the
bumpers.
6-4. For each blade, insert one blade mounting screw through the
blade iron, and attach lightly to the fan. Insert the second blade
mounting screw, then securely tighten both mounting screws.
Step 6-1 (Detail)
Grommet
Blade Assembly
Screws
Use with grommet
Use without grommet
Blade
Mounting
Screw
Steps 6-1 – 6-2
Step 6-4
42743-01 • 04/15/07 Hunter Fan Company

10
7 • Completing Your Installation
7-1. To attach the upper switch housing, partially install two housing
assembly screws into the switch housing mounting plate.
7-2. Feed the upper plug connector through the center opening of the
housing.
7-3. Align the keyhole slots in the housing with the housing assembly
screws.
7-4. Turn the housing counterclockwise until the housing assembly
screws are firmly situated in the narrow end of the keyhole slots.
Install the remaining screw into the housing. Tighten all three
screws firmly.
CAUTION: Make sure the upper switch housing is securely
attached to the switch housing mounting plate. Failure to properly
attach and tighten all three assembly screws could result in the
switch housing falling.
7-5. To attach the lower switch housing, connect the upper plug
connector from the motor to the lower plug connector in the
lower switch housing assembly.
Note: Both plug connectors are polarized and will only fit together
one way. Make sure the connectors are properly aligned before
connecting them. Incorrect connection could cause improper
operation and damage to the product.
7-6. Place the lower switch housing assembly over the upper switch
housing. Align the side screw holes in the upper and lower switch
housings. Attach the lower switch housing to the upper switch
housing with three #6-32 x 3/8” housing assembly screws.
Steps 7-1 – 7-3
Housing
Assembly
Screw
Upper
Switch
Housing
Lower Switch
Housing
Plug
Connector
Housing
Assembly Screw
Plug
Connector
Detail
Steps 7-5 – 7-6
Hunter Fan Company 42743-01 • 04/15/07

11
Hunter fans have the power to cut your cooling costs up to 40%.
Beat the High Cost of Cooling
e air movement created by a Hunter ceiling fan lets you set your
thermostat higher and still stay comfortable. Every degree you
raise the thermostat saves up to 7% on energy costs. So, you can
cut back on expensive air conditioning...and save up to 40%* on
cooling. In winter, your Hunter fan recirculates warm air and saves
up to 10%* on heating bills.
* On average at low speed settings. Your savings may vary based
on climate, building type and thermostat setting.
Save Energy and Money While Protecting the Environment
Congratulations! You’re saving energy and money while protecting
the environment by purchasing this ENERGY STAR qualified
Hunter ceiling fan! With this purchase, you are doing your part to
protect the environment. In 2010, ENERGY STAR qualified ceiling
fans are projected to cut air pollution by more than 500 million
pounds!
Your new ceiling fan has earned the ENERGY STAR label
because it meets high energy efficiency specifications set by
the Environmental Protection Agency (EPA). ENERGY STAR
labeled ceiling fans save energy because they have more efficient
fan motors and air delivery due to more aerodynamic blade
configurations. Ceiling fan models bearing the ENERGY STAR label
move air 14 - 20% more efficiently than typical ceiling fan models.
For more information on ENERGY STAR visit www.energystar.gov.
42743-01 • 04/15/07 Hunter Fan Company
8 • Operating and Cleaning Your Ceiling Fan

12
8-1. Turn on electrical power to the fan.
8-2. e fan pull chain controls power to the fan. e pull chain has
four settings in sequence: High, Medium, Low and Off.
• Pull the chain slowly to change settings.
• Release slowly to prevent the chain from recoiling into the
blades.
• e chain uses a breakaway connector that separates if the
chain is jerked. If this happens, simply reinsert the chain into
the connector.
8-3. e light pull chain controls power to the light. e pull chain has
two settings: On and Off.
8-4. Ceiling fans work best by blowing air downward (counterclockwise
blade rotation) in warm weather to cool the room with a direct
breeze. In cold weather, having the fan draw air upward (clockwise
blade rotation) will distribute the warmer air trapped at the
ceiling around the room without causing a draft.
8-5. For cleaning finishes, use a soft brush or lint-free cloth to prevent
scratching. A vacuum cleaner brush nozzle can remove heavier
dust. Remove surface smudges or accumulated dirt and dust using
a mild detergent and a slightly dampened cloth. You may use
an artistic agent, but never abrasive cleaning agents as they will
damage the finish.
8-6. Clean wood finish blades with a furniture polishing cloth.
Occasionally, apply a light coat of furniture polish for added
protection and beauty. Clean painted and high-gloss blades in the
same manner as the fan finish.
To Change Airflow Direction
Turn the fan off and let it come to a complete
stop. Slide the reversing switch on the fan to the
opposite position. Restart fan.
In warm weather, use
downward air flow pattern
In cold weather, use upward
air flow pattern
8 • Operating and Cleaning Your Ceiling Fan
Reversing
Switch
Hunter Fan Company 42743-01 • 04/15/07

13
Problem: Nothing happens; fan does not move.
1. Turn power on, replace fuse, or reset breaker.
2. Loosen canopy, check all connections according to the wiring the
fan section.
3. Check the plug connection in the switch housing.
4. Push motor reversing switch firmly left or right to ensure that the
switch is engaged.
5. Pull the pull chain to ensure it is on.
6. Remove the shipping bumpers.
Problem: Noisy operation.
1. Tighten the blade bracket screws until snug.
2. Tighten the blade screws until snug.
3. Check to see if the blade is cracked. If so, replace all the blades.
4. Change to an approved speed control.
5. Be sure that the glass is secure.
6. Check and tighten the screws in the switch housing mounting
plate and in the upper and lower switch housing.
Problem: Excessive wobbling.
1. If your fan wobbles when operating, use the enclosed balancing kit
and instructions to balance the fan.
2. Tighten all blade and/or blade iron screws.
3. Turn power off, support fan very carefully, and check that the
hanger ball is properly seated.
If you need parts or service assistance, please call
888-830-1326 or visit us at our Web site at
http://www.hunterfan.com.
Hunter Fan Company
2500 Frisco Avenue
Memphis, Tennessee 38114
9• Troubleshooting
42743-01 • 04/15/07 Hunter Fan Company
