Owner’s Guide and Installation Manual

2
42882-01 • 11/20/09 • Hunter Fan Company
Table Of Contents
Preparing the Fan Site .................3
1 • Getting Ready......................6
2 • Installing the Hanger Bracket .......7
3 • Assembling and Hanging the Fan . . . 8
4 •Wiring the Fan......................9
5 • Installing the Motor Housing .......10
6 • Assembling the Blades..............11
7 • Completing Your Installation With a
Multi Staked Light Fixture .........12
8 • Operating and Cleaning Your Ceiling
Fan ...............................14
9 • Troubleshooting....................15
© 2009 Hunter Fan Company
Your new Hunter® ceiling fan is an addition to your home or oce that
will provide comfort and performance for many years. is installation
and operation manual gives you complete instructions for installing
and operating your fan.
We are proud of our work. We appreciate the opportunity to supply
you with the best ceiling fan available anywhere in the world.
Before installing your fan, for your records and warranty assistance,
record information from the carton and Hunter nameplate label
(located on the top of the fan motor housing).
Cautions and Warnings
•READ THIS ENTIRE MANUAL CAREFULLY BEFORE BEGINNING
INSTALLATION. SAVE THESE INSTRUCTIONS.
• Use only Hunter replacement parts.
• To reduce the risk of personal injury, attach the fan directly to the
support structure of the building according to these instructions,
and use only the hardware supplied.
• To avoid possible electrical shock, before installing your fan,
disconnect the power by turning o the circuit breakers to the
outlet box and associated wall switch location. If you cannot lock
the circuit breakers in the o position, securely fasten a prominent
warning device, such as a tag, to the service panel.
• All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualied electrician.
• To reduce the risk of personal injury, do not bend the blade
attachment system when installing, balancing, or cleaning the fan.
Never insert foreign objects between rotating fan blades.
• To reduce the risk of re, electrical shock, or motor damage, do not
use a solid-state speed control with this fan. Use only Hunter speed
controls.
Welcome

3
42882-01 • 11/20/09 • Hunter Fan Company
7’ Minimum
Blades to
Floor
8’ Minimum
Ceiling
Height
30” From
Wall or
Nearest
Obstruction
Step 1 - Choose the Fan Site
Proper ceiling fan location and attachment to the building
structure are essential for safety, reliable operation, maximum
eciency, and energy savings.
Choose a fan site where:
• No object can come in contact with the rotating fan blades during
normal operation.
• e fan blades are at least 7 feet above the oor and the ceiling is
at least 8 feet high.
• e fan blades have no obstructions to airow, such as walls or
posts, within 30 inches of the fan blade tips.
• e fan is directly below a joist or support brace that will hold the
outlet box and the full weight of the fan.
Checklist for Existing Fan Site
If you want to use an existing fan site, complete the following checklist to
determine if the site is acceptable and safe for your new Hunter fan. If you
cannot check o every item, prepare a new fan site as described on this
page.
Fan Support System
• Fan attaches directly to building structure.
• Fan support system will hold full weight of the fan and light kit.
Ceiling Hole
• e outlet box clearance hole is directly below the joist or support brace.
Outlet Box
• e outlet box is an UL-approved octagonal 4” x 1-1/2” outlet box (or as
specied by the support brace manufacturer).
• e outlet box is secured to the joist or support brace by wood screws
and washers through the inner holes of outlet box.
• e outer holes of the outlet box are aligned with joist or support brace.
• e bottom of the outlet box is recessed a minimum of 1/16” into
ceiling.
Wiring
• e electrical cable is secured to outlet box by an approved connector.
• Six inches of lead wires extend from outlet box.
If your existing fan site is suitable, skip ahead to Section 2 • Installing the
Hanger Bracket.
Suitable Existing Fan Site
Fan Support
System
Fan Support
System Wiring
Outlet Box
Preparing the Fan Site

4
42882-01 • 11/20/09 • Hunter Fan Company
Preparing the Fan Site (continued)
CAUTION: All wiring must be in
accordance with national and local
electrical codes and ANSI/NFPA 70. If
you are unfamiliar with wiring, use a
qualied electrician.
Steps 2 – 3
Step 4
Step 5

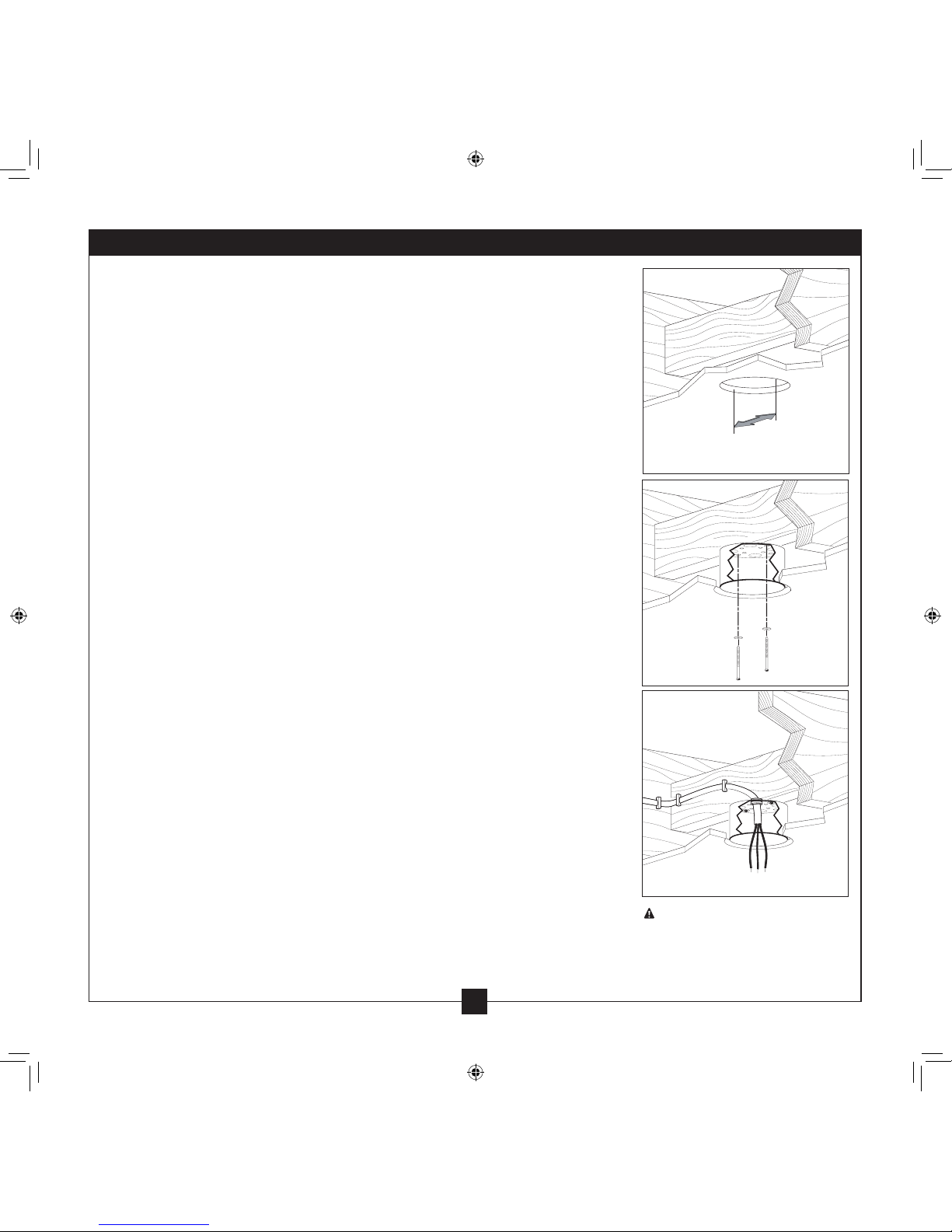

Step 2 - Cut the Ceiling Hole
2-1. Locate the site for the ceiling hole directly below the joist or support brace that
will hold the outlet box and fan.
2-2. Cut a 4” diameter hole through the drywall or plaster of the ceiling. You will use
the hole to install the support brace and outlet box.
Step 3 - Install a Support Brace, If Necessary
Determine if there is a ceiling joist directly above the ceiling hole. If the joist is there,
determine if it is positioned to allow you to recess the outlet box a minimum of
1/16” into the ceiling. If NOT, install a support brace as follows:
3-1. Attach a 2” x 4” support brace between two joists. Position it to allow you to
recess the bottom of the outlet box a minimum of 1/16” into the ceiling.
3-2. Check the support brace to ensure it will support the full weight of the fan and
light kit.
Step 4 - Install the Outlet Box
4-1. Obtain a UL-approved octagonal 4” x 1-1/2” outlet box, plus two #8 x 1-1/2”
wood screws and washers, available from any hardware store or electrical supply
house.
4-2. Orient the outlet box so that both the inner and outer holes in the box align
with the joist or support brace.
4-3. Drill pilot holes no larger than the minor diameter of the wood screws (5/64”)
through the inner holes of the outlet box.
4-4. Attach the outlet box directly to the support brace or joist with two #8 x 1-1/2”
wood screws and washers.  e bottom of the outlet box must be recessed a
minimum of 1/16” into the ceiling.
Step 5 - Prepare the Wiring
5-1. Make sure the circuit breakers to the fan supply line leads and associated wall
switch location are turned o . If you cannot lock the circuit breakers in the
o position, securely fasten a prominent warning device, such as a tag, to the
service panel.
5-2. read the fan supply line through the outlet box so that the fan supply line
extends at least 6” beyond the box.
5-3. Attach the fan supply line to the outlet box with an approved connector,
available at any hardware store or electrical supply house.
5-4. Make certain the wiring meets all national and local standards and ANSI/NFPA
70.
You have now successfully prepared your ceiling fan site. For instructions to install
your ceiling fan, go to your fan manual and continue with Section 2 • Installing the
Hanger Bracket.

5
42882-01 • 11/20/09 • Hunter Fan Company
Mounting and Optional Accessories
Understanding Mounting
Hunter’s patented mounting system provides you maximum ease in
installing your fan. is fan was designed to be mounted only on at
ceilings and can be used on ceilings less than 8 feet high.
Considering Optional Accessories
Consider using Hunter’s optional accessories, including a wall-mounted
or remote speed control. To install and use the accessories, follow
the instructions included with each product. For quiet and optimum
performance of your Hunter fan, use only Hunter speed controls.
Low Profile Mounting ts close to the
ceiling, recommended for ceilings less
than 8 feet high
Support Brace
Low Prole
Mounting
Style
Ceiling
Outlet Box
CAUTION: To reduce the risk of
personal injury, attach the fan directly
to the support structure of the building
according to these instructions, and use
only the hardware supplied.

6
42882-01 • 11/20/09 • Hunter Fan Company
To install a ceiling fan, be sure you can do the following:
• Locate the ceiling joist or other suitable support in ceiling.
• Drill holes for and install wood screws.
• Identify and connect electrical wires.
• Lift 40 pounds.
If you need help installing the fan, your Hunter fan dealer can direct
you to a licensed installer or electrician.
Gathering the Tools
You will need the following tools for installing the fan:
• Electric drill with 9/64” bit
• Standard screwdriver (magnetic tip recommended)
• Phillips-head screwdriver (magnetic tip recommended)
• Wrench or pliers
• Ladder (height dependent upon installation site)
Checking Your Fan Parts
Carefully unpack your fan to avoid damage to the fan parts. Refer to
the included Parts Guide. Check for any shipping damage to the motor
or fan blades. If any parts are missing or damaged, contact your Hunter
dealer or call Hunter Technical Support Department at 888-830-1326
(In Canada, call 1-866-268-1936).
Preparing the Fan Site
Before you begin installing the fan, follow all the instructions in
“Preparing the Fan Site.” Proper ceiling fan location and attachment
to the building structure are essential for safety, reliable operation,
maximum eciency, and energy savings.
Installing Multiple Fans?
If you are installing more than
one fan, keep the fan blades and
blade irons (if applicable) in sets,
as they were shipped.
1 • Getting Ready

7
42882-01 • 11/20/09 • Hunter Fan Company
CAUTION: To avoid possible electrical shock, before installing your fan,
disconnect the power by turning o the circuit breakers to the outlet box
and associated wall switch location. If you cannot lock the circuit breakers
in the o position, securely fasten a prominent warning device, such as a
tag, to the service panel.

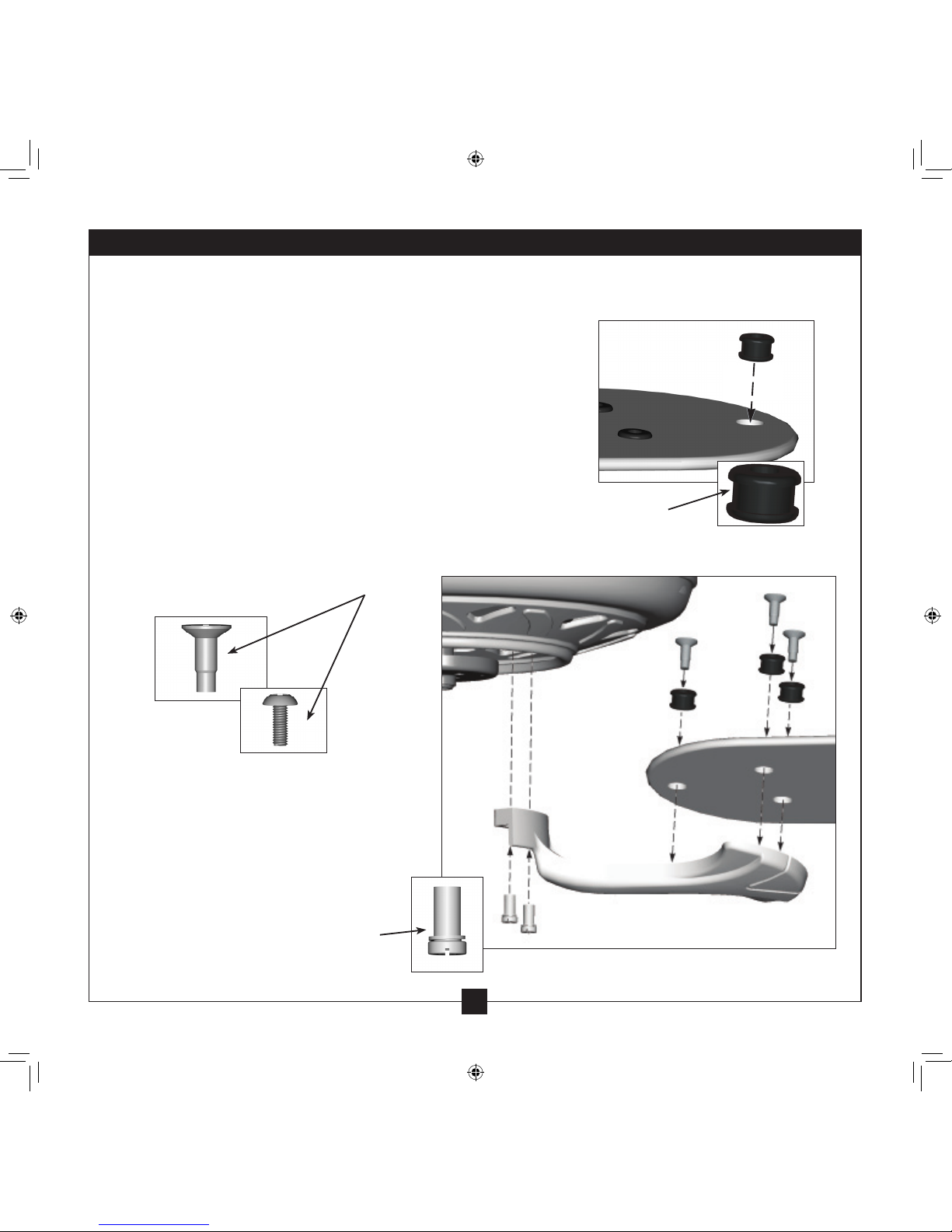

2-1. Drill two pilot holes into the wood support structure through the
outermost holes in the outlet box. e pilot holes should be 9/64”
in diameter.
2-2. Partially install two canopy screws in the holes on each end of the
hanger bracket, as shown in the gure to the right.
2-3. Your fan comes with four mounting isolators. Position the
isolators between the hanger bracket and ceiling by inserting the
raised areas on each isolator into the holes in the hanger bracket.
2-4. read the lead wires from the outlet box down through the hole
in the middle of the hanger bracket.
2-5. Align the slotted holes in the hanger bracket with the pilot holes
you drilled in the wood support structure.
Note: e isolators should be ush against the ceiling.
2-6. Place a at washer on each of the two 3” wood screws and pass
the screws through the slotted holes in the hanger bracket into
the pilot holes you drilled.
Tighten the screws into the 9/64” pilot holes; do not use lubricants
on the screws. Do not over tighten.
Step 2-2
Flat Washer
3” Wood Screw
Steps 2-4 – 2-6
Hanger
Bracket
Step 2-3
Canopy Screw
Canopy
Screw
Isolator
2 • Installing the Hanger Bracket

8
42882-01 • 11/20/09 • Hunter Fan Company
Step 3-2
#8-32 x 1” Screw
Green
Ground Wire
3-1. Position the square hanger so that the green ground wire attached

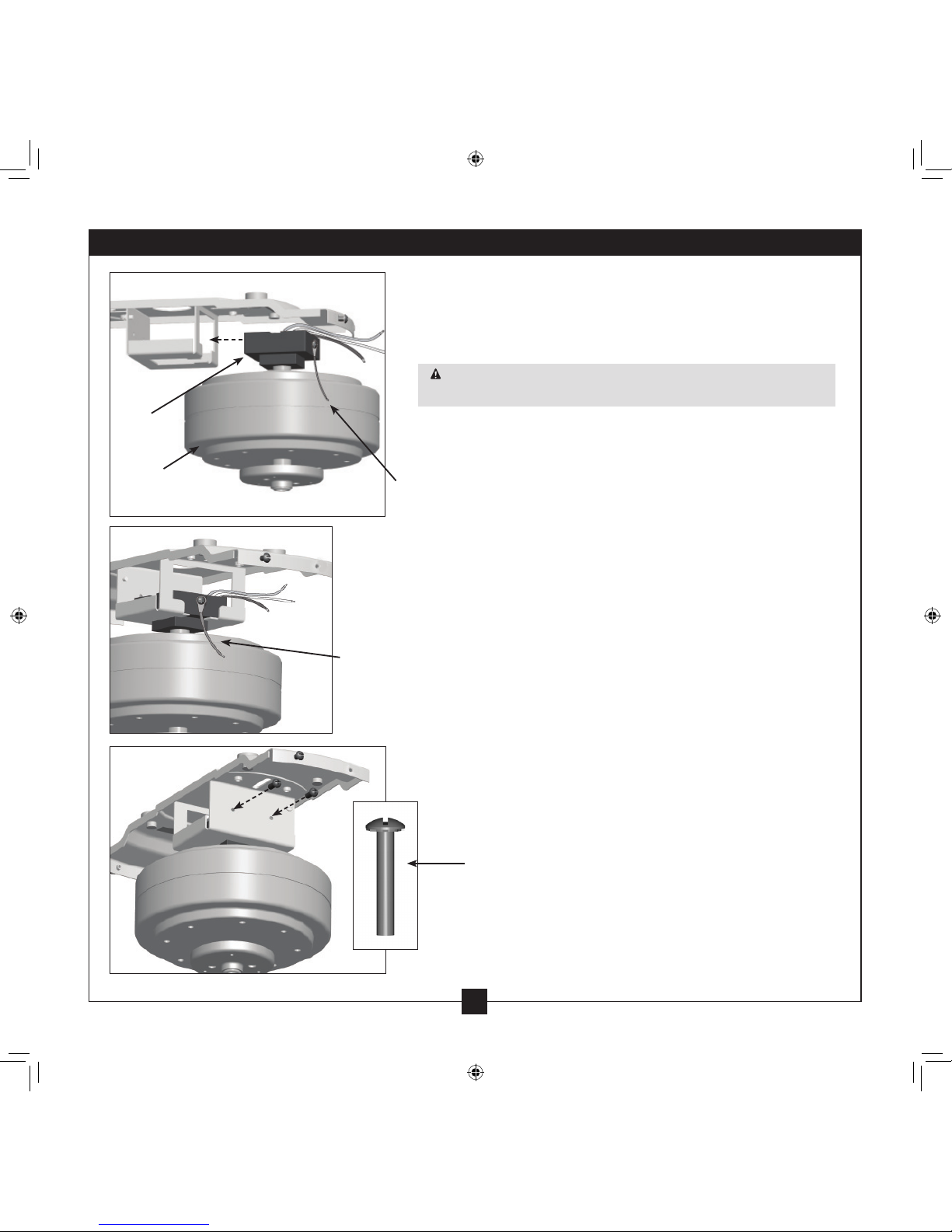

to the square faces out of the large opening in the metal bracket.
3-2. Holding the wires out of the way, lift the motor assembly and
place the square hanger into the opening in the ceiling plate.
WARNING: Make sure the square hanger can not rotate in the
metal bracket. Failure to do so could result in the fan falling.
3-3. Install two locking screws through the holes in the side of the
metal bracket to secure the square hanger.
Step 3-1
Motor
Assembly
Square
Hanger
Step 3-3
Locking Screw
Green
Ground Wire
3 • Assembling and Hanging the Fan

9
42882-01 • 11/20/09 • Hunter Fan Company
All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualified electrician.
Wall switches are not included. Select an acceptable general-use switch
in accordance with national and local electrical codes.
4-1. Before attempting installation, make sure the power is still o.
4-2. To connect the wires, hold the bare metal leads together and place
a wire connector over them, then twist clockwise until tight. For
all these connections use the wire connectors provided.
4-3. Connect the bare or green ground wire (grounding) from the
ceiling to the green ground wire (grounding) from the ceiling plate
and the green ground wire (grounding) from the fan.
4-4. Connect the white wire (grounded) from the ceiling to the white
wire (grounded) from the fan.
4-5. Connect the remaining wires as follows:

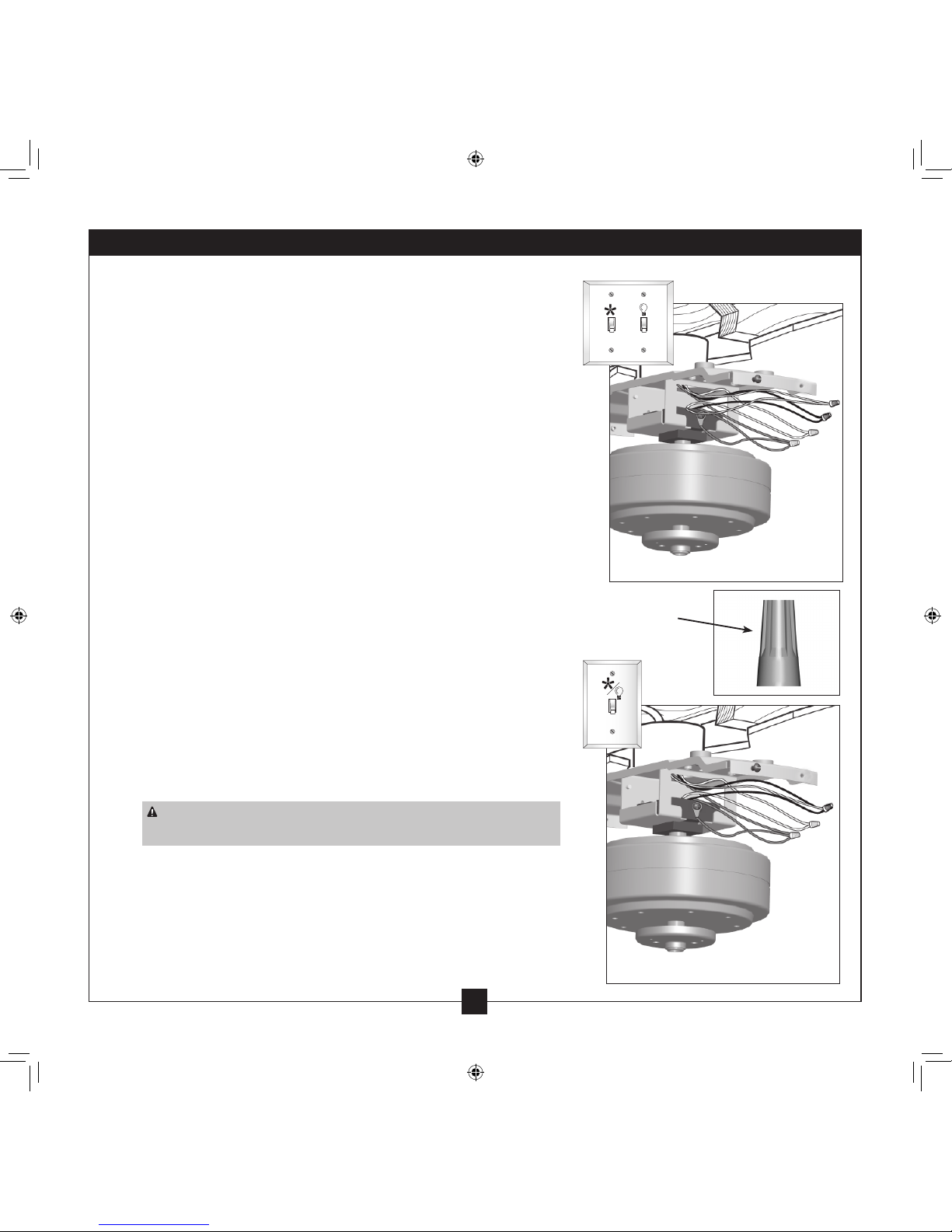

Dual Switch Wiring:
• e black wire (ungrounded) from the ceiling to the black wire
(ungrounded) from the fan
• e black/white wire (ungrounded) from the fan to the wire
(ungrounded) for the wall switch
Single Switch Wiring:
• e black wire (ungrounded) from the ceiling to the black
(ungrounded) and the black/white wire (ungrounded) from
the fan
CAUTION: Be sure no bare wire or wire strands are visible after
making connections.
4-6. Turn the splices upward and push them carefully back through the
ceiling plate into the outlet box.
4-7. Spread the wires apart, with the grounded wires on one side of
the outlet box and the ungrounded wires on the other side of the
outlet box.
Wire
Connector
4 •Wiring the Fan

10
42882-01 • 11/20/09 • Hunter Fan Company
5-1. Place the fan housing over the motor.
5-2. Align the keyholes in the fan housing with the two partially
installed canopy screws in the hanger bracket. Rotate the fan
housing to situate the screws in the narrow ends of the keyholes.
5-3. Install the two remaining canopy screws into the holes in the fan
housing and into the hanger bracket. Securely tighten all screws.
Canopy
Screw
Step 5-1
Motor
Keyhole
Step 5-3
Fan Housing
5 • Installing the Motor Housing

11
42882-01 • 11/20/09 • Hunter Fan Company
Hunter fans use several styles of fan blade irons (brackets that hold the
blade to the fan).
6-1. Your fan may include blade grommets. If your fan has grommets,
insert them by hand into the holes on the blades.
6-2. Attach each blade to a blade iron using three blade assembly
screws. If you used grommets, the blades may appear slightly loose
after screws are tightened. is is normal.
6-3. Remove the blade mounting screws and rubber shipping bumpers
from the motor. Note: Some blade mounting screws are installed
in the motor to secure shipping blocks.
6-4. For each blade, insert one blade mounting screw through the
blade iron, and attach lightly to the fan. Insert the second blade
mounting screw, then securely tighten both mounting screws.
Step 6-1 (Detail)
Blade Assembly
Screws
Use with grommet
Use without grommet
Grommet
Blade
Mounting
Screw
Steps 6-1 – 6-2
Step 6-4
6 • Assembling the Blades

12
42882-01 • 11/20/09 • Hunter Fan Company
Steps 7-1 – 7-3
Housing
Assembly
Screw
Upper
Switch
Housing
Step 7-4
Lower
Switch
Housing Plug
Connector
WARNING: Use only the light xture supplied with this fan model.
7-1. To attach the upper switch housing, partially install two #6-32 x
3/8” housing assembly screws into the switch housing mounting
plate.
7-2. Align the keyhole slots in the housing with the housing assembly
screws.
7-3. Turn the housing counterclockwise until the housing assembly
screws are rmly situated in the narrow end of the keyhole slots.
Install the remaining #6-32 x 3/8” screw into the housing. Tighten
all three screws rmly.
CAUTION: Make sure the upper switch housing is securely attached
to the switch housing mounting plate. Failure to properly attach and
tighten all three assembly screws could result in the switch housing
xture falling.
7-4. To attach the lower switch housing, connect the upper plug
connector from the motor to the lower plug connector in the
lower switch housing assembly.
Note: Both plug connectors are polarized and will only t together
one way. Make sure the connectors are properly aligned before
connecting them. Incorrect connection could cause improper
operation and damage to the product.
7-5. Place the lower switch housing assembly over the upper switch
housing. Align the side screw holes in the upper and lower switch
housings. Attach the lower switch housing to the upper switch
housing with three #6-32 x 3/8” housing assembly screws.
7 • Completing Your Installation With a Multi Staked Light Fixture
Housing
Assembly Screw
Plug
Connector
Detail

13
42882-01 • 11/20/09 • Hunter Fan Company
Installing the Glass Shades
7-6. Place globe over threaded lampholder in cup.
7-7. Install and hand tighten threaded lock washer on lampholder.
7-8. Install 60 Watt max (Type B10) candelabra base bulbs into the sockets.
7 • Completing Your Installation With a Multi Staked Light Fixture (Continued)
Steps 7-6 – 7-8
Lampholder
Globe
readed lock
Washer
Bulb
Note:is product may not be compatible
with certain remote/wall controls or
compact fluorescent bulbs.
Note: In compliance with U.S. Federal energy regulations, this ceiling fan contains a wattage saver that
restricts the light kit to a maximum of 190 Watts. Exceeding that limit or the specications on the
light sockets may result in re hazard or improper operation. If lights do not appear to be operating
properly, see the troubleshooting section

14
42882-01 • 11/20/09 • Hunter Fan Company

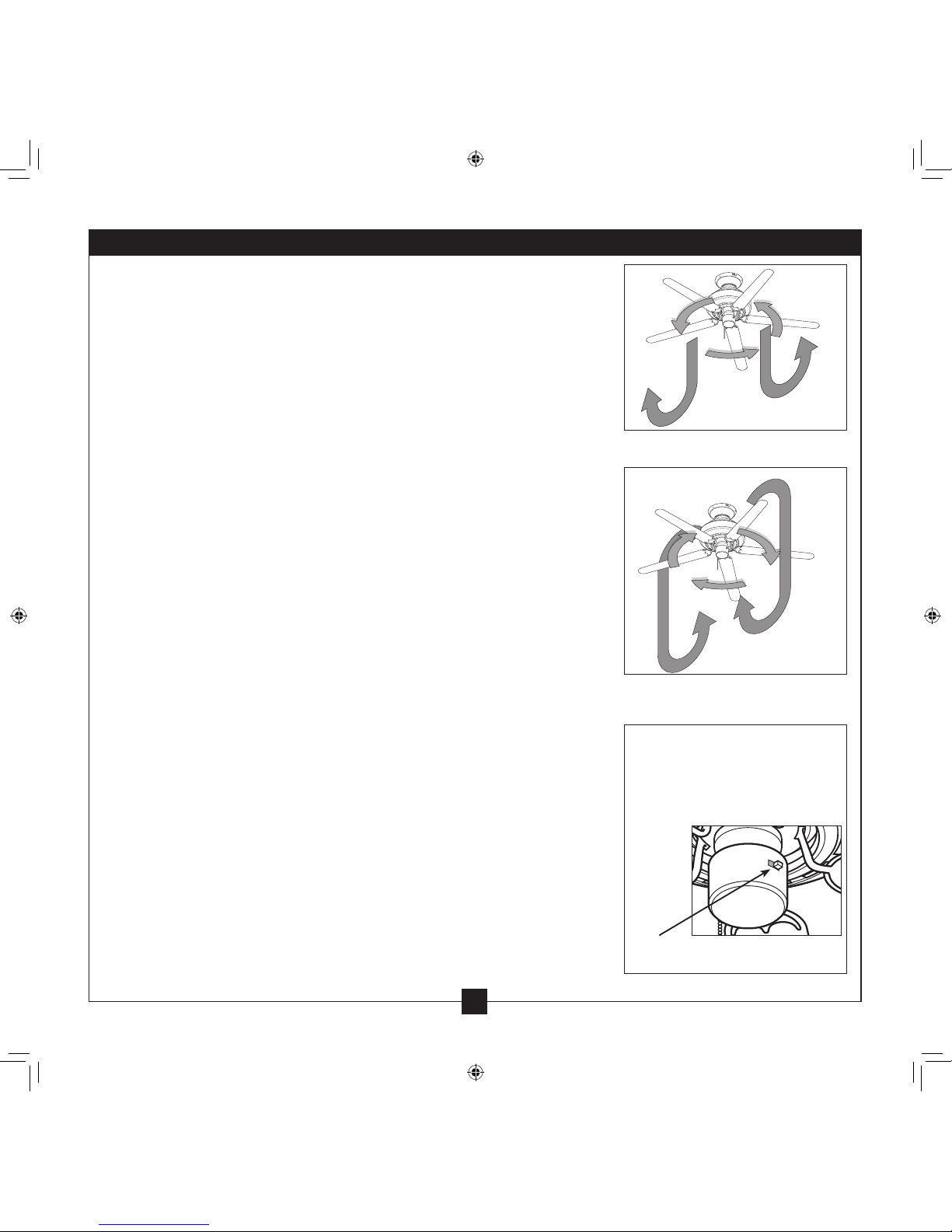

In warm weather, use downward air
ow pattern
In cold weather, use upward
air ow pattern
8-1. Turn on electrical power to the fan.
8-2. e fan pull chain controls power to the fan. e pull chain has four
settings in sequence: High, Medium, Low, and O.
• Pull the chain slowly to change settings.
• Release slowly to prevent the chain from recoiling into the blades.
• e chain uses a breakaway connector that separates if the chain is
jerked. If this happens, simply reinsert the chain into the connector.
8-3. e light pull chain is used to turn on, dim, and turn o the light.
• Pull the chain once to turn the light on to full brightness.
• Pull the chain again to turn the light o.
• Pull the chain for at least 6 seconds and the dimming sequence
begins. e light varies from ‘bright’ to ‘dim’ over approximately 12
seconds. Release the chain when the desired level is reached.
• With the Autoresume feature, the on/o operation (pulling the
chain for less than 6 seconds) maintains the desired brightness level
previously set.
• When the power to the wallswitch is turned o the light will return
to maximum brightness when the power resumes.
8-4. Ceiling fans work best by blowing air downward (counterclockwise
blade rotation) in warm weather to cool the room with a direct breeze.
In winter, having the fan draw air upward (clockwise blade rotation) will
distribute the warmer air trapped at the ceiling around the room without
causing a draft.
8-5. For cleaning nishes, use a soft brush or lint-free cloth to prevent
scratching. A vacuum cleaner brush nozzle can remove heavier dust.
Remove surface smudges or accumulated dirt and dust using a mild
detergent and a slightly dampened cloth. You may use an artistic agent,
but never abrasive cleaning agents as they will damage the nish.
8-6. Clean wood nish blades with a furniture polishing cloth. Occasionally,
apply a light coat of furniture polish for added protection and beauty.
Clean painted and high-gloss blades in the same manner as the fan nish.
To Change Airflow Direction
Turn the fan o and let it come to
a complete stop. Slide the reversing
switch on the fan to the opposite
position. Restart fan.
Reversing
Switch
8 • Operating and Cleaning Your Ceiling Fan

15
42882-01 • 11/20/09 • Hunter Fan Company
Problem: Nothing happens; fan does not move.
1. Turn power on, replace fuse, or reset breaker.
2. Loosen canopy, check all connections according to the wiring the fan section.
3. Check the plug connection in the switch housing.
4. Push motor reversing switch rmly left or right to ensure that the switch is engaged.
5. Pull the pull chain to ensure it is on.
6. Remove the shipping bumpers.
Problem: Noisy operation.
1. Tighten the blade bracket screws until snug.
2. Tighten the blade screws until snug.
3. Check to see if the blade is cracked. If so, replace all the blades.
4. Change to an approved speed control.
5. Be sure that the glass is secure.
6. Check and tighten the screws in the switch housing mounting plate and in the upper and lower switch housing.
Problem: Excessive wobbling.
1. If your fan wobbles when operating, use the enclosed balancing kit and instructions to balance the fan.
2. Tighten all blade and/or blade iron screws.
In compliance with U.S. Federal regulations, this ceiling fan contains a wattage saver that limits the light output
to 190 Watts. e following issues may arise if total wattage exceeds 190 Watts:
Issue: Lights dim when turned on.
1. It is normal for the lights to dim a couple of seconds after they are turned
on. To prevent the lights from dimming, make sure the wattage of light bulbs installed match the specications
on the light sockets.
2. Do not use CFL (Compact Fluorescent Light) bulbs.
Issue: Light shuts off suddenly.
1. Turn the power to the fan o at the wall switch. Wait 30
seconds, then resume power to the fan.
2. If lights shut o suddenly again, check to make sure total
wattage of bulbs does not exceed 190 Watts.
3. Do not use CFL (Compact Fluorescent Light) bulbs.
If you need parts or service assistance, please call
888-830-1326 (In Canada, call 1-866-268-1936) or
visit us at our Web site at
http://www.hunterfan.com.
Hunter Fan Company
7130 Goodlett Farms Pkwy. #400
Memphis, Tennessee 38016
9 • Troubleshooting
