Hunter Bath Ventilator Fan User manual

2500 Frisco Avenue, Memphis, Tennessee 38114
Printed in China
41788-01 6/1/2005

Installation Guide
82500 Infiniti™ Bath Ventilator Fan
41788-01 6/1/2005

2
DISCONNECT
ELECTRIC
POWER SUPPLY
AND LOCK OUT
SERVICE PANEL
BEFORE
SERVICING UNIT
WARNING
TO REDUCE THE RISK OF ELECTRIC SHOCK OR INJURY, OBSERVE THE FOLLOWING:
1. For general ventilating use only. Do not use for ventilat-
ing hazardous or explosive materials.
2. To avoid motor bearing damage and noisy/unbalanced
impellers, keep drywall spray, construction dust, etc.
off power unit.
3. DO NOT install this product in a wall. This product is
designed for installation in ceilings up to a 12/12 pitch
(45 degrees). Ductwork must point upward.
4. Please read specification label on product for further
information and requirements.
PREVENTATIVE MAINTENANCE
A clean fan provides better service. Disconnect the power supply and clean the fan as listed below.
TO CLEAN GRILLE: Use a mild detergent, such as dishwashing liquid, and a soft cloth. DO NOT use abrasive cloths, steel
wool pads or scouring powders.
TO CLEAN FAN ASSEMBLY: Unplug motor cord from receptacle. To remove motor plate, find the single tab on the motor
plate (located next to the receptacle). Push up rear motor plate tab while pushing out on the side of the housing or insert a
screwdriver into the slot in the housing (next to tab) and twist screwdriver. Gently vacuum fan, motor and interior of housing.
METAL AND ELECTRICAL PARTS SHOULD NEVER BE IMMERSED IN WATER.
MAINTENANCE
The motor is permanently lubricated and never needs oiling. If the motor bearings are making excessive or unusual
noises, replace the motor with the exact service motor. You should replace the impeller at the same time.
CAUTION WARNING
1. Use this unit only in a manner intended by the manufacturer.
If you have questions, contact the manufacturer at the phone
number or address listed in the warranty.
2. Before installing, servicing, or cleaning the unit,
disconnect the power by turning off the circuit breakers to
the outlet box and associated wall switch location. If you
cannot lock the circuit breakers in the off position, securely
attach a prominent warning device, such as a tag, to the
service panel.
3. Installation work and electrical wiring must be done by
qualified person(s) in accordance with all applicable codes
and standards, including fire-rated construction codes and
standards.
4. Sufficient air is needed for proper combustion and exhaust-
ing of gasses through the flue (chimney) of fuel burning
equipment to prevent backdrafting. Follow the heating
equipment manufacturer’s guideline and safety standards,
such as those published by the National Fire Prevention
Association (NFPA), and the American Society for Heating,
Refrigeration and Air-Conditioning Engineers (ASHRAE), and
the local code authorities.
5. When cutting or drilling into wall(s) or ceiling, do not
damage electrical wiring or other hidden utilities.
6. Ducted fans must always be vented to the outdoors. Keep
ducting as short and as straight as possible.
7. Acceptable for use over a bathtub or shower when
connected to a GFCI protected branch circuit.
8. Install fan at least 5 feet (1.52 m) above the floor.
9. Never place a switch where it can be reached from a tub
or shower.
10. This unit must be grounded.
41788-01 6/1/2005

3
x4
3/8" Cable Connector
*
*
*
NOTE: Strain relief cable connector
must be installed. Not Included.
A
B
C
Extra Screws
x2
H
E
D
L
77864-02
F
G
H
I
J
K
03242-07-133
96261-01-000
95047-02-000
74508-03-133
95776-01-000
75184-01-133
96258-01/02/03-008
75171-01/02/03-000
x2
Included.
Turn off the power source.
Before Installation
Check all the parts.
If damaged, call
1-888-830-1326
for replacements.
New construction installation
Go to Step A1, page 4
Existing construction
Go to Existing Construction Installation,
page 8
41788-01 6/1/2005
NOTE: Remove all packing materials before installation
x4
3/8" Cable Connector
*
*
*
NOTE: Strain relief cable connector
must be installed. Not Included.
A
B
C
Extra Screws
x2
H
E
D
L
77864-02
F
G
H
I
J
K
03242-07-133
96261-01-000
95047-02-000
74508-03-133
95776.01.000
75184-01-133
96258-01/02/03-008
75171-01/02/03-000
x2
Tools Needed.
Estimated assembly time: 30 to 60 minutes

A1
D
Back out the pre-loaded screw tips until flush with the
side of the housing.
Remove the motor/blower from the housing.
Remove the wiring cover screw.
4
Remove packing material.
A2
A3
A6
F
Loosen screw securing motor.
A4
A5
Remove the pre-loaded screw tip covers.
New Construction Installation
41788-01 6/1/2005

A7
E
A8
D
A9
B
C
A10
D
5/8
1/2
5/8
1/2
A11
OPTION
Remove the wiring cover. Pop out the first wiring access slug. Use second if needed.
Insert the strain relief into the housing and secure
with the washer.
Position the correct depth mark at the bottom edge
of the joist–based on the thickness of your sheet rock.
Screw pre-loaded screws into joist or framing. Nail the tabs on both sides to joist or framing so that the
housing will be flush with the finished ceiling.
(Nails are not provided.)
5
41788-01 6/1/2005

0
A16
D
A12
A13
A
3 Pin
2 Pin
Fan Motor
Light Light
Green
Black
Black
White
Black
Black
White
White Bare Copper
Ground
A14
Main Switch 1 (AC In)
Switch 2 (AC In)
*Option Fan & Main Light Together
*Option
D
E
A15
F

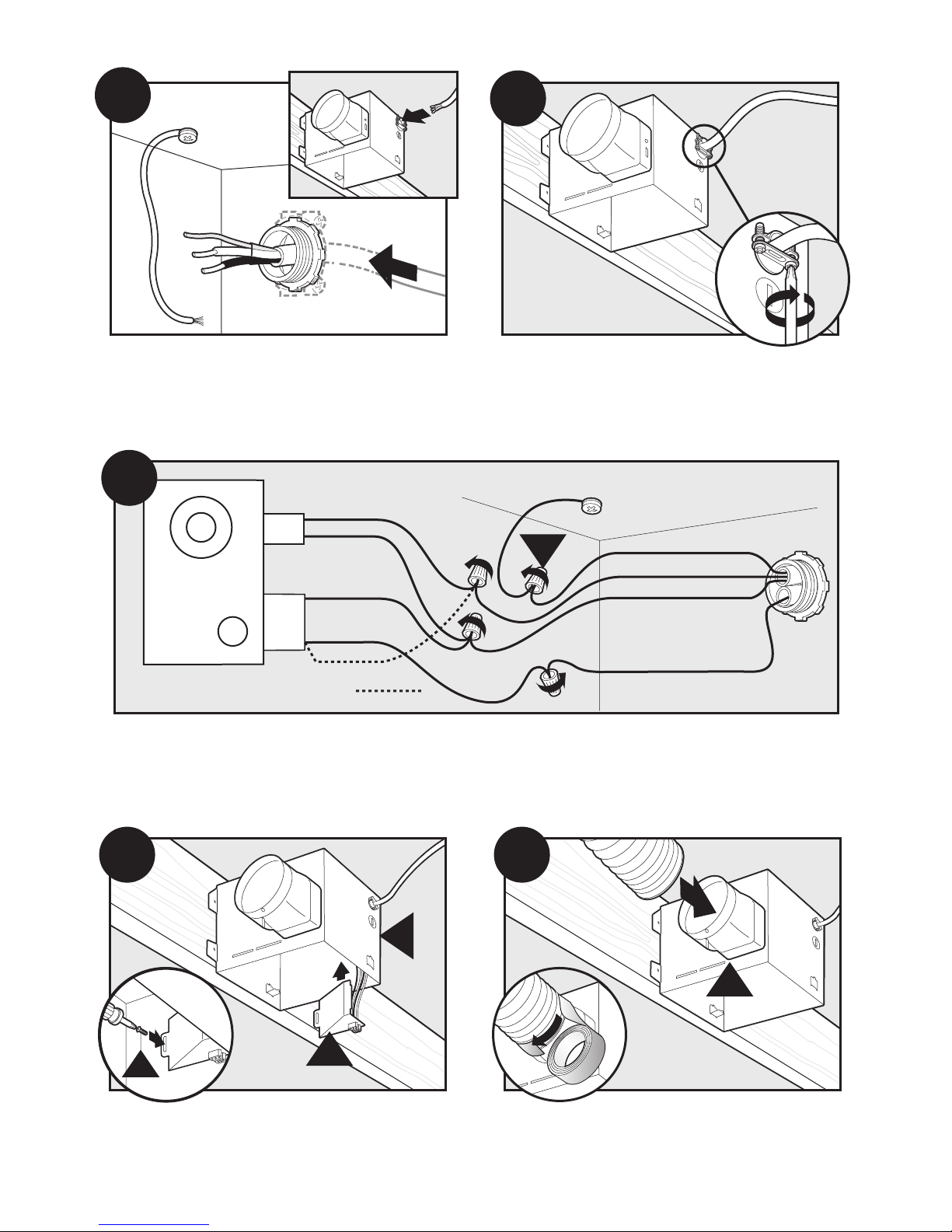

Pull the wires through the strain relief.
Tighten the strain relief screws.
Connect wires as shown.
Connect a 4” duct and vent to the outside. Tape joints.
If ducting does not fit securely, an adapter may need
to be purchased.
Install the wiring cover plate. Make sure all wiring
connections are inside the box or under the wiring cover plate.
6 41788-01 6/1/2005

A22
C1
Go to step
on page 12
to attach grille.
0000
D
A17
G
0000
G
D
A18
A20
ON
OFF
A21
Connect wiring from the motor to the wiring cover plate. Reinstall the motor by inserting the tabs and pushing up
into position. Make sure the wires are not pinched between
the motor and the housing.
Secure the motor by tightening the 2 screws. Turn on the power source.
Test the motor. If the motor does not run,
check the plug connection.
7
A19
H
41788-01 6/1/2005

B3
7.25”
7.75”
B1
D
B2
Loosen screw securing motor.

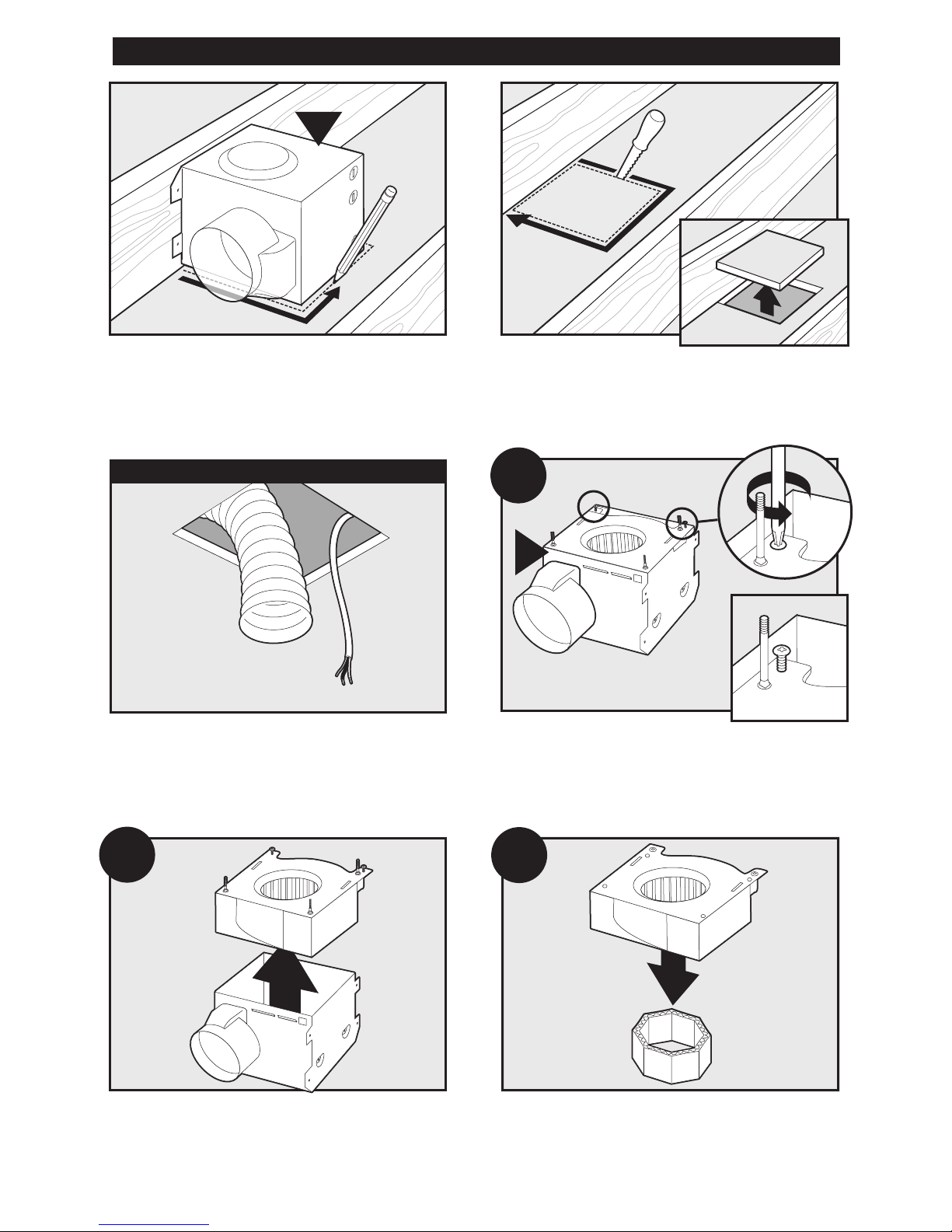

Remove the existing fan and check to make sure the
opening is large enough to accommodate the new motor
housing (7.25” x 7.75”).
Remove the motor/blower from the housing.
Existing Construction Installation
Existing Fan
8
Remove packing material.
D
Use the motor housing as a template to mark position.
41788-01 6/1/2005
Cut out an opening for the housing.

B4
B5
B8
D
B9
B
C
Back out the pre-loaded screw tips until flush with the
side of the housing.
9
B6
E
B7
E
Remove the wiring cover.Remove the wiring cover screw.
Remove the pre-loaded screw tip covers.
41788-01
6/1/2005
Insert the strain relief into the housing and secure
with the washer.
Pop out the first wiring access slug. Use second if needed.

D
B10

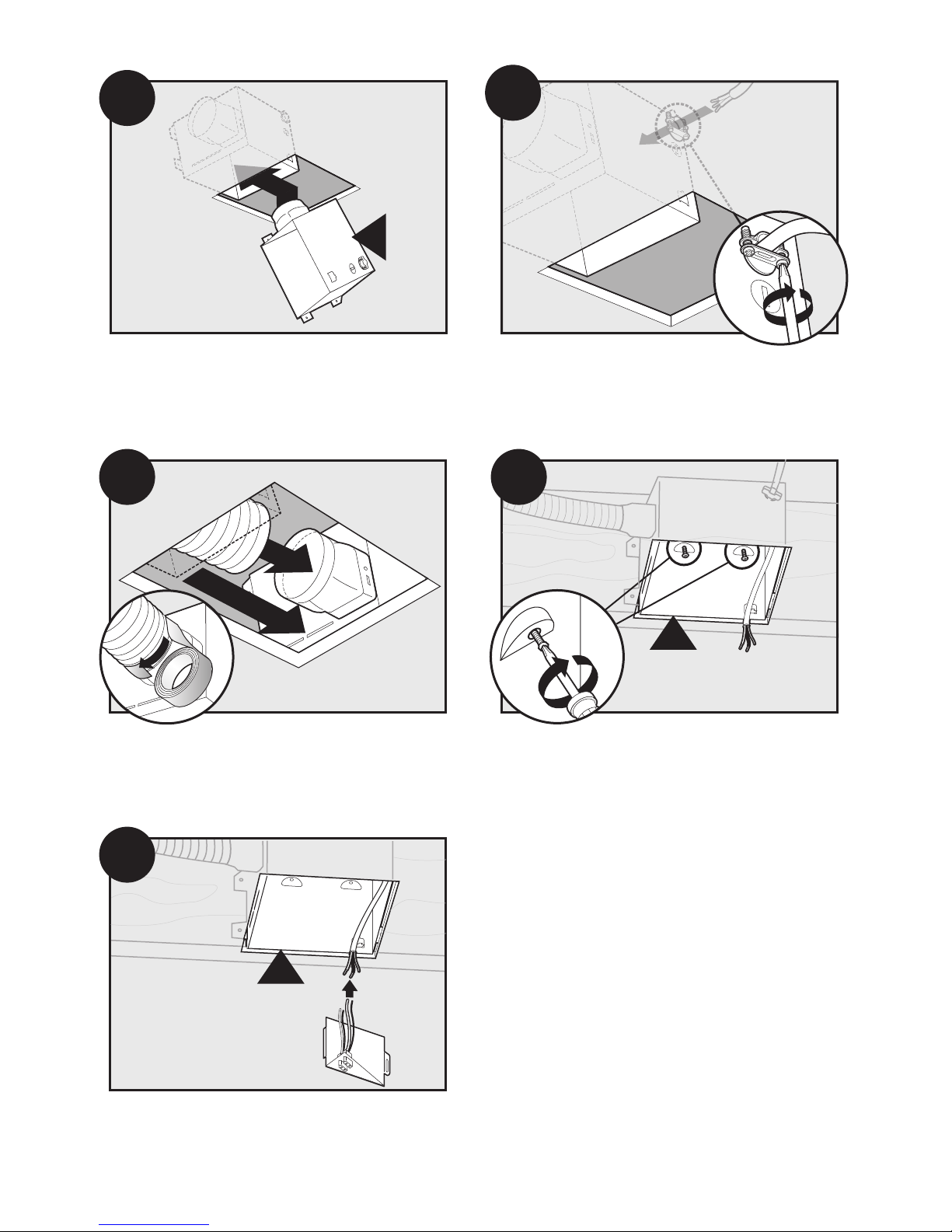

Fit housing into the opening and secure by tightening the
pre-loaded screws into the joist.
Note: Install the box flush with the sheetrock (ceiling).
B11
2
1
B12
D
B13
D
B14
10
Pull the wires through the strain relief and tighten the
strain relief screws.
Attach existing ducting to duct connector. Tape joints.
If ducting does not fit securely,
an adapter may need to be purchased.
Move the housing into position above the ceiling.
41788-01 6/1/2005

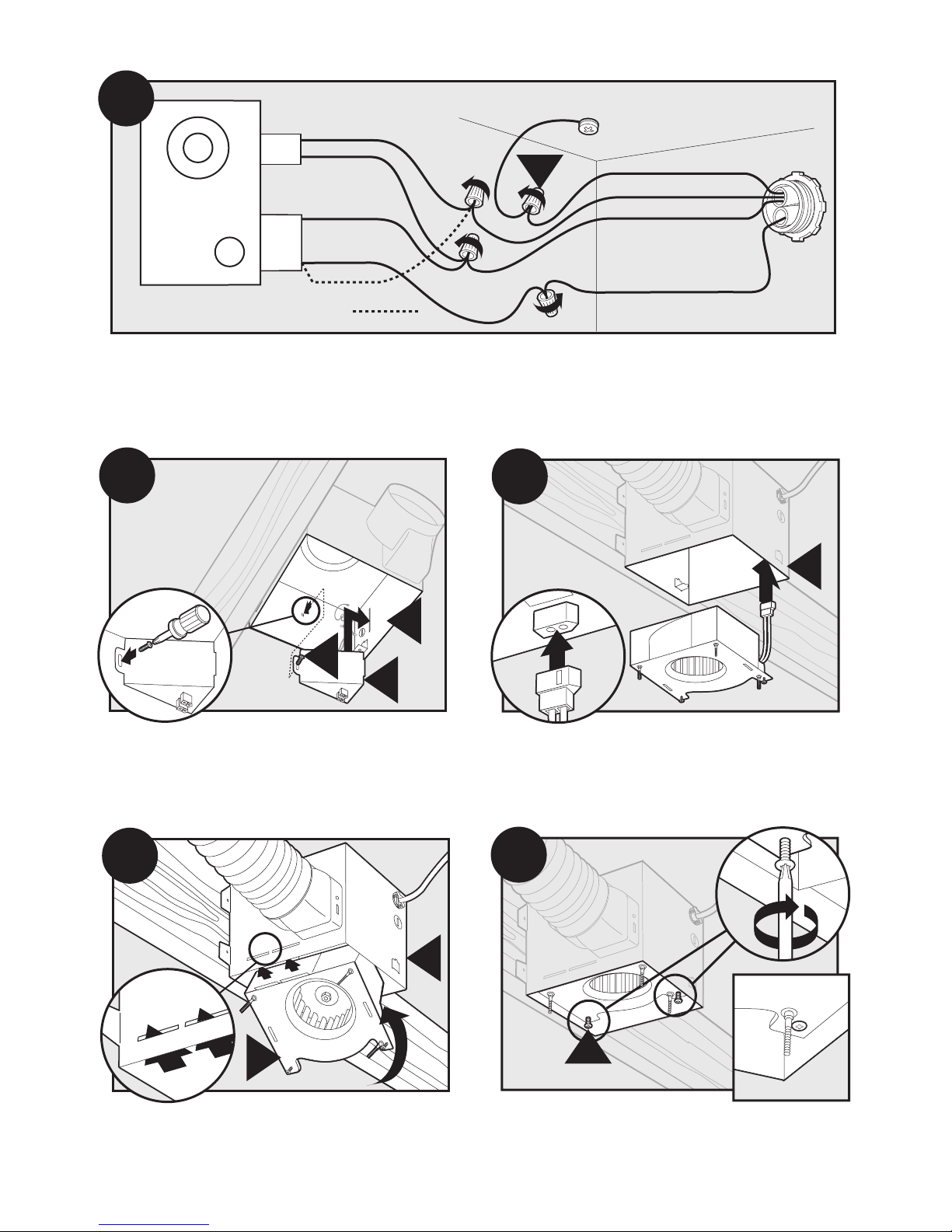

Connect the wiring.

D
E
F
B16
A
3 Pin
2 Pin
Fan Motor
Light Light
Green
Black
Black
White
Black
Black
White
White Bare Copper
Ground
B15
Main Switch 1 (AC In)
Switch 2 (AC In)
*Option Fan & Main Light Together
*Option
D
B17
0000
G
D
B18
Install the wiring cover plate. Make sure all wiring
connections are inside the box or under the wiring
cover plate.
Connect wiring from the motor to the wiring cover plate.
Reinstall the motor by inserting the tabs and pushing up
into position. Make sure the wires are not pinched between
the motor and the housing.
11
H
B19
Secure the motor by tightening the 2 screws.
41788-01 6/1/2005
Connect wires as shown.

B20
ON
OFF
B21
B22
C1
Go to step
to attach grille.
12
J
C1
Test the motor. If the motor does not run,
check the plug connection.
Turn on the power source.

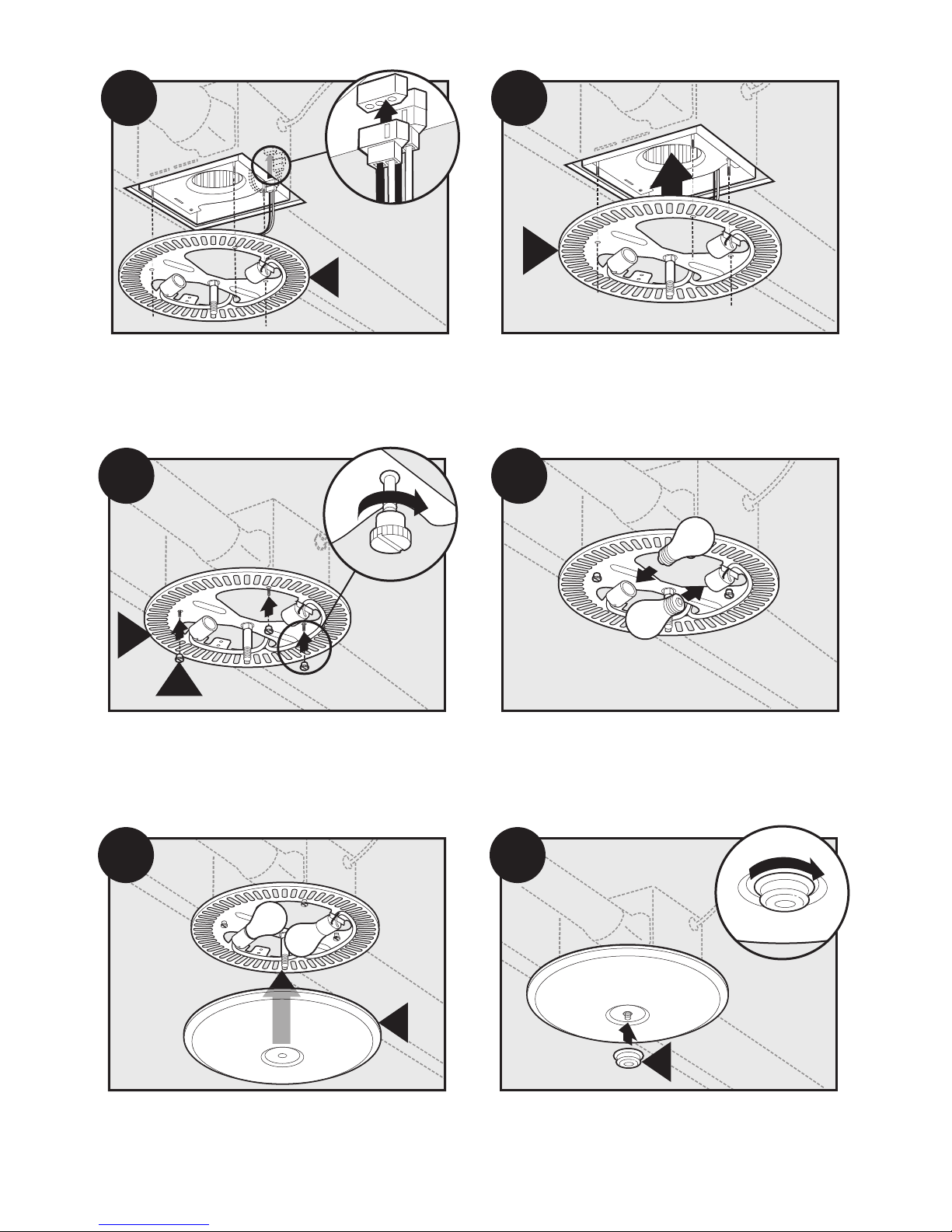

Attaching the Grille
C2
K
L
I
41788-01 6/1/2005
Remove the thumbscrews. Remove glass dome.

Connect wiring harness.
I
C3
C4
I
Slide light mount over posts.
Attach thumbscrews.
WARNING: To reduce the risk of electrical shock,
all 3 thumbscrews MUST be properly installed.
I
J
C5
Install 2 Max 60 Watt A15 bulbs (Not Included).
C6
Screw glass dome into position.Align glass dome and push up.
K
C7
L
C8
41788-01 6/1/2005 13

14 41788-01 6/1/2005
Trouble Shooting
Problem: Fan does not come on.
Solution:
• Hunter Fan Bath Ventilators are extremely quiet. To confirm that the fan is running, place your hand near the vents to
feel the air movement.
• Turn power on, replace fuse, or reset breaker.
• Check all plug connections to be sure they are secure.
• Check the wiring to make sure it matches the wiring diagram.
Problem: Light does not come on.
Solution:
• Replace the light bulb with a new bulb.
• Turn power on, replace fuse, or reset breaker.
• Check all plug connections to be sure they are secure.
• Check the wiring to make sure it matches the wiring diagram.
Problem: Fan is noisy.
Solution:
• Check and tighten all fasteners.
• Check the glass to make sure it is secure.
• Check the flapper to make sure it moves freely.
If you need parts or service assistance, please call 888-830-1326 or visit us at our WEB site at http://www.hunterfan.com.

Warranty
Hunter Fan Company
Bath Exhaust Fan
LIMITED WARRANTY
Hunter Fan Company makes the following limited warranty to the original user or consumer purchaser of this Hunter bath
exhaust fan:
If any part of your Hunter bath exhaust fan (except for glass fixtures and light bulbs) fails at any time within one year after the date
of sale to you due to a defect in material or workmanship, we will repair or, at our option, replace the defective part free of charge
for parts and labor performed at our nearest service center or at our Service Department in Memphis, Tennessee. After this one-year
period, you will be responsible for all parts and labor costs for repairs on the bath exhaust fan except for motor repairs as
provided below.
If your Hunter bath exhaust fan motor fails at any time within five years after the date of sale to you due to a defect in material or
workmanship, labor and materials to repair the defect will be provided free of charge at our nearest service center or our Service
Department in Memphis, Tennessee. If no replacement part can be provided, we will, at our option, either refund the actual purchase
price of your bath exhaust fan or provide a replacement free of charge. After this five-year period, you will be responsible for all parts
and labor costs for repairs on all parts of the bath exhaust fan.
IF THE ORIGINAL USER OR CONSUMER PURCHASER CEASES TO OWN THE FAN, THIS WARRANTY AND ANY IMPLIED WARRANTY WHICH
THEN REMAINS IN EFFECT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, ARE VOIDED. NO WARRANTY, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, IS MADE IN RESPECT OF GLASS FIXTURES OR LIGHT BULBS OR THE FINISH ON ANY METAL
PORTION OF THE BATH EXHAUST FAN.
THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES. THE DURATION OF ANY IMPLIED WARRANTY, INCLUDING, BUT NOT
LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IN RESPECT TO ANY HUNTER
FAN BATH EXHAUST FAN MOTOR OR OTHER FAN PART, IS EXPRESSLY LIMITED TO THE PERIOD OF THE EXPRESS WARRANTY SET FORTH
ABOVE FOR SUCH MOTORS OR OTHER PARTS.
This warranty is voided if your Hunter bath exhaust fan is not purchased and installed in the U.S.A. This warranty excludes and does
not cover defects, malfunctions or failures of any Hunter bath exhaust fan which were caused by repairs by persons not authorized by
us, use of parts or accessories not authorized by us, mishandling, improper installation, modifications or damage to the Hunter bath
exhaust fan while in your possession, or unreasonable use, including failure to provide reasonable and necessary maintenance.
To obtain servicing, contact the nearest Hunter authorized service center of the Hunter Fan Company Service Department, 2500
Frisco Avenue, Memphis, Tennessee 38114. Please contact us before shipping your bath exhaust fan to us. If we authorize you to
ship it to us, you will be responsible for all insurance and freight or other transportation charges to our factory or service center. We
will return your Hunter bath exhaust fan freight prepaid. Your Hunter bath exhaust fan should be properly packed to avoid damage in
transit since we will not be responsible for any such damage. Proof of purchase is required when requesting warranty service. The
purchaser must present the sales receipt or other document that establishes proof of purchase.
IN NO EVENT SHALL HUNTER FAN COMPANY BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES.
SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE LIMITATION OR EXCLUSIONS MAY NOT APPLY TO YOU.
THE WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE
.
41788-01 6/1/2005
