Installation and Operation Manual
For Hunter Ceiling Fans
41419-01 10/29/2002

241419-01 10/29/2002
®

3
41419-01 10/29/2002
®
CONGRATULATIONS!
Your new Hunter ceiling fan is an
addition to your home or office that
will provide comfort and perfor-
mance for many years. This manual
gives you complete instructions for
installing and operating your fan.
We are proud of our work. We ap-
preciate the opportunity to supply
you with the best ceiling fan avail-
able anywhere in the world.
Before installing your fan, record the
following information for your
records and warranty assistance.
Please refer to the carton and the
Hunter nameplate (located on top
outside fan motor housing) for the
proper information.
© 2002 Hunter Fan Co.
10/29/2002
Model Name __________________
Catalog No. ___________________
Serial No. _____________________
Date Purchased ________________
Where Purchased ______________
_____________________________
Attach Your Receipt
or a Copy of
Your Receipt Here

441419-01 10/29/2002
®
CONTENTS
ImportantInformation.....................................................................................................................................5
Step 1 - Getting Ready .....................................................................................................................................6
Step 2 - Installing the Ceiling Plate .................................................................................................................8
Step 3 - Assembling the Fan........................................................................................................................... 11
Step 4 - Wiring the Fan .................................................................................................................................. 14
Step 5 - Installing the Canopy........................................................................................................................ 17
Step 6 - Assembling Fan Blades...................................................................................................................... 18
Step 7 - Installing the Light Bulbs ................................................................................................................. 20
OperatingYourHunterFan ........................................................................................................................... 21
CleaningandMaintenance ............................................................................................................................ 22
Troubleshooting ............................................................................................................................................. 23

5
41419-01 10/29/2002
®
IMPORTANT INFORMATION
not lock the circuit break-
ers in the off position, se-
curely fasten a prominent
warning device, such as a
tag, to the service panel.
• All wiring must be in accor-
dancewithnationalandlo-
cal electrical codes. If you
are unfamiliar with wiring,
you should use a qualified
electrician.
• To reduce the risk of per-
sonal injury, do not bend
the blade attachment sys-
tem when installing, bal-
ancing,or cleaning the fan.
Neverinsertforeignobjects
between rotating fan
blades.
• The fan blades cannot be
placed lower than 2,3m
from the floor.
DO YOU NEED HELP?
To install a ceiling fan, be sure you
can do the following:
• Locate ceiling joist or other
suitable support in ceiling.
• Drillholes for and install wood
screws.
• Identify and connect electrical
wires.
• Lift 16 kg.
If you need help installing the fan,
yourHunterfandealercandirect you
to a licensed installer or electrician.
• The installation site must
haveanall-pole switch with
a minimum separation gap
of 3 mm.
WARNINGS
• To avoid possible electrical
shock, before installing
your fan, disconnect the
power by turning off the
circuit breakers to the out-
let box and associated wall
switch location. If you can-
CAUTIONS
• Read entire booklet care-
fully before beginning in-
stallation and save these
instructions.
• To reduce the risk of per-
sonal injury, attach the fan
directly to the support
structureofthe building ac-
cording to these instruc-
tions, and use only the
hardware supplied.

641419-01 10/29/2002
®
GATHERING THE TOOLS
You need the following tools to in-
stall the fan:
• Electric drill with 9/64" bit and
masonry bit
• Standard screwdriver
• Phillips-head screwdriver
• Wrench or pliers
• Two M5 x 30 mm expansion an-
chors (for concrete ceilings only)
OPTIONAL ACCESSORIES
Consider using Hunter’s optional ac-
cessories, such as a wall-mounted or
remote speed control. Follow the in-
structions for installation and use in-
cluded with each Hunter accessory.
Forquiet and optimum performance
of your Hunter fan, use only Hunter
speed controls.
STEP 1 - GETTING READY
PREPARING THE FAN SITE
Reliable operation, efficiency, and
maximum energy savings depend
upon proper placement and attach-
ment of the fan. For this reason, we
have included a separate booklet —
“Guide to Choosing and Preparing
a Ceiling Fan Site” — to help you
select the best location for your fan.
The booklet also provides informa-
tion to ensure your fan support and
electricoutletboxmeetUL-approved
safety codes for ceiling fans.
The instructions in this installation
manual assume that you have used
the “Guide to Choosing and Prepar-
ing a Ceiling Fan Site” to pick the
fan location and make certain the
proper fan support and outlet box
are installed.
CHECKING YOUR FAN PARTS
Carefully unpack your fan parts to
avoid damage. Check for shipping
damage. If one of the fan blades is
damaged, return all blades for re-
placement.
Hint: Ifinstallingmorethan one fan,
keep the fan blades in sets, as
shipped.

7
41419-01 10/29/2002
®

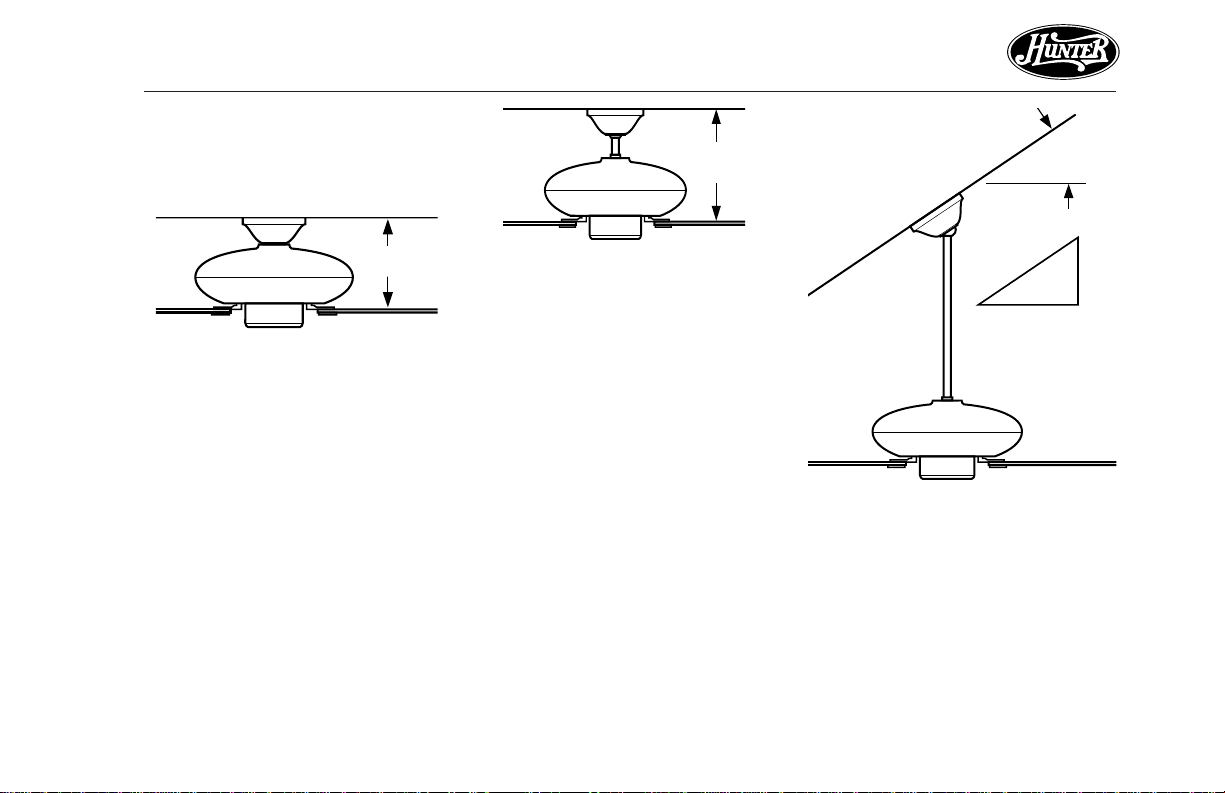

Flush Mounting (Figure1a) fits close
to the ceiling, for low ceilings less
than 2,6 m high.
Figure 1c - Angle Mounting
Figure 1b - Standard Mounting
Figure 1a - Flush Mounting
25,5 cm
30,5 cm
34
12
8
Standard Mounting (Figure 1b)
hangs from the ceiling by a connec-
torpipe (included), for ceilings 2,6 m
orhigher. For ceilings higherthan2,6
m, you can also purchase Hunter ex-
tension rods. All Hunter fans use
sturdy 2 cm inner diameter pipe to
assure stability and wobble-free per-
formance.
Angle Mounting (Figure1c)hangs
from a vaulted or angled ceiling.

841419-01 10/29/2002
®
STEP 2 - INSTALLING THE CEILING PLATE
1. Drill two pilot holes into the
wood support structure through
the outermost holes on the out-
let box. The pilot holes should be
9/64" in diameter and 4 1/4"
(110mm) apart. See Figure 2a.
2. Insert the 3 rubber isolators into
the 3 round holes in the ceiling
plate as shown in Figure 2b.
Thread the lead wires from the
outlet box through the opening
in the middle of the ceiling plate.
3. Align two opposing oval slots in
the ceiling plate with the pilot
holes in the wood support struc-
ture. See Figure 2b.
ANGLE MOUNTING
For Angle Mounting be sure to orient
the Ceiling Plate so that the arrows
marked on the plate are pointing to-
wards the ceiling peak. See Figure 2b.
Figure 2a - Pilot Holes and Outlet Box
location
40mm x 80mm
Brace
Outlet Box
Lead Wires Pilot Holes
4. Place a flat washer on each of the
two3" wood screws and pass the
screws through two opposing
oval slots in the ceiling plate, as
shown in Figure 2c.You may sub-
stitute the 3" wood screws with
the provided 1 1/2" wood screws
for shorter depth installations.
Besurethatenoughofthe screws
enters the mounting surface to
support the assembled fan.
WARNING
• To avoid possible electrical
shock, before wiring fan,
disconnect power by turn-
ing off the circuit breakers
both to the outlet box and
toits associated wall switch
location. If you cannot lock
the circuit breakers in the
offposition, securely fasten
a prominent warning de-
vice, such as a tag, to the
service panel.
• All wiring must be in accor-
dance with national and
local electrical codes. If you
are unfamiliar with wiring,
you should use a qualified
electrician.

9
41419-01 10/29/2002
®
Figure 2c - Attaching Ceiling Plate to
40 mm x 80 mm Brace
Rubber
Isolators (4)
Outlet
Box
Ceiling
Plate
Flat Washer 3" Wood
Screw (3)
40mm x 80mm
Brace
Note: You must purchase the ex-
pansion anchors separately. Drill
the holes in the ceiling to the
depth and diameter recom-
mended by the manufacturer of
theexpansion anchors.
2. Drill two holes 110 mm (4,32")
apart on either side of the mains
as shown in Figure 2d. The holes
are for M5 x 30 mm expansion
anchors.
3. Drive the expansion anchors into
theholes until the ends of the an-
chors are flush with the ceiling.
See Figure 2e.
5. Tighten the screws into the 9/64"
pilot holes.
Note: The rubber isolators in the
ceiling plate should be compressed
against the ceiling. Do not over-
tighten.
FOR CONCRETE CEILINGS
1. Locatethe electrical supply mains
in the ceiling.
110 mm
Electrical Mains
Ceiling
Masonry Bit
Figure 2d - Drilling Anchor Holes
4. Hold the Ceiling Plate up to the
ceiling and align two opposing
oval slots in the Ceiling Plate with
the expansion anchors. See Fig-
ure 2b. Be sure that the electrical
mains protrude through the cen-
ter opening in the Ceiling Plate
by at least 150 mm. continued
Figure 2b - Correct Position of Ceiling
Plate for Angle Mounting and location
of rubber isolators.
Rubber
Isolators (3)
Arrows
toward
ceiling
peak
Oval slots for
attaching ceiling
plate to ceiling

10 41419-01 10/29/2002
®

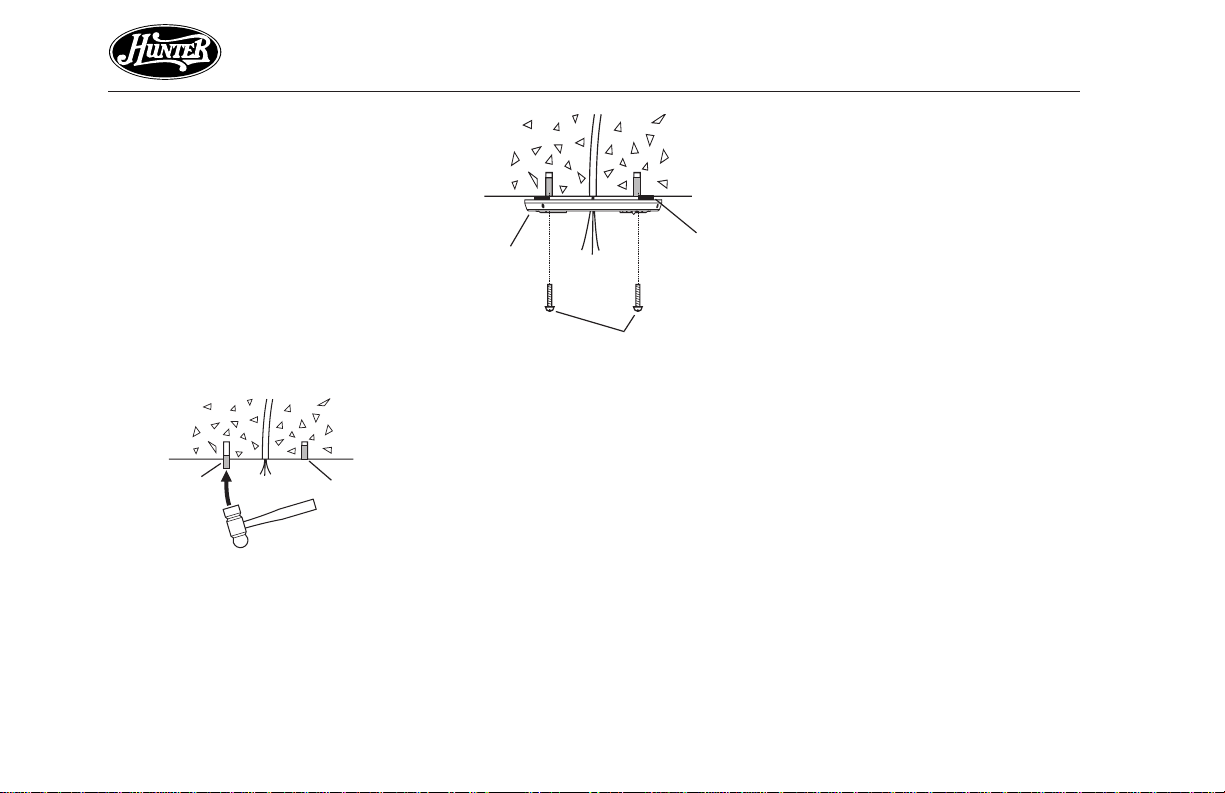

Figure 2f - Attaching Ceiling Plate to
Ceiling
M5 x 30 mm Screw (2)
(supplied with anchor)
Ceiling
Plate Rubber
Isolators
(3)
5. Drive the M5 x 30 mm screws
into the anchors so that the Ceil-
ing Plate is tight against the ceil-
ing. See Figure 2f.
Note: The rubber isolators in the
Ceiling Plate should be com-
pressedagainstthe ceiling. Donot
overtighten.
Figure 2e - Driving Expansion Anchors
into Holes
Expansion
Anchor Flush With
Ceiling

11
41419-01 10/29/2002
®

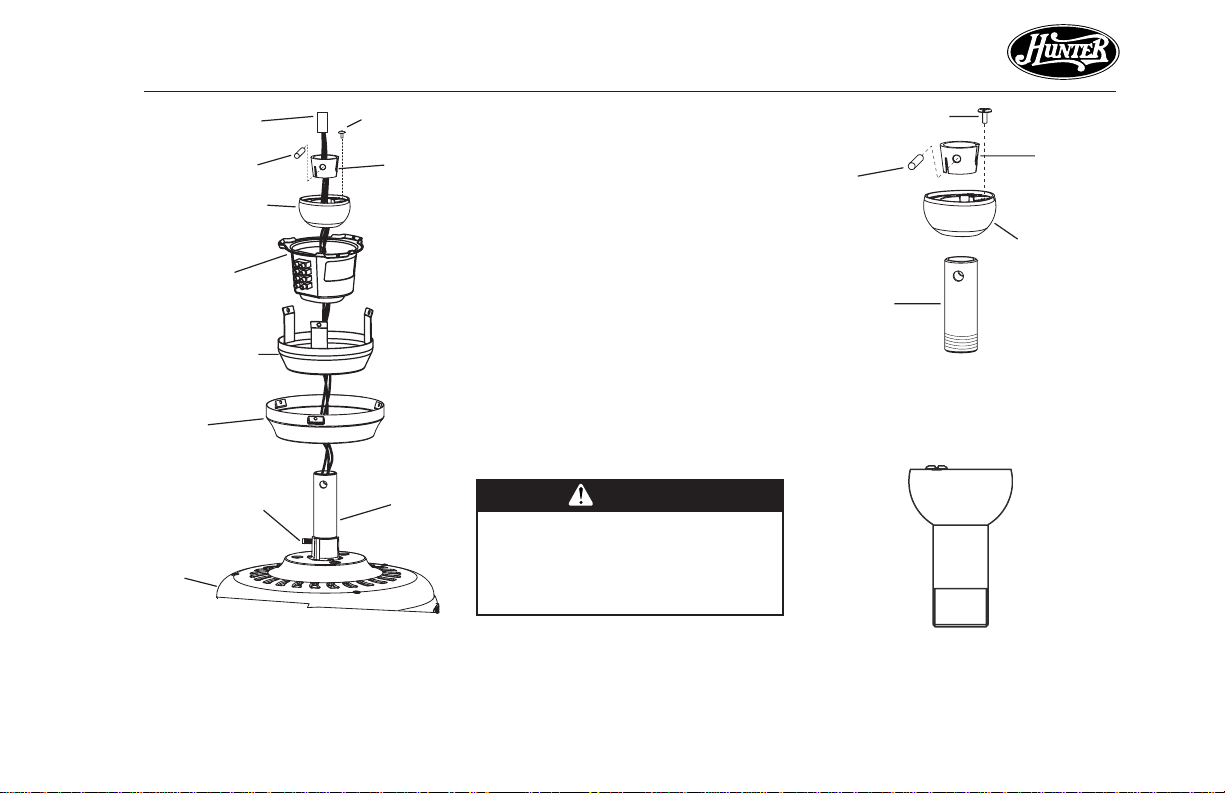

Figure 3a - Installing Low Profile
Adapter
Low Profile
Adapter
Hanger
Bracket
Lower
Canopy
Upper
Canopy
Fan
Pipe
Setscrew
Plug
STEP 3 - ASSEMBLING THE FAN
continued
1. Remove the Pipe Setscrew. Note:
Save the Pipe Setscrew for pos-
sible future use in Standard or
AngleMounting. Withthe fan as-
sembly resting level in the pack-
ingfoam,firstfeed the wiringhar-
ness thorough the center of the
upper canopy, followed by the
lower canopy, then through the
hangerbracket,and lastlythrough
the low profile adapter. See
figure 3a.
2. Fit the low profile adapter down
inside the hanger bracket, align-
ingtheflat sectiononthelowpro-
file adapter with the flat section
in the hanger bracket. To clear
the two screws that project into
thehangerbracket, you mayneed
to tip the flat section of the low
profile adapter down slightly,
while inserting it into the hanger
bracket. See figure 3b.
WARNING
• To reduce the risk of fire,
electrical shock, or motor
damage, do not lift or carry
the fan by the lead wires.
• To prevent damage to the
wires on the bottom of the
fan assembly, do not sit fan
on hard surface. Use foam
inside box as support.
• The pipe adapter has a spe-
cial coating on the threads.
Donotremovethis coating;
the coating prevents the
pipe from unscrewing.
Once assembled, do not re-
move the pipe.
LOW PROFILE MOUNTING
RefertoFigures3a,3band3c for the
followingsteps.

12 41419-01 10/29/2002
®
3. Align the three slots in the low
profile adapter with the three
screw holes in the fan assembly
asshownin Figure3c. Threadone
of the #8-32 x 3/4" SEMS screws
into the threaded hole in the fan
assemblyandthehangerbracket.
Tighten all three screws securely.
After the three screws are tight-
ened,thelowercanopyshouldbe
free to rotate.
4. ProceedtoSTEP4-WIRINGTHEFAN.
assembly and partially tighten it.
Repeat for the other two screws.
Once all three #8-32 x 3/4" SEMS
screws are partially threaded into
thefanassembly,center thelower
canopy with the hanger bracket,
makingsure thatthelower canopy
is not captured between the fan
• onepositioningscrewlocatedon
theTrilobularTM ballassembly,and
• one locking pin.
1. With the fan assembly resting in
the packing foam, feed the wir-
ing harness from the fan through
the pipe.
2. Screwpipeintofanassemblyuntil
tight.
IMPORTANT! Fully tighten pipe
setscrewasindicated inFigure3d.
3. Thread the wiring harness first
through the upper canopy, the
lower canopy, and then the
hanger bracket, resting them on
themotorhousing.
4. Threadthewiring harnessthrough
the TrilobularTM ball and slide the
ball onto the pipe, resting it on
the fan assembly.
5. Threadthewiring harnessthrough
the wedge and slide the wedge
onto the top part of the pipe.
Align the openings in the wedge
STANDARD MOUNTING
AND ANGLE MOUNTING
Included with the fan are:
• one89mm (3 1/2") long pipe,
• one wedge
Low Profile
Adapter
Hanger
Bracket
Figure 3b - inserting the low profile
adapter Figure 3c - Attaching the low profile
adapter.
Low Profile Adapter
Hanger Bracket

13
41419-01 10/29/2002
®
with the matching holes on the
pipe as shown in Figure 3e. Insert
the pin into the two holes in the
pipe so that the pin is centered
evenly in the hole, see Figure 3e.
6. Alignthecutouts in theTrilobularTM
ball with the pin.
7. Slide the TrilobularTM ball up the
pipe until it hits the pin.
8. Insertandtighten the positioning
screw intotheTrilobularTM ball. See
Figure 3f.
Figure 3e - Pipe & TrilobularTM Ball
assembly components
Pin
Positioning Screw
TrilobularTM
Ball
3 1/2" Pipe
Wedge
Figure 3f - Pipe, Wedge, Pin &
TrilobularTM Ball assembly.
WARNING
• Failure to complete the
steps above properly could
result in the fan falling.
Figure 3d - Inserting Pipe through
Canopy and TrilobularTM Ball
Pipe
Upper
Canopy
Plug
Pipe Setscrew
TrilobularTM Ball
Positioning
Screw
Pin Wedge
Lower Canopy
Fan
Hanger
Bracket

14 41419-01 10/29/2002
®
STEP 4 - WIRING THE FAN
WARNING
• To avoid possible electrical
shock, before wiring fan,
disconnect power by turn-
ing off the circuit breakers
both to the outlet box and
toits associated wall switch
location. If you cannot lock
the circuit breakers in the
offposition, securely fasten
a prominent warning de-
vice, such as a tag, to the
service panel.
• All wiring must be in accor-
dance with national and
local electrical codes. If you
are unfamiliar with wiring,
you should use a qualified
electrician.
• Failure to complete the sub
steps1-3belowcouldresult
in the fan falling.
WARNING
To reduce the risk of fire, elec-
trical shock, or motor damage,
do not lift or carry the fan by
the lead wires.
Figure 4a - Aligning the Hanger
Bracket with the Ceiling Plate
Hanger
Bracket
Ceiling Plate
#6-32 x
3/8"
Figure 4b - Temporary installation of
one #6-32 x 3/8" screw.
Ceiling Plate
Tab (3)
Slot in Ceiling
Plate (3)
1. Disconnect the power by turning
offthecircuitbreakersto the out-
letboxandassociatedwallswitch
location.
2. Carefully lift the fanassemblyand
position the hanger bracket with
the ceiling plate as shown in Fig-
ure 4a.
3. Rotate the hanger bracket until
the three tabs on the hanger
bracket are fully engaged in the
three slots in the ceiling plate.
See Figure 4b. Being careful to
not allow the hanger bracket to
rotate, temporarly install one of

15
41419-01 10/29/2002
®
CAUTION
Be sure no bare wire or wire
strandsarevisibleafter making
connections.
continued
the three #6-32 x 3/8" screws
through the hole in the ceiling
plate and into the threaded hole
in the hanger bracket to prevent
the hanger bracket from rotat-
ing. See figure 4b.
CONNECTING FAN TO
ELECTRICAL SOURCE
Use Figures 4c, 4d and 4e for refer-
ence in making the following elec-
trical connections.
1. Connect the supply mains to the
terminal block mounted on the
hanger bracket.
2. Connect the safety earth (green/
yellow) wire to the terminal
marked .
3. Connect the blue neutral wire to
the terminal marked “N.”
4. Connect the brown line wire to
the terminal marked “L.”
Note: An additional “L” termi-
nal is provided for separate con-
trol of the light kit, if a separate
supply line is provided for that
purpose.
5. Connect the motor leads to the
harness assembly attached to the
hanger bracket and terminal
block. See Figure 4c, 4d and 4e.
Note: Unless there is a separate
line for the light kit, connect the
black/white wire and the brown
wire from the motor housing to
the same “L” terminal.

16 41419-01 10/29/2002
®
Hanger Bracket
Connect Plugs
Fan
Power
Wires
In
Ceiling
Outlet Box
40 mm x 80 mm
Brace
Earth
Blue
Brown
(Optional Line)
Wall Switch Wire For
Separate Control of Light Kit
(Note: Wall switch
must be acceptable
as a general-use
switch.)

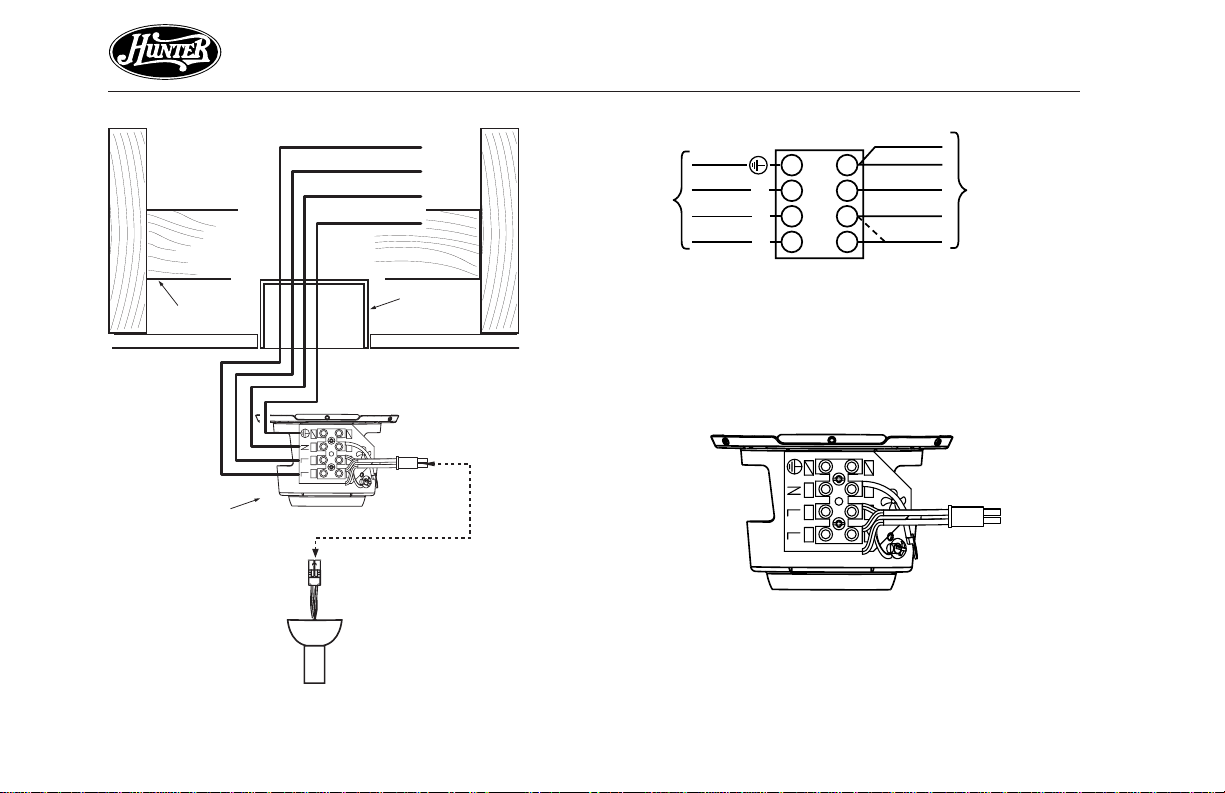

Figure 4e - Hanger Bracket &
Terminal Connections
EARTH GRN/YEL GRN/YEL
MOTO
R
LEAD
S
S
UPPLY
MAINS
BLUE
BROWN
BLK/WHT
NEUTRAL
LINE
OPTIONAL
NLL
Figure 4c - Wiring Diagram
Figure 4d - Terminal Block
Connections

17
41419-01 10/29/2002
®
STEP 5 - INSTALLING THE CANOPY
2. Raise the lower canopy up over
the hanger bracket and align the
three holes in the lower canopy
with the three holes in the ceil-
ing plate and the three threaded
screw holes on the hanger
bracket as shown in Figure 5a.
You may need to slightly spread
the tabs apart on the lower
canopy to align them with the
holes on the ceiling plate and
hanger bracket.
3. Install and securely tighten the
three #6-32 x 3/8" screws.
4. Raise the upper canopy and align
the three screw holes in the up-
per canopy with the three
threaded holes in the ceiling
plate.Installandtightenthethree
#6-32 x 1/4" screws as shown
in Figure 5b.
WARNING
• Whenremovingthe#6-32 x
3/8" screw that was tempo-
rarily installed in STEP 4 -
WIRINGTHEFAN,donot al-
low the hanger bracket to
rotateinthe ceiling plate as
this could cause the fan to
fall.
• Failure to complete sub-
steps 1 through 3 could
cause fan to fall.
1. Being careful to not allow the
hanger bracket to rotate in the
ceiling plate, remove the single
#6-32 x 3/8" screw that was in-
stalled in STEP 4 - WIRING THE
FAN, sub step 3.
Figure 5a - Attaching Lower Canopy
and Hanger Bracket to Ceiling Plate
#6-32 x 3/8"
screws (3)
Lower Canopy
Ceiling Plate
Hanger
Bracket
Figure 5b - Attaching Upper Canopy
#6-32 x 1/4"
screws (3) Lower Canopy
Upper Canopy

18 41419-01 10/29/2002
®
Figure 6a - Inserting Grommet into
Fan Blade Figure 6b - Attaching Fan Blade to Blade Iron
Figure 6c - Attaching Fan Blade to
Blade Iron using Decorative Medal-
lion
well as a blade iron. Insert the
assembly screws into the blade
iron, through the blade and into
the medallion, with the blade
sandwiched between the blade
iron and medallion as shown in
Figure 6c.
Hunter fans use several styles of fan
blade irons (brackets that hold the
blade to the fan).
1. Yourfanmay include blade grom-
mets. If your fan has grommets,
insertthembyhand into the holes
as shown in Figure 6a.
2. Attach each blade to blade iron
usingthreebladeassemblyscrews
as shown in Figure 6b. Some fans
feature a decorative medallion as
STEP 6 - ASSEMBLING FAN BLADES If you used grommets, the blades
may appear slightly loose after
screws are tightened. This is
normal.
3. Remove the blade mounting
screws and rubber shipping
bumpers from the motor.
G
rommet
Fan
Blade
M
edallion
Blade
Iron

19
41419-01 10/29/2002
®
4. For each blade assembly, insert
oneblademountingscrewthrough
the blade iron as shown in Figure
6d, and attach lightly to the fan.
Insertthesecondblade mounting
screw, then securely tighten both
mountingscrews.
Figure 6d - Attaching Blade Assembly
to Hub of Fan Assembly
Blade Assembly
Blade Mounting
Screw

20 41419-01 10/29/2002
®
STEP 7 - INSTALLING THE LIGHT BULBS

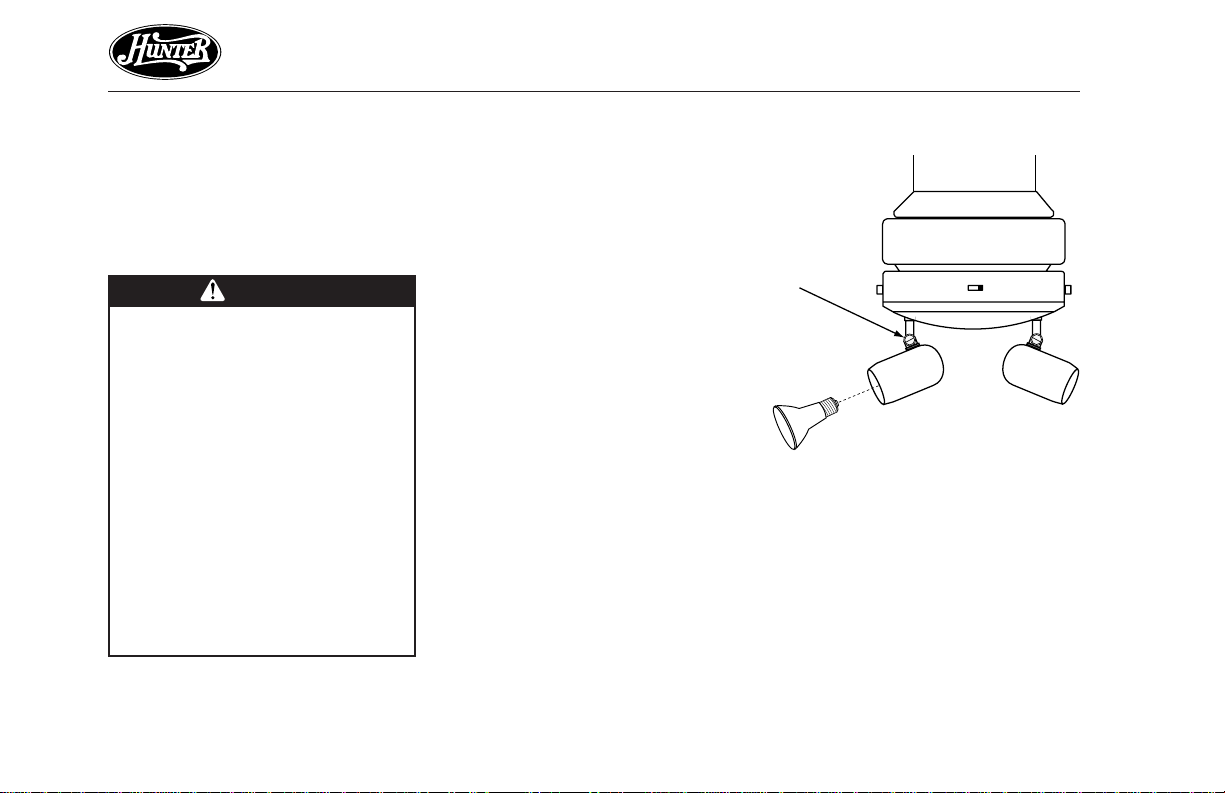

Figure 7 - Installing Light Bulbs
For Spotlights:
1. Loosen the locking screws as
shown in Figure 7.
2. Rotatethespotlightstothe desired
position and tighten the locking
screws.
3. Installone230V 60Whalogene27
base light bulb into each of the
spotlights.
Locking
Screw
Your fan may include a light fixture.
Ifyouarenotinstallingalightfixture,
turn to OPERATING YOUR HUNTER
FAN for additional instructions.
WARNING
• To reduce the risk of burns
or other personal injury, do
not attempt to rotate the
spotlights until after the
spotlights have cooled
down.
• To reduce the risk of burns
and eye damage or electri-
calshock,disconnectpower
and allow bulb to cool at
least 5 minutes before re-
placing. Do not touch hot
bulb. Do not look directly
at lighted lamp.
INSTALLING ACCESSORY LIGHT
KITS
To install the light kit, follow the in-
structions included with the kit for
wiring, mounting, and assembly.
