Hunter Hunter Ceiling fans User manual

42500-01 • 11/28/05

2
Hunter Fan Company 42500-01 • 11/28/05
3
42500-01 • 11/28/05 Hunter Fan Company
Welcome
© 2005 Hunter Fan Company
Your new Hunter® ceiling fan is an addition to your home or oce that
will provide comfort and performance for many years. is installation
and operation manual gives you complete instructions for installing
and operating your fan.
We are proud of our work. We appreciate the opportunity to supply
you with the best ceiling fan available anywhere in the world.
Before installing your fan, for your records and warranty assistance,
record information from the carton and Hunter nameplate label
(located on the top of the fan motor housing).
Cautions and Warnings
• Read this entire manual carefully before beginning installation. Save
these instructions.
• Use only Hunter replacement parts.
• To reduce the risk of personal injury, attach the fan directly to the
support structure of the building according to these instructions,
and use only the hardware supplied.
• To avoid possible electrical shock, before installing your fan,
disconnect the power by turning o the circuit breakers to the
outlet box and associated wall switch location. If you cannot lock
the circuit breakers in the o position, securely fasten a prominent
warning device, such as a tag, to the service panel.
• All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualied electrician.
• To reduce the risk of personal injury, do not bend the blade
attachment system when installing, balancing, or cleaning the fan.
Never insert foreign objects between rotating fan blades.
• To reduce the risk of re, electrical shock, or motor damage, do not
use a solid-state speed control with this fan. Use only Hunter speed
controls.
For Your Records and Warranty
Assistance
Model Name: _____________________
Catalog/Model No.: ________________
Serial No.: _______________________
Date Purchased: ___________________
Where Purchased: _________________
For reference also attach your receipt or a
copy of your receipt to the manual.
Table of Contents
1 • Getting Ready ...................................................4
2 • Installing the Hanger Bracket...................5
3 • Assembling and Hanging the Fan..........6
4 • Wiring the Fan..................................................7
5 • Installing the Canopy and
Canopy Trim Ring............................................8
6 • Assembling the Blades.................................9
7 • Installing the Light Kit............................... 10
8 • Assembling the Remote Control and
Mounting the Cradle.................................. 12
9 • Operating and Cleaning
Your Ceiling Fan ........................................... 14
10 • Troubleshooting......................................... 15

2
Hunter Fan Company 42500-01 • 11/28/05
3
42500-01 • 11/28/05 Hunter Fan Company
Mounting and Optional Accessories
Understanding Mounting
Hunter’s patented mounting system provides you maximum
installation  exibility and ease. You can install your Hunter fan in
one of two ways, depending on your preference: Standard or Angle
mounting.  e steps in this manual include instructions for both
mounting methods.
Note:  is fan must be mounted on ceilings 9 feet or higher.
Considering Optional Accessories
Consider using Hunter’s optional accessories, including a wall-mounted
or remote speed control. To install and use the accessories, follow
the instructions included with each product. For quiet and optimum
performance of your Hunter fan, use only Hunter speed controls.
Standard Mounting hangs from
the ceiling by a downrod (included),
recommended for ceilings 9 feet or higher
Angle Mounting recommended for a
vaulted or angled ceiling
For ceilings higher than 9 feet, you
can purchase Hunter extension
downrods. All Hunter fans use sturdy
3/4” diameter pipe to assure stability
and wobble-free performance.

4
Hunter Fan Company 42500-01 • 11/28/05
5
42500-01 • 11/28/05 Hunter Fan Company
1 • Getting Ready
To install a ceiling fan, be sure you can do the following:
• Locate the ceiling joist or other suitable support in ceiling.
• Drill holes for and install wood screws.
• Identify and connect electrical wires.
• Lift 40 pounds.
If you need help installing the fan, your Hunter fan dealer can direct
you to a licensed installer or electrician.
Gathering the Tools
You will need the following tools for installing the fan:
• Electric drill with 9/64” bit
• Standard screwdriver
• Phillips-head screwdriver
• Wrench or pliers
Checking Your Fan Parts
Carefully unpack your fan to avoid damage to the fan parts. Check
for any shipping damage to the motor or fan blades. If one of the fan
blades was damaged in shipment, return all the blades for replacement.
If any parts are missing or damaged, contact your Hunter dealer or call
Hunter Parts Department at 888-830-1326.
Preparing the Fan Site
Before you begin installing the fan, follow all the instructions in
the pullout sheet called “Preparing the Fan Site.” Proper ceiling fan
location and attachment to the building structure are essential for
safety, reliable operation, maximum e ciency, and energy savings.
Installing Multiple Fans?
If you are installing more than
one fan, keep the fan blades in
sets, as they were shipped.

4
Hunter Fan Company 42500-01 • 11/28/05
5
42500-01 • 11/28/05 Hunter Fan Company
2 • Installing the Hanger Bracket
2-1. Drill two pilot holes into the wood support structure through the
outermost holes in the outlet box. e pilot holes should be 9/64”
in diameter.
Note: Your fan comes with four pre-installed neoprene noise
isolators.
2-2. read the lead wires from the outlet box down through the hole
in the middle of the hanger bracket.
2-3. Align the slotted holes in the hanger bracket with the pilot holes
you drilled in the wood support structure. For proper alignment
use slotted holes directly across from each other. If you are
installing the fan on an angled ceiling, be sure to orient the hanger
bracket with the large opening towards the ceiling peak.
Note: e isolators should be ush against the ceiling.
2-4. Place a at washer on each of the two 3” screws and pass the
screws through the slotted holes in the hanger bracket into the
pilot holes you drilled.
Tighten the screws into the 9/64” pilot holes; do not use lubricants
on the screws. Do not over tighten.
Flat Washer
3” Screw
Steps 2-2 – 2-4
For Angled Ceilings: Be sure to orient
the hanger bracket with the large
opening towards the ceiling peak.
Hanger
Bracket
Step 2-3 (Angled Ceiling Only)
Isolator

6
Hunter Fan Company 42500-01 • 11/28/05
7
42500-01 • 11/28/05 Hunter Fan Company
3 • Assembling and Hanging the Fan
You can assemble your fan for standard or angle mounting.
3-1. Remove the label from the standard mounting washer inside the
canopy. Leave the washer in place. (Note: You will not use the
washer included in the parts sack.)
3-2. To assemble fan to hang down from a at or angled ceiling, place
the canopy with washer, and canopy trim ring around the adapter
so that they rest on the fan assembly.
3-3. Feed the wires from the fan through the downrod.
3-4. Loosen the square head set screw on the adapter to install the
pipe and ball assembly. Note: When the pipe and ball assembly
is fully installed, 2-3 threads on the pipe will still be visible; this is
normal. Securely retighten the set screw with a wrench or pliers.
CAUTION: e adapter has a special coating on the threads. Do
not remove this coating; the coating prevents the downrod from
unscrewing. Once assembled, do not remove the downrod.
WARNING: Do not carry or lift fan by canopy.
3-5. Place the upper glass bowl onto the fan assembly over the
previously installed parts.
3-6. Install four candelabra bulbs (25 Watt maximum).
3-7. Raise the fan and place the ball into the hanger bracket.
3-8. Align the notch on the ball with the indent in the hanger bracket.
(Rotate the fan until you hear the notch pop into place.)
WARNING: Fan may fall if not assembled as directed in these
installation instructions.
Steps 3-2 – 3-3 Downrod
Canopy
(with Washer)
Canopy
Trim Ring
Set Screw
Canopy
Standard
Mounting
Washer
Step 3-1
Adapter
Label
Steps 3-7 – 3-8 Indent
Step 3-5 Step 3-6
Upper Glass
Bowl

6
Hunter Fan Company 42500-01 • 11/28/05
7
42500-01 • 11/28/05 Hunter Fan Company
4 • Wiring the Fan
Wire Nut
All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualied electrician.
4-1. Disconnect the power by turning o the circuit breakers to the
outlet box and associated wall switch location.
4-2. To connect the wires, hold the bare metal leads together and place
a wire nut over them, then twist clockwise until tight.
CAUTION: Be sure no bare wire or wire strands are visible after
making connections.
4-3. Connect the wires as follows:
• e bare or green ground wire from the ceiling to the green
ground wire from the hanger bracket and the green ground
wire from the fan
• e white wire from the ceiling to the white wire from the fan
• e black wire from the ceiling to the black wire from the fan
4-4. Push all wires and wire nuts back into the hanger bracket.
Step 4-3

8
Hunter Fan Company 42500-01 • 11/28/05
9
42500-01 • 11/28/05 Hunter Fan Company
5 • Installing the Canopy and Canopy Trim Ring
5-1. Partially install two canopy screws (about 2 full turns) in the
hanger bracket.
5-2. Raise the canopy over the hanger bracket. Align partially installed
screws with key slots in canopy.
5-3. Twist canopy clockwise to secure.
5-4. Install third canopy screw in round hole on canopy. Securely
tighten all three screws.
5-5. Using both hands, push the canopy trim ring up to the top of the
canopy.  e canopy trim ring will snap and lock into place.
Should you need to remove the canopy
trim ring, follow these steps:
1. Locate the tab indicators, small
bumps on top of tabs.
2. Press  rmly on opposite sides of the
ring towards the canopy.  e tabs
will  ex out releasing the trim ring
from the canopy
Steps 5-1 – 5-2
Canopy Trim
Ring
Canopy
Hanger Bracket
Step 5-3
Canopy
Screw
Steps 5-4 – 5-5

8
Hunter Fan Company 42500-01 • 11/28/05
9
42500-01 • 11/28/05 Hunter Fan Company

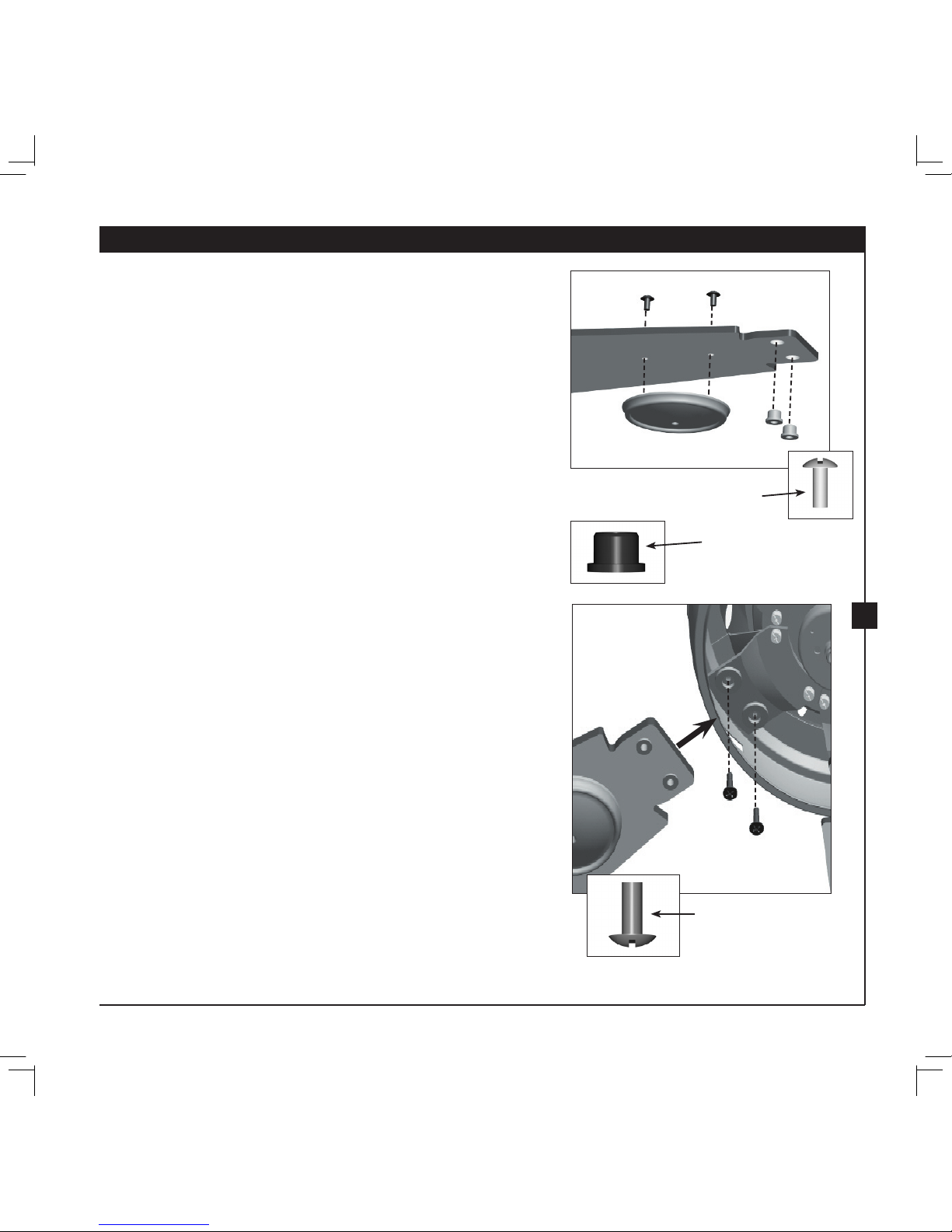

6 • Assembling the Blades
6-1. Attach a medallion to each blade using two 3/8” medallion
assembly screws.
6-2. Insert a grommet into each blade hole.
6-3. Insert blade into slot. Align the holes on the blade with the holes
on the blade iron.
6-4. Attach the blade to the blade iron using the blade assembly
screws.
6-5. Repeat for each blade.
Grommet
Steps 6-3 - 6-4
Blade Assembly Screw
Steps 6-1 - 6-2
Medallion Assembly Screw

10
Hunter Fan Company 42500-01 • 11/28/05
11
42500-01 • 11/28/05 Hunter Fan Company
WARNING: Use only the light xture supplied with this fan model.
7-1. To attach the upper light kit assembly, partially install two #6-32 x
3/8” housing assembly screws into the switch housing mounting
plate.
7-2. Feed the upper plug connector through the center opening of the
assembly.
7-3. Align the keyhole slots in the assembly with the housing assembly
screws.
7-4. Turn the assembly counterclockwise until the housing assembly
screws are rmly situated in the narrow end of the keyhole slots.
Install the remaining #6-32 x 3/8” screw into the housing. Tighten
all three screws rmly.
CAUTION: Make sure the upper light kit assembly is securely
attached to the switch housing mounting plate. Failure to properly
attach and tighten all three assembly screws could result in the switch
housing and light xture falling.
7-5. To attach the light kit, connect the upper plug connector from the
motor to the lower plug connector in the socket assembly.
Note: Both plug connectors are polarized and will only t together
one way. Make sure the connectors are properly aligned before
connecting them. Incorrect connection could cause improper
operation and damage to the product.
7-6. Place the socket assembly inside the upper light kit assembly.
Align the side screw holes. Attach the tter to the upper assembly
with two #6-32 x 3/8” assembly screws.
Housing
Assembly
Screw
Upper
Light Kit
Assembly
Steps 7-1 – 7-2
Step 7-6
Plug
Connector
Detail
Socket Assembly
7 • Installing the Light Kit
Housing
Assembly
Screw
Steps 7-3 – 7-4

10
Hunter Fan Company 42500-01 • 11/28/05
11
42500-01 • 11/28/05 Hunter Fan Company
7-7. Install an A-15 standard bulb (60 Watt maximum).
7-8. Remove the label from inside the glass bowl.
7-9. Align the glass bowl slots with the tabs on the light kit mounting
plate.
7-10. Turn the bowl clockwise until it is locked into place.
Step 7-7
Step 7-9

12
Hunter Fan Company 42500-01 • 11/28/05
13
42500-01 • 11/28/05 Hunter Fan Company
8 • Assembling the Remote Control and Mounting the Cradle
8-1. To install the battery, remove the back cover of the remote.
Insert the included 12 volt alkaline battery (Type 23A, MN-21 or
equivalent) inside the remote, matching polarity on the battery
as indicated by the + and - symbols in the battery compartment.
Replace the cover.
If you are using more than one remote controlled fan in the same
area and want to control them separately, you must change the
dipswitch settings in the remote before you install the battery. For
instructions on setting the dipswitches, read the box on the next
page.
8-2. To install the remote cradle on a switch plate, remove the two
screws holding the switch cover plate. Do not remove the cover
plate.
Note: If you are installing the remote cradle on a rocker light
switch, rst break o the two tabs by pushing outward.
Orient the control cradle by lining up the two mounting holes
with those on the switch. Insert and tighten the screws (do not
over tighten).
8-3. To install the remote cradle on the wall, locate a 2 x 4 wall stud
in a convenient location. Orient the remote cradle over the 2 x 4
stud. Use 1” wood screws in either the inner or outer mounting
holes.
Wall anchors and 6-32 x 1” screws may be used in situations where
mounting to a stud is not possible. Use the inner mounting holes.
CAUTION: e remote control device complies with part 15 of the
FCC rules. Changes or modications not expressly approved by Hunter Fan
Company could void your authority to operate this equipment.
Operation is subject to the following two conditions:
1. is device may not cause harmful interference.
2. is device must accept any interference received, including interference
that may cause undesired operation.
Note: Use with a fan that incorporates an air gap switch (normal on-o wall
switch).
WARNING: Maximum fan load is 100 Watts; maximum lamp is 300 Watts.
Do not use any speed control with this product.
Step 8-1
Step 8-2
Step 8-2 (Rocker Light Switch)
Removed
Tabs

12
Hunter Fan Company 42500-01 • 11/28/05
13
42500-01 • 11/28/05 Hunter Fan Company

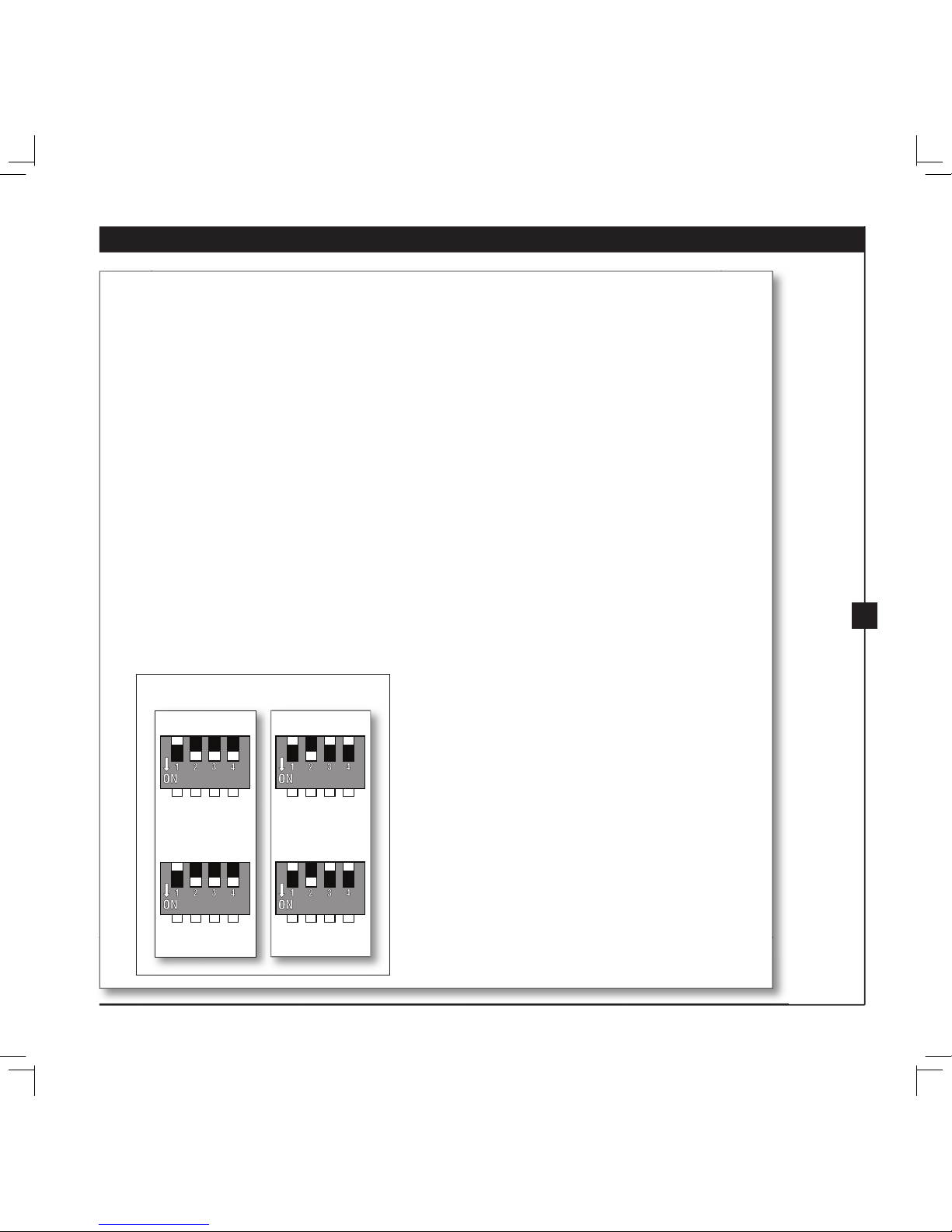

Setting the Dipswitches
You will only have to change the dipswitch settings in the remote if you are using more than one
remote controlled fan in the same area and want to control them separately. You may want to label
your remotes to ensure you do not mix them up.
1. At the circuit breaker or fuse box, turn the power o for the fan you want to change. Do not
turn the power o at the circuit breaker for the previously installed fan, as you may inadvertently
change the dipswitch code settings for it as well.
2. Slide the cover o the back of the remote and remove the battery.  e battery must be removed
when changing dipswitch settings. Refer to Step 8-1.
3. Change the dipswitch settings, so that they are di erent from the previously installed fan.
4. Replace the battery and cover.
5. At the circuit breaker or fuse box, turn the power back on for the fan whose settings you are
changing.
6. Within 20 seconds of restoring power, push the 3 (high), 2 (medium), and 1 (low) buttons (in that
order) on the remote.
Note:  e receiver (built into the fan) has a memory function that retains the last dipswitch
code setting.  e setting will not change in the event of power failure or if the power to the fan is
inadvertently shut o .








Example Dipswitch Settings
Receiver 1 Receiver 2
Transmitter 2
Transmitter 1

14
Hunter Fan Company 42500-01 • 11/28/05
15
42500-01 • 11/28/05 Hunter Fan Company

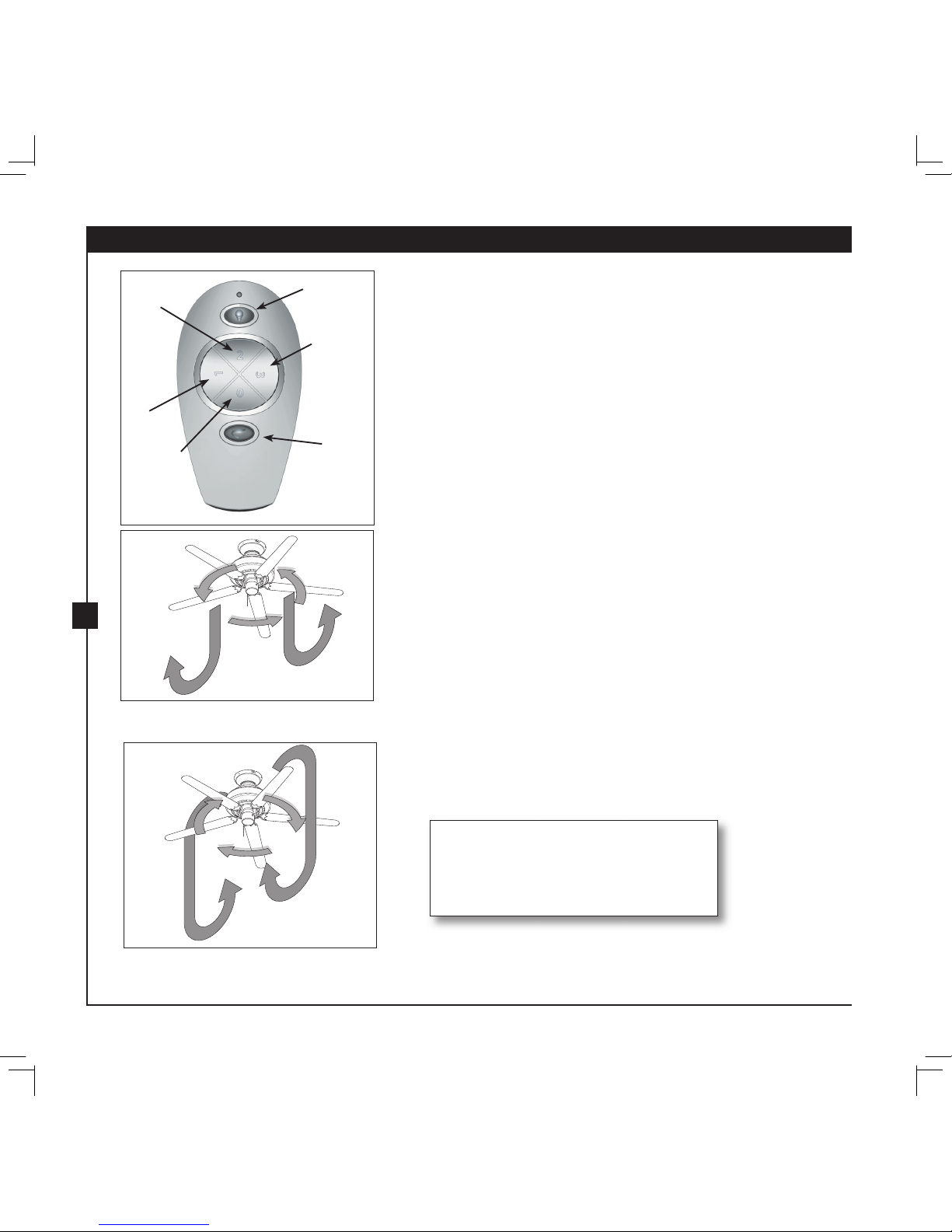

9 • Operating and Cleaning Your Ceiling Fan
To Change Air ow Direction
Turn the fan o and let it come to a
complete stop. Press the reversing switch
on the remote. Restart fan.
9-1. To start the fan, press the speed button on the remote at the level
you desire: 3 for high, 2 for medium, 1 for low. To turn o the fan,
press the o button on the remote.
9-2. To turn the light on or o independently from the fan, press the
light button once for gradual o or twice for instant o .
With the Auto Resume feature, the light will come on at the level
you used last. You can also hold the light button down to use the
remote as a dimmer. (As you hold the button, the light level will
move throughout its entire range within 16 seconds.) Release the
button at the desired level.
9-3. Ceiling fans work best by blowing air downward (counterclockwise
blade rotation) in warm weather to cool the room with a direct
breeze. In winter, having the fan draw air upward (clockwise blade
rotation) will distribute the warmer air trapped at the ceiling
around the room without causing a draft.
9-4. For cleaning  nishes, use a soft brush or lint-free cloth to prevent
scratching. A vacuum cleaner brush nozzle can remove heavier
dust. Remove surface smudges or accumulated dirt and dust using
a mild detergent and a slightly dampened cloth. You may use
an artistic agent, but never abrasive cleaning agents, as they will
damage the  nish.
9-5. Clean wood  nish blades with a furniture polishing cloth.
Occasionally, apply a light coat of furniture polish for added
protection and beauty. Clean painted and high-gloss blades in the
same manner as the fan  nish.
In warm weather, use
downward air  ow pattern
Steps 9-1 – 9-2
Fan High
Fan Low
Fan
Medium Fan Light
Fan O
Reversing
Switch
In cold weather, use upward
air  ow pattern

14
Hunter Fan Company 42500-01 • 11/28/05
15
42500-01 • 11/28/05 Hunter Fan Company
Problem: Nothing happens; fan does not move.
1. Turn power on, replace fuse, or reset breaker.
2. Loosen canopy, check all connections according to the wiring the
fan section.
3. Check the plug connection in the switch housing.
4. Push motor reversing switch  rmly left or right to ensure that the
switch is engaged.
5. Pull the pull chain to ensure it is on.
6. Remove the shipping bumpers.
Problem: Noisy operation.
1. Tighten the blade bracket screws until snug.
2. Tighten the blade screws until snug.
3. Check to see if the blade is cracked. If so, replace all the blades.
4. Change to an approved speed control.
5. Be sure that the glass is secure.
6. Check and tighten the screws in the switch housing mounting
plate and in the upper and lower switch housing.
Problem: Excessive wobbling.
1. If your fan wobbles when operating, use the enclosed balancing kit
and instructions to balance the fan.
2. Tighten all blade and/or blade iron screws.
3. Turn power o , support fan very carefully, and check that the
hanger ball is properly seated.
If you need parts or service assistance, please call
888-830-1326 or visit us at our Web site at
http://www.hunterfan.com.
Hunter Fan Company
2500 Frisco Avenue
Memphis, Tennessee 38114
10 • Troubleshooting
