Hunter Maribel Series User manual

MB012-01 • 01/07/14 • © Hunter Fan Company
www.HunterFanInternational.com
ENGLISH

www.HunterFanInternational.com
PA G E
8
PA G E
14
PA G E
11
PA G E
5
PA G E
7
30 inches
7 feet
PA G E
2
What to Expect with
Your Installation Ceiling Bracket
Ladder
PA G E
3
Tools Needed
Wiring Canopy

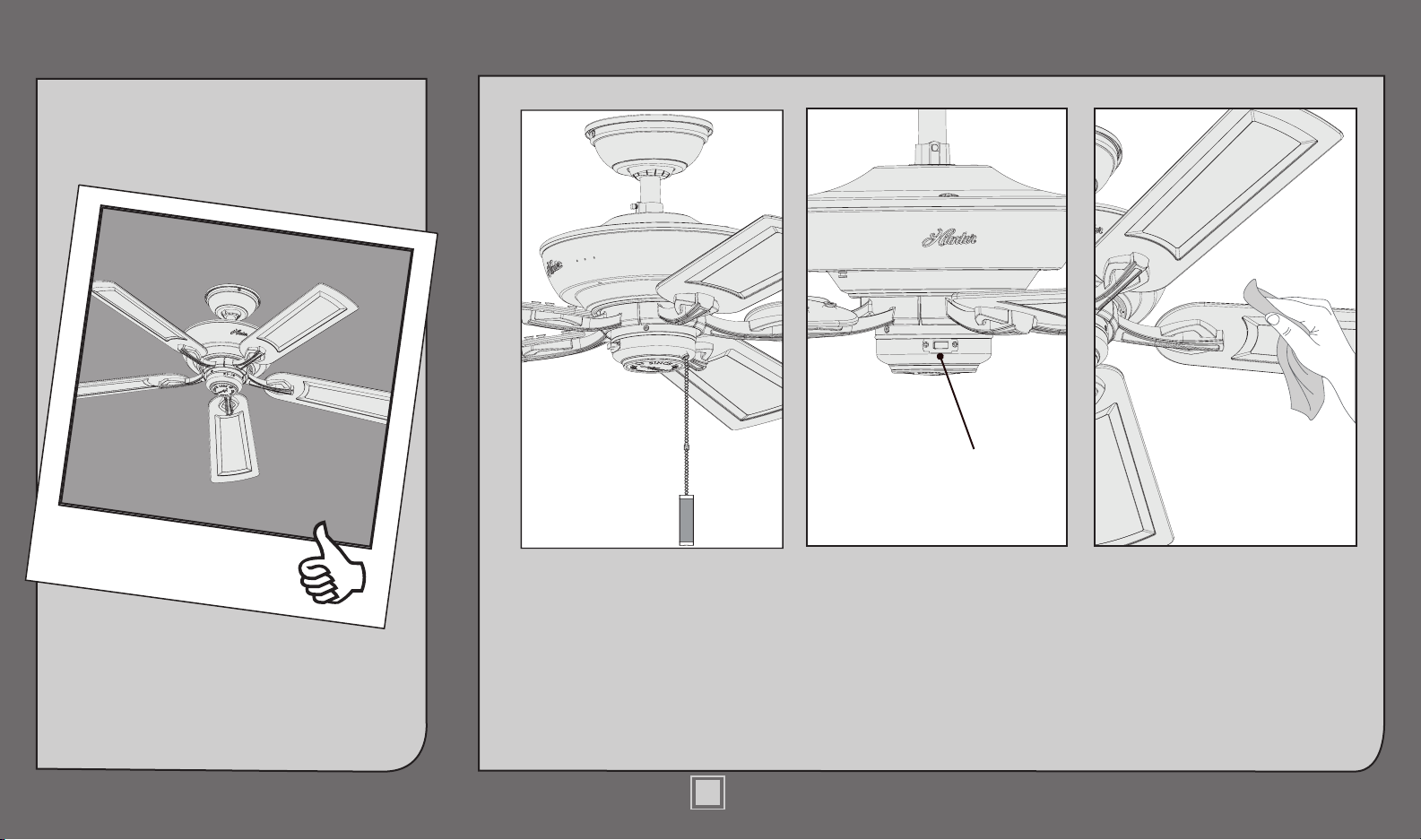

Maintenance
& Cleaning
Blades Troubleshooting
Downrod
Switch Housing
Preparation

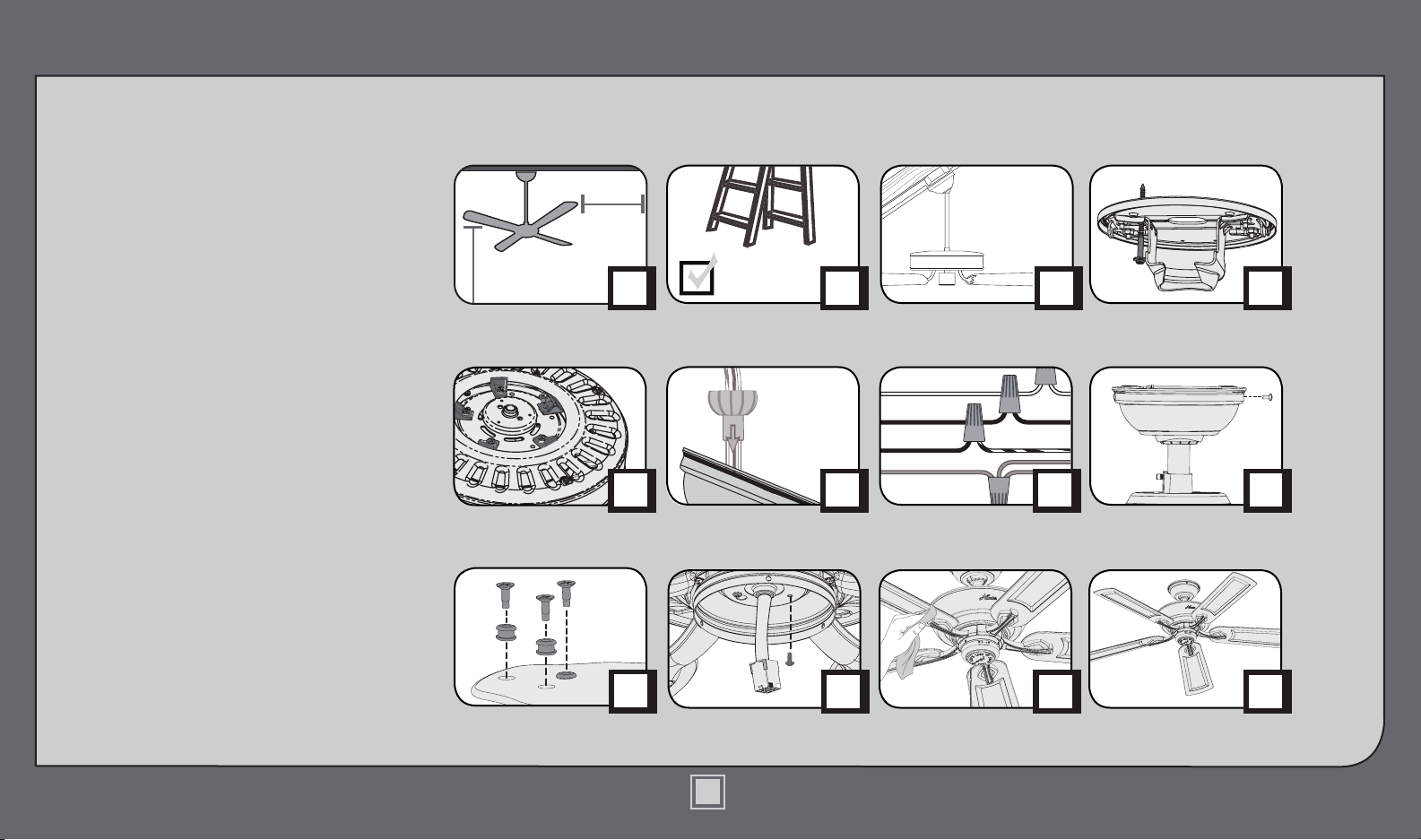

Table of Contents
PA G E
12
PA G E
13
PA G E
4
Mounting Options
PA G E
16
?
?
?
PA G E
17
Congratulations on purchasing
your new Hunter® ceiling fan! It will
provide comfort and performance
in your home or ofce for many
years. This installation and operation
manual contains complete
instructions for installing and
operating your fan.
We are proud of our work and
appreciate the opportunity to
supply you with the best ceiling fan
available anywhere in the world.
1
MB012-01 • 01/07/14 • © Hunter Fan Company

www.HunterFanInternational.com
Know your wiring
If you are unfamiliar
with wiring, use a
qualied electrician.
You may need a
friend to help you.
Check box to see
fan weight Assess ceiling angle
Must be able to
secure the fan to
building structure or
fan-rated outlet box
2
Ceiling angles greater
than 34° will require an
Angled Mounting Kit.
See page 4 for details.
Assess location
,8 Meters
(30 inches)
from blade tip
to nearest wall
or obstruction
2,1 Meters
(7 feet)
from bottom
edge of blade
to the oor
Select a downrod length
1
2
3
Standard Downrod
for ceilings 2,4-3 m (8-10 feet) high
Shorter Downrod
for fans installed close to ceiling
Longer Downrod
for ceilings 3 m (10 feet) or higher
MB012-01 • 01/07/14 • © Hunter Fan Company
1.888.830.13261.888.830.1326
What to Expect with Your Installation
w.1 - To reduce the risk of re, electrical shock, or
personal injury, mount fan directly from building
structure and/or an outlet box marked acceptable for
fan support of 70 lbs (31.8 kg) and use the mounting
screws provided with the outlet box.
w.2 - To avoid possible electrical shock, before installing
or servicing your fan, disconnect the power by turning
off the circuit breakers to the outlet box and associated
wall switch location. If you cannot lock the circuit
breakers in the off position, securely fasten a prominent
warning device, such as a tag, to the service panel.
w.3 - To reduce the risk of re, electrical shock, or motor
damage, use only Hunter Solid State Speed Controls.
w.4 - To reduce the risk of personal injury, do not bend the
blade brackets when installing the blade brackets, balancing
the blades, or cleaning the fan. Do not insert foreign objects
in between rotating fan blades.
c.1 - All wiring must be in accordance with national and
local electrical codes ANSI/NFPA 70. If you are unfamiliar
with wiring, use a qualied electrician.
c.2 - Use only Hunter replacement parts.
Read and Save These Instructions
This product conforms to UL Standard 507.
WARNINGS
CAUTIONS
2

www.HunterFanInternational.com

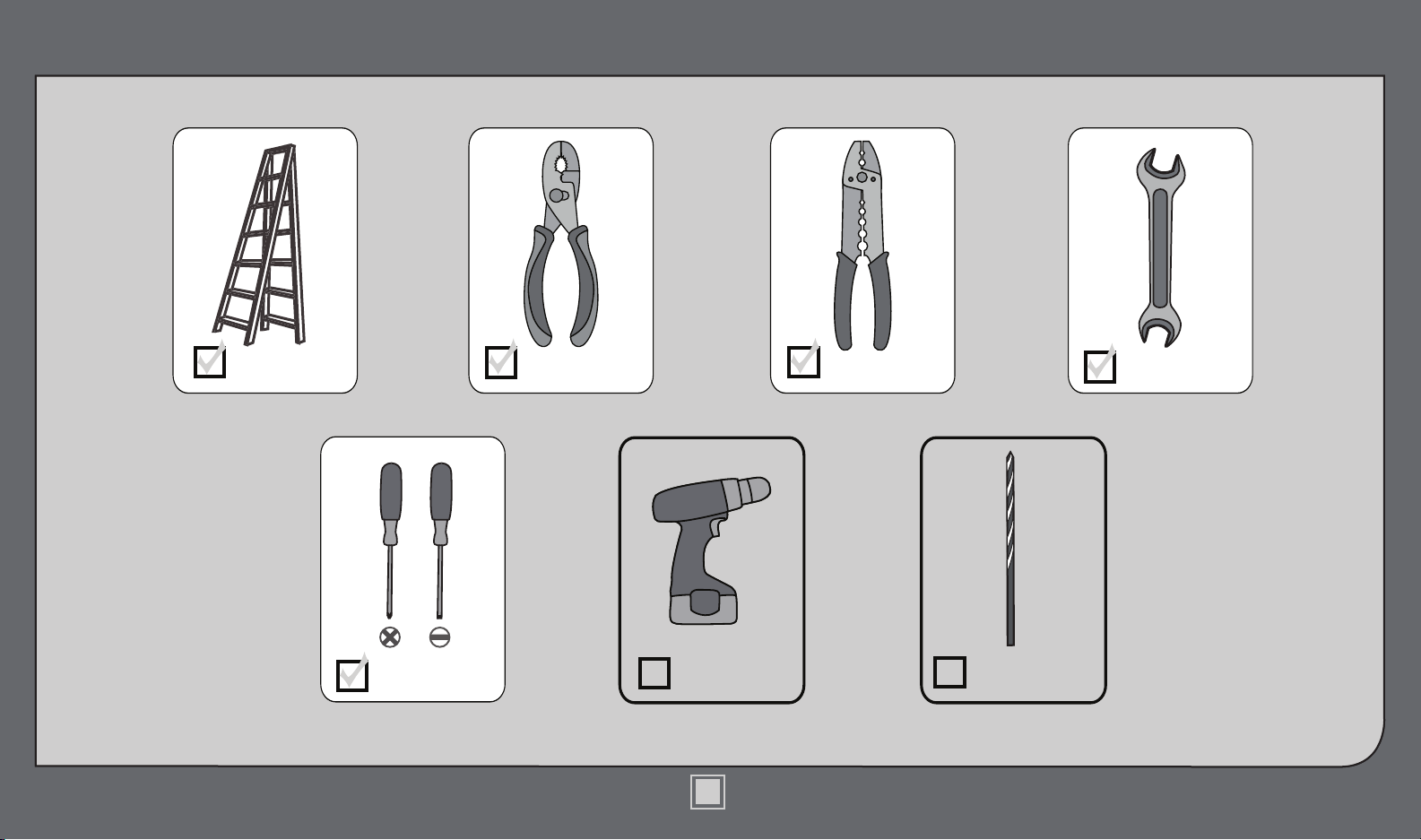

Tools Needed
Screwdrivers
Ladder Pliers Wire Strippers
Power Drill
(optional)
9/64” Drill Bit
(optional)
If mounting to a support structure, you will also need these tools.
11/32” Wrench
3
MB012-01 • 01/07/14 • © Hunter Fan Company

4
MB012-01 • 01/07/14 • © Hunter Fan Company
www.HunterFanInternational.com
1.866.268.1936
If you have an angled ceiling:
1. You will need a longer downrod (sold separately).
2. If your ceiling angle is greater than 34°, you will
also need an Angled Mounting Kit (sold separately).
Guide Touches
BOTH Ceiling & Wall
S
I
T
U
A
T
I
O
N
1
Guide Touches Wall
but NOT Ceiling
S
I
T
U
A
T
I
O
N
2
You need BOTH
a Longer
Downrod &
an Angled
Mounting Kit
You need ONLY
a Longer
Downrod
*most common
If you have a at ceiling:
Hang your fan by a standard downrod (included).
Mounting Options
Use Standard Mounting
or Low-Prole Mounting
to hang the fan from a at ceiling.
Use Angled Mounting
to hang the fan from a
vaulted or angled ceiling.
4
34OCEILING
WALL
OPTION
1
Standard
Mounting
OPTION 2
Angled
Mounting
2 3
SLIDE
toward ceiling
PLACE
against wall
1
FOLD
on dotted line
34°
Use the three steps below to determine if your ceiling angle is greater than 34°
Support
Structure
Ceiling
Outlet Box
(required)
Angled
Mounting
Style
Standard
Mounting
Style
Support
Structure
Ceiling
Outlet Box
(required)
MB012-01 • 01/07/14 • © Hunter Fan Company
www.HunterFan.com

5
MB012-01 • 01/07/14 • © Hunter Fan Company
www.HunterFanInternational.com

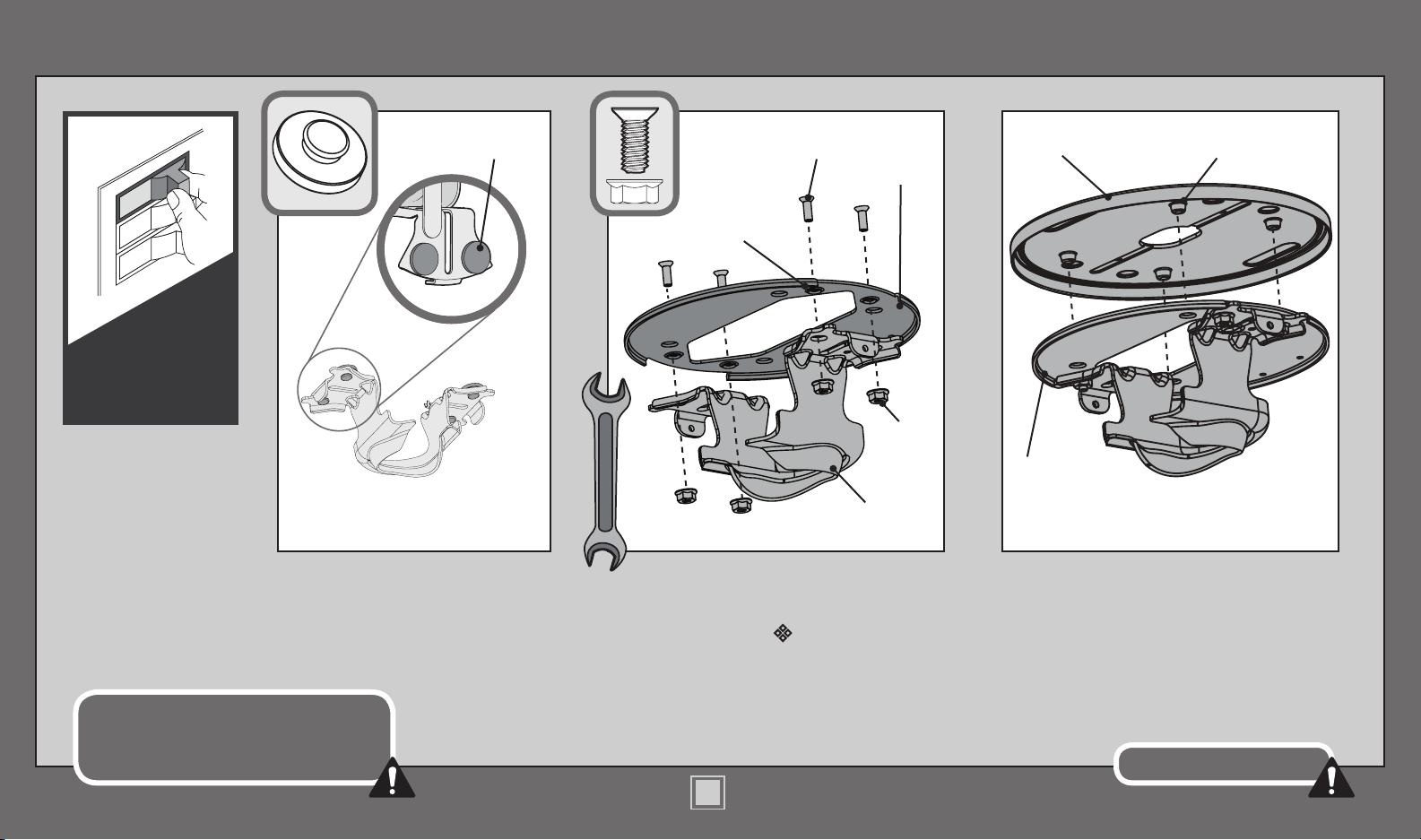

Ceiling Bracket
OFF
Refer to warning w.1 on pg. 2
To avoid possible electrical shock, before
installing your fan, disconnect the power by
turning off the circuit breakers to the outlet
box associated with the wall switch location.
Turn Power
Remove all four mounting isolators. Align the tapered mounting holes in the
ceiling plate with the holes in the ceiling
bracket. Install the four ceiling plate
screws found in the hardware bag and
secure with the ange nuts using an 11/32”
wrench. Hold the ceiling bracket assembly
up to the outlet box and mark the screw
locations. To mount to support structure,
also mark the ceiling for drilling pilot holes.
Install the ceiling plate gasket onto the
ceiling plate. The four holes in the ceiling
plate should lineup with the four posts in
the gasket.
Tapered
Mounting
Holes
Ceiling
Plate
Gasket
Post
Ceiling
Plate
Ceiling
Plate
Flange
Nuts
Mounting
Isolator
Ceiling
Bracket
Ceiling Plate
Screws

6
MB012-01 • 01/07/14 • © Hunter Fan Company
www.HunterFanInternational.com
1.888.830.1326
www.HunterFan.com

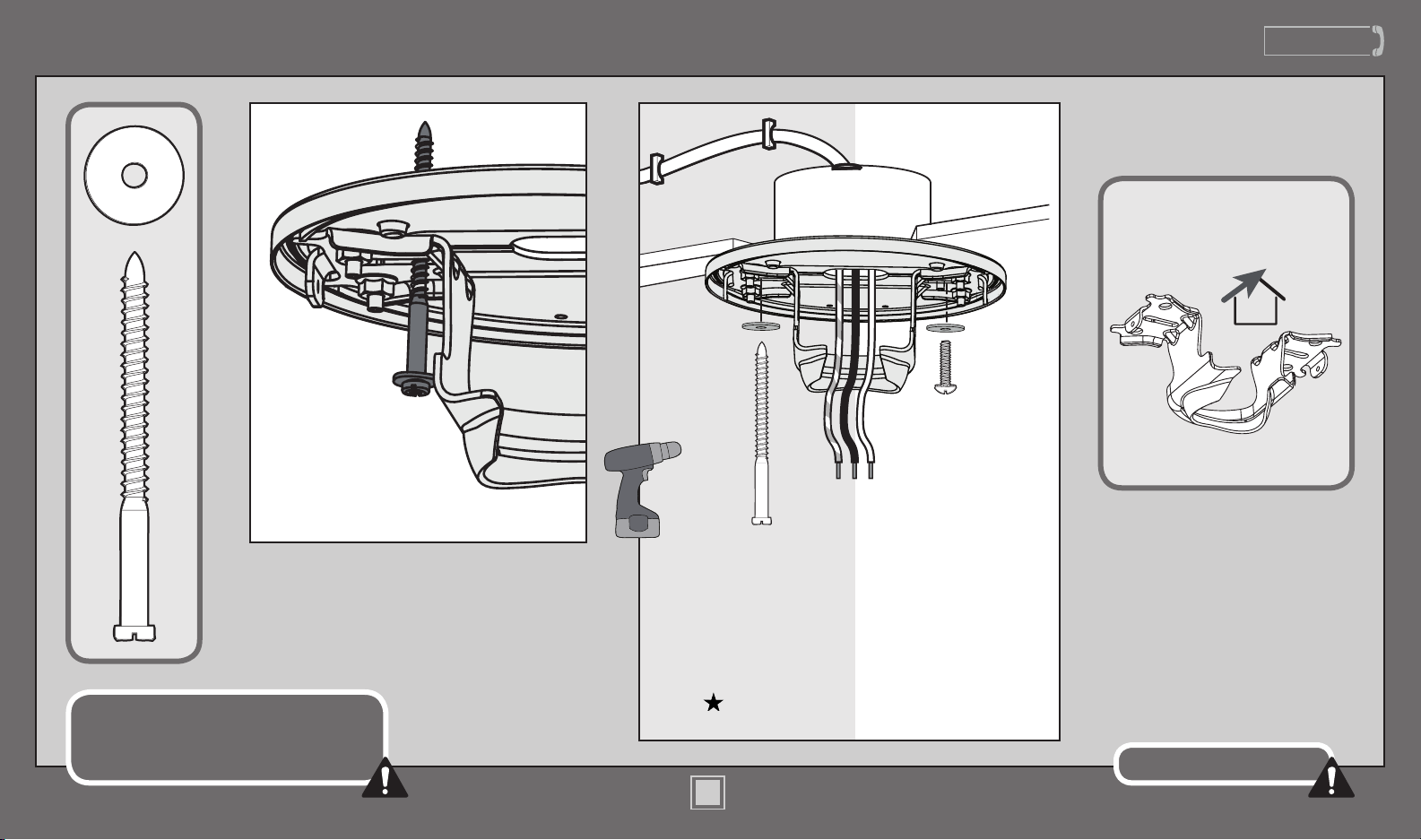

Ceiling Bracket (continued)
For angled ceilings, point
opening toward peak.
Refer to warning w.1 on pg. 2
To avoid possible electrical shock, before
installing your fan, disconnect the power by
turning off the circuit breakers to the outlet
box associated with the wall switch location.
Use wood screws (included)
and washers when securing
to support structure with
approved electrical outlet
box. Drill 9/64” pilot holes in
support structure to aid in
securing ceiling bracket with
hardware found in
the hardware bag.
Use machine screws
(provided with outlet
box) and washers when
securing to existing ceiling
fan-rated outlet box. Make
sure it is securely installed
and is acceptable for fan
support of 31.8 kg (70 lbs)
or less.
Use the wood screw to poke holes through
the rubber gasket in order to install the
ceiling bracket assembly to your support
structure or ceiling fan-rated outlet box.

www.HunterFanInternational.com
Ceiling Bracket (continued) Preparation 1.888.830.1326
www.HunterFan.com
D
I
S
C
A
R
D
K
E
E
P
!
Remove the shipping blocks from the
motor. Save the screws. They will be
needed for blade iron installation.
Note: Some fans will have a shipping
ring instead of shipping blocks. Please
remove the ring and save the screws.
Time Saver Tip: Get a helper
to insert grommets, found in
the hardware bag, into the
blades while you’re doing the
next couple of steps.
7
MB012-01 • 01/07/14 • © Hunter Fan Company

www.HunterFanInternational.com

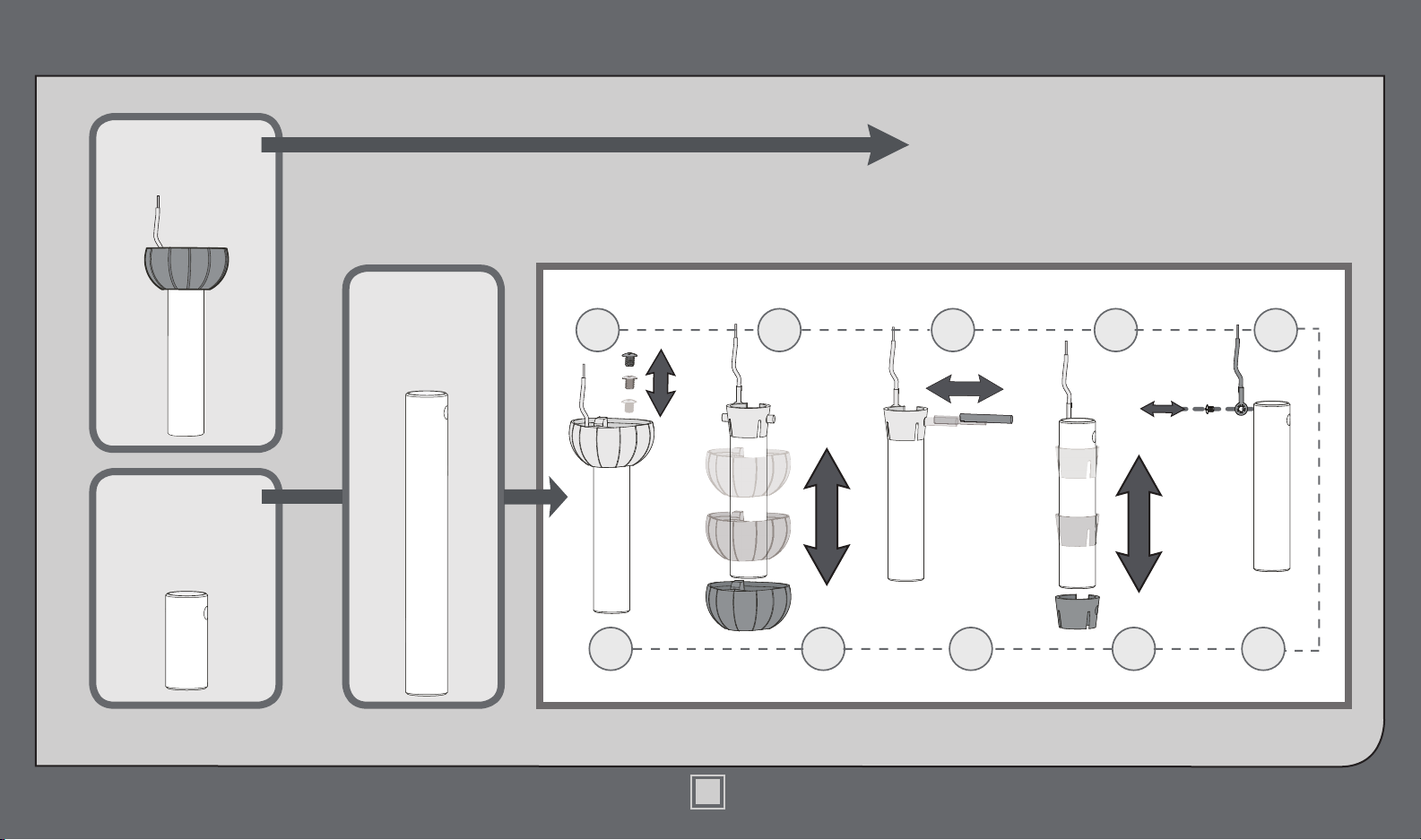

Downrod www.HunterFan.com
Slide
Slide
1 2 3 4 5
678910
Sold Separately
Included
Longer
Downrod
for angled
ceilings or
ceilings 3 m
(10’) or higher
Shorter
Downrod
for fans installed
close to ceiling
Standard
Downrod
for ceilings 2,4-3 m (8-
10’) high
Option 1Option 2
Option 3
skip to next page
If you need a different downrod length follow these steps:
Steps 1-5 to remove standard downrod pipe
Steps 6-10 to reassemble with new pipe
Included (pre-assembled)
8
MB012-01 • 01/07/14 • © Hunter Fan Company

www.HunterFanInternational.com

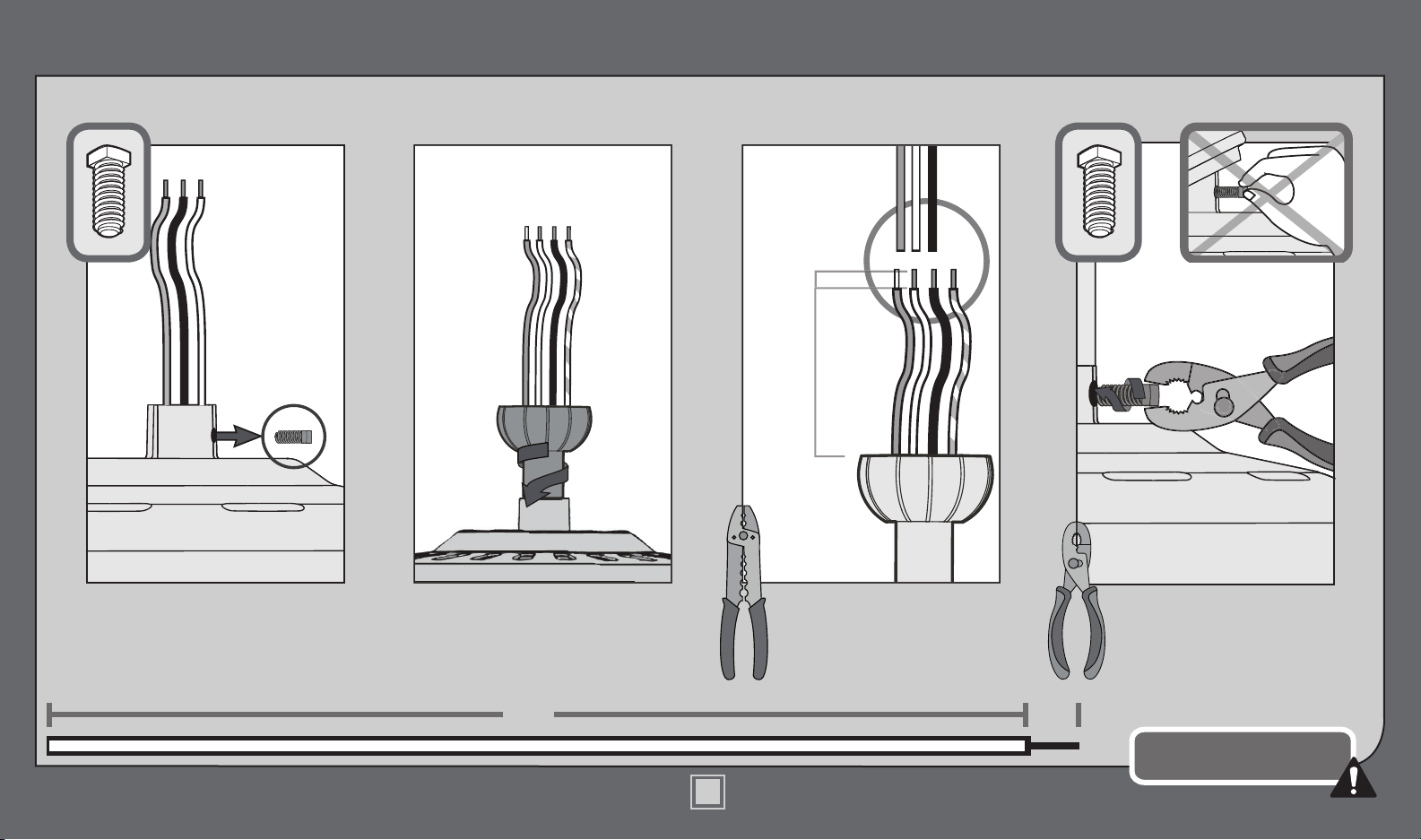

Downrod (continued)
KEEP!
20 cm
(8”)
1 cm
(3/8”)
C
U
T
&
S
T
R
I
P
(not to scale)
Remove the pre-installed
setscrew so that the downrod
can be inserted.
Hand tighten the downrod (at
least 4-5 full turns) until it stops.
The wires can be cut, but
leave at least 20 cm (8”)
extending from the top of
the downrod.
20 cm
(8”)
1 cm
(3/8”)
Tighten the setscrew
with pliers. DO NOT
HAND TIGHTEN.
If the setscrew is not tightened
securely, the fan may fall.
K
E
E
P
!
9
MB012-01 • 01/07/14 • © Hunter Fan Company

10
MB012-01 • 01/07/14 • © Hunter Fan Company
www.HunterFanInternational.comwww.HunterFan.com

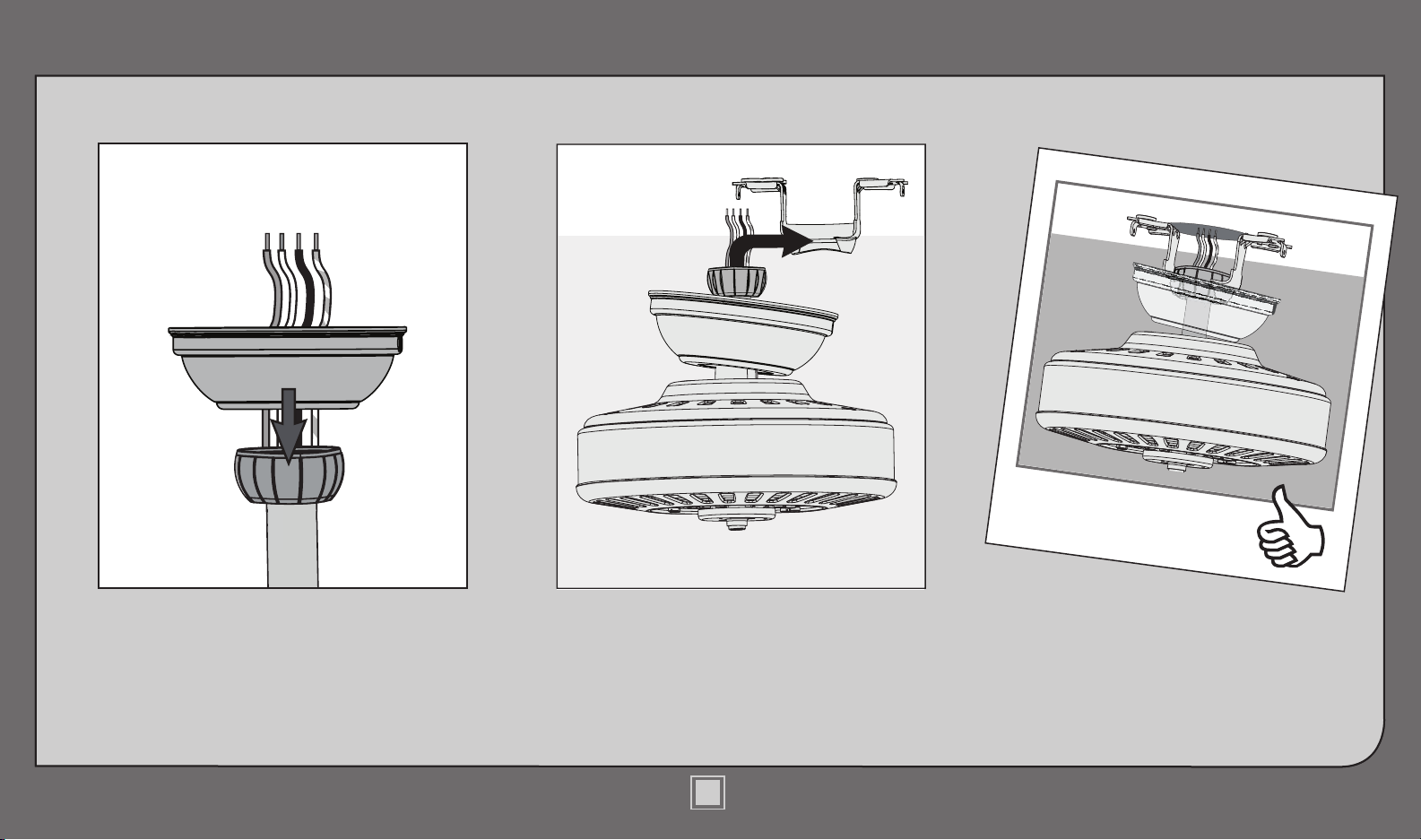

Downrod (continued)
DO NOT PICK THE FAN UP BY THE
CANOPY OR WIRES. Place the downrod
ball into the slot in the ceiling bracket.
Put the wires and downrod through the
canopy. Let the canopy sit loosely on top
of the fan.

www.HunterFanInternational.com

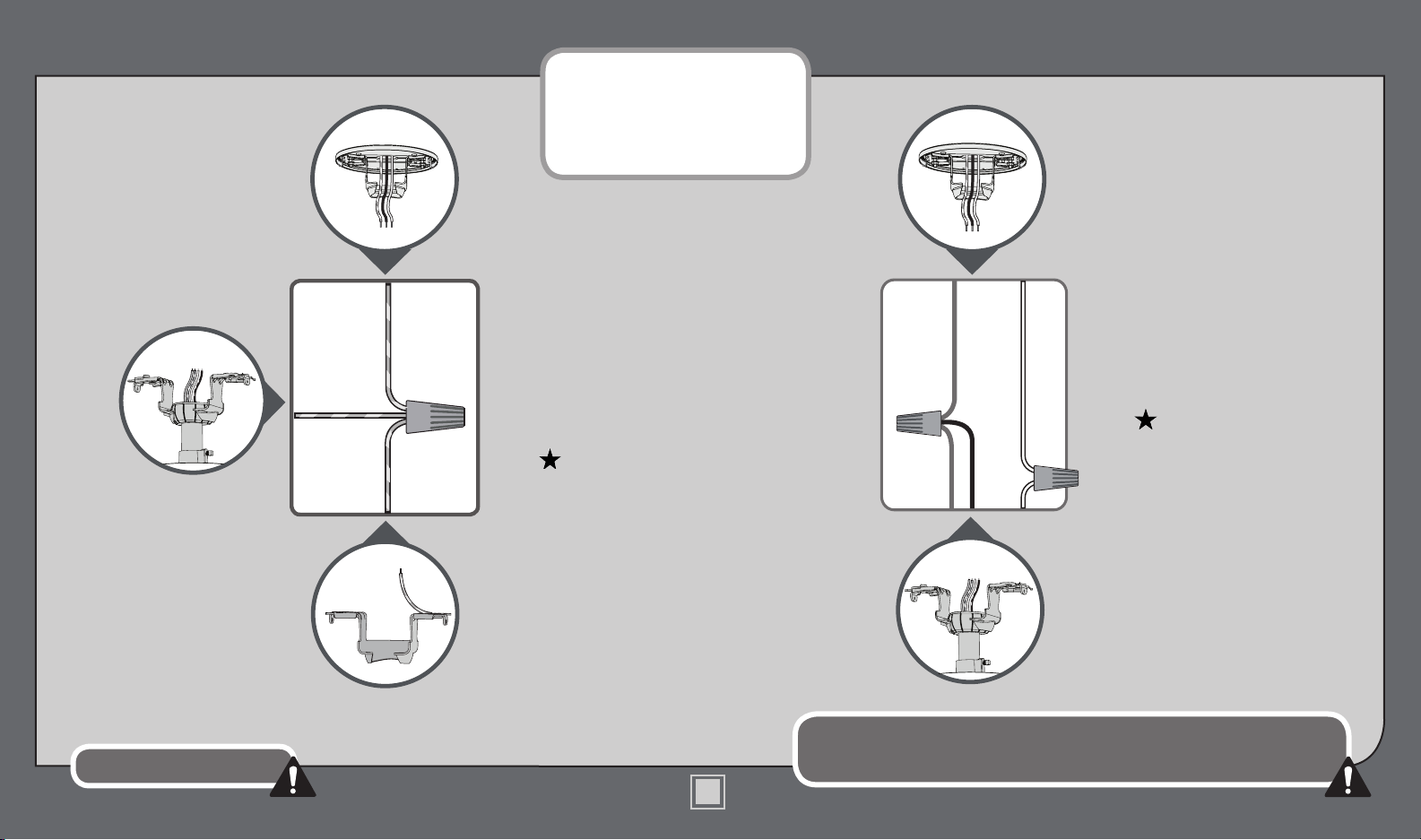

Wiring
Turn the splices upward and push them carefully back through the hanger bracket
into the outlet box. Spread the wires apart, with the grounded wires on one side of
the outlet box and the ungrounded wires on the other side of the outlet box.
Refer to CAUTION c.1 on pg. 2
F
R
O
M
C
E
I
L
I
N
G
B
R
A
C
K
E
T
F
R
O
M
C
E
I
L
I
N
G
F
R
O
M
C
E
I
L
I
N
G
F
R
O
M
F
A
N
Green/Yellow Stripe (grounding)
Green/Yellow Stripe
Green/Yellow Stripe
Note: To connect the wires,
hold the bare metal leads
together and place a wire
connector over them, then twist
clockwise until tight.
F
R
O
M
F
A
N
Using the orange
wire connectors from
the hardware bag,
connect the black wire
(ungrounded) from the
ceiling to the black and
the blue wires from the
fan. Connect the white
wire (grounded) from
the ceiling to the white
wire from the fan.
Using an orange wire
connector from
the hardware bag,
connect the 3 grounding
wires (green, green/
yellow stripe, or bare
copper) coming from the
ceiling, downrod, and
hanging bracket.
Black (ungrounded)
White (grounded) White
Blue
Black
11
MB012-01 • 01/07/14 • © Hunter Fan Company

12
MB012-01 • 01/07/14 • © Hunter Fan Company
www.HunterFanInternational.com
Canopy
Lift the canopy into place so that
the screw holes are aligned.
Position the canopy so that, when
lifted into place, the canopy ts into
the hanging bracket as shown.
Screw
Holes
Insert the two canopy screws
found in the hardware bag.
Note: Fan style may vary.

MB012-01 • 01/07/14 • © Hunter Fan Company
www.HunterFanInternational.com
Blades
13
Insert grommets found in the hardware
bag into the holes in the blades, then
secure each blade to a blade iron with
screws found in the hardware bag.
Lightly attach the blade irons to the
motor with the blade iron armature
screws, then securely tighten after both
screws are attached.
Remember the screws that
you kept after removing the
shipping blocks (page 7)? You
need them for this step.

www.HunterFanInternational.com

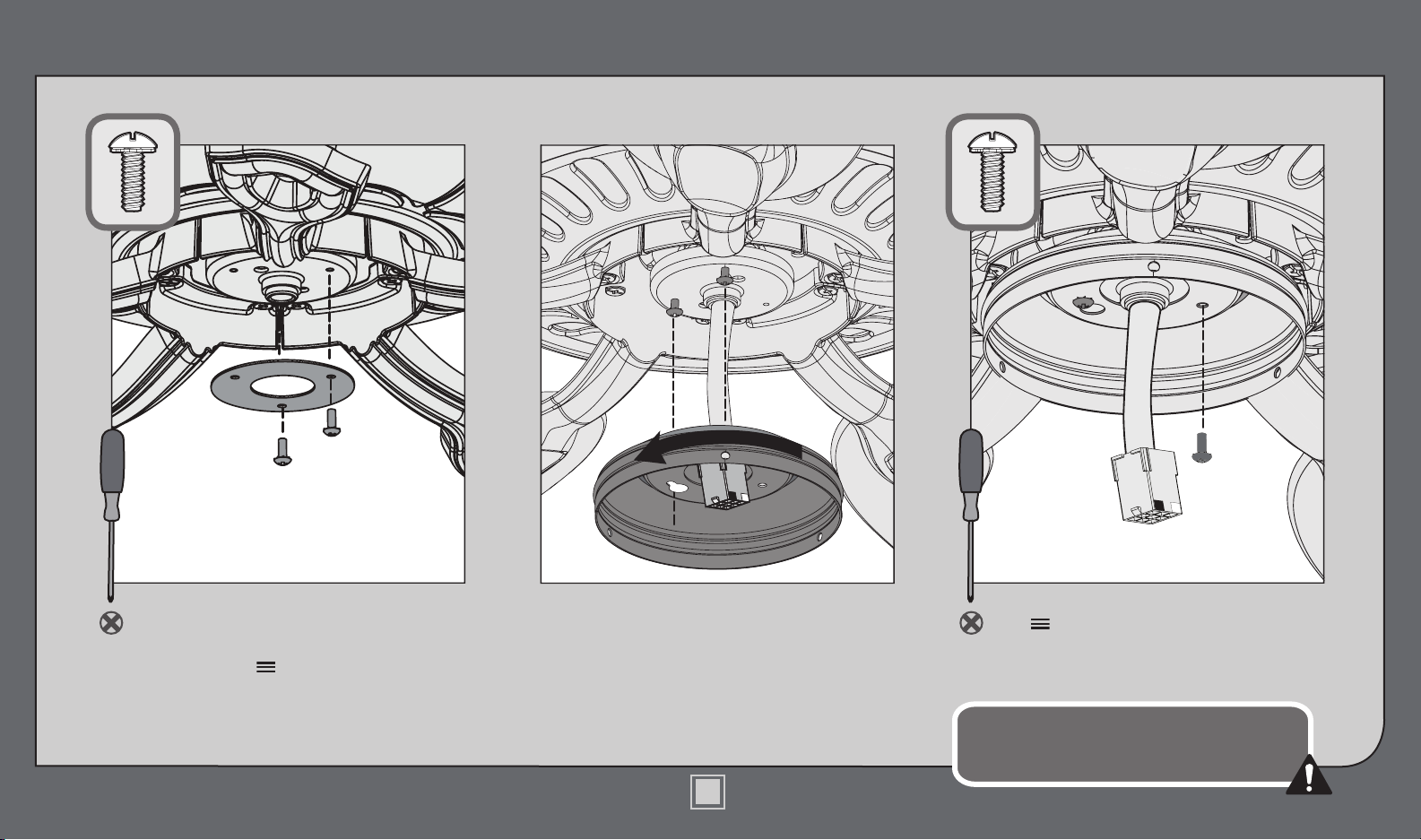

Feed the wire plug through the center
hole of the upper switch housing, then
wrap keyhole slots around the screws and
twist counterclockwise.
Align the screw holes in the switch
housing gasket and the motor housing.
Screw two switch housing assembly
screws from the hardware bag halfway
into the motor housing. It does not matter
which two screw holes you choose.
Insert the third screw, found in
the hardware bag, into place and then
tighten all three screws.
Make sure the upper switch housing is securely
attached to the mounting plate. Failure to properly
secure all 3 assembly screws could result in the switch
housing xture falling.
Switch Housing
14
MB012-01 • 01/07/14 • © Hunter Fan Company

15
MB012-01 • 01/07/14 • © Hunter Fan Company
www.HunterFanInternational.com
Switch Housing (continued)
Connect the plugs from the
upper and lower switch housings.
Make sure to line up the colored
markings on the plug connectors.
Screw
Holes
Connect the fan pull chain
pendant to the short chain
coming from the switch housing.
ON
Turn Power
Lift the lower switch housing
until the screw holes are aligned
with the screw holes in the
upper switch housing. Install
the three switch housing screws
found in the hardware bag.
Make sure the lower switch housing is securely attached to
the upper switch housing. Failure to properly secure all three
assembly screws could result in the light xture falling.

MB012-01 • 01/07/14 • © Hunter Fan Company
www.HunterFanInternational.com
16
Switch Housing (continued) Maintenance & Cleaning
Changing the direction of air
ow - move the reverse switch
to the opposite position.
Cleaning the fan - use soft
brushes or cloths to prevent
scratching. Cleaning products
may damage the nishes.
Reverse
Switch
The pull chain controls the fan:
from high to off.
CONGRATULATIONS!
YOU’RE DONE!

www.HunterFanInternational.com
Troubleshooting
Excessive wobbling
• Tighten all of the blade and
blade iron screws until they
are snug.
• Use the provided balancing
kit and instructions to
balance the fan.
Noisy Operation
• Tighten the blade and blade
iron screws until they are snug.
• Check to see if any of the
blades are cracked. If so, replace
all of the blades.
Fan doesn’t work
• Make sure power switch is on.
• Pull the pull chain to make sure
it is on.
• Push the motor reversing switch
rmly left or right to ensure that
it is engaged.
• Check the circuit breaker to
ensure the power is turned on.
• Make sure the blades spin freely.
• Turn off power from the circuit
breaker, then loosen the canopy
and check all the connections
according to the wiring diagram
on page 11.
• Check the plug connection in
the switch housing.
17
MB012-01 • 01/07/14 • © Hunter Fan Company
