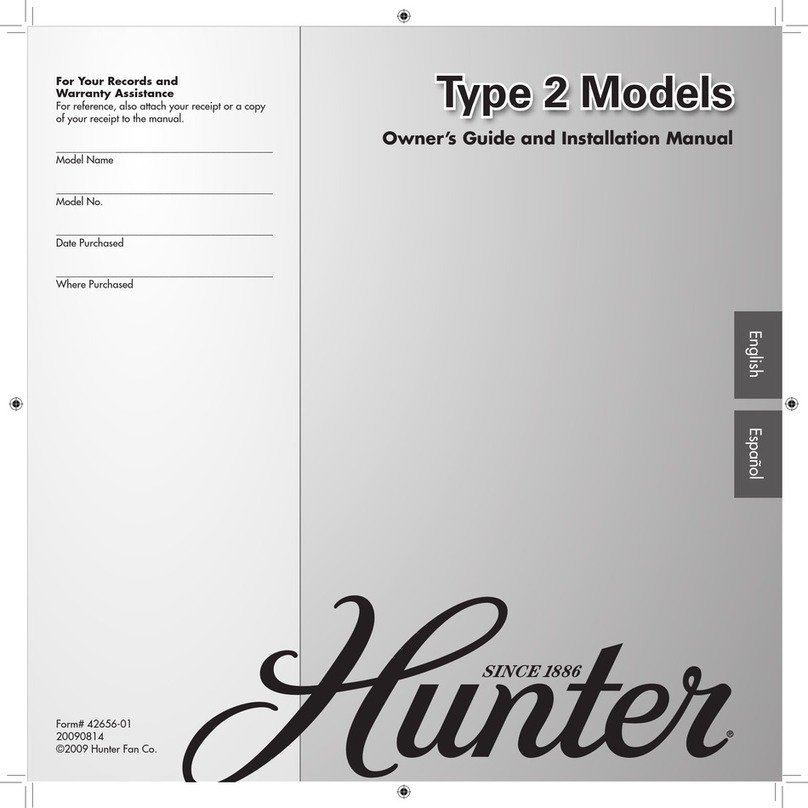

Hunter Type 2 Series Instruction manual

 45001-01•20080925
Type 2 ModelsType 2 ModelsType 2 Models
Form# 45058-01
20090813
©2009 Hunter Fan Co.
For Your Records and
Warranty Assistance
For reference, also attach your receipt or a copy
of your receipt to the manual.
__________________________________________
Model Name
__________________________________________
Model No.
__________________________________________
Date Purchased
__________________________________________
Where Purchased
English Español
Owner’s Guide and Installation Manual

45058-01•08/13/09•HunterFanCompany
90% Pre-Assembled Out Of The Box!
Makes Installation Fast in 3 Easy Steps
1. Installmountingbracketandmakewiringconnections
2. AttachEasyLockTMBlades
3. Installbulb(s)andglass
Pleasefollowthedetailedinstallationinstructionsinsidethismanual
Installation is complete!

2
45058-01•08/13/09•HunterFanCompany
© 2009 Hunter Fan Company
YournewHunter®ceilingfanisanadditiontoyourhomeorocethat
willprovidecomfortandperformanceformanyyears.isinstallation
andoperationmanualgivesyoucompleteinstructionsforinstalling
andoperatingyourfan.
Weareproudofourwork.Weappreciatetheopportunitytosupply
youwiththebestceilingfanavailableanywhereintheworld.
Beforeinstallingyourfan,foryourrecordsandwarrantyassistance,
recordinformationfromthecartonandHunternameplatelabel
(locatedonthetopofthefanmotorhousing).
Cautions and Warnings
•READ THIS ENTIRE MANUAL CAREFULLY BEFORE BEGINNING
INSTALLATION. SAVE THESE INSTRUCTIONS.
•UseonlyHunterreplacementparts.
•Toreducetheriskofpersonalinjury,attachthefandirectlytothe
supportstructureofthebuildingaccordingtotheseinstructions,
anduseonlythehardwaresupplied.
•Toavoidpossibleelectricalshock,beforeinstallingyourfan,
disconnectthepowerbyturningothecircuitbreakerstothe
outletboxandassociatedwallswitchlocation.Ifyoucannotlock
thecircuitbreakersintheoposition,securelyfastenaprominent
warningdevice,suchasatag,totheservicepanel.
•Allwiringmustbeinaccordancewithnationalandlocalelectrical
codesandANSI/NFPA70.Ifyouareunfamiliarwithwiring,usea
qualiedelectrician.
•Toreducetheriskofpersonalinjury,donotbendtheblade
attachmentsystemwheninstalling,balancing,orcleaningthefan.
Neverinsertforeignobjectsbetweenrotatingfanblades.
•Toreducetheriskofre,electricalshock,ormotordamage,donot
useasolid-statespeedcontrolwiththisfan.UseonlyHunterspeed
controls.
Welcome
eHunter5-MinuteFancanbe
installedbymostusersin5minutes
orless!
*5 Minute time interval
does not include Section 2:
Installing the Ceiling Plate
Table of Contents
1•GettingReady .......................4
2•InstallingtheHangerBracket ........ 5
3•AssemblingandHangingtheFan . . . . 6
4•WiringtheFan.......................8
5•InstallingtheCanopyandCanopyTrim
Ring ............................... 9
6•AssemblingtheBlades..............10
7•CompletingYourInstallationWitha
BowlLightFixture .................11
8•OperatingandCleaningYourCeiling
Fan ...............................14
9•Troubleshooting....................15

3
45058-01•08/13/09•HunterFanCompany
Installer’s Choice and Optional Accessories
Understanding Mounting and Installer’s Choice®
Hunter’spatented3-positionmountingsystemprovidesyoumaximum
installationexibilityandease.YoucaninstallyourHunterfaninone
ofthreeways,dependingonceilingheightandyourpreference:Low
Prole,Standard,orAngledmounting.estepsinthismanualinclude
instructionsforallthreeInstaller’sChoicemountingmethods.
Considering Optional Accessories
ConsiderusingHunter’soptionalaccessories,includingawall-mounted
orremotespeedcontrol.Toinstallandusetheaccessories,follow
theinstructionsincludedwitheachproduct.Forquietandoptimum
performanceofyourHunterfan,useonlyHunterspeedcontrols.
Forceilingshigherthan8feet,youcanpurchase
Hunterextensiondownrods.AllHunterfansuse
sturdy3/4”diameterpipetoassurestabilityand
wobble-freeperformance.
Standard Mountinghangsfromthe
ceilingbyadownrod(included).
Angled Mountingrecommendedfora
vaultedorangledceiling
SupportBrace
Standard
Mounting
Style
Ceiling
OutletBox
SupportBrace
Ceiling
OutletBox
Angled
Mounting
Style
Low Profile Mountingtsclosetothe
ceiling,recommendedforceilingsless
than8feethigh
SupportBrace
LowProle
Mounting
Style
Ceiling
OutletBox
8
12
CAUTION: To
reducetheriskof
personalinjury,attach
thefandirectlytothe
supportstructureof
thebuildingaccording
totheseinstructions,
anduseonlythe
hardwaresupplied.

4
45058-01•08/13/09•HunterFanCompany
Toinstallaceilingfan,besureyoucandothefollowing:
•Locatetheceilingjoistorothersuitablesupportinceiling.
•Drillholesforandinstallwoodscrews.
•Identifyandconnectelectricalwires.
•Lift40pounds.
Ifyouneedhelpinstallingthefan,yourHunterfandealercandirect
youtoalicensedinstallerorelectrician.
Gathering the Tools
Youwillneedthefollowingtoolsforinstallingthefan:
•Electricdrillwith9/64”bit
•Standardscrewdriver(magnetictiprecommended)
•Phillips-headscrewdriver(magnetictiprecommended)
•Wrenchorpliers
•Ladder(heightdependentuponinstallationsite)
Checking Your Fan Parts
Carefullyunpackyourfantoavoiddamagetothefanparts.Referto
theincludedPartsGuide.Checkforanyshippingdamagetothemotor
orfanblades.Ifanypartsaremissingordamaged,contactyourHunter
dealerorcallHunterTechnicalSupportDepartmentat888-830-1326
(InCanada,call866-268-1936).
Preparing the Fan Site
Beforeyoubegininstallingthefan,followalltheinstructionsin
thepulloutsheetcalled“PreparingtheFanSite.”Properceilingfan
locationandattachmenttothebuildingstructureareessentialfor
safety,reliableoperation,maximumeciency,andenergysavings.
Installing Multiple Fans?
Ifyouareinstallingmorethan
onefan,keepthefanbladesand
bladeirons(ifapplicable)insets,
astheywereshipped.
1 • Getting Ready

5
45058-01•08/13/09•HunterFanCompany
2-1. Drilltwopilotholesintothewoodsupportstructurethroughthe
outermostholesintheoutletbox.epilotholesshouldbe9/64”
indiameter.
Note:Yourfancomeswithfourpre-installedneoprenenoise
isolators.
2-2. readtheleadwiresfromtheoutletboxdownthroughthehole
inthemiddleofthehangerbracket.
2-3. Aligntheslottedholesinthehangerbracketwiththepilotholes
youdrilledinthewoodsupportstructure.Forproperalignment
useslottedholesdirectlyacrossfromeachother.Ifyouare
installingthefanonanANGLED ceiling,besuretoorientthe
hangerbracketasshowninIllustration2-3(leftorrightview).
Note:eisolatorsshouldbeushagainsttheceiling.
2-4. Placeaatwasheroneachofthetwo3”screwsandpassthe
screwsthroughtheslottedholesinthehangerbracketintothe
pilotholesyoudrilled.
  Tightenthescrewsintothe9/64”pilotholes;donotuselubricants
onthescrews.Donotovertighten.
FlatWasher
3”Screw
Steps 2-2 – 2-4
Hanger
Bracket
Isolator
Step 2-3 (Angled Ceiling Only)
OR
CeilingPeak CeilingPeak
Large
Opening Large
Opening
LEFT RIGHT
2 • Installing the Hanger Bracket
Install Bracket & Wiring

6
45058-01•08/13/09•HunterFanCompany
Youcanassembleyourfanforstandardorangled mountingasshown
inSteps3-1–3-5.Forlow profilemounting(ceilingslessthan8feet
high),gotosteps3-6–3-10onthenextpage.
3-1.Toassemblefantohangdownfromaatorangledceiling,place
thecanopyandcanopytrimringaroundtheadaptersothatthey
restonthefanassembly.
3-2. Feedthewiresfromthefanthroughthedownrod.
Note:Makesureallthewiresareonthesamesideofthemetal
dowelpininsidethedowrod.
3-3.Loosenthesquareheadsetscrewontheadaptertoinstallthe
pipeandballassembly.Note: Whenthepipeandballassembly
isfullyinstalled,2-3threadsonthepipewillstillbevisible;thisis
normal.Securelyretightenthesetscrewwithawrenchorpliers.
CAUTION:eadapterhasaspecialcoatingonthethreads.Do
notremovethiscoating;thecoatingpreventsthedownrodfrom
unscrewing.Onceassembled,donotremovethedownrod.
WARNING:Donotcarryorliftfanbycanopy.
3-4.Raisethefanandplacetheballintothehangerbracket.
3-5. Alignthenotchontheballwiththeindentinthehangerbracket.
(Rotatethefanuntilyouhearthenotchpopintoplace.)
  Goto4 • Wiring the Fan.
WARNING:Fanmayfallifnotassembledasdirectedinthese
installationinstructions.
Steps 3-4 – 3-5
Indent
Steps 3-1 – 3-3
Downrod
Canopy
(withWasher)
Canopy
Trim
Ring
SetScrew
Adapter
3 • Assembling and Hanging the Fan
Install Bracket & Wiring

7
45058-01•08/13/09•HunterFanCompany
3 • Assembling and Hanging the Fan (Low Profile Only)
Youcanassembleyourfanforstandardorangled mountingasshown
inSteps3-1–3-5onthepreviouspage.Forlow profilemounting
(ceilingslessthan8feethigh),seeSteps3-6–3-10onthispage.
3-6. Removethescrewsfromthehangerballbracket.
3-7. Placethelowprolewasherfromthepartssackintothecanopy.
3-8. Placethecanopytrimringandcanopywithwasherontopofthe
fanassembly.
3-9. Alignthescrewholesinthewasherwiththeholesintheadapter.
Assemblesecurelywiththree#8-32x3/4”screws.
3-10.Raisethefanandplacethehookonthehangerbracketthrough
theroundholeintherimofthecanopy.
WARNING:Fanmayfallifnotassembledasdirectedinthese
installationinstructions.
Step 3-10
Step 3-7 (Detail)
LowProleWasher
(NotActualSize)
Steps 3-8 – 3-9
LowProleWasher
Canopy
TrimRing
Adapter
#8-32x3/4”Screw
Step 3-6
Install Bracket & Wiring

8
45058-01•08/13/09•HunterFanCompany
All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualified electrician.
Wallswitchesarenotincluded.Selectanacceptablegeneral-useswitch
inaccordancewithnationalandlocalelectricalcodes.
4-1. Beforeattemptinginstallation,makesurethepowerisstillo.
4-2. Toconnectthewires,holdthebaremetalleadstogetherandplace
awirenutoverthem,thentwistclockwiseuntiltight.Forallthese
connectionsusethewireconnectorsprovided.
4-3. Connectthebareorgreengroundwire(grounding)fromthe
ceilingtothegreengroundwire(grounding)fromtheceilingplate
andthegreengroundwirefromthefan.
4-4. Connectthewhitewire(grounded)fromtheceilingtothewhite
wire(grounded)fromthefan.
4-5. Connecttheremainingwiresasfollows:
Dual Switch Wiring:
•eblackwire(ungrounded)fromtheceilingtotheblackwire
(ungrounded)fromthefan
•eblack/whitewire(ungrounded)fromthefantothewire
(ungrounded)forthewallswitch
Single Switch Wiring:
•eblackwire(ungrounded)fromtheceilingtotheblack
(ungrounded)andtheblack/whitewire(ungrounded)from
thefan
CAUTION:Besurenobarewireorwirestrandsarevisibleafter
makingconnections.
4-6. Turnthewireconnectorsupwardandpushthemcarefullyback
throughtheceilingplateintotheoutletbox.
4-7. Spreadthewiresapart,withthegroundedwiresononesideof
theoutletboxandtheungroundedwiresontheothersideofthe
outletbox.
Wire
Connector
4 •Wiring the Fan
Install Bracket & Wiring

9
45058-01•08/13/09•HunterFanCompany
5-1.Partiallyinstalltwocanopyscrews(about2fullturns)inthe
hangerbracket.
5-2.Raisethecanopyoverthehangerbracket.Alignpartiallyinstalled
screwswithkeyslotsincanopy.
5-3. Twistcanopyclockwisetosecure.
5-4.Installthird&fourthcanopyscrewinroundholeoncanopy.
Securelytightenallfourscrews.
5-5. Usingbothhands,pushthecanopytrimringuptothetopofthe
canopy.
5-6. Twistcanopytrimringclockwisetosecurethecanopy.
Should you need to remove the canopy
trim ring, follow these steps:
 1.Twistcanopytrimring
counterclockwiseuntilitreleases
fromcanopy.
Steps 5-1 – 5-2
CanopyTrim
Ring
Canopy
HangerBracket
Step 5-3
Canopy
Screw
Step 5-4
Step 5-5
5 • Installing the Canopy and Canopy Trim Ring
Install Bracket & Wiring

10
45058-01•08/13/09•HunterFanCompany
10
OurexclusiveEasyLock™bladeassemblyenablesyoutolocktheblades
inplacewithouttoolsandtoremovethebladeseasilyforcleaning.
6-1.Openthelockingmechanism.
6-2.Aligntheholesinthebladewiththebladeiron.
6-3.Closethelockingmechanismsecurely.Youwillfeelitlockinto
place.
6-4. Repeatsteps6-1through6-3untilallbladesareinstalled.
Step 6-1
Step 6-3
Open
Close
6 • Assembling the Blades
Attach EasyLockTM Blades

11
45058-01•08/13/09•HunterFanCompany
LowerSwitch
Housing
Plug
Connector
Housing
AssemblyScrew
Plug
Connector
Detail
Steps 7-2 – 7-3
7-1. If you want to install the light xture,proceedwithStep7-2
now.
If you do not want to install the light xture,youneedto
uninstallitnow.See“UninstallingtheLightFixture”inStep7-10.
7-2. Toattachthelowerswitchhousing,connecttheupperplug
connectorfromthemotortothelowerplugconnectorinthe
lowerswitchhousingassembly.
Note:Bothplugconnectorsarepolarizedandwillonlyttogether
oneway.Makesuretheconnectorsareproperlyalignedbefore
connectingthem.Incorrectconnectioncouldcauseimproper
operationanddamagetotheproduct.
7-3. Placethelowerswitchhousingassemblyovertheupperswitch
housing.Alignthesidescrewholesintheupperandlowerswitch
housings.Attachthelowerswitchhousingtotheupperswitch
housingwiththreehousingassemblyscrews.
Note: IncompliancewithUSfederalenergyregulations,this
ceilingfancontainsadevicethatrestrictsthelightkittoa
maximumof190Watts.Exceedingthatlimitorthemarked
limitonthisproductmayresultinrehazardorimproper
operation.
7 • Completing Your Installation With a Bowl Light Fixture

12
45058-01•08/13/09•HunterFanCompany
Installing the Glass Bowl
7-4. FirstinstallB10candelabrabulbs(60
WattMaximum)intothesockets.
7-5. Attachtheextrapullchains(included)
tothefanpullchainandlightpullchain
usingtheplasticbreakawayconnector.
(Youmayndtheplasticbreakaway
connectorontheendoftheextra
chain.)
7-6. readthepullchainsthroughtheholes
inthemetaldisc.en,threadthepull
chainsthroughtheholeinthecenterof
theglassbowl.
7-7. readthepullchainsthroughthe
grommetholesonthesidesofthecover
plate.
7-8. Placethecoverplateupagainsttheglass
bowl.Aligntheholesinthecoverplate
andglassbowl.
7-9. Screwthenialontothethreadedrod
enduntiltight.
7 • Completing Your Installation With or Without a Bowl Light Fixture
LightBulbs
(B10
Candelabra
Base60Watt
Maximum)
GrommetHole
readed
Rod
MetalDisc
GlassBowl
CoverPlate
Finial
Breakaway
Connector
Install Bulb(s) & Glass

13
45058-01•08/13/09•HunterFanCompany
7 • Completing Your Installation With or Without a Bowl Light Fixture (Continued)
Uninstalling the Light Fixture
7-10. Removethelowerswitchhousingscrews,thenremovethelower
switchhousing.
7-11. Touninstallthelightxture,rstdisconnecttheplugconnectors
betweentheblackwireandtheredwire.
7-12. Disconnecttheplugconnectorsbetweenthetwowhitewires.
7-13. Uninstallthenutandwasherfromtheendofthelightxture
insidethelowerswitchhousing.
7-14. Unscrewthethreadedrodofthelightxturefromthelower
switchhousing.
7-15. Removethelightxturefromthelowerswitchhousing,pulling
disconnectedwiresthroughtheholeinthecenterofthelower
switchhousing.
Note:Whenremovingthewires,pullthethinplugconnector
(male)throughrst,andthenpulltheotherplugconnector
(female)throughthehole.
7-16. Installthedummyterminals(includedinthesackparts)onthe
twodisconnectedwiresinthelowerswitchhousing.
7-17. Installtheswitchhousingcapandplugbuttontothe
 lowerswitchhousing.
7-18. Re-attachthelowerswitchhousingbacktothefanand
  reinstallthelowerswitchhousingscrews.
Steps 7-12 – 7-16
Step 7-17
Cap
PlugButton
LowerSwitch
Housing
readedRod
Install Bulb(s) & Glass

14
45058-01•08/13/09•HunterFanCompany
In warm weather,use
downwardairowpattern
In cold weather,useupward
airowpattern
8-1. Turnonelectricalpowertothefan.
8-2. efanpullchaincontrolspowertothefan.epullchainhas
foursettingsinsequence:High,Medium,LowandO.
• Pullthechainslowlytochangesettings.
• Releaseslowlytopreventthechainfromrecoilingintothe
blades.
• echainusesabreakawayconnectorthatseparatesifthe
chainisjerked.Ifthishappens,simplyreinsertthechaininto
theconnector.
8-3. Ceilingfansworkbestbyblowingairdownward(counterclockwise
bladerotation)inwarmweathertocooltheroomwithadirect
breeze.Inwinter,havingthefandrawairupward(clockwiseblade
rotation)willdistributethewarmerairtrappedattheceiling
aroundtheroomwithoutcausingadraft.
8-4. Forcleaningnishes,useasoftbrushorlint-freeclothtoprevent
scratching.Avacuumcleanerbrushnozzlecanremoveheavier
dust.Removesurfacesmudgesoraccumulateddirtanddustusing
amilddetergentandaslightlydampenedcloth.Youmayuse
anartisticagent,butneverabrasivecleaningagentsastheywill
damagethenish.
8-5. Cleanwoodnishbladeswithafurniturepolishingcloth.
Occasionally,applyalightcoatoffurniturepolishforadded
protectionandbeauty.Cleanpaintedandhigh-glossbladesinthe
samemannerasthefannish.
To Change Airow Direction
Turnthefanoandletitcometoacomplete
stop.Slidethereversingswitchonthefantothe
oppositeposition.Restartfan.
Reversing
Switch
8 • Operating and Cleaning Your Ceiling Fan

15
45058-01•08/13/09•HunterFanCompany
Problem: Nothing happens; fan does not move.
1.Turnpoweron,replacefuse,orresetbreaker.
2.Loosencanopy,checkallconnectionsaccordingtothewiringthe
fansection.
3.Checktheplugconnectionintheswitchhousing.
4.Pushmotorreversingswitchrmlyleftorrighttoensurethatthe
switchisengaged.
5.Pullthepullchaintoensureitison.
6.Removetheshippingbumpers.
Problem: Noisy operation.
1.Tightenthebladebracketscrewsuntilsnug.
2.Checktoseeifthebladeiscracked.Ifso,replacealltheblades.
Problem: Excessive wobbling.
1.Ifyourfanwobbleswhenoperating,usetheenclosedbalancingkit
andinstructionstobalancethefan.
2.Tightenallbladeironscrews.
3.Turnpowero,supportfanverycarefully,andcheckthatthe
hangerballisproperlyseated.
Problem: Lights dim when turned on or do not turn on
1.Checktomakesurewattageoflightbulbsinstalledmatchthe
specicationsonthelightsocket.
Problem: If the light on this fan shuts o suddenly.
1.Turnthepowertothefanoatthewallswitch.Wait30seconds,
thenresumepowertothefan.
Ifyouneedpartsorserviceassistance,pleasecall
888-830-1326(InCanada,call1-866-268-1936)or
visitusatourWebsiteat
http://www.hunterfan.com.
HunterFanCompany
7130GoodlettFarmsPkwy#400
Memphis,Tennessee38016
9 • Troubleshooting
