Arc adjustment
(All PGM adjustable heads are PRESET to
approximately 40˚)
1. Rotate the nozzle turret counterclockwise
to the left stop.
2. Now, rotate the nozzle turret clockwise to
the right stop. This is the fixed side of the
arc. The nozzle turret must be held in this
position for all arc adjustments.
To increase arc:
1. Insert the key end of the Hunter wrench into
the adjustment socket on top of the sprinkler.
2. While holding the nozzle turret at the right
stop, turn the wrench clockwise. (Note: all
adjustments can be made with less than
one full turn of the adjusting wrench.)
3. Wrench will stop turning when adjusted to
the maximum arc (360˚). Do not go past
this stop.
4. Adjust to any arc between 40˚-360˚.
To decrease arc:
1. Insert the key end of the Hunter wrench into
the adjustment socket.
2. While holding the nozzle turret at the right
stop, turn the wrench counterclockwise.
3. Wrench will stop turning when adjusted to the
minimum arc (40˚). Do not go past this stop.
4. Adjust to any arc between 40˚-360˚.
Radius adjustment
To decrease radius:
1. Turn nozzle-retainer/range-adjustment screw
clockwise.This can reduce radius up to 25%.
2. If an even smaller radius is desired,
install a smaller nozzle. This will affect
precipitation rate.
To increase radius:
1. Turn nozzle-retainer/range-adjustment screw
counterclockwise.
2. If larger radius is desired, install larger
nozzle.This will affect precipitation rate.
Precipitation rate adjustment
To increase precipitation:
1. Remove existing nozzle.
2. Replace with larger size.
3. Adjust radius.
To decrease precipitation:
1. Remove existing nozzle.
2. Replace with smaller size.
3. Adjust radius.
Note: Undamaged nozzles are reusable.
Nozzle sets are also recyclable.
PGM
Gear Driven Sprinklers
Hunter Industries Incorporated •The Irrigation Innovators © 2003 Hunter Industries Incorporated
www.HunterIndustries.com P/N 700109 LIT-109 4/03
®

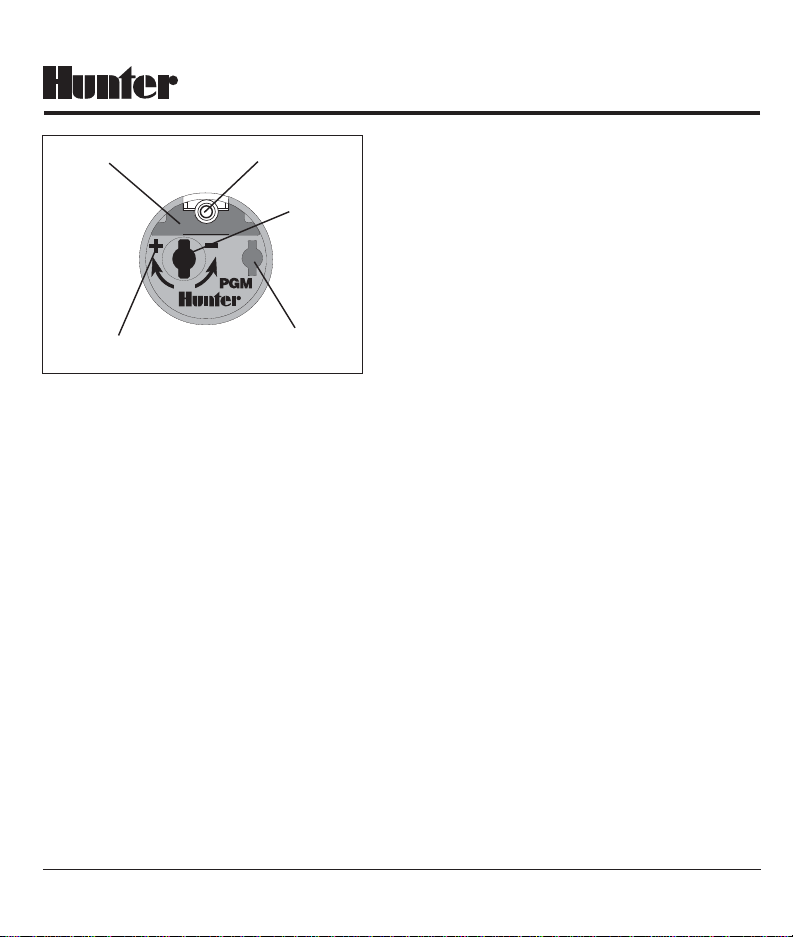

Nozzle
ID.Tab Adjustment
Socket
Radius Reduction Screw
Plus+
Minus-
Arc Adjustment Pull-up
Socket
®
Professional Series™

LIT-109.REVE (Converted)-1 9/19/03 3:48 PM Page 2
• If the top of the screw is
below the top of the turret,
the screw must be turned
counter-clockwise until it is
flush with the top before
removing the nozzle.
• If the screw is flush with the
top of the nozzle turret, the
nozzle can be installed by
reversing the steps above.
Step #2
While
holding
identifier
tab, push
down and
forward
on nozzle.
Top of screw must
be flush with top
of nozzle housing
Step #3
Pull
nozzle
straight
out.
Step #1
Use hex end
of Hunter
wrench to
pry nozzle
identifier tab
up from top
of sprinkler.
Nozzle Removal Removing Filter Screen
for Cleaning Proper Installation Height
Data represent test results in zero wind.
Adjust for local conditions. Radius may
be reduced up to 25% with adjustment
screw (this may alter the uniformity of
spray pattern). For information on
testing standards and precipition rate
calculations, see Hunter Irrigation
Products catalog. Optimum
performance is shown in bold type.
The average precipitation rate is
approximately .45" per hour for a 180˚
arc sprinkler (actual precipitation may
vary and should be calculated).
PGM Nozzle Performance Data
Pressure Radius Flow Precip in/hr
Nozzle PSI ft. GPM
.50
30
40
50
15'
16'
17'
0.42
0.50
0.58
0.36
0.38
0.39
0.41
0.43
0.45
.75
30
40
50
17'
18'
18'
0.64
0.75
0.85
0.43
0.45
0.51
0.49
0.51
0.58
1.0
30
40
50
19'
20'
20'
0.85
1.0
1.1
0.45
0.48
0.53
0.52
0.56
0.61
1.5
30
40
50
23'
24'
25'
1.3
1.5
1.7
0.47
0.50
0.52
0.55
0.58
0.60
2.0
30
40
50
25'
26'
27'
1.7
2.0
2.3
0.52
0.57
0.61
0.60
0.66
0.70
3.0
30
40
50
28'
30'
30'
2.5
3.0
3.4
0.61
0.64
0.73
0.71
0.74
0.84
PGM Nozzle Performance Data – Metric
Pressure Radius Flow Precip mm/hr
Nozzle Bars kPa m m3/hr l/min
.50
2.1
2.8
3.4
206
275
344
4.6
4.9
5.2
0.10
0.11
0.11
1.6
1.9
1.9
9
10
10
11
11
11
.75
2.1
2.8
3.4
206
275
344
5.2
5.5
5.5
0.15
0.17
0.19
2.4
2.8
3.2
11
11
13
13
13
15
1.0
2.1
2.8
3.4
206
275
344
5.8
6.1
6.1
0.19
0.23
0.25
3.2
3.8
4.2
12
12
13
13
14
16
1.5
2.1
2.8
3.4
206
275
344
7.0
7.3
7.6
0.30
0.34
0.39
4.9
5.7
6.4
12
13
13
14
15
15
2.0
2.1
2.8
3.4
206
275
344
7.6
7.9
8.2
0.39
0.45
0.52
6.4
7.6
8.7
13
14
15
15
17
18
3.0
2.1
2.8
3.4
206
275
344
8.5
9.1
9.1
0.57
0.68
0.77
9.5
11.4
12.9
16
16
18
18
19
21
Note: All precipitation rates calculated for 180 degree operation.
For the precipitation rate for a 360 degree sprinkler, divide by 2.
