Hunza ULTRA BOLLARD User manual

ULTRA BOLLARD
INSTALLATION INSTRUCTIONS
NOTE: THESE INSTRUCTIONS MUST NOT CONTRAVENE YOUR
LOCAL ELECTRICAL AUTHORITY REGULATIONS, WITH WHICH
ALL INSTRUCTIONS HERE IN MUST COMPLY.
PLEASE KEEP INSTRUCTIONS FOR FUTURE REFERENCE.

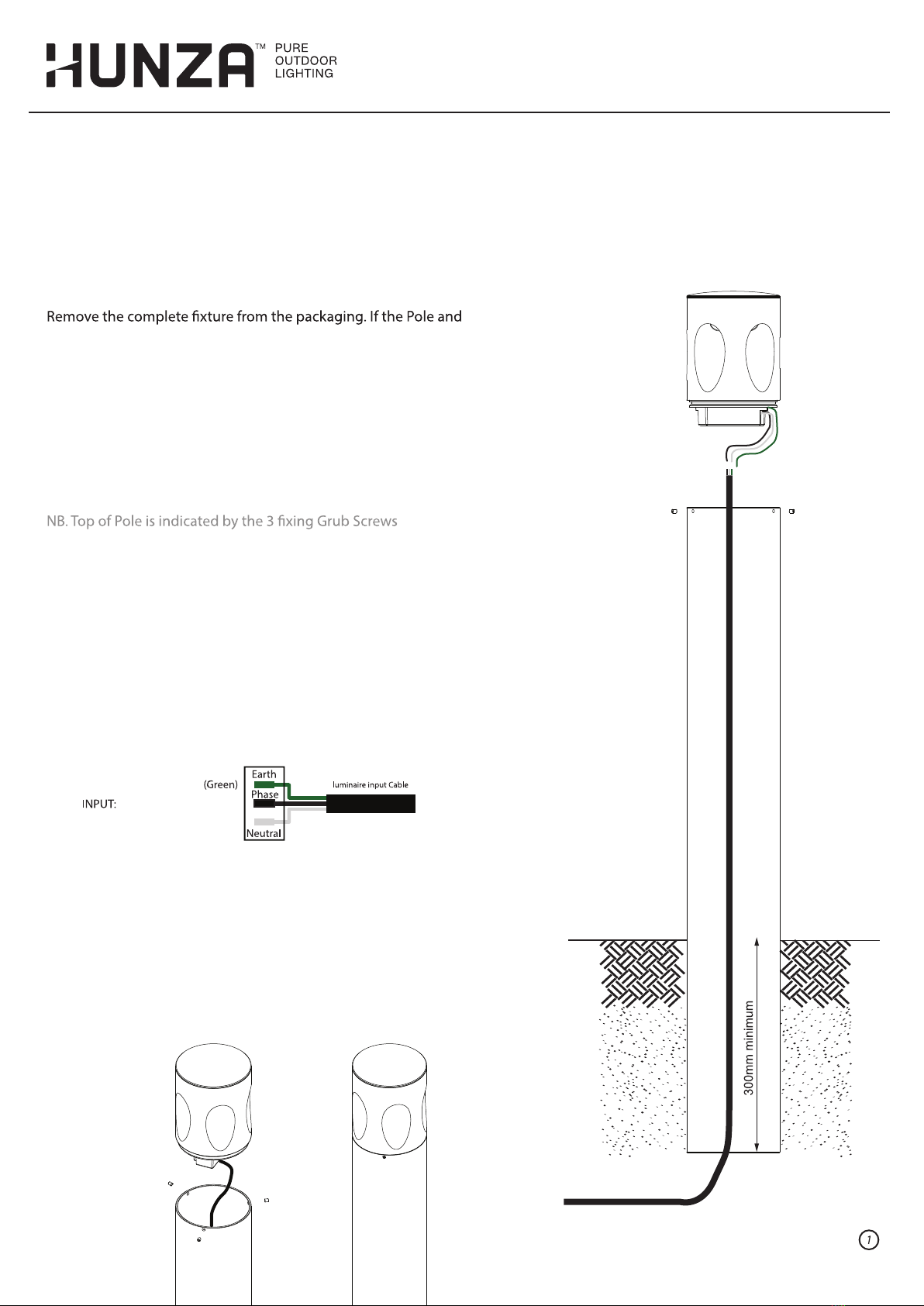

Once ground works are complete and the pole is set in place. Draw
supply cable through Pole allowing an extra 200mm (8”) minimum of
cable above the top of the pole. Now make a waterproof connection to
the luminaire input cable.
(See Fig.2).
luminaire are to be installed separately detach the luminaire from the
Pole and place it back in the packaging and store securely.
Discard the packing in an environmentally friendly way.
We recommend casting the Pole into the ground with concrete to a
minimum depth of 300mm (12”). Place drainage material in the bottom
of the hole to drain away water and stop water level build up.
(See Fig. 1).
Draw the power supply cable up through the centre of the canister
ready for connection to the luminaire.
Fig. 1
Fig. 2
Finish installation by securing the Luminaire head/ Cap to the top of the pole
with Grub screws provided.
(See Fig.3).
Fig.3
(Black)
(White)
100-277VAC

A
B
C
D
Replacing LED Chips
A: First remove the small grub screw immobilising the
Top Cap. Now unscrew the Top Cap
B: Unscrew the Threaded Cap holding in the Light
Engine (Of which there will be 5).
C: Once the Threaded Cap is undone, pull the Series pot
and heat sink out of the Bollard Head. (If you are having
trouble you can use a nger to gently push on the lens
to help move the parts from the cavity. Be sure to take
note of the Lens and Gasket placement for reinstalla-
tion).
D: You will now be able to undo the 2 M2 Cap screws
holding the Board. Replace the LED Board with the new
one.
Reverse the above 4 steps to reinstall. Be sure to take
note of the order in which the components came out
and insure they go back in the same order.
DO NOT water blast/jet wash this fixture under any
circumstances.
