Husky HD-105 User manual

OWNER'S MANUAL
For HUSKY Industrial Bicycles
Model HD-105 & HD-120
2
Table of Contents
Introduction
Introduction 3
Specifications 4
Safety First!
Safety Basics 5
Safe Riding in Wet Conditions 6
Safe Riding on Streets 7
Cargo Carrying Recommendations 8
Basket Installation 9
Major Parts & Components
Component Diagram 10
Fork and Handlebar 12
Saddle and Seat Post 13
Wheels and Tires 13
Pedals 14
Crank Set and Bottom Bracket 14
Chain and Sprockets 15
Coaster Brake 15
Basic Maintenance
Cleaning and Lubrication 16
Fixing a Flat Tire 17
Warranty 19

3
Introduction
Congratulations on you purchase of your new Husky bicycle. You have
purchased a bicycle that has many features and qualities. Please take a
few minutes and read through this manual before you ride your bicycle for
the first time. Learning about this product and safe riding and
maintenance will return many years of enjoyment and useful life.
Throughout this manual, there are several important safety notes, which
we recommend you read very carefully. Riding a bicycle is a sport, and
like many sports, it involves taking the risk of injury and damage. Since
most injuries result from unsafe riding or lack of proper maintenance, this
manual focuses on helping you learn about safe riding and how to keep
your bicycle in good riding condition.
The performance and life of this product vary based on usage, riding
surface condition, environment, and carrying weight. Proper
maintenance, regular inspection and replacement of worn-out
components will not only enhance the useful life and performance, it will
enhance the safety to rider.
WARNING!
Cycling can be a hazardous activity. You are
responsible for safe riding and proper maintenance of
your bicycle. Failure to observe the safety rules and
warnings throughout this manual may result in
property damage, personal injury or death.
There are warnings throughout this manual. Follow all
warning advices and instructions to avoid reduce the
risk of injury or damage.
4
SPECIFICATIONS
Models: Industrial Cruisers
Frame Size HD-105L (16”), HD-105/120 (19”)
Wheel Size 26”
Minimum Height 37” Ground to Saddle Top
Maximum Height 45” “ “
Length 68”
Width 26” (span of handlebar)
Frame Hi-Tensile Steel
Fork Hi-Tensile Steel tubing & crown
Rims Aluminum or steel 26” x 36-spoke
Spokes HD-105: 12-gauge UCP
HD-120: 11-guage UCP
Hubs - Front 3/8" axle steel
Rear Shimano® E-110 Coaster Brake
Brakes Shimano® Coaster Brake
Drive Mechanism Single Speed
Sprockets Front 42T 3mm Chrome Plated
Rear 20T
Chain Type 1/2 x 1/8 Heavy Duty
Chain Guard Full Length Steel Black
Crank 165mm one-piece forged steel CP
Crank Bearings 12-ball #66
Handlebar 26"-wide chrome plated Steel
Handlebar Stem Steel 22.2mm
Saddle Husky anatomic large cruiser
Tires 26x2.125 balloon, all black
WEIGHT CAPACITY HD-105: 300 lbs including cargo
HD-120: 400 lbs including cargo
Gross Weight: HD-105: 44 lbs
HD-105L 40 lbs
HD-120: 48 lbs

5
SAFETY FIRST!
ALWAYS WEAR A SAFETY HELMET - We recommend wearing a
helmet or hard hat while riding your bicycle. Make sure your helmet
meets or exceeds ANSI and Snell safety standards. Look for standard
certification label inside the helmet. RIDING WITHOUT A HELMET MAY
RESULT IN SERIOUS INJURY or DEATH IN THE EVENT OF AN
ACCIDENT.
KNOW ALL THE COMPONENTS OF THE BICYCLE AND THEIR
FUNCTION - In the next section of this manual, we have listed all the
major components and their functions. Read this section and familiarize
yourself with these parts.
ADJUST THE HEIGHT FOR BEST FIT - You can raise or lower the
seat post according to your height. You can also tilt the handle bar
back or forth or raise/lower the stem for the most convenient
position.
LEARN BIKE RIDING THOROUGHLY BEFORE RIDING - Riding a
bicycle requires balancing and coordination skills. You need to learn the
basic concept of riding and familiarize yourself with special handling and
riding techniques that are unique to this type of bicycle. Due to weight
and size of these models, the condition of the surface on which you ride
your bicycle affects the performance of your bicycle. You must learn to
handle the bicycle in different surface conditions. Try riding the bicycle in
low speed, steering the handlebar and experiencing the handling while
performing different maneuvers.
FAMILIARIZE YOURSELF WITH LOCAL AND STATE LAWS AND
ORDINANCES - If you plan to ride your bicycle on the streets or public
trails or bike routes, you must learn about the laws regulating bicycle
riding as well as minimum safety equipment required. Most states and
cities require the use of hand signals by all bicycle riders. Learn these
signals and use them every time you are riding on a road or street. You
can find many web sites on the internet that provide safe riding
instructions.
ALWAYS RIDE SINGLE FILE ON A ROAD OR STREET.
If you plan to use your bicycle in a busy work place where other workers
and vehicles are present, we recommend you install safety devices such
as horn, light, bell, mirror, and safety flag. Depending on the situation,
you may need one or more of these safety devices so that you can alert
others of your presence. Please contact your HUSKY dealer if you need
more information on safety accessories.
6
CHECK YOUR BICYCLE BEFORE YOU RIDE - Check the air pressure,
ride the bike for a few minutes and check the brakes and other safety
equipment. Make sure all components are securely attached. Pay
particular attention to the saddle, handlebar, wheel axle nuts, and pedals.
NEVER USE HEADPHONES OR DEVICES THAT MAY IMPAIR YOUR
HEARING ABILITY WHILE RIDING A BIKE - In many states it is illegal to
use headphones while riding a bicycle.
SAFE RIDING AT NIGHT
If you like to ride at night or in dark areas, please follow these rules:
LIGHTS - You should equip your bicycle with a high quality bicycle head
light for the front, usually mounted on the handle bar, and a blinking red
light mounted on the rear, normally below the saddle. If a rear basket is
installed, mount the rear light or reflector at the rear side of the basket
where it is visible.
REFLECTORS - Your bicycle is equipped with a set of reflectors,
mounted on the front and rear as well as on the wheel spokes. Your
bicycle should reflect light from all directions. Make sure your reflectors
are clean and mounted correctly. Please refer to Major Standard Parts
and Component section of this Manual for more information about the
reflectors. Your bicycle also comes with reflector-mounted pedals.
REFLECTIVE GEAR - We recommend you use additional reflective gear
such as reflective safety vest, reflective helmet, or safety flag. Always
wear light color apparel when riding at night. Remember, the objective is
to see and be seen at distance when riding at night.
SAFETY FLAGS - Safety flags are excellent for riding in high traffic
areas. Mounted on the rear axle and extending about 6 feet above the
ground, they allow others to spot a rider from far distance or between
cars. Safety flags are available at your HUSKY dealers.
SAFE RIDING IN WET CONDITIONS
You never know when you may get caught in a rainstorm or an afternoon
summer shower. If you ride your bicycle in your work place, you may run
into wet or slippery spots from time to time. Here are a few tips to help
make riding in wet or slick condition safer:

7
RIDE SLOWLY! - Braking s greatly reduced in wet conditions. Lower
speed helps you control the bike if you have to make a sudden brake. If
you live in an area where there is frequent rain or showers, you may want
to consult with your bicycle dealer about using tires more suitable for wet
conditions.
SPECIAL NOTE ON REAR COASTER BRAKE - Your bicycle is
equipped with a rear coaster brake (foot brake). It is important that you
minimize the chances of your foot slipping off the pedal when braking. Do
not ride in standing position in wet condition. Wearing shoes with non-
slip rubber soles or use of non-slip pedals is highly recommended for
areas with high rate of precipitation.
ENHANCE YOUR HANDLEBAR GRIP - The handlebar is the primary
control component of your bicycle and you must be sure you have a firm
grip of the handlebar in all conditions. Using gloves when riding your bike
helps minimize loss of grip in wet conditions.
FENDERS - HUSKY cruisers are equipped with fenders as standard
accessory. Fenders protect the rider from water and mud splashes.
SAFE RIDING ON STREETS
LEARN ABOUT YOUR STATE AND LOCAL BICYCLING LAWS - You
should obtain a copy of your local and state bicycling laws. Many bike
shops have a copy of the laws. You can also obtain a copy at your
nearest highway patrol office or your area cycling club. Learn these laws
thoroughly; they can save you life.
DO NOT RIDE AGAINST TRAFFIC - Stay as far right as possible and
allow room for cars to pass you as easily as possible. Avoid streets and
roads with no bike lanes or narrow or no shoulders.
RIDE DEFENSSIVELY - Always give right of way to autos, and never get
into a contest with an automobile driver. Be on the look out for cars
coming into the road from driveways, parking lots, or side streets. Make
an eye contact with the driver to make sure he/she can see you.
WATCH FOR PEDESTRIANS - Use your horn or bell to make sure
pedestrians can hear you are coming or passing from behind.
WATCH OUT FOR ROAD HAZARDS - One of the most common road
hazards are pot holes, cracks in the asphalt or concrete pavement,
8
railroad tracks, and objects such as rocks, wires, tree limbs, or sand and
loose gravel. Any one of these hazards can cause you to lose control. If
necessary, dismount and walk your bike over or around the hazard. Do
not ride on railroad tracks.
BE CAREFUL AROUND PARKED CARS - When approaching parked
cars, be on the look out for people getting in or out of parked cars. Allow
a safe distance between your bike and parked cars with passengers to
avoid possible collision with open doors.
OBEY ALL TRAFFIC SIGNS - Stop at stop signs, red lights, and yield
signs. Always use hand signals when turning or stopping.
DO NOT HITCH A RIDE ON A BIKE - Never hold on to another vehicle in
order to hitch a ride. DO NOT CARRY CHILDREN OR PETS IN THE
CARGO AREA
Cargo Carrying Recommendations
If you install a basket to carry cargo, make sure you follow these rules.
Weight distribution of cargo is very important. Do not carry too much
weight or stack cargo too high. Spread the load evenly in the basket and
secure all loose item to avoid shifting during ride. Basket liners help keep
small parts and objects from falling through the basket. HUSKY offers an
optional basket liner for its large front and rear baskets.
Do not attempt to jump a curb or a speed bump. Riding on uneven
surface or jumping curb may damage the frame or fork, especially when
your bicycle is loaded.
Braking becomes more difficult when your bicycle is carrying heavy load.
Control your speed when going down a hill or ramp. Do not allow your
bike to gain too much speed that you can not control.

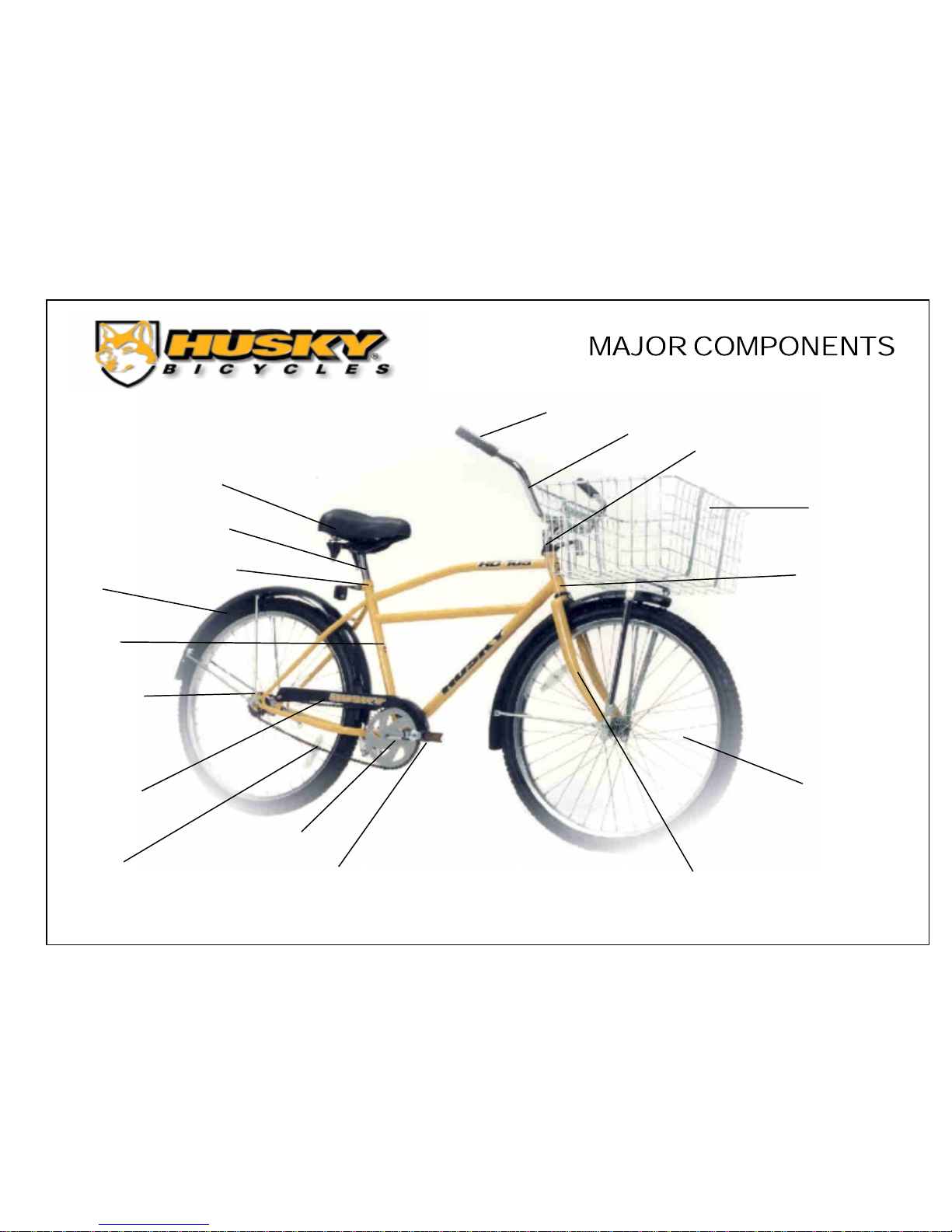

F O R K
F R O NT W H E E L
F R AME
C HAIN G U AR D
C R ANK
C HAIN
P E DAL
F E NDE R
S ADDL E
S E AT P O S T
HANDL E B AR
G R IP
S T E M
F R O NT B AS K E T
F R AME H E AD
T UB E
C O AS T E R B R AK E
S E AT P OS T C L AMP
