Husqvarna K 7000 Ring User manual

K 7000 Ring
EN Operator's manual 2-28
FR Manuel d'utilisation 29-60
NL Gebruiksaanwijzing 61-90
DE Bedienungsanweisung 91-122

Contents
Introduction..................................................................... 2
Safety..............................................................................4
Assembly...................................................................... 11
Operation...................................................................... 14
Maintenance................................................................. 20
Transportation, storage and disposal........................... 25
Troubleshooting............................................................ 25
Technical data.............................................................. 27
EC Declaration of Conformity....................................... 28
....................................................................................0
Introduction
Product description
This Husqvarna K 7000 Ring is a portable handheld cut-
off machine. To operate the product, connect the
product to the necessary power pack.
Intended use
This product is used to cut hard material as masonry
and steel. Do not use the product for other tasks.
Work is constantly in progress to increase your safety
and efficiency during operation. Speak to your servicing
dealer for more information.
Note: National regulations can limit the operation of the
product.
Product overview
19
18 17 23
1
2
34
6
5
16 15
78
910
11
12
13
14
30
31
27
29
28
25
32
26
24
21
20
22
21
1. Rear handle
2. Front handle
3. Control for the guide rollers
4. Grease nipples
5. Blade guard
6. Diamond blade (not supplied)
7. Adjuster screws
8. Screws for the support roller cover
9. Inspection covers
10. Display
21461 - 001 - 17.02.2020

11. Water tap
12. Power trigger lockout
13. Power trigger
14. Water connection, inlet
15. Locknuts for support roller arms
16. Spray guard
17. Belt guard
18. Rating plate
19. Power pack connection
20. Guide rollers
21. Support rollers
22. Drive wheel
23. Tool bag
24. Combination wrench
25. Hex key, 6 mm
26. Open wrench, 19 mm
27. Grease gun
28. Water connectors, Gardena®
29. Bearing grease
30. Information and warning decal
31. Husqvarna high frequency power pack, (necessary,
not supplied)
32. Operator's manual
Symbols on the product
WARNING: This product can be dangerous
and cause serious injury or death to the
operator or others. Be careful and use the
product correctly.
Read the operator's manual carefully and
make sure that you understand the
instructions before you use this product.
Use approved protective helmet, hearing
protection, eye protection and respiratory
protection. Refer to Personal protective
equipment on page 7
.
This product complies with applicable EC
Directives.
Dust forms when cutting. The dust can
cause injuries if inhaled. Use an approved
respiratory protection. Always provide for
good ventilation.
Sparks from the cutting blade can cause fire
in fuel, wood, clothes, dry grass or other
flammable materials.
WARNING! Kickbacks can be sudden, rapid
and violent and can cause life threatening
injuries. Read and understand the
instructions in the manual before using the
product. Refer to Kickback on page 14 .
Make sure that the cutting blade does not
have cracks or other damages.
Do not use circular saw blades.
Environmental mark. The product or
package of the product is not domestic
waste. Recycle it at a recycling location for
electrical and electronic equipment.
Note: Other symbols/decals on the product refer to
certification requirements for some markets.
Rating plate
Husqvarna K7000 Ring
HID 970449801 4NE
2019 472000402
Husqvarna AB
561 82 Huskvarna SWEDEN
5500W 2000rpm 014 /370mm
Made in Sweden
Husqvarna K7000 Ring
HID 970449901 4NE
2019 472000402
Husqvarna AB
561 82 Huskvarna SWEDEN
5500W 1760rpm 017 /425mm
Made in Sweden
Row 1: Brand, model
Row 2: Product id
Row 3: Manufacturing year, serial number
Row 4: Manufacturer
Row 5: Manufacturer address
Row 6: Output power, cutting blade rpm, cutting blade
capacity
1461 - 001 - 17.02.2020 3

Row 7: Country of origin
Product liability
As referred to in the product liability laws, we are not
liable for damages that our product causes if:
• the product is incorrectly repaired.
• the product is repaired with parts that are not from
the manufacturer or not approved by the
manufacturer.
• the product has an accessory that is not from the
manufacturer or not approved by the manufacturer.
• the product is not repaired at an approved service
center or by an approved authority.
Safety
Safety definitions
Warnings, cautions and notes are used to point out
specially important parts of the manual.
WARNING: Used if there is a risk of injury or
death for the operator or bystanders if the
instructions in the manual are not obeyed.
CAUTION: Used if there is a risk of damage
to the product, other materials or the
adjacent area if the instructions in the
manual are not obeyed.
Note: Used to give more information that is necessary in
a given situation.
General power tool safety warnings
WARNING: Read all safety warnings and all
instructions. Failure to follow the warnings
and instructions may result in electric shock,
fire and/or serious injury.
Note: Save all warnings and instructions for future
reference. The term "power tool" in the warnings refers
to your mains-operated (corded) power tool or battery-
operated (cordless) power tool.
Work area safety
•Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
•Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
•Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose
control.
Electrical safety
•Power tool plugs must match the outlet. Never
modify the plug in any way. Unmodified plugs and
matching outlets will reduce risk of electric shock.
•Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
•Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
•Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk
of electric shock.
•When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of
electric shock.
•If operating a power tool in a damp location is
unavoidable, use a residual circuit interrupter (RCD)
protected supply. Use of a RCD reduces the risk of
electric shock
CAUTION: Do not pressure wash the
machine, as water can enter the electrical
system or the motor and cause damage to
the machine or short circuit.
Personal safety
•Stay alert, watch what you are doing and use
common sense when operating a power tool. Do not
use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result
in serious personal injury.
•Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injuries.
•Prevent unintentional starting. Ensure the switch is in
the OFF-position before connecting to a power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the
switch or energising power tools that have the switch
on invites accidents.
•Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to
a rotating part of the power tool may result in
personal injury.
•Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
41461 - 001 - 17.02.2020

•Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long
hair can be caught in moving parts.
•If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
•The vibration emission during actual use of the
power tool can differ from the declared total value
depending on the ways in which the tool is used.
Operators should identify safety measures to protect
themselves that are based on an estimation of
exposure in the actual conditions of use (taking
account of all parts of the operating cycle such as
the times when the tool is switched off and when it is
running idle in addition to the trigger).
•Remain at a distance from the blade when the motor
is running.
Power tool use and care
•Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it
was designed.
•Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be
repaired.
•Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures
reduce the risk of starting the power tool
accidentally.
•Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
•Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tool´s
operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
•Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
•Use the power tool, accessories and tool bits etc. in
accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations
different from those intended could result in a
hazardous situation.
•Under no circumstances should you modify the
original design of the machine without approval from
the manufacturer. Always use original spare parts.
Unauthorized modifications and/or accessories may
lead to serious injury or death to the user or others.
•Make sure that no pipes or electrical cables are
routed in the working area or in the material to be
cut.
•Always check and mark out where gas pipes are
routed. Cutting close to gas pipes always entails
danger. Make sure that sparks are not caused when
cutting in view of the risk of explosion. Remain
concentrated and focused on the task. Carelessness
can result in serious personal injury or death.
Service
•Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is
maintained.
Cut-off machine safety warning
•The guard provided with the tool must be securely
attached to the power tool and positioned for
maximum safety so the least amount of wheel is
exposed towards the operator. Position yourself and
bystanders away from the plane of the rotating
wheel. The guard helps to protect operator from
broken wheel fragments and accidental contact with
the wheel.
•Use only bonded reinforced or diamond cut-off
wheels for your power tool. Just because an
accessory can be attached to your power tool, it
does not assure safe operation.
•The rated speed of the accessory must be at least
equal to the maximum speed marked on the power
tool. Accessories running faster than their rated
speed can break and fly apart.
•Wheels must be used only for recommended
applications. For example, do not grind with the side
of the cut-off wheel.
•Always use undamaged wheel flanges that are of
correct diameter for your selected wheel. Proper
wheel flanges support the wheel thus reducing the
possibility of wheel breakage.
•Do not use worn down reinforced wheels from larger
power tools. Wheels intended for a larger power tool
are not suitable for the higher speed of a smaller tool
and may burst.
•The outside diameter and the thickness of your
accessory must be within the capacity rating of your
power tool. Incorrectly sized accessories cannot be
adequately guarded or controlled.
•The arbour size of wheels and flanges must properly
fit the spindle of the power tool. Wheels and flanges
with arbour holes that do not match the mounting
hardware of the power tool will run out of balance,
vibrate ecxessively and may cause loss of control.
•Do not use damaged wheels. Before each use,
inspect wheels for chips and cracks. If power tool or
wheel is dropped, inspect for damage or install an
undamaged wheel. After inspecting and installing the
wheel, position yourself and bystanders away from
the plane of the rotating wheel and run the power
1461 - 001 - 17.02.2020 5

tool at maximum no load speed for one minute.
Damaged wheels will normally break apart during
this test time.
•Wear personal protective equipment. Depending on
application, use face shield, safety goggles or safety
glasses. As appropriate, wear dust mask, hearing
protectors, gloves and shop apron capable of
stopping small workpiece fragments. The eye
protection must be capable of stopping flying debris
generated by various operations. The dust mask or
respirator must be capable of filtrating particles
generated by your operation. Prolonged exposure to
high intensity noise may cause hearing loss.
•Keep bystanders a safe distance away from work
area. Anyone entering the work area must wear
personal protective equipment. Fragments of
workpiece or a broken wheel may fly away and
cause injury beyond immediate area of operation.
•Hold the power tool by insulated gripping surfaces
only, when performing an operation where the
cutting accessory may contact hidden wiring. Cutting
accessory contacting a "live" wire may make
exposed metal parts of the power tool "live" and
could give the operator an electric shock.
•Position the cord clear of the spinning accessory.If
you lose control, the cord may be cut or snagged
and your hand or arm may be pulled into the
spinning wheel.
•Never lay the power tool down until the accessory
has come to a complete stop. The spinning wheel
may grab the surface and pull the power tool out of
your control.
•Do not run the power tool while carrying it at your
side. Accidental contact with the spinning accessory
could snag your clothing, pulling the accessory into
your body.
•Regularly clean the power tool’s air vents. The
motor’s fan will draw the dust inside the housing and
excessive accumulation of powdered metal may
cause electrical hazards.
•Do not operate the power tool near flammable
materials. Sparks could ignite these materials.
Kickback and related warnings
•Kickback is a sudden reaction to a pinched or
snagged rotating wheel. Pinching or snagging
causes rapid stalling of the rotating wheel which in
turn causes the uncontrolled power tool to be forced
in the direction opposite of the wheel’s rotation at the
point of the binding.
•For example, if an abrasive wheel is snagged or
pinched by the workpiece, the edge of the wheel that
is entering into the pinch point can dig into the
surface of the material causing the wheel to climb
out or kick out. The wheel may either jump toward or
away from the operator, depending on direction of
the wheel’s movement at the point of pinching.
Abrasive wheels may also break under these
conditions.
•Kickback is the result of power tool misuse and/or
incorrect operating procedures or conditions and can
be avoided by taking proper precautions as given
below.
•Maintain a firm grip on the power tool and position
your body and arm to allow you to resist kickback
forces. Always use auxiliary handle, if provided, for
maximum control over kickback or torque reaction
during start-up. The operator can control torque
reactions or kickback forces, if proper precautions
are taken.
•Never place your hand near the rotating accessory.
Accessory may kickback over your hand.
•Do not position your body in line with the rotating
wheel. Kickback will propel the tool in direction
opposite to the wheel’s movement at the point of
snagging.
•Use special care when working corners, sharp edges
etc. Avoid bouncing and snagging the accessory.
Corners, sharp edges or bouncing have a tendency
to snag the rotating accessory and cause loss of
control or kickback.
•Do not attach a saw chain, woodcarving blade,
segmented diamond wheel with a peripheral gap
greater than 10 mm or toothed saw blade. Such
blades create frequent kickback and loss of control.
•Do not ”jam” the wheel or apply excessive pressure.
Do not attempt to make an excessive depth of cut.
Overstressing the wheel increases the loading and
susceptibility to twisting or binding of the wheel in the
cut and the possibility of kickback or wheel
breakage.
•When wheel is binding or when interrupting a cut for
any reason, switch off the power tool and hold the
power tool motionless until the wheel comes to a
complete stop. Never attempt to remove the wheel
from the cut while the wheel is in motion otherwise
kickback may occur. Investigate and take corrective
action to eliminate the cause of wheel binding.
•Do not restart the cutting operation in the workpiece.
Let the wheel reach full speed and carefully re-enter
the cut. The wheel may bind, walk up or kickback if
the power tool is restarted in the workpiece.
•Support panels or any oversized workpiece to
minimize the risk of wheel pinching and kickback.
Large workpieces tend to sag under their own
weight. Supports must be placed under the
workpiece near the line of cut and near the edge of
the workpiece on both sides of the wheel.
•Use extra caution when making a “pocket cut” into
existing walls or other blind areas. The protruding
wheel may cut gas or water pipes, electrical wiring or
objects that can cause kickback.
General safety instructions
WARNING: Read the warning instructions
that follow before you use the product.
61461 - 001 - 17.02.2020

• A power cutter is a dangerous tool if used carelessly
or incorrectly and can cause serious injury or death.
It is very important that you read and understand the
contents of this operator’s manual. It is also
recommended that first time operators also obtain
practical instruction before using the product.
• Do not do modifications to this product. Modifications
that are not approved by the manufacturer, can
cause serious injury or death.
• Do not operate the product if it is possible that other
persons have done modifications to the product.
• Always use original accessories and spare parts.
Accessories and spare parts that are not approved
by the manufacturer, can cause serious injury or
death.
• Keep the product clean. Make sure that you can
clearly read signs and decals.
• Never allow children or other persons not trained in
the use of the product to use or service it.
• Do not let a person operate the product unless they
read and understand the contents of the operator's
manual.
• Only let approved persons operate the product.
• This product produces an electromagnetic field
during operation. This field can under some
circumstances interfere with active or passive
medical implants. To decrease the risk of serious
injury or death, we recommend persons with medical
implants to speak to their physician and the medical
implant manufacturer before operating this product.
• The information in this operator's manual is never a
substitute for professional skills and experience. If
you are in a situation where you feel unsafe, stop
and get expert advice. Speak to your servicing
dealer. Do not try any task that you feel unsure of.
Safety instructions for operation
WARNING: Read the warning instructions
that follow before you use the product.
• Before you use a power cutter, you must understand
the effects of kickback and how to prevent them.
Refer to
Kickback on page 14 .
• Do the safety checks, maintenance and servicing as
given in this operator's manual. Some maintenance
and servicing must be done by an approved service
center. Refer to
Safety instructions for maintenance
on page 10 .
• Do not use the product if it is defective.
• Do not use the product if you are tired, ill, or under
the influence of alcohol, drugs or medicine. These
conditions can have an unwanted effect on your
vision, alertness, coordination or judgment.
• Do not start the product without the belt and the belt
guard installed. The clutch can become loose and
cause injury.
• Sparks from the cutting blade can cause fire in
flammable materials such as gasoline, gas, wood,
clothes and dry grass.
• Do not cut asbestos material.

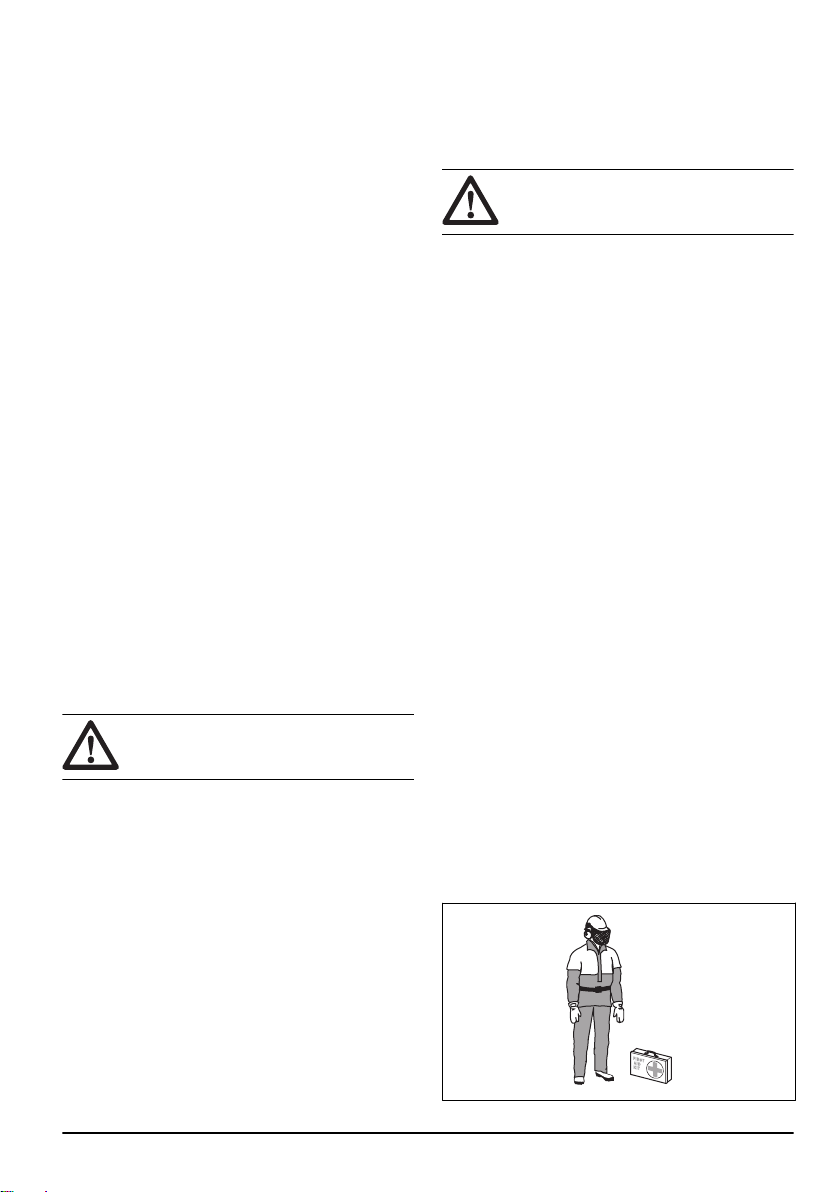

Personal protective equipment
WARNING: Read the warning instructions
that follow before you use the product.
• Always use approved personal protective equipment
during operation. Personal protective equipment
cannot eliminate the risk of injury but it will reduce
the degree of injury if an accident does happen. Ask
your servicing dealer for help in choosing the right
equipment.
• Use an approved protective helmet.
• Use approved hearing protection. Long-term
exposure to noise can result in permanent hearing
impairment. Be aware of warning signals or shouts
when you are wearing hearing protection. Always
remove your hearing protection as soon as the motor
stops.
• Use approved eye protection to decrease the risk of
injury from thrown objects. If you use a face shield
then you must also wear approved protective
goggles. Approved protective goggles must comply
with standard ANSI Z87.1 in the USA or EN 166 in
EU countries. Visors must comply with standard EN
1731.
• Use heavy duty gloves.
• Use approved respiratory protection. The use of
products such as cutters, grinders, drills, that sand or
form material can generate dust and vapours which
may contain hazardous chemicals. Check the nature
of the material you intend to process and use
appropriate breathing mask.
• Use tight-fitting, heavy-duty and comfortable clothing
that permits full freedom of movement. Cutting
generates sparks that can ignite clothing. Husqvarna
recommends that you wear flame-retardant cotton or
heavy denim. Do not wear clothing made of material
such as nylon, polyester or rayon. If ignited such
material can melt and cling to the skin. Do not wear
shorts.
• Use boots with steel toe-cap and non-slip sole.
• Always keep a first aid kit near.
1461 - 001 - 17.02.2020 7

• Sparks can come from the cutting blade. Always
have a fire extinguishing available.
Vibration safety
WARNING: Read the warning instructions
that follow before you use the product.
• During operation of the product, vibrations go from
the product to the operator. Regular and frequent
operation of the product can cause or increase the
degree of injuries to the operator. Injuries can occur
in fingers, hands, wrists, arms, shoulders, and/or
nerves and blood supply or other body parts. The
injuries can be debilitating and/or permanent, and
can increase gradually during weeks, months or
years. Possible injuries include damage to the blood
circulation system, the nervous system, joints, and
other body structures.
• Symptoms can occur during operation of the product
or at other times. If you have symptoms and
continue to operate the product, the symptoms can
increase or become permanent. If these or other
symptoms occur, get medical aid:
• Numbness, loss of feeling, tingling, pricking,
pain, burning, throbbing, stiffness, clumsiness,
loss of strength, changes in skin color or
condition.
• Symptoms can increase in cold temperatures. Use
warm clothing and keep your hands warm and dry
when you operate the product in cold environments.
• Do maintenance on and operate the product as
given in the operator's manual, to keep a correct
vibration level.
• The product has a vibration damping system that
decreases the vibrations from the handles to the
operator. Let the product do the work. Do not push
the product with force. Hold the product at the
handles lightly, but make sure that you control the
product and operate it safely. Do not push the
handles into the end stops more than necessary.
• Keep your hands on the handle or handles only.
Keep all other body parts away from the product.
• Stop the product immediately if strong vibrations
suddenly occurs. Do not continue the operation
before the cause of the increased vibrations is
removed.
• To cut granite or hard concrete causes more
vibration in the product than if you cut soft concrete.
Cutting equipment that is blunt, defective, of
incorrect type or incorrectly sharpened, increases
the vibration level
Safety devices on the product
WARNING: Read the warning instructions
that follow before you use the product.
• Do not use a product with defective safety devices.
• Do a check of the safety devices regularly. If the
safety devices are defective, speak to your
Husqvarna approved service agent.
• Do not change the safety devices.
• Do not use the product if protective plates, protective
covers, safety switches or other protective devices
are defective or not attached.
Power trigger lockout and ON/OFF valve for
the water

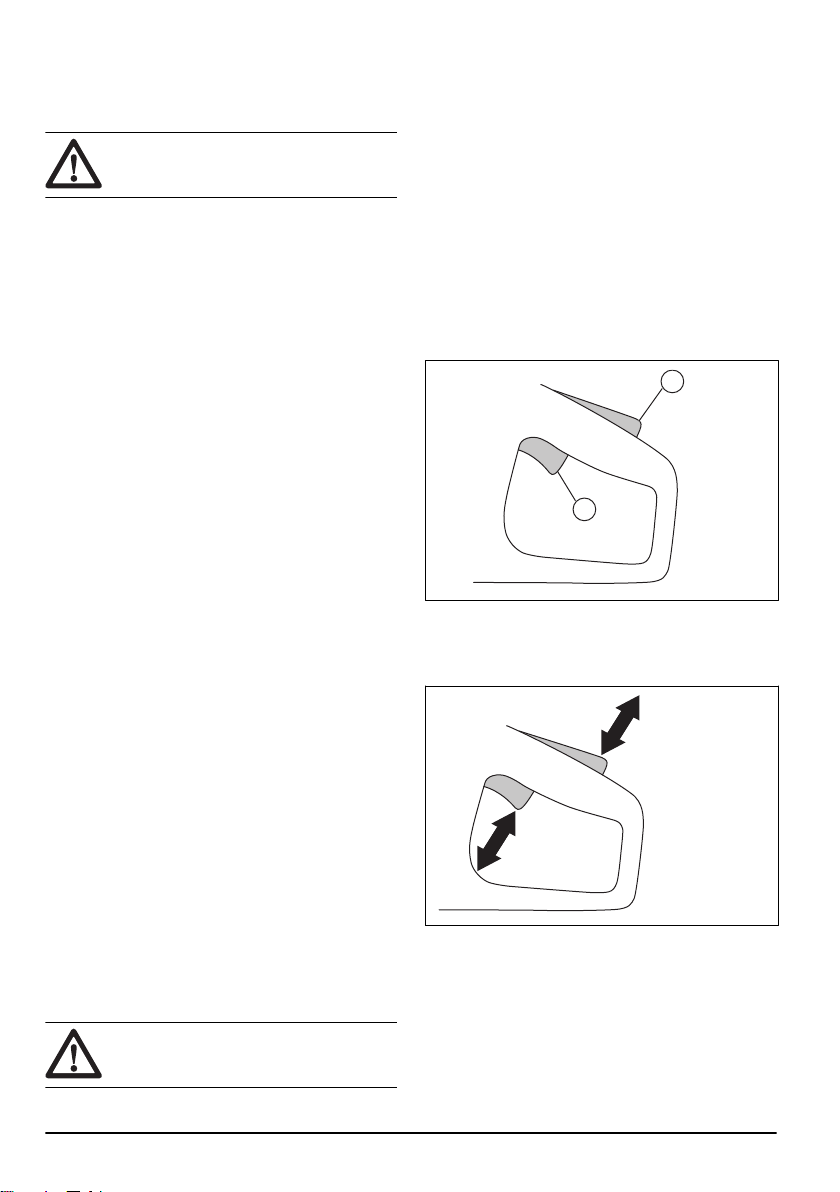

The power trigger lockout prevents accidental operation
of the power and adjust the water ON/OFF valve.
If you put your hand around the handle and push the
power trigger lockout (A), it releases the power trigger
(B) and opens the water valve.
A
B
If you release the handle, the power trigger and the
power trigger lockout move back to their initial positions.
This function locks the power trigger and stops the
product. The water valve goes back to closed position.
81461 - 001 - 17.02.2020

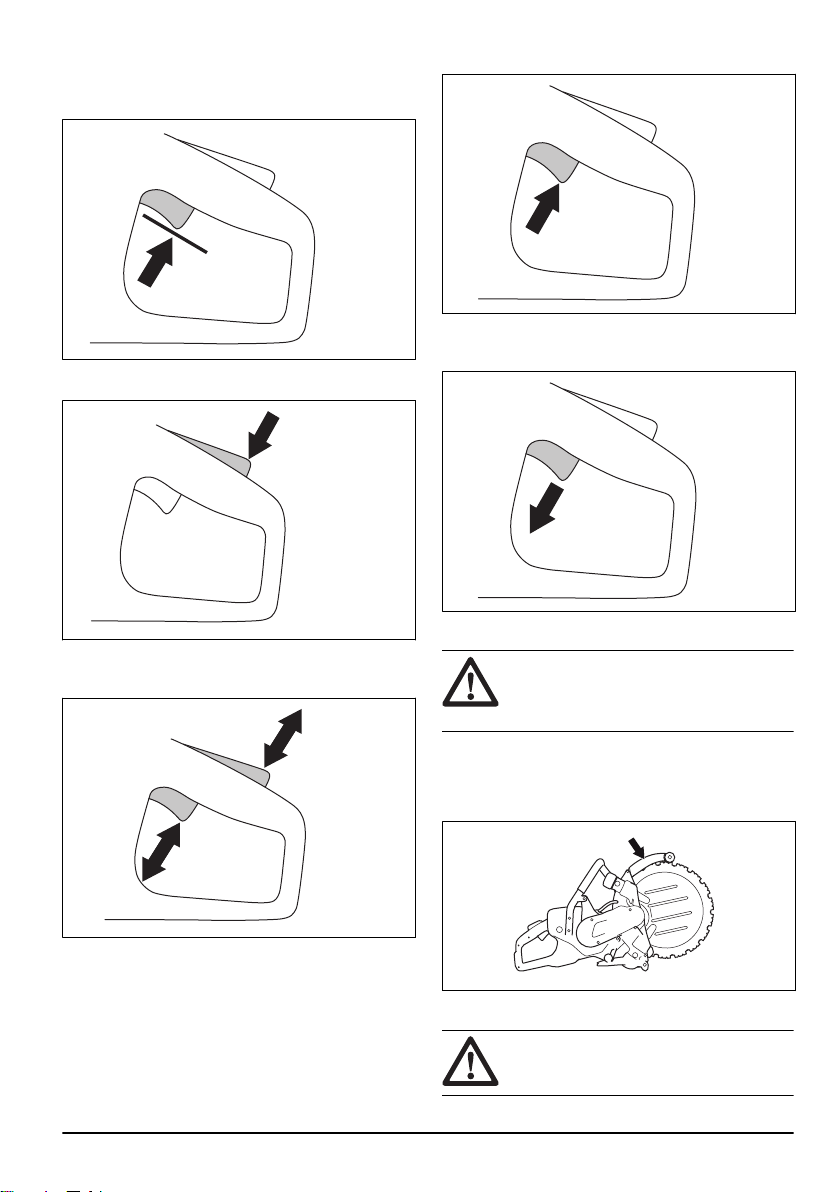

To do a check of the power trigger lockout
1. Make sure that the power trigger is locked at the idle
position when the power trigger lockout is released.
2. Push the power trigger lockout and make sure that it
goes back when you release it.
3. Make sure that the power trigger and power trigger
lockout move freely and that the return springs
operate correctly.
4. Start the product and apply full speed.
5. Release the power control and make sure that the
cutting blade stops in less than 10 seconds and
stays stationary.
Blade guard
WARNING: Make sure that the blade guard
is correctly attached before you start the
product. Do not use the product if the blade
guard is missing, defective or has cracks.
The blade guard is installed above the cutting blade.
The blade guard prevents injury if parts of the blade or
pieces from the cut material are thrown in the direction
of the operator.
To examine the blade and the blade guard
WARNING: A damaged cutting blade can
cause injury.
1461 - 001 - 17.02.2020 9

1. Make sure that the cutting blade is attached correctly
and does not show signs of damage.
2. Make sure that the blade guard has no cracks or is
damaged.
3. Replace the blade guard if it is damaged. Refer to
the workshop manual of the product for more
instructions.
Spray guard
The spray guard gives protection from the water that
ejects in direction of the operator. The spray guard also
prevents injury if pieces from cut material are thrown in
the direction of the operator.
To examine the spray guard
WARNING: A damaged spray guard can
cause injury.
1. Make sure that the spray guard is attached correctly
and does not show signs of damage.
2. Make sure that the spray guard has no cracks or is
damaged.
3. Replace the spray guard if it is damaged.
Start and overload protection
The product has an electronically controlled start and
overload protection, Elgard™. The electronics stop the
current immediately if the blade does not move freely.
For explanation of the indication lamps, refer to the table
in
Lamp indicators in the product on page 20 .
Vibration damping system
Your product is equipped with a vibration damping
system that is designed to minimize vibration and make
operation easier. The product′s vibration damping
system reduces the transfer of vibration between the
motor unit/cutting equipment and the product′s handle
unit.
To do a check of the vibration damping
system
WARNING: Make sure that the motor is off
and that the power plug is disconnected.
1. Make sure that there are no cracks or deformation
on the vibration damping units. Replace the vibration
damping units if they are damaged.
2. Make sure that the vibration damping units are
correctly attached to the motor unit and handle unit.
Safety instructions for maintenance
WARNING: Read the warning instructions
that follow before you use the product.
• Make sure that the motor is off and that the power
plug is disconnected.
• Use personal protective equipment. Refer to
Personal protective equipment on page 7 .
• If the maintenance is not done correctly and
regularly, the risk of injury and damage to the
product increases.
• Only do the maintenance as given in this operator's
manual. Let an approved service center do all other
servicing.
• Let an approved Husqvarna service agent do
servicing on the product regularly.
• Replace damaged, worn or broken parts.
• Always use original accessories.
10 1461 - 001 - 17.02.2020

Assembly
Cutting blades
WARNING: Always use protective gloves
when you assemble the product.
WARNING: A cutting blade can break and
cause injury to the operator.
WARNING: Examine the cutting blade for
cracks, lost segments distortion or
unbalance prior to use and immediately after
striking an unintended object. Do not use a
damaged cutting blade. After inspecting and
installing the cutting blade, position yourself
and bystanders away from the plane of the
rotating cutting blade and run the power tool
at maximum no load speed for one minute.
WARNING: The cutting blade manufacturer
gives warnings and recommendations for
the operation and correct maintenance of
the cutting blade. Those warnings are
supplied with the cutting blade. Read and
obey the instructions that are supplied with
the cutting blade.
Diamond blades
WARNING: Diamond blades become very
hot when used. A diamond blade that is too
hot gives bad performance, blade damage
and is a safety risk.
WARNING: Do not use diamond blades to
cut plastic material. The hot diamond blade
can melt the plastic, which can cause a
kickback.
• Diamond blades have a steel core with segments
that are made of industrial diamonds.
• Diamond blades are used for masonry, reinforced
concrete and stone.
• Always use the correct diamond blade for the
material it is intended to cut.
• Always use a sharp diamond blade.
• Diamond blades can become blunt if you use an
incorrect feeding pressure or when you cut materials
such as hard reinforced concrete. If you use a blunt
diamond blade it becomes too hot, which can cause
the diamond segments to come loose.
Cutting blade vibration
CAUTION: If you use the product with too
much force, the cutting blade can become
too hot, bend and cause vibrations. Use the
product with less force. If the vibrations
continue, replace the cutting blade.
Ring cutting blade
WARNING: Do not do modifications to the
ring cutting blade. Modifications can cause
serious injury. Speak to your Husqvarna
dealer for instructions.
5
1
2
3
4
1. Cutting blade
2. Support rollers
3. Drive wheel
4. Guide rollers
5. Inner edge
To sharpen the cutting blade
Note: For the best cutting results, use a sharp cutting
blade.
• To sharpen the cutting blade, cut into soft material,
such as sandstone or brick.
To install the cutting blade
WARNING: Make sure that the motor is off
and that the power plug is disconnected.
WARNING: Always use protective gloves
when you assemble the product.
WARNING: Do not put new diamond
segments on a used cutting blade core. The
used cutting blade core can break or crack
and cause serious injury to the operator.
1461 - 001 - 17.02.2020 11

WARNING: Make sure that the cutting blade
is in good condition and not damaged. A
damaged cutting blade can break and cause
serious injury.
1. Clean the surface of the cutting blade.
2. Remove the 2 locknuts on the support roller guard.
3. Loosen the 2 adjuster screws.
4. Remove the 2 knobs.
5. Remove the 4 screws that holds the support roller
guard with the 6 mm hex key.
6. Remove the support roller guard.
7. Install the cutting blade. Make sure that the inner
edge of the cutting blade is in the groove of the drive
wheel. Make sure that the guide rollers go into the
groove (A) in the cutting blade. Refer to
Ring cutting
blade on page 11 .
A
12 1461 - 001 - 17.02.2020

8. If it is necessary, push the guide rollers into position.
9. Install the support roller guard. Make sure that the
flanges on the guide roller are in the grooves in the
cutting blade.
10. Tighten the 4 screws that hold the support roller
guard.
11. Turn the cutting blade by hand. Make sure that the
support rollers are not set against the cutting blade.
12. Put the product in upright position.
13. Adjust the 2 adjuster screws until the support rollers
touches the cutting blade.
CAUTION: Do not adjust the support
rollers if the product is on its side. The
adjustment becomes incorrect and can
cause damages to the cutting blade.
14. Make sure that you can stop the support roller with
your thumb when the cutting blade is rotated.
15. Tighten the 2 locknuts on support roller guard.
16. Make sure that you can stop the support roller with
your thumb when the cutting blade is rotated.
1461 - 001 - 17.02.2020 13

17. Tighten the 2 knobs fully. Pipe clamp
The pipe clamp is an accessory for this product to help
you make straight, accurate cuts in concrete pipes.
Operation
Introduction
WARNING: Read and understand the safety
chapter before you use the product.
Kickback
WARNING: Kickbacks are sudden and can
be very violent. The power cutter can be
thrown up and back towards the user in a
rotating motion causing serious or even fatal
injury. It is vital to understand what causes
kickback and how to avoid it before using
the product.
Kickback is the sudden upward motion that can occur if
the blade is pinched or stalled in the kickback zone.
Most kickbacks are small and pose little danger.
However a kickback can also be very violent and throw
the power cutter up and back towards the user in a
rotating motion causing serious or even fatal injury.
Reactive force
A reactive force is always present when cutting. The
force pulls the product in the opposite direction to the
blade rotation. Most of the time this force is insignificant.
If the blade is pinched or stalled, the reactive force will
be strong and you might not be able to control the power
cutter.
Never move the product when the cutting equipment is
rotating. Gyroscopic forces can obstruct the intended
movement
Kickback zone
Never use the kickback zone of the blade for cutting. If
the blade is pinched or stalled in the kickback zone, the
reactive force will push the power cutter up and back
towards the user in a rotating motion causing serious or
even fatal injury.
Rotational kickback
A rotational kickback occurs when the cutting blade
does not move freely in the kickback zone.
Climbing kickback
If the kickback zone is used for cutting, the reactive
force drives the blade to climb up in the cut. Do not use
14 1461 - 001 - 17.02.2020

the kickback zone. Use the lower quadrant of the blade
to avoid climbing kickback.
Pinching kickback
Pinching is when the cut closes and pinches the blade. If
the blade is pinched or stalled the reactive force will be
strong and you might not be able to control the power
cutter.
If the blade is pinched or stalled in the kickback zone,
the reactive force will push the power cutter up and back
towards the user in a rotating motion causing serious or
even fatal injury. Be alert for potential movement of the
work piece. If the work piece is not properly supported
and shifts as you cut, it might pinch the blade and cause
a kick back.
To cut in pipes
WARNING: If the blade is pinched in the
kickback zone it will cause a severe
kickback.
Special care should be taken when cutting in pipes. If
the pipe is not properly supported and the cut kept open
through out the cutting, the blade might be pinched. Be
especially alert when cutting a pipe with a belled end or
a pipe in a trench that, if not properly supported, may
sag and pinch the blade.
If the pipe is allowed to sag and close the cut, the blade
will be pinched in the kick back zone and a severe kick
back might develop. If the pipe is properly supported the
end of the pipe will move downward, the cut will open
and no pinching will occur.
1. Secure the pipe so it does not move or roll during
cutting.
2. Cut section "I" of the pipe.
I
III II
3. Ensure that the cut opens to avoid pinching.
4. Move to side II and cut from section I to bottom of
the pipe.
5. Move to side III and cut the remaining part of the
pipe ending at the bottom.
To prevent a kickback
WARNING: Avoid situations where there is a
risk of kickback. Take care when using your
power cutter and make sure that the blade is
never pinched in the kickback zone.
WARNING: Be careful when you put the
blade in an existing cut.
WARNING: Make sure that the work piece
cannot move during a cutting operation.
1461 - 001 - 17.02.2020 15

WARNING: Only you and proper working
technique can eliminate kickback and its
dangers.
• Always support the work of piece so that the cut can
keep open when cutting through. When the cut is
open there is no kickback. If the cut is closed and
pinches the blade, there is a risk of kickback.
To do before you start the product
• Read the operator's manual carefully and make sure
that you understand the instructions.
• Do the daily maintenance. Refer to
Maintenance
schedule on page 21 .
• Make sure that the power pack is connected to a
grounded power outlet.
• Make sure that the mains voltage agrees with the
specification on the rating plate on the product.
• Make sure that only approved persons are in the
work area.
• Make sure that you are in a safe and stable position
during operation.
• Always use a power pack with RCD. Refer to the
operator's manual for the power pack.
• Make sure that the water connector is connected
with a water supply. Refer to
To connect the water
supply on page 18 .
Basic working techniques
WARNING: Do not pull the product to one
side. This can prevent the free movement of
the cutting blade. The cutting blade can
break and cause injury to the operator or
bystanders.
WARNING: Do not grind with the side of the
cutting blade. The cutting blade can break
and cause injury to the operator or
bystanders. Only use the cutting edge.
WARNING: Make sure that the cutting blade
is installed correctly and does not show
signs of damage.
WARNING: Before cutting in an existing cut
made by a different blade, make a sure that
the slot is not thinner than your blade as that
can result in binding in the cutting slot and a
kickback.
WARNING: Cutting metal generates sparks
that can cause fire. Do not use the product
near flammable material or gases.
• The product is made to cut with diamond blades
made for high speed handheld product. The product
must not be used with other types of blade, or for
other types of operation.
• Do a check that the correct cutting blade is used for
the material to be cut. Refer to
Cutting blades on
page 11
for instructions.
• Do not cut asbestos materials.
• Keep a safe distance from the cutting blade when
the motor is on. Do not try to stop a rotating blade
with a part of your body. To touch a rotating blade,
although the motor is off, can result in serious injury
or death.
• Make sure that only approved persons are in the
work area.
• The cutting blade continues to rotate for a while after
the power trigger is released. Make sure that the
cutting blade has stopped before the product is
moved or put down. If it is necessary to stop the
cutting blade quickly, let the cutting blade lightly
touch a hard surface.
• Do not move the product with the motor on.
• Hold the product with 2 hands. Hold the product
tightly with thumbs and fingers fully around the
plastic handles with insulation. The right hand must
be on the rear handle and the left hand on the front
handle. All operators must use this hold. Do not
operate a power cutter with only 1 hand.
• Make sure that you stay in a safe position and that
the cutting blade can move freely.
• Stand parallel to the cutting blade. Avoid standing
straight behind. If a kickback occur, the saw will
move in the plane of the cutting blade.
• Do not go away from the product with the motor on.
Before you go away from the product, stop the motor
16 1461 - 001 - 17.02.2020

and make sure that there is no risk of accidental
start.
• Use the adjustment handle of the blade guard to
adjust the rear section of the guard flush with the
work piece. Spatter and sparks from the cut material
are then collected up by the guard and led away
from the operator. The guards for the cutting
equipment must always be installed when the
product is on.
• Do not use the kickback zone of the blade for
cutting. Refer to Kickback zone on page 14 for
instructions.
• Do not operate the product before the work area is
clear and your feet and body are in a stable position.

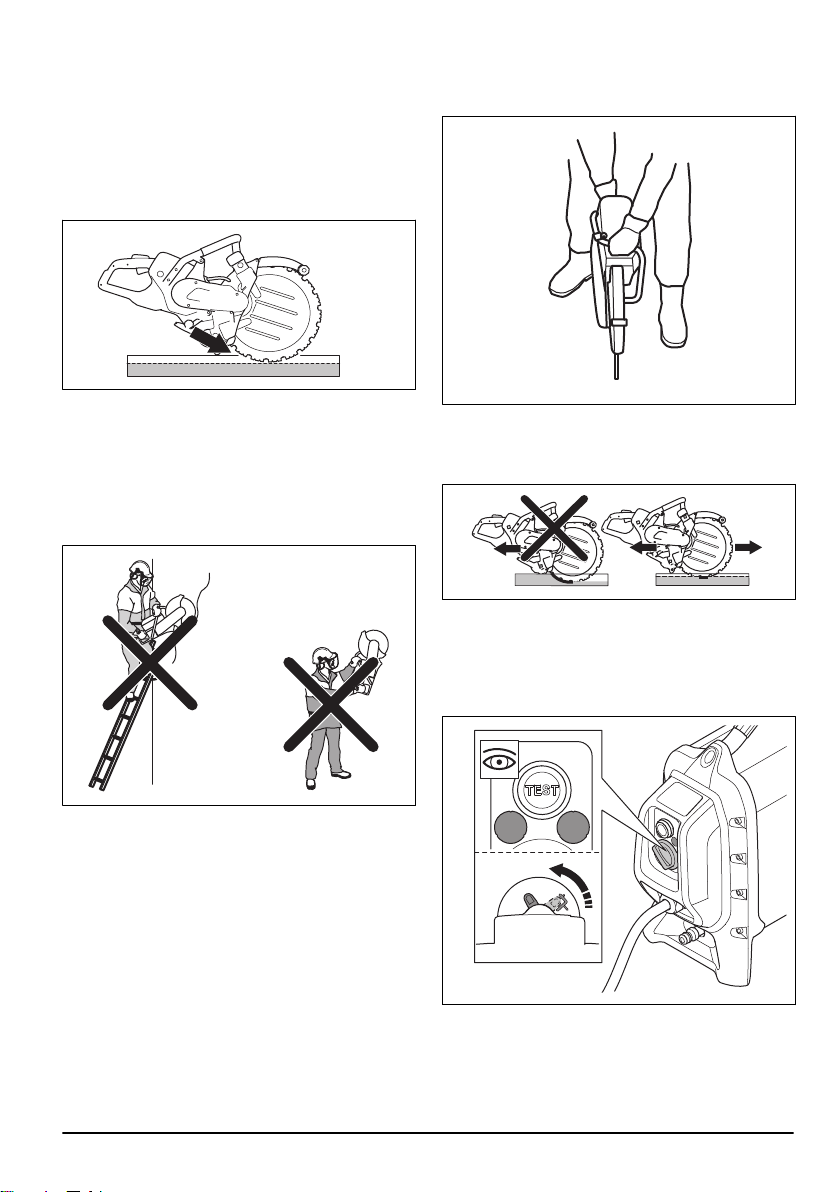

• Do not cut above shoulder height.
• Do not cut from a ladder. Use a platform or scaffold if
the cut is above shoulder height. Do not overreach.
• Stay at a comfortable distance from the work piece.
• Make sure that the cutting blade can move freely
when the motor is started.
• Apply the cutting blade carefully with high rotating
speed (full power). Keep full speed until cutting is
complete.
• Let the product do the work. Do not push the cutting
blade.
• Feed the product down in line with the blade.
Pressure from the side can cause damage to the
blade and is very dangerous.
• Move the blade slowly forward and rearward to get a
small contact area between the blade and the
material to be cut. This decreases the temperature of
the blade and is an effective way to cut.
To do a check of the RCD
1. Start the product, refer to
To start the product on
page 18 .
2. Look into the inspection holes and push the RCD
test button.
3. Make sure that the RCD moves and that it
disconnects the product from the power supply.
4. Turn the RCD reset knob to reset the RCD.
1461 - 001 - 17.02.2020 17

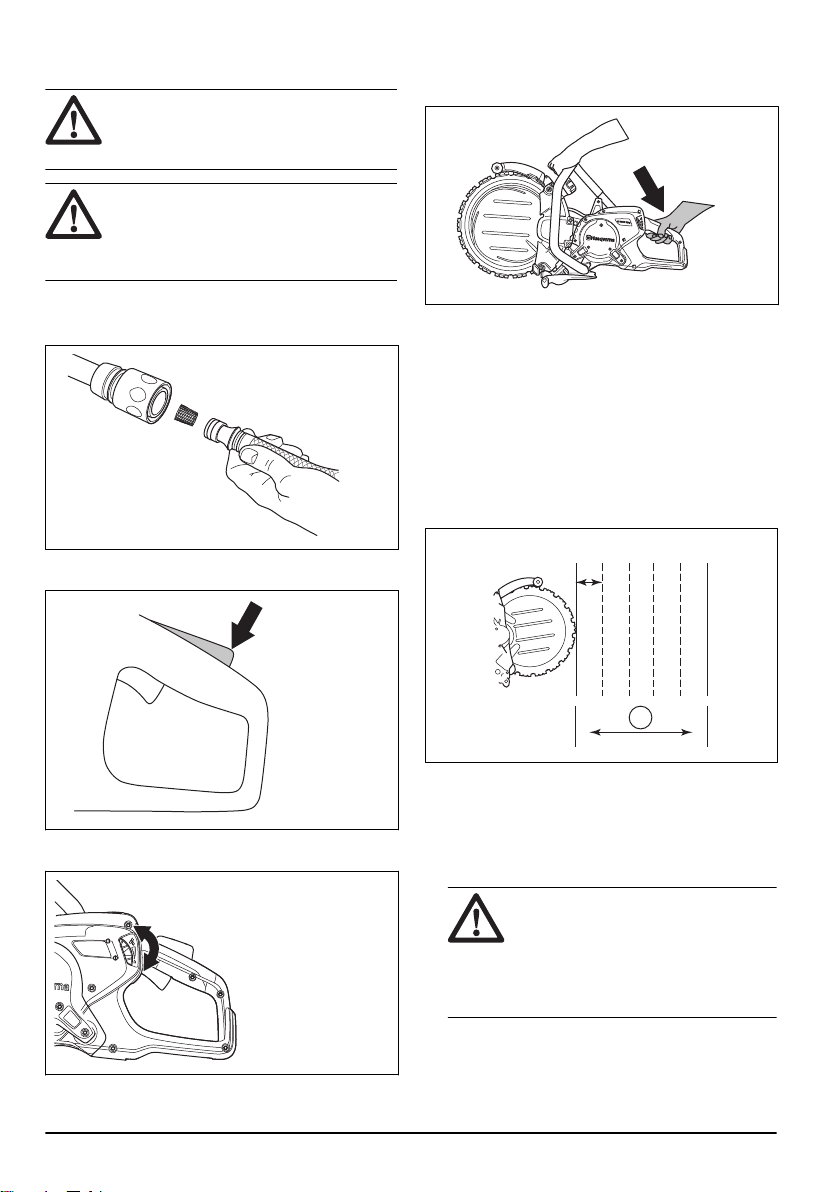

To connect the water supply
WARNING: Always use water when you
operate the product. Dry cutting causes
overheating and damage to the product and
the cutting blade. Risk of serious injury.
CAUTION: Use correct water pressure to
keep the cutting blade core and segments
cool when you cut. If the water hose comes
off at the supply source, the supplied water
pressure can be too high.
1. Connect the water hose to the water supply. Refer to
Technical data on page 27 for the lowest permitted
water flow.
2. Push the power trigger lockout to open the water
valve.
3. Adjust the water flow with your thumb during the
operation.
To start the product
1. Hold the rear handle with your right hand.
2. Push the power trigger lockout and hold in the power
trigger.
3. Let the product operate with no load for minimum 30
seconds.
Cutting depth
This product can cut a maximum depth of 325 mm/12.8
in (A).
The time to complete a cut is longer if you cut at the full
depth directly. It is faster to complete the cut if you cut
4-5 times until the depth is 325 mm/12.8 in.
5 4321
A
To make a straight cut
1. Attach a long straight object as a support along the
line where the cut is to be made.
2. For the best result, cut first with a power cutter with a
Husqvarna special pre-cut blade.
WARNING: Do not use a power cutter
with a standard cutting blade for this first
cut. A standard cutting blade makes a
slot cut that is too thin. When you then
cut with the ring cutting blade, the too
thin slot causes dangerous kickback and
pinching of the ring cutting blade.
3. Cut the full length of the cut to a depth of 2-3 cm/
0.79-1.18 in. Keep the cutting blade against the
support to make the cut straight.
4. Lift the cutting blade from the cut.
18 1461 - 001 - 17.02.2020

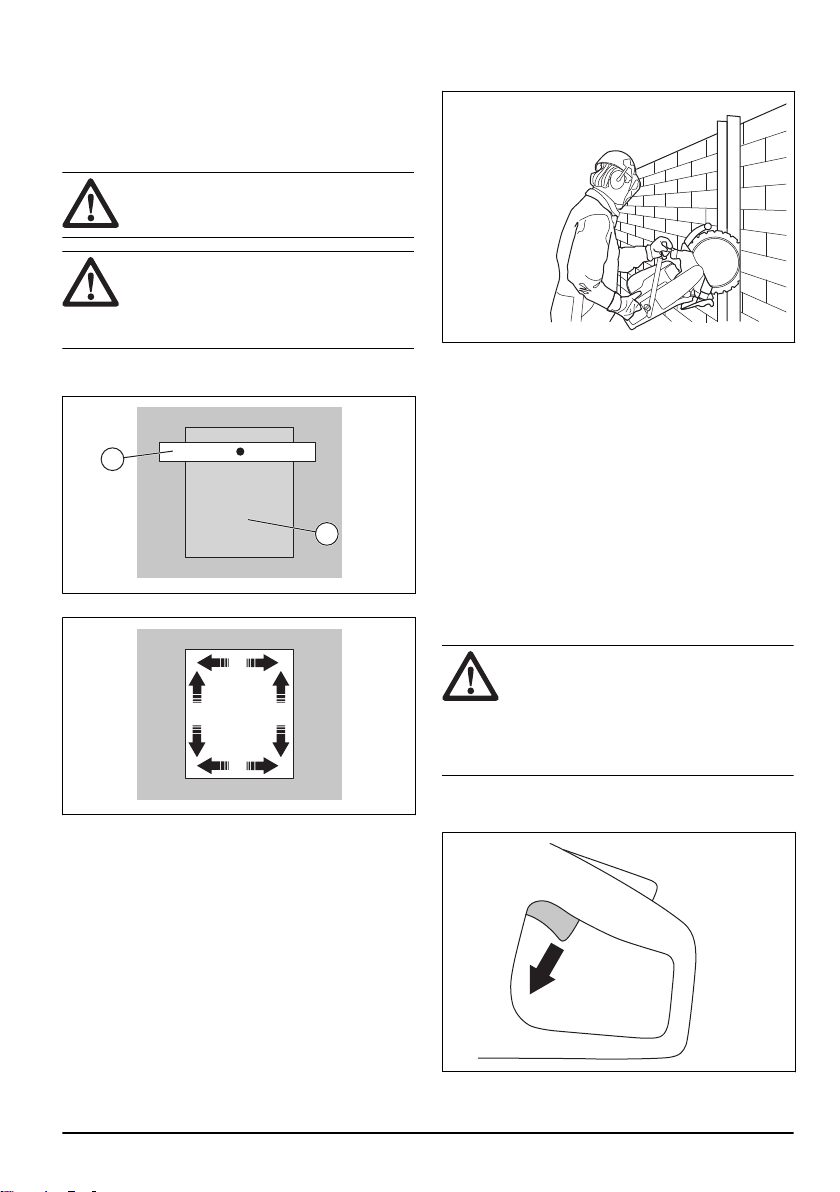

5. Go back to the start of the cut and cut 2-3 cm/
0.79-1.18 in. again, until the full length of the cut has
a depth of 5-10 cm/1.97-3.94 in.
6. Continue to cut to necessary depth.
To cut holes
WARNING: Make sure that large cut pieces
cannot fall on the operator or the product
when you cut.
CAUTION: Cut pieces can fall and cause
damage to the product if the cuts are made
in the incorrect sequence. Always make the
lower horizontal cut before the top horizontal
cut.
1. Attach a support (A) across the area to be cut (B) to
make sure that the cut piece cannot fall.
A
B
2. Make the lower horizontal cut (C).
C
E
D D
3. Make the 2 vertical cuts (D).
4. Make the top horizontal cut (E).
To make a long cut
Do this procedure if your cut is more than 1 m/39.4 in.
1. Attach a long straight object as a support along the
line where the cut is to be made.
2. Cut the full length of the cut to a depth of 50-70
mm/2-3 in. Keep the cutting blade against the
support to make the cut straight.
3. Remove the support.
4. Continue to cut along in the first cut until it has the
sufficient depth.
To make a short cut
Do this procedure if your cut is less than 1 m/39.4 in.
1. Cut the full length of the cut to a depth of 50-70
mm/2-3 in.
2. Continue to cut along in the first cut until it has the
sufficient depth.
To stop the product
WARNING: The cutting blade continues to
rotate for a while after the motor stops. Make
sure that the cutting blade can rotate freely
until it fully stops. If it is necessary to stop
the cutting blade quickly, let the cutting
blade lightly touch a hard surface. Risk of
serious injury.
There are 2 procedures to stop the motor.
• Release the power trigger to stop the motor.
1461 - 001 - 17.02.2020 19

• Push the machine stop button on the power pack.
Refer to the operator's manual for the power pack.
Lamp indicators in the product
Indication Cause Step
1 green lamp flashes. The product is connected to a power pack and is pre-
pared for operation.
The power output is less than 70% of the maximum
available output in operation.
N/A
2 green lamps flash. The power output is 70-90 % of the maximum available
output in operation.
N/A
3 green lamps flash. The cutting speed is at its best performance.
The power output is 90 % of the maximum available out-
put in operation.
N/A
3 green and 1 yellow
lamps flash.
The power output drops. Decrease the load.
3 green, 1 yellow and
1 red lamps flash.
The product is too hot. Decrease the load or increase
the water flow or airflow to de-
crease the temperature.
All the status indica-
tion lamps flash.
The product is too hot. Decrease the load or increase
the water flow or airflow to de-
crease the temperature.
The power is decreased. Increase the water flow or airflow
to decrease the temperature.
The system is in automatic shutdown. Put the power pack in a location
with lower temperature.
Refer to the operator's manual
for the power pack for more in-
structions.
Maintenance
Introduction
WARNING: Read and understand the safety
chapter before you do maintenance on the
product.
For all servicing and repair work on the product, special
training is necessary. We guarantee that professional
repairs and servicing is available. If your dealer is not a
service agent, speak to them for information about the
nearest service agent.
For spare parts, speak to your Husqvarna dealer or
service agent.
20 1461 - 001 - 17.02.2020
