Hitachi CC 14SE Manual

POWER TOOLS
TECHNICAL DATA
AND
SERVICE MANUAL
CUT-OFF MACHINE
CC 14SE
SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT
LIST No. E932 Sep. 2002
C
MODEL
CC 14SE

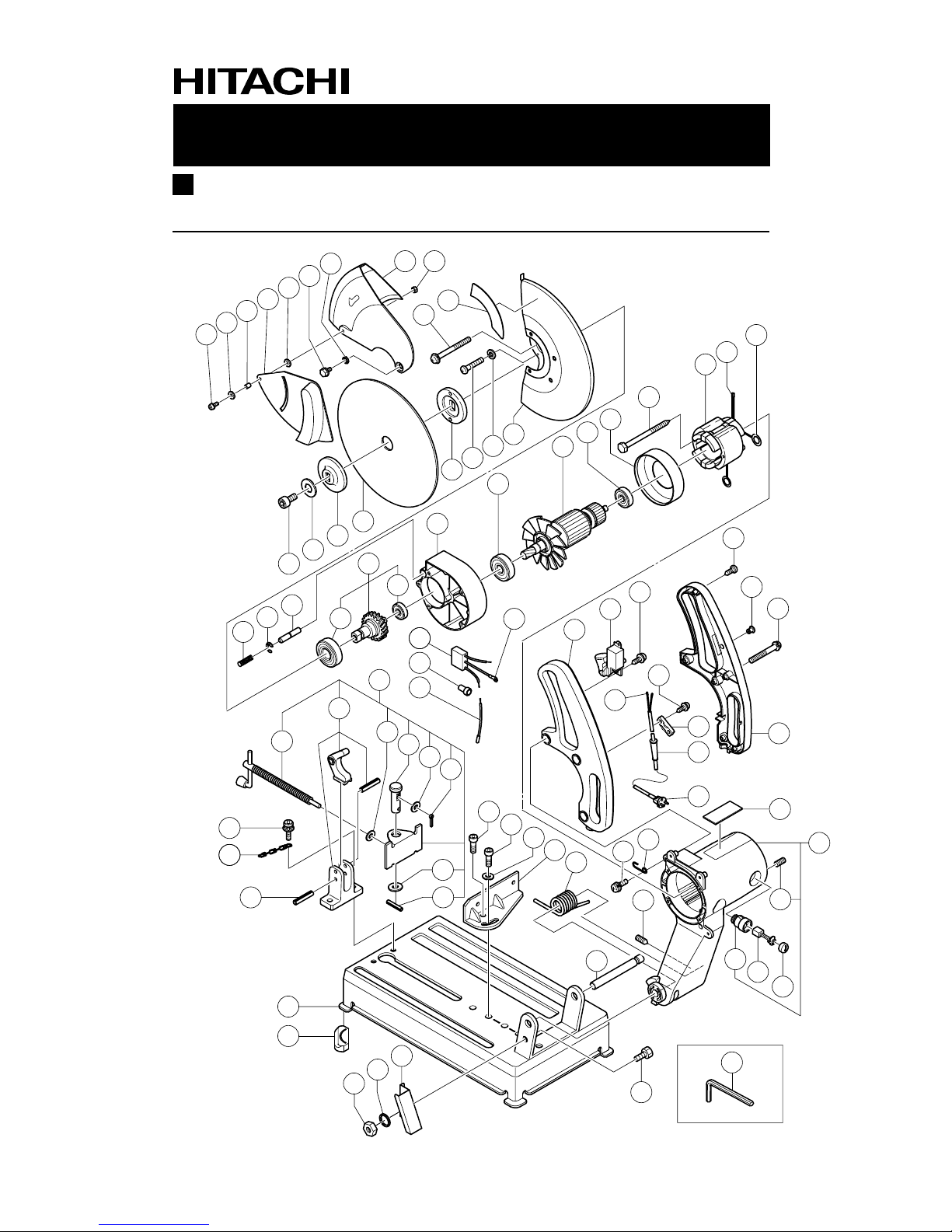

ELECTRIC TOOL PARTS LIST
LIST NO.
CUT-OFF MACHINE
Model CC 14SE
2002
•
9
•
30
(E1)
E932
123425678
910
11 12 13 14
15 16 17 18
19 20 21
22
23
24
25
26
27
28 29
30
31 32 33
34
35
36
501
37 38
39 40
41
42
43
44
45
46
47
48
49
50 51
52
53
54
55
56 57 58
59
60
61
62 63 62 64
65
66
67 67 68 69 70
71
72
73
74
75
76
77 78 79
80

*ALTERNATIVE PARTS
--- 2 ---
ITEM
NO. CODE NO. DESCRIPTION REMARKS
NO.
USED
PARTS
9 -- 02
CC 14SE
* 1 996-247 MACHINE SCREW (W/WASHERS) M5X12 (BLACK) 1 FOR AUS, GBR, SAF, YEN, EUROPE, NOR, SWE,
DEN, FIN
* 2 306-985 WASHER (H) 2 FOR AUS, GBR, SAF, YEN, EUROPE, NOR, SWE,
DEN, FIN
* 3 305-168 SPACER 1 FOR AUS, GBR, SAF, YEN, EUROPE, NOR, SWE,
DEN, FIN
* 4 321-253 SUB COVER 1 FOR AUS, GBR, SAF, YEN, EUROPE, NOR, SWE,
DEN, FIN
5 321-251 BOLT (W/FLANGE) M8 1
6 321-252 PLASTIC WASHER 1
* 7 321-249 SAFETY COVER 1
* 7 321-250 SAFETY COVER 1
FOR AUS, GBR, SAF, YEN, EUROPE, NOR, SWE,
DEN, FIN
* 8 949-555 NUT M5 (10 PCS.) 1 FOR AUS, GBR, SAF, YEN, EUROPE, NOR, SWE,
DEN, FIN
9 987-410 MACHINE SCREW (W/SP. WASHER) M5X70 4
10 HITACHI LABEL 1
11 949-844 HEX. SOCKET HD. BOLT M10X20 (10 PCS.) 1
12 965-724 WASHER (A) 1
* 13 321-247 WHEEL WASHER (A) (W/O D8 HOLE) 1
* 13 321-255 WHEEL WASHER (B) (W/O D8 HOLE) 1 FOR AUS
* 14 306-858 CUT-OFF WHEEL 355MM (10 PCS.) 1
* 14 978-958 CUT-OFF WHEEL 355MM (10 PCS.) 1 FOR GBR
* 15 321-246 WHEEL WASHER (A) (W/D8 HOLE) 1
* 15 321-254 WHEEL WASHER (B) (W/D8 HOLE) 1 FOR AUS
16 949-237 MACHINE SCREW M5X12 (10 PCS.) 1
17 949-454 SPRING WASHER M5 (10 PCS.) 1
18 321-248 WHEEL COVER 1
19 948-363 GAUGE SPRING 1
20 955-479
RETAINING RING (E-TYPE) FOR D6 SHAFT 1
21 321-239 STOPPER PIN 1
22 321-235 SPINDLE ASS’Y 1 INCLUD.23, 24
23 620-6VV BALL BEARING 6206VVCMPS2S 1
24 600-1VV BALL BEARING 6001VVCMPS2L 1
25 321-243 GEAR CASE 1
* 26 360-584U ARMATURE ASS’Y 110V-120V 1 INCLUD.27, 28
* 26 360-584E ARMATURE 220V 1
* 26 360-584F ARMATURE 230V-240V 1
27 600-2VV BALL BEARING 6002VVCMPS2L 1
28 620-0VV BALL BEARING 6200VVCMPS2L 1
29 306-098 FAN GUIDE 1
30 960-251 HEX. HD. TAPPING SCREW D5X65 2
* 31 340-533C STATOR ASS’Y 110V 1 INCLUD.32, 33
* 31 340-533H STATOR ASS’Y 120V 1 INCLUD.32, 33
* 31 340-533E STATOR ASS’Y 220V 1 INCLUD.32, 33
* 31 340-533F STATOR ASS’Y 230V-240V 1 INCLUD.32, 33
* 31 340-533G STATOR ASS’Y 110V 1 INCLUD.33 FOR TPE, GBR (110V)
* 31 340-533J STATOR ASS’Y 230V-240V 1 INCLUD.33 FOR NZL, FIJ, GBR (230V), SAF,
YEN, EUROPE, NOR, SWE, DEN, FIN, AUS
32 981-373 TUBE (D) 2
33 945-932 BRUSH TERMINAL 2

*ALTERNATIVE PARTS --- 3 ---
ITEM
NO. CODE NO. DESCRIPTION REMARKS
NO.
USED
PARTS
9 -- 02
CC 14SE
* 34 930-039 NOISE SUPPRESSOR 1 FOR TPE, GBR (110V)
* 34 994-273 NOISE SUPPRESSOR 1 FOR NZL, FIJ, GBR (230V), SAF, YEN,
EUROPE, NOR, SWE, DEN, FIN, AUS
* 35 959-141 CONNECTOR 50092 (10 PCS.) 2 FOR TPE, NZL, FIJ, AUS, GBR, SAF,
YEN, EUROPE, NOR, SWE, DEN, FIN
* 36 321-423 INTERNAL WIRE 2 FOR TPE, NZL, FIJ, AUS, GBR, SAF,
YEN, EUROPE, NOR, SWE, DEN,FIN
* 37 938-108 TERMINAL 1 FOR NZL, FIN, GBR (230V), SAF, YEN,
EUROPE, NOR, SWE, DEN, FIN, AUS
38 321-240 HANDLE 1
* 39 951-864 SWITCH (2P PILLAR TYPE) W/LOCK 1
* 39 976-825 SWITCH (2P PILLAR TYPE) W/LOCK 1 FOR GBR, SAF, YEN, EUROPE, NOR,
SWE, DEN, FIN
* 39 951-894 SWITCH (2P PILLAR TYPE) W/LOCK 1 FOR USA, CAN
40 305-720 TAPPING SCREW (W/FLANGE) D4X12 1
41 981-373 TUBE (D) 2
42 984-750 TAPPING SCREW (W/FLANGE) D4X16 2
43 937-631 CORD CLIP 1
* 44 953-327 CORD ARMOR D8.8 1
* 44 938-051 CORD ARMOR D10.1 1
* 45 500-234Z CORD 1 (CORD ARMOR D8.8)
* 45 500-245Z CORD 1 (CORD ARMOR D10.1) FOR SYR, JOR, PAK,
ARG, YEN, URU, CIS, BRA, CHI, LIB, MRI
* 45 500-423Z CORD 1 (CORD ARMOR D8.8) FOR SIN, MAL,
SRI, KUW, CYP, KEN, QAT, MLT, UAE
* 45 500-214Z CORD 1 (CORD ARMOR D10.1) FOR TPE, VEN,
CRC, COL, ESA, PAN, DOM, GUA
* 45 500-201Z CORD 1 (CORD ARMOR D10.1) FOR THA, PHI,
PER, BRN, BAN, BOL, TUN, MOZ
* 45 500-439Z CORD 1
(CORD ARMOR D8.8) FOR NZL, FIJ, AUS
* 45 500-435Z CORD 1 (CORD ARMOR D8.8) FOR HKG, GBR (230V)
* 45 500-453Z CORD 1 (CORD ARMOR D10.1) FOR USA, CAN
* 45 500-396Z CORD 1 (CORD ARMOR D8.8) FOR GBR (110V)
* 45 500-455Z CORD 1 (CORD ARMOR D8.8) FOR CHN
46 301-653
TAPPING SCREW (W/FLANGE) D4X20 (BLACK) 3
* 47 951-895 LOCK-OFF BUTTON 1 FOR USA, CAN
48 312-298 MACHINE SCREW (W/WASHERS) M5X35 3
49 321-241 HANDLE COVER 1
50 307-294
MACHINE SCREW (W/WASHERS) M5X16 (BLACK) 1
51 321-234 CHAIN HOOK 1
52 318-044 SEAL LOCK HEX. SOCKET SET SCREW M5X16 1
53 NAME PLATE 1
54 321-242 HOUSING ASS’Y 1 INCLUD.55, 56
55 938-477 HEX. SOCKET SET SCREW M5X8 2
56 957-001 BRUSH HOLDER 2
57 999-044 CARBON BRUSH (1 PAIR) 2
58 940-540 BRUSH CAP 2
59 321-225 VISE ASS’Y 1 INCLUD.60-66
60 321-226 SCREW 1
61 321-227 SCREW HOLDER 1
62 949-433 BOLT WASHER M8 (10 PCS.) 2

*ALTERNATIVE PARTS
--- 4 --- 9 -- 02
ITEM
NO. CODE NO. DESCRIPTION REMARKS
NO.
USED
CC 14SE
PARTS
STANDARD ACCESSORIES
ITEM
NO. CODE NO. DESCRIPTION REMARKS
NO.
USED
Printed in Japan
(020930N)
63 321-229 BOLT 1
64 949-537 SPLIT PIN D3X15 (10 PCS.) 1
65 321-232 WASHER M16 1
66 949-681 ROLL PIN D5X25 (10 PCS.) 1
67 949-844
HEX. SOCKET HD. BOLT M10X20 (10 PCS.) 2
68 949-434 BOLT WASHER M10 (10 PCS.) 1
69 321-224 VISE (B) 1
70 321-422 SPRING 1
71 321-237 HINGE SHAFT 1
72 307-357 HEX. SOCKET HD. BOLT (W/WASHERS) M8X25 2
73 968-520 CHAIN (6 LINK) 1
* 74 949-576 ROLL PIN D6X32 (10 PCS.) 1 FOR USA, CAN
75 321-222 BASE 1
76 321-223 BASE RUBBER 4
77 949-558 NUT M8 (10 PCS.) 1
78 949-457 SPRING WASHER M8 (10 PCS.) 1
79 321-236 SPARK SHOOT 1
80 949-656 HEX. SOCKET HD. BOLT M8X20 (10 PCS.) 1
501 955-857 HEX. BAR WRENCH 8MM 1
