Hussmann Q3SSNM6S User manual

®
Æ
Q3SSNM6S, Q3SSNM8S, Q3SSNM10S, Q3SSNM12S
Medium Temperature
Self Contained
Installation &
Operation Manual
P/N 3086837_C
October 2019
IMPORTANT
Keep in store for
future reference!
MANUAL- -I/O Q3 SSNM SC Spanish 3004064
French 3004095

ii
IMPORTANT
KEEP IN STORE FOR FUTURE REFERENCE
Quality that sets industry standards!
12999 St. Charles Rock Road • Bridgeton, MO 63044-2483
U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900
www.hussmann.com
© 2019 Hussmann Corporation

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. Q3 SSNM Merchandisers
TABLE OF CONTENTS iii
ANSI Z535.5 DEFINITIONS . . . . . . . . . . iv
INSTALLATION
UL Listing . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Federal / State Regulation . . . . . . . . . . . . . 1-1
Hussmann Product Control . . . . . . . . . . . 1-1
Shipping Damage . . . . . . . . . . . . . . . . . . . 1-1
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Self Contained (Location) . . . . . . . . . . . . . 1-2
Unloading . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Exterior Loading . . . . . . . . . . . . . . . . . . . . 1-3
Shipping Skid . . . . . . . . . . . . . . . . . . . . . . . 1-3
Merchandiser Leveling . . . . . . . . . . . . . . . 1-4
Serial Plate Location . . . . . . . . . . . . . . . . . 1-4
Refrigeration Unit Access . . . . . . . . . . . . . 1-4
Self-Contained Refrigeration Equipment
Start Up Check List . . . . . . . . . . . . . . . . . 1-5
ELECTRICAL / REFRIGERATION
Merchandiser Electrical Data . . . . . . . . . . 2-1
Field Wiring . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Electrical Connections . . . . . . . . . . . . . . . . 2-1
Electrical Outlet . . . . . . . . . . . . . . . . . . . . . 2-1
Refrigeration (Self Contained Models) . . 2-1
Waste Outlet and Water Seal . . . . . . . . . . 2-2
START UP / OPERATION
Controller Operation . . . . . . . . . . . . . . . . . 3-1
Display & Buttons . . . . . . . . . . . . . . . . . . . 3-1
Defrost & Alarms . . . . . . . . . . . . . . . . . . . 3-2
Digital On / Off Signals . . . . . . . . . . . . . . . 3-2
Data Communication . . . . . . . . . . . . . . . . 3-3
Data Specifications . . . . . . . . . . . . . . . . . . 3-4
Control & Sensor Configuration . . . . . . . 3-5
Start up . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
TEV Adjustment . . . . . . . . . . . . . . . . . . . . 3-6
Load Limits . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Stocking . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Thermometer . . . . . . . . . . . . . . . . . . . . . . . 3-7
MAINTENANCE
Care and Cleaning . . . . . . . . . . . . . . . . . . . 4-1
Removing Scratches from Bumper . . . . . . 4-2
Cleaning Under Fan Plenum . . . . . . . . . . 4-2
Cleaning Discharge Air Louvers . . . . . . . 4-2
Cleaning Stainless Steel Surfaces . . . . . . . 4-3
Cleaning Coils . . . . . . . . . . . . . . . . . . . . . . 4-3
Cleaning Evaporation Pan . . . . . . . . . . . . 4-4
Self-Contained Refrigeration Equipment
Maintenance Check List . . . . . . . . . . . . . . 4-5
SERVICE
Replacing Fan Motors and Blades . . . . . . 5-1
Replacement Parts List . . . . . . . . . . . . . . . 5-2
Cross Section . . . . . . . . . . . . . . . . . . . . . . . 5-4
Refrigeration Data . . . . . . . . . . . . . . . . . . . 5-5
Defrost Data. . . . . . . . . . . . . . . . . . . . . . . . 5-5
Physical Data . . . . . . . . . . . . . . . . . . . . . . . 5-5
Electrical Data . . . . . . . . . . . . . . . . . . . . . . 5-6
Shipping Weights . . . . . . . . . . . . . . . . . . . . 5-6
Wiring Diagrams . . . . . . . . . . . . . . . . . . . . 5-7
WARRANTY

iv
P/N 3086837_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • www.hussmann.com
REVISION HISTORY
REVISION C — Updated Wiring Diagram, Parts list &
Technical data
REVISION B - UPDATED WIRING DIAGRAM
ORIGINAL ISSUE — MARCH 2019
* * * * * * * * * * * * * * * * * * * * * * * * * *
ANSI Z535.5 DEFINITIONS
• DANGER – Indicate[s] a hazardous
situation which, if not avoided, will
result in death or serious injury.
• WARNING –Indicate[s] a hazardous
situation which, if not avoided, could
result in death or serious injury.
• CAUTION –Indicate[s] a hazardous
situation which, if not avoided, could
result in minor or moderate injury.
• NOTICE – Not related to personal injury –
Indicates[s] situations, which if not avoided,
could result in damage to equipment.




P/N 3086837_C 1-1
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. Q3 SSNM Merchandisers
UL LISTING
These merchandisers are manufactured to meet
ANSI/ UL 471 standard requirements for safety.
Proper installation is required to maintain the
listing.
FEDERAL / STATE REGULATION
These merchandisers at the time they are man-
ufactured, meet all federal and state/ provincial
regulations. Proper installation is required to
ensure these standards are maintained. Near
the serial plate, each merchandiser carries a
label identifying the environment for which the
merchandiser was designed for use.
ANSI/NSF-7 Type I – Display Refrigerator / Freezer
Intended for 75°F (24°C) / 55%RH Ambient Application
ANSI/NSF-7 Type II – Display Refrigerator / Freezer
Intended for 80°F / 55%RH Ambient Application
ANSI/NSF-7 – Display Refrigerator
Intended for Bulk Produce
HUSSMANN PRODUCT CONTROL
The serial number and shipping date of all
equipment is recorded in Hussmann’s files
for warranty and replacement part purposes.
All correspondence pertaining to warranty or
parts ordering must include the serial number
of each piece of equipment involved. This is to
ensure the customer is provided with the cor-
rect parts.
SHIPPING DAMAGE
All equipment should be thoroughly examined
for shipping damage before and during
unloading. This equipment has been carefully
inspected at our factory. Any claim for loss
or damage must be made to the carrier. The
carrier will provide any necessary inspection
reports and/or claim forms.
Apparent Loss or Damage
If there is an obvious loss or damage, it must
be noted on the freight bill or express receipt
and signed by the carrier’s agent; otherwise,
carrier may refuse claim.
Concealed Loss or Damage
When loss or damage is not apparent until
after equipment is uncrated, retain all packing
materials and submit a written response to the
carrier for inspection within 15 days.
LOCATION
These merchandisers are designed for
displaying products in air conditioned stores
where temperature is maintained at or below
the ANSI / NSF-7 specified level and relative
humidity is maintained at or below 55%.
Placing refrigerated merchandisers in direct
sunlight, near hot tables or near other heat
sources could impair their efficiency. Like
other merchandisers, these merchandisers are
sensitive to air disturbances. Air currents
passing around merchandisers will seriously
impair their operation. Do NOT allow air
conditioning, electric fans, open doors or
windows, etc. to create air currents around the
merchandiser.
INSTALLATION
Recommended operating ambient
temperature is between
65°F (18°C) to 75°F (23.9°C).
Maximum relative humidity is 55%.

1-2 InstallatIon
P/N 3086837_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • www.hussmann.com
SELF CONTAINED (LOCATION)
Product should always be maintained at proper
temperature. This means that from the time
the product is received, through storage, prepa-
ration and display, the temperature of the
product must be controlled to maximize the
life of the product.
Besure to position self contained
merchandisers properly.

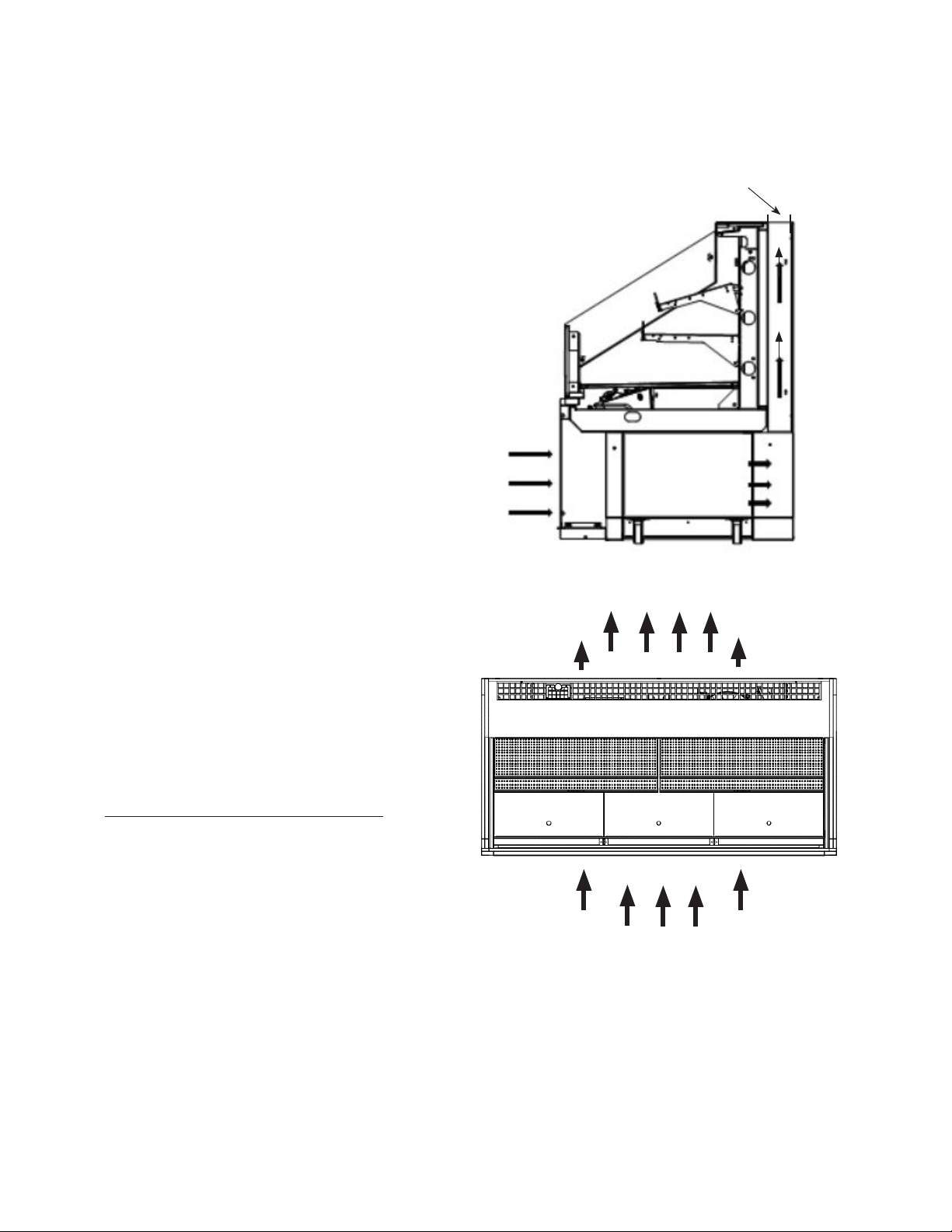

SELF CONTAINED models have vented base
panels to allow air circulation through the
condensing unit. Allow for a minimum 4 in.
clearance from walls, merchandisers, and any
other large objects near the merchandiser’s
vented base panels (for self contained models).
Blocking or restricting air flow will adversely
affect performance and may damage the refrig-
eration system.
Maintain 4-inch air
clearance at rear of
case
This warning does not mean that Hussmann products
will cause cancer or reproductive harm, or is in
violation of any product-safety standards or
requirements. As clarified by the California State
government, Proposition 65 can be considered more of
a‘right to know’ law than a pure product safetylaw.
When used as designed, Hussmann believes that our
products are notharmful. We provide the Proposition
65 warning to stay in compliance with California State
law. It is your responsibility to provide accurate
Proposition 65 warning labels to your customers when
necessary. For more information on Proposition 65,
please visit the California State government website.
August 31, 2018
REAR SIDE
Air
Exhaust
FRONT SIDE
Air
Intake

P/N 3086837_C 1-3
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. Q3 SSNM Merchandisers
UNLOADING
Unloading from Trailer:
Lever Bar (also known as a Mule, Johnson
Bar, J-bar, Lever Dolly, or Pry Lever)
Move the merchandiser as close as possible to
its permanent location and remove all packaging.
Check for damage before discarding packaging.
Remove all separately packed accessories such
as kits and shelves.
Improper handling may cause damage to the
merchandiser when unloading. To avoid dam-
age:
1. Do not drag the merchandiser out of the
trailer. Use a Johnson bar (mule).
2. Use a forklift or dolly to remove the
merchandiser from the trailer.
EXTERIOR LOADING
Do NOT walk on top of merchandisers or
damage to the merchandisers and serious
personal injury could occur.
merchandisers are not structurally
designed to support external loading
such as the weight of a person. Do not place
heavy objects on the merchandiser.
SHIPPING SKID
Each merchandiser is shipped on a skid to
protect the merchandiser’s base, and to make
positioning the case easier.
Remove the top of the crate and detach walls
from each other. Lift crate from the skid.
Unscrew the case from the skid. The fixture
can now be lifted off the crate skid. Lift only at
base of skid! Remove any braces and/or skids
attached (blanket wrapped merchandiser may
have skids).
DO NOT LAY MERCHANDISER OVER
ON THE FLOOR TO REMOVE SKID.
Once the skid is removed, the merchandiser
must be lifted —NOT PUSHED— to reposition.
To remove the skid, remove screws attaching
skid to the merchandiser.
Check floor where cases are to be set to see if
it is a level area. Determine the highest part of
the floor.
Do not walk or put heavy objects on case.
Do not place objects atop the unit.
Do NOT remove shipping crate until the
merchandiser is positioned
for installation.
Do NOT stand or walk on top of
merchandiser. Do not store items or
ammable materials atop the unit.

1-4 InstallatIon
P/N 3086837_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • www.hussmann.com
MERCHANDISER LEVELING
Besure to position merchandisers properly.
Level the merchandiser by all four corners.
Merchandiser(s) must be installed level to
ensure proper operation of the refrigeration
system, and to ensure proper drainage of
defrost water.

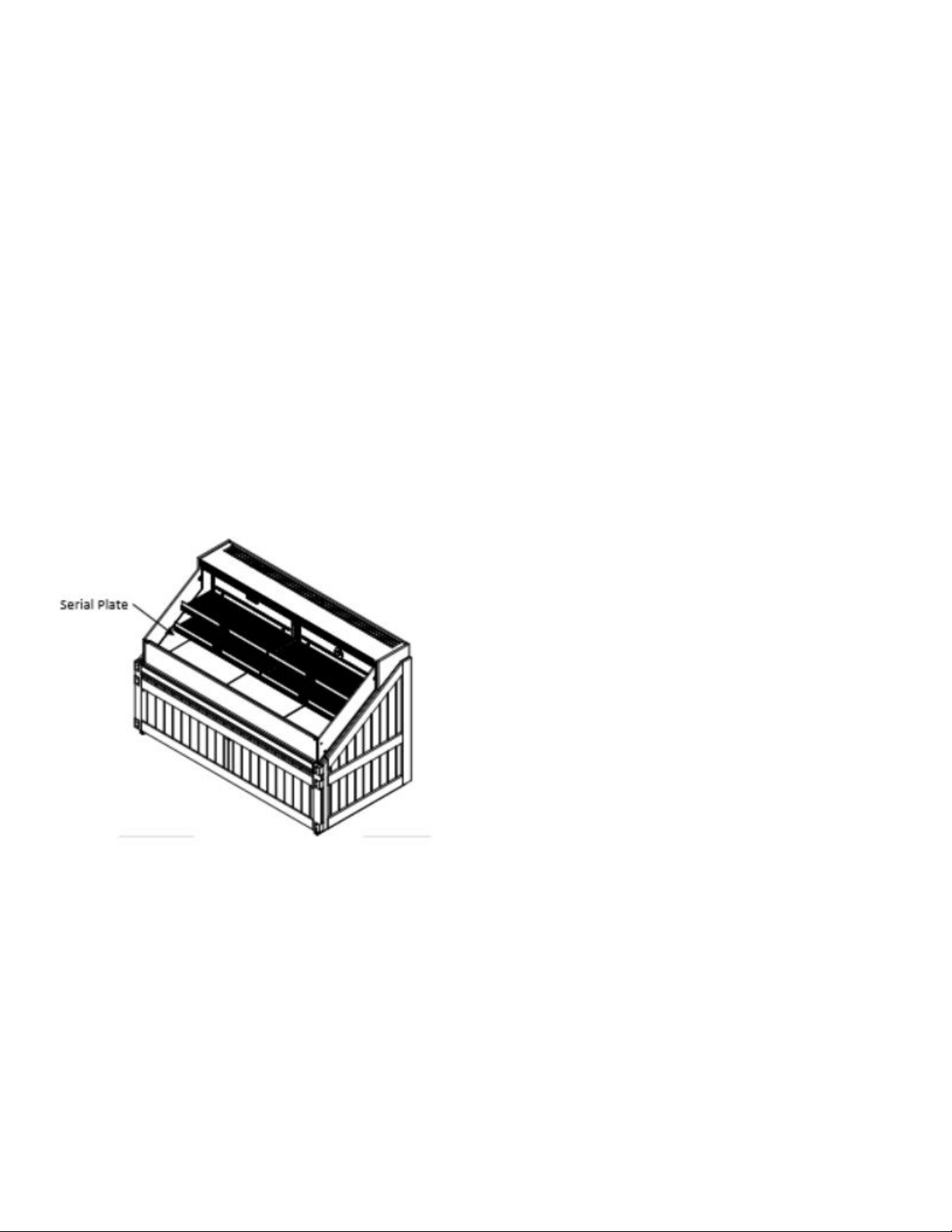

SERIAL PLATE LOCATION
The serial plate is located on the inside of the
merchandiser’s display area as shown below.
REFRIGERATION UNIT ACCESS
The rear panel may be removed by lifting the
panel straight upward and over the tabs on
which it is hanging. Screws will have to be
removed from either end of the panel. The
panel is installed by reversing the above procedure.
Ensure lower front panel is flat against the
floor when installed to prevent air circulation
problems.

P/N 3086837_C 1-5
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. Q3 SSNM Merchandisers
Hussmann Self-Contained Refrigeration Equipment Start Up Check List
***Please note that failure to follow this start-up document may void your factory warranty***
Form HSCW01 Rev. 30MAY12 P/N 0525209_B
Step Startup Activity Check
1 Locate, read and maintain install/operation manual in a safe place for
future reference.
2 Examine unit. Confirm there is NO damage or concealed damage.
3 Level the unit, side to side and front to rear.
4 Remove all shipping brackets/compressor straps/bolts etc.
5 Unit must be run on a dedicated electrical circuit without the use of
an extension cord.
6 Ensure that the proper electrical requirements for the equipment are
supplied.
7 Verify field electrical connections are tight.
8 Verify all electrical wiring is secured and clear of any sharp edges or
hot lines.
9 Verify the condensate drain line is properly trapped and pitched.
10 Verify all required clearances on the sides and back of unit.
11 Verify there are no air disturbances external to the unit. Heat and air
registers, fans, and doors etc.
Advise owner/operator that merchandiser must operate at temperature for 24 hrs prior to loading
with product.
LEGAL DISCLAIMER:
Hussmann shall not be liable for any repair or replacements made without the written consent of Hussmann, or when the product is installed or operated in a manner
contrary to the printed instructions covering installation and service which accompanied such product.

1-6 InstallatIon
P/N 3086837_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • www.hussmann.com
NOTES:

P/N 3086837_C 2-1
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. Q3 SSNM Merchandisers
MERCHANDISER ELECTRICAL DATA
Refer to the technical data sheets and merchandiser
serial plate for electrical information.
FIELD WIRING
Field wiring must be sized for component
amperes stamped on the serial plate. Actual
ampere draw may be less than specified.
ELECTRICAL CONNECTIONS
All wiring must be in compliance with NEC
and local codes.
ELECTRICAL OUTLET
Before the merchandiser is connected to any
wall circuit, use a voltmeter to check that the
outlet is at 100% of the rated voltage. The wall
circuit must be dedicated for the merchandis-
er. Failure to do so voids the warranty. Do
not use an extension cord. Never plug in more
than one merchandiser per electrical circuit.
• Always use a dedicated circuit with the
amperage stated on the unit.
• Plug into an outlet designed for the plug.
• Do not overload the circuit
• Do not use long or thin extension cords.
Never use adapters.
• If in doubt, call an electrician.
Self-contained models have factory-installed
power cords attached at the electrical box.
REFRIGERATION
(Self Contained Models)
Each self contained model is equipped with
its own condensing unit and control panel
located beneath the display area. The correct
type of refrigerant will be stamped on each
merchandiser’s serial plate. The merchan-
diser refrigeration piping is leak tested. The
unit is charged with refrigerant, and shipped
from the factory with all service valves open.
ELECTRICAL / REFRIGERATION
ALWAYS CHECK THE SERIAL PLATE FOR
COMPONENT AMPERES

P/N 3086837_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • www.hussmann.com
WATER OUTLET AND WATER SEAL
The condensate water outlet is located in the
side of the merchandiser. The outlet has a
factory-installed, external water seal.
For self contained models, this water seal
drains into the condensate evaporator pan
located beneath the merchandiser.
For installation or maintenance of the P-TRAP,
use only adhesive compatible with ABS fittings.
NOTE: All lower base panels must be in place
when the refrigerator is operating. If not, air-
flow from the condenser will be directed over
the evaporator pan and defrost water in the
pan may overflow.
Refrigeration lines are under pressure.
Refrigerant must be recovered before
attempting any connection or repair.
Product will be degraded and may spoil if
allowed to sit in a non-refrigerated area.
— LOCK OUT / TAG OUT —
To avoid serious injury or death from electri-
cal shock, always disconnect the electrical
power at the main disconnect when servicing
or replacing any electrical component. This
includes, but is not limited to, such items as
doors, lights, fans, heaters, and thermostats.
Merchandiser must be grounded.
Do not remove the power supply cord ground.
Risk of Electric Shock. If cord or plug
becomes damaged, replace only with
a cord and plug of the same type.
Item # 18s279
2-2 ElEctrIcal / rEfrIgEratIon

P/N 3086837_C 3-1
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. Q3 SSNM Merchandisers
START UP / OPERATION
Operation
Display
The values will be shown with three digits, and
with a setting you can determine whether the
temperature are to be shown in °C or in °F.
Light-emitting diodes (LED) on front panel
HACCP = HACCP function is active
The other LED’s on the front panel will light up
when the belonging relay is activated.
= Refrigeration
= Defrost
= Fan running
The light-emitting diodes will ash when there is
an alarm.
In this situation you can download the error
code to the display and cancel/sign for the alarm
by giving the top knob a brief push.
The Buttons
When you want to change a setting, the upper
and the lower buttons will give you a higher or
lower value depending on the button you are
pushing. But before you change the value, you
must have access to the menu. You obtain this
by pushing the upper button for a couple of
seconds - you will then enter the column with
parameter codes. Find the parameter code you
want to change and push the middle buttons
until value for the parameter is shown. When
you have changed the value, save the new value
by once more pushing the middle button.
Examples
Set menu
1. Push the upper button until a parameter r01
is shown
2. Push the upper or the lower button and nd
that parameter you want to change
3. Push the middle button until the parameter
value is shown
4. Push the upper or the lower button and select
the new value
5. Push the middle button again to freeze the
value.
Cutout alarm relay / receipt alarm/see alarm
code
• Push short the upper button
If there are several alarm codes, they are found
in a rolling stack. Push the uppermost or lower-
most button to scan the rolling stack.
Set temperature
1. Push the middle button until the temperature
value is shown.
2. Push the upper or the lower button and select
the new value.
3. Push the middle button again to conclude the
setting.
Reading the temperature at defrost sensor
• Push short the lower button
Manual start or stop of a defrost
• Push the lower button for four seconds.
(Though not for application 4).
Reprinted with permission from the controller manufacturer.

3-2 start up / opEratIon
P/N 3086837_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • www.hussmann.com
Defrost
During defrost a –d- is shown in the display.
This view will continue up till 15 min. after the
cooling has resumed.
However the view of –d- will be discontinued if:
-The temperature is suitable within the 15 minutes
-The regulation is stopped with “Main Switch”
-A high temperature alarm appears
Alarms
The controller can give alarm in different situa-
tions. When there is an alarm all the light-emit-
ting diodes (LED) will ash on the controller
front panel, and the alarm relay will cut in.
Upper alarm limit
Here you set when the alarm for high temperature
is to start. The limit value is set in °C (absolute
value). The limit value will be raised during
night operation. The value is the same as the
one set for night setback, but will only be raised
if the value is positive.
The limit value will also be raised in connection
with reference displacement r39.
Lower alarm limit
Here you set when the alarm for low tempera-
ture is to start. The limit value is set in °C (abso-
lute value). The limit value will also be raised in
connection with reference displacement r39.
Signal to the alarm thermostat
Here you have to dene the ratio between the
sensors which the alarm thermostat has to use.
S3, S4 or a combination of the two.
With setting 0% only S3 is used. With 100%
only S4 is used.
Connections
Power supply
230 V a.c.
Sensors
S3 and S4 are thermostat sensors.
A setting determines whether S3 or S4 or both
of them are to be used.
S5 is a defrost sensor and is used if defrost has
to be stopped based on temperature.
Digital On/Off signals
A cut-in input will activate a function. The pos-
sible functions are described in menus o02 and
o37.
External display
Connection of display type EKA 163A (EKA
164A).
Relays
The general uses are mentioned here. See also
page 6 where the different applications are
shown.
DO1: Refrigeration. The relay will cut in when
the controller demands refrigeration
DO2: Defrost. The relay will cut in when defrost
is in progress

P/N 3086837_C 3-3
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. Q3 SSNM Merchandisers
Product will be degraded and may spoil if
allowed to sit in a non-refrigerated area.
DO3: For either fans or refrigeration 2
Fans: The relay will cut in when the fans have
to operate Refrigeration 2: The relay will cut in
when refrigeration step 2 has to be cut in
DO4: For either alarm, rail heat, light or hotgas defrost
Alarm: Cf. diagram. The relay is cut in
during normal operation and cuts out in
alarm situations and when the controller is
dead (de-energized)
Rail heat: The relay cuts in when rail heat
is to operate
Light: The relay cuts in when the light has
to be switched on Hotgas defrost: See dia
gram. The relay will cut out when defrost
has to be done
Data communication
The controller is available in several versions
where data communication can be carried out
with one of the following systems: MOD-bus or
LON-RS485.
If data communication is used, it is important
that the installation of the data communication
cable is performed correctly.
See separate literature No. RC8AC.
Electric noise
Cables for sensors, DI inputs and data com-
munication must be kept separate from other
electric cables:
- Use separate cable trays
- Keep a distance between cables of at least 10
cm
- Long cables at the DI input should be avoided

3-4 start up / opEratIon
P/N 3086837_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • www.hussmann.com

P/N 3086837_C 3-5
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. Q3 SSNM Merchandisers
HUSSMANN_GDF_2.1 SHEET SIZE D
THIRD
ANGLE
PROJECTION
TOLERANCES ARE:
DECIMALS .XX
u .03, .XXX u .010
ANGLES
u 2 v
Error: No reference Error:
N
Temperature Sensor
(Black Lead)
Defrost Termination
Sensor (Yellow Lead)
Defrost
Termination Sensor
(Yellow Lead)
Defrost
Termination Sensor
1.5m
Temperature Sensor
3.5m
Control & Sensor Conguration

3-6 start up / opEratIon
P/N 3086837_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • www.hussmann.com
1. The controller controls refrigeration tem-
perature. This is factory installed in the con-
trol panel. Adjust this control to maintain the
discharge air temperature shown. Measure
discharge air temperatures at the center of the
discharge louver.
Defrosts are time initiated and temperature
terminated for self contained. The defrost setting
is factory set as shown above.
To ensure a thorough defrost, defrost must be
terminated by the temperature termination
setting — not by time.
START UP
Follow the controller start up procedures as
detailed in Section 3 of this manual.
Each self contained merchandiser has its own
evaporator coil and a pre-set thermostatic
expansion valve (TEV). The TEV has been
factory set at design conditions to provide the
recommended performance.
TEV ADJUSTMENT
Expansion valves may be adjusted to fully feed
the evaporator. Before attempting to adjust
valves, make sure the evaporator is clear or only
lightly covered with frost, and the merchandiser
is within 10°F of its expected operating
temperature.
Adjust the valve as follows:
a. Attach a probe to the suction line near the
expansion valve bulb.
b. Obtain a pressure reading from the factory
installed Schraeder valve. Convert the pres-
sure reading to a saturated temperature for the
refrigerant.
Temperature (b) minus Temperature (a) is the
superheat. The valve should be adjusted so that
the greatest difference between the two tem-
peratures is 3°F to 5° F.
Make adjustments of no more than 1/2 turn of
the valve stem at a time and wait for at least
15 minutes before rechecking the probe tem-
perature and making further adjustments.
Low Pressure
Cut In: 40 psi
Cut out: 10 psi
ELECTRONIC PRESSURE CONTROL
Model Product Application Discharge Air Temperature Defrost Frequency (per day) Type of Defrost Temp. Termination Failsafe Time (Minutes)
Q3SSNM6S
Q3SSNM8S
Q3SSNM10S
50
Medium Temp. (Dairy, Deli) 24°F 4Off-cycle 48°F
Q3SSNM12S

P/N 3086837_C 3-7
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. Q3 SSNM Merchandisers
LOAD LIMITS
Each merchandiser has a load limit decal. Shelf
life of perishables will be short if load limit is
violated.
Atno time should merchAndisers be
stocked beyond the loAd limits indicAted.
STOCKING
Product should NOT be placed inside the
merchandisers until merchandisers are at
proper operating temperature.
Allow merchandiser 24 hours to operate before
loading product.
Proper rotation of product during stocking is
necessary to prevent product loss. Always
bring the oldest product to the top and set the
newest to the bottom.
air discharge and return flues must
remain open and free of oBstruction at
all times to provide proper refrigeration and
air curtain performance. Do not allow prod-
uct, packages, signs, etc. to block these grilles.
Do not use non-approved shelving, baskets,
display racks, or any accessory that could
hamper air curtain performance.
Do not allow product to be placed outside of
the designated load limits in the illustration.
THERMOMETER
Q-Series models have a solar thermometer.
The thermometer is located at the top interior
of the merchandiser.
Product will be degraded and may spoil if
allowed to sit in a non-refrigerated area.

3-8 start up / opEratIon
P/N 3086837_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • www.hussmann.com
NOTES:
