Hussmann VR3-M/F-EP Original operating instructions

VR3-M/F-EP,VR3HV-MF-EP
MEAT/FISH REMOTE
INSTALLATION & OPERATION GUIDE
/CHINO
VR3-M/F-EP, VR3HV-MF-EP MEAT/FISH REMOTE
REV. 0222
Installation
& Operation
Manual

Table of Contents
Case Sections 4
Installation 5
Receiving Case 5
Snapping Chalk Lines 5
Placement 6
Lifting and Transport Instructions 7
VR3 M/F Drain Location 7
Lower Body Panel Install 8
Rear Body Panel Install 8
Levelling Adjustment 9
Leg Adjustment 9
Installation (Joint Checksheet) 10
Arm Adjustment (HV Only) 11
Arm Adjustment(NON-HV) 12
Glass Adjustment 14
Setting and Joining 15
Leveling 15
Refrigeration 18
Refrigerant 18
Refrigerant piping 18
Line Sizing 18
Oil Traps 18

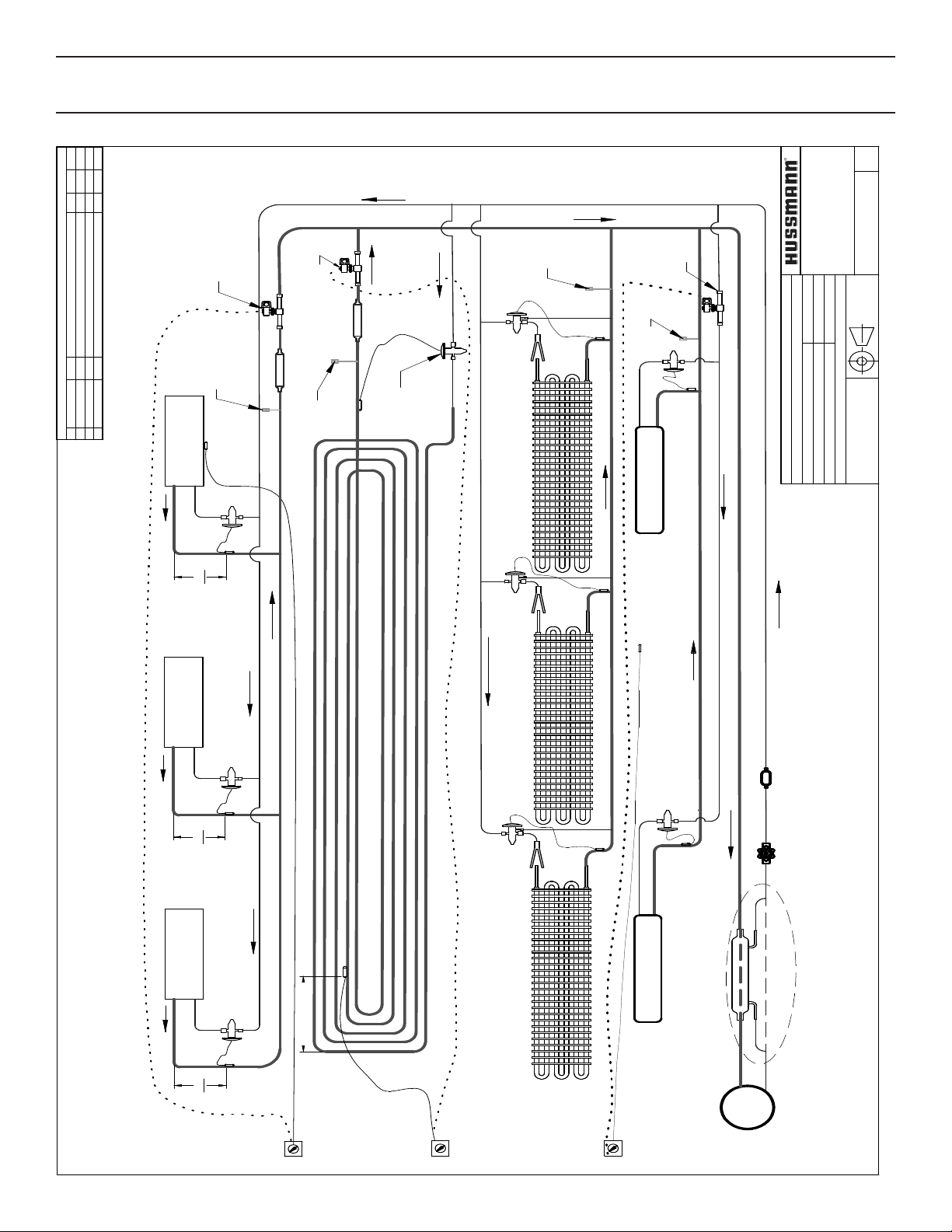

Piping Diagram (General) 19
Refrigeration Components 20
Spiral Coil and Gravity Coil 21
Refrigeration Spec Sheets 22
Electrical 24
Merchandiser Electrical Data 24
Electrical Connections 24
Field Wiring 24
 IdenticationofWiring 24
Remove Rear Raceway 25
Wiring Diagram Index 25
Electrical Conduit (Electrical Box) 25
Electrical Wiring Diagram 26
User Information 35
Start Up 35
Load Limit 35
Basic Operation 35
Merchandising Requirements 36
Merchandising DON’TS 37
Maintenance 38
Case Cleaning 38
Exterior Surfaces 38
Cleaning Bumpers 38
Cleaning Under Merchandiser 38
Cleaning Stainless Steel Surfaces 38
Interior Surfaces 38
Cleaning Coils 38
Recommended Cleaning Schedule 38
Prop 65 (CA Only) 39
Troubleshooting 40

3
Case Description: Refrigerated Service Meat Merchandiser
Shipping Damage: All equipment should be thoroughly examined for shipping damage before and during unloading.
This equipment has been carefully inspected at our factory and the carrier has assumed responsibility for safe arrival. If
damaged, either apparent or concealed, claim must be made to the carrier Immediately.
Apparent Loss or Damage: If there is an obvious loss or damage, it must be noted on the freight bill or express receipt
and signed by the carrier’s agent; otherwise, carrier may refuse claim. The carrier will supply necessary claim forms.
Concealed Loss or Damage: When loss or damage is not apparent until after all equipment is uncrated, a claim for
concealed damage is made. Make request in writing to carrier for inspection within 15 days, and retain all packaging. The
carrier will supply inspection report and required claim forms.
Shortages: Check your shipment for any possible shortages of material (See Parts List page 11). If a shortage should
exist and is found to be the responsibility of Hussmann Chino, notify Hussmann Chino. If such a shortage involves the
carrier, notify the carrier immediately , and request an inspection. Hussmann Chino will acknowledge shortages within ten
days from receipt of equipment.
Hussmann Chino Product Control: The serial number and shipping date of all equipment have been recorded in
Hussmann’slesforwarrantyandreplacementpartpurposes.Allcorrespondencepertainingtowarrantyorpartsordering
must include the serial number of each piece of equipment involved, in order to provide the customer with the correct
parts.
Location/Store Conditions: The VR3(HV)-M/F-EP refrigerated merchandiser has been designed for use only in air
conditioned stores where temperature and humidity are maintained at or below 75°F Dry bulb and 55% relative humidity.
DO NOT allow air conditioning, electric fans, ovens, open doors or windows (etc.) to create air currents around the
merchandiser, as this will impair its correct operation.
This equipment is to be installed
to comply with the applicable
NEC, Federal, State , and Local
Plumbing and Construction
Code having jurisdiction.
AT TENTION
INSTALLER
/CHINO
A publication of HUSSMANN®Chino
13770 Ramona Avenue • Chino, California 91710
[phone] FAX
[phone]
[phone]
Keep this booklet with the case at all times for future
reference.
General Information

4
VR3-M/F-EP Vertical Glass Meat
Standard Service Dome, Multi Deck Self Service
14 (356)
253/4 (654)
465/8 (1184)
391/4 (997)
26
1/2 (673)
23
(584)
131/2
(343)
6
(152)
183/8
(467)
53
(1346)
361/4
(921)
147/8 (378)
11
7/8
(302)
37/8
(98)
31/2
(89)
optional
refrigerated or
dry storage
9
(229)
VR3HV-M/F-EP Vertical Glass Meat
High Volume Service Dome, Multi Deck Self Service
optional
refrigerated or
dry storage
465/8 (1184)
391/4 (997)
26
1/2 (673) deck
23
(584)
91/2
(241)
6
(152)
137/8
(425)
20
3/8
(518)
53
(1346)
301/8
(765)
11
7/8
(302)
37/8
(98)
253/4 (654)
10 (254)
4or 5
81/8 or71/8
31/2
(89)
VR3-M/F-EP +2 Vertical Glass Meat
Standard Service Dome, Multi Deck Self Service +2" height
253/4 (654)
14
7/8 (378)
9
(229)
46
5/8 (1184)
391/4 (997)
261/2 (673)
23
(584)
151/2
(394)
6
(152)
183/8
(467)
55
(1397)
381/4
(969)
117/8
(302)
37/8
(98)
31/2
(89)
optional
refrigerated or
dry storage
14
(356)
VR3HV
-M/F-EP +2 Vertical Glass Meat
High V
olume Service Dome, Multi Deck Self Service +2" height
optional
refrigerated or
dry storage
465/8 (1184)
391/4 (997)
26
1/2 (673) deck
23
(584)
111/2
(279)
6
(152)
137/8
(425)
20
3/8
(518)
55
(1397)
321/8
(816)
117/8
(302)
37/8
(98)
253/4 (654)
10 (254)
4or 5
81/8 or71/8
31/2
(89)
14 (356)
VR3-M/F-EP +4 Vertical Glass Meat
Standard Service Dome, Multi Deck Self Service +4" height
253/4 (654)
14
7/8 (378)
9
(229)
46
5/8 (1184)
391/4 (997)
261/2 (673)
23
(584)
171/2
(445)
6
(152)
183/8
(467)
57
(1448)
401/4
(1022)
117/8
(302)
37/8
(98)
31/2
(89)
optional
refrigerated or
dry storage
16
(406)
12
(305)
VR3HV
-M/F-EP +4 Vertical Glass Meat
High V
olume Service Dome, Multi Deck Self Service +4" height
optional
refrigerated or
dry storage
465/8 (1184)
391/4 (997)
261/2 (673) deck
23 (584)
131/2
(343)
6
(152)
137/8
(425)
20
3/8
(518)
57
(1448)
341/8
(867)
117/8
(302)
37/8
(98)
253/4 (654)
10 (254)
4or 5
81/8 or71/8
31/2
(89)
14
(356)
Elec
drop
front close-off
Lower
Drain
Refrig
Upper
Drain
case leg
rear close-off
6
(152)
15(381)
93/4
(248) 91/8
(232)
103/8
(264)
VR3-M/F-EP
7(178)4'
Length “A”
41(1041)6'
53(1346)8'
“B”
65
(1651)
32(813)
44(1118)
56(1422)
77
(1956)
12'
End Panels
11/ 8 (29)
case front
21
(533)
“A”
“B”
31/2 (89)
37/8 (98)
465/8
(1184)
Elec
drop
front close-off
Lower
Drain
Refrig
Upper
Drain
case leg
rear close-off
6
(152)
35/8 (92)
35/8 (92)
15(381)
93/4
(248) 91/8
(232)
103/8
(264)
VR3HV-M/F-EP
7(178)4'
Length “A”
41(1041)6'
53(1346)8'
“B”
65
(1651)
32(813)
44(1118)
56(1422)
77
(1956)
12'
End Panels
11/ 8 (29)
case front
21
(533)
“A”
“B”
461/2
(1181)
Case Sections

5
Installation
NOTICE
Do NOT remove Foam Blocks from shelves
and glass until the merchandisers are
positioned for installation. Shelves or
merchandising glass may be damaged.
Loose
Items
Warning
Labels
Foam Blocks
in place
Boards
fastened
Case is to arrive at store as was shipped form factory. See
reference above for proper shipment referencing. (Not
actual case)
Receiving Case
Upon receiving your new Hussmann Case all equipment
should be thoroughly examined for shipping damage
before and during unloading. This equipment has been
carefully inspected at our factory. Any claim for loss or
damage must be made to the carrier. The carrier will
provide any necessary inspection reports/ or claim form.
If there is obvious loss or damage, it must be noted on the
freight bill or express receipt and signed by the carrier’s
agent; otherwise carrier may refuse claim.
Snapping Chalk Lines
Preparepermanentpositioningbymarkingoorswith
Chalk snap lines where cases are to be located. Chalk
lines are to run along the base or legs of cases.

6
Placement
Important: See lifting instructions to properly lift case when
being placed on dollies or permanent location. (See page
7 for Lifting Instructions.)
Leaveallhardwareandttingsinplaceuntilcaseis
located at or near its preferred location. Using a J-Bar
lift the case from the 2x4 boards and placing dollies
underneath each Base Leg, proceed to moving the case to
its designated location if not done so already.
IF APPLICABLE
(NOT ALL CASES CONTAIN LEG BRACES)
The Illustration Below demonstrates perfect placement of a
dollie per 1 side for both Base Legs of the merchandiser.
IF APPLICABLE
(NOT ALL CASES
CARRY LEG BRACES)
Movethextureascloseaspossibletoitspermanent
location and then remove all packaging and
preparetoremoveo󰀨Skid.Removeallseparately
packed accessories such as kits, and panels.
Check for damage before discarding packaging.

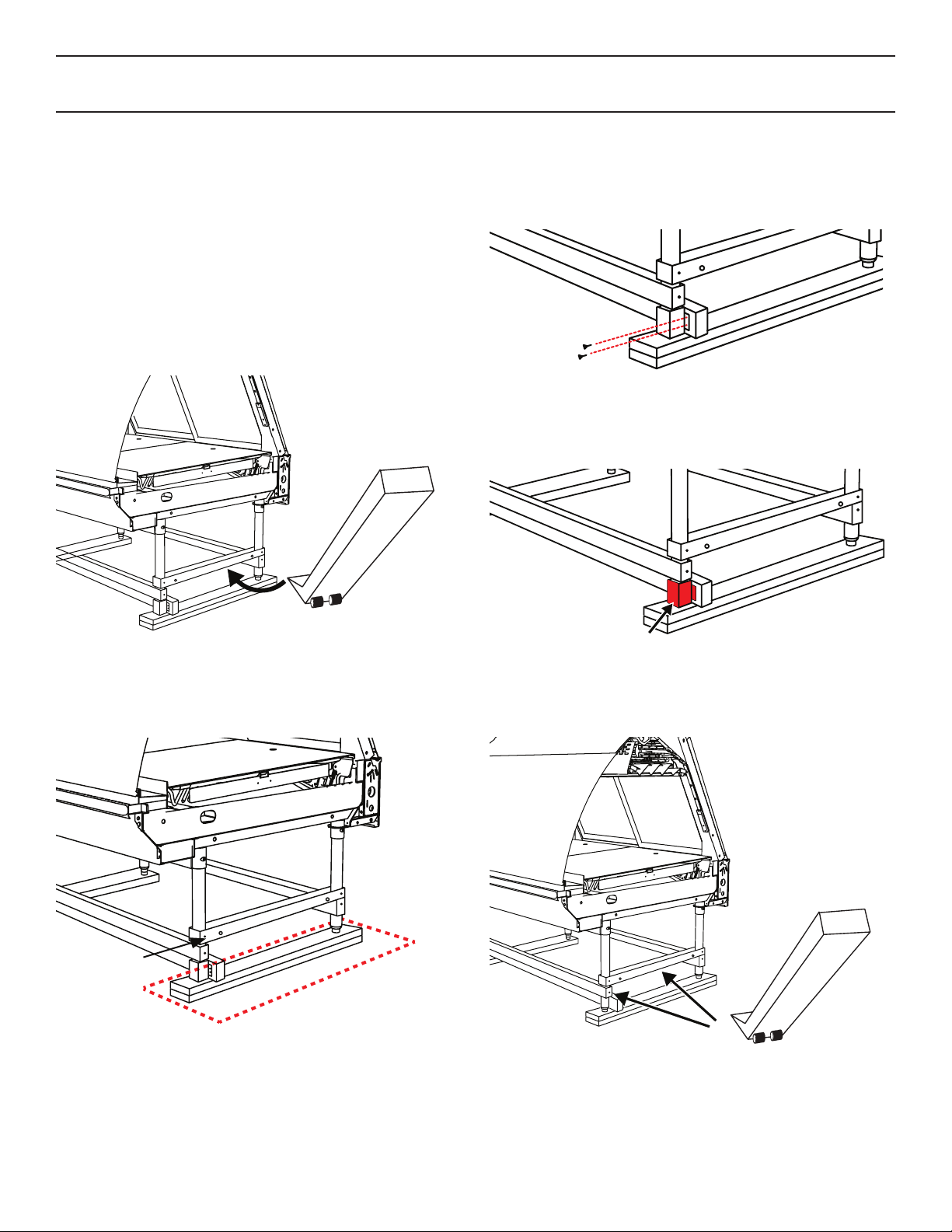

Installation (cont’d)
Remove screws as well as fastened plates bolted to each
2x4 board at each base leg.
Remove fastened plates only upper Brace Legs are to
remain fastened onto case.
Fastened plate
Once the fastened plates are removed a J-Bar can be
used to lift at each end of the Leg Braces to remove the
below 2x4 boards.

7
Lifting and Transport Instructions
1. The VR3 can be lifted by a forklift at typical lifting
points.
2. Ensure lower body panels are removed before lifting
with a forklift. Serious damage will occur if the body
panels are not removed.
3. Make sure that fork spacing and width will not damage
drain or come in contact with piping, or electrical lines
4. Be sure that the forks are long enough to support
beyond the center of the case but not damage near
components. Check for proper balance before moving.
A minimum fork length of 36” is recommended for 68”
wide cases
5. The VR3 merchandiser can be raised at one end
underneath the deck with a forklift to allow the
placement of rollers or dollies.
6. Evenly support the entire base structure on rollers or
dollies before attempting to move. Each Base Leg
must have its own dollie to properly support the case.
Lifting Points are typical and dependent upon size of case
andrefrigerationapplication,drainagecongurationswill
call for altercations in Lifting Zones.
Belowarethefollowingdrainagecongurationsandlifting
should be altered to the expected model.
VR3 M/F Drain Location
Service Drain
Bottom Drain
Installation (cont’d)
Forklift Points
(Underneath Deck)
WARNING
Improper placement of forks may damage
drainage piping. Use a spotter when placing
forks. Make sure that piping will not be dam-
aged. Use J-Bars or Jacks if forks cannot be
used safely

8
Installation (cont’d)

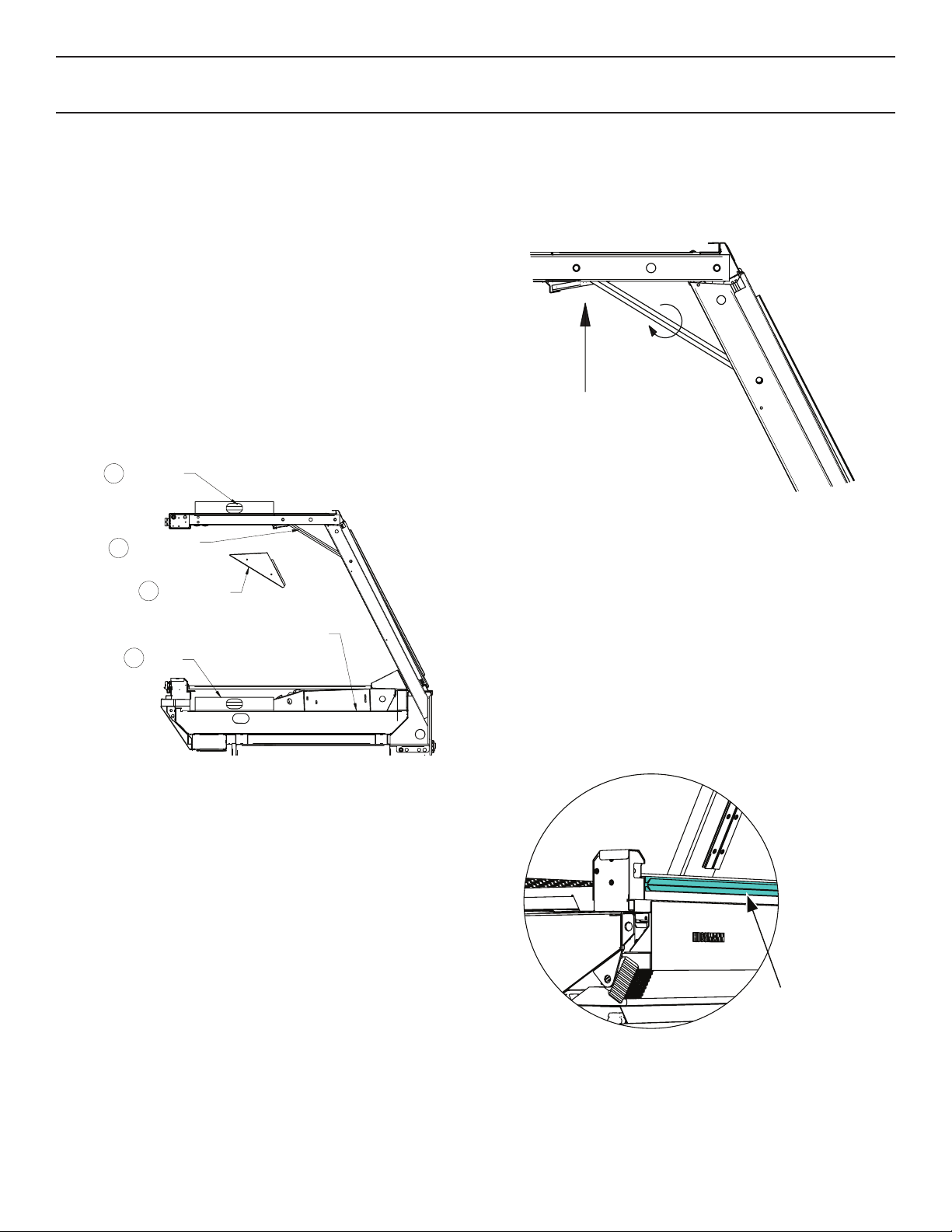

Rear Body Panel Install
1. Align clips of rear panel to Base Legs of case
2. Secure top and bottom clips of rear panel to Base
Legs as shown below.

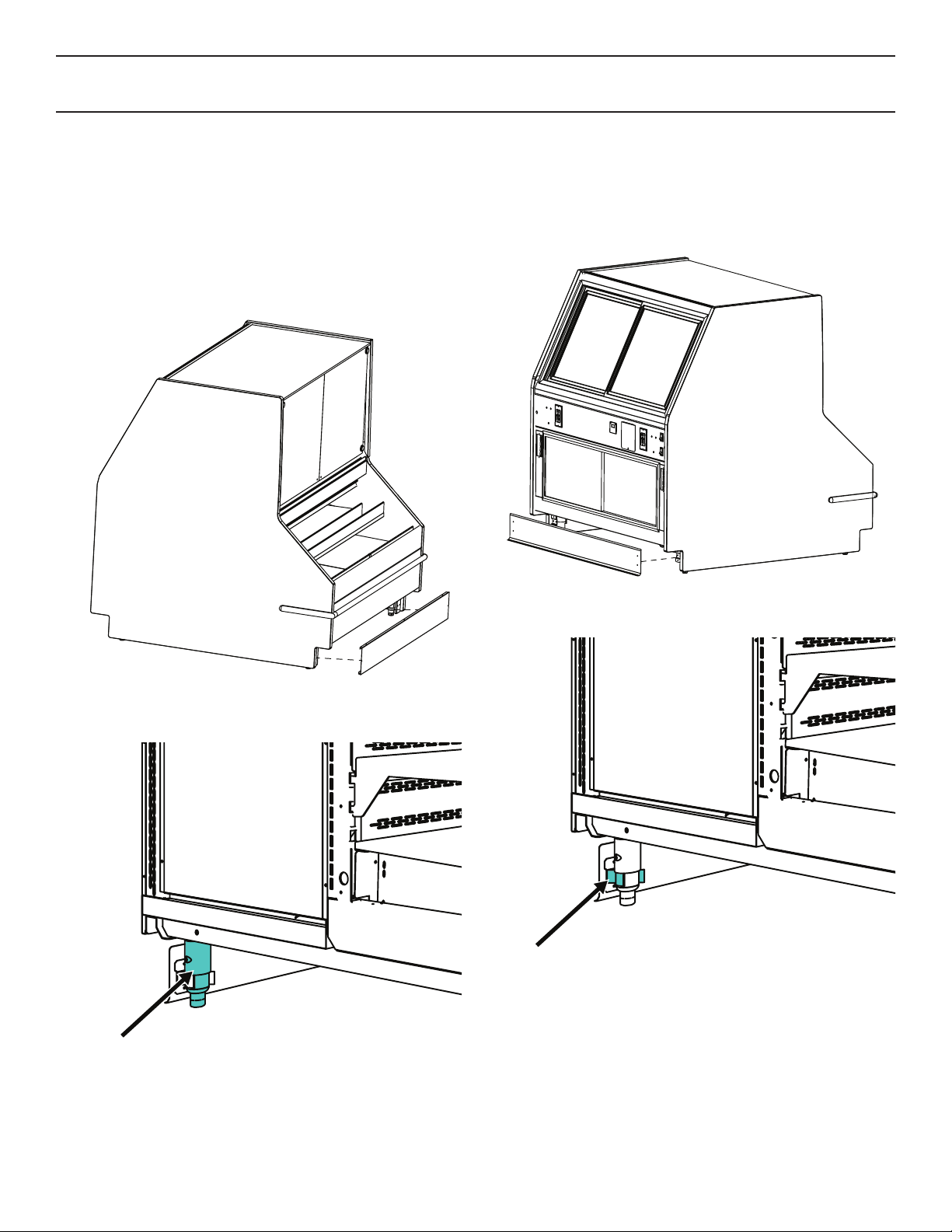

Lower Body Panel Install
No tools will be needed to install body panels.
To begin Bottom panel assembly place the front panel
along in front of the case and align the base legs just
underneath the lower sections of the case. Snap in spring
clips to the base legs of the case.
BASE LEG
SPRING CLIP

9
Installation (cont’d)

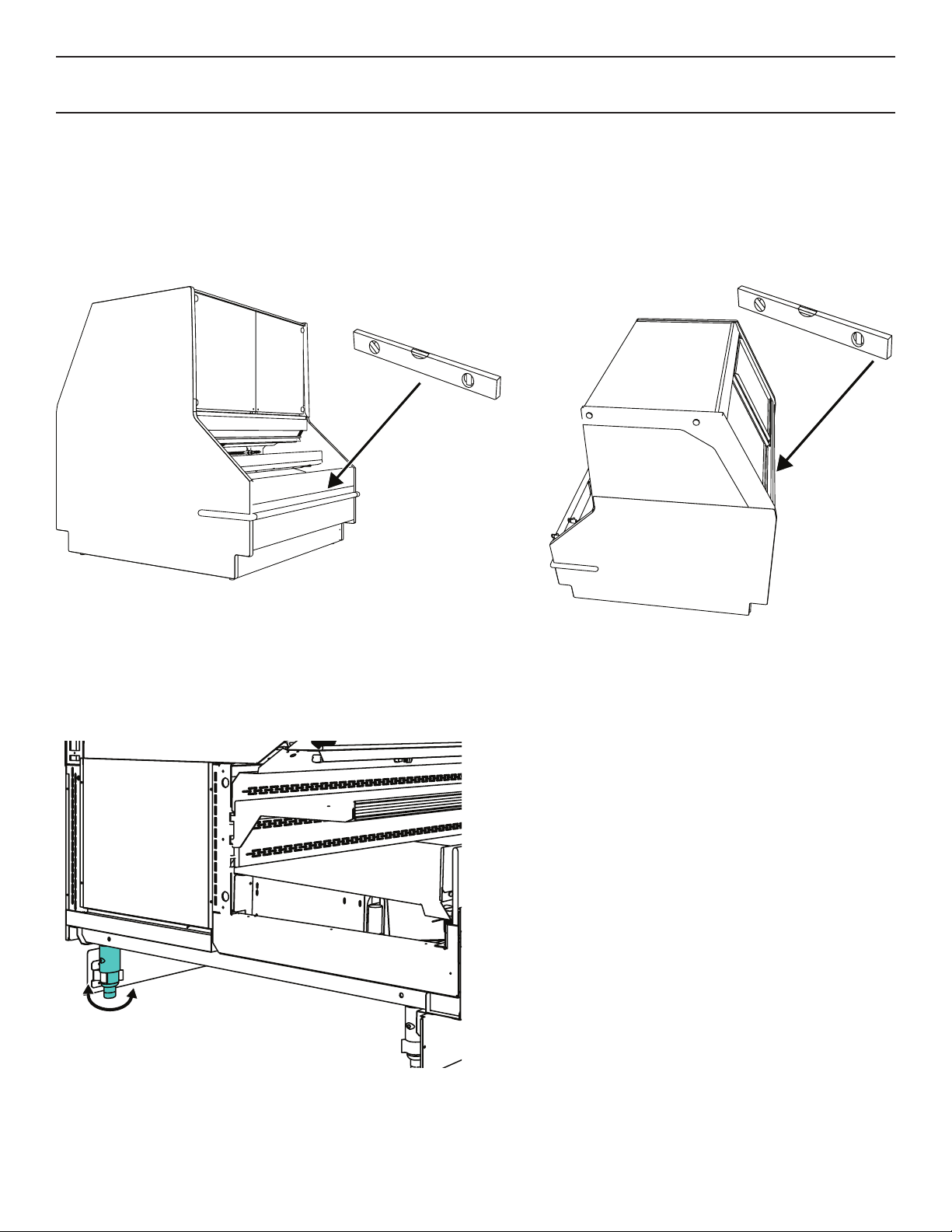

Levelling Adjustment
Position the case at the highest point. Set a long
magnetized level (4ft [1220 mm] or more) on either
underneath the deck or on top of the case. Ensure to level
case from front to back and side to side.
Level
(4 ft[1220mm])
Leg Adjustment
Adjust the legs at each corner of the case to level out any
discrepancies in order to optimize case performance and
proper drainage.
Note:Toavoidremovingconcreteooring,beginlineup
levellingfromtheHighestpointofthestoreoor.
A wrench or pliers may be used to adjust each base leg.
Turning the base of each leg clockwise will raise the height
of the case.
Turning the base of each leg counterclockwise will lower
the height of the case.
Level
(4 ft[1220mm])

10
CHK ITEM PART # QTY GRAPHIC
□
□
FRONT BODY PANEL TRIM 2H20345(STAINLESS)
2H20345 (EXT COLOR) 1A
□
□
TOE KICK TRIM TBD (EXT COLOR)
TBD (STAINLESS) 1B
□
SELF SERVICE BULKHEAD CAP 2H20347 (STAINLESS) 1 C
□
SERVICE BULKHEAD CAP 2H20348 (STAINLESS) 1 D
□
REAR ARM TRIM 2H20346 (STAINLESS) 1 E
□
REAR TOE KICK TRIM 2H22014 (STAINLESS) 1 F
□UPPER FRONT BODY PANEL TRIM 2H20344 (EXT COLOR)
2H20344 (STAINLESS)
1G
□REAR UPPER RACEWAY TRIM 2H20350(STAINLESS) 1 H
□REAR LOWER RACEWAY TRIM 2H20351(STAINLESS) 1 I
□
WASHER , 3/8"
300-03-1320
5J
□
BOLT, 3/8 - 16 X 8
300-03-0902
2K
□
GASKET SEAL TAPE
225-01-0628
16 FT L
□
SEALANT, BUTYL, TUBE
100-01-0121
1M
□
ALIGNMENT PIN
0376408
3N
□
SPLINE H CHAN POLY 4 1/2
200-02-3022
1O
□
JOINING NYLON WASHER
2H04205800
1P
□
BOLT, 3/8 - 16 X 1.5
300-03-0850
3Q
□
NUT,3/8-16
300-03-1370
5R
2H21696 (EXT COLOR)
2H21696 (STAINLESS)
□
□
□
SEALANT, SILICONE, TUBE
100-01-0051 (CLEAR)
100-01-0063 (SILVER)
100-01-0065 (BLACK)
1-
□
SCREW, SELF TAP #8 X 1/2
300-03-0037
12 -
□
VHB DOUBLE-SIDED TAPE
175-01-0562
16 FT -
□
COUPLING, 2" PVC
225-01-0090
1-
1TRIM JOINT FRONT PLEX 6IN
□S
REV E 01/21/2016
VR3HV/VR3/ JOINT CHECKSHEET INSPECTOR _________________
SALES ORDER # _____________
EXT COLOR _________________
INT FINISH __SS__/__BLACK___
B
C
A JK*
JK*
D
E
F
G
JQR*
JQRP*
L
M
JQR*
N
N
H
I
M
O
*SEE INSTALLATION GUIDE
INDICATES CASE BOLTING/ALIGNMENT POINT
S
Installation (Joint Checksheet)

11
Installation (cont’d)
IMPORTANT: Preloading the Canopy Arm
After reaching level (on Level 2) turn the connectors two
full rotations clockwise to raise the canopy.
Diretion of
preloading
2 complete
turns
After all the glass height has been adjusted, tighten all the
lock screws previously loosened.
Glass must be parallel to ledge when viewed from front.
Glass height should be centered on “V” glass seal as
demonstrated below
IMPORTANT: Attempting to compensate for poor
installation practices by manipulating the canopy
hardware will result in unsatisfactory workmanship
and possibly cause hardware failure and/or injury.
ALIGN GLASS
WITH “V” SEAL
Arm Adjustment (HV Only)
STEP1. Ensure case is level to the ground.Check level at
the bulkhead as shown(LEVEL1).
STEP2. Unscrew and remove access covers.
STEP3. Loosen top and bottom hinge vertical adjusment
screws.
STEP4. Place level on the top of the upper arms as
shown(LEVEL2)
STEP5.Using a 1/2” open-ended wrench,turn the Turn
buckle connecting rod until level 2 indicates that the arm is
level (Note that some turnbuckles may be reverse thread..
Testturningdirectionbyobservingthee󰀨ectofturn
direction.)
TURN BUCKLE
CONNECTING ROD
LEVEL 1
LEVEL 2
ACCESS COVER
WRAPPER BULKHEAD
1
1
2
4
To properly adjust the height of the glass requires that all
hinge arms of each section be loosened before attempting
to change the arm position.
Turning the bolt clock-wise, the front arm and glass will
lower.
Turning the bolt counter clock-wise, the arm and glass will
raise.

12
Installation (cont’d)
STEP5. Locate and loosen lock bolts under each canopy
arm.
BASE CHANNEL
NOT SHOWN
ARM
LOCK BOLT
Arm Adjustment(NON-HV)
STEP1. Ensure case is level to the ground.Check level
as shown(pg 9).
STEP2. Remove service section deck pans and arm drain/
pipe covers to avoid damaging parts during adjust
ment.
REMOVE CASE
DRAIN/PIPING COVERS
STEP3. Remove fasteners from rear cover raceway to
gain access to adjument bolts.
*Note: Be careful to not damage/tug electrical outlets or
devices attached to the raceway cover.
STEP4. Place level on the top of the upper arms as shown
to measure adjustments made to arms.
To properly adjust the height of the glass requires that all
hinge arms of each section be loosened before attempting
to change the arm position.

13
Installation (cont’d)
STEP6. Shim each arm accordingly to bring canopy arms
to level. Once proper heght is acheived, tighten
the lock-bolts and complete steps in reverse order
to assemble case.
REAR SHIM
LOCATION
FRONT SHIM
LOCATION
*Note: Front and Rear Shimming
• Shimming from the front will raise the canopy arms
• Shimming from the rear will lower the canopy arms.
FRONT
SHIM
REA
R
SHIM
Once proper heght is acheived, tighten the lock-bolts
and complete steps in reverse order to assemble case.
Glass must be parallel to ledge when viewed from front.
Glass height should be centered on “V” glass seal as
demonstrated below
IMPORTANT: Attempting to compensate for poor
installation practices by manipulating the canopy
hardware will result in unsatisfactory workmanship
and possibly cause hardware failure and/or injury.
ALIGN GLASS
WITH “V” SEAL

14
Installation (cont’d)
Glass Adjustment
Follow these steps accordingly to properly and safely
adjust the positioning of the front glass.
Glass must be parallel to front ledge when viewed from
front. Glass height should be centered on “V” Glass Seal
as demonstrated below.
ALIGN GLASS
WITH “V” SEAL
STOP
Before adjusting glass
Set, Level, and Bolt together all cases
Double check leveling for all cases
Do not move lineup during adjustment
LEFT & RIGHT
IN & OUT
UP & DOWN
UPPER & LOWER HINGE
ACCESS
HINGE
ASSEMBLY
(GLASS NOT
SHOW HINGE
ASSEMBLY
(GLASS NOT
SHOW
TURNING THE SCREWDRIVER
CLOCKWISE WILL CAUSE THE
HINGE TO ADJUST LEFT
TURNING THE SCREWDRIVER
COUNTER- CLOCKWISE WILL CAUSE
THE HINGE TO ADJUST RIGHT
TURNING THE SCREWDRIVER
COUNTER- CLOCKWISE WILL CAUSE
THE HINGE TO ADJUST OUTWARD
TURNING THE SCREWDRIVER
CLOCKWISE WILL CAUSE THE
HINGE TO ADJUST INWARD
1. GENTLY LOOSEN SCREW SHOWN
2. PHYSICALLY MOVE HINGE/GLASS UP OR DOWN
3. TIGHTEN SCREW AFTER FINAL POSITIONING
NOTE:
PERFORM STEP 1 ON ALL HINGES BEFORE LEVELING
CANOPY
UPPER
HINGE
COVER
LOWER
HINGE
COVER
SCREW
SCREW
SCREW

15
Installation (cont’d)
Setting and Joining
The sectional construction of these models enable them
tobejoinedinlinetogivethee󰀨ectofonecontinuous
display.

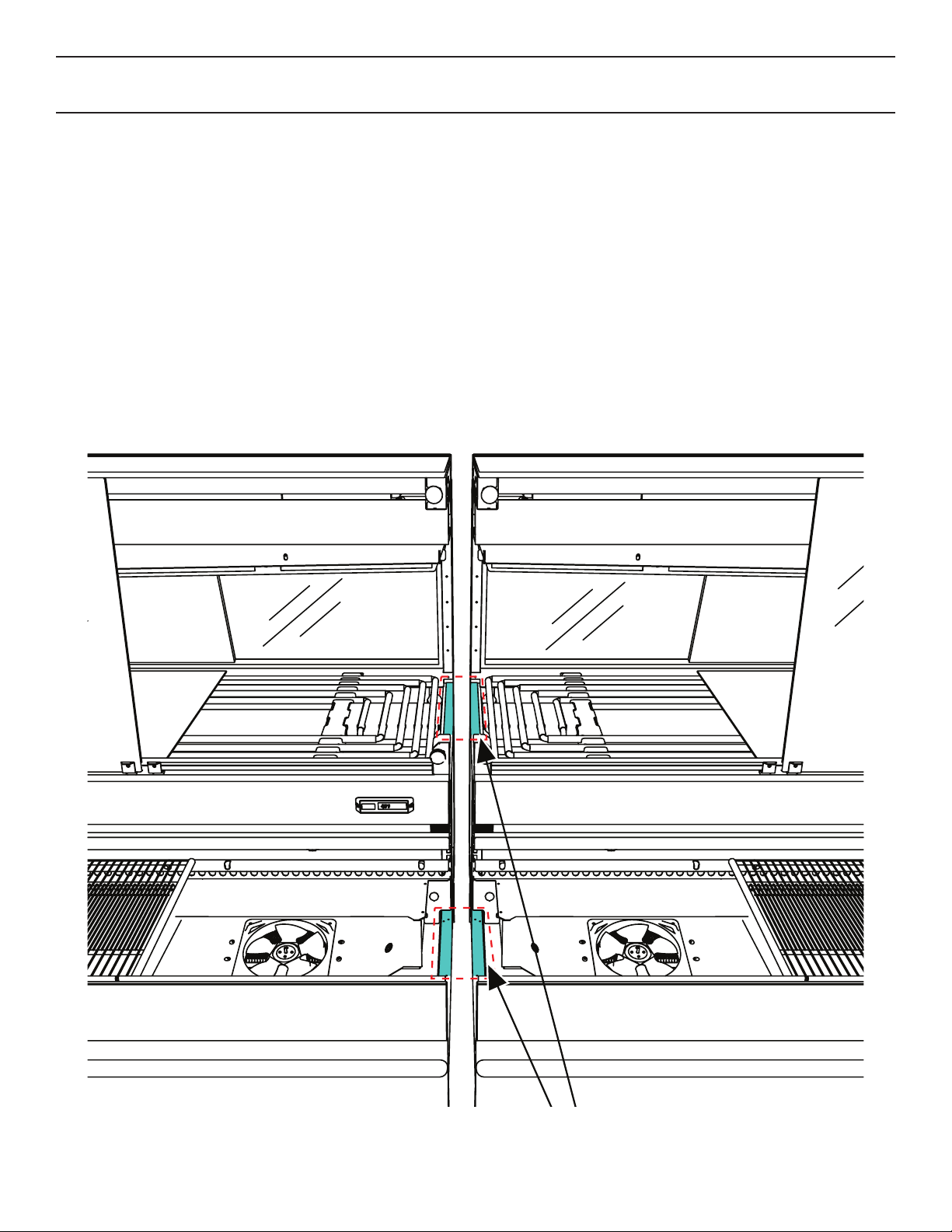

Bolting locations which join like cases together are
displayed below.
Leveling
IMPORTANT! IT IS IMPERATIVE THAT CASES BE
LEVELED FROM FRONT TO BACK AND SIDE TO SIDE
PRIOR TO JOINING. A LEVEL CASE IS NECESSARY
TO INSURE PROPER OPERATION, WATER DRAINAGE,
GLASS ALIGNMENT AND OPERATION OF THE
HINGES SUPPORTING THE GLASS. LEVELING
THE CASE CORRECTLY WILL SOLVE MOST HINGE
OPERATION PROBLEMS.
1.Usingcaseblueprints,measureo󰀨andmarkonthe
oortheexactdimensionsofwherethecaseswillsit.
Snap chalk line for front and back positions of base rail or
pedestal. Mark the location of each joint front and back.
Find the highest point throughout the lineup. FLOORS
ARE NORMALLY NOT LEVEL! Determine the highest
pointoftheoor;caseswillbeseto󰀨thispoint.Allcases
in the entire lineup must be brought up to the highest level
of the case sitting at the highest point in the lineup.
2.Setrstcaseoverthehighestpartoftheoorand
adjust legs so that case is level.
CASE BOLTING
LOCATION
SILICONE
SEALANT AREA

16
Installation (cont’d)
3.Setsecondcasewithinonefoot(1’)oftherstcase.
Keep the supports along the length of the case and far
endofcase.Levelcasetotherstusingtheinstructionsin
step one.
4. Apply liberal bead of case joint sealant (butyl) to
rstcase.Sealantareaisshownusingadottedlinein
illustration. Apply heavy amount to cover entire shaded
area.
It is the contractor’s responsibility to install
case(s) according to local construction and
health codes.
ATTENTION
INSTALLER
5. Apply liberal bead of case joint sealant (butyl) to
rstcase.Sealantareaisshownusingastripedlinein
illustration in page 16. Apply heavy amount to cover entire
shaded area.
6.Slidesecondcaseuptorstcasesnugly.Thenlevel
secondcasetotherstcasesoglassfront,bumperand
topareush.
Do not use bolts to pull cases together.
< 1’

17
Installation (cont’d)
7. To compress butyl at joint, use two Jurgenson wood
clamps. Make sure case is level from front to back and
side to side on inside bulkheads at joint.
8. Attach sections together via the bolts pictured in the
illustration below.
9. Apply bead of butyl to top of bulk heads and slip on
stainless steel bulkhead cap under the refrigeration piping
as pictured below . Also apply silicone to seam between
joints.
BULK HEAD
JOINT CAPS

18
Refrigeration
Refrigerant
The correct type of refrigerant will be stamped on each
merchandiser’s serial plate. The case refrigeration
piping is pressurized with a nitrogen holding
charge, leak tested and factory sealed. Before making
refrigeration hookups, depress universal line valve
(Schrader Valve) to ensure that coils have maintained
pressure during shipment. In the case pressure was not
maintained contact your Hussmann Service Tech for
further assistance.
SERIAL PLATE
LOCATION
CAUTION
Refrigeration lines are under pressure.
Refrigerant must be recovered before
attempting to make any connections.
Refrigerant piping
The refrigerant line connections are at the right hand end
of the case (as viewed from the front) beneath the display
pans. The merchandiser will beforehand ensure an earlier
cut hole through the pod to exit the merchandiser for the
refrigeration lines. After connections have been made,
make certain to seal this outlet thoroughly if not sealed
at factory already. Seal both the inside and outside. We
recommend using an expanding polyurethane foam
insulation.
Line Sizing
Refrigerant should be sized as shown on the refrigeration
legend that is furnished for the store or according to the
ASHRAE guidelines
Oil Traps
P-traps (oil traps) must be installed at the base of all
suction line vertical risers.
It is the contractor's responsibility to install
case(s) according to local construction and
health codes.

19
HUSSMANN_GDF_2.1 SHEET SIZE D
THIRD
ANGLE
PROJECTION
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS .XX
u
.03, .XXX
u
.010
ANGLES
u
2
v
SHEET 1 OF 1
DIAGRAM-R3-M/F-EP
REVISION HISTORY
REV ECN DATE REVISION DESCRIPTION REV BY CHKD BY APPR BY
A ECN-CAP-0000673 10/5/15 INITIAL RELEASE GR GR
P000021 A
MODEL BY / DWG BY- G. ROUMAYAH
DATE DRAWN - 10/05/15
MATERIAL- NA
CHECKED BY- G. ROUMAYAH
APPROVED BY- G. ROUMAYAH
ECN-CAP-0000673
REF-
GRAVITY COILGRAVITY COILGRAVITY COIL
DECK SPIRAL COIL
NOTE: 1
. SENSOR IS LOCATED AT APPROXIMATELY 15" -20" FROM LEFT HAND SIDE END OF
COIL AND APPROXIMAETLY 0.5" TO 1.0" BELOW BOTTOM OF COIL
2.
SENSOR AND CLAMP SCREW SHOULD BE MOUNTED BELOW COIL TUBE TOP SURFACE
3. SENSOR LOCATED 2" FROM TOP OF RSS AND 4' FROM END WALL NEAREST T-STAT
DIGITAL T-STAT CNTL
DIGITAL T-STAT CNTL
TXV
TXV
SUCTION SOLENOID
FLTR DRYR
( OPTIONAL )
LIQUID LINE
HAND VALVE
(OPTIONAL)
SHRADER VALVE
CHARGE PORT
SHRADER VALVE
CHARGE PORT
SUCTION
SOLENOID
TXV TXV
3.0" 3.0" 3.0"
FAN COIL
FAN COIL
FAN COIL
SUCTION LINE
LIQUID LINE
BOHN COIL
SHRADER VALVE
CHARGE PORT
DIGITAL T-STAT CNTL
LIQUID LINE
SOLENOID
BOHN COIL
SHRADER VALVE
CHARGE PORT
TXV TXV
TXV TXV
TXV
NOTE 1
HEAT EXCHANGER ( OPTIONAL )
FIELD
CONNECTION
NOTE 3
STRAINER
STRAINER
1
2
34
15" -20" APPROX "
REFIG. REAR STORAGE (RSS) ( OPTIONAL )
NOTE 2
1ST COIL FOR 4', 5', 6' CASES
2ND COIL FOR 8', 10', 12' CASES
1ST COIL FOR 4', 5' CASES
2ND COIL FOR 6', 8', 10', CASES
3RD COIL FOR 12', CASE
1ST COIL FOR 4', 5' CASES
2ND COIL FOR 6', 8', 10', CASES
3RD COIL FOR 12', CASE
Refrigeration (cont’d)
Piping Diagram (General)

20
Refrigeration Components

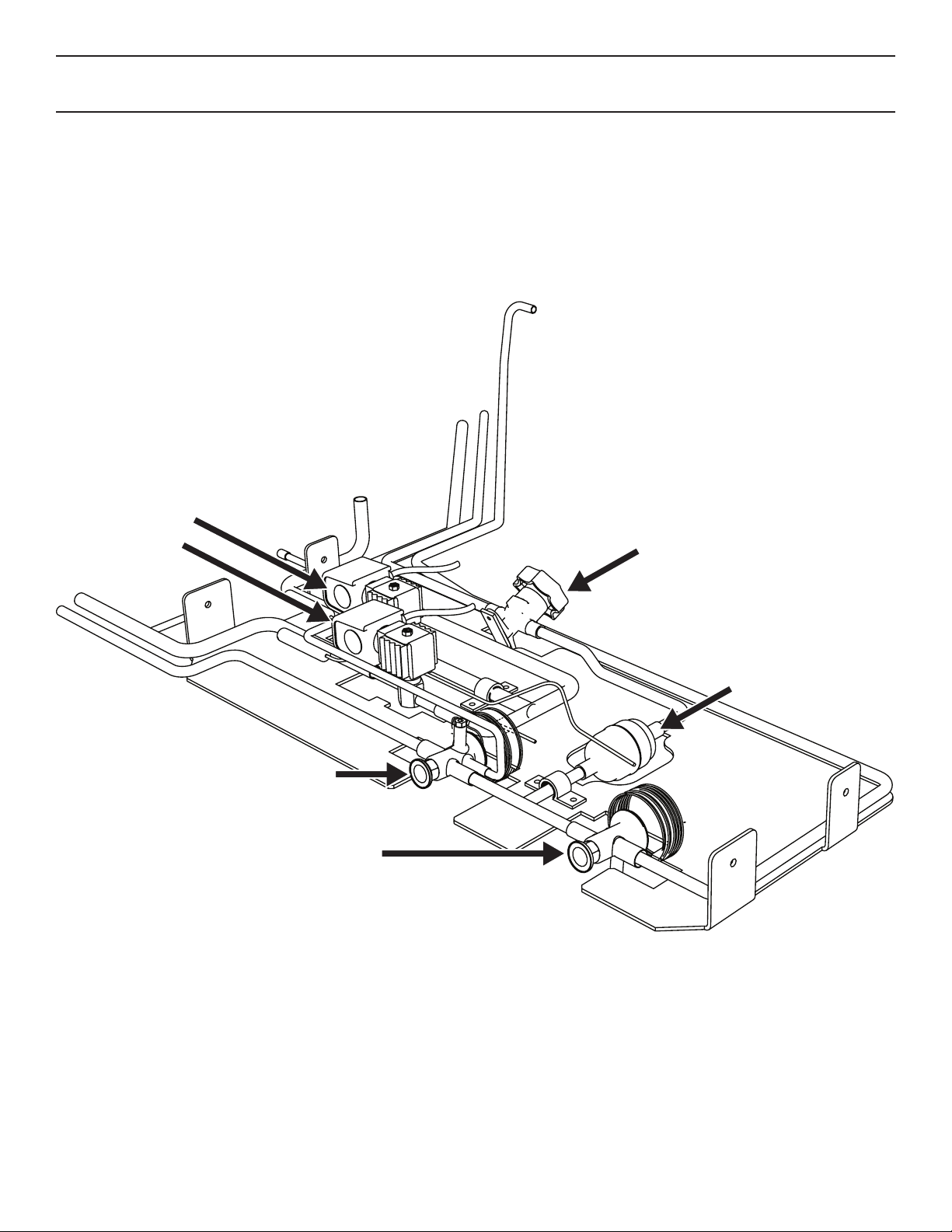

See demonstrations below for detailed overview of the VR3HV-M/F C/S-EP piping components.
Note:Refrigerationcomponentshavebeenttedwithacomponenttrayforeaseinuseofcleaningandmaintenance
under the deck pans.
SOLENOID
HAND VALVE
FILTER DRIER
TXV
TXV
Refrigeration (cont’d)
