Hy5 MyHand User manual

User manual
MyHand
Revision: 03 Date: May 2021
user id:
product nr:
date of
manufacture:

1 Introduction 4
2 Use & Care 5
2.1 On/Off 5
2.2 Quick Disconnect 5
2.3 Grips 6
2.4 Emergency Release Switch 7
2.5. Maintenance, Care and Cleaning 8
2.6. Battery 8
3 Service & Warranty 9
3.1. Service 9
3.2. Warranty 9
4 Safety/Cautions 9
5 Disposal 10
6 FAQ 10
7 Technical information 12
8 Quality Assurance 12
9 Hy5 App 13
10 Incident reporting 13
Table of Contents

4 / 16
1. INTRODUCTION
Thank you for choosing Hy5 as your prosthesis supplier. This
manual along with the training and support of your clinical team
will help you take full advantage of your MyHand. This manual
contains important information for the correct use of MyHand.
For instruction videos please visit our website www.hy5.no.
Read this document thoroughly before using your MyHand.
MyHand is a size 7 ¾ and requires a socket with a female electric
quick disconnect, a 5A battery and one or two myo-sensors to
work. MyHand is connected to the socket with the quick discon-
nect. A MySkin glove size 7 ¾ shall be used on the MyHand at all
times.
MyHand is intended for any individual adult with a hand amputa-
tion or dysmelia, to regain independence in their daily social and
work life, helping to perform everyday activities that able-bodied
individuals take for granted. The size of the MyHand is equal to
a male size 7 ¾. Despite the size, MyHand can be used by both
genders independent of height, weight, and age.
Prior to use, please download the Hy5 app that is available in
either iOS or Anroid formats.

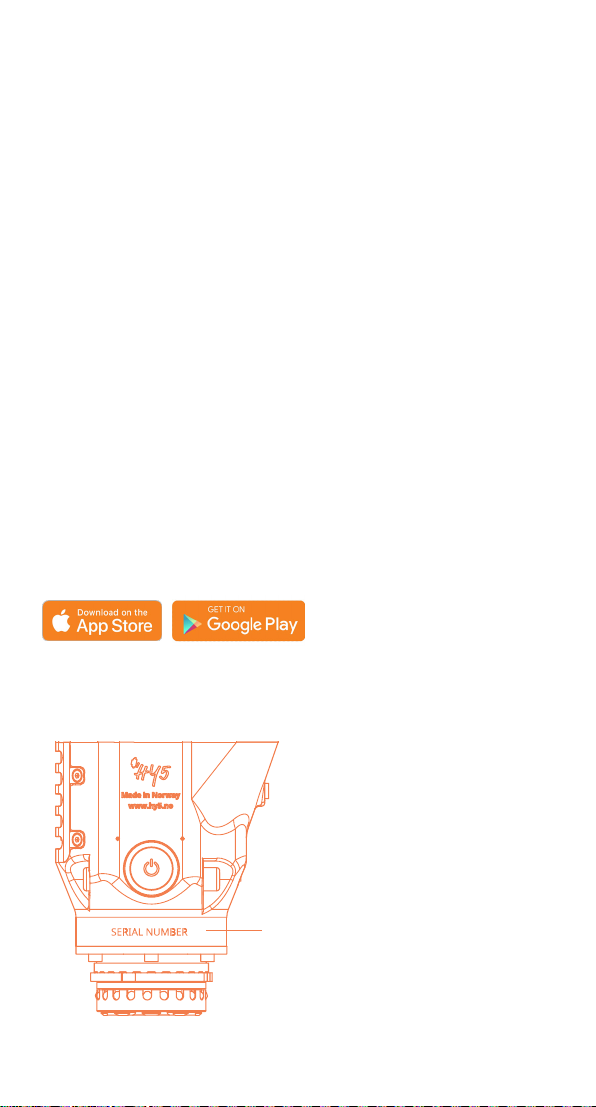

MyHand has a unique serial
number on the wrist, to allow easy
identication.

5 / 16
2. USE & CARE
MyHand is ready to be used when connected to your prosthetic
socket. Secure connection is achived by pushing MyHand on to
the socket, by twisting your MyHand 45-degrees in either direc-
tion. Adjustments of the myo sensors may be needed to get full
functionality of the MyHand. Your prosthesis provider will help
you with this if needed. To get the most from the MyHand, make
sure your socket and hand are comfortable and secure.
Your socket must include a Hy5 recommend-
ed or supplied battery to function optimally.
If you experience unintentional behaviour or
MyHand does not work as expected, take off
your MyHand and contact your clinician.
2.2 Electric Quick Disconnect
There is currently one wrist option for the
MyHand; the standard Electric Quick Discon-
nect (EQD). The EQD allows the hand to be
moved through a 360 degree rotating action.
Pressing and holding down the button for approximately 2 sec-
onds will switch the hand ON. A short movement of the ngers
will occur, to give you a physical indication that the hand is turned
ON. Pressing and holding down the button again for approxi-
mately 2 seconds will switch the hand OFF. Pressing the same but-
ton quickly three times in succession will turn ON the AutoGrasp
function on your MyHand. Repeat to turn the function OFF.
2.1 On/O
CAUTION!

2.3 Grips
MyHand has several adaptive grips. The ngers will fold around
any given form or object. To make a st, tripod grip or nger point
grip, you have to actively help the hand to achieve the desired
grip position.
POWER
All ve ngers close together to
grip around larger objects such as
a bottle, a ball or a piece of fruit.
PINCH
Close the hand, and the ngers will
form a pinch grip.
FIST
Hold back the thumb while closing
all the other ngers, then release
the thumb.
FINGER POINT
Hold back the index nger while
closing all the other ngers.
TRIPOD
Use a at surface to manipulate the
ngers into this grip. The tripod
grip allows you to grip objects
between the thumb and the index
and middle ngers.
MyHand has a powerful grip and can dam-
age items and/or the body, if you squeeze
too hard.
CAUTION!

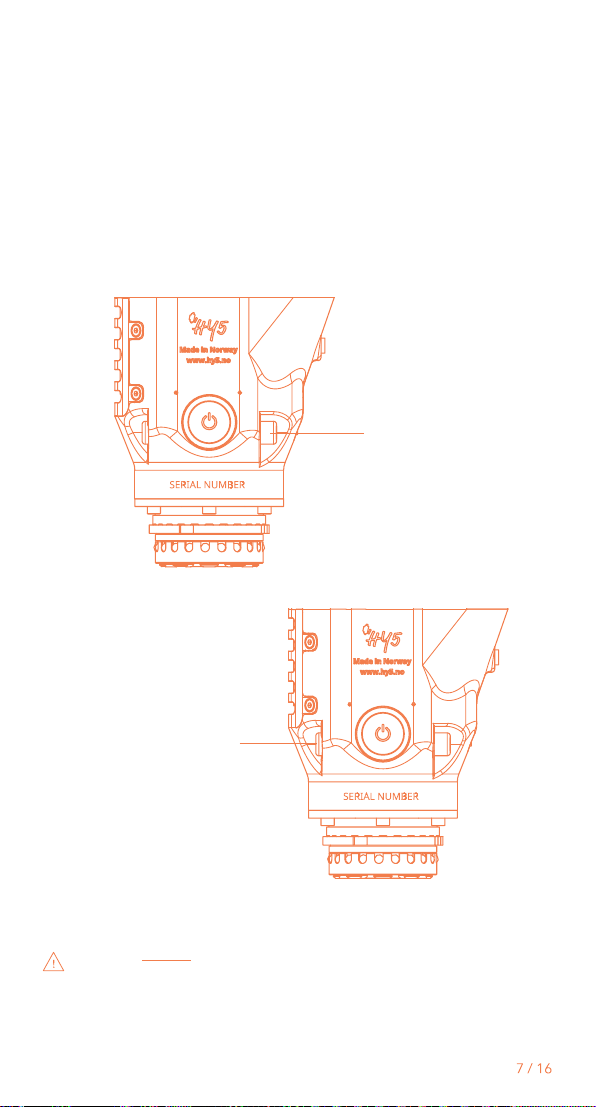

2.4 Emergency Release Switch
An emergency release switch is situated on the back of the hand,
just below the On/Off button. If for any reason you should need
to quickly release the ngers from a grip, hold the emergency
release with your thumb and index nger, and push the release
switch to the side. The ngers will open instantly. Left hand users
shall push the switch to the right, and Right hand users shall push
the switch to the Left.
Push the release switch back to its initial
place, to activate the MyHand for use again. It
is very important that the switch is pushed all
the way back, or the ngers will not move.
Push here
Until switch
appears here
CAUTION!

8 / 16
2.5 Maintenance, Care and Cleaning
Please inspect your prosthesis regularly. Do not adjust, dismantle
or attempt to maintain, or modify your prosthesis. If the MyHand
does not function as expected, please contact your prosthetic
provider. The MyHand is like any other electrical device, do not
immerse in water. When cleaning MyHand, use a damp cloth. For
instructions on how to clean the glove, read the dedicated MySkin
user manual.
If water enters the internal components of the hand, compo-
nent failure can occur. Inspect the prosthesis regularly for glove
damage. Try to avoid contact with sharp or pointed objects. When
in need of a replacement glove please contact your prosthetic
provider.
Regular maintenance schedule for MyHand shall be every
12 months.
2.6 Battery
Do not use MyHand if there is visible damage
on the hand prosthesis. Do not use MyHand
while sunbathing or in direct sunlight. The
MyHand should not be left in an environment
>35°C. MyHand shall only be used according
to the intended use.
Only a Hy5 recommended or supplied bat-
tery should be used with the MyHand.
The battery shall be charged when the speed
of the movements starts to slow down or the
MyHand is difcult to open.
Contact your prosthesis provider if the bat-
tery does not charge.
The MyHand is powered by a rechargeable battery located in the
socket.
CAUTION!
CAUTION!

9 / 16
3. SERVICE & WARRANTY
3.1 Service
Any repair must be performed by Hy5 or a Hy5 certied orthope-
dic workshop. Upon return, the hand will be assessed and where
deemed beyond repair replaced if the warranty is applicable.
3.2 Warranty Statement
The MyHand comes with a 2-year-standard warranty. The warranty
covers any defects in materials or workmanship under normal use
during the warranty period. The 2-year warranty period begins
when the product is taken into use, which should be no later than
6 months from the date of product shipment from Hy5’s produc-
tion facility, Norway.
Taken into use is dened as date of shipment to practitioner/end
user. When a claim is made under warranty, this claim must be
supported by appropriate documentation, including proof of sale
and shipment date.
The warranty will be void on all system components if any com-
ponents have been subject to abuse, repair or maintenance by an
uncertied person; deliberate damage; loads beyond those for
which the product was designed; or by modication or neglect.
The warranty does not cover products that have not been subject
to the recommended maintenance schedule. The regular main-
tenance schedule is required in order to maintain components
subject to wear and tear, in addition to bleeding air from the
hydraulic system.
4. SAFETY/CAUTIONS
MyHand accepts no responsibility for any damage or injury
caused by improper use.
• Do not subject the MyHand to excessive loads
• Always use with a Hy5 MySkin glove.
• Do not use in water
• Do not use to operate heavy / industrial machinery
• Do not use machinery with moving parts that may cause
personal injury or damage.
• Users must comply with local regulations on the operation of
automobiles, aircraft, sailing vessels of any kind and any other

10 / 16
6. FAQ
5. DISPOSAL
When disposing of MyHand, please send it back to Hy5pro AS for
safe disassembly and disposal.
Will I be able to move
each digit individually?
How long will it take to
learn to use the MyHand?
Can I use MyHand for
sports?
While there are a number of possi-
ble grip patterns, you will not have
individual control of each digit.
MyHand should work instantly, but
a short learning period is to be
expected.
Yes. MyHand can be used for most
sports. Consult with your prosthe-
sis provider if you have questions
regarding usage limitatons.
Q A
Q A
Q A
motorized vehicle or device
• Do not use MyHand for extreme activities that may cause injury
• Do not expose for excessive moisture, liquid, dust, vibration or
shock
• Do not expose to high temperatures
• Do not expose to ames
• Do not use or expose to explosive atmospheres
• Do not disassemble componentry or modify in any way
• Maintenance, repairs and upgrades may only be performed by
qualied Hy5 technicians and technical partners
• Do not use with a damaged glove
• Do not use while batteries are charging

11 / 16
My battery does not last
all day, what can I do?
I had good control when
I rst got the hand, but
now it seems like I drop
items more easily. Why
is that?
Ensure your socket is tted with a
Hy5 recommended battery and it is
fully charged before use.
The signals you are giving may
have become stronger over time
since you have been using the
hand more. Now even a small mus-
cle contraction may make the hand
move. Your prosthetist may help
you to adjust the sensitivity of the
myo-sensors in your sleeve.
Q A
Q A
Q A
Q A
Q A
Q A
What if the device gets
wet in the rain?
How should I clean it?
And how often?
What is the best way to
tie my shoes?
How can I put a coat on if
my device is already on?
You should dry it as soon as you
can and always ensure your glove
is free from holes. You do not want
water to get under the glove. Treat
the hand like you would treat a cell
phone.
You should clean your MyHand
on a regular basis. When cleaning
MyHand, use a damp cloth.
Many MyHand users prefer to use
the pinch grip.
Using the pinch grip will bring the
thumb and ngers together, and
make the hand as slim as possible.

12 / 16
7. TECHNICAL INFORMATION
Principal dimensions
Maximum opening - thumb opposed to index nger 120 mm
Thumb swing through angle (opposed to non-opposed) 70°
Performance specification
Maximum power grip 120 N
Maximum tripod grip 60 N
Minimum time to open/close: power grip 1.0 Sec.
Minimum time to open/close: pinch grip 1.0 Sec.
Maximum static load: hook grip 40 kg
Maximum load individual nger - hook grip 20 kg
Fingertip extension load 8 kg
Weight 575 g
Size 7 ¾
Battery
Maximum current 5A
Voltage 7.2V
Battery capacity rechargeable lithium polymer, 2200mah
Environmental conditions
Storage and transport in original packagin +5°C to +35°C / +41F to +95F
Storage and transport without packaging +5°C to +35°C / +41F to +95F
Operation +5°C to +35°C / +41F to +95F
8. QUALITY ASSURANCE
Hy5 is registered with the Directory of health in Norway.
Hy5 is marked with a CE mark indicating that it complies with the
requirements of the Medical Devices Directive 93/42/EC.

13 / 16
9. HY5 APP
The Hy5 App is created together with upper extremity CPO´s and
patients to make it easy to customize MyHand to the patients
desired settings and to train the myoelectrical muscle signals. The
App can be used by both patient and CPO.
The App communicates with MyHand through a Bluetooth signal
in the prosthesis. You need to pair MyHand to a mobile or tablet,
when you have downloaded the App. The Bluetooth in MyHand
will be activated by holding the ON/OFF button in for approxi-
mately 5-6 seconds.
In the Dashboard module of the App, you can see the battery
status, and the service status of MyHand.
In the Diagnostics module, you can check the status of MyHand
by running a diagnostic and send the report to the Hy5 team.
When you do this, Hy5 will analyze the results and get back to
you. You can also run a log report. This function is mainly so we
can log the EMG signals and suggest an optimal setting for the
patient.
The Training module contains a function where you can see how
the myo-signal response is right now, as well as several games
which can be used for muscle training to get a better perfor-
mance with MyHand.
In the Settings module, you can adjust the settings of MyHand
and the myo-sensors to your preferences.
On our website you can nd a step-by-step tutorial on how to use
the App!
10. INCIDENT REPORTING
Complaints or accidents involving Hy5 products should be report-
ed via the ‘contact’ page on the Hy5 website www.hy5.no

11. USER INFORMATION
Provision of the following basic information will enable easy
identication for future service inquiries.
User name:
Fitting date:
Date of rst use:
Hand serial number:
Orthopedic workshop & contact information:

FDA
FDA Registration Number: 3014936213
CE mark
Declaration of conformity according to the applicable
European directives
Legal manufacturer
Hy5Pro AS, Raufoss Industripark, Bygning 100, 2830
Raufoss, NORWAY
Storage Temperature Limit:
5°C/41F to +35°C/95F
5°C/
41F
35°C/
95F

hy5.no
