Hyco Aquila Specification sheet

Product Instruction Manual
Aquila
Instantaneous Inline Water Heater
IN96T
v23.10.9

Overview
Thank you for purchasing an Aquila Instantaneous Inline Water Heater. This 9.6 kW
appliance is to be used for hand washing at up to 2 basins, or for a single light shower, or
light dish washing. Instantaneous water heaters are energy ecient as they only consume
energy when in use, so have no standing losses. The IN96T is mains pressure with external
electronic temperature control. Bare wire heating systems oer rapid heat up times and a
near instant supply of hot water.
Conrm that the ow rate and temperature performance is adequate for your application
using the tables provided. This appliance is not suitable for use with thermostatic mixing
valves or taps or to supply a single lever mixer tap.
Please read and follow these instructions to ensure that installation and operation are as
simple and safe as possible.
Important Safety Points
2
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
The appliance should only be installed and maintained by a competent person in
accordance with any local electrical and plumbing regulations.
The appliance must be permanently connected to the electrical supply through an
appropriately rated isolating switch with a separation in all poles.
Only connect the appliance to an electrical supply that meets the specication
detailed on the rating label.

The appliance must be earthed.
Only connect this appliance to a water supply that meets the min/ max pressures
specied in the specications section of this manual.
This appliance is intended to be permanently connected to the water mains and
should not be connected by a detachable hose-set.
The resistivity of the water supply must not be less than 1300 Ωcm.
This appliance should not be installed in a location where freezing can occur.
This appliance is not designed for outdoor use or use in damp environments.
Do not use a supply with incoming water temperatures greater than 60˚C.
3

1. Installation
Do not locate the appliance where the consequences of a water leak could be
unusually serious.
This appliance should not be installed in a location where freezing can occur.
This appliance is not designed for outdoor use or use in damp environments.
• When choosing a location for the appliance, consider the visibility of any leak that
might arise. This is particularly important when locating in a concealed area such as a
cupboard.
• The appliance must be mounted horizontally with the inlet and outlet connections at
the bottom of the appliance (see diagram 1).
Wall Mounting
Diagram 1
• Before attaching the appliance to the wall, consider the wiring route to the appliance.
The electrical cable can enter through the opening in the back for concealed cabling.
Knock out panels in the top right hand corner of the back plate and front cover are
available for side entry.
4

5
Ensure there are no hidden cables or pipes before commencement of drilling.
• Remove the front cover from the appliance by means of the single screw located
between the inlet and outlet ttings. The cover will lift rst from the bottom and then
unhook from the top. Carefully release the PCB lead from the main unit to completely
uncouple the cover.
• It is advised that the appliance be located as close as practical to the hot water outlet
in order to avoid unnecessary heat losses through the pipework.
• Once the preferred location has been decided, oer the appliance to the wall. Ensure
the appliance is level and mark the hole locations onto the nal mounting surface
(see diagram 1).
• Take the appliance away from the mounting surface and drill the holes marked from
the previous step.
• Insert wall plugs and oer the appliance back up to the mounting surface. Locate the
screws through the unit and into the wall plugs and screw down securely.
2. Plumbing Connection
The resistivity of the water supply must not be less than 1300 Ωcm.
Do not use a supply with incoming water temperatures greater than 60˚C.
Only connect this appliance to a water supply that meets the min/ max pressures
specied in the specications section of this manual.
This appliance is intended to be permanently connected to the water mains and
should not be connected by a detachable hose-set.
• Ensure the following criteria are met for the water supply:
Minimum ow = 2.5 l/m
Pressure min/ max = 0.1 Mpa / 0.75 Mpa
Water resistivity = ≥1300 Ωcm
• Suitable for use with pre-heated water e.g. solar heating systems to a maximum of
60°C.

• Make the plumbing connections as indicated on the front cover of the appliance:
Inlet (cold mains)
Outlet (hot tap/ outlet)
• It is strongly recommended that a service valve be tted close to the appliance on the
cold feed, this will aid future maintenance.
• The inlet is the right hand pipe and the outlet the left, when viewed from the front.
• Turn on the cold mains feed and draw water through the appliance for several
minutes by opening the hot outlet. Ensure a smooth ow of water from the outlet
to conrm all air is purged from the system before closing the tap and carefully
inspecting all connections to ensure water tightness. This step is required every time
the appliance has been drained for any reason, such as routine maintenance.
Diagram 2
Flush supply pipes to remove any debris before connecting the appliance to the
water supply.
All pipework should be adequately earthed.
6

3. Electrical Connection
Do not commence electrical installation before connecting the appliance to the
water supply and verifying there are no leaks or air gaps.
The appliance must be permanently connected to the electrical supply through
an appropriately rated isolating switch with a separation in all poles.
Only connect the appliance to an electrical supply that meets the specication
detailed on the rating label.
The appliance must be earthed.
• Connection to the appliance terminal should be made as follows:
Earth cable to the terminal marked ‘E’
Neutral cable to the terminal marked ‘N’
Live cable to the terminal marked‘L’
Wiring Diagram
7

8
4. Operation
• Once installed and connected to the electrical supply the appliance is ready for use.
• Once turned on the appliance will automatically power up when it detects a ow of
water through it (min 2.5 l/m).
• Due to the nature of instantaneous heaters, water is only heated as it passes through
the tank. Because the maximum power of the appliance is xed there is a limit to the
rate at which hot water can delivered.

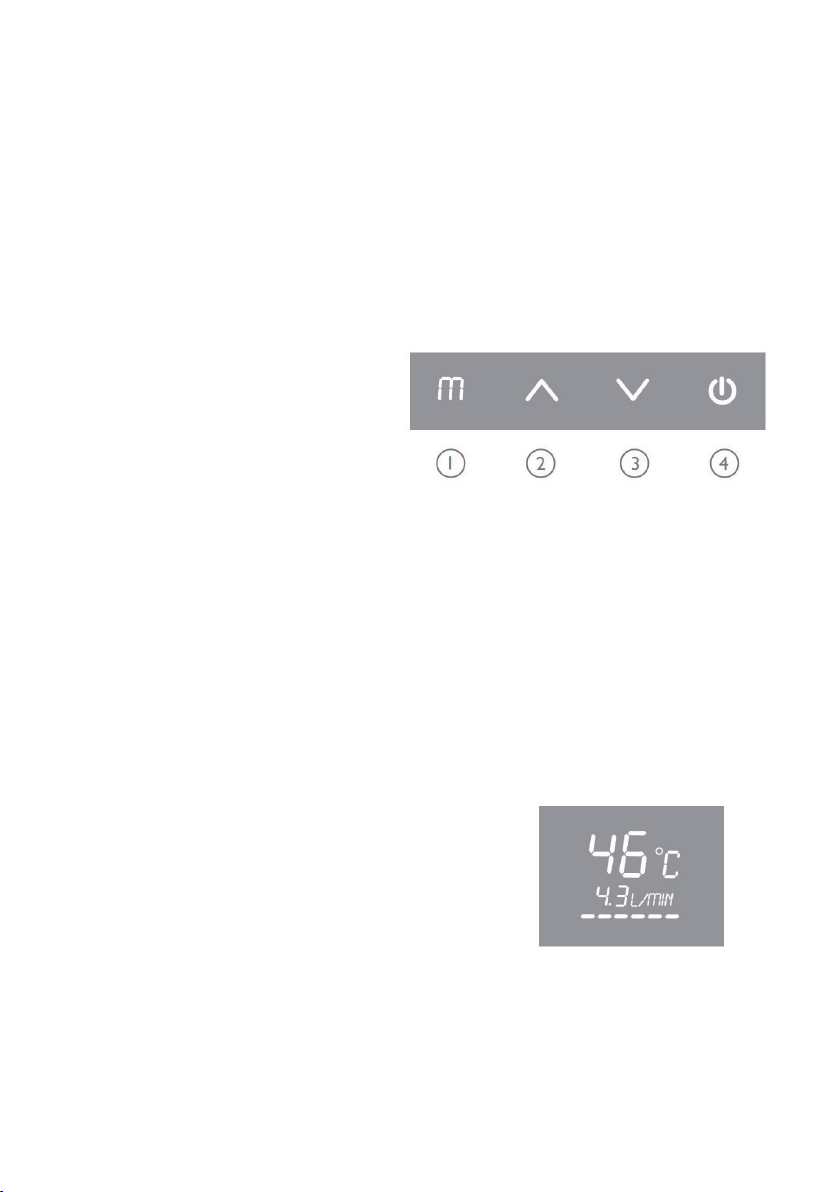

Controls
1 - Memory (record/ recall temp setting)
2 - Increase temperature setting
3 - Decrease temperature setting
4 - Power on/ o
Selecting a temperature
• Turn on the appliance using the power on/ o. On rst installation the temperature
setting will default to 38°C. To adjust the temperature press the up/ down buttons
until the desired target temperature is displayed.
• To store a frequently used temperature setting, press and hold the“M”button. This
stores the current temperature and allows it to be recalled at any time by pressing the
“M” button.
Setting the maximum ow rate
• The ow rate is shown on the front display of the appliance in L/ MIN. If the desired
temperature cannot be met at the current ow rate the temperature display will ash
to indicate this. Adjust the ow down using the dial on the front of the appliance until
the temperature display stops ashing.
• Incoming water temperatures can vary depending on the time of year. For this reason
the maximum ow rate may need adjusting down in order to maintain a suitable
temperature during colder periods.
• The appliance has memory recall, it will revert to its previous operational state
following a power interruption.
• Once the desired temperature is selected the
appliance will manage the power in order to
ensure the temperature is not exceeded. The
current power usage is displayed by the lines at
the bottom of the display.

9
5. Cleaning and Maintenance
Never remove the cover of the appliance without rst isolating from the electrical
power supply.
The appliance should only be installed and maintained by a competent person in
accordance with any local electrical and plumbing regulations.
Do not use abrasive chemicals or cloths to clean this appliance.
Isolate the appliance from the electrical and plumbing supply before performing
any maintenance task.
The appliance should be drained if it will be switched o or unattended for
any length of time, particularly during the colder months of the year where the
possibility of freezing temperatures exists.
Ensure any future maintenance or modications to the plumbing system also
complies with the guidelines in these instructions.
Keep records of maintenance and ensure any future occupier of the building is
fully aware of the content of these instructions.
• Visually inspect the appliance and its immediate surroundings regularly for any signs
of water escape that might indicate the product may be nearing the end of its natural
life.
• Use a soft damp cloth when cleaning, avoid excessive use of liquids.
• Check outlet of any tap connected to the heater at regular intervals and remove any
build up of scale that might obstruct the ow rate of water through the appliance.
Overheat Protection
• In the unlikely event of a malfunction, the appliance is tted with a manual reset
thermal cutout. This is located under the cover near the top of the heating chamber.
To reset press the push button located in the centre of the device.
• Once reset, operate the appliance and ensure there is no underlying fault which is
causing the water to overheat.

7. Specication
Model IN96T
Power 9.6 kW
Voltage 230 V
Rated current 42 A
Frequency 50 Hz
Min operating ow rate 2.5 l/m
Min working pressure 0.1 MPa (1 bar)
Max working pressure 0.75 MPa (7.5 bar)
Max incoming water supply temperature 60 °C
Required water restivity ≥1300 Ωcm
Water connection inlet/ outlet 1/2” BSP
IP rating IPX4
Thermal cutout temperature 75 °C +/- 5
Dimensions (h x w x d) 140 x 190 x 80 mm
Weight empty 2.0 kg
Approvals CE, UKCA, WRAS
10
6. Temperature Performance
Temperature/ Flow Rate
Maximum temperature increase from ambient incoming water supply temperature at a
ow rate of:
Flow rate (l/m) IN96T
2.5 55°C
3.0 45°C
4.0 34°C
5.0 27°C
Examples
Maximum water temperature
Incoming water temperature Flow rate IN96T
13 °C - Winter 4.0 l/m 47°C
17 °C - Summer 4.0 l/m 51°C
Table 1

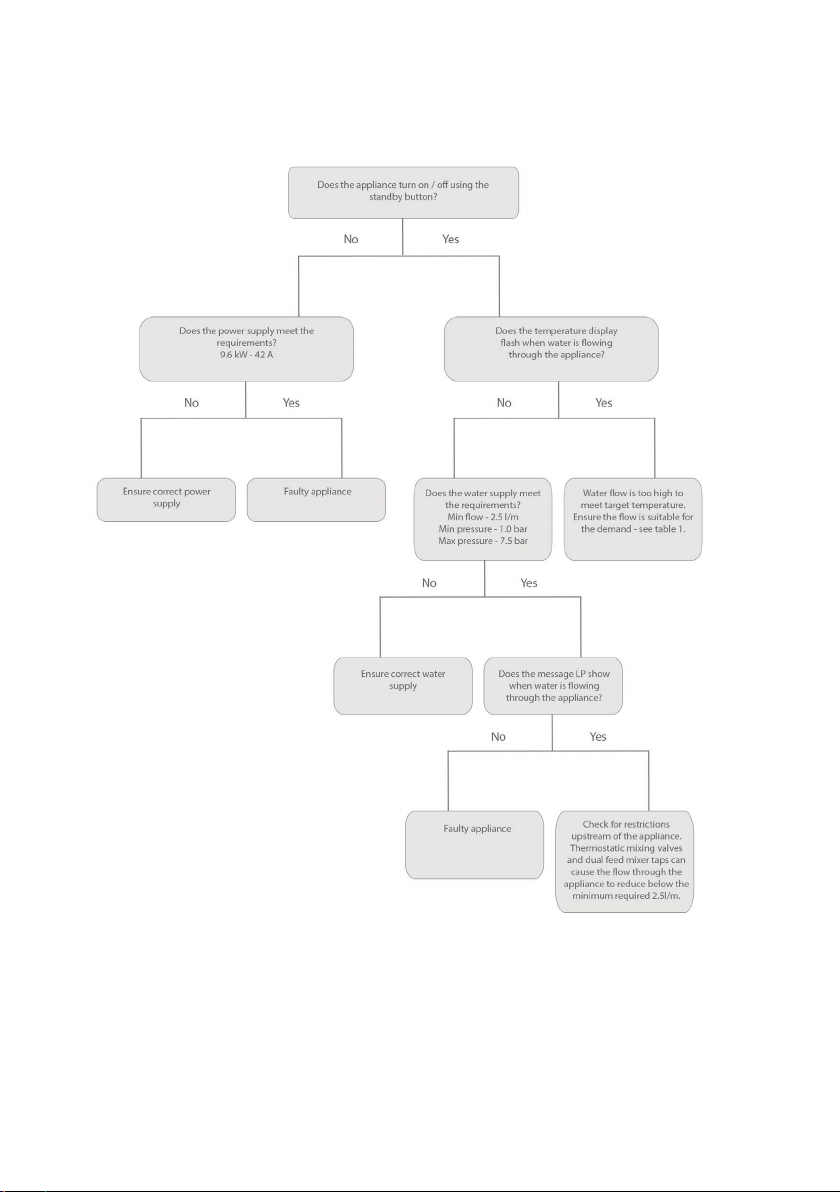

8. Troubleshooting
11
If problems persist contact Hyco Technical Department on 01924 225200.

Hyco Manufacturing Ltd
Normandy Court
Express Way
Castleford, WF10 5NR T 01924 225 200
E [e-mail]
hyco.co.uk
INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE
WITH THE EUROPEAN DIRECTIVE 2012/19/EU.
At the end of its working life this equipment must not be disposed of as household
waste. It must be taken to a local authority waste collection centre or to a dealer
providing this service. Disposing of electrical and electronic equipment separately
enables its components to be recovered and recycled to obtain signicant savings
in energy and resources. In order to underline the duty to dispose of this equipment
separately, the product is marked with a crossed out dustbin.
9. Guarantee and Service Policy
This product is covered by a standard parts or replacement warranty for a period of 1
year from the date of purchase.
If there is a manufacturing defect within the warranty period we will send spare parts,
repair and return the unit or, at our discretion, supply a replacement product. Incorrect
installation, frost damage, the consequences of limescale deposits or failure to follow
correct operating and maintenance instructions are excluded. Consequential costs
such as labour charges or damage to ttings and surroundings are expressly excluded.
If you experience a problem with this product you should rst contact our customer
service department on 01924 225 200 before taking any further action. Experience has
shown that issues can often be resolved without the need to return or uninstall the
product.
10. Contact Us
