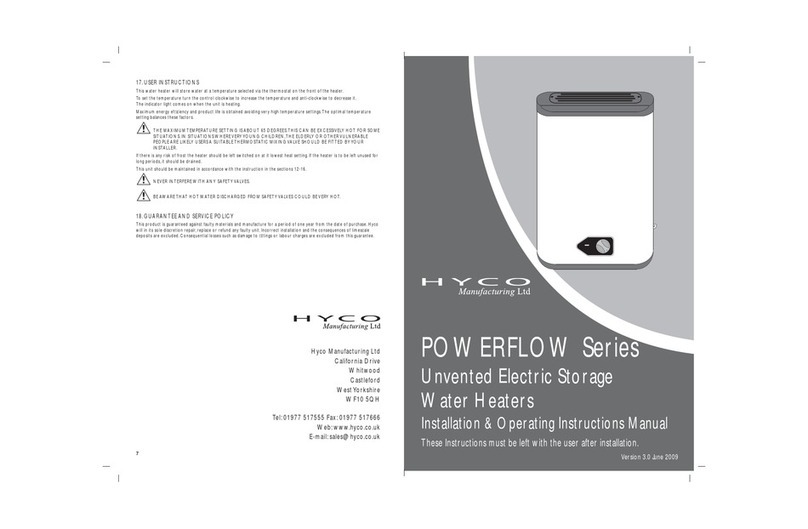

Hyco powerflow series Specification sheet

Product Instruction Manual
Powerflow
PF30, 50, 80 & 100 litres
Unvented water heater
Version 3.2 Jan 2015
V19,1.1

2
Thank you for purchasing a Powerflow series unvented electric water heater.
The Powerflow is suitable for hand washing and dishwashing where a
number of hot outlets are required such as kitchens, schools, restaurants,
washrooms and offices. The Powerflow is the ideal solution for light
industrial, commercial and light domestic hot water requirements.
Please read and understand these instructions before commencing
installation and leave them with the user when installation is complete.
1. Important safety points
Installation must be undertaken by a competent installer of unvented water
heating systems in accordance with building regulations G3.
Building regulations G3 require a temperature and pressure relief valve to be
factory fitted. This must not be removed or blocked in any way.
Installation must comply with the latest edition of the IEE wiring regulations.
These units are very heavy. They must be securely fastened to a suitably strong
wall using the fixings supplied. Remember to allow for the weight of the water
(1kg per litre capacity) when assessing the suitability of the fixing surface.
2. Installation
Co ponent check list Qty
Expansion vessel ½” MBSP, pre-charge pressure 3.0bar 1
Vessel mounting bracket & banding 1
Pressure reducing valve 15mm pre-set pressure 3.5bar 1
3-way manifold with built in check and service valve 1
Tundish 15mm to 22mm 2
Flexible hose ½” MBSP to ½” BSP 1
6 bar pressure relief valve 15mm to 15mm 1
Tank wall mounting brackets 2

3
Wall Mounting
Plan your installation carefully in advance, allowing suitable space for installation and
future access to all fittings as shown in diagram 1.
Diagram 1
The unit must be installed vertically with water connection pipes at the bottom
and the pressure temperature relief valve at the top.
Ensure the mounting surface is strong enough to support the heater, including
the added weight when full of water.
The heater is not suitable for installation outside.
Do not install the heater where there is any risk of freezing.
The heater is bulky and heavy, do not attempt to lift alone.
Temperature &
Pressure Relief Valve
POWERFLOW
Hot
Drain Cock
Drain
(Waste)
Pressure (Expansion)
Relief Valve
Expansion
Vessel
Check
Valve
Balanced
O Take
Pressure
Reducing
Valve
Service
Valve
Cold
Mains In
D
Tundish
Drain
(Waste)

Allow at least 500mm below
and 200mm above the heater
to facilitate future maintenance.
To mount the heater, drill two
holes for the supplied wall fixings
and hang the heater onto them
via the bracket at the rear.
Plu bing connections
Diagram 2
4
V

Observe the flow direction arrows on fittings.
It is important that the ordering of the fittings is correct as per the diagram
1 and 2.
Do not remove the factory fitted pressure and temperature relief valve.
Do not insert any other valves between the 3-way manifold and heater inlet
since it may prevent the safe expansion and discharge of water during heating
cycles.
Make the necessary connections, as per diagram 2, to inlet side of the heater
(as indicated by the blue collar).
It is recommended that the “balanced off take” is used to supply any cold outlet that is
paired to a mixer style tap supplied by the hot feed of the unit.
The orientation of the expansion vessel is important, it should be fixed firmly to the
supplied bracket in a vertical orientation with the water connection at the bottom and
located so that the length of the connecting pipework is kept to a minimum.
A drain cock (not supplied) should be fitted to a branch of the incoming supply pipe
at a point that is lower than both the unit and the expansion vessel (see diagram 1)
in order to allow full drain down for any future maintenance work.
Make the connection to any hot tap from the outlet side of the heater as
(as indicated by the red collar).
5

Discharge pipe connections
This product falls within the scope of Building Regulation G3 which stipulates certain
conditions relating to the way any water discharge from relief valves is transported
away.
These conditions are designed to ensure that any discharge will not present a hazard to
people or to property, and that any discharge is clearly visible so that the underlying
cause is likely to be rectified promptly.
The essential requirement of G3 in relation to water discharge is that the discharge pipe
MUST terminate in a safe, visible position.
In achieving this aim the G3 regulations strongly recommended that:
•The tundish is located within 500mm of the Pressure and Temperature Relief valve
and it is wherever possible oriented vertically. It must be visible to occupants and
positioned away from electrical devices.
•The discharge pipe has a vertical fall of at least 300mm immediately below the
tundish.
•The discharge pipe below the tundish is at least 22mm diameter (i.e. one size larger
than the Pressure and Temperature Relief valve outlet).
•The discharge pipe should be as straight and as short as is possible and positioned
away from electrical components.
Diagram 3 illustrates an acceptable discharge pipe arrangement. The table below the
diagram specifies how the maximum acceptable pipe length from the tundish to the
final outlet depends on the pipe diameter and the number of bends.
For example, in 22mm copper with no bends the pipe could be up to 9m long. With two
bends present the maximum length drops to 9.0m - (2 x 0.80m) = 7.4m.
6

Diagram 3
V
Safety Device
Tundish
600mm MAXIMUM
Metal Discharge Pipe (D1) from
Temperature Relief to Tundish
Discharge Below
Fixed Grating
300mm MINIMUM
Metal Discharge Pipe (D2) from
Tundish with Continuous Fall
Fixed Grating
Trapped Gully
S
V
Sizing of D2 Copper Discharge pipe for common temperature relief valve outlet size
Valve
outlet
size
Minimum size of
discharge pipe (D1)
Minimum size of
discharge pipe (D2)
from Tundish
Maximum resistance allowed,
expressed as a length of straight
pipe (I.E. no elbows or bends)
Resistance
created by each
elbow or bend
m8.0m9otpumm22mm512/1G
28mm up to 18m 1.0m
m4.1
m72 up to
mm53
7

Electrical connections
The heater is supplied pre-wired with the appropriate cable.
The electrical installation should conform to the latest edition of the IEE wiring
regulations.
Electrical supply should be capable of isolation via a user-accessible double isolation
switch rated for 13A supply.
Diagram 4
Thermal
Cutout
PE
N
L
Terminal
Relay
Heating Element
Transformer
Control
Board
Temp.
Sensor
C
8

3. Commissioning
Visually confirm all plumbing and electrical connections look sound.
Open any tap connected to the hot side of the unit and then turn on the incoming
water supply to the heater.
Allow the unit to fill until water flows smoothly from the open tap for around
1 minute to ensure the tank is purged of air and any plumbing related debris.
Close the tap and then inspect the system for any leaks.
Check the Pressure and temperature relief valve by twisting the cap to the open
position and observing the flow at the tundish. Ensure the discharge pipe can cope
with this flow continuously for several seconds.
Release the cap and check that the valve reseals.
Check the pressure (expansion) relief valve by twisting the cap to the open position and
observing the flow at the tundish. Ensure the discharge pipe can cope with this flow
continuously for several seconds. Release the cap and check that the valve reseals.
Turn on the electrical power and press the standby power button to check the display
operates.
9

4. Operation
Turn on the heater by pressing the standby power button.
On first power on, the heater will start in manual mode. To alter the target temperature
of the heater, use the up/down buttons to cycle to the desired setting. The temperature
is selectable between 300 C and 700 C.
The target temperature will display for several seconds before the actual temperature of
the water in the heater is then displayed.
Smart mode – When the Smart mode is selected, the unit will automatically heat to
full temperature and then monitor the usage for the coming week. In the second week
the unit will adjust its heating times to match the usage demand of the first week.
This will help to reduce energy wastage during long periods of non-use e.g. overnight.
ECO mode – When the Eco mode is selected, the unit will target a maximum storage
temperature of 500 C. The total available hot water will be reduced along with standing
losses. This is recommended for low draw off scenarios, where larger draw offs are
required select either the manual or Smart operating functions.
Manual mode – To take back control of the heater temperature from either Smart/Eco
mode, press the manual button.
The maximum temperature setting of the heater is 700 C, this can be excessively
hot for some situations/users. In situations where very young children, the
elderly or other vulnerable people are likely users a suitably rated thermostatic
mixing valve should be fitted to the hot water outlets as required.
Never interfere with any of the safety devices.
Beware that very hot water could discharge from the safety valves.
If a risk of frost is present the heater should be left on at least the minimum
setting to prevent potential damage to the product or property from frozen
pipes. If the heater is going to be left unused for a long period of time it should
drained.
10

5. Maintenance
Always disconnect the heater from the power supply before commencing any
maintenance task.
Servicing of electrical components should only be undertaken by competent
individuals.
Draining the unit
To drain the unit, first isolate the power supply and close the service valve on the
3-way manifold.
Open the drain cock on the cold inlet and open a hot outlet to enable air to replace
the draining water.
A small amount of water may remain in the tank following a full drain down.
This residual water can be drained by removing the heating element.
11

Resetting the ther al cut-out
Remove the four screws and lift away the access plate (located at the base of the unit
next to the water inlet and outlet).
Remove the insulation from inside the heater.
Locate and push the button in the centre of the thermal cut-out to reset the unit.
If a cut-out event re-occurs, contact the technical team at Hyco on 01924 225200
for further advice.
Re oving the ele ent
Remove the four screws and lift away the access plate (located at the base of the unit
next to the water inlet and outlet).
Remove the insulation from inside the heater.
Locate and disconnect the Live and Neutral terminals.
Remove the thermostat and thermal cut-out probes by gently pulling them from the
element pocket.
Remove the five nuts from the retaining ring of the heating element and this will release
and allow full removal of the heating element.
12
V

If the earthing points are removed always ensure a firm reconnection before
re-commissioning of the heater.
Always ensure the the two probes are replaced back into element pocket fully,
the unit will malfunction otherwise.
De-scaling procedure
Scale can build up over time and if unchecked will lead to impaired heating element
performance and lifespan. For this reason, Hyco strongly recommends regular
inspection of the inner tank and descaling as required.
To access the inner tank, it is necessary to fully drain the tank and remove the heating
element (see relevant sections in this manual).
Remove scale carefully. If required, dip the heating element in a de-scaling solution
(commonly available from DIY/plumbing outlets). Take good care not to wet the
electrical connections of the heating element.
It is not normally necessary (or practical) to remove scale from the tank wall.
Refit the heating element and follow the commissioning section of this instruction
to complete the process.
V
Earthing
points
Live
terminal
Neutral
terminal
E
13

Anode & tank inspection
A sacrificial magnesium anode is fitted to the heating element of this product.
It is normal for this to break down overtime as this helps to prevent other parts of
the tank/element from doing likewise.
Once the anode is significantly eroded it will no longer offer protection to the tank
/element.
In order to prolong the life of the heater it is recommended that the anode is inspected
at least annually (more often in known water quality problem areas) and replaced as
necessary.
To inspect/replace the anode, the heater must first be drained, and the heating
element removed (see relevant sections in this manual).
While the element is removed, the inside of the tank should be inspected, a torch may
be necessary, to check for signs of rusting anywhere on the inside of the tank lining. If
the element is found to be sound but rust is present inside the unit this may be a sign
of the enamel lining of the tank failing, and further investigation should be undertaken
before re-commissioning the unit. Contact the Hyco technical support on 01924 225200
for further advise.
Safety valve inspection
The pressure & temperature valve and the pressure (expansion) relief valves are
important safety features of the heater and should be tested periodically to ensure
correct functioning. To test the valves, twist the caps and check that water flows freely.
The tundish will allow for visual confirmation that water is flowing during the test.
Pressure reducing valve aintenance
Isolate the water supply to the pressure reducing valve. Unscrew the plastic cap of the
pressure reducing valve and remove the complete mechanism from the brass housing
of the valve.
Check there is no debris or grit build in the wire mesh and remove by rinsing as
required. Replace the mechanism into the brass housing and then recommission
the heater (see relevant sections in this manual). Particular attention should be given
to ensure the mechanism has been seated correctly into the brass housing and a sound
seal has been made.
14

Expansion vessel aintenance
The expansion vessel is supplied with a pre-charge of 3 bar, this pressure may be lost
over time and should be checked periodically to keep the vessel functioning well and
help prolong the lifespan of the tank.
To check the pressure of the vessel, a reading should be taken while the unit is switched
off and the content of the tank has been cooled. Turn off the power to the unit and run
water off from the outlet until it is at ambient temperature, check the pressure reading
and increase/decrease as required (a standard pump with built in pressure gauge is
required).
Legionella risk advice
In order that Legionella risk is kept to a minimum the following advice is given:
• The heater should be run at its maximum temperature setting (700 C) and flushed
through at regular planned intervals, particularly important where lower storage
temperatures (< 500 C) or eco settings are used.
• The whole system should be drained if long periods of non-use are expected.
• The expansion vessel should be drained occasionally to ensure the water in it is
recycled.
15

6. pecifications
MODEL PF30 PF50 PF80 PF100
Maximum supply pressure to 1.2 MPa
reducing valve
Power 3.0 kW
upply voltage/frequency 230V ~/50Hz
Current 13A
Capacity (Litres) 30 50 80 100
Operating pressure 0.3 MPa
Maximum tank pressure 0.8 MPa
Expansion vessel pre-charge 0.35 MPa
Pressure reducing valve pre-set 0.3 MPa
Pressure relief valve rating 0.6 MPA
Temperature & pressure safety 910 C/0.7MPa
valve rating
Manual-reset cut out rating 800 C
Minimum recommended 0.1 MPa
supply pressure
Immersion heater spec 3.0kW (Incoloy with anode)
Weight empty (kg) 14 18 24 28
Weight full (kg) 45 68 104 128
Heat up time from 35 70 120 215
100 C to 600 C (minutes)
Recovery time of 70% capacity 22 49 84 151
to 600 C (minutes)
tanding heat loss kW/24h 0.31 0.78 1.14 1.44
Inlet/Outlet connections ½” MBSP
16

A
B
C
D
V
F
E
G
Model A B C D E F G
30L 542mm 380mm 206mm 336mm 396mm 88mm 100mm
50L 762mm 380mm 226mm 536mm 396mm 88mm 100mm
80L 987mm 410mm 270mm 717mm 423mm 103mm 100mm
100L 1139mm 410mm 340mm 799mm 423mm 103mm 100mm
17

7. Troubleshooting
Sy pto Cause Re edy
Unit not heating and Thermal cut-out has Reset thermal cut-out
display not working. operated. (see section 5 Maintenance).
If problem persists, contact
hyco for further advice.
Pressure relief valve Expanding hot water. Check and alter expansion
discharging on heating vessel charge (see section 5
cycle. maintenance)
Water too hot. Thermostat setting Adjust thermostat down
too high. (see section 4 Operation)
Pressure relief valve Pressure too high or Change pressure reducing
discharges constantly. relief valve faulty. valve/change pressure relief
valve.
Water not heating but Faulty component(s) Check heating element with
display working. multi meter, if faulty replace
element (see section 5
maintenance). If element ok
then change PCB and thermisto r
contact hyco for further advice.
No/limited water flow. Obstruction in Check flow from pressure
pipework or the relief valve, if limited flow then
heater inlet/outlet. problem could be pressure
reducing valve. Inspect and
clean pressure reducing valve
(see section 5 maintenance).
If pressure relief valve flows
well then check the heater
for limescale issue (see
section 5 maintenance).
18

8. Guarantee and service policy
This product is covered by a standard parts or replacement warranty for a period of
three years from the date of purchase.
If there is a manufacturing defect within the warranty period we will send spare
parts, repair and return the unit or, at our discretion, supply a replacement product.
Incorrect installation, frost damage, consequences of limescale deposits and failure
to follow correct operating/maintenance instructions are excluded. Consequential
costs such as labour charges or damage to surroundings are expressly excluded.
Contact us
If you experience a problem with this product you should first contact our service
department on 01924 225 200 before taking any further action.
Experience has shown that issues can often be resolved without the need to return
or uninstall the product.
9. Approvals
The Hyco Powerflow Smart range of water heaters complies with the LVD & EMC
directives as required for the CE marking.
The Hyco Powerflow Smart range of water heaters have been examined, tested
and found, when correctly fitted, to comply with the requirements of the United
ingdom Water Regulations/Byelaws (Scotland).
19

hyco.co.uk
Hyco Manufacturing Ltd
Normandy Court
Express Way
Castleford, WF10 5NR
T 01924 225 200
F 01924 225 210
E [email protected]
INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH THE
EUROPEAN DIRECTIVE 2012/19/EU.
At the end of its working life this equipment must not be disposed of as household
waste. It must be taken to a local authority waste collection centre or to a dealer
providing this service. Disposing of electrical and electronic equipment separately
enables its components to be recovered and recycled to obtain significant savings in
energy and resources. In order to underline the duty to dispose of this equipment
separately, the product is marked with a crossed out dustbin.
