HydroMist F10-01-006 User manual

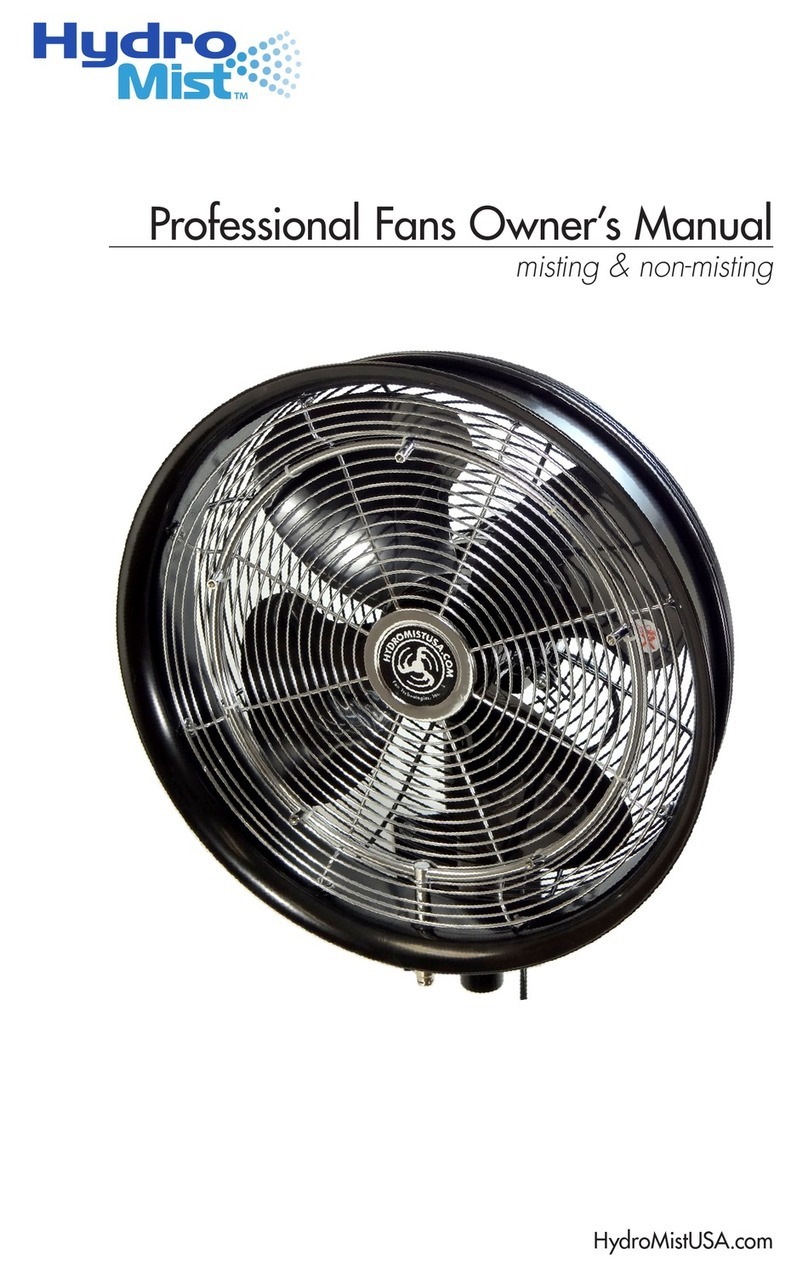

Professional Fans Owner’s Manual
misting & non-misting
HydroMistUSA.com

HydroMist™
a division of Flame Technologies
P.O. Box 1776
Cedar Park, TX 78630
Call: 512-225-0923
Email: [e-mail]
http://www.HydroMistUSA.com
©2018 HydroMist. All rights reserved.
Updated 05/15/23.
The purpose of this document is to be informative,
and as such is not guaranteed to be error-free.
HydroMist takes steps to ensure that our information
is correct and as error-free as is reasonable. Please
let us know if you believe you found a typo or error.

HydroMist HydroMistUSA.com
3
Contents
What’s In the Box ............................................4
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Dimensions .................................................4
Assembly ..................................................7
Operation..................................................9
Tilting ..................................................9
Oscillation ...............................................9
Speed Control (control on fan motor) ............................9
Speed Control (in-line cord control)..............................9
Replacement Parts—18" Fan Head ...............................10
Replacement Parts—24" Fan Head ...............................11
Winterizing Instructions for Misting Fan Heads.......................12
HydroMist One (1) Year Limited Warranty ..........................12
Available Professional Fan Models ...............................13

HydroMist HydroMistUSA.com
4
What’s In the Box
QTY DESCRIPTION
1Fan Only ~or~
Fan with Misting Ring and Hose Adapter (only with misting fans)
5 or 8 Misting Nozzles (only with misting fans); 5 for 18" and 8 for 24"
1 Wall Mounting Bracket
2Fan Bracket Screws
1Owner’s Manual
Warnings
Read and follow all instructions before operating fan. Do not use fan if any
parts are damaged or missing. Do not bend blades.
Do not expose the fans to water from a high-pressure cleaner (pressure
washer). Doing so could lead to electrical shock or damage to the motor.
Always disconnect fan from power outlet before cleaning, moving or
repositioning.
To clean, simply wipe down with soapy water & gently rinse with a hose.
Dry fan before reconnecting to power outlet.
Never insert ngers or any other objects through grills while fan is operating.
Do not operate mist in freezing weather conditions. Misting components must
be winterized to prevent damage.
Motor bearings are sealed and do not require additional lubrication.
Dimensions
See drawings next two pages.

HydroMist HydroMistUSA.com
5
NOTES: UNLESS OTHERWISE SPECIFIED
25.2
20.3 17.5
11/32" (4x)
4.70
4.50
1. Dimensions my vary slightly depending on fan mounting position, tilit position, and area of oscillation.
SPECIFICATIONS: Power: 1.6 Amps Continuous @ 110V AC, 60Hz, NEMA 5-15 Plug (Fuse inside plug) Weight: 65 LBS Airflow Volume (CFM): 3567 / 4273 / 5156 (Speeds 1, 2, & 3) Water Inlet for Misting Ring: 3/8" Female Tube Fitting
Wall Mount
Cord length from fan to speed controller: ~ 64 inches Cord length from speed controller to plug: ~ 96 inches. (For motor control fan, the total cord length is ~92 inches.)

HydroMist HydroMistUSA.com
6
NOTES: UNLESS OTHERWISE SPECIFIED
28.24
26.32 17.49
Cord length from fan to speed controller: ~ 64 inches Cord length from speed controller to plug: ~ 96 inches. (For motor control fan, the total cord length is ~92 inches.)
1. Dimensions my vary slightly depending on fan mounting position, tilit position, and area of oscillation.
SPECIFICATIONS: Power: 1.9 Amps Continuous @ 110V AC, 60Hz, NEMA 5-15 Plug (Fuse inside plug) Weight: 80 LBS Airflow Volume (CFM): 7628 / 8334 / 9147 (Speeds 1, 2, & 3) Water Inlet for Misting Ring: 3/8" Female Tube Fitting
4.50
4.70
11/32" (4x)

HydroMist HydroMistUSA.com
7
Assembly
User is responsible for determining feasibility of wall material for appropriately
securing the bracket. Sleeve anchors may cause certain materials, such as
brick & sandstone, to crack. If drywall is involved, a stud must be used for at
least two of the anchor points.
Bear in mind that the fans weigh about 30 lbs. each. The wood screws
require a 1/8" pilot hole. When using the metal anchors in brick, stucco,
mortar, or similar material, use a 3/8" masonry bit to drill your holes for the
anchor. When drilling into concrete or similar hard material, a 7/16" masonry
bit may work better to allow extra installation clearance for the anchor.
If you are unsure of the proper installation methods required to safely mount
the fan bracket, and/or lack the proper tools for installation, hire a qualied
professional to provide assistance.
Be sure the fan has plenty of room to oscillate without hitting objects and is
not too close to a pathway.
18" fans work best at installed height between 8–10 feet, measured from the
ground up to the bottom of the mounting bracket. 24" fans are reccomended
to mount at or above 10 feet for best airow coverage.
Please take into consideration the locations of nearby power outlets for the
power cord to plug into. Note that your installation may require a lower fan
mounting height due to wind or weather that may interfere with the airow
from the fan. Also consider the appearance of the fans if aesthetics are a
primary factor in choosing a mounting location.

HydroMist HydroMistUSA.com
8
NOTICE! When securing power cables on outdoor installations, loop them
below and back up to the power outlet. This makes any moisture collection on
the cable drip to the oor instead of into the outlet.
WARNING! In-line cord control models do not have a reasonable cable
conguration for hard-wiring. It is ill-advised to cut the power cable. If hard-
wiring is to be done with any fan model, it is recommended to seek a
licensed electrician. Hard-wiring may void the warranty.
The speed control knob for the cord control fans is
shipped with the mounting bracket inserted into the
plastic housing on the back side.
Remove the metal bracket and mount in the desired location
with the anges facing out an away from the wall.
Slide the speed control housing down onto the top of
the bracket, lining up the anges with the grooves in the
back of the plastic housing.

HydroMist HydroMistUSA.com
9
Operation
Tilting
Make sure fan is unplugged from power outlet and properly secured to a
mounting bracket. Firmly move fan head to desired position. Tilt mechanism
clicks at predened angles for solid hold.
Oscillation
Press down on the oscillation knob (top of fan motor) to make the fan oscillate.
Pull up on the oscillation knob to make the fan stop oscillating.
Speed Control (control on fan motor)
Turn knob on side of the fan motor to set the desired fan speed. 0, 1, 2, 3
designates Off, Low, Medium, High respectively.
Speed Control (in-line cord control)
Turn knob on the in-line cable control to set the desired fan speed. 0, 1, 2,
3 designates Off, Low, Medium, High respectively.

HydroMist HydroMistUSA.com
10
Replacement Parts—18" Fan Head
1
10
5
4
3
7
2
6
9
8
ITEM QTY DESCRIPTION PART NO.
1 white 1 18" Fan Blade F10-10-057
1 black 1 18” Fan Blade F10-10-061
2 1 Set Screw for 18" Fan Blade F10-10-058
3 white 1 White Wall Bracket F10-10-059
3 black 1 Black Wall Bracket F10-10-062
4 white 1 White Oscillating Knob F10-10-053
4 black 1 Black Oscillating Knob F10-10-063
5 1 Oscillating Knob Screw F10-10-054
(not shown) 5 Misting Nozzle (10/24 thread) F10-08-001
6 1 Repair Kit, Wall Mount Hardware F10-10 -113
7 1 Fuse, (inside the fan plug) F10 -10 -111
8 1 Oscillator Arm Drive Bushing F10-10-103
9 1 Oscillator Assembly not available
10 1 5 Nozzle Misting Ring for 18" Fan F10-11-007

HydroMist HydroMistUSA.com
11
Replacement Parts—24" Fan Head
21
6
5
4
3
7
6
10
9
8
ITEM QTY DESCRIPTION PART NO.
1 metal 1 24" Fan Blade F10-10-066
2 1 Set Screw for 24" Fan Blade F10-10-065
3 white 1 White Wall Bracket F10-10-059
3 black 1 Black Wall Bracket F10-10-062
4 white 1 White Oscillating Knob F10-10-053
4 black 1 Black Oscillating Knob F10-10-063
5 1 Oscillating Knob Screw F10-10-054
(not shown) 8 Misting Nozzle (10/24 thread) F10-08-001
6 1 Repair Kit, Wall Mount Hardware F10 -10-113
7 1 Fuse, (inside the fan plug) F10 -10 -111
8 1 Oscillator Arm Drive Bushing F10-10-103
9 1 Oscillator Assembly not available
10 1 8 Nozzle Misting Ring for 24" Fan F10-11-008

HydroMist HydroMistUSA.com
12
Winterizing Instructions for Misting Fan Heads
1. Remove all nozzles from fan ring. This allows the nylon hose and rings to
completely drain, which prevents breakage due to freezing.
2. Clean the nozzles with 50/50 diluted vinegar and warm water. Do not
use harsh chemicals as they will harm the o-rings.
3. Store nozzles in a small container or bag to prevent them from collecting
dust while not in use.
4. For harsh winter weather conditions, cover or store the fan heads to
prevent them from becoming damaged.
HydroMist One (1) Year Limited Warranty
All HydroMist products are warranted for a period of one (1) year for defects
in workmanship and materials under normal use and service. This warranty is
extended solely to the original purchaser. In order to initiate this warranty, the
product registration form must be completed and sent to HydroMist, along
with a copy of the purchase invoice, within 30 days of purchase.
Altering the construction of a fan in any manner not prescribed by this manual
is not considered normal use and may void the warranty. This includes, but
is not limited to, cutting the cord or modifying the bracket.
In General: If a HydroMist product fails because of defect in material or
workmanship under normal use and maintenance within one year from date
of purchase, we will, at our option and after inspection, repair or replace the
defective product.
About your Warranty: Fan products, like all mechanical devices, need
periodic parts and service to perform well. Normal use and service means
not to operate in excess of recommended maximum speeds, pressures,
temperatures or using uids not recommended or compatible with component
materials.

HydroMist HydroMistUSA.com
13
Available Professional Fan Models
PART NO. DESCRIPTION
F10-01-006 24" Black Misting Fan Head with 8 Nozzles, Corded Control
F10-01-007 24" White Misting Fan Head with 8 Nozzles, Corded Control
F10-01-016 24" Black Misting Fan Head with 8 Nozzles, On-Motor Control
F10-01-017 24" White Misting Fan Head with 8 Nozzles, On-Motor Control
F10-01-011 18" Black Misting Fan Head with 5 Nozzles, Corded Control
F10-01-012 18" White Misting Fan Head with 5 Nozzles, Corded Control
F10-01-015 18" Black Misting Fan Head with 5 Nozzles, On-Motor Control
F10-01-013 18" White Misting Fan Head with 5 Nozzles, On-Motor Control
F10-14-006 24" Black Fan Head, Corded Control
F10-14-007 24" White Fan Head, Corded Control
F10-14-016 24" Black Fan Head, On-Motor Control
F10-14-017 24" White Fan Head, On-Motor Control
F10-14-011 18" Black Fan Head, Corded Control
F10-14-012 18" White Fan Head, Corded Control
F10-14-015 18" Black Fan Head, On-Motor Control
F10-14-013 18" White Fan Head, On-Motor Control
F10-14-021 18" Brown Fan Head, Corded Control
F10-14-022 18" Brown Fan Head, On-Motor Control
F10-14-023 24" Brown Fan Head, Corded Control
F10-14-024 24" Brown Fan Head, On-Motor Control
F10-01-027 18" Silver Fan Head with 5 Nozzles, On-Motor Control
F10-01-028 24" Silver Fan Head with 8 Nozzles, On-Motor Control
F10-01-029 24" Silver Fan Head with 8 Nozzles, Corded Control
F10-01-030 18" Silver Fan Head with 5 Nozzles, Corded Control
F10-14-027 18" Silver Fan Head, On-Motor Control
F10-14-028 24" Silver Fan Head, On-Motor Control
F10-14-029 24" Silver Fan Head, Corded Control
F10-14-030 18" Silver Fan Head, Corded Control
