HydroTherm H Series User manual

HYDROTHERM
H - SERIES TOWEL RAIL
SPECIFICATIONS
Models Electric / Non-Electric
Materials Made entirely from Copper Tube with Brass
Fittings
Element Low wattage, replaceable water element
Power Cable Bottom of unit (only) left or right hand side
Safety rating IPX5 (allows for installtion in zone 1 & 2 of
bathroom)
Finish High Polish Chrome Plate
Standards AS/NZS:3350
FEATURES
Replaceable Element Heating element easily replaced
Ecient Design
Additional clustered bars provide enhanced heat
transfer, ideal for drying and warming towels.
Subject to sizing, can be used to provide ambient heat
Copper Tube Ensures ultimate thermal conductivity and
radiation.
Local Product 100% Australian owned and manufactured
H2 Model
H3 Model
H4 Model
700
160
80
1100
1500
Width
See Below
Width
See Below
Width
See Below
HEIGHT: 1500mm + Hardwire
WIDTHS: 400, 500, 600, 700
800mm
FINISH: Chrome / Powder Coat
WATTAGE: 100 - 300 Watt
TUBE DIAMETER: 25mm / 19mm
HEIGHT: 1100mm + Hardwire
WIDTHS: 400, 500, 600, 700
800mm
FINISH: Chrome / Powder Coat
WATTAGE: 100 - 250 Watt
TUBE DIAMETER: 25mm / 19mm
HEIGHT: 700mm + Hardwire
WIDTHS: 400, 500, 600, 700
800mm
FINISH: Chrome / Powder Coat
WATTAGE: 70 - 200 Watt
TUBE DIAMETER: 25mm / 19mm
Towel Rail must be installed so that the bottom rail is at least 600 mm above the oor to avoid a hazard for children.
The cord extension set must be positioned so that it is not subject to splashing or ingress of moisture .
The supply shall have means for disconnection with an air gap in all active conductors incorporated in the xed
wiring according to the Wiring Rules in AS/NZS 3000:2000
CAUTION
Warning:
Caution:
This appliance is not intended for use by young children or infirm persons without supervision.
Young children should be supervised to ensure they do not play with this appliance
Manufactured by Hydrotherm Australia ,96 Commercial Drive Thomastown Victoria 3074
Tel: [phone] Fax: [phone] Web:www.hydrotherm.com.au Email: [e-mail]

H SERIES
The H Series combines sleek design and superb functionality.
Its additional clustered bars provide enhanced towel warming
and drying. H Series models can also be used to deliver ambient
bathroom heating (subject to sizing and finish).
MODELS:
• Electric
• Non-heated
STANDARD FINSHES:
• High Polished Chrome
• Dulux Powdercoated Colour
TUBE DIAMETRE:
• Vertical 25mm
• Horizontal 19mm
STANDARD HEIGHTS :
• H2 700mm
• H3 1100mm
• H4 1500mm
AVAILABLE WIDTHS
400, 500, 600, 700, 800
Widths measured from centre to centre of vertical tube
Allow an extra 40mm in total when measuring total width of unit
H2 MODEL
H3 MODEL
H4 MODEL
Width
(see left)
700 mm
150 mm
150 mm
400 mm
90 mm
30mm
160mm gap
30mm
Width
(see left)
1100 mm
150 mm
150 mm
800 mm
90 mm
30mm
160mm gap
Width
(see Left)
1500 mm
150 mm
150 mm
1200 mm
90 mm
30mm
160mm gap
30mm
30mm
Custom nishes and sizing available on request

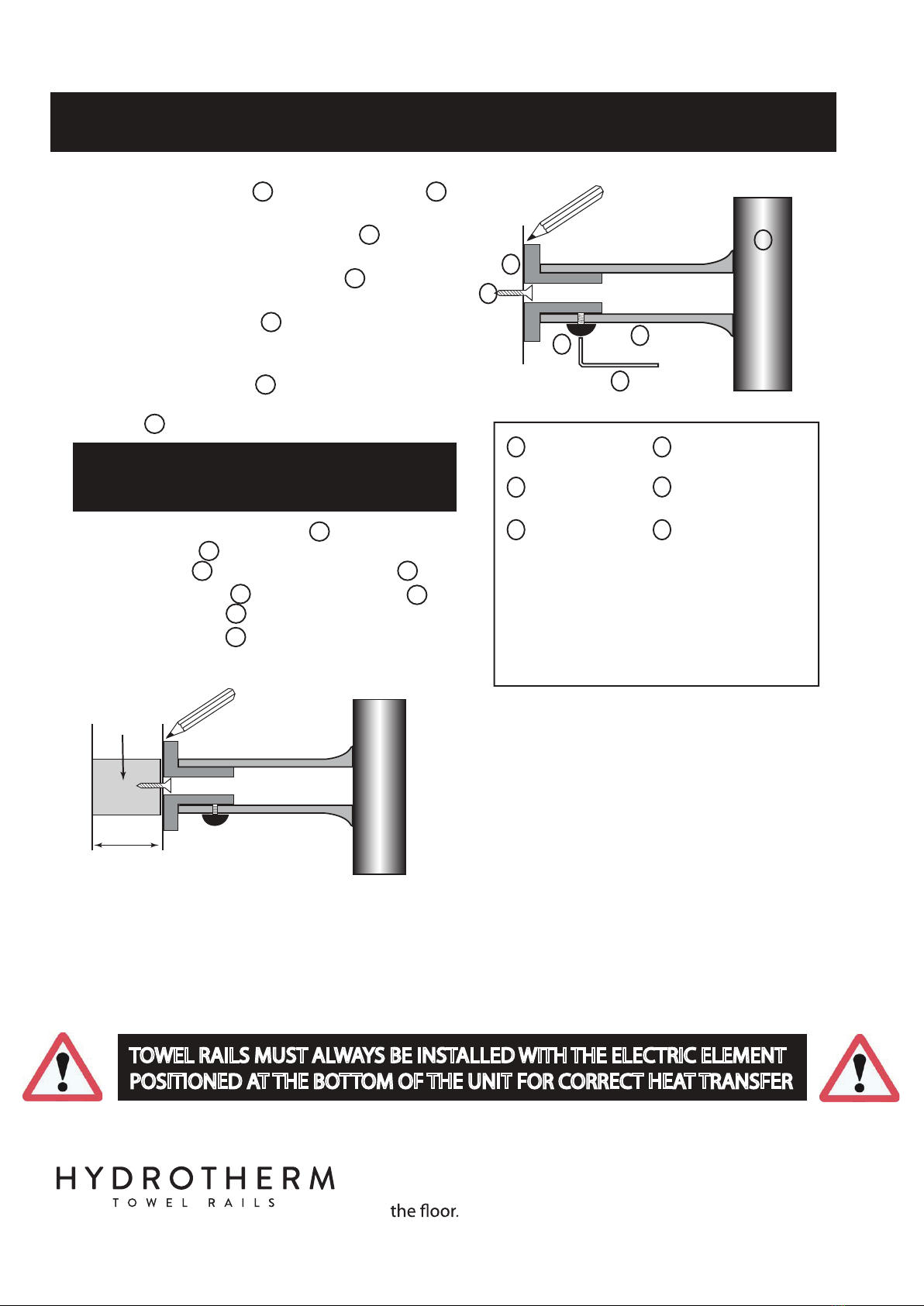

INSTALLINGBRACKETS
WARNING
Hydrotherm take pride in the fact that all rails are individually hand made. Due to this fact
some measurements may not be exact. PLEASE READ INSTRUCTIONS CAREFULLY and do not
force towel rail into bracket if position of wall flange is not accurate.
•
Slide the WALL BRACKE 1into the BRACKET ARM 2
and hold up to the wall in position.
•
With a pencil, outline the WALL BRACKET 1in the
desired position and remove from the wall.
•
Using a pencil and the WALL BRACKET 1, mark the
centre screw hole and cross it for accuracy.
•
Drill a hole for the SCREW 4and insert nylon plug into
tiled wall (if applicable). Installer may choose to use
alternative screws to suit the application.
•
Position WALL BRACKET 1so that the GRUB SCREW
hole faces directly down towards the floor and place
SCREW 4into the wall.
DO NOT OVERTIGHTEN SCREW - LEAVE SLIGHT
ADJUSTMENT OF THE FLANGE (SLACK) TO ENABLE
MOVEMENT WHEN THE TOWEL RAIL IS POSITIONED.
•
When all of the WALL BRACKETS 1are in place, slide
the TOWEL RAIL 5into position towards the wall, until
BRACKET ARM 2reaches the WALL BRACKET 1.
•
Insert GRUB SCREW 3through BRACKET ARM 2and
into WALL BRACKET 1.
•
With the ALLEN KEY 6provided, tighten the GRUB
SCREW untill tight to ensure that towel rail stays in position.
2
3
2
1
1
3
6
6
4
4
5
5
**INSTALLER MAY CHOOSE NOT TO USE SCREW IF NOT SUITABLE FOR APPLICATION
Wall Bracket Wall Screw**
Hydrotherm Towel Rail
Alen Key & Grub Screw
Bracket Arm
Grub Screw
Hydrotherm will not accept
responsibility for incorrectly
installed brackets.
Please read instructions carefully.
Please ensure that the measurements are taken accurately
and that the screw is in a stud or noggin to provide support.
Do not overtighten screws.
STUD OR
NOGGIN
WALL
WARNING
In order to avoid hazards for young children, this appliance
must be installed so that the lowest rung is at least 600mm from
TOWEL RAILS MUST ALWAYS BE INSTALLED WITH THE ELECTRIC ELEMENT
POSITIONED AT THE BOTTOM OF THE UNIT FOR CORRECT HEAT TRANSFER

WIRING OPTIONS
PLUG IN VERSION
DOUBLE HARD-WIRED VERSION
The Hydrotherm H - Series Electric Towel rails come
with water, and with electric elements already
fitted (standard on the left unless otherwise specified)
PLUG IN OPTION - REQUEST ONLY
(See Fig. 3)
Plug is supplied with element cable (1200mm long).
Cable may be cut and plug attached to required length.
(See Fig 3)
This option is only available by request.
HARD WIRED - STANDARD OPTION
(See Fig.1 & Fig.2)
The cable may be hard-wired into the wall with an
element attachment. This attachement must be installed
by a qualified electrician.
Two attachments are provided for both the cable side, and non-cable side
so to allow the unit to have a symmetrical apperance
(see Fig 1).
All hard-wired elements have an IPX Rating of IP55.
(IPX5) for use in wet areas. Hydrotherm also
recommend all electric towel rails be connected
to a timer for convenience and to prolong the life
of the element.
50mm 70mm
HARD-WIRE ATTACHMENT
LLAW
Cord
All Hydrotherm Elements carry the following approvals.
Elements have a built in thermostat and internal cut out ensuring
safety and energy efficiency.
All Hydrotherm electric elements can be supplied as 240v or 110v.
All electric elements are replaceable and can be easily
changed over.
®IP55
HARD-WIRED VERSION
HARD WIRING
Hydrotherm recommends that all hard-wired heated towel rails be connected to a light switch
or timer.
Connecting hard-wired heated towel rails to a light switch or timer will prolong the life of the
electric element and reduce energy consumption.
Hydrotherm recommend the brand HPM and the model XLP77TO, this particular unit is
designed specically for heated towel rails that is incorprated into a light switch panel.
Hard wire
attachment
(FIG.1)
(FIG.2)
(FIG.3)

To change an element from one side to the other, or to replace an old element is a very simple process.
There are Four Basic S teps:
1. Remove towel rail from brackets (if already installed), and slip o Hard Wire Attachments.
2. Turn the towel rail upside down and with a spanner loosen the hex nut of the electric element.
When the element is loose, unscrew it by hand. If you are changing the element from left to right
or vise versa, the internal plug on the opposite side must also be removed and swapped over wth
the element.
3. Swap the element and screw in place. Reattach hard wire pieces.
4. Turn the towel rail the right way up, position back into brackets and ret grub screws to secure.
Please note:
Hydrotherm advise that the unit be removed from the wall and turned upside down to ensure that water does
not spill. Ensure element always remains at bottom of towel rail
Element
on left side
Turn rail
upside down
Swap
element over
Element
on right side
tuowercsnu
niwercs
At Hydrotherm we pride ourselves on the highest quality standards of design and manufacturing.
All Hydrotherm products come with a 10 year manufactures warranty on the construction and finish of our
towel rails. All electric heating elements are also covered by a 3 year manufactures warranty.
100% Australian Made and Owned
Construction & Finish
Manufacturers Warranty
year
Electric Element
Manufacturers Warranty
10 3
year
CHANGINGELEMENTS
Disclaimer: Products in this specication manual must by regulation be installed by licensed and registered
trade people. The manufacturer/distributor reserves the right to vary specications or delete models from
their range without prior notication. Dimensions are nominal measurements only. Dimensions and set-outs
listed are correct at time of publication however the manufacturer/distributor takes no responsibility for
printing errors.
CLEANING RECOMMENDATIONS
This bathroom product should not be cleaned with abrasive
materials eg. steel wool/scourers. Do not use any corrosive or
abrasive cleaning agents containing acids or scouring agents.
Bleaches can also discolour products and therefore should not
be used. Damage caused by any improper treatment is not
covered by the product warranty.
wercsnu
niwercs
1. 2. 3. 4.
HYDROTHERM WARRANTY
