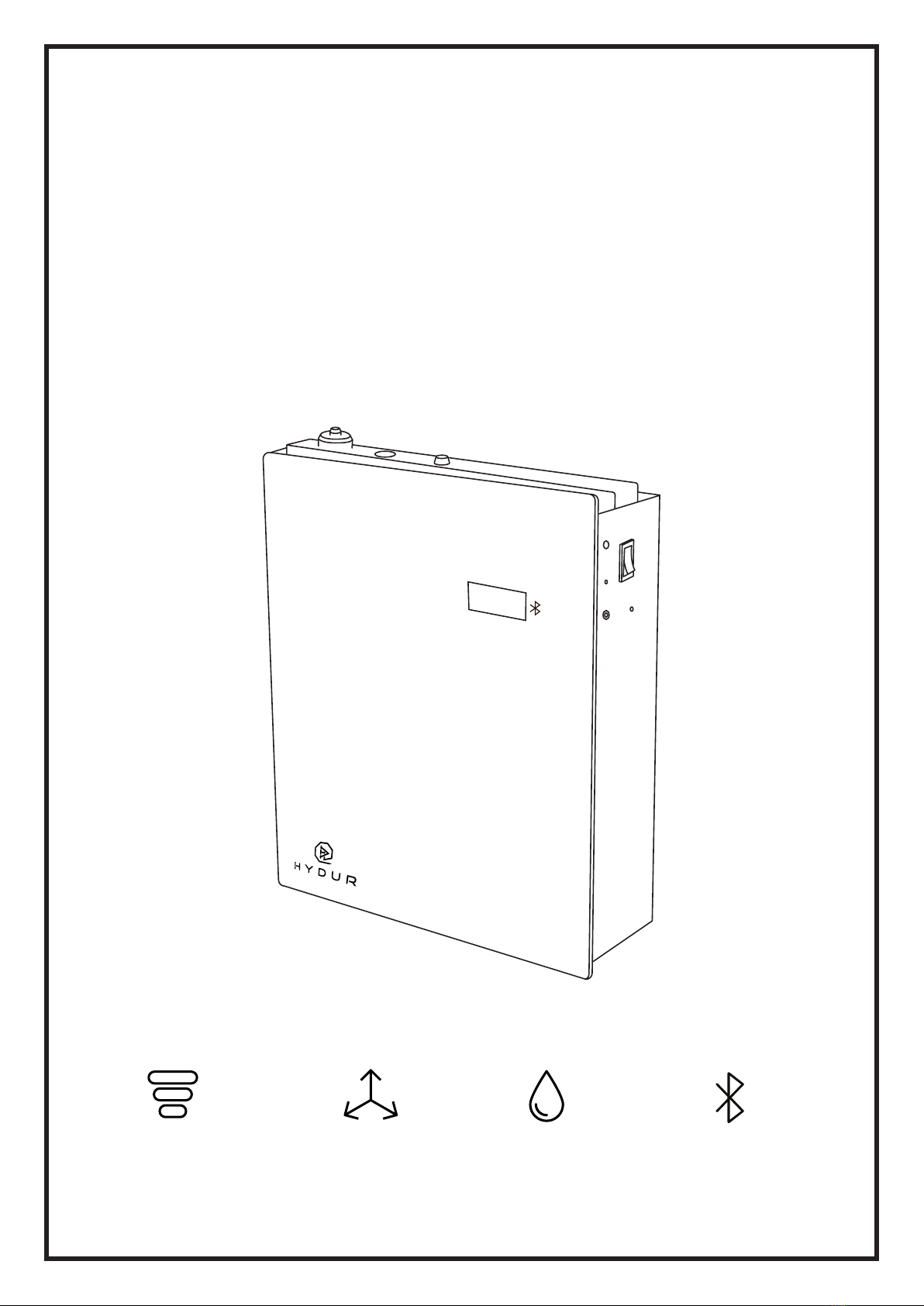

HYDUR Grandi Square User manual

1hydur.co.uk
Grandi Square
User Manual
Before using: For Your safety, please read and understand
this manual before using your product.
20 Scent Intensity
Schedules
150ml Oil
Capacity
Up to 300sqm
Coverage
Mobile app
Bluetooth Operated

2hydur.co.uk
Specification
Waste electrical products should not be disposed of with house hold
waste. Separate disposal facilities exist, for your nearest facilities see
www.recycle-more.co.uk
Product Name:
Coverage:
Dimensions:
Net weight:
Gross weight:
Oil Consumption:
Power:
Voltage:
Container capacity:
Accessories:
Suitability:
Grandi Square
Up to 300m²/900m³/31000ft³
(H) 245 mm (W) 210 mm (L) 90 mm
3.10 kg
3.90 kg
0.07 ml – 1.65 ml per hour
6 Watts
DC12V
150 ml
Power adapter, PU Tube, Mounting bracket
Home, Retail, Commercial, Medium Spaces
MADE IN CHINA

3hydur.co.uk
Specification
Our Grandi Square takes home and office scenting and aromatherapy to a whole different
level. It is sleek and powerful that the diffuser can scent up to 300 square meters, creating a
wonderful and relaxing ambiance for your home and office. It can easily match any style of
décor as it comes in 2 different color options, black and white.
Our technologically advanced scent diffuser use nebulisation, patented ultrasonic technology
and is easy to use, modern, healthier and a safer alternative to Bakhoor, Candles and Incense.
Unlike other scenting options, our Grandi Square Diffuser does not require heat or water. The
scenting oil is broken down into ultra dry nanoparticles, diffusing it into the air, leaving every
room in your house and office smelling of natural aromas.
The Grandi Square comes with an adjustable scent intensity setting and the ability to
custom scent schedule your scent diffusion based on your preferred time and day using our
dedicated Hydur Scenting Bluetooth Mobile Application.
Mist outlet
Mist outlet Key Hole
LCD monitor
Power button
DC port

4hydur.co.uk
Operating your diffuser
Using the key, unlock and
remove the upper lid.
1
Unscrew the diffuser head
and fill the bottle with diffuser
scenting oil.
3
Pull the scent bottle and carefully
take it out of the machine.
2
Screw and place the bottle back
to the diffuser machine.
4

5hydur.co.uk
Operating your diffuser
Put the upper lid back and lock
using the key provided.
5Plug in the power adapter and turn
the machine ON, the machine will
beep to indicate its ON and ready
to operate.
6
Adjust the desired intensity level
by connecting to the Hydur
Scenting app bluetooth. The app
allows you to control your diffusion
levels and settings based on your
preferred day and time. The Hydur
Scenting controller app is available
to download on IOS or android.
You may also configure the setting
using the control panel.
7Place your Grandi Square
Diffuser in conference rooms,
hotel lounges, restaurant, salon,
meeting room, office, or any
ventilated indoor space.
8

6hydur.co.uk
How to set & control your scent intensity settings
Download and open the Hydur
Scenting Controller App.
Log in using the default
password ‘8888.’
Select the desired Start
and End Time.
Select the Scent Diffuser
from the list
Tap the ‘+’ or ‘Add’ button to
add scenting schedule.
Adjust the intensity level and
tap ‘Save.’
Hydur Scent Diffuser can work continuously or intermittently, depending on your
settings. We recommend that you schedule your scent diffusion intermittently
between one to three times a day for up to 1 hour at the maximum.
Set your intensity to the maximum level on the first cycle of scenting and reduce
the intensity on the next cycles.
1
3
5
2
4
6

7hydur.co.uk
Power On
Intensity and Oil Consumption
Connect the DC12V adapter to the outlet and turn the power switch ON. Local time and
scent intensity levels will appear.
Intensity Level
Indicator Light
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
15 secs
15 secs
20 secs
20 secs
25 secs
30 secs
30 secs
30 secs
30 secs
30 secs
33 secs
40 secs
50 secs
60 secs
75 secs
80 secs
85 secs
120 secs
150 secs
300 secs
5 mins
2.5 mins
2 mins
1.25 mins
1.20 mins
1.15 mins
1 min
50 secs
40 secs
33 secs
30 secs
30 secs
30 secs
30 secs
30 secs
25 secs
20 secs
20 secs
15 secs
15 secs
0.04 ml
0.07 ml
0.11 ml
0.15 ml
0.18 ml
0.22 ml
0.25 ml
0.29 ml
0.32 ml
0.36 ml
0.40 ml
0.44 ml
0.47 ml
0.51 ml
0.55 ml
0.58 ml
0.62 ml
0.65 ml
0.69 ml
0.72 ml
Length of
Diffusion
Interval Between
Diffusion
Oil Consumption
(ml/hr)

8hydur.co.uk
Safety Care
• Unplug the diffuser immediately and discontinue use in the event of smoke or a
burning smell
• Do not wrap the adaptor with cloth, paper, or anything that may result to avoid
abrasions, cuts, fraying, crimping, and kinking
• Do not disassemble or attempt to self-repair the diffuser, this will void the warranty. Any
damage caused by the user does not qualify for replacement by Hydur
• Disconnect the diffuser from power adaptor before refilling, cleaning or moving the
diffuser
• Clean the sensor with a isopropyl alcohol-soaked cotton swab
• Do not use metal objects to clean the sensor; use only a cotton swab or cloth dipped in
isopropyl alcohol or a neutral detergent
• Make sure to clean the unit before switching to different scenting oils
• Use only essential oils or Hydur scenting oils. Artificial, synthetic, or impure oils and
fragrances can damage the diffuser.
• Avoid placing the diffuser in direct sunlight, close to a refrigerator or fan, or in a hot
environment
• When not in use, clean the diffuser and store dry at 0°C—50°C, 5%-95% humidity.
• Switch or change to another Scenting Oil
• Atomization volume becomes weak or there is no mist or less mist than usual
Step 1: Turn the device off and unplug prior to cleaning.
Step 2: Gently wipe the plate using a cotton swab dipped in rubbing/isopropyl alcohol.
Step 3: Fill a clean bottle with isopropyl alcohol.
Step 4: Install the bottle filled with rubbing alcohol to the diffuser and turn it on. Let it
diffuse for 5-20 minutes or until the essential oil scent wears off.
Step 5: Replace the bottle of rubbing/isopropyl alcohol with your scenting oil.
Taking Care of your Storage
To keep your diffuser clean and ensure the best mixture of Hydur Fragrances it is recom-
mended that you perform a cleaning cycle on your diffuser at least once a month, if you
use your diffuser daily or in case any of these situation happens:
To do a cleaning cycle on your diffuser, follow these steps:
Dispose of this product and packaging materials with your local regulation. Waste
electrical products should not be disposed with household waste. Separate disposal exist
for your nearest facilities, see www.recycle-more.co.uk
Disposal

9hydur.co.uk
Troubleshooting
Condition Solution
Diffuser is not working.
USB cable may not be properly plugged in
or your diffuser ran out of battery
• Check if the power is on or off and/or your
diffuser is charged.
• Check if there is essential oil inside the
bottle.
No mist coming out of my diffuser.
Your atomizer head might be blocked.
• Check if there is any scenting oil build up
on the plate. In case there is a buildup,
follow the cleaning instructions.
Diffuser is leaking.
Your diffuser head is either displaced or the
the diffuser is tilted.
• Check that the diffuser head is screwed
properly to the bottle.
• Make sure that the diffuser is set on a
hard, flat surface.
• Keep the diffuser constantly vertical do
not tilt or keep the diffuser horizontal.
Scent is too strong or too weak.
If you find the mist/intensity is too strong
or weak, adjust the diffuser intensity to
either a higher or lower setting to suit your
preference.

10hydur.co.uk
FAQ’s
What is the average oil consumption of a Grandi Square?
Average scenting oil consumption ranges from 0.07 ml – 1.65 ml per hour.
How much area does a Grandi Square cover?
A Grandi Square will cover up to 300 square meters.
How long will my 100ml Scent last?
A 100ml bottle can last approximately 10 days, depending on the intensity settings and
diffusing times.
Do I need to put water on the diffuser?
No. Hydur Diffuser does not use water. It atomize the scenting oils using a series of tubes,
dispersing the oils in their purest form.
What type of oils can I use on the diffuser?
Hydur Diffuser diffuses 100% essential oil or Hydur Scenting Oil. Other blends and oils
may contain fragrances, base oils or synthetics that could result in malfunction. Hydur
Scenting Oils are carefully blended and curated for Hydur Diffusers.
Do I need to clean the diffuser?
Yes. It is recommended that you perform a cleaning cycle at least once a month.
How do I reset the password of the Hydur Scenting App?
In case you forget the password, simply press the reset button to restore to factory
settings. The default password is 8888.
How do I create a scenting schedule from the Hydur Scenting App?
The scent scheduling feature is only available on Plug Diff, Midi Square, Grandi Square,
Ultra Tower Max and Ultra Cylinder Max.
To create a new scenting schedule using the app, simply:
Step 1: Select “Add New” under the “Schedule” section on the Homepage
Step 2: Choose to create your own schedule, or select one of the pre-set schedules
Step 3: Enter your desired Start time, End time, Name and intensity. If you would like the
schedule to repeat, select the day(s) you would like it to repeat.
Step 4: Click “Save”
Will my diffuser work even if I am not connected to the Hydur Scenting App?
Yes. The diffuser will keep the schedules you have set. Once you reconnect via Bluetooth
you can change the schedules, adjust the scent intensity or turn the diffuser off manually.
