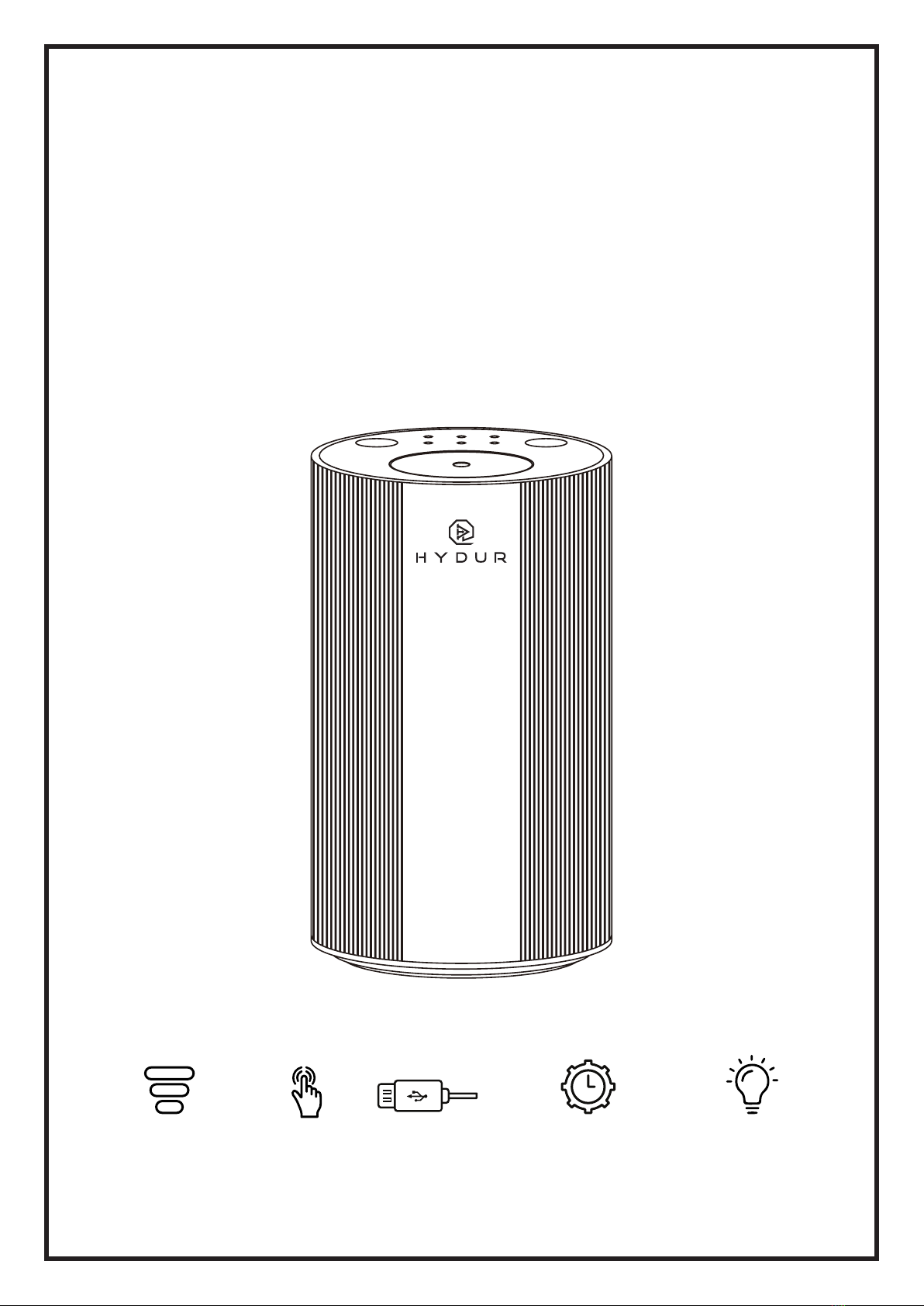

HYDUR Midi Tower User manual

Midi Tower
Diffuser Manual
Before using: For Your safety, please read and understand
this manual before using your product.
Three Automatic
Scent Intensity
Levels
Touch
Screen
USB
Rechargeable
4 Work Mode
Timer Options
Ambient Light
Options

2hydur.co.uk
Specification
Waste electrical products should not be disposed of with house hold
waste. Separate disposal facilities exist, for your nearest facilities see
www.recycle-more.co.uk
Product Name:
Coverage:
Dimensions:
Net weight:
Gross weight:
Oil Consumption:
Power:
Lithium Battery:
Input Voltage:
Container capacity:
Accessories:
Charging time:
Environment:
Midi Tower
Up to 20m2/312ft2
(H) 121 mm x (D) 71.5 mm
0.35 kgs
0.49 kgs
0.60 ml per hour
1.5 Watts
2000 mAh
USB 5V
10ml
USB Type-C Cable
6 Hours
Indoor, Car
MADE IN CHINA

3hydur.co.uk
Description
Our Midi Tower takes home, car and office scenting and aromatherapy to a whole different
level. It is sleek, compact, durable and small enough to fit anywhere you choose: home, office,
desk, car, bedroom, bathroom and more. Made of black aluminum alloy, it can match any
style of décor or car interior.
Our technologically advanced scent diffuser uses nebulisation, patented ultrasonic
technology and is easy to use, modern, healthier and a safer alternative to Bakhoor, Candles
and Incense. Unlike other scenting options, our Midi Tower Diffuser does not require heat
or water. The scenting oil is broken down into ultra-dry nanoparticles, diffusing it into the air,
leaving every room in your house, office and car smelling of natural aromas.
The Midi Tower also comes with an adjustable scent intensity setting ranging from high to
low intensities and work mode timers of up to 3 hours. Based on your preference, you can set
the timers and adjust the scent intensity.
Time indicator light
Scenting intensity control
Mist nozzle
Diffuser scenting oil bottle
Power button

4hydur.co.uk
Operating your diffuser
Push down and pull the mist
nozzle up when it pops up.
1
Align the two arrows on the
diffuser and nozzle before pushing
the mist nozzle back into place.
3
Screw the diffuser scenting oil unto the
mist nozzle.
2
Gently press the power button to turn
‘On.’
4

5hydur.co.uk
Control Settings
Intensity and Oil Consumption
Timer
Light
Intensity Level
Indicator Light
1 - Low Intensity
2 -Medium Intensity
3 – High Intensity
15
60
120
165
120
60
0.15
0.60
1.20
Length of Diffusion
(in Seconds)
Interval between
Diffusion
(in Seconds)
Oil Consumption
(ml/hr)
15S
1H
60S
2H
120S
3H
Mist Nozzle
Scent Intensity Control
Soft press to change the
intensity
Turn On/Off
Timer Setting
(1H / 2H / 3H)
TIME INDICATOR LIGHT
(1H / 2H / 3H)
15S 60S 120S
1H 2H 3H
ATOMIZATION
TIME INDICATOR
There are 3 scent intensity settings and based on your preference, you can adjust the
scent intensity and set it to low, medium, or high. To change the scent intensity, gently
press the scent intensity button.
There are 4 working mode timers and based on your preference the diffuser will
continuously work based on the timer you have set.
Whilst the diffuser is on, press the power button for 2 seconds to switch the ambient light.
• Default: Operating non-stop. If you wish to set to continuous diffusion, press the power
button until none of the work mode timers are selected.
• 1 H: Operating for 1 hour
• 2 H: Operating for 2 hours
• 3 H: Operating for 3 hours
Charging Precautions
1. Please use only the charger included
2. Repeated charging and discharging of this product will result in decrease in
battery efficiency over time, which is normal for rechargeable batteries.

6hydur.co.uk
Safety Care
• Unplug the diffuser immediately and discontinue use in the event of smoke or a
burning smell
• Do not wrap the cable with cloth, paper, or anything that may result to avoid abrasions,
cuts, fraying, crimping, and kinking
• Do not disassemble or attempt to self-repair the diffuser, this will void the warranty. Any
damage caused by the user does not qualify for replacement by Hydur.
• Switch off the diffuser before refilling, cleaning or moving the diffuser
• Clean the mirrored top plate with a dry cloth
• Do not use metal objects to clean the diffuser
• Make sure to clean the diffuser before switching to different scenting oils
• Use only essential oils or Hydur scenting oils. Artificial, synthetic, or impure oils and
fragrances can damage the diffuser.
• Avoid placing the diffuser in direct sunlight, close to a refrigerator or fan, or in a hot
environment
• When not in use, clean the diffuser and store dry at 0°C-50°C, 5%-95% humidity.
• When switching to a different Scenting Oil
• If the atomization strength weakens, or if you notice less mist or no mist compared
to the usual performance
Step 1: Turn the device off and unplug prior to cleaning.
Step 2: Fill a clean bottle with isopropyl alcohol.
Step 3: Screw on the bottle filled with rubbing alcohol to the diffuser and turn it on. Let it
diffuse for 60 minutes or until oil scent wears off.
Step 4: Replace the bottle of rubbing/isopropyl alcohol with your scenting oil.
Note: If the scenting oil begins to build up on mirrored plate, gently wipe it off with a
dry cloth. Do not use aerosol sprays, solvents, or abrasives to clean the plastic or metal
housing.
Taking Care of your Storage
To maintain the cleanliness of your diffuser and ensure optimal fragrance performance,
We recommended that you perform a cleaning cycle on your diffuser at least once a
month, particularly if you use your diffuser daily or in any of the following situation:
To do a cleaning cycle on your diffuser, follow these steps:

7hydur.co.uk
Troubleshooting
Condition Solution
Diffuser is not working.
USB cable or power plugged may not be
properly plugged in or your diffuser ran out
of battery (if battery operated).
• Check if the power is on or off and or your
diffuser is charged or plugged in.
• Check if there is a scenting oil inside the
bottle.
No mist coming out of my diffuser.
Your atomizer head might be blocked.
• Check if there is any scenting oil build up
on the plate. In case there is a buildup,
follow the cleaning instructions.
Diffuser is leaking.
Your diffuser head is either displaced or the
the diffuser is tilted.
• Check that the diffuser head is screwed
properly to the bottle.
• Make sure that the diffuser is set on a
hard, flat surface.
• Keep the diffuser constantly vertical do
not tilt or keep the diffuser horizontal.
Scent is too strong or too weak.
If you find the mist/intensity is too strong
or weak, adjust the diffuser intensity to
either a higher or lower setting to suit your
preference.
Dispose of this product and packaging materials with your local regulation. Waste
electrical products should not be disposed with household waste. Separate disposal exist
for your nearest facilities, see www.recycle-more.co.uk
Disposal

8hydur.co.uk
FAQ’s
What is the average oil consumption of a Midi Tower?
Average scenting oil consumption ranges from 0.15 ml – 1.20 ml per hour.
How much area does a Midi Tower cover?
A Midi Tower will cover up to 20 sqm.
How long will my 10ml Scent last?
A 10ml bottle can last approximately 5 days, depending on the intensity settings and
diffusing times.
How do I adjust the scent intensity settings?
You can adjust the scent intensity and set it to low, medium, or high. To change the scent
intensity, gently press the scent intensity button.
How will I know if the diffuser is fully charged?
When charging, the charge light will flash and if it is fully charged, this would become
solid red.
How long will my battery last?
When fully charged, the battery will last for at least 2 days, depending on the usage.
How long does it take for the diffuser to be fully charged?
It will approximately take 6-hours to charge fully.
What is the timer for?
This is the working mode timer. If you set your timer for 1 hour, it means that the diffuser
will continuously work for 1 hour and will automatically switch off after.
What are the different working mode timers?
There are 3 working mode timers, 1 hour, 2 hours and 3 hours. You can set your timer
based on your preference and the diffuser will continuously work based on the working
mode timer you have set.
Why is the orange light blinking on the intensity settings?
When the diffusion is on a resting mode you will see the indicator light blinking and
when it is in diffusion mode the indicator light will become solid orange.
Can I use a different USB cable to charge my diffuser?
We recommend that you use the USB cable that came with your Midi Tower as that is the
best way to charge your device. If this accessory is not available, make sure the charger
that’s available can support at least DC5V power.
How do I turn on/off the ambient light?
To turn on/off the ambient light, simple press the Scent Intensity button for about 2-3
seconds.
Do I need to put water on the diffuser?
No. Hydur Diffuser does not use water. It atomize the scenting oils using a series of tubes,
dispersing the oils in their purest form.

9hydur.co.uk
What type of oils can I use on the diffuser?
Hydur Diffuser diffuses 100% essential oil or Hydur Scenting Oil. Other blends and oils
may contain fragrances, base oils or synthetics that could result in malfunction. Hydur
Scenting Oils are carefully blended and curated for Hydur Diffusers.
How do I know if the diffuser is fully charged?
The red light indicator (if the diffuser is off) or purple light flashes repeatedly to indicate
charging and will become solid white (if the diffuser is off) or solid blue (if the diffuser is
on) once its fully charged.
Do I need to clean the diffuser?
Yes. It is recommended that you perform a cleaning cycle at least once a month.
