hymetec Hyspray User manual

User Manual
FR & NL VERSIONS OF THIS MANUAL ARE AVAILABLE ON WWW.DISINFECTION.BE

Ref: HY.007b-version3 - 10/6/2020 ©Analis/Hymetec p. 2/20
Table of Contents
1About this manual ................................................................................................ 3
1.1 Purpose of this manual..............................................................................................3
1.2 For whom is this manual intended? ..........................................................................3
1.3 Use of this manual.....................................................................................................3
1.4 Disclaimer ..................................................................................................................4
1.5 Additional information and support..........................................................................4
2Safety guidelines ....................................................................................... 5
2.1 General safety guidelines ..........................................................................................5
2.2 Specific safety guidelines for the Hyspray.................................................................6
2.3 H2O2related safety guidelines...................................................................................7
3About the Hyspray................................................................................................ 8
3.1 Function.....................................................................................................................8
3.2 Intended use..............................................................................................................8
3.3 Advantages ................................................................................................................8
3.4 Kit content .................................................................................................................8
3.5 Main components......................................................................................................9
3.6 Accessories ............................................................................................................. 10
4Working with the Hyspray....................................................................................11
4.1 Preparing the Hyspray for disinfection................................................................... 11
4.2 Disinfection procedure ........................................................................................... 12
4.3 Emergency stop and restart ................................................................................... 14
5Maintaining the Hyspray......................................................................................15
5.1 Maintenance........................................................................................................... 15
5.2 Troubleshooting ..................................................................................................... 15
5.3 Replacing the fuses................................................................................................. 15
5.4 Environmental disposal .......................................................................................... 16
6Technical Data .....................................................................................................17
6.1 Technical characteristics......................................................................................... 17
6.2 Warranty and service ............................................................................................. 17
6.3 Compliance ............................................................................................................. 18

Ref: HY.007b-version3 - 10/6/2020 ©Analis/Hymetec p. 3/20
1About this manual
1.1 Purpose of this manual
This manual provides instructions to:
•prepare your Hyspray for disinfection;
•disinfect a room with the Hyspray; and
•keep your Hyspray in a good condition.
1.2 For whom is this manual intended?
This manual is exclusively intended for trained staff operating the Hyspray.
1.3 Use of this manual
STRUCTURE
•This manual sets out with a functional description of the Hyspray. Read this section first to
familiarize yourself with the location and function of the various parts and controls.
•The following sections of the manual give procedures to prepare, use and maintain your
Hyspray.
ORIENTATION CONVENTION
Figure 1shows the orientation convention. Wherever you stand relative to the Hyspray, the
indications ‘Front’, ‘Back’, ‘Right’ and ‘Left’ are always as shown on Figure 1.
Figure 1
PROCEDURES
Procedure steps are clearly identified by the sign followed by a number in the margin that
indicates the order in which the procedure should be executed.
ELECTRONIC VERSION
This manual is also available electronically as a pdf file on our internet website
http://www.disinfection.be.
•The pdf file features a bookmarks panel that enables you to quickly navigate to specific
information.
•Cross references in the text are executed as hyperlinks. Whenever the cursor turns into a
hand symbol , you can click on the text behind to land immediately on the referenced
section or picture. Simply press 'Alt' +' ' to get back from where you came.
Left Right
Front
Back

Ref: HY.007b-version3 - 10/6/2020 ©Analis/Hymetec p. 4/20
1.4 Disclaimer
•Failure to follow the instructions in this manual and the damage that may result from it,
voids the warranty of your Hyspray.
•The warranty does not apply if the defect results from an operational intervention in the
device, normal wear and tear, negligence or lack of maintenance.
1.5 Additional information and support
A video user’s guide is also available on http://www.disinfection.be or online on youtube. For the
overall procedure to disinfect a room with the Hyspray, check the following movie clip
https://youtu.be/7UUSs97NnQc
A dedicated website about disinfection is also available. For more specific information about
Hymetec’s disinfection solutions, check http://www.disinfection.be
For additional information and support, please contact:
Analis sa/nv
Rue de Néverlée 11
5020 Suarlée (NAMUR)
Belgium
Tel [phone]
[email protected]

Ref: HY.007b-version3 - 10/6/2020 ©Analis/Hymetec p. 5/20
2Safety guidelines
!Read the following safety guidelines carefully before working with the Hyspray and follow them
strictly.
!Keep these guidelines in a safe place, accessible to the user.
2.1 General safety guidelines
WORKING ENVIRONMENT
Do not expose the Hyspray to rain.
Do not use the Hyspray in a wet or damp environment.
Provide good lighting.
Do not use the Hyspray near flammable liquids or gases.
Provide enough space around the Hyspray when it is working and make sure the ventilation
grid in the bottom of the unit is not obstructed.
Keep the handle of the Hyspray dry, clean and free from oil and grease.
Do not expose the Hyspray to temperatures below 10 °C or above 40 °C
AVOID ELECTRICAL SHOCK
Prevent body contact with grounded surfaces (e.g. pipes, radiators…) while operating the
Hyspray.
Do not pull the power cord to move the Hyspray.
Keep the power cord clear of heat sources, oil and sharp edges.
Inspect the power cord periodically and replace if damaged.
Disconnect the Hyspray from the mains when not in use.
Use only the power cord provided with the Hyspray.
KEEP VISITORS AWAY
Do not let visitors touch the Hyspray or the power cord.
Keep children and visitors away from the working area.
STORAGE
When not in use, store the Hyspray in a dry, high or locked-up place, out of the
reach of children.
AVOID UNINTENTIONAL STARTING
Do not carry a plugged-in Hyspray while holding a finger on the Start/Stop key or the
ON/OFF switch.
Make sure the ON/OFF switch is OFF when connecting the unit to the mains.
STAY ALERT
Watch what you are doing. Use common sense.
Do not operate the Hyspray when you are tired.
ACCESSORIES
The Hyspray can only be used with the accessories specified in this user manual.
The use of any accessory other than the ones recommended in this user manual may
present a risk of personal injury.
REPAIR
Do not attempt to open the Hyspray yourself.

Ref: HY.007b-version3 - 10/6/2020 ©Analis/Hymetec p. 6/20
Only trained technicians are entitled to service the Hyspray; otherwise it may cause danger
for the user.
When changing the fuses, use only the type advised in ‘Technical characteristics’ on p. 17.
SERIOUS INCIDENTS
Serious incidents must be reported according to the local safety guidelines.
2.2 Specific safety guidelines for the Hyspray
EXPLOSION
Do not use the Hyspray in areas that are subject to explosion protection regulation.
LEAVE THE AREA
Once the start button is pressed, you must leave the room in the pre-set time
(90 – 600 sec).
Do not enter the area to be disinfected when the spraying procedure has started.
HANDLING OF THE CONSUMABLE HYPRO TECHNICAL 7% H2O2
Use safety gloves and safety goggles when working with HyPro Technical 7% H2O2.
Wear clothing that covers the whole body (for example: long trousers and a sleeve shirt).
Observe the applicable data and safety sheets when working with H2O2.
USAGE
The Hyspray may be operated only for its intended use and according to the procedure
described in this manual, in order to avoid danger for humans and animals.
NOZZLE
Figure 2

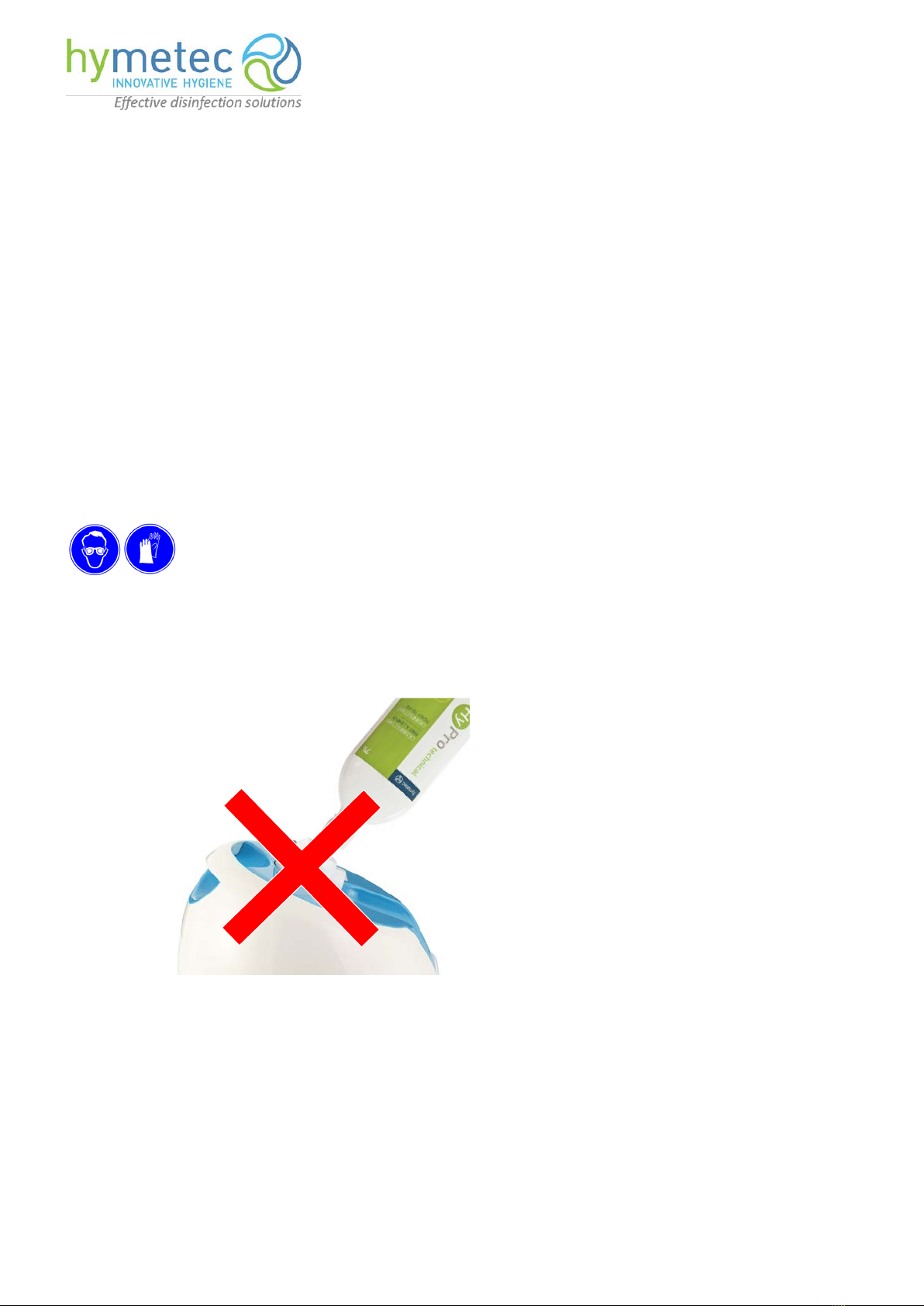

!Do not pour any consumable directly into the nozzle of the Hyspray, no matter whether the unit
is switched ON or OFF.
HANDLING OF THE CONSUMABLE
Hypro Technical 7% H202

Ref: HY.007b-version3 - 10/6/2020 ©Analis/Hymetec p. 7/20
2.3 H2O2related safety guidelines
PRODUCT
Use only stabilized H2O2solution (HYPRO TECHNICAL POMME/UNSCENTED concentration 7%)
for disinfection.
GENERAL H2O2GUIDELINES
The Hyspray nebulizes H2O2, therefore it is necessary to observe the following guidelines:
Stay out of the room during the spraying process.
Do not smoke near the Hyspray.
Do not orient the Hyspray towards an incandescent zone.
Do not use with a flammable and/or non-admitted product.
Do not inhale the substance.
Do not spray directly towards an object in the room.
SPRAYING MATERIAL UNDER PRESSURE
!Do not aim the nozzle at human beings or animals. Exposure to the product can cause acute
cauterization of the eyes, skin and unprotected parts of the body.
!Check that there are no people and no animals in the room to be disinfected, when spraying
begins.
!In case of eye or skin injury, rinse the concerned parts of the body immediately and
abundantly with water and immediately call a doctor for fast, expert treatment visit.
!Inform the doctor about the spraying material: hydrogen peroxide 7% (H2O2)

Ref: HY.007b-version3 - 10/6/2020 ©Analis/Hymetec p. 8/20
3About the Hyspray
3.1 Function
•Hyspray is a nebulizing appliance that rapidly disinfects rooms and surfaces by using the
HyPro technical solution.
•Hyspray disinfects volumes of 5 m³ to 165 m³ with a diffusion time of 11 min for 50 m³.
•For rooms with a volume > 165 m3, an additional Hyspray can be placed for optimal
disinfection. Likewise, a third Hyspray can be placed if the room volume exceeds 320 m3.
•Hyspray is not a medical device.
3.2 Intended use
•Hyspray can be used with HyPro technical, which is a 7 % hydrogen
peroxide solution. For more details, refer to the technical data of
HyPro technical.
•This solution is available in 1L and 5L packaging.
•Hyspray efficiently disinfects surfaces and non-invasive medical
equipment by nebulization.
•Hyspray is suited for operating rooms, intensive care, emergency units,
mobile units, ambulances etc.
3.3 Advantages
•Easy to use
•Rapid operational availability
•Quick and easy change of the bottle of Hypro technical 7% H2O2
•Well-shaped and user friendly design
•The product (H2O2) is ecologically friendly and 99,99 % biodegradable
•Efficient disinfection method for a wide range of room volumes by creating a ‘dry mist’
•Non toxic
3.4 Kit content
•1 Hyspray (available in 3 colors)
•1 nozzle
•1 power cord
•1 user manual
•1 transportation bag
Figure 3

Ref: HY.007b-version3 - 10/6/2020 ©Analis/Hymetec p. 9/20
3.5 Main components
TOP VIEW
Figure 4
Ref.
Part
A
Handle
B
Latch
C
Nozzle
D
Operating panel, see details below
E
Flexible straw with filter
OPERATING PANEL
Figure 5
Ref.
Part
A
Display
B
Start/Stop key
C
Down key: decrease values
D
Up key: increase values
BACK VIEW
Figure 6
Ref.
Part
A
Fuse 1
B
On/off switch
C
Fuse 2
D
Power cord connector
A
B
C
D
E
50
A
B C D
BA
C D

Ref: HY.007b-version3 - 10/6/2020 ©Analis/Hymetec p. 10/20
BOTTOM VIEW
Figure 7
Ref.
Part
A
Identification plate with
CE mark
B
Ventilation grid
C
Power cord storage compartment
D
Support stud (4 x)
3.6 Accessories
TRANSPORTATION BAG
Figure 8
HYSPRAY TROLLEY
Figure 9
The trolley is not included in the package. Please contact Analis or your distributor.
B
C
A
D
D

Ref: HY.007b-version3 - 10/6/2020 ©Analis/Hymetec p. 11/20
4Working with the Hyspray
!When handling products, always wear gloves and adequate eye protection!
4.1 Preparing the Hyspray for disinfection
1Place the Hyspray on a stable surface (possibly onto the Hyspray Trolley).
2Press the latch (as shown below) and take the nozzle out of its cradle.
Figure 10
3Insert the flexible straw into the bottle and screw the nozzle clockwise onto the bottle.
Figure 11

Ref: HY.007b-version3 - 10/6/2020 ©Analis/Hymetec p. 12/20
4Put the nozzle back into its cradle and press firmly until it clicks into position.
Figure 12
4.2 Disinfection procedure
1Connect the power cord to the connector on the back of the Hyspray (A) and insert the
plug into a wall outlet.
Figure 13
!Check that the voltage indicated on the identification plate (Figure 7 on p.10)corresponds to
the local mains voltage before you connect the unit!
2Check that there is sufficient product in the HyPro Technical 7% bottle to complete the
entire disinfection process for the selected room volume!
3Set the ON/OFF switch (B) to the ON position.
4Place the Hyspray in a corner of the room to be disinfected, the nozzle pointing at the
middle of the room.
5Press the Start/Stop key on the operating panel.
Figure 14
The display shows the default value for a room volume of 50 m³.
A
B
50

Ref: HY.007b-version3 - 10/6/2020 ©Analis/Hymetec p. 13/20
6Select the volume (in m³, cubic metres) of the room to be treated with the Up or Down
keys on the operating panel.
•Briefly tip the key to increase/decrease by steps of 5 m³.
•Keep the key pressed for fast forward or backward.
•The display shows the selected room volume.
7Press the Start/Stop key to confirm.
8Select the count down time 90 s or 600 s with the Up or Down keys.
The pre-set count down time is 90 s.
9Press the Start/Stop key again.
•The Hyspray beeps during the selected count down time (90 or 600 s) giving you enough
time to leave the room to be disinfected. The frequency and the intensity of the beeps will
increase as the countdown time elapses.
•The display shows the elapsed countdown time.
•If needed, you can stop the countdown period by pressing the Start/Stop button again.
Likewise, you can start a new countdown by pressing the Start/Stop button.
10 Leave the room.
•After the countdown, the Hyspray starts the disinfection by nebulizing the product into the
room.
Figure 15
•The display blinks “Run” and stops automatically after the time corresponding to the set
room volume.
•The display shows “End” when the nebulization process has ended.
Figure 16
11 Wait until the nebulization has stopped before re-entering the room and respect the
recommended nebulization time until the H2O2concentration wears off.
•Standard value is 11 minutes per 50 m³.
•The recommended contact time until the H2O2concentration wears off is at least 60
minutes. The H2O2concentration after disinfection depends on the ambient temperature,
r un
End

Ref: HY.007b-version3 - 10/6/2020 ©Analis/Hymetec p. 14/20
the room volume and the ventilation with fresh air. In case of doubt, use a measuring
instrument to plot the H2O2 concentration.
•To restart disinfection in the same room, set the main switch to OFF and then to ON again.
12 Set the ON/OFF switch to OFF to power off the unit.
13 Remove the HyPro Technical 7% bottle from the Hyspray for transportation.
To do so, proceed in reverse order as in ‘Preparing the Hyspray for disinfection’ on p. 11.
4.3 Emergency stop and restart
1You can stop the Hyspray at any time by putting the ON/OFF switch at the back of the
unit in the OFF position.
The Hyspray will stop the disinfection.
!Doing so is not recommended since entering the room during disinfection represents a
safety hazard!
2To restart the Hyspray, put the ON/OFF switch in the ON position again.
The display (3) shows “Err”.
Figure 17
3Confirm and clear the error message by pressing the “Start/Stop” key during 3 seconds to
restart the Hyspray. The unit is ready to repeat the disinfection procedure.
Er r

Ref: HY.007b-version3 - 10/6/2020 ©Analis/Hymetec p. 15/20
5Maintaining the Hyspray
5.1 Maintenance
•Store the Hyspray in a dry and clean place.
•Check your Hyspray after the 12-month warranty period.
•Regularly check the ventilation grid (see Figure 7 on p. 10) and remove any dust if
necessary.
5.2 Troubleshooting
THE HYSPRAY DOES NOT START
•Check that the Hyspray is properly connected electrically to the wall socket and that the
ON/OFF switch is set to ON.
•Check the fuses. Replace any blown fuse, (see ‘Replacing the fuses’ below).
THE HYSPRAY DOES NOT NEBULIZE THE PRODUCT
•Check that there is enough liquid in the bottle.
•Check that the jet of the nozzle is not clogged.
•Check that the bottle is properly installed.
THE DISPLAY SHOWS
•The disinfection cycle was interrupted, e.g. due to a power failure.
•Press the Start/Stop key during 3 seconds to clear the error message. The unit is ready to
start the disinfection procedure again.
STILL NOT WORKING?
There are no serviceable parts inside the Hyspray. Do not attempt to repair the Hyspray yourself
and contact the dealer.
5.3 Replacing the fuses
1Disconnect the Hyspray from the mains.
2Turn the fuse holder anticlockwise with a screwdriver and remove.
Figure 19
3Remove the blown fuse.
4Install a good fuse in the fuse holder. Check ‘Technical characteristics’ on p. 17 for the
appropriate type of fuse.
5Insert the fuse holder and turn clockwise with a screwdriver until it is locked into position.
Er r
Figure 18

Ref: HY.007b-version3 - 10/6/2020 ©Analis/Hymetec p. 16/20
5.4 Environmental disposal
Check the ISO14000-guidelines and local regulations for scrapping, disposal and recycling.

Ref: HY.007b-version3 - 10/6/2020 ©Analis/Hymetec p. 17/20
6Technical Data
6.1 Technical characteristics
Type
Hyspray 115 V
Hyspray 230 V
Disinfection method
Nebulization
Nebulization
Voltage
115 VAC, 50/60 Hz
230 VAC, 50/60 Hz
Power
1300 W
1300 W
Current
11,5 A
6,0 A
Dimension
Length: 347 mm
Height: 289 mm
Width: 372 mm
Length: 347 mm
Height: 289 mm
Width: 372 mm
Weight
(without bottle and cable):
5300 gr
5300 gr
Mode of operation
Continuous operation
Continuous operation
Protection class
Class I
Class I
Degree of protection of enclosu
IP20
IP20
Fuses
•12,5 A slowly acting
•Rated breaking capacity:
500 A @ 125 V
•Type Schurter 0001.2515
•IEC 60127-2, UL 248-14
•8 A slowly acting
•Rated breaking capacity:
1500 A @ 250 VAC
•Type ESKA 522.700
Room size for disinfection
5 m³ to 165 m³
5 m³ to 165 m³
Disinfection throughput
Approximately 50 m3per
11 minutes
Approximately 50 m3per
11 minutes
Ambient temperature
10 °C to 40°C
10 °C to 40°C
6.2 Warranty and service
•Warranty period: 12 months (parts and labour)
•The warranty is void if the defect results from an operational intervention in the unit,
normal wear and tear, negligence or lack of maintenance by the customer.
•The warranty is void if abnormal corrosion is found on the unit because of use of another
product than the one advised in this user manual.
•For any further information about warranty and service, please contact the dealer.

Ref: HY.007b-version3 - 10/6/2020 ©Analis/Hymetec p. 18/20
6.3 Compliance
EC-DECLARATION OF CONFORMITY
Figure 20

Ref: HY.007b-version3 - 10/6/2020 ©Analis/Hymetec p. 19/20
EMC
Figure 21

Ref: HY.007b-version3 - 10/6/2020 ©Analis/Hymetec p. 20/20
NOTES
DEALER
ANALIS SA/NV [e-mail] WWW.DISINFECTION.BE
Head Office NAMUR
Rue de Néverlée 11
B-5020 NAMUR
Belgium
Tel.: [phone]
TVA BE 0430 744 435
BTW/RPM Namur 0430 744 435 RPR Namen
Branch Office GENT
Bijenstraat 18, Entrance C
B-9051 GENT
Belgium
Tel.: [phone]
Branch Office AMSTERDAM
Hogehilweg 16
1101 CD Amsterdam
The Netherlands
Tel. [phone]
