Hyundai Telecom HDL-5290SK User manual

Door-opening function with the
use of password, ngerprint, card
You can use your password and card key
conveniently and freely make settings
and changes.
Fire safety function
It operates at a certain heat(around
65 degree Celsius) in case of re, which may
somewhat vary by installation environment.
External double locking device
While you are out for long hours,
operation of the indoor buttons can be
stopped, through which theft through
the milk drop is prevented.
Make door open manually
in emergency case
When the lock does not operate due to
discharged batteries or a circuit problem,
you can use the mechanical key.
Self-diagnosis function
The door lock itself diagnoses defect,
and informs you of malfunction or
the battery change time through the alarm.
Connection to home network
system (optional)
Door-opening is possible indoors through
a connection to the remote controller or
wireless transmitter.
Alarm function in case of
housebreaking and theft
If a wrong password is entered 3 or more
times, all the operation is stopped for 30
seconds, and forced door-opening results
in an alarm sounding.
Digital Door Lock
New Standard of Premium Digital Doorlock
It’s hoped that you use the products after reading carefully the manual.
It’s possible to change some parts of function without prior notice
to users in order to improve the products’s performance.
• You are kindly recommended to install the anticrime devices
for the better and stronger security.
• It’s prohibited to dismantle, assemble and process the door lock with other purposes
than installation and construction without a prior written approval from this company.
• It’s possible to change the products and their manuals without prior notice
in order to upgrade their performance.
• To receive our full warranty services, pleases make an entry of all the items
in a quality assurance.
• If you do not make the entry, you must pay even during our warranty period.
• In the event of malfunctions due to condensation and moisture,
you must pay for warranty services.
※Our warranty service center operates from 08 a.m. ~ 24:00.
※For problems due to condensation or with installation,
you must pay for the services.
※In the event you have forgotten passwords, or have lost a card
/a manual key, you must pay for the services.
CAUTIONS
User Manual
•Be sure to make door
open manually
in emergency case
•This product can
be damaged when
the door lock gets broken
HDL-5290SK HDL-5200SK
HDL-5290SK
HDL-5200SK
A convenient digital door lock
HDL-5290SK
Opening method : 4-Way
Password + Card +
Fingerprint + Mechanical key
HDL-5200SK
Opening method : 3-Way
Password + Card +
Mechanical key
Premium Smart Digital Doorlock

4
3
General Information ㆍ 3
Precautions ㆍ 4
How to use ㆍ 5
Product specication ㆍ 12
Quick Manual ㆍ 13
Warranty Service for Product Defects ㆍ 14
Warranty Card(for Company) ㆍ 15
Contents

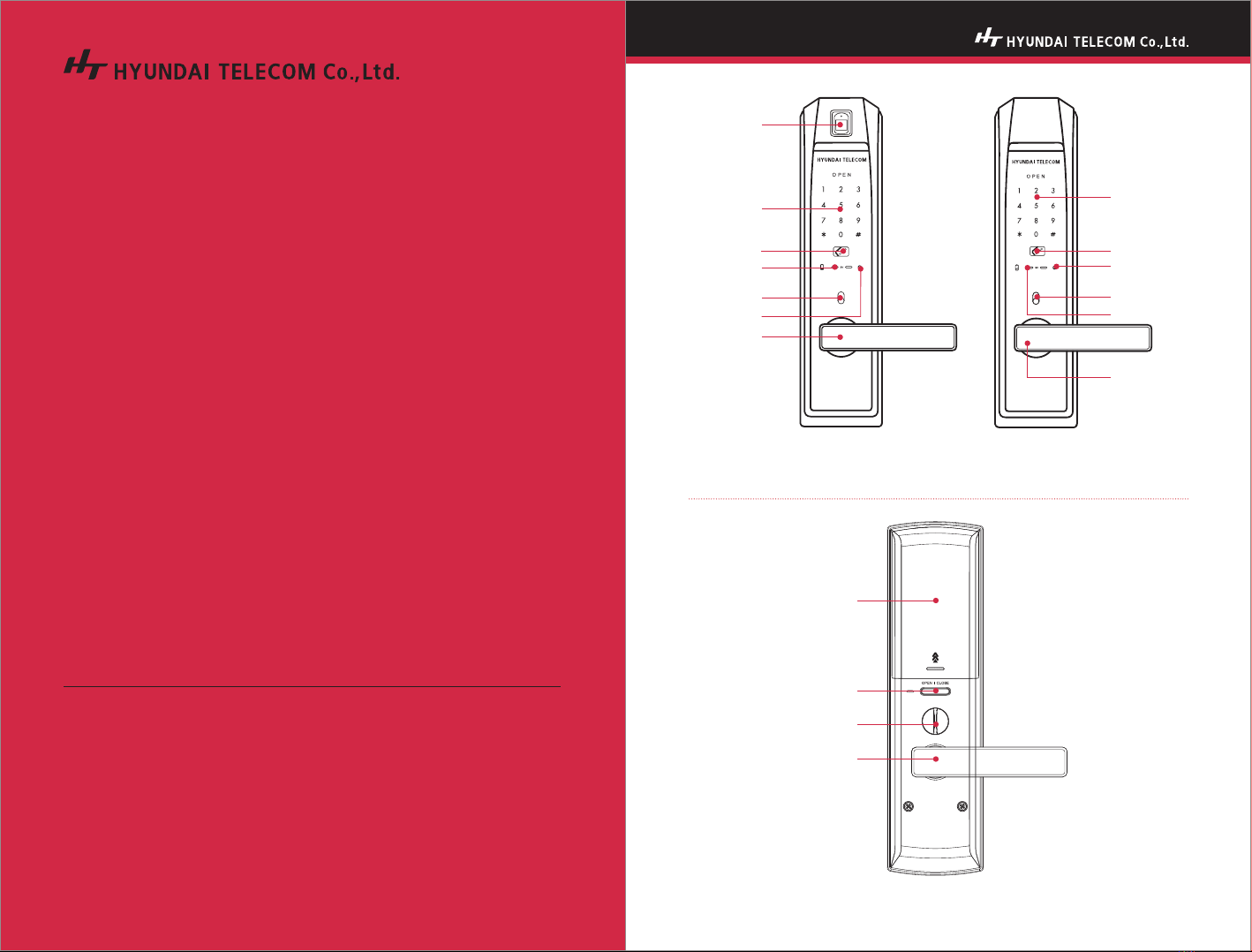

Main Key(IN)
Main Key(OUT)
HDL-5200SKHDL-5290SK
Password
Password
Mechanical key
Fingerprint
contact area
Handle
Handle
RF Card
RF Card
9V Emergency
Start Button
Start Button
9V Emergency
General Information
Battery cover
Open / Close
Button
Manual knob
Handle
Mechanical key

Precautions
4
5
Please read the precautions thoroughly for your safety!
• The usage period of battery is at most four months to eight
months. (Based on the use of ten times a day)
Exchange the battery at that time.
• Use 4 alkaline batteries of 1.5v AA.
(Rechargeable batteries unusable)
• In case of full discharge, it’s possible to open the door with
ngerprint, touch-key and password with linking 9V alkaline
battery to outdoor body terminal.
• The digital product is assembled minutely and complicatedly
in the inside.
• The random dismantlement may be dangerous
besides making the troubles of the product.
• Consumer’s responsibility in case of random dismantlement .
• It’s prohibited to clean with water because water cleaning
may disturb an electronic circuit.
• It’s hoped that a dry towel is used for cleaning the product.
The response measures to electric
discharge of battery are as follows
You should not dismantle randomly
the product
Prohibition of water cleaning
DANGEROUS
CAUTIONS
WARNING

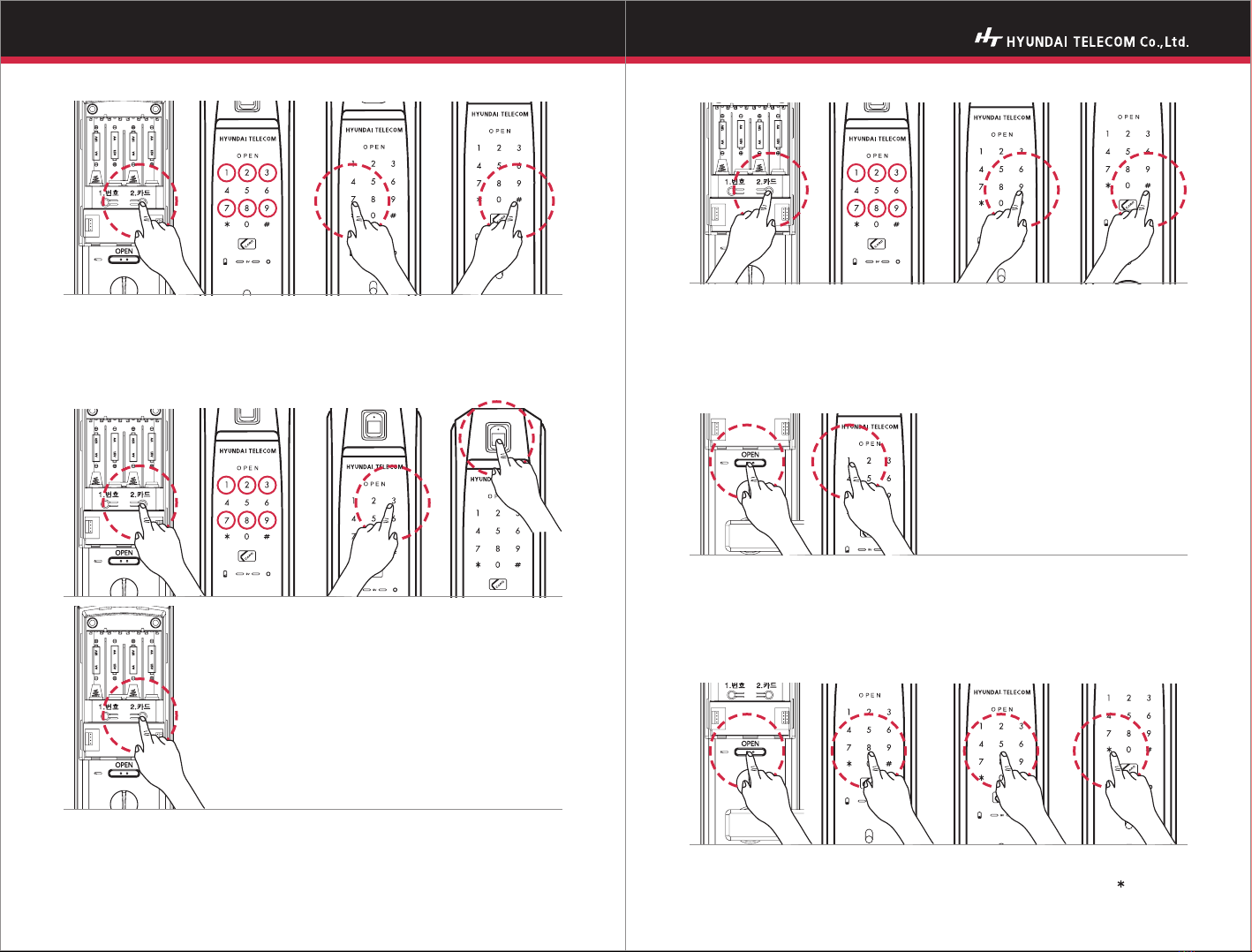

1. Password registration method
2. Card registration method
➊ Open the battery cover on the indoor unit of the door lock (the indoor unit) with the door open,
and press the registration button ① on the left bottom side.
➋ Enter the numbers you want on the number panel of the front unit. (3-12 digit numbers possible)
➌ When you press “ ” a notication sound (sounding”ppiririk”) will be heard and the entry
will be completed.
For your safety, we recommend you to use all RF-card and Tag that manufacturer provide with.
HYUNDAI TELECOM confirms that “ISO 14443 Type A”certified RF-card and Tag to be used with
the Digital door locks. We, HYUNDAI TELECOM, are not responsible with the cases that
customers use other type RF-card and Tag, credit card, Smart card and Mobile phone.
WARNING
How to use
Using the Mechanical key
The mechanical key is used when the lock does not operate
due to discharged batteries or a circuit problem.
Insert the key into the keyhole and rotate it to the right or left to lock
to unlock the lock.
1. Always carry one or more mechanical keys, or store one in a secret place outside.
2. If the mechanical key is lost, it is recommended to replace the whole key cylinder unit.
Contact your local dealer. Replacement of the key cylinder unit is not a free service.
3. Remove the mechanical key from the keyhole
after the lock has been released, and store it in a safe place.
CAUTION
1-1. One time password registration method
➊ Press the Start button for 3 sec with the door close, and the number pad will be lit.
➋ Enter the current password and “ ”.
➌ Enter the one time password and “ ”.
➍ After you use the one time password, this password will be deleted.
After password registration, make sure it works
1. When you register passwords for the first time or change them, the door may be locked
by mistake. Make sure to open the front door and carry an emergency key, card, with you.
2. For the passwords, specify the 3-12 digit numbers except for “ ” and “#”
3. If you enter new passwords, the existing ones will be deleted.
4. When all products are delivered, their passwords are set into 1, 2, 3, 4 and 1, 2, 3, 4, 5, 6, 7, 8, 9, 0.
5. When you install a product for first time, make sure the user enters the passwords himself/herself.
CAUTION
➊ Open the battery cover on the indoor unit of the door lock (the indoor unit) with the door open, and
press the registration button ② on the right bottom side.
➋ On the screen, the numbers 1, 2, 3, 7, 8, 9 are lit.
(If transmission module isn’t connected, only 1, 3, 7, 8, 9 are lit)
➌ Press “1” - the numbers are blink on the screen.
➍ Hold the card near the reader. (continuous registration possible), (Max. 50 cards)
➎Press the registration button ②on the indoor unit (the card registration nished).
After card registration, make sure it works.

How to use
6
7
3. Deletion of all the cards registered
4. Fingerprint registration method (HDL-5290SK)
➊ Open the battery cover on the indoor unit of the door lock (the indoor part) with the door open,
and press the registration button ② on the right bottom side.
➋ On the screen, the numbers 1, 2,3,7,8,9 are lit. (If transmission module isn’t connected, only 1,3,7,8,9 are lit)
➌ Press “7” - on the screen, “#” is lit. (the card deletion ready)
➍ When you press and hold “#” for 3 seconds, all the cards will be deleted, with a notification sound.
➊ Open the battery cover on the indoor unit of the door lock (the indoor part)
with the door open, and press the registration button ②
on the right bottom side.
➋ On the screen, the numbers 1, 2, 3, 7, 8, 9 are lit.
(If transmission module isn’t connected, only 1, 3, 7, 8, 9 are lit)
➌ Press”3”-the fingerprint registration ready.
(number is lit and then the numbers 1, 2, 3, 4 are lit)
➍ As soon as the numbers blink, touch your fingerprint to the fingerprint
reader. (a total of 4 times) (continuous registration possible),
(Max. 100 fingerprints)
➎Press the registration number ②on the indoor unit.
(the ngerprint registration nished)
※ Press the card registration button  Press “3”  Register the same
fingerprint 4 times in a row as for the card registration button,
you are advised to register the same one at several angles.
※ Since the Fingerprint Identification Digital Door Lock is used as an authentication means,
it guarantees no risk of loss, theft, or hacking. Also this model uses a semiconductor method sensor
so it is safe due to no residual fingerprint left on the sensor unit.
※ When you register your fingerprint, you must register it four times.
This thus reduces an identification error to the maximum.
※ However, fingerprint registration may not be done, depending on the status of individual fingerprints.

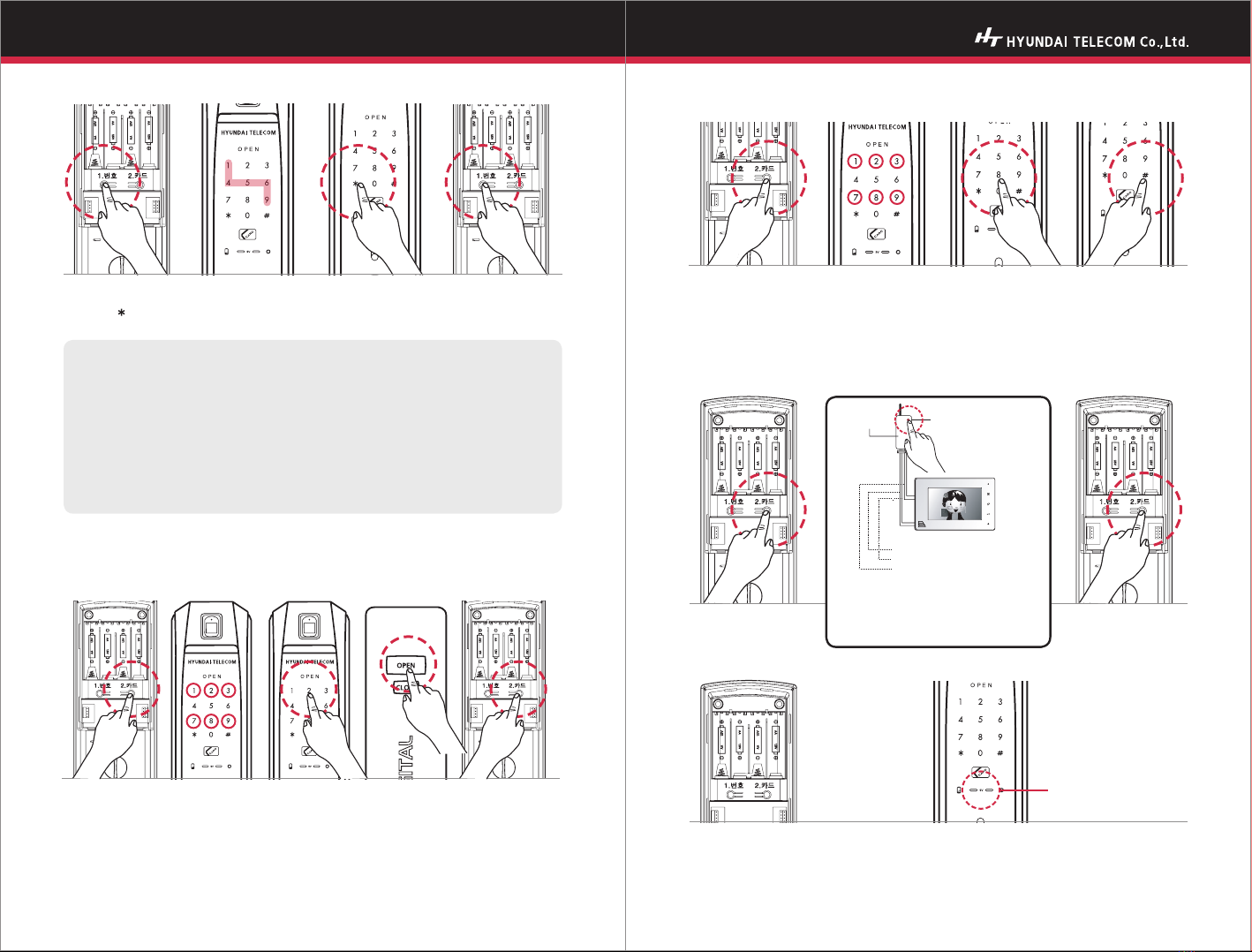

6. Ways to set automatic locking / manual locking
7. Automatic locking time setting change method
• Beep bee beep sound-Auto Setting
•Beep sound - Manual setting
※ When products are delivered,
they are set into Auto Lock.
5. Deletion of the whole ngerprint registered (HDL-5290SK)
How to set automatically closed time
Press and hold the Open / Close button for at least 5 seconds, a notification sound is heard, press “8” first,
press the number you want to set among the number “1”~”8”(“5” for 5 seconds), and press “”.
➊ Open the battery cover on the indoor unit of the door lock (the indoor part) with the door open,
and press the registration button ② on the right bottom side.
➋ On the screen, the numbers 1, 2, 3, 7, 8, 9 are lit.
(If transmission module isn’t connected, only 1, 3, 7, 8, 9 are lit)
➌ Press “9” - on the screen “#” is lit.(the fingerprint deletion ready)
➍ When you press and hold “#” for 3 seconds, the whole fingerprint will be deleted,
with a notification sound.
How to set into automatic lock
Press the OPEN / CLOSE button for more than 5 seconds and press the number “1” button.
Then, a Beep bee beep sound comes out and the system is set into auto Lock.
How to set into manual lock
Press the OPEN / CLOSE button for more than 5 seconds and press the “1” button.
Beep sound comes out and the system is set into manual lock.

8
9
9. High-pitched / Low-pitched sound change
10. Forced locking function
Opening door with password from outside
Place hand on keypad or press Start button to lighten keypad.
Press registered password and press “ ” or “#” to open door.
Manner Mode
Pressing Start button will activate manner mode, and door will open with no configuration alarm.
(Auto-setting to non-manner mode after door opening)
※ When password is consecutively wrong for 5 times, warning alarm is notified and
external button stops for 30 seconds.
8. Way to lock the door manually 11. Way to open the door
With releasing Auto-door close function,
door does not close automatically and follow up as above
►When “Force lock from outside” activated, OPEN / CLOSE button is not working.
►When “Force lock from outside” activated, it gets deactivated if you push the handle down from inside.
►When “Force lock from outside” activated, you can open the lock with password or Card.
➊ Press and hold Open / Close on the indoor unit for at least 5 seconds.
➋ Whenever pressing “9” on the outdoor part, the sound will change by level, from silence to a high-pitched sound.
➌ Until the pitch wanted is heard (a total of 8 levels), press “9” and then “ ”.
Opening with the existing fake password
➊ It is possible to use the fake number function for the front digit.
Lastly, enter the password and “ ”.
➋ The number of digits must not be over 20.
How to use
Door close inside
Press OPEN / CLOSE button
Door close outside
Close the door and place your
palm on numeric button
Door open in house
Press “OPEN / CLOSE” button
or push the handle down
to open the door
Door open with RF card
Place RF card on door lock
front and lock is opened
with melody
Force lock from outside
Close the door and place your palm
on numeric button for 3 sec then the
number pad blink 3 times and this
function is setup with “biririk” sound.
This is double lock when you leave
home for a long time and
inside buttons are not working.

10
11
15. Way to register wireless transmission / reception
communication device module for door lock (Optional)
12. Pattern register / editing method (In pattern mode setting)
Password / Pattern mode setting (editing) method
※ Leaving door open, press OPEN / CLOSE button for 3 seconds. Press number 2 on keypad
then you can hear configuration alarm.
※ All numbers on keypad will lighten up in password using mode.
※ 0, # will not lighten up during pattern mode.
※ Diagonal drag pattern is not available.
※ If pattern mode is configured, a new pattern must be newly registered.
※ If password mode is configured, the password must be newly registered.
※ Pattern and password cannot be used simultaneously.
Opening door with pattern
※ Touch keypad to lighten up numbers. Drag registered pattern to open door.
➊ Open battery cover in the inner main body and press ①Register button.
➋ Drag a pattern on keypad using numbers 1-9. (4-12 digits)
➌ Press “ ” and re-draw pattern(double check).
➍ Press ①Register button to complete registration.
13. Registration of remote controller
(Communication device) (Optional)
➊ Open the battery cover on the indoor unit of the door lock (the indoor part) with the door open,
and press the registration button ②on the right bottom side.
➋ On the screen, the numbers 1, 2, 3, 7, 8, 9 are lit. ➌ Press “2”.
➍ Press the “OPEN” button of remote controller.
(continuous registration possible)
➎Press the registration button ② on the indoor unit (the remote controller registration nished).
※ You can register up to 3 remote controllers
※ If you add one, you have to delete and register all in order
14. Way to delete all the remote controllers
(Communication devices) (Optional)
➊ Open the battery cover on the indoor unit of the door lock(the indoor part) with the door open,
and press the registration button ②on the right bottom side.
➋ On the screen, the numbers 1, 2, 3, 7, 8, 9 are lit.
➌ Press “8” on the screen, “#” is lit.(the remote controller deletion ready)
➍ When you press and hold “#” for 3 seconds, all the remote controllers will be deleted,
with a notication sound.
16. Battery replacement method
1. Battery life time : 4M to 8M upon 10times using a day.
2. Battery change alarm : Blinking red lights with melody.
Open battery cover and replace all 4PCS of 1.5V AA at once. Make sure its polarity.
3. Emergency power supply : After battery is fully discharged,
place 9V battery on emergency power contact and open the door with password or RF card.
4PCS of 1.5V AA
batteries inserted
In case of Battery gone,
you can put 9V battery
on front cover
as emergency power
source
Emergency
power contact
➊ Press right side button
Bleep sound comes out~~
and press number 2
outside.
➋ Press Setting button for 5 sec on remote
controller and you will hear long beep sound
※ Video door phone screen should be on while
registration
1. Red +
2. Black -
3, 4 Door release wires
Setting button
Remote
controller
How to use
➌ Press right side button.
※ If you add one, you have
to delete and register all
in order (Include remote
controller)

12
13
Product specication Quick Manual
Item Specication of HDL-5200SK, HDL-5290SK
Rated Voltage 4ea 1.5V(LR6)AA alkaline batteries(6V)
Emergency Power
Source 1ea 9V battery(6LF22)(sold separately)
Operation Method Electronic control(entering password or reading card key)
Weight 1.4kg(including the outdoor and indoor units)
Dimensions
Indoor unit 84mm(W) X 363.5mm(H) X 69mm(D)
Outdoor unit 85mm(W) X 367mm(H) X 73mm(D)
Item Usable
Frequency
Type of
Radio
Wave
Type of
Radio
Wave
Type of
Radio
Wave
Power
Supply
RFID 13.56MHz A1D ASK Single DC 6V
(1.5V AA
X 4EA)
For Safety System 447.275
MHz F1D FSK Single
Self-Regulatory
Safety
Conrmation
Certicate No.
B223H006-6003
Type and Symbol F-T-K-M
Certication No. MSIP-CMM-H1P-7190
Model HDL-5200SK
HDL-5290SK
Country of
Manufacture Made in KOREA
Vendor HYUNDAI TELECOM.CO., LTD.
Date of
Production Year Year : Month :
※ You are recommended to use this device
(a Class B device registered for EMC(Electromagnetic Compatibility)) chiefly at home.
※ Any of the details of the manual can be changed without notifying you in advance for improvement
of the product functions. (a sticker will be used on the follow-up model for any change)
HDL-5200SK / HDL-5290SK Function How to Ready
Password Change
Press the left button 
Press password(3-12 Digit) 
Press the “ ” button
Keep door open and
open battery cover.
There are 2 buttons.
(Right and Left)
Card Registration
Press the right button 
Press the “1” button 
Tag Card in Order 
Press the right button
Fingerprint
Registration
(HDL-5290SK)
Press the right button 
Press the “3” button 
Touch your ngerprint 4 times
Press the right button
Card Deletion
Press the right button 
Press the “7” button 
Press the “#” button for 3 sec
Fingerprint
Deletion
(HDL-5290SK)
Press the right button 
Press the “9” button 
Press the “#” button for 3 sec
Auto /
Manual Lock
Press the “OPEN” button for 3
sec and Press “1” button
Keep Door Open
Password /
Pattern Mode
Press the “OPEN” Button for 3
sec and Press “2” button
Double Checking
to Unlock
Press the “OPEN” button for 3
sec and Press “3” button
(To open the door, you have to
enter the password + Card or
Password + Fingerprint)
Double Checking
to Register
Press the “OPEN” button for 3
sec and Press “7” button
(To register new password
/card, press left/right
register button  enter
current password and “ ” 
enter new password/place
card on card reader in order 
press “ ” to end registration)
To Set the time
for Auto Lock
Press the “OPEN” button for 3
sec and Press “8” + Press the
number “2” (Changed into 2 sec)
To Change a sound
into Low / High
Press the “OPEN” button
for 3 sec and whenever
Pressing “9”, the sound will
change by level

14
Warranty Card(for Company)
Thank you very much for purchasing
HYUNDAI TELECOM.CO., LTD.’s digital door lock.
The quality assurance period is counted from the date of purchase.
Therefore be sure to have the date specified for sufficient service.
• This product is produced by the thorough quality management.
• In case any troubles occur in the state of normal use within the warranty period,
you can receive A/S for free.
• You are required to fill up the address, name and telephone number
on the warranty card in time of buying the product and to keep the card well,
and if otherwise, you need to pay for repair.
Consumer Name
Telephone
Model Name
Serial Number
Term of Guarantee
Address
Installation Agency
Telephone
Address
Warranty Service for Product Defects
Damage types
Compensation items
Within
warranty period
After
warranty period
State of
Normal
Use
In case the troubles occur
within 12 months
after installation
Repair for free Repair for Cost
In case the same troubles
occur two times Repair for free Repair for Cost
In case the same troubles
occur three times
Product
replacement Repair for Cost
In case there is no any
parts for repair
Product
replacement
Product
replacement
(Limited to at-rate
depreciation)
Intention
or Fault of
Consumer
In case of an ocial trip
because of consumer’s
mistake including
the fault of exchanging
batteries and
the immaturity of inputting
Repair for Cost Repair for Cost
To exchange consumption
goods including batteries Repair for Cost Repair for Cost
Failures or damages
due to other purposes
than the original purpose
of the product
Repair for Cost Repair for Cost
Failures or damages
of purpose Repair for Cost Repair for Cost
Failures or damages
because entering
passwords has been
omitted or passwords
have been forgotten
Repair for Cost Repair for Cost
Product damaged because
of not carrying an
emergency manual key
Repair for Cost Repair for Cost
Failures or damages
due to a re
or natural disasters
Repair for Cost Repair for Cost
Malfunctions due to
condensation and moisture
and improper operations
due to poor installation
Repair for Cost Repair for Cost
