Hyundai Telecom HDL-1100S User manual

Auxiliary Lock
New Standard of Premium Digital Doorlock
It's hoped that you use the products after reading carefully the manual.
It's possible to change some parts of function without prior notice
to users in order to improve the products's performance.
User Manual
•Be sure to make door open
manually in emergency case
•This product can be damaged
when the door lock
gets broken
Easy! Smart Digital Door Lock
HDL-1100S
A convenient digital door lock
• You are kindly recommended to install the anticrime devices
for the better and stronger security.
• It’s prohibited to dismantle, assemble and process the door lock with other purposes
than installation and construction without a prior written approval from this company.
• It’s possible to change the products and their manuals without prior notice
in order to upgrade their performance.
CAUTIONS
HDL-1100S
Opening method : 2-Way
Password + Card
Door-opening function with
the use of password, card
You can use your password and card key
conveniently and freely make settings
and changes.
Self-diagnosis function
The door lock itself diagnoses defect,
and informs you of malfunction or
the battery change time through the alarm.
Connection to home network
system (Optional)
Door-opening is possible indoors through
a connection to the remote controller or
wireless transmitter.
Alarm function in case of
housebreaking and theft
If a wrong password is entered 3 or more
times, all the operation is stopped for 30
seconds, and forced door-opening results
in an alarm sounding.
Fire safety function
It operates at a certain heat(around
65 degree Celsius) in case of re, which may
somewhat vary by installation environment.
External double locking device
While you are out for long hours,
operation of the indoor buttons can be
stopped, through which theft through
the milk drop is prevented.
• To receive our full warranty services, pleases make an entry of all the items
in a quality assurance.
• If you do not make the entry, you must pay even during our warranty period.
• In the event of malfunctions due to condensation and moisture,
you must pay for warranty services.
※For problems due to condensation or with installation,
you must pay for the services.
※In the event you have forgotten passwords, or have lost a card
/a manual key, you must pay for the services.

4
3

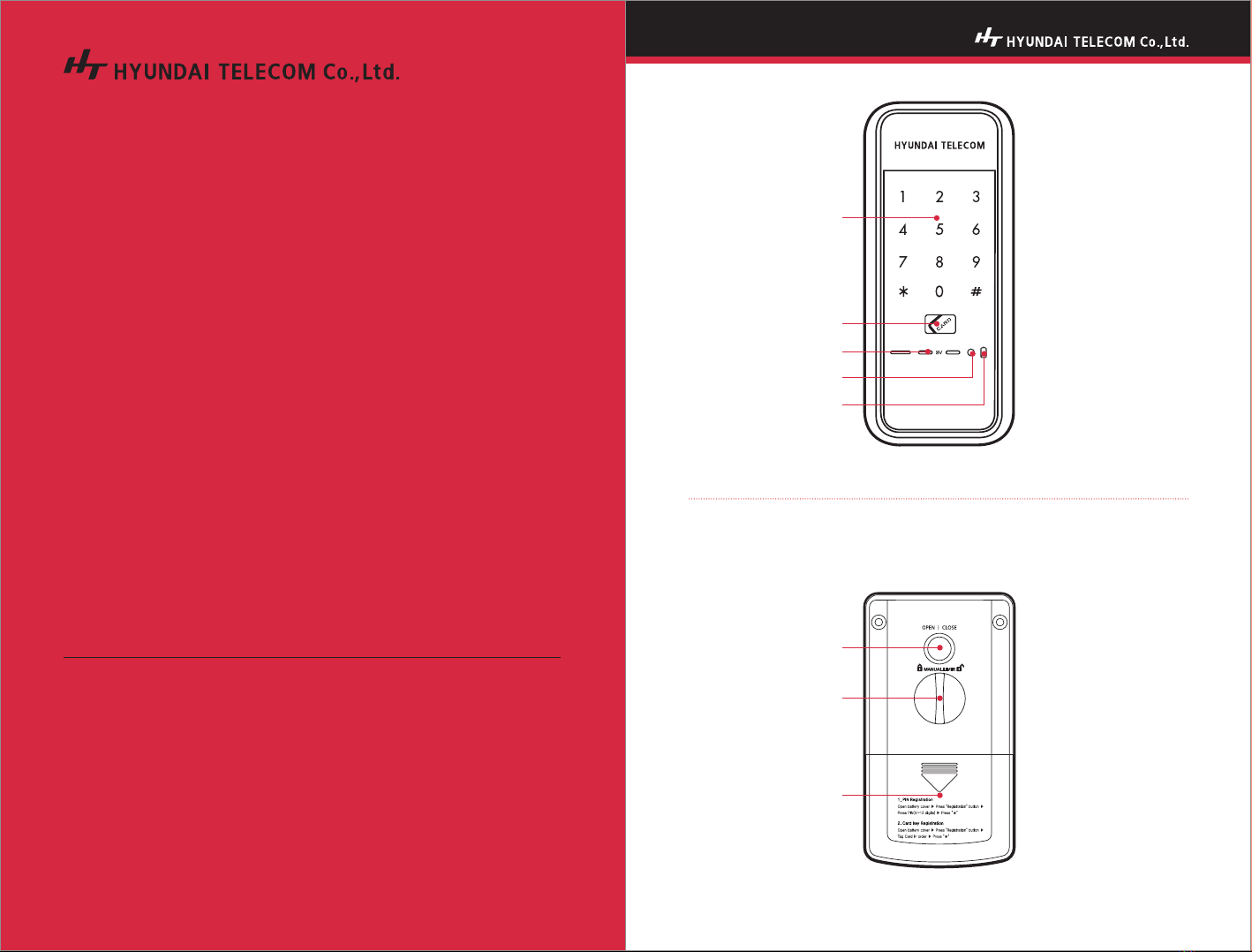

Auxiliary Lock(OUT)
Auxiliary Lock(IN)
General Information
Password
RF Card
Battery Lamp
Start Button
9V Emergency
Open / Close Button
Manual Lever
Battery cover
General Information ㆍ 3
Precautions ㆍ 4
How to use ㆍ 5
Quick Manual ㆍ 11
Product specication ㆍ 12
Product Features ㆍ 13
Warranty Service for Product Defects ㆍ 14
Warranty Card(for Company) ㆍ 15
Contents

Precautions
4
5
Please read the precautions thoroughly for your safety!
• The digital product is assembled minutely and complicatedly
in the inside.
• The random dismantlement may be dangerous besides
making the troubles of the product.
• Consumer’s responsibility in case of random dismantlement .
You should not dismantle randomly
the product
DANGEROUS
• It’s prohibited to clean with water because water cleaning
may disturb an electronic circuit.
• It’s hoped that a dry towel is used for cleaning the product.
Prohibition of water cleaning
CAUTIONS
• The usage period of battery is at most four months to eight
months. (Based on the use of ten times a day)
Exchange the battery at that time.
• Use 4 alkaline batteries of 1.5v AA.
(Rechargeable batteries unusable)
• In case of full discharge, it’s possible to open the door with
touch-key and password with linking 9V alkaline battery
to outdoor body terminal.
The response measures to electric
discharge of battery are as follows
WARNING
1. Card registration
2. Card key deletion
➊ Open the battery cover
and press the button.
➋ Press number 3 for 3sec
and it deletes all card
registration with
beep sound.
For your safety, we recommend you to use all RF-card and Tag that manufacturer provide with.
HYUNDAI TELECOM confirms that “ISO 14443 Type A”certified RF-card and Tag to be used with
the Digital door locks. We, HYUNDAI TELECOM, are not responsible with the cases that
customers use other type RF-card and Tag, credit card, Smart card and Mobile phone.
WARNING
How to use
※ Certainly check whether the card key was properly registered.
※ When re-register, the card key registered in past is added.
※ Registration is possible only with the door open.
➊ Open the battery cover
and press the button.
➋ Place RF card
on the door lock.
(Max 50 Cards available)
➌ Press “ ” and it
completes with
the melody sound.

How to use
6
7

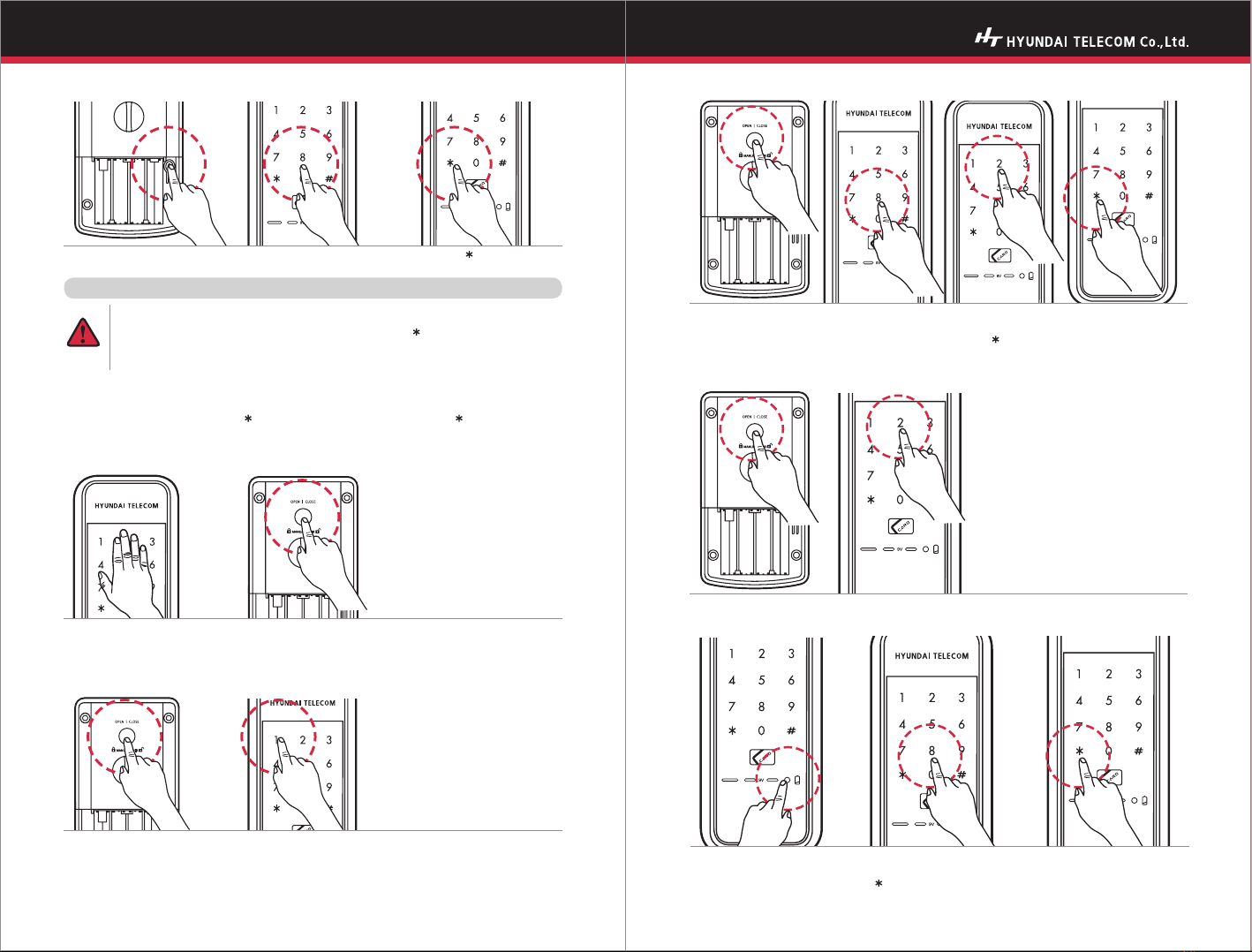

4. How to close manually
➊ Press “OPEN / CLOSE”
button for 5sec.
➋ Press number 2.
• With long beep sound :
Activated
• With short beep sound :
Deactivated
7. Imaginary number function (Optional)
6. Auto-Close / Time setting
Auto-Close setting
Press “OPEN / CLOSE” button for 5sec and then you will hear beep sound.
Press number 8 and press number (1~8) for time set and press “ ” to complete. Factory default is 2sec.
5. Auto-Close / Manual-Close setting
Auto-Close setting
Press “OPEN / CLOSE” button for 5sec and press number 1. You will hear long beep sound as confirmation.
Manual-Close setting
Press “OPEN / CLOSE” button for 5sec and press number 1. You will hear short beep sound as confirmation.
• Beep bee beep sound
-Auto Setting
• Beep sound
-Manual Setting
※ When products are delivered,
they are set into Auto Lock.
3. Password registration
➊ Open the battery cover
and press the button.
➋ Enter your password.
(3-12 digits available)
➌ Press “ ” and it completes
with the melody sound.
3-1. One time password registration method
➊ Press the Start button for 3 sec with the door close, and the number pad will be lit.
➋ Enter the current password and “ ”. ➌ Enter the one time password and “ ”.
➍ After you use the one time password, this password will be deleted.
After password registration, make sure it works
1. When you register passwords for the first time or change them, the door may be locked
by mistake. Make sure to open the front door and carry an card, with you.
2. For the passwords, specify the 3-12 digit numbers except for “ ” and “#”
3. If you enter new passwords, the existing ones will be deleted.
4. When all products are delivered, their passwords are set into 1, 2, 3, 4, 5, 6, 7, 8, 9, 0 and 1, 2, 3, 4.
5. When you install a product for first time, make sure the user enters the passwords himself/herself.
CAUTION
With releasing Auto-door close
function, door does not close
automatically and follow up
as left manual
8. How to open the door
Door close outside
Close the door and place
your palm on numeric button.
Door close inside
Press OPEN / CLOSE button.
Opening door with password from outside
Place hand on keypad or press Start button to lighten keypad.
Press registered password and press “ ” or “#” to open door.

8
9
9. Way to register wireless transmission / reception
communication device module for door lock (Optional)
How to use
➊ Open the battery cover
and press the button
Bleep sound comes out ~~
➌ Press “” button on
door lock to complete
registration and you will
hear same long beep
sound.
Bleep Bleep ~~
➋ Press Setting button for 5 sec on remote
controller and you will hear long beep sound
※ Video door phone screen should be on while
registration
1. Red +
2. Black -
3, 4 Door release wires
Setting button
Remote
controller
Door open with RF card
Place RF card on door lock front and
lock is opened with melody.
12. Manner Mode
14. How to close in force
➊ Press “OPEN / CLOSE”
button for 5sec.
➋ Press number 0
to change buzzer with silent.
※ You can set buzzer
by following the above set again.
11. Buzzer / silent setting
10. High / Low tone setting
➊ Press “OPEN / CLOSE”
button for 5sec.
➋ Whenever pressing “9”,
the sound will change by level.
➌ Until the pitch wanted is heard
(a total of 8 levels),
press “9” and then “ ”
Door open in house
Press “OPEN / CLOSE” button to open the door.
➊ Pressing Start button will
activate manner mode,
and door will open with
no conguration alarm.
➋ Auto-setting to non-manner
mode after door opening.
13. Disarm alarm
When the warning happens
If an alarm sounds, press the password or touch the card key to clear the alarm.
However, when a malfunction alarm sounds (password error), operation stops for 30 seconds.
Force lock from outside
Press “Start” button and “#”
for 5sec to complete force lock.
You will hear beep sound
as confirmation.
This is double lock when you
leave home for a long time and
inside buttons are not working.
►When “Force lock from outside” activated, “OPEN / CLOSE” button is not working.
►When “Force lock from outside” activated, it gets deactivated if you turn the manual lever from inside.
►When “Force lock from outside” activated, you can open the lock with password or card.
※ If you add one, you have
to delete and register all
in order (Include remote
controller)

Quick Manual
10
11
Force lock from inside
Press “OPEN / CLOSE” button for 5sec and it completes
with melody sound.
This is double lock and outside buttons are not working.
It gets deactivated when you open the lock from inside.
1. Battery life time : 4M to 8M upon 10times using a day.
2. Battery change alarm : Blinking red lights with melody.
Open battery cover and replace all 4PCS of 1.5V AA at once. Make sure its polarity.
3. Emergency power supply : After battery is fully discharged,
place 9V battery on emergency power contact and open the door with password or RF card.
4PCS
of 1.5V AA
batteries
inserted
In case of Battery gone,
you can put 9V battery
on front cover as
emergency power source
Emergency
power contact
How to use
Function How to Ready
Password Change
Press the button 
Press password(3-12 Digit) 
Press the “ ” button
Keep door open and
open battery cover.
There is a button.
Card Registration
Press the button 
Tag card in order 
Press the “ ” button
Card Deletion Press the button 
Press the “3” button for 3 sec
Auto /
Manual Lock
Press the “OPEN” button
for 5 sec and Press “1” button
Keep Door Open
Imaginary Mode
Press the “OPEN” button
for 5 sec and Press “2” button
(It is possible to use the fake
number)
To Register
Passwords
for 5 users
Press the “OPEN” button
for 5 sec and Press “3” button
To Change
into Card
Auto / Manual
Press the “OPEN” button
for 5 sec and Press “5” button
Double Checking
to Register
Press the “OPEN” button
for 5 sec and Press “7” button
(To register new password
/card, press register button 
enter current password
and “ ”  enter new
password/place card on card
reader in order 
press “ ” to end registration)
To Set the time
for Auto Lock
Press the “OPEN” button
for 5 sec and Press “8” +
Press the number “2”
(Changed into 2 sec)
To Change
a sound
into Low / High
Press the “OPEN” button
for 5 sec and whenever Pressing
“9”, the sound will change
by level
To Change
a sound into
Buzzer / Silence
Press the “OPEN” button for 5
sec and Press “0” button

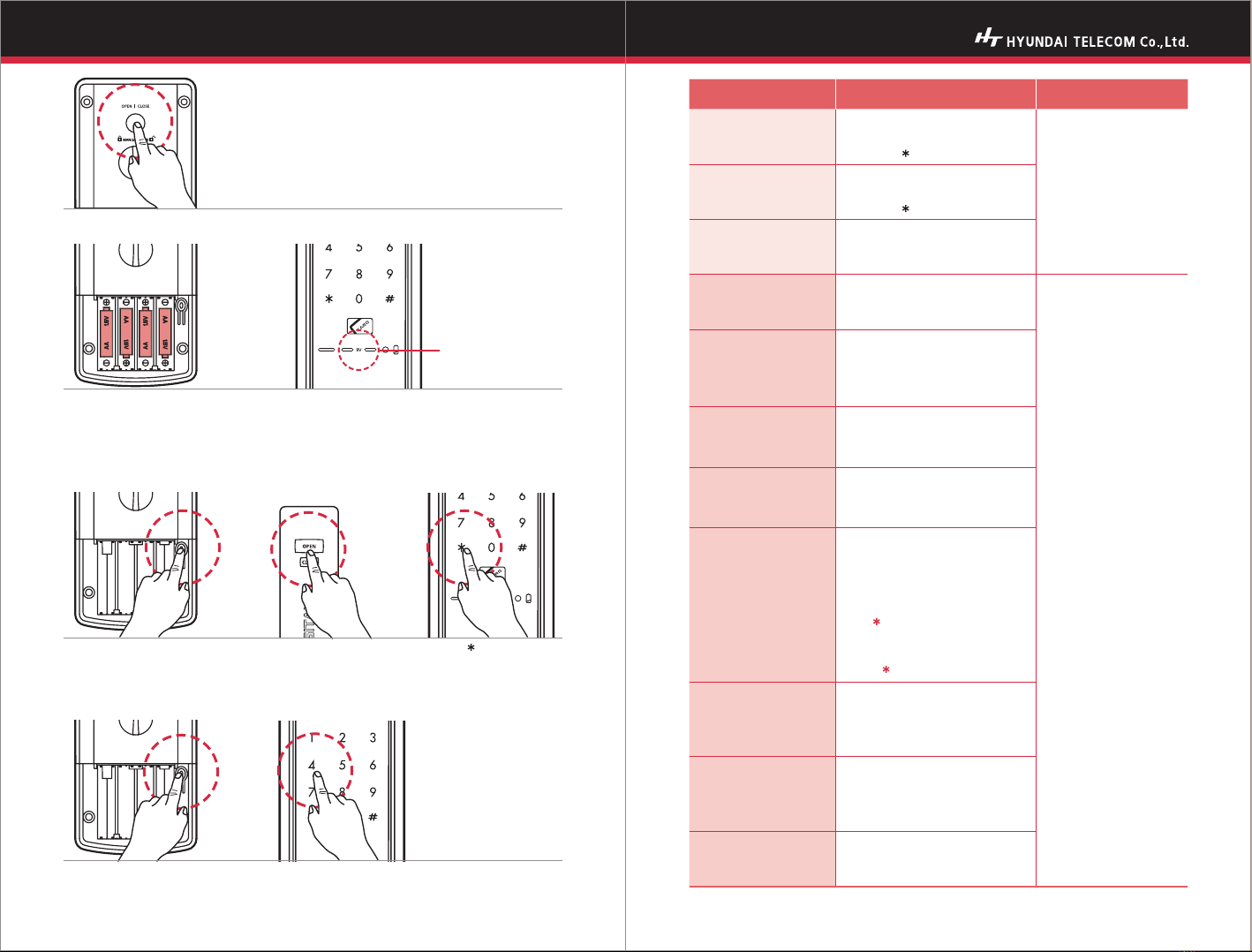

15. Battery replacement method
16. Remote control registration (Option)
17. Remote control deletion
➊ Open the battery cover
and press the button.
※ Max 3 remote controllers connectable
※ If you add one, you have to delete and register all in order
➋ Press the
“OPEN” button.
➌ Press “ ” button on the door
lock and you will hear beep
sound as confirmation.
➊ Open the battery cover
and press the button.
➋ Enter number 4 to for 3sec
to delete remote controller function.

Product Features
12
13
Product specication
HDL-1100S
The open / close functions of card and one-touch
All motions became convenient through simple one-touch
The function of automatic re-Locking
The automatic locking in case of closing a door
Self-diagnostic function
The door lock diagnoses the troubles of the system by itself,
making you know the troubles of the function and the time to exchange
batteries through alarm sound
It’s available for 5 persons to use the password
Five persons can use ID differently each other
Automatic locking and time setting available
Free time setting available
The function of outward double-locking device
In case of long-time outing, the motion of inside button is set
to stop so that the robbery through milk slot can be prevented
Remote controller,
home network registration available (Optional)
Available opening doors with remote controller in door
No. of cards you can register
You can register up to 50 cards
Manner function
Through the control of button and melody occurring
from the product’s motion, it’s possible to prevent the neighbors
from the noise at midnight
Function of fire sensor
In case of fire, a status of 65° ±5 makes the door opened automatically
So, you can escape safely
Imaginary number function
The function of making other’s passwords unknown
Button lighting device distinguishable in darkness
When the device is worked, the lamp is lighted,
so it’s available to use even in darkness
※ You are recommended to use this device
(a Class B device registered for EMC(Electromagnetic Compatibility)) chiefly at home.
※ Any of the details of the manual can be changed without notifying you in advance for improvement
of the product functions. (a sticker will be used on the follow-up model for any change)
Item Specication of HDL-1100S
Rated Voltage 4ea 1.5V (LR6) AA alkaline batteries (6V)
Emergency Power
Source 1ea 9V battery(6LF22)(sold separately)
Operation Method Electronic control(entering password or reading card key)
Weight 700g(including the outdoor and indoor units)
Dimensions
Indoor unit 160mm(W) X 90mm(H) X 50mm(D)
Outdoor unit 71mm(W) X 162mm(H) X 17mm(D)
Item Usable
Frequency
Type of
Radio
Wave
Type of
Radio
Wave
Type of
Radio
Wave
Power
Supply
RFID 13.56MHz A1D ASK Single DC 6V
(1.5V AA
X 4EA)
For Safety System 447.275
MHz F1D FSK Single
Self-Regulatory
Safety
Conrmation
Certicate No.
B223H006-7002B
Type and Symbol NF-T-NK-S
Certication No. MSIP-CMM-H1P-M-1100
Model HDL-1100S Country of
Manufacture Made in KOREA
Vendor HYUNDAI TELECOM.CO., LTD.
Date of
Production Year Year : Month :

14
Warranty Card(for Company)
Thank you very much for purchasing
HYUNDAI TELECOM.CO., LTD.’s digital door lock.
The quality assurance period is counted from the date of purchase.
Therefore be sure to have the date specified for sufficient service.
Consumer Name
Telephone
Model Name
Serial Number
Term of Guarantee
Address
Installation Agency
Telephone
Warranty Service for Product Defects
Damage types
Compensation items
Within
warranty period
After
warranty period
State of
Normal
Use
In case the troubles occur
within 12 months
after installation
Repair for free Repair for Cost
In case the same troubles
occur two times Repair for free Repair for Cost
In case the same troubles
occur three times
Product
replacement Repair for Cost
In case there is no any
parts for repair
Product
replacement
Product
replacement
(Limited to at-rate
depreciation)
Intention
or Fault of
Consumer
In case of an ocial trip
because of consumer’s
mistake including
the fault of exchanging
batteries and
the immaturity of inputting
Repair for Cost Repair for Cost
To exchange consumption
goods including batteries Repair for Cost Repair for Cost
Failures or damages
due to other purposes
than the original purpose
of the product
Repair for Cost Repair for Cost
Failures or damages
of purpose Repair for Cost Repair for Cost
Failures or damages
because entering
passwords has been
omitted or passwords
have been forgotten
Repair for Cost Repair for Cost
Product damaged because
of not carrying an
emergency manual key
Repair for Cost Repair for Cost
Failures or damages
due to a re
or natural disasters
Repair for Cost Repair for Cost
Malfunctions due to
condensation and moisture
and improper operations
due to poor installation
Repair for Cost Repair for Cost
Address
• This product is produced by the thorough quality management.
• In case any troubles occur in the state of normal use within the warranty period,
you can receive A/S for free.
• You are required to fill up the address, name and telephone number on the
warranty card in time of buying the product and to keep the card well, and if
otherwise, you need to pay for repair.
WELLIV DW JSC (NPP CHÍNH THỨC TẠI VIỆT NAM)
Showroom:LKC26, Hoang Minh Thao Street, Tay Ho Tay Urban Area,
Bac Tu Liem District, Hanoi,Vietnam.
Web:https://hyundaiht.vn
Fanpage: Hyundai HT Vietnam Officer Partner
Hotline: [phone]
Email: [e-mail]
