To access the online manual for Car Infotainment
System, scan the QR code.
Be sure to read this User’s Manual before using the product to ensure safety and usability.
H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 4-6 2019-09-18 오후 3:07:13

1
2 Scan the QR code after installing the QR code
reader application from App Store ( ) or Google
Play Store ( ).
3 Press the URL for User’s Manual on Web from the
smartphone display.
The online user’s manual of the system appears in the
Internet browser application on the smartphone.
Reading the manual on web
with the QR code

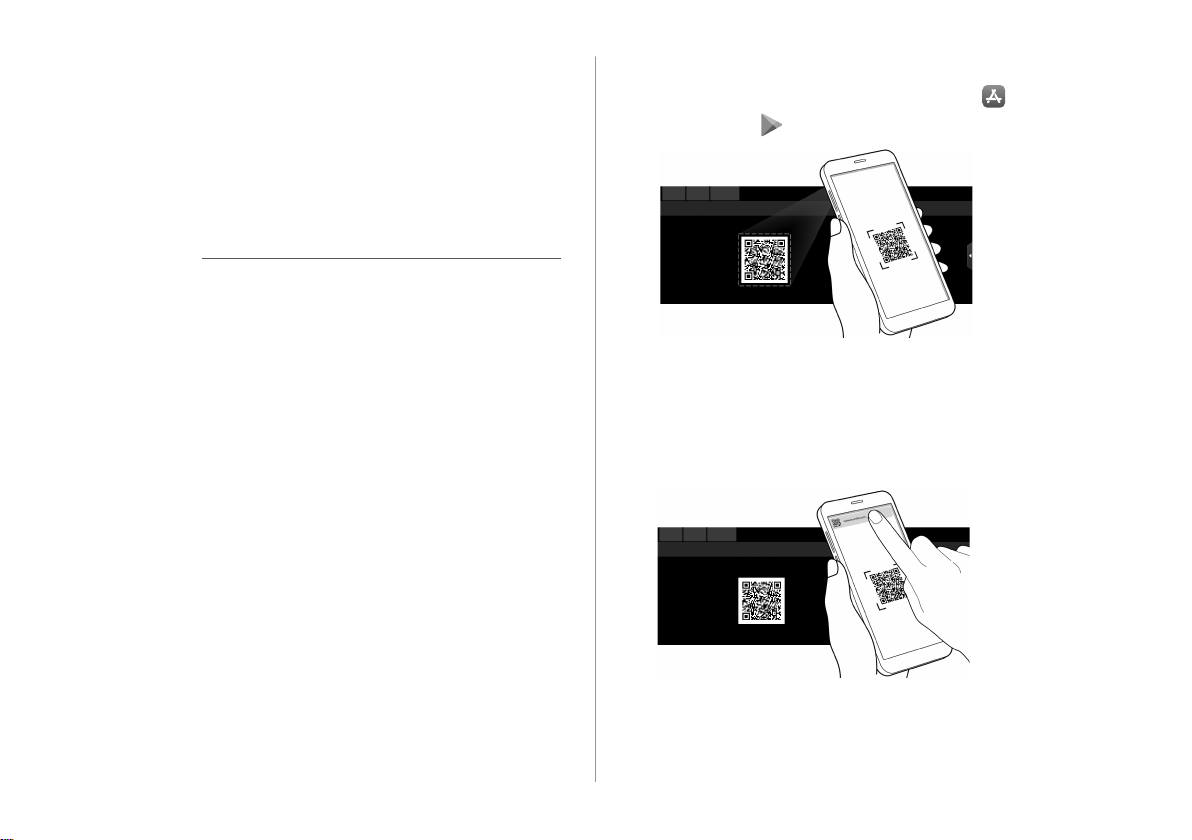

You can access the online user’s manual of the system by
scanning the QR code with your smartphone.
ÝWarning
Pull over the vehicle to a safe area and scan the QR code. To
ensure your safety, the system does not provide QR codes while
driving.
1 Scan the QR code by using any of the following
methods:
• On the All Menus screen, press User's Manual.
• On the All Menus screen, press Setup >General >
System Info >User's Manual on Web (QR Code).
• Or scan the QR code in the Quick Reference Guide.
H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 1H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 1 2019-09-18 오후 3:31:052019-09-18 오후 3:31:05

2
A Depending on how you scan the QR code, the online manual
may open without pressing the URL.
A With a camera application of your iPhone or Android
smartphone, the QR code can also be scanned. Depending
on the Android smartphone model, the QR code scanning
may not be supported for the provided application. For more
details, see the smartphone’s manual.
A When you scan the QR code on each function menu, you
can see the usage of the function running (except for several
functions).
-Run the desired function on the system and then press
Menu >User's Manual on Web (QR Code).
A Without scanning the QR code, you can directly enter the URL
address to see User’s Manual on Web. (http://webmanual.
hyundai.com/STD_GEN5_WIDE/AVNT/USA/English/index.
html)
Safety Warnings
Be sure to keep the following instructions. Otherwise, it may
cause serious injury or accident.
ÝDriving
Obey all traffic laws while driving.
• Relying solely on the navigation system may cause violation of traffic rules
and regulations, resulting in an accident.
In order to check the vehicle speed, see the speedometer first,
not the speed on the navigation system.
• The speed on the navigation system may differ from actual vehicle speed.
While driving, refrain from watching the screen.
• An accident may occur by negligence in keeping your eyes forward.
• To manipulate the screen or buttons requiring multiple steps, be sure to
stop your vehicle.
To use your mobile phone, first stop your vehicle.
• When you use your mobile phone while driving, it may disperse your
attention, resulting in an accident.
• When making a call while driving, use the Bluetooth Hands-free function
and if possible, minimize the call time.
H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 2H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 2 2019-09-18 오후 3:31:052019-09-18 오후 3:31:05

3
Make sure that the volume of the phone is sufficiently low so
that the external sound is audible.
• When you drive with no external sound present may cause a traffic accident.
• When you drive for a long time with a loud audio volume, it may affect your
hearing.
For emergency services (e.g. hospital, fire station), do not rely
solely on the navigation system.
• Some emergency services may not be included in the navigation map.
Check relevant information in advance to stay prepared for an emergency.
ÝSystem handling
Do NOT arbitrarily disassemble or modify the system.
• It may cause an accident, fire, or electric shock.
Exercise caution to make sure that no liquid or foreign
materials enter the system.
• It may cause smoke generation, fire ignition, or system failure.
When the screen is not displayed, the volume is muted, or
other system failures occur, immediately stop using the
system.
• Otherwise, it may cause fire, electric shock, or fatal system failure.
A If you experience any problems with the system, contact your
place of purchase or dealer.
Safety Precautions
Be sure to keep the following instructions. Otherwise, it may
cause minor injury or system damage.
ÜÜOperation
Use the system with the vehicle started.
• When you use the system for a long time with the vehicle stopped, it may
cause battery discharge.
Do NOT arbitrarily install an unauthorized aftermarket
product in your vehicle.
• Using unapproved products may cause an error while using the system.
• System errors caused by installing unapproved products are not covered
under the warranty.
ÜÜSystem handling
Do NOT apply excessive force to the system.
• When you apply excessive pressure to the screen, the LCD panel or touch
panel may get damaged.
To clean the screen or button panel, first turn offthe vehicle
and then use a dry, soft cloth to wipe it.
• Do not wipe using a rough or hard cloth, chemical fiber, organic solvent (e.g.
alcohol, benzene, thinner), or air freshener. The panel surface may become
scratched or damaged due to a chemical reaction.
When you install an air freshener on the air conditioner vent,
the surface may be deformed due to leakage.
A If you experience any problems with the system, contact your
place of purchase or dealer.
H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 3H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 3 2019-09-18 오후 3:31:052019-09-18 오후 3:31:05

4
Component names and functions

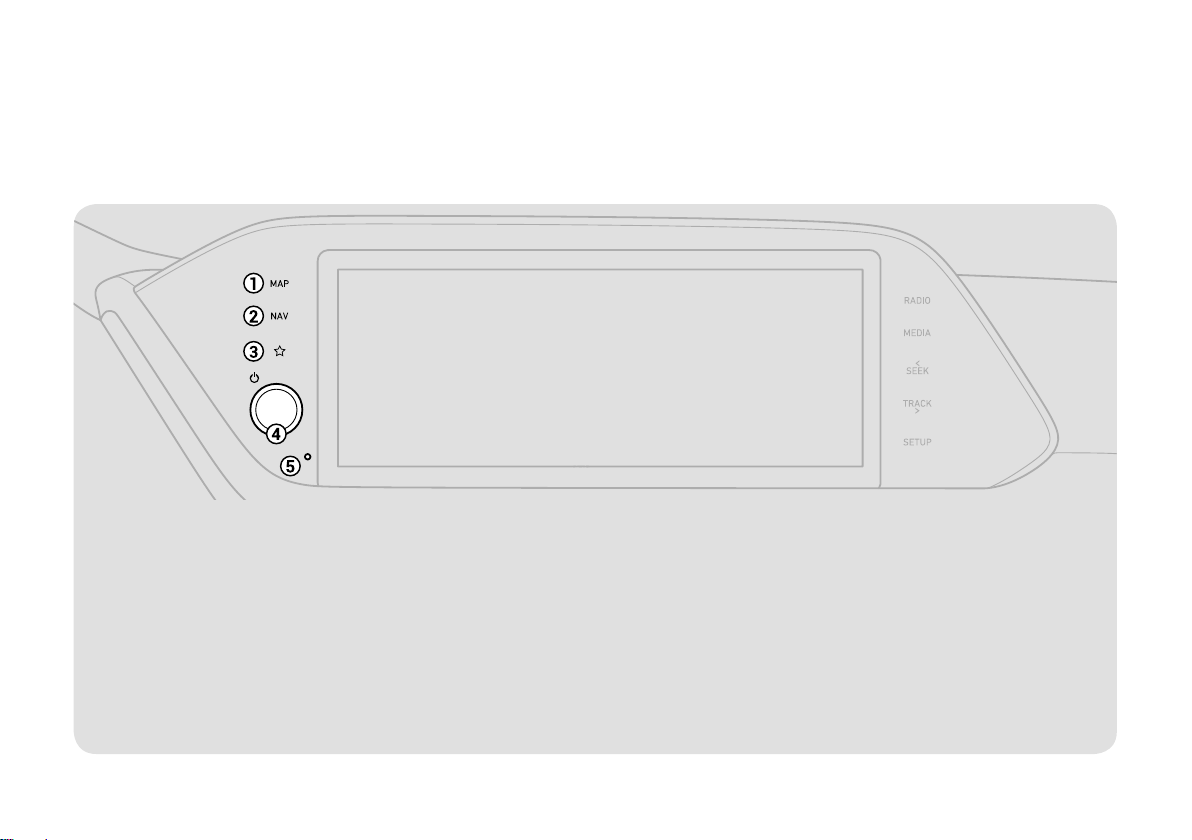

Control panel
A The system shape and menu arrangement may differ depending on the vehicle model and specifications.
aa
MAP button
• Returns to the current location on the map.
• When pressed while in guidance on the map screen, the voice
guidance is repeated.
bb
NAV button
• Moves to the navigation/route screen.
• When you press and hold the button, the Places screen appears.
cc
Custom button
• Runs the user-defined function.
• Press and hold the button to display the Custom button settings
screen.
dd
POWER button/VOLUME knob
• Press the button to turn on or offthe Radio/Media.
• Press and hold the button to turn offthe screen and sound.
• Turn the knob left or right to adjust the system volume.
• Turn the knob while hearing voice navigation to adjust the
volume.
ee
System Reset button
• Restarts the system.
H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 4H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 4 2019-09-18 오후 3:31:052019-09-18 오후 3:31:05

5

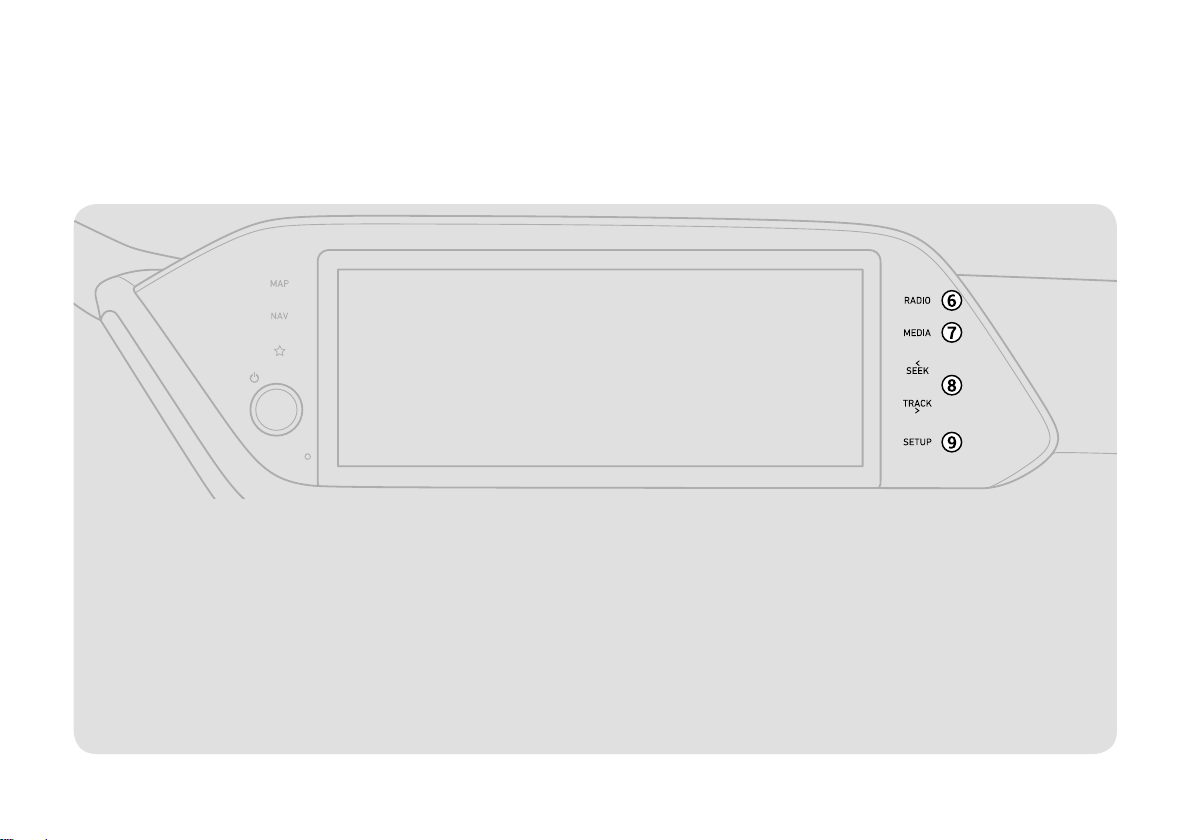

ff
RADIO button
• Turns on the radio.
• When you press the button repeatedly with the radio turned on,
it toggles between FM and AM modes.
gg
MEDIA button
• Runs the connected medium.
• When you press the button twice with a medium connected, the
media selection window appears.
hh
SEEK/TRACK button
• Changes the broadcast program channel, music, or file while
using the Radio/Media function.
• Press and hold the button to search a broadcast program while
listening to the radio.
• Press and hold the button to fast forward or rewind during
playback (except for Bluetooth audio mode).
ii
SETUP button
• Displays the Settings screen.
• When you press and hold the button the SW Info/Update screen
appears.
H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 5H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 5 2019-09-18 오후 3:31:052019-09-18 오후 3:31:05

6

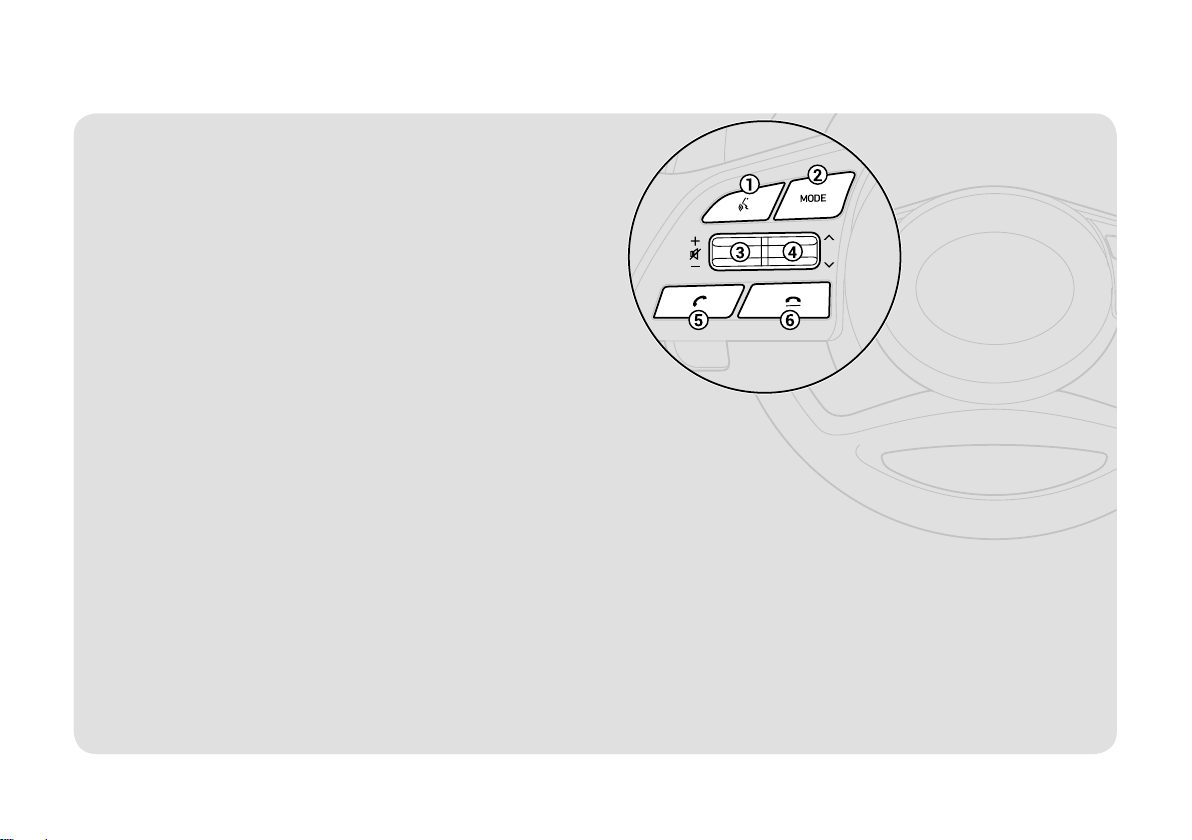

Steering wheel remote control
A The system shape and menu arrangement may differ depending on the vehicle model and specifications.
aa
Voice Recognition button
• Press and hold to start or end voice recognition of a
connected smartphone via phone projection. (The
button’s operation may vary depending on smartphone
specifications.)
bb
MODE button
• Press the button repeatedly to toggle between the radio
and media modes.
• Press and hold the button to display the settings for the
Steering wheel MODE button.
cc
Volume lever/button
• Volume adjustment.
• Press the button to mute or unmute the volume (except
for navigation sound).
• Press the button to pause or resume playback.
dd
Move lever
• Changes the broadcast program channel, music, or file while using the Radio/Media function.
• Long push or long press to search a broadcast program while listening to the radio.
• Long push or long press to fast forward or rewind while playing media (except for Bluetooth Audio mode).
ee
Call button
• Before connection of Bluetooth: Press to display the Bluetooth connection window.
• After connection of Bluetooth: Press to display the recent calls list, press and hold to redial the last number, and press for an incoming
call to answer it.
• On a Bluetooth call: Press to switch to Call Waiting and press and hold to switch between the system and mobile phone.
ff
End Call button
• During a Bluetooth call, press to end the call.
• Press to ignore a call with the Bluetooth connected.
H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 6H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 6 2019-09-18 오후 3:31:052019-09-18 오후 3:31:05

7
ÝWarning
• Driving while distracted can result in a loss of vehicle control
that may lead to an accident, severe bodily injury, or death.
The driver's primary responsibility is the safe and legal
operation of the vehicle, and the use of any vehicle systems,
including the touch screen and steering wheel controls, which
take the driver's eyes, attention, and focus away from the safe
operation of the vehicle, or which are not permissible by law,
should never be used during the operation of the vehicle.
• Some functions may not be active while driving to ensure
safety. Those functions run only when the vehicle is stationary.
In order to use them, first stop the vehicle.
• When the screen is not displayed, the volume is muted, or
other system failures occur, immediately stop using the
system. When you use the faulty system continuously, it may
cause fire, electric shock, or fatal system failure.
ÜÜCaution
• The system can be turned on even when the ignition switch is
in “ACC” or “ON.” However, when you use the system without
turning on the vehicle for a long time, it may cause battery
discharge. To use the system for a long time, be sure to turn
on the vehicle.
• When you use the system with the vehicle turned off, the
battery warning message appears. The warning message
disappears as soon as you turn on the vehicle.
Turning the system on or off
Turning on the system
1 Turn on the vehicle.
2 When a safety warning message appears, read it
and press Confirm.
A To change the display language, press Language.
Turning offthe system
To turn offthe system while driving, press and hold
the Power button on the panel.
The screen and sound will be turned off.
A To use the system again, press the Power button.
A When a specified period of time elapses after turning offthe
vehicle, the system automatically shuts down. When you open
the driver's door, the system immediately shuts down.
H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 7H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 7 2019-09-18 오후 3:31:062019-09-18 오후 3:31:06

8
Display
Item Specifications
Display size AV body - 10.25 inch (243.65 x 91.37 mm)
Number of pixels AV body - 1,382,400 pixels
(resolution: 1920 x 720)
Drive system TFT (Thin Film Transistor) active matrix
system
Viewing angle AV body - Horizontal/vertical: 89°
Internal lighting LED
Product specifications
Common specifications
Item Specifications
External dimensions 441.9 x 158.4 x 190.1 mm
Weight 2.2 kg
H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 8H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 8 2019-09-18 오후 3:31:062019-09-18 오후 3:31:06

9
This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment.
This equipment should be installed and operated with minimum
20 cm between the radiator and your body. This transmitter must
not be co-located or operating in conjunction with any other
antenna or transmitter unless authorized to do so by the FCC.
FCC Certification
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
Caution: Any changes or modifications to this device not explicitly
approved by manufacturer could void your authority to operate
this equipment.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 9H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 9 2019-09-18 오후 3:31:062019-09-18 오후 3:31:06

H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 10H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 10 2019-09-18 오후 3:31:062019-09-18 오후 3:31:06

1
[ This guide covers specifications for all vehicle models, including optional specifications, and is based on the latest version of system
software.
[ The design and specification of the system may change without prior notice for performance improvement.
[ In order to improve the product performance, the functions and services in this manual are subject to change without notice. In case of
software update, the screens in this manual may differ from actual ones on the product.
[ For more information about the functions and services updated for performance improvement, access the online user's manual.
[ Functions and services in this manual may differ from those in the actual vehicle. For more details, refer to the owner’s manual or brochure
of your vehicle.
[ Your system is not compatible with the system software and map data for regions outside of the country of purchase.
Car Infotainment System
User’s Manual
H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 1H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 1 2019-09-18 오후 3:31:062019-09-18 오후 3:31:06

2
Available materials for operation
Quick
Reference
Guide
Provided in the format of a booklet. It provides brief information of the system,
including basic controls and main functions.
User's
Manual on
Web
To see the information while using the system, press Menu >User's Manual on Web
(QR Code). By scanning the QR code with your smartphone, you can access the online
user's manual.
H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 2H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 2 2019-09-18 오후 3:31:062019-09-18 오후 3:31:06

3
Symbols in this User’s Manual
Warning Indicates very important information directly related to user safety. Failure to follow
instructions may cause serious injury.
Caution Indicates important information directly related to user safety. Failure to follow
instructions may cause minor injury or vehicle damage or breakdown.
Note Indicates helpful information for operation of the product.
If equipped Indicates descriptions for optional features, which may not be available on your specific
vehicle depending on the model or trim level.
This guide covers specifications for all vehicle models, including optional specifications.
It may include descriptions for features that are not equipped in your vehicle or are
unavailable for your vehicle model.
HEV only Displays only the functions that can be used in a hybrid vehicle.
PHEV only Displays only the functions that can be used in a plug-in hybrid vehicle.
EV only Displays only the functions that can be used in an electric vehicle.
H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 3H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 3 2019-09-18 오후 3:31:062019-09-18 오후 3:31:06

4
Be sure to keep the following instructions. Otherwise, it may
cause serious injury or accident.
ÝDriving
Obey all traffic laws while driving.
• Relying solely on the navigation system may cause violation of traffic rules
and regulations, resulting in an accident.
In order to check the vehicle speed, see the speedometer first,
not the speed on the navigation system.
• The speed on the navigation system may differ from actual vehicle speed.
While driving, refrain from watching the screen.
• An accident may occur by negligence in keeping your eyes forward.
• To manipulate the screen or buttons requiring multiple steps, be sure to
stop your vehicle.
To use your mobile phone, first stop your vehicle.
• When you use your mobile phone while driving, it may disperse your
attention, resulting in an accident.
• If necessary, use handsfree (Bluetooth) calling when driving and minimize
the call time.
Make sure that the volume of the phone is sufficiently low so
that the external sound is audible.
• When you drive with no external sound present may cause a traffic accident.
• When you drive for a long time with a loud audio volume, it may affect your
hearing.
For emergency services (e.g. hospital, fire station), do not rely
solely on the navigation system.
• Some emergency services may not be included in the navigation map.
Check relevant information in advance to stay prepared for an emergency.
ÝSystem handling
Do NOT arbitrarily disassemble or modify the system.
• It may cause an accident, fire, or electric shock.
Exercise caution to make sure that no liquid or foreign
materials enter the system.
• It may cause smoke generation, fire ignition, or system failure.
When the screen is not displayed, the volume is muted, or
other system failures occur, immediately stop using the
system.
• Otherwise, it may cause fire, electric shock, or fatal system failure.
A If you experience any problems with the system, contact your
place of purchase or dealer.
Safety Warnings
H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 4H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 4 2019-09-18 오후 3:31:062019-09-18 오후 3:31:06

5
ÜÜSystem handling
Do NOT apply excessive force to the system.
• When you apply excessive pressure to the screen, the LCD panel or touch
panel may get damaged.
To clean the screen or button panel, first turn offthe vehicle
and then use a dry, soft cloth to wipe it.
• Do not wipe using a rough or hard cloth, chemical fiber, organic solvent (e.g.
alcohol, benzene, thinner), or air freshener. The panel surface may become
scratched or damaged due to a chemical reaction.
When you install an air freshener on the air conditioner vent,
the surface may be deformed due to leakage.
A If you experience any problems with the system, contact your
place of purchase or dealer.
Be sure to keep the following instructions. Otherwise, it may
cause minor injury or system damage.
ÜÜOperation
Use the system with the vehicle started.
• When you use the system for a long time with the vehicle stopped, it may
cause battery discharge.
Do NOT arbitrarily install an unauthorized aftermarket
product in your vehicle.
• Using unapproved products may cause an error while using the system.
• System errors caused by installing unapproved products are not covered
under the warranty.
Safety Precautions
H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 5H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 5 2019-09-18 오후 3:31:062019-09-18 오후 3:31:06

6
Your Hyundai vehicle may be equipped with technologies and
services that use information collected, generated, recorded
or stored by the vehicle. Hyundai has created a Vehicle Owner
Privacy Policy to explain how these technologies and services
collect use and share this information.
You may read our Vehicle Owner Privacy Policy on the
Hyundaiusa.com website at:
https://www.hyundaiusa.com/owner-privacy-policy.aspx
If you would like to receive a hard copy of our Vehicle Owner
Privacy Policy, please contact our Customer Connect Center at:
Hyundai Customer Care
P.O. Box 20850
Fountain Valley, CA 92728
800-633-5151
consumeraff[email protected]
Hyundai's Customer Connect Center representatives are
available Monday through Friday, between the hours of 5:00 AM
and 7:00 PM PST and Saturday and Sunday between 6:30 AM and
3:00 PM PST (English).
For Customer Connect Center assistance in Spanish or Korean,
representatives are available Monday through Friday between
6:30 AM and 3:00 PM PST.
HYUNDAI VEHICLE OWNER PRIVACY POLICY
H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 6H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 6 2019-09-18 오후 3:31:062019-09-18 오후 3:31:06

7
Contents
01
System overview
Component names and functions 1-2
Control panel 1-2
Steering wheel remote control 1-3
Turning the system on or off1-4
Turning on the system 1-4
Turning offthe system 1-5
Using the touch screen 1-6
“Press” gesture 1-7
“Press and hold” gesture 1-7
“Slide” gesture 1-8
“Drag” gesture 1-8
“Swipe” gesture 1-9
“Spread/pinch” gesture 1-9
Using the Home screen 1-10
Home screen 1-10
Editing widgets on the Home screen 1-11
Editing icons on the Home screen 1-11
Seeing the all menus screen 1-12
Using the split screen 1-12
Opening the split screen 1-12
Editing the split screen 1-13
Closing the split screen 1-13
02
Useful functions
Using the First Run Setup 2-2
Using the phone projection function 2-4
Pairing to an Android smartphone via Android Auto 2-4
Pairing to an iPhone via Apple CarPlay 2-6
Using the driving assist display 2-8
Using the rear-view display 2-9
Surround View Monitor 2-11
Using the climate control system 2-13
Using the rear-seat climate control system 2-14
H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 7H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 7 2019-09-18 오후 3:31:062019-09-18 오후 3:31:06

8
Using the Driver Talk mode in the rear seat 2-15
Using the Quiet mode in the rear seat 2-16
Playing Sounds of Nature 2-16
Using the HD Radio Data 2-17
Viewing traffic information 2-18
Checking weather information via HD Radio Data 2-19
Checking weather information in Doppler Radar 2-19
Seeing the driving information 2-20
Viewing notifications 2-20
03
Radio
Listening to the radio 3-2
Radio screen 3-2
Changing the radio mode 3-4
Changing the radio channel 3-4
Saving the current radio channel 3-6
Editing the radio channel list 3-7
Listening to HD Radio™ 3-8
HD Radio™ Technology 3-9
Listening to SiriusXM™ radio 3-10
Changing to SiriusXM mode 3-10
Searching for SiriusXM radio channels 3-11
Selecting channels by using channel numbers 3-12
Seeing the program schedule 3-12
Listening to Featured Favorites channels 3-13
04
Media
Using media 4-2
Listening to music from a USB device 4-2
Listening to music via Bluetooth 4-7
H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 8H_NZK013_DN8a 20_G5WIDE[USA_EU]AVNT_L0MS7BK000_.indb 8 2019-09-18 오후 3:31:062019-09-18 오후 3:31:06
