Hyundai BA10 User manual

Audio / Video / Navigation
Infotainment System
BA10

General Information
• Safety Regulations ··························· 1-2
• Warnings ··········································1-3
Overview
• AVN System ·····································2-2
• Steering Wheel Remote Control ·····2-3
Function
• Main Menu ·······································3-2
• Radio (FM/AM) ·································3-3
• Media·················································3-5
• iPod ·················································· 3-9
• Bluetooth ·······································3-10
• Navigation ······································3-13
Setting ················································4-1
Appendix
• Troubleshooting ·······························5-2
• Specication ···································· 5-3
CONTENTS
BA10 Audio / Video / Navigation Infotainment System

General Information
• Safety Regulations
• Warnings
01

Safety Regulations
1-2 • General Information
• Please keep actual trafc regulations even when the navigation's warning signs are followed.
• If drivers only follow the navigation's warning signs, frequent trafc violations can happen which may lead to trafc
accidents.
• Drivers should minimize glance to the navigation screen. It may lead to trafc accidents.
• Drivers should not control the navigation while driving. Losing attention to driving may also cause trafc accidents. Make
sure to control the navigation when stopped the car.
• Do not disassemble or adapt the device. It can lead to accidents, re, and electric shock.
• Using calls while driving can distract driver's attention and increase the danger of accidents. Only use calls when the car
is stopped.
• Do not continue the use of navigation when it is broken down.(e.x. when the screen went black or sound doesn't work)
It is the fatal cause for device's breakdown.
• Do not touch the antenna when it lightens and thunders. Drivers may get shocked by lightening.
• Do not control the navigation in a restricted parking area. It may cause safety accident.
• Drivers cannot view the video while driving. Please watch the video after parking.
• Except for video, a few functions are also cannot be used while driving. These functions only work properly when the car
is stopped.
• If software of other companies are saved or installed to connect the products of others, dysfunctions can happen in the
navigation.

Warnings
General Information • 1-3
General Information
Please drive carefully with attention to the traffic situation.
• The navigation may show the ways that are restricted due to the changes in regulation signs while guiding.
• Controlling the device while driving distracts the driver and may cause trafc accidents.
• Please control the volume to the point that the driver can hear the sounds from outside the car.
Driving while not hearing sounds from outside may lead to accidents.
• Please be ware to the loudness control when the device is turned on. Sudden loud noise when the device is ON can
damage hearing. (Please control to the right volume before turn off the device.)
• Please inquire to the store or authorized repair shop when change the location of the device. Installing and disassembling
the device should only be done by professionals.
• Using the navigation long time with the engine turned off may cause the battery discharge.
• Do not damage the device. LCD and touch panel can be broken if the screen gets a direct impact.
• Please turn off the device and use a soft cloth when cleaning the screen and the body.
Hard cloth, chemicals(alcohol, benzene, thinner) or air freshener can damage the device.
Please get the device repaired when it is damaged.
(Air freshener which is put on the air conditioner may run down to the device and damage the surface of it.
Please be careful.)
• Do not closely put drinks to the device. It can be damaged or broken down if the drinks are spilled.

Overview
• AVN System
• Steering Wheel Remote Control
02

AVN System
2-2 • Overview
1
6
11
7
12
3
8
13
4
9
5
10
1. Power Button / VOL
• Powers ON when the device's OFF.
• Powers OFF when the device's ON.
• MUTE - briey press the power button
2. Reset Button
Press reset button using pen tip to restart the system
3. MENU Button
Switches to the menu screen
4. NAVI Button
Switches navigation and multimedia screen
5. SETUP Button
Switches to the setup screen
6. USB
Connects external USB devices
7. AUX
External audio and video player - connected with Ø3.5 phone plug
and jack
Arrangement : 1. Audio L, 2. Audio R, 3. Video, 4. GND
8. TIME
Switches to the time screen. It automatically be switched after 5
seconds.
9. DISP
LCD ONs and OFFs the LCD
10. RADIO Button
Switches to radio screen
11. PHONE Button
Switches to Bluetooth call screen
12. MEDIA Button
Switches to media menu screen
13. MAP Button
Switches to map screen
2

VOL +
VOL - Controls volume
MODE Radio: FM1->FM2->AM. Changes in consecutive order.
Except for radio, changes other usable media functions.
MUTE Halts the audio sound
While receiving calls: receives calls
While waiting for receiving calls: switch to hands-free screen
Stops call
When briey press the key
- FM/AM mode: searches programs saved with free set in consecutive way
- USB/iPod: switches track, le, song
When press the key for a long time
- Switch to the channels which can be broadcast in FM/AM mode

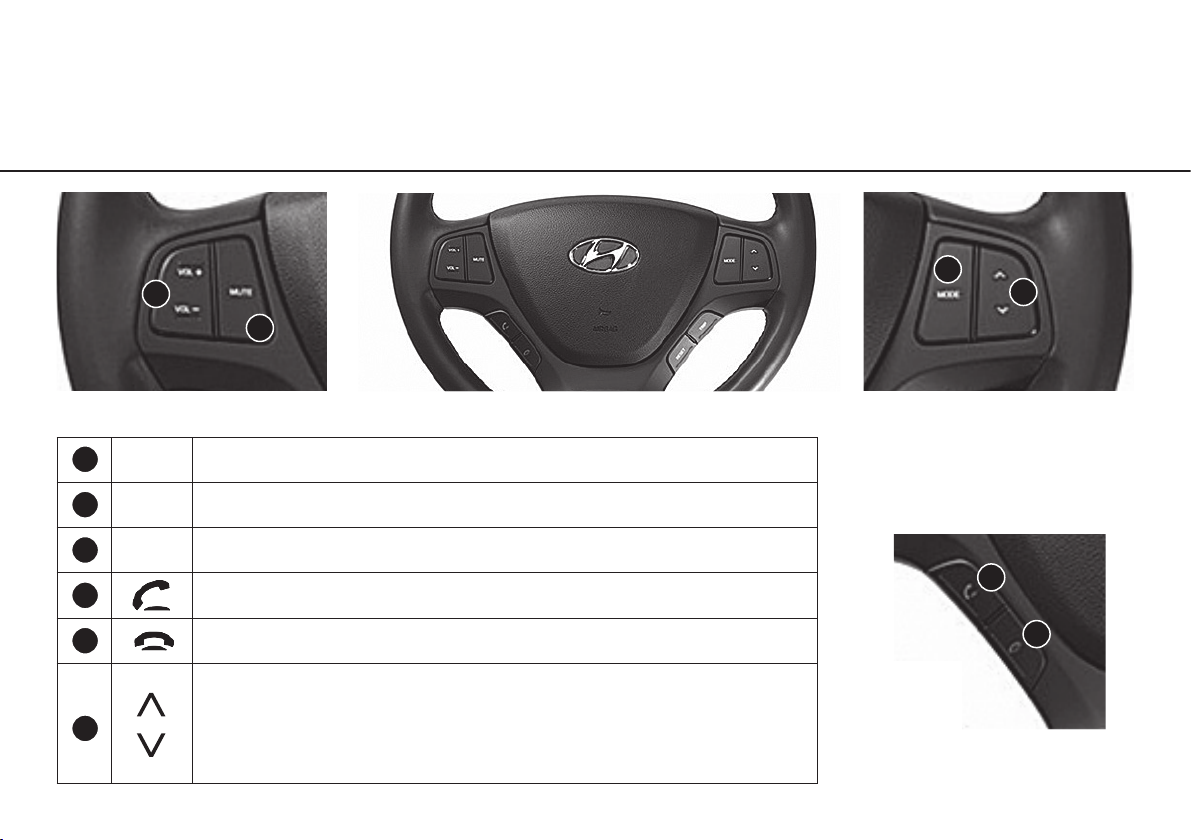

Steering Wheel Remote Control
Overview • 2-3
Overview
16
2
3
4
5
1
6
2
3
4
5

Function
• Main Menu
• Radio (FM/AM)
• Media
- Movie
- Music
- Image
• iPod
• Bluetooth
• Navigation
03

Main Menu
Time LCD OFF Bluetooth and Battery
USB, iPod Connection
Audio Mute
3-2 • Function

Radio (FM/AM) Function
Function • 3-3
1. Menu button: switches to the menu screen
2. Band button: FM1, FM2, AM
3. Shut down button: shuts down the radio and
goes to the menu screen
4. Volume control button: set EQ
5. Automatic memory button: Search radio
channels and save 6 highly sensitive ones
6. SEEK button: move to next/former channel
7. Tune button: move to next/former frequency
1
6 6
2
77
3
4
5
Note: Preset buttons (Favorites button), press and hold the button is stored in the channels currently being broadcast.

Before Using USB
3-4 • Function
About USB
• Use USB after turn on the device. USB can be damaged if the device is turned on after connecting USB.
• Recommend using FAT 32, 32KB USB device.
• Repeatedly connecting and removing USB in a brief time may cause the breakdown.
• Time for connecting USB can be differed by types of USB device, capacity and saved forms of les, but this is not a failure.
• Please save les less than 200 per folder. Loading time can be longer if saved more than 200 les per folder.
• If use other USB hub, SD reader or extension cable, USB may not be connected. Please directly connect them to the USB port.
• HDD type of USB device may not work properly.
* HDD type of USB device may not be connected properly due to lack of current. It may need extra power supply.
Note: The device may malfunction while playing specic MP3 or video les. This is not the defect in the device.
We will be grateful to help you if you send those les to our customer service center.
CAPACITY PRODUCT COMPANY
8GB LG X-TICK 8GB LG
8GB Memorive 8GB Memorive
16GB Memorive 16GB Memorive
16GB Sandisk 16GB Sandisk
32GB U31 Prism I-PASSION AXXEN
32GB Cruiser Z36 Sandisk
32GB Memorette Dual Gold Memorette
32GB LG X-TICK 32GB LG
32GB Samsung 32GB Samsung
32GB N005 Pro 32G USB3.0/2.0 ADATA
32GB LG X-TICK F4 32G USB3.0/2.0 LG
64GB JETFLASH760 64G USB3.0/2.0 transcend

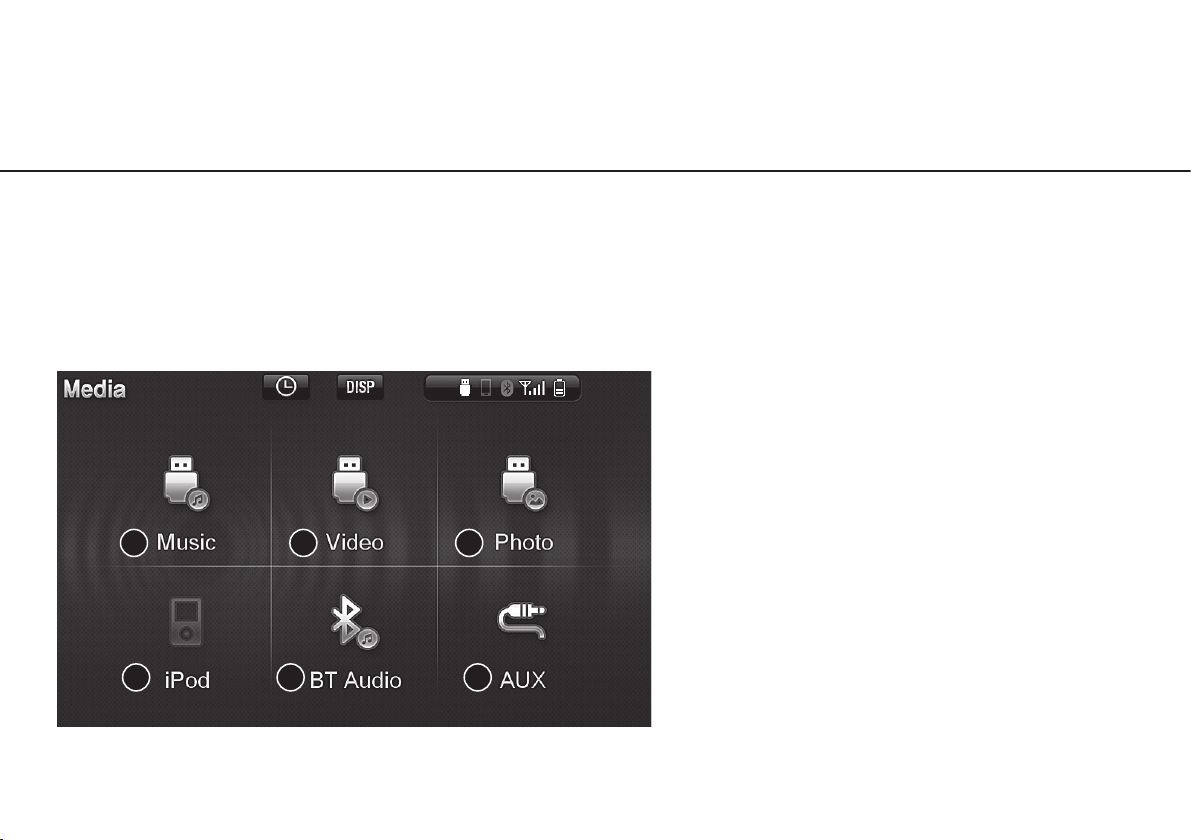

Media Function
Function • 3-5
1. USB Music
Plays music les in the USB device
2. Video (USB)
Plays video les in the USB device
3. Photo (USB)
Displays photo les in the USB device
4. iPod
Plays music les in the USB device
5. BT Audio
Plays music les in the Bluetooth device
6. AUX
Plays music/video les in the auxiliary output device
1
6
2 3
4 5

Media (Movie Player)
3-6 • Function
1. Menu button: switches to the menu screen
2. Mode button: switches to the music player, video
player, photo viewer
3. Shutdown button: removes USB and switches to the
menu screen
4. Screen switch button: switches to the extended screen
5. Volume button (EQ): sets EQ
6. Repeat set button: changes the repeat set
7. Section repetition button: sets section repetition
8. List sync button: x or removes the playlist
9. Move to top-level folder button: moves to top-level
folder
10. Move list page button: switches to the next/previous
page of the list
11. Move list button: moves list a step at a time
12. Screen ratio button: sets screen ratio to 4:3 and 16:9
1
6
11
11
2
7
12
3
8
4
9
5
10
10

Media (Music Player) Function
Function • 3-7
1. Menu button: switches to the menu screen
2. Mode button: switches to the music player, video player, photo
viewer
3. Shutdown button: removes USB and switches to the menu screen
4. Screen switch button: switches to the list/play screen
5. Volume button (EQ): sets EQ
6. Repeat set button: changes the repeat set
7. Section repetition button: sets section repetition
8. List sync button: x or removes the playlist
9. Move to top-level folder button: moves to top-level folder
10. Move list page button: switches to the next/previous page of the list
11. Move list button: moves list a step at a time
12. Add liked button: adds the specic song to the liked list
1
6
11
11
2
7
12
3
8
4
9
5
10
10
Note: Artist, Album, Genre, Favorites, Sorting sorts within that folder.
Favorite list is no more than 100.
Artist•Album•Genre•Favorites

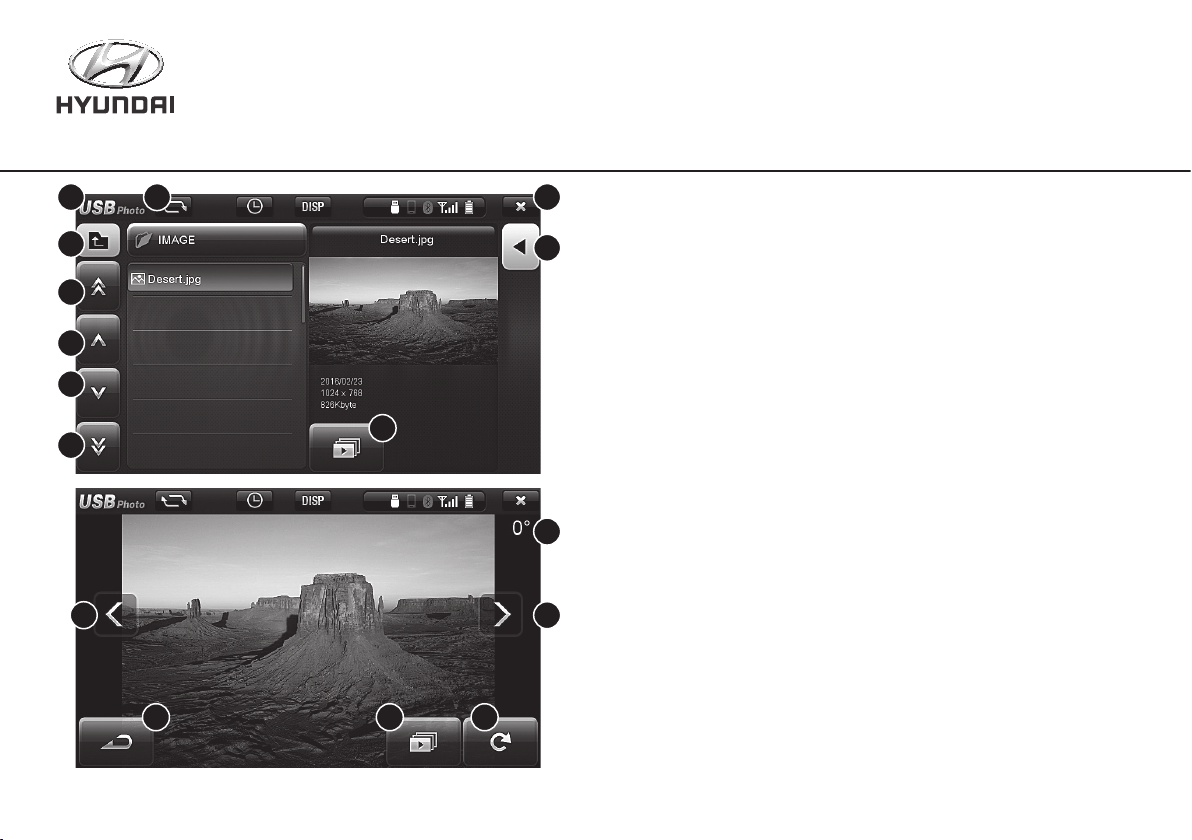

Media (Image Viewer)
3-8 • Function
1. Menu button: switches to the menu screen
2. Mode button: switches to the music player, video player,
photo viewer
3. Shutdown button: removes USB and switches to the menu
screen
4. Screen switch button: switches to the list/play screen
5. Move to top-level folder button: moves to top-level folder
6. Move list page button: switches to the next/former page of the
list
7. Move list button: moves list a step at a time
8. Slide show button: starts slide show
9. Indication of rotating angle of image: indicates the rotating
angle of current image
10. Previous/next button: switches to previous, next image
11. Previous screen button: switches to the list screen
12. Image rotation button: rotates the image
1
6
6
11
2
7
7
12
3
8
8
4
9
5
10 10

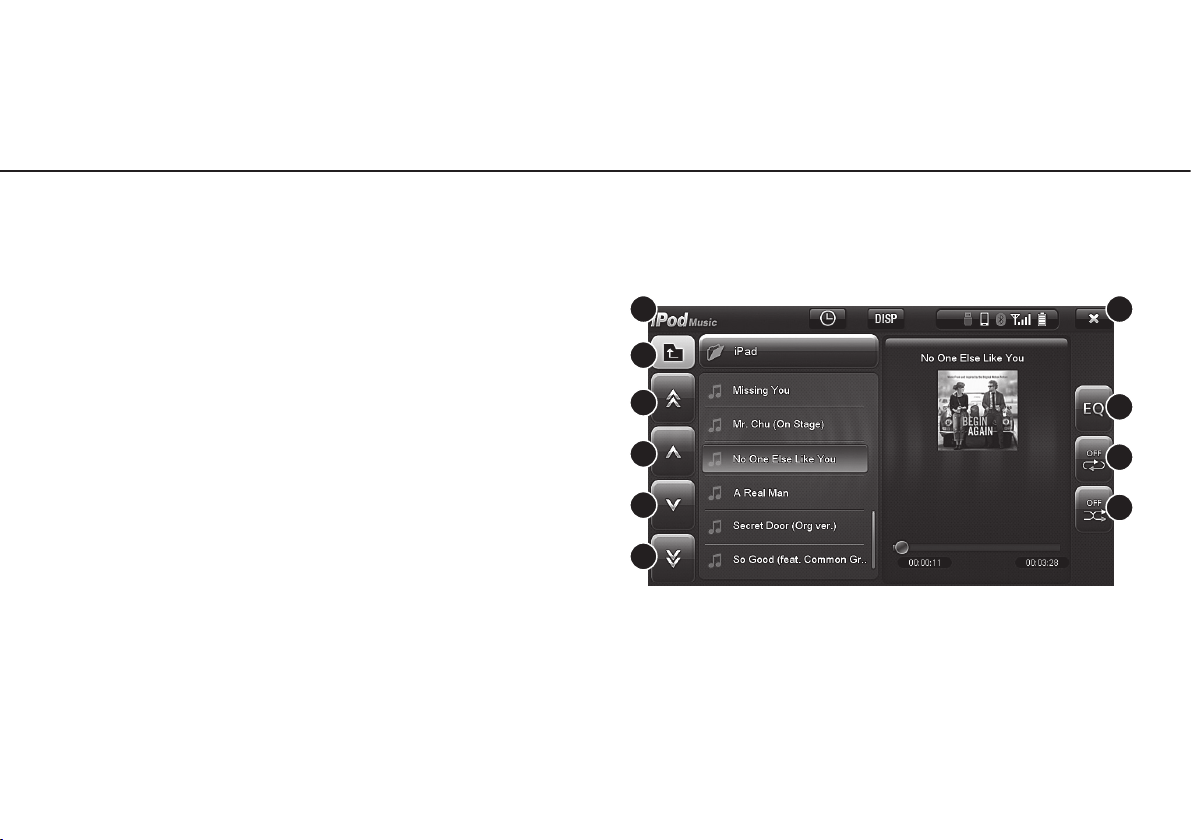

Using iPod Function
Function • 3-9
1. Menu button: switches to the menu screen
2. Shutdown button: shuts down iPod and switches to the menu screen
3. Volume button (EQ): sets EQ
4. Repeat set button: sets the repetition
5. Shuffle button: plays music randomly
6. Move to top-level folder button: moves to top-level folder
7. Move list page button: switches to the next/former page of the list
8. Move list button: moves list a step at a time
Way of use is similar to the USB 1
6
2
7
7
3
8
84
5

Using Bluetooth (register and set mode)
3-10 • Function
1. Shutdown button: shuts down the register/delete screen and
switches to the Bluetooth hands-free mode screen
2. Setup button: accesses to the waiting state to connect the
Bluetooth to the device
3. Disconnect button: disconnects with the device currently
connected
4. Device list button: shows the list of previously connected or
currently connected list of devices
5. Delete device list button: deletes saved device list
1
2 3
4
5
* Phone connection order
1. Input device registration button on the main unit
2. Select Search devices in the Bluetooth menu of your phone
3. Select the "Grand i10" been searching on your phone screen.
4. Enter the certication number "0000" on your phone.
5. The name appears on the phone to complete the connection device list

Using Bluetooth (hands-free mode) Function
Function • 3-11
1. Menu button: switches to the menu screen
2. Shutdown button: shuts down the Bluetooth screen and switches
to the menu screen
3. Delete the whole number screen: deletes the whole number of the
number screen
4. Switch to phonebook button: switches to the phonebook screen
5. Listening to music button: switches to the screen that plays music
in the Bluetooth device
* Play/pause can work differently by Bluetooth devices
* After switching to Listening to music mode, when music is not played
immediately, press play button.
Please check if music is playing in the Bluetooth device. Some Bluetooth
devices may not have Listening to music mode.
6. Register Bluetooth device button: switches to the screen where
can register or set the Bluetooth device
7. Delete number button: deletes numbers in the number screen
one by one
1
6
2
7
3
4
5
Note: The battery and the phone calls reception antenna displayed may differ depending
on the Bluetooth device does not support information.

1
6
11
2
7
12
3
8
13
4
9
14
5
10
10
Using Bluetooth (phone number mode)
3-12 • Function
1. Menu button: switches to the menu screen
2. Shutdown button: shuts down the Bluetooth mode and switches
to the menu screen
3. Hands-free switch button: switches to the hands-free screen
4. Call button: connects the call with the chosen phone number
5. Delete button: deletes the chosen phone number
6. Delete all buttons: deletes the all phone numbers
7. Saved list button: indicates the list of saved phone number
8. Recent call list button: indicates the list of recent calls
*The list of recent calls - only the ones made in the hands-free mode
9. Abbreviated number list button: indicates the list of phone
numbers chosen as abbreviated numbers
10. Move list button: moves list a step at a time
11. Indicate abbreviated number: indicates the number chosen as
abbreviated number
12. Save phone number list: saves the phonebook of the mobile
13. Search phone number by name button: searches the phone
number in the phonebook list by name
14. Search phone number by number button: searches the phone
number in the phonebook list by number
* How to save Abbreviated number
Abbreviated number can be saved if you press the specic number
for a long time.
Maximum number of Abbreviated number is 10.
