Hyundai HYHT2600X User manual

PETROL HEDGE TRIMMER
HYHT2600X
USER MANUAL

Page 2
CONTENTS
Contents
Contents.................................................................2
Note the following before starting:.........................2
KEY TO SYMBOLS
Symbols - CO warning ......................................... 4
GENERAL SAFETY PRECAUTIONS
Important................................................................5
Personal protective equipment..............................5
Machine′s safety equipment................................. 6
FUEL HANDLING
Fuel safety .............................................................9
Fuel........................................................................9
Fueling.................................................................10
STARTING AND STOPPING
Check before starting...........................................11
Starting and stopping...........................................11
WORKING TECHNIQUES
General working instructions.............................. 13
MAINTENANCE
Muffler ..................................................................15
Cooling system ....................................................15
Spark plug............................................................15
Air filter.................................................................16
Gear.....................................................................16
Cutting unit...........................................................16
Cleaning and lubrication.......................................17
Maintenance schedule.........................................18
TECHNICAL DATA
Technical data ..................................................... 19
Note the following before
starting:
Please read the operator’s manual carefully.
WARNING! Incorrect or careless use of a
hedge trimmer can turn it into a
dangerous tool that can cause serious or
even fatal injury.It is extremelyimportant
that you read and understand the
contents of this operator’s manual.
WARNING! Under no circumstances may
the design of the machine be modified
without the permission of the
manufacturer. Always use genuine
accessories. Non-authorized
modifications and/or accessories can
result in serious personal injury or the
death of the operator or others.
WARNING! Long-term exposure to noise
can result in permanent hearing
impairment. So always use approved
hearing protection.
!
!
!
ENVIRONMENTAL
Recycling & Disposal.............................................20
Environmental Protection......................................21
USEFUL INFORMATION
Our YouTube Channel..........................................21
Warranty................................................................21
Manual Updates....................................................21
Returning Your Products.......................................21
Leaving A Review.................................................21
Ordering Spare Parts............................................21
Contact Us............................................................21
Declaration Of Conformity....................................22
Features ................................................................3

Page 3
FEATURES

Page 4

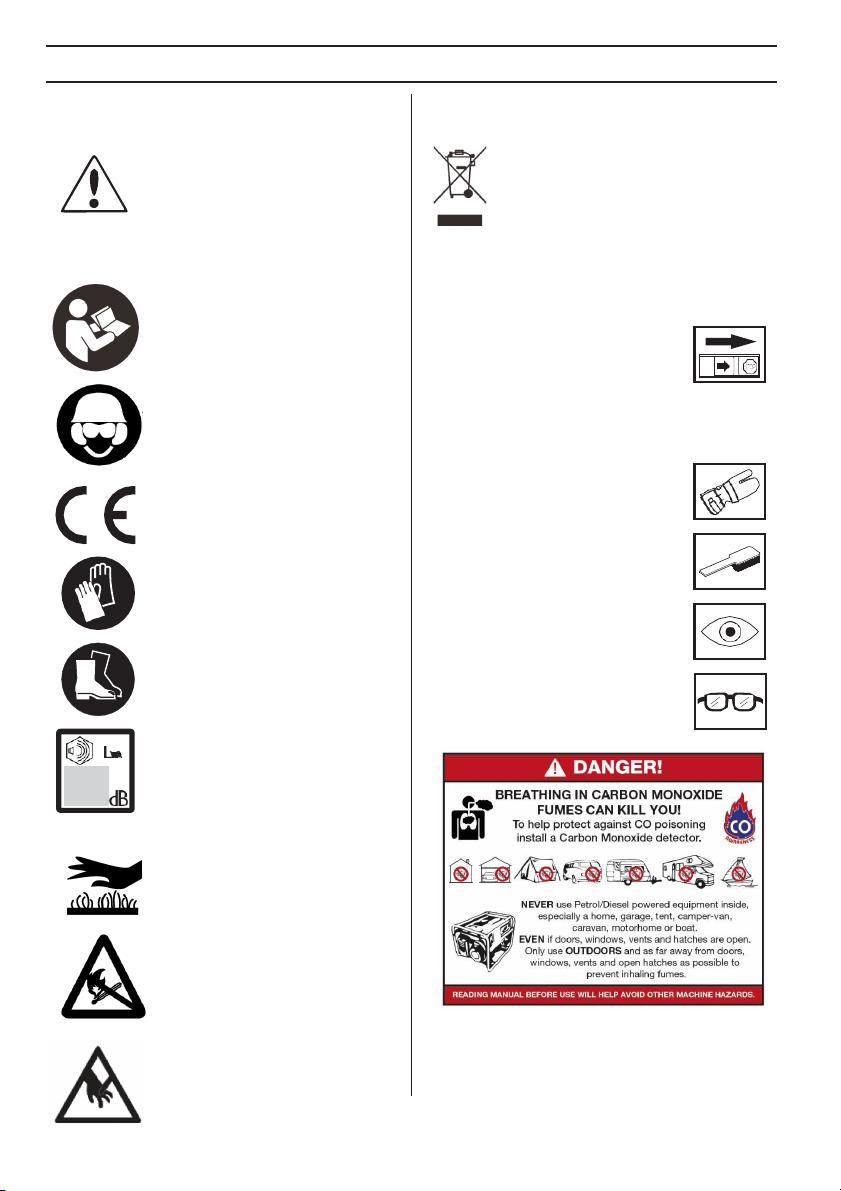

KEY TO SYMBOLS
WARNING! Incorrect or careless use
of a hedge trimmer can turn it into a
dangerous tool that can cause serious
or even fatal injury. It is extremely
important that you read and
understand the contents of this
operator’s manual.
Symbols
Please read the operator’s manual
carefully and make sure you
understand the instructions before
using the machine.
Always wear head, ear and eye
protection.
This product complies with the
applicable European directives and
an evaluation method of conformity
for these directives was done.
Protective gloves are highly
recommended when working.
Non-skid heavy duty footwear are
highly recommended when working.
Noise emission to the
environment according to the
European Community’s
Directive. The machine’s
emission is specified in chapter
Technical data and on label.
High temperature. Do not touch.
Do not use near open flames.
Do not smoke.
The blade is sharp, do not touch the
blade.
Waste electrical products should not be
disposed of with household waste. Please
recycle where facilities exist. Check with
your local authority or local store for
recycling advice.
Other symbols/decals on the machine refer to special
certification requirements for certain markets.
Theengineisswitchedoffbymovingthe
stop switch to the stop position.
CAUTION! The stop switch
automatically returns to the start
position. In order to prevent
unintentional starting, the spark plug cap must be
removed from the spark plug when assembling, checking
and/or performing maintenance.
Always wear approved protective
gloves.
Regular cleaning is required.
Visual check.
Protective goggles or a visor must be
worn.
DO NOT use in an enclosed
area or moving vehicle

Page 5

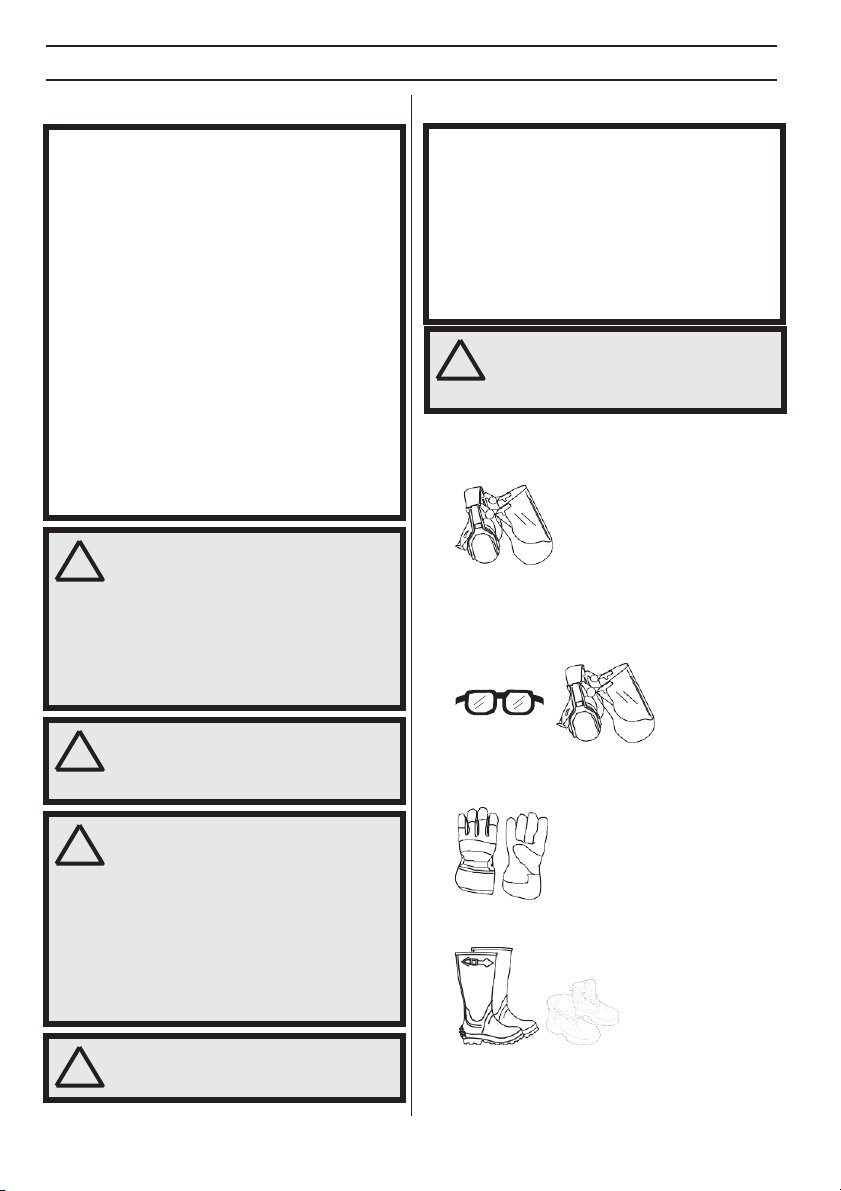

GENERAL SAFETY PRECAUTIONS
IMPORTANT!
Incorrect or careless use of a hedge trimmer can turn it
into a dangerous tool that can cause serious or even
fatal injury. It is extremely important that you read and
understand the contents of this operator’s manual.
Youmust use approved personal protective equipment
whenever you use the machine. Personal protective
equipment cannot eliminate the risk of injury but it will
reduce the degree of injury if an accident does happen.
Ask yourdealerforhelpinchoosingtherightequipment.
Personal protective equipment
HEARING PROTECTION
Wear hearing protection that provides adequate noise
reduction.
EYE PROTECTION
Always wear approved eye protection. If you use a visor
then you must also wear approved protective goggles.
Approved protective goggles must comply with standard
EN 166 in EU countries.
GLOVES
Glovesshould be wornwhennecessary,e.g.,whenfitting
cutting attachments.
BOOTS
Wear sturdy, non-slip boots or shoes.
WARNING! Listen outfor warningsignals
or shouts when you are wearing hearing
protection. Always remove your hearing
protection as soon as the engine stops.
!
Important
WARNING! Faulty blades can increase
the risk of accidents.
!
WARNING! Never allow children touse or
be in the vicinity of the machine. As the
machine is equipped with a spring-
loaded stop switch and can be started by
low speed and force on the starter
handle, even small children under some
circumstances can produce the force
necessary to start the machine. This can
mean a risk of serious personal injury.
Therefore remove the spark plug cap
when the machine is not under close
supervision.
!
WARNING! Running an engine in a
confined or badly ventilated area can
result in death due to asphyxiation or
carbon monoxide poisoning.
!
WARNING! This machine produces an
electromagnetic field during operation.
This field may under some
circumstances interfere with active or
passive medical implants. To reduce the
risk of serious or fatal injury, we
recommend persons with medical
implants to consult their physician and
the medical implant manufacturer before
operating this machine.
!
IMPORTANT!
The machine is only designed for cutting branches and
twigs.
Never use a machine that has been modified in any way
from its original specification.
Never use themachine ifyouare tired, if you have drunk
alcohol, or if you are taking medication that could affect
your vision, your judgement or your co-ordination.
Wear personal protective equipment. See instructions
under the heading ”Personal protective equipment”.
Never use the machine in extreme weather conditions
such as severe cold, very hot and/or humid climates.
Neveruse a machine that isfaulty.Carry out thechecks,
maintenance and service instructions described in this
manual. Some maintenance and service measures
must be carried out by trained and qualified specialists.
See instructions under the heading Maintenance.
All covers and guards must be fitted before starting.
Ensure that the spark plug cap and ignition lead are
undamaged to avoid the risk of electric shock.

Page 6
GENERAL SAFETY PRECAUTIONS
CLOTHING
Wear clothes made of a strong fabric and avoid loose
clothing that can catch on twigs and branches. Always
wear heavy, long pants. Do not wear jewellery, shorts
sandalsorgobarefoot.Securehairsoitisaboveshoulder
level.
FIRST AID KIT
Always have a first aid kit nearby.
Machines safety equipment
This section describes the machines safety equipment,
its purpose, and how checks and maintenance should be
carried out to ensure that it operates correctly. See the
”What is what?” section tolocate where this equipment is
positioned on your machine.
The life span of the machine can be reduced and the risk
of accidents can increase if machine maintenance is not
carried out correctly and if service and/or repairs are not
carried out professionally. If you need further information
please contact your nearest service workshop.
Throttle lockout
The throttle lockout is designed to prevent accidental
operation of the throttle control. When you press the lock
(A) (i.e.when you grasp thehandle)it releasesthethrottle
control (B). When you release the handle the throttle
control and the throttle lockout both move back to their
original positions. This movement is controlled by two
independentreturnsprings.Thisarrangementmeans that
the throttle control is automatically locked at the idle
setting.
Make sure the throttle control is locked at the idlesetting
when the throttle lockout is released.
Press the throttle lockout and make sure it returns toits
original position when you release it.
Check that the throttle trigger and throttle lockout move
freely and that the return springs work properly.
See instructions under the heading Start.Start the hedge
trimmer and apply full throttle.Release the throttle trigger
and check that the blades stop and remain stationary. If
the blades move when the throttle trigger is in the idle
positionthenthecarburettoridlesettingmustbeadjusted.
See instructions under the heading Maintenance.
A
B
WARNING! Never use a machine with
faulty safety equipment. The machine’s
safety equipment must be checked and
maintained as described in this section.
If your machine fails any of these checks
contact your service agent to get it
repaired.
IMPORTANT!
All servicing and repair work on the machine requires
special training.This is especially true of the machines
safety equipment. If your machine fails any of the
checks described below you must contact your service
agent.When you buyanyof our products we guarantee
the availability of professional repairs and service. If the
retailer whosells your machine isnotaservicingdealer,
ask him for the address of your nearest serviceagent.
!

Page 7
GENERAL SAFETY PRECAUTIONS
Stop switch
Use the stop switch to switch off the engine.
Start the engine and make sure the engine stops when
you move the stop switch to the stop setting. The stop
switch automatically returns to the start position. In order
to prevent unintentional starting, the spark plug cap must
be removed from the spark plug when assembling,
checking and/or performing maintenance.
Hand guard
The hand guard prevents hands from coming into contact
with the moving blades, for example, if the operator loses
grip on the front handle.
Check that the hand guard is fitted correctly.
Check that the hand guard is undamaged.
Vibration damping system
Your machine is equipped with a vibration damping
system that is designed to minimize vibration and make
operation easier.
The machines vibration damping system reduces the
transfer of vibration between the engine unit/cutting
equipment and the machines handle unit.
The engine body,including the blades, is suspended on
the handlebar using four rubber bushings.
Regularly check the vibration damping units for cracks or
deformation. Check that the vibration damping element is
undamaged and securely attached.
Muffler
Themufflerisdesigned tokeep noiselevelsto a minimum
and to direct exhaust fumes awayfrom the user.A muffler
fitted with a catalytic converter is also designed to reduce
harmful exhaust gases.
For mufflers it is very important that you follow the
instructions on checking, maintaining and servicing your
machine.
Never use a machine that has a faulty muffler.
Regularly check that the muffler is securely attached to
the machine.
WARNING! Overexposure to vibration
can lead to circulatory damage or nerve
damage in people who have impaired
circulation. Contact your doctor if you
experience symptoms of overexposure
to vibration. Such symptoms include
numbness, loss of feeling, tingling,
pricking, pain, loss of strength, changes
in skin colour or condition. These
symptoms normally appear in the
fingers, hands or wrists. The risk
increases at low temperatures.
!

Page 8
GENERAL SAFETY PRECAUTIONS
Gear
The gear housing gets hot when the machine has been in
use. To avoid burning yourself do not touch the gear
housing.
Blade and blade guard
The outer part of the blades (1) are shaped as blade
guards. The blade guard is intended to protect against
any part of the body coming into contact with the blades.
Check that the blade guard is not damaged or distorted.
Replace the cutting unit if it is bent or damaged.
WARNING! Bear in mind that: The
exhaust fumes from the engine are hot
and may contain sparks which can start
a fire. Never start the machine indoors or
near combustible material!
WARNING! The inside of the muffler
contain chemicals that may be
carcinogenic. Avoid contact with these
elements in the event of a damaged
muffler.
WARNING! Mufflers fitted with catalytic
converters get very hot during use and
remain so for some time after stopping.
This also applies at idle speed. Contact
can result in burns to the skin.
Remember the risk of fire!
!!
!
!
Carbon Monoxide
DANGER! CARBON MONOXIDE IS A COLOURLESS,
ODOURLESS GAS. INHALING THIS GAS CAN CAUSE
DEATH OR SERIOUS LONG-TERM HEALTH
PROBLEMS SUCH AS BRAIN DAMAGE.
Never operate the engine in a confined space where
dangerous Carbon Monoxide fumes can develop. All
ignition operations have to be effected in an open or
well-ventilated area. Always remember that exhaust
fumes are toxic.
The symptoms of carbon monoxide poisoning can include
but are not limited to the following; Headaches, dizziness,
nausea, breathlessness, collapsing or loss of
consciousness.
Carbon Monoxide poisoning symptoms are similar to flu,
food poisoning, viral infections and simply tiredness. It is
quite common for people to mistake this very dangerous
poisoning for something else.
To avoid carbon monoxide poisoning DO NOT use Petrol/
Diesel powered equipment inside any of the following;
Home, garage, tent, camper van, mobile home, caravan
or boat. DO NOT use in an enclosed area or moving
vehicle. This is not exhaustive and if you are in any doubt
contact your dealer.
If you think you have or someone around you has been
affected by carbon monoxide poisoning; Get them fresh
air immediately, by leaving the affected area or by
opening doors and windows. If safe and practical to do so
make sure that the machine is turned off. DO NOT enter a
room you suspect of having carbon monoxide present –
instead call the emergency services.
Contact a Doctor immediately or go to
Hospital – let them know that you suspect carbon
monoxide poisoning.
Residual Risks
Even when the tool is used as prescribed it is not
possible to eliminate all residual risk factors. The
following hazards may arise in connection with the tool's
construction and design:
1. Damage to lungs if an effective dust mask is not
worn.
2. Damage to hearing if effective hearing protection is
not worn.
3. Health defects resulting from vibration emission if
the power tool is being used over longer period of
time or not adequately managed and properly
maintained.

Page 9
FUEL HANDLING
Fuel safety
Never start the machine:
1 If you have spilt fuel on it.Wipe off the spillage and
allow remaining fuel to evaporate.
2 If you have spilt fuel on yourself or your clothes,
change your clothes.Wash any part of your body that
has come in contact with fuel. Use soap andwater.
3 If the machine is leaking fuel. Check regularlyfor
leaks from the fuel cap and fuel lines.
Transport and storage
•Allowthehedgetrimmertocooldownafter usebefore
putting it away for storage.
•Storeandtransportthemachine and fuelso that there
isno risk of any leakage or fumes coming intocontact
with sparks or naked flames, for example, from
electrical machinery, electric motors, electrical relays/
switches or boilers.
•When storing and transporting fuel always use
approved containers intended for thispurpose.
•When storing the machine for long periods the fuel
tank must be emptied. Contact your local petrol
station to find out where to dispose of excessfuel.
•Ensure the machine is cleaned and that a complete
service is carried out before long-term storage.
•The transport guard must always be fitted tothe
cutting attachment when the machine is being
transported or in storage.
•Secure the machine during transport.
Fuel
CAUTION! The machine is equipped with a two-stroke
engine and must always been run using a mixture of
petrol and two-stroke oil. It is important to accurately
measure the amount of oil to be mixed to ensure that
the correct mixture is obtained. When mixing small
amounts of fuel, even small inaccuracies can drastically
affect the ratio of the mixture.
Petrol
CAUTION! Alwaysuseaqualitypetrol/oilmixtureatleast
90 octane (RON). If your machine is equipped with a
catalyticconverter(seechapter onTechnicaldata)always
use a good quality unleaded petrol/oil mixture. Leaded
petrol will destroy the catalytic converter.
Use low-emission petrol, also known as alkylate petrol, if
it is available.
•The lowest octane recommended is 90 (RON). If you
run the engine on a lower octane grade than 90 so-
called knocking can occur. This gives rise to a high
engine temperature, which can result in serious
engine damage.
•Whenworkingatcontinuoushighrevsahigheroctane
rating is recommended.
Two-stroke oil
•Never use two-stroke oil intended for water-cooled
engines.
•Never use oil intended for four-stroke engines.
•A poor oil quality and/or too high oil/fuel ratio may
jeopardise function and decrease the life time of
catalytic converters.
WARNING! Fuel and fuel fumes are
highly inflammable and can cause
serious injury when inhaled or allowed to
come in contact with the skin. For this
reason observe caution when handling
fuel and make sure there is adequate
ventilation.
!
!
WARNING!Take care when handling fuel.
Bear in mind the risk of fire, explosion
and inhaling fumes.

Page 10
FUEL HANDLING

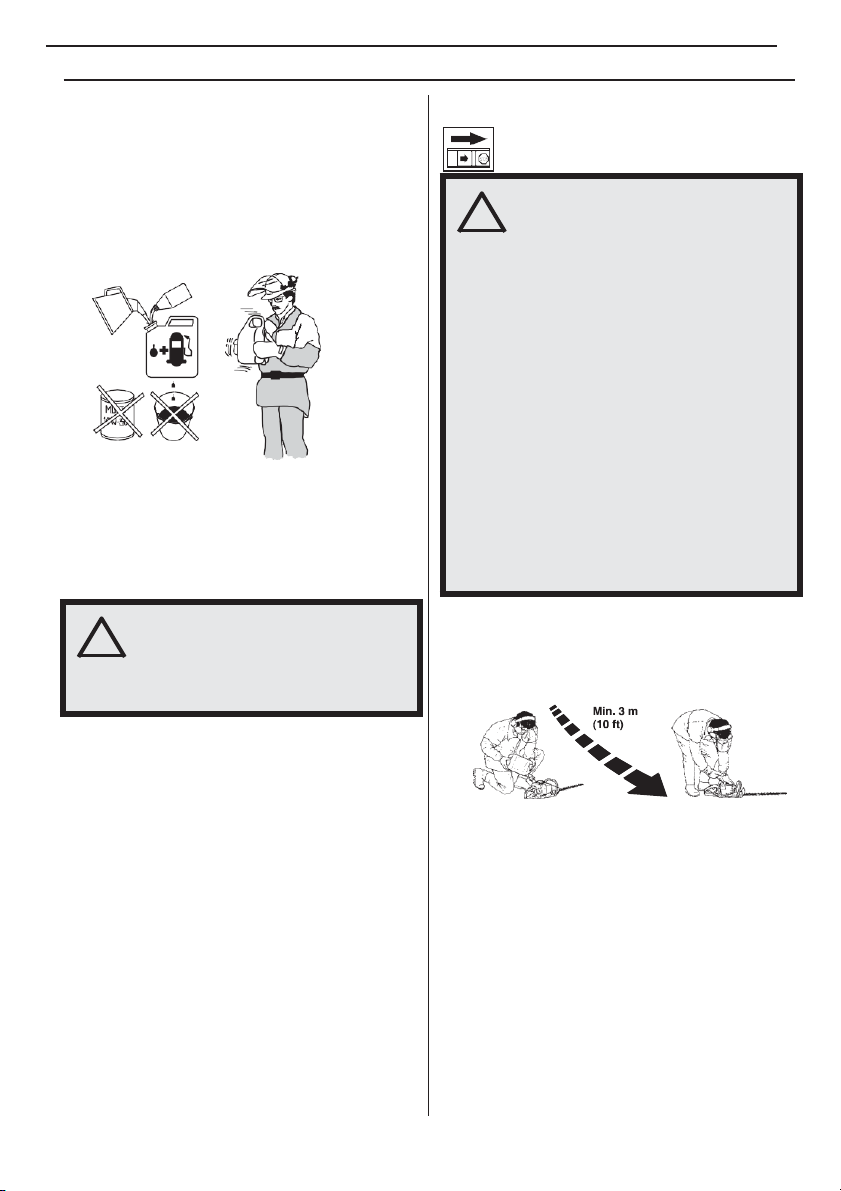

Fueling
•Always use a fuel container with an anti-spill valve.
•Clean the area around the fuel cap.Contamination in
the tank can cause operating problems.
•Ensure that the fuel is well mixed by shaking the
container before filling the tank.
Do not smoke or place hot objects near
fuel.
Always shut off the engine before
refuelling.
Refuel in a well ventilated area. Never
fuel the machine indoors.
Always stop the engine and let it cool for
a few minutes before refuelling.
When refuelling, open the fuel cap slowly
so that any excess pressure is released
gently.
Tighten the fuel cap carefully after
refuelling.
Always move the machine away from the
refuelling area and source before
starting.
WARNING! Taking the following
precautions, will lessen the risk of fire:
Mixing
•Always mix the petrol and oil in a cleancontainer
intended for fuel.
•Always start by filling half the amount of the petrol to
be used. Then add the entire amount of oil. Mix
(shake)the fuelmixture.Add theremainingamount of
petrol.
•Mix (shake) the fuel mixture thoroughly beforefilling
the machine’s fuel tank.
•Do not mix more than one month’s supply of fuel at
a time.
•If the machine is not used for some time the fuel
tank should be emptied and cleaned.
•Fuel/Oil ratio is 40:1
WARNING! The catalytic converter
muffler gets very hot during and after
use. This also applies during idling. Be
aware of the fire hazard, especially when
working near flammable substances and/
or vapours.
!
!
