i-MO iDrive User manual

IMO
iDrive
EDX
AC micro-inverters for small
3-phase induction motors
100V series, 1-ph / 0.2 – 0.75kW
200V series, 1-ph & 3-ph / 0.2 – 2.2kW
400V series, 3-ph / 0.75 – 2.2kW
Version V3b.0906

Quick Start Guide
Quick Start Guide
This guide is to assist in installing and running the inverter to verify that the drive and motor
are working properly. Starting, stopping and speed control will be from the keypad. If your
application requires external control or special system programming, consult the iDrive EDX
instruction manual supplied with your inverter.
Step 1 - Before starting the inverter
Please refer to chapter one (Preface) and chapter two (Safety Precautions) of the iDrive EDX
instruction manual. Verify drive is installed in accordance with the procedures as described in
chapter three (Environment and installation). If something is suspected of being abnormal, do
not start the drive until qualified personnel have corrected the situation. (Failure to do so
could result in death or serious injury.)
• Check inverter and motor nameplates to determine that they have the same power and
voltage ratings. Ensure that full load motor current does not exceed that of the inverter.

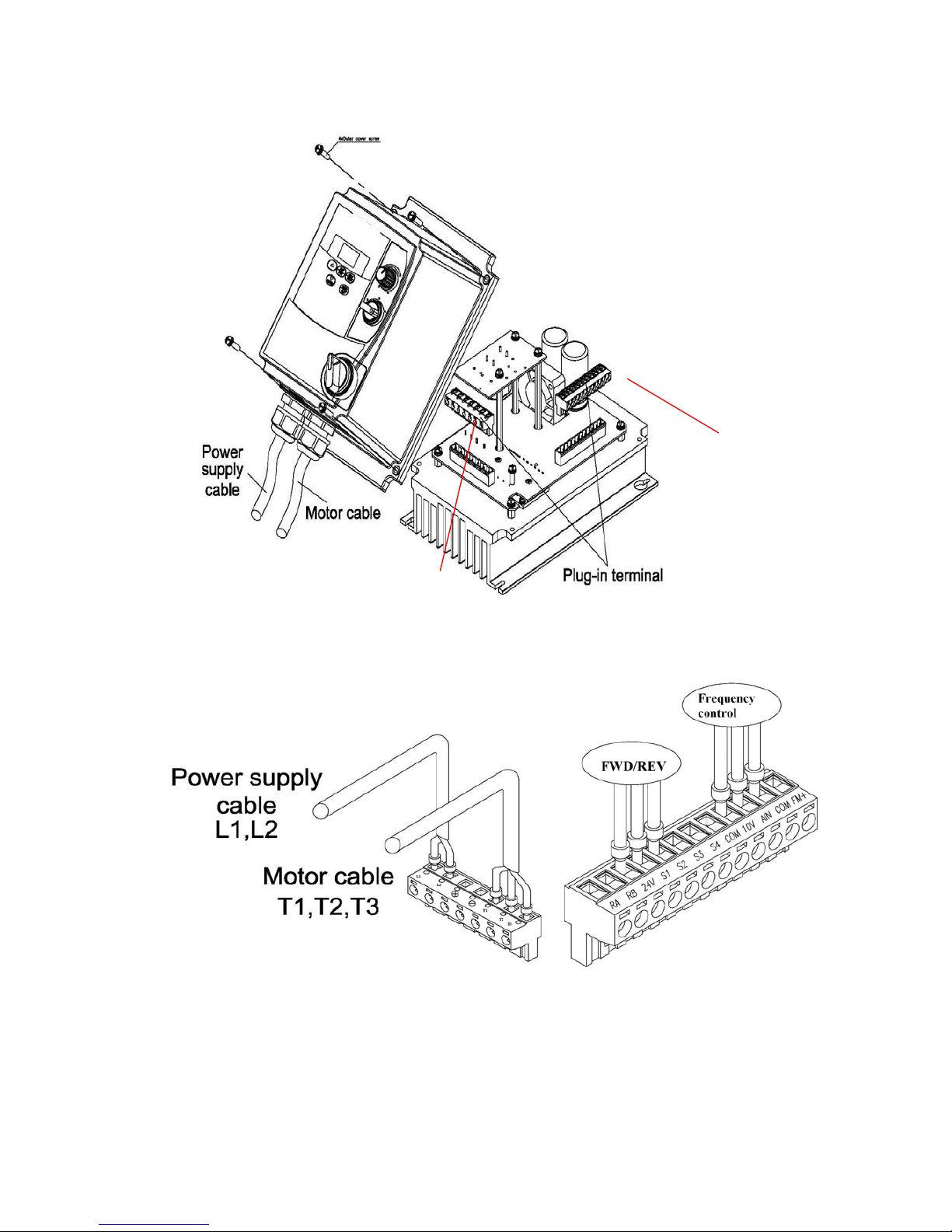

• With power OFF, remove the terminal covers to expose the motor and power terminals.
a. Verify that AC power is wired to L1(L), L2, and L3(N) .
b. Verify that motor leads are connected to T1, T2, and T3 .
c. If a brake module is necessary, please connect terminal voltage of the braking unit to P
and N of the inverter. Never connect a resistor directly to terminals P and N.
i
L
ED
DISPLAY
POWER
FREQ.SET
iDrive
LED
DISPLAY
Step 2 - Apply power to the drive
Apply AC power to the drive and observe the keypad display. The 7-segment LED display
should show power voltage for 3~5 seconds and then show Frequency Command, factory set
at 5.00. (Frequency Command shown on 7-segment display should be flashing.)

ii
Step 3 - Check low speed motor rotation without load.
 Press RUN key. 7-segment display will indicates 00.0 to 05.0. This number is the
frequency output value. The display will now become solid (not blinking) because the
inverter output is on.
 Check the operating direction of the motor.
IF the direction of the motor is incorrect:
Press STOP key, turn off the AC power supply. When the power indicator LED is off,
change over motor connections T1 and T2.
Apply the power again, then check the motor direction.
 Press STOP key.
Step 4 - Check full speed at 50Hz / 60Hz
 Change the frequency with ,keys, press DATA/ENT after setting frequency.
 Set frequency to 50Hz / 60Hz according to the above.
 Press RUN key; check that the motor accelerates smoothly to full speed.
 Press STOP key; check that the motor decelerates smoothly to zero speed.
Step 5 - Other settings
For other functions, please refer to iDrive EDX user manual.
Upper frequency limit …………………………... P. 4-9
Lower frequency limit …………………………….P. 4-9
Acceleration time ………………………………… P. 4-10
Deceleration time ………………………………… P. 4-10
Control mode (Vector, V/F) ………………………P. 4-10
Motor rated current ………………………………P. 4-13

iDrive EDX user manual
Contents
Quick Start Guide ………………………………………….………… i
Chapter 0 Preface ………………………………………………….…
0-1
0.1 Preface ……………………………………………………………….
0-1
0.2 Product inspection …………………………………………………...
0-1
Chapter 1 Safety precautions…………………………………………
1.1 Operation precautions………………………………………………..
1-1
1.1.1 Before power up………………………………………………...
1-1
1.1.2 During power up………………………………………………..
1.1.3 Before operation ………………………………………………...
1.1.4 Leakage current! ………… ……………………………………..
1.1.5 During operation…………………………………………………
1.1.6 Operating environment …………………………………………….
1-1
1-2
1-2
1-3
1-2
1-3
Chapter 2 Part number description ..……………………………….
2-1
Chapter 3 Environment description and installation…………..…
3-1
3.1 Environment ………………………………………………………….
3.2 Environment precautions…………………………………………….
3-6
3-1
3.3 Electrical Installation………………………..…………………………
3-7
3.3.1 Notice for wiring…………………………………….…………
3-7
3.3.2 MC, MCCB, Fuse and cable specifications ………………….
3-9
3.3.3 Ancillary power equipment – supply side…………………… 3-10
3.3.4 EMC: Good wiring practice – motor side………………...…
3-11
3.4 Specification …………………………………………………………..
3-13
3.4.1 Product individual specification..…………………………….
3-13
3.4.2 General specifications…………………………………………
3-14
3.5 Connection diagram…………………………………………………..
3-16
3.6 Description of inverter terminals ..…………………………..….…..
3-17
3.7 iDrive Dimensions ………………….…………………..……………. 3-20
3.8 Multi-iDrive installation with regenerative loads….………………..
3-23
iii

Chapter 4 Programming instructions & Parameter list…….…….
4.1 Keypad description……………………………………………………
4.1.1 Keypad display and operation instruction…………………..
iv
4.1.2 Keypad navigation……………………………………………
4.2 Parameter function list………………………………………………..
4.3 Parameter function description……………………………………….
4-1
4-1
4-1
4-1
4-3
4-9
Chapter 5 Trouble shooting and maintenance……………………… 5-1
5.1 Fault indication and remedy……………………………………...
5.1.1 Fault/Error display and Diagnostics…………………………
5.1.2 Set up & Interface Errors ………………………..………….
5.1.3 Keypad operation error descriptions………………………
5.2 General functional troubleshooting……….………………………....
5.3 iDrive Troubleshooting flowcharts ……………….…………………
5.4 Routine and periodic checks………….……………………………...
5-1
5-1
5-4
5-5
5-6
5-7
5-13
5-14
5.5 Maintenance and inspection………………………………………….
Chapter 6 Options………………………………….………………………...
6.1 Option cards……………………………..………………………….…
6-1
6-1
6.1.1 RS-485 option card…………………..……………………… 6-1
6-2
6.1.2 RS-232 option card……………………………………..……
6.1.3 Program copy option card…………………………………..
6.1.4 Remote keypad ………………………………………………..
6.1.5 2 IN/OUT Card ………………………………………………
6-3
6-4
6-5
Appendix 1 iDrive EDX inverter parameter setting list………………
Appendix 1

Chapter 0 Preface
0-1
Chapter 0 Preface
0.1 Preface
To extend the performance of the product and ensure your safety, read this manual thoroughly before
using the inverter. Should there be any problem in using the product that can not be solved with the
information provided in the manual, contact your nearest IMO distributor or the company from who
you purchased the inverter from.
Precautions
The inverter is an electrical / electronic product. For your safety, there are symbols such as “Danger”
and “Caution” in this manual to remind you to pay attention to safety instructions on carrying,
installing, operating, and checking the inverter. Be sure to follow the instructions carefully for safety.
Indicates a potential hazard that may cause death or serious personal
injury if misused
Indicates that the inverter or a mechanical system might be damage
misused
d if
Danger
Do not touch any circuit boards til the charge indicator is extinguished
when the inverter is powered. Do not check parts and signals on
ternal wires, circuits and parts. l / national
or internal parts un
after turning the power off.
Do not connect any wires
circuit boards when the inverter is in operation.
Do not disassemble the inverter and modify in
Connect the ground terminal of the inverter correctly. Always follow loca
regulations.
.2 Product Inspection
iDrive EDX inverters have all passed a full function test before delivery. Please check the
 those specified on your order.
nd to be incorrect..
Caution
 Do not perform a high voltage insulation test on parts inside the inverter. High voltages can
 he inverter to AC power source.
ccur.
easily destroy the inverter’s semiconductor components.
Do not connect T1 (U), T2 (V), and T3 (W) terminals of t
 CMOS ICs on the inverter’s main board are sensitive to static electricity.
Do not touch the main p c board even when power is off, or damage may o
Caution
Danger
0
following when you receive and unpack the inverter:
The model and capacity of the inverter is the same as
 Is there any damage caused by transportation? If so, do not apply power.
Contact IMO distributor or sales representative if any of the above are fou

Chapter 1 Safety Precautions
1-1
Chapter 1 Safety Precautions
1.1 Operation Precautions
1.1.1 Before Power Up
Caution
The line voltage applied must comply with the inverter’s specified input voltage.
Danger
Make sure the main circuit connections are correct. L1(L), L2, and L3(N) are power-input
terminals and must not be confused with T1, T2 and T3. Otherwise, the inverter might be
damaged.
Caution
 To avoid the front cover from disengaging, do not pull the cover when carrying the inverter for
which the heat sink should be held. Avoid dropping the inverter as damage could occur.
 To avoid fire, do not install the inverter on a flammable surface. Always install on metal
surface if possible.
 If several inverters are placed in the same control panel, add extra heat dissipators to keep the
temperature below 50oC to avoid overheating or fire.
When removing or installing the remote keypad, turn the power off first, and operate the
keypad following the instruction diagrams to avoid error or no display caused by poor
contact.
Warning
When connected as detailed in this manual, this product complies with IEC 61800-3, with
built-in filter for Unrestricted Distribution and when using an external filter for Restricted
Distribution. Conformance. It should be tested before use in some environments.

Chapter 1 Safety Precautions
1-2
1.1.2 DuringPowerup
Danger
The inverter still has control power if the time of power loss is very short. When the
power is re-supplied, the inverter operation is controlled by parameter b31.
The inverter operation is controlled by A00 and b33 and the status of (FWD/REV RUN
switch) when power is re-applied (and b31 /b32) Power loss ride through / Auto reset
after fault.
1. When A00=000, the inverter will not auto restart when power is re-applied.
2. When A00=001 and operation switches (FWD/REV RUN) are OFF, the inverter will
not auto restart when power is re-applied.
3. When A00=001 and operation switch ON and b33=000, the inverter will auto restart
when power is re-applied. Please turn OFF the run (start) switch to avoid damage to
machine and injury to operator before the power is re-applied.
When b33=000 (direct start on power up), please refer to the description of b33 to verify
the safety of operator and machine.
1.1.3 Beforeoperation
Caution
Make sure the model and capacity are the same as those set by b89.
1.1.4 Earth / ground leakage current
Warning
Warning ! iDrive EDX series built-in filter type can give leakage current > 3.5mA.
ALWAYS ENSURE INVERTER IS CORRECTLY EARTHED / GROUNDED..
Operation with ungrounded supplies:
DO NOT use iDrive EDX inverters on ungrounded (floating) power supplies.
Operating iDrive EDX with Residual Current Device (RCD):
1. Inverter leakage current may cause nuisance trip when RCD setting is <100mA
2. Only one inverter should be supplied from each RCD.

Chapter 1 Safety Precautions
1-3
1.1.5 Duringoperation
Danger
Do not connect or disconnect the motor while inverter is operating the motor otherwise the inverter
and/or the disconnecting device may be damaged by the high level of switch-off current.
Danger
To avoid electric shock, do not remove the front cover when power is on.
After a power-loss trip (under-volt) trip occurs, the motor will restart automatically when power is
restored if auto-restart function is set. In this case, care must be taken while working with the machine.
Note: External Emergency stop must open and un-latch the power supply to the inverter without
any chance of re-closing until required. Do not rely upon software control for Emergency stop.
Caution
 Do not touch heat-generating components such as heat sink and brake resistor.
 The inverter can operate the motor from low speeds to very high speeds.
Verify the allowable speed ranges of the motor and the load before operation.
 Note the settings related to the braking unit.
Do not check signals on circuit PCB while the inverter is running.
Caution
Allow a minimum of 5 minutes after power down before attempting to disassemble or
checking the components within the drive.
1.1.6 Operating environment
Caution
When the inverter top dust cover has been removed it can be used in a non-condensing
atmosphere in temperature range from –10oC to +50oC and relative humidity of 95%, but
the environment should be free from corrosive gasses, condensation and metallic dust.

Chapter 2 Model description
2-1
Chapter 2 Part numbering description
iDrive product rating label (example)
CAUTION
Model: EDX-040-21-E Motor Rating: 0.5HP / 0.4KW
INPUT: AC 1 phase 50 / 60Hz VOLTAGE: 200 – 240V (+10%, -15%) IRMS : 5.4A
OUTPUT:AC 3 phases 0 – 200Hz VOLTAGE: 0 - VIN IRMS : 3.1A
IP20 / UL Open Type (rated -10°C to 50°C Ambient)
IMO Precision Controls Ltd
WARNING: THIS PRODUCT MUST BE EARTHED!
Do not inspect components unless the lamp is off
See manual for correct installation and operation
!
EDX -040 -2 1 - E -
Series: Nominal
motor capacity: Input
voltage: Input phases EMC filter : Enclosure
020:
0.18kW / 0.25 HP 1:100V 1:Single phase E: Integrated Filter
040:
0.37kW / 0.5 HP 2:230V 3:Three phase Blank: No Filter
N4S: IP65 + water
and dust=proof
switch
075:
0.75kW / 1.0 HP 4:400V
150:
1.5kW / 2.0 HP N4:IP65 without
water and dust-
proof switch
220:
2.2kW / 3.0 HP Blank: IP20

Chapter 3 Environment description and installation
3-1
Chapter 3 Environment description and installation
3.1Environment
The environment will directly effect the operation and the life of the inverter, so install the
inverter in an environment that complies with the following conditions:
Ambient temperature: -10~+50
Avoid exposure to rain or moisture.
Avoid direct sunlight.
Avoid smoke and salinity.
Avoid erosive liquid and gas.
Avoid dust and small metal pieces.
Keep away from radiative and flammable
materials.
Avoid electromagnetic interference (soldering machine, power machine).
Avoid vibration (punching machine). Add a vibration-proof pad if the situation can not be
avoided.
If several inverters are placed in the same control panel, add extra heat dissipators to keep
the temperature below 50P
o
PC.
(Correct configuration) (Incorrect configuration) (Correct configuration) (Incorrect configuration)
 Place the front side of the inverter onward and top upward to help heat dissipation.
(A)Front view (B)Side view
Inside the power
distributor (PE) Inside the
power
distributor
Air exchanging fan Air exchanging fan
Inside the
power
distributor
iDrive iDrive
iDrive
iDrive
iDrive

Chapter 3 Environment description and installation
3-2

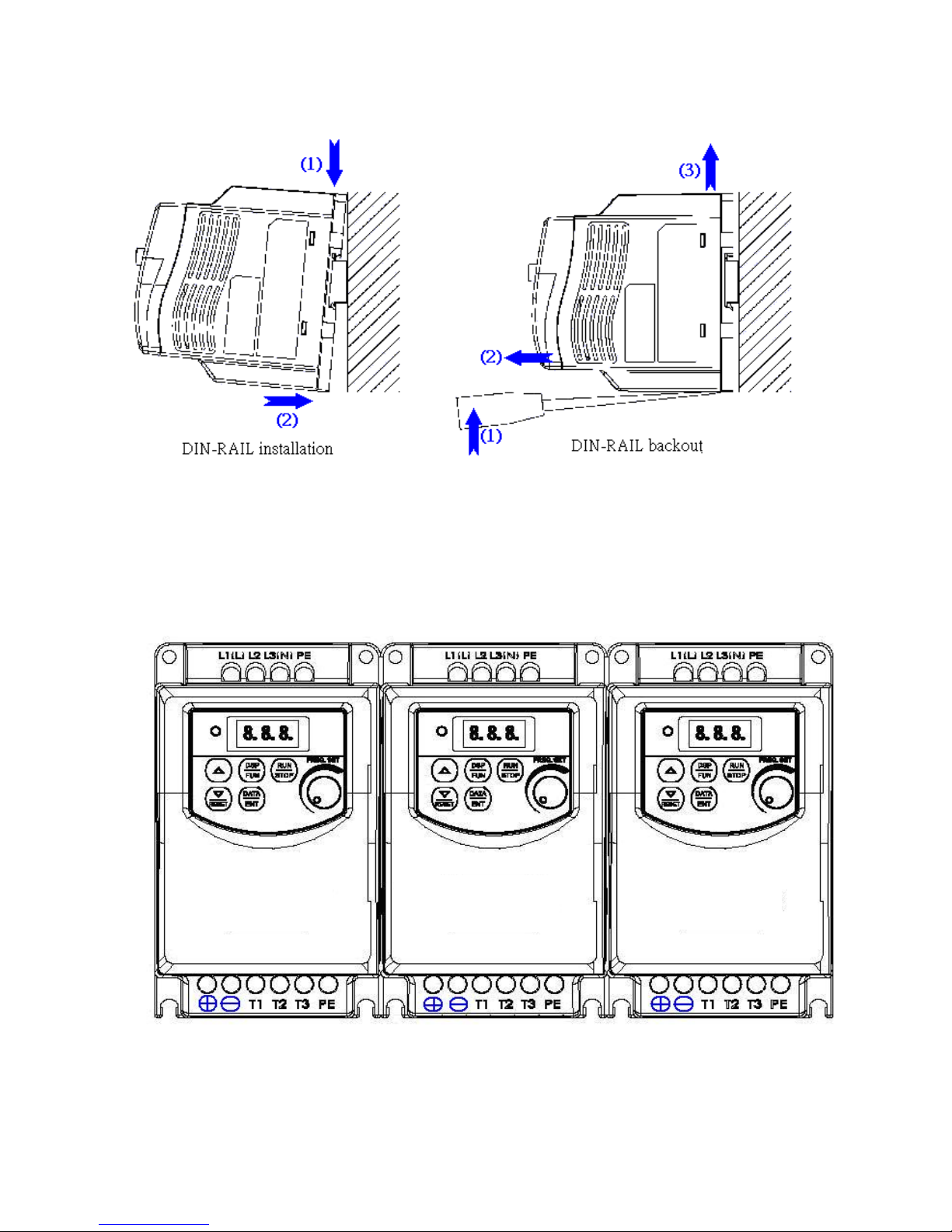

The chassis of this model has DIN rail clip device to use when rail mounting.
This model also can be installed side-by-side (when inside temperature below 50).
IMO
IMO
IMO

Chapter 3 Environment description and installation
3-3

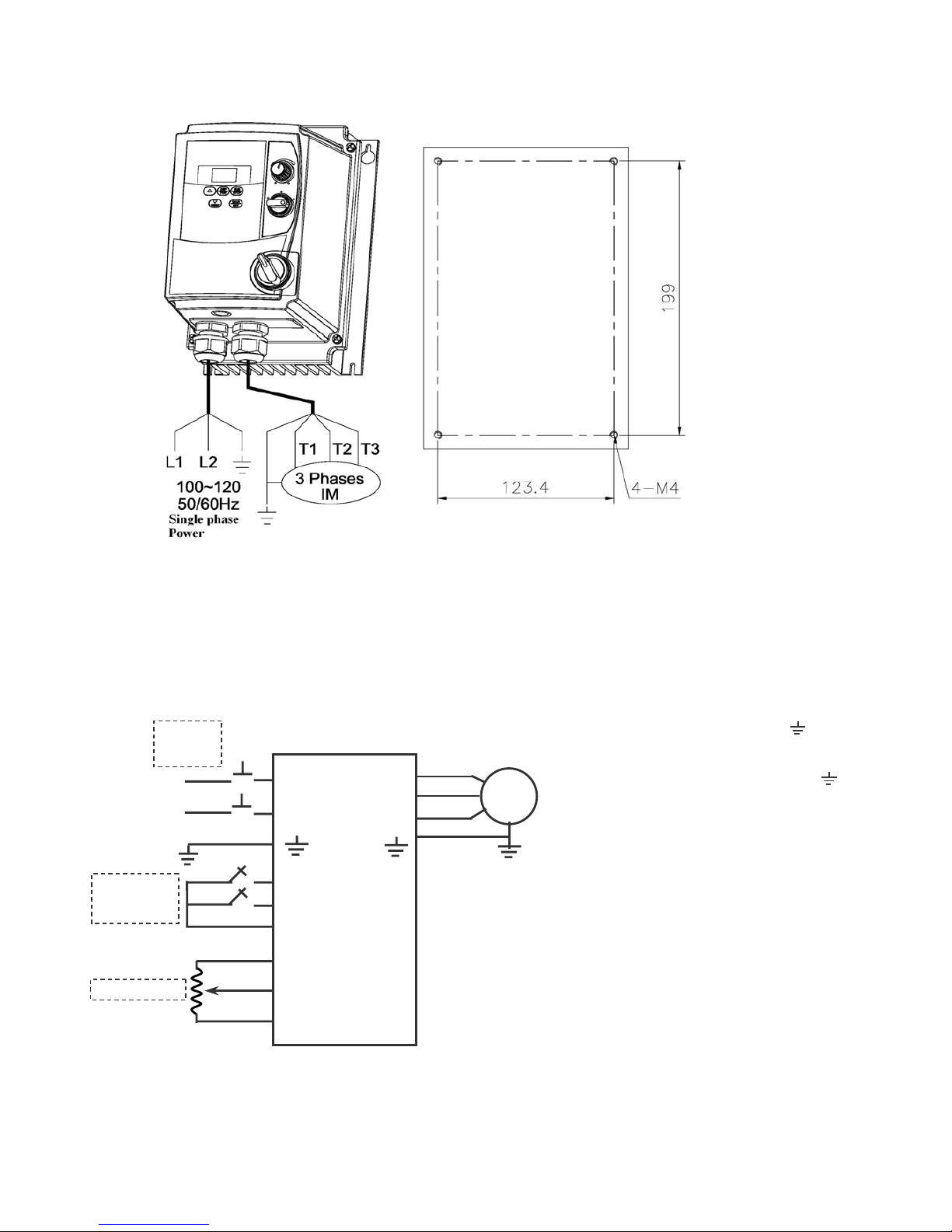

 iDrive EDX-###-##-N4X(IP65)type installation:
NOTE :
1. Power switch , REV-0-FWD switch and potentiometer are only
for EDX-######- N4S TYPE
2. Power supply cable : 600V AC rated PVC
3. Motor cable : 600V AC rated PVC / (screened or armoured)/PVC
4. Maximum torque on terminal screws :
(1). Power/motor cable (plug in) terminal : 5kg-cm(4.34 in-lb)
(2). Remote control wire : 4kg-cm (3.47 in-lb)
(3). Outer cover (M4) : 6kg-cm (5.20 in-lb)
T1
T2
T3
L1
L2
FW
RE
24V
3
PHASE
IM
POWER
SWITCH
REV-0-FWD
SWITCH
Potentiometer
AC
100~120
or
200~240
50/60HZ
10V
VIN
0V
NOTE:
(1). Input power : single-phase (L1,L2, (PE))
ensuring supply is 100~120 or 200~240 supply
according to model type.
(2). Output / motor : three-phase (T1,T2,T3, (PE) ).
Caution : Do not start or stop the motor
by switching input power
‧For EV-######-N4S type :
Ensure that the REV-0-FWD switch is set at ‘0’
position so that the iDrive has no run signal
at power-on otherwise injury may
result.
(
PE
)
(
PE
)
(
PE
)
(
PE
)
(
PE
)
(PE)
N
OTE: - INFORMATION ON THIS
PAGE SUBJECT TO DESIGN CHANGE.
IF IN DOUBT PLEASE CONTACT IMO
FOR LATEST INFORMATION.

Chapter 3 Environment description and installation
3-4
 EDX-###-##-N4S installation :
TM1
TM2
N
OTE: - INFORMATION ON THIS
PAGE SUBJECT TO DESIGN CHANGE.
IF IN DOUBT PLEASE CONTACT IMO
FOR LATEST INFORMATION.

Chapter 3 Environment description and installation
3-5
 EDX-###-##-N4 installation :
TM1
TM2
N
OTE: - INFORMATION ON THIS
PAGE SUBJECT TO DESIGN CHANGE.
IF IN DOUBT PLEASE CONTACT IMO
FOR LATEST INFORMATION.

Chapter 3 Environment description and installation
3-6
3.2 Environmental precautions
Do not use the inverter in an environment with the following conditions:
Direct sunlight Corrosive gas and liquid Oil
Salt Wind, rain, and water
drops may get into Iron filings, dust
Frame Size Extreme low temperature
Electromagnetic wave
and ultra hi
g
h wave Radioactive materials Inflammable materials
Excessive high
tem
p
erature
Excessive vibration

Chapter 3 Environment description and installation
3-7
3.3 Electrical Installation
3.3.1 Notice for wiring
A. Screwdriver torque:
Connect cables with a screwdriver or other suitable tools and follow the torque listed below.
Tightening torque
Horsepower KW Power source Nominal torque for TM1 terminal
0.25/0.5/1 0.2/0.4/0.75 100-120V
0.25/0.5/1 0.2/0.4/0.75 200-240V
0.74 / 1.00
(lbs-ft / Nm)
2/3 1.5/2.2 200-240V
1/2/3 0.75/1.5/2.2 380-480V
1.286 / 1.74
(lbs-ft / Nm)
B. Power cables:
Power cables are wires connected to L1(L), L2, L3 (N), T1, T2, T3, P and N. Choose cable in
accordance with the following criteria:
(1) Use cable with copper cores only. Select cable with insulation diameter based on working
conditions at 105P
o
PC.
(2) For nominal voltage ratings, use cable rated at minimum 300V for 240Vac iDrives and
600V rated cable for 480Vac iDrives.
C. Control cables:
Control cables are connected to TM2 control terminals. Choose cable in accordance with the
following criteria:
(1) Use cable with copper cores only. Select cable with insulation diameter based on working
conditions at 105P
o
PC.
(2) For nominal voltage ratings, use cable rated at minimum 300V for 240Vac iDrives and
600V rated cable for 480Vac iDrives.
(3) To avoid noise interference, do not run control cables in the same conduit or trunking as
power cables.
D. Nominal electrical specifications of terminal block TM1:
KW Horsepower Power source Volts Amps
0.2 / 0.4 / 0.75 0.25 / 0.5 / 1 100-120V
0.2 / 0.4 / 0.75 0.25 / 0.5 / 1 200-240V 600 15
1.5 / 2.2 2 / 3 200-240V
0.75 / 1.5 / 2.2 1 / 2 / 3 380-480V 600 40

Chapter 3 Environment description and installation
3-8
E. Fuse types
Drive input fuses are necessary to disconnect the drive from the power supply in the event of component failure in
the drive’s power input circuit. The iDrive’s electronic protection circuitry is designed to clear output short circuits
and ground faults without blowing the input fuses. The table below shows the iDrive EDX input fuse ratings.
To protect the inverter most effectively, use fuses with current-limit function.
It is the responsibility of the user/installer to ensure that the correct fuse protection (or other) is applied.
RK5, CC/T TYPE FUSES FOR EDX
110V class(1φ)
EDX- HP KW KVA 100% CONT
Output AMPS (A)
Max.RK5
FUSE Rating(A)
Max.CC or T
FUSE Rating(A)
020-11 0.25 0.2 0.53 1.7 10 20
040-11 0.5 0.4 0.88 3.1 15 30
075-11 1 0.75 1.6 4.2 20 40
220V class(1φ)
EDX- HP KW KVA 100% CONT
Output AMPS (A)
Max.RK5
FUSE Rating(A)
Max.CC or T
FUSE Rating(A)
020-21 0.25 0.2 0.53 1.7 8 15
040-21 0.5 0.4 0.88 3.1 10 20
075-21 1 0.75 1.6 4.2 15 30
150-21 2 1.5 2.9 7.5 20 40
2.2-21 3 2.2 4.0 10.5 25 50
220V class(3φ)
EDX- HP KW KVA 100% CONT
Output AMPS (A)
Max.RK5
FUSE Rating(A)
Max.CC or T
FUSE Rating(A)
020-23 0.25 0.2 0.53 1.7 5 8
040-23 0.5 0.4 0.88 3.1 8 10
075-23 1 0.75 1.6 4.2 12 15
150-23 2 1.5 2.9 7.5 15 20
220-23 3 2.2 4.0 10.5 20 30
440V class(3φ)
EDX-- HP KW KVA 100% CONT
Output AMPS (A)
Max.RK5
FUSE Rating(A)
Max.CC or T
FUSE Rating(A)
075-43 1 0.75 1.7 2.3 6 10
150-43 2 1.5 2.9 3.8 10 15
220-43 3 2.2 4.0 5.2 10 20
UL class fuses have different overload characteristics.
RK5 - type has a time delay characteristic
T-type is quick-blow
CC – type have both types of characteristic
*Fuse ratings are based upon 250V fuses for 120V inverters, and 300V fuses for 240V inverters, and 600V
for 480V inverters.

Chapter 3 Environment description and installation
3-9
3.3.2 MC, MCCB, Fuse and cable specifications.
MCCB/ MC/ Fuse
IMO warranty will not apply under the following condition.
(1) MCCB or fuse is not installed or incorrectly installed or installed with over
capacity, which has resulted in inverter failure.
(2) MC or capacitor or surge absorber is connected in series between inverter
and motor.
iDrive EDX model ###-11/21/43 (-E) ###-43(-E)
020-11/040-11
040-11/040-21
075-21
075-23 150-23 220-23 075/150/220
Fuse 10A
300Vac
16A
300Vac
20A
300Vac 16A/600Vac
MCCB 10A 20A 32A 16A
MC
(from IMO) MC14-S MC18-S MC32-S MC18-S
Power terminals
(TM1/TM3)
Cable dimension
2.5mmP
2
P(13AWG.)
Terminal screw
M4
Cable dimension
4mmP
2
(11AWG)
Terminal screw
M4
Cable dimension
2.5mmP
2
P(13AWG)
Terminal screw
M4
Control terminals
(TM2) Cable dimension 0.75mmP
2
P(18AWG) Terminal screw M3
Use a single fuse for 1-phase input inverter models.
For 3-phase input models, each L1(L)/L2/L3(N) phase must be fused.
Select suitable three-phase squirrel cage induction motor for inverter.
If an inverter drives mote than one motor in parallel, the total operating current should be less
than the inverter rated current.
Suitable thermistor should be installed on each motor.
Do not install capacitor, LC, RC between inverter and motor.

Chapter 3 Environment description and installation
3-10
3.3.3 Ancillary power equipment – supply side:
Power supply:
Make sure the voltage applied is correct to avoid damaging the
inverter.
If possible install a suitable moulded-case circuit breaker
between the AC power source and the inverter.
Moulded-case circuit breaker MCCB:
If possible use a moulded-case circuit breaker that conforms to
the rated voltage and current of the inverter to control the power
ON/OFF and protect the inverter.
Do not use the inverter as the switch for run/stop switching.
Fuse:
Asuitable rated fuse(s) should be installed between the inverter and
the AC power source to protect inverter if a MCCB has not been used.
Earth Leakage circuit breaker ELCB / RCD:
If required, install an RCD to prevent error operation caused by
leakage current and to protect operators. If possible use trip
current range >200mA and action time >0.1 seconds.
Magnetic contactor MC:
If required use a suitably rated magnetic contactor. But a
contactor has to be installed when performing functions such as
external control and auto restart after power failure, or when
using brake controller.
Do not use the magnetic contactor as the run/stop switch for the
inverter.
AC Reactor for power improvement ACR:
When inverters are supplied with high capacity (above
600KVA) power source, an AC reactor can be installed between
the inverter and theAC power souce to improve Power Factor and
reduce harmonic currents. Can also be used on the motor side
when cable is very long. See next page.
EMC filter:
Standard iDrive EDX inverters have an integrated EMC filter to
reduce electromagnetic interference to other equipment connected
to the same ACA power supply.
Inverter:
Output terminals T1, T2, and T3 are connected to U, V, and W
terminals of the motor.
To avoid damaging the inverter, do not connect the input
terminals T1, T2, and T3 to AC power.
