IBA ibaDeskline SAS User manual

ibaDeskline SAS
iba Industrial Computer
Manual
Issue 1.3

2
Issue 1.3
Manufacturer
iba AG
Koenigswarterstr. 44
90762 Fuerth
Germany
Contacts
Main office
[phone]
Fax
[phone]
Support
[phone]
Engineering
[phone]
E-Mail: [e-mail]
Web: www.iba-ag.com
This manual must not be circulated or copied, or its contents utilized and disseminated,
without our express written permission. Any breach or infringement of this provision will
result in liability for damages.
©iba AG 2017, All Rights Reserved
The content of this publication has been checked for compliance with the described hard-
ware and software. Nevertheless, deviations cannot be excluded completely so that the
full compliance is not guaranteed. However, the information in this publication is updated
regularly. Required corrections are contained in the following regulations orcan be down-
loaded on the Internet.
The current version is available for download on our web site http://www.iba-ag.com.
Windows® is a label and registered trademark of the Microsoft Corporation. Other prod-
uct and company names mentioned in this manual can be labels or registered trade-
marks of the corresponding owners.
Certification
The device is certified according to the European standards and directives. This device
corresponds to the general safety and health requirements. Further international cus-
tomary standards and directives have been observed.
Issue
Date
Revision
Chapter
Author
Version
HW / FW
1.3
08/13/2017
ibaDeskline versions with SSD disk,
ibaOut-State
5.5
st

Manual
ibaDeskline SAS
Issue 1.3
3
Table of contents
1About this manual...........................................................................................5
1.1 Target group ..................................................................................................5
1.2 Notations.......................................................................................................5
1.3 Used symbols................................................................................................6
2Scope of delivery ............................................................................................7
3Versions...........................................................................................................8
3.1 Factory setting...............................................................................................8
4Safety instructions..........................................................................................9
4.1 Designated use..............................................................................................9
4.2 Proper installation site ...................................................................................9
5Description ....................................................................................................10
5.1 Front view....................................................................................................10
5.2 Top view ......................................................................................................11
5.3 Rear view ....................................................................................................12
5.3.1 Standard system version .............................................................................12
5.3.2 Version with redundant power supply...........................................................14
5.4 Internal view ................................................................................................15
5.5 Error monitoring...........................................................................................17
5.5.1 ibaOut-Temp................................................................................................18
5.5.2 ibaOut-State ................................................................................................19
6Installation, connection and first switching on..........................................20
6.1 Safety instructions .......................................................................................20
6.2 Setting up....................................................................................................20
6.3 Connection and first switching on ................................................................21
7Installation of measuring or additional boards ..........................................22
7.1 Safety instructions and notes.......................................................................22
7.2 Basic procedure...........................................................................................22
7.3 Opening the device......................................................................................23
7.4 Installing special graphic card......................................................................23
8Maintenance work.........................................................................................25
8.1 Basic procedure...........................................................................................25
8.2 Power supply slide-in module for replacement of redundant power supply
unit..............................................................................................................25
8.3 Restoring of a RAID system during operation..............................................26
9Installing operating system and iba software ............................................31
9.1 Installation ...................................................................................................31

Manual
ibaDeskline SAS
4
Issue 1.3
9.2 Installing Windows Embedded Standard 7 or Windows Server 2008 with
the Recovery DVD.......................................................................................31
9.2.1 General.......................................................................................................31
9.2.2 Select the language.....................................................................................32
9.2.3 Enter the product key..................................................................................32
9.2.4 Partitioning..................................................................................................33
9.2.5 Completing installation ................................................................................37
9.3 Windows Updates .......................................................................................38
9.4 Antivirus Software .......................................................................................38
9.5 Installing iba software..................................................................................38
10 Device dimensions....................................................................................... 39
11 Technical data............................................................................................... 40
11.1 Main data ....................................................................................................40
11.2 Electronic components and interfaces.........................................................41
11.3 Products......................................................................................................42
12 Support and contact..................................................................................... 43

ibaDeskline SAS
Manual
Issue 1.3
5
1 About this manual
This manual describes the construction, the use and the operation of the industrial PC
ibaDeskline SAS.
1.1 Target group
This manual addresses in particular thequalified professionals who are familiar with han-
dling electrical andelectronic modules aswell as communication andmeasurement tech-
nology. A person is regarded to as professional if he/she is capable of assessing safety
and recognizing possible consequences and risks on the basis of his/her specialist train-
ing, knowledge and experience and knowledge of the standard regulations.
1.2 Notations
The following designations are used in this manual:
Action
Notations
Menu command
Menu Logic diagram
Call of menu command
Step 1 –Step 2 –Step 3 –Step x
Example:
Select menu Logic diagram –Add –New logic dia-
gram
Keys
<Key name>
Example: <Alt>; <F1>
Press keys simultaneously
<Key name> + <Key name>
Example:
<Alt> + <Ctrl>
Buttons
<Button name>
Example:
<OK>; <Cancel>
File names, Paths
„File name“, „Path”
Example:
„Test.doc“

Manual
ibaDeskline SAS
6
Issue 1.3
1.3 Used symbols
If safety instructions or other notes are used in this manual, they mean:
The non-observance of this safety information may result in an imminent risk of death or
severe injury:
By an electric shock!
Due to the improper handling of software products which are coupled to input and
output procedures with control function!
The non-observance of this safety information may result in a potential risk of death or
severe injury!
The non-observance of this safety information may result in a potential risk of injury or
material damage!
Note
A note specifies special requirements or actions to be observed.
Important note
Note if some special features must be observed, for example exceptions from the rule.
Tip
Tip or example as a helpful note or insider tip to make the work a little bit easier.
Other documentation
Reference to additional documentation or further reading.

ibaDeskline SAS
Manual
Issue 1.3
7
2 Scope of delivery
After unpacking check the completeness and intactness of the delivery.
The scope of delivery includes:
Industrial Computer ibaDeskline SAS
USB keyboard with PS2 adapter (PS2 + USB)
Mouse (USB/PS2), optical
Mains cable
Documentation
For installed special graphic card there is an additional DVI/VGAadapter cable
ibaSoftware license key (when a software was ordered)
The documentation contains:
Manual
Subcontractors' documentation
Software (Operating system Windows Embedded Standard 7 or Windows Server
2008/2012 (R2))
Recovery DVD (for the ordered Windows version and all associated operating sys-
tem parameters)
ibaSoftware, optional order
Hardware driver (motherboard, VGA card)
1 ibaSoftware license key (dongle), optional with ibaSoftware product
Serial number (iba-S/N)

Manual
ibaDeskline SAS
8
Issue 1.3
3 Versions
ibaDeskline SAS (Xeon E3, Win7 64 Bit, PCIe) with one hard disk, can be upgraded
with up to 7 further hard disks
ibaDeskline SAS PCI (Core2Quad 9400, Win7 64 Bit, PCI) with one hard disk, can
be upgraded with up to 7 further hard disks
Enhancement options:
RAID 1 system with 2 hard disks, 1 redundant power supply unit
Data are mirrored.
RAID 6 system with 8 hard disks, 1 redundant power supply unit
The net volume corresponds to the volume of approx. 6 hard disks with simultane-
ous high performance and system stability against failure.
Server system with Windows Server 2008/2012 (R2)
ibaDeskline with Windows 10 (on request)
ibaDeskline with SSD disk (on request)
SSD (for upgrade)
Upgrade to RAID1 system for ibaDeskline with SSD
3.1 Factory setting
In delivery state, 2 users with or without password are configured:
User
Password
pda
-
Administrator
xadmin
Important note
Change the preconfigured passwords after starting-up the PC. This way, unauthorized
usage will be impeded.

ibaDeskline SAS
Manual
Issue 1.3
9
4 Safety instructions
4.1 Designated use
The device may be used only for the following applications:
Machine test and commissioning of industrial systems
Measurement data logging and analysis
Applications of ibaSoftware products (ibaPDA, ibaLogic etc.)
4.2 Proper installation site
According to manufacturer's specifications the device can only be installed on an even
non-slip installation surface, for example table or rack.
Electric Shock!
Before opening the device disconnect it from themains and pull out the mains plug from
the socket equipped with earthing contact!
Never use the device with a damaged mains cable!
Before opening the device disconnect it from the mains by unplugging the cable from
the socket equipped with an earthing contact andwait for several minutes until the com-
ponents have cooled down! Thus you will avoid injuries due to the electric shock or
burns!
Connect the device to one supply voltage only according to specifications on the built-
in power supply unit!
Always use a socket equipped with earthing contact! Use a terminal strip with overvolt-
age protection or an uninterruptible power supply (UPS)!
Always connect the device to earthed power networks (TN-networks according to VDE
0100 Part 300 and IEC 60364-3)! The operation via ungrounded networks or networks
(IT networks) earthed via impedance is not permitted!
In case of faults, a defective device or a possible defect pull out the mains plug from the
socket equipped with earthing contact!
Never put a damaged device into operation!
Pay attention to sharp edges in the housing!
Never switch off the device by means of the mains switch without previous shutdown of
the device.
Electrostatic discharge!
Touch the components only in electrostatically discharged state!

Manual
ibaDeskline SAS
10
Issue 1.3
5 Description

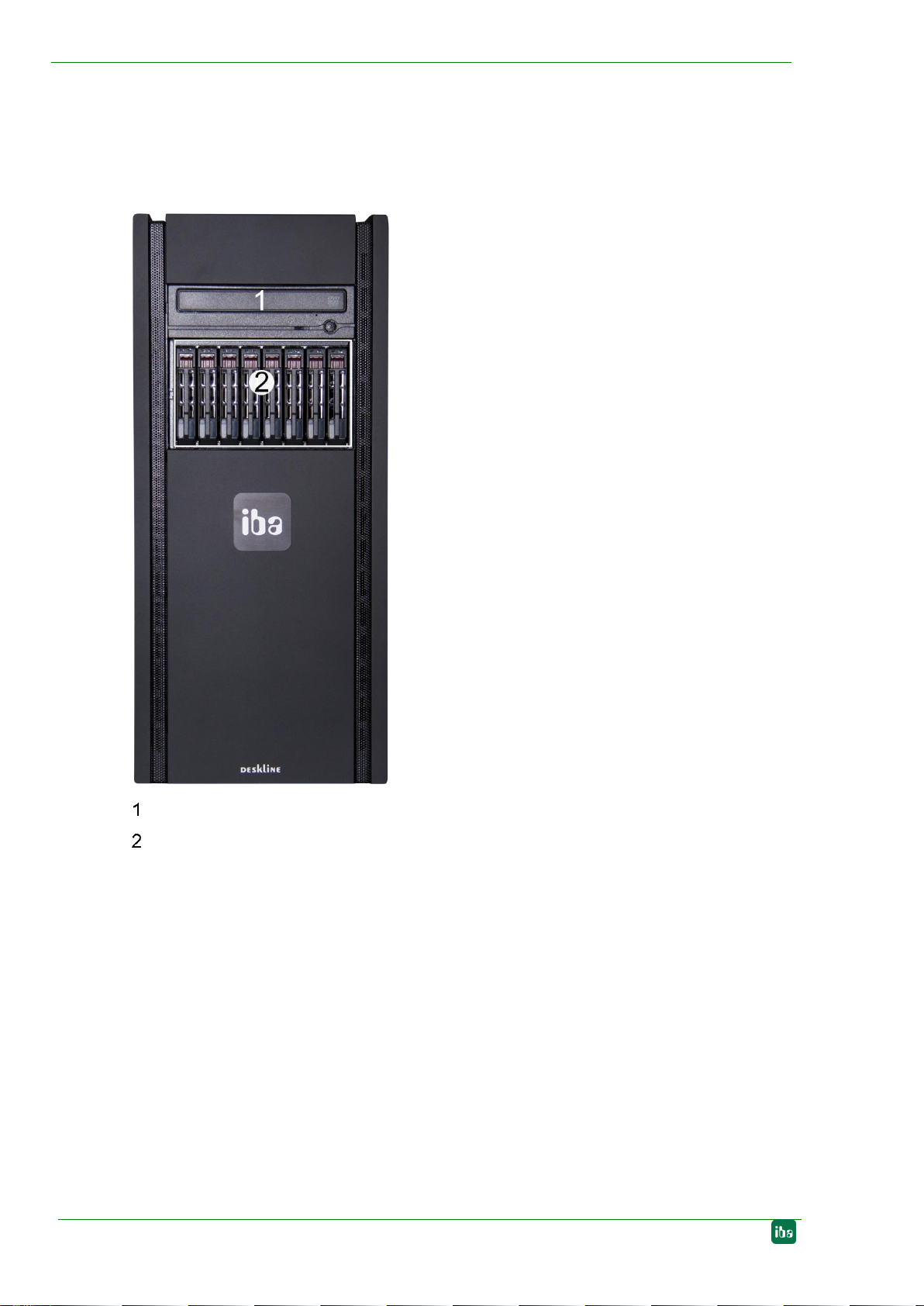

5.1 Front view
ibaDeskline / ibaDeskline PCI
Optical drive with integrated writing function
Plug-in slots for hard disks

ibaDeskline SAS
Manual
Issue 1.3
11
5.2 Top view
ibaDeskline
1 USB 2.0 interfaces
2 USB 3.0 interfaces
3 Headset interface
4 Microphone interface
5 Power button
6 Reset button
ibaDeskline PCI
1 + 2 USB 2.0 interfaces
3 Headset interface
4 Microphone interface
5 Power button
6 Reset button

Manual
ibaDeskline SAS
12
Issue 1.3

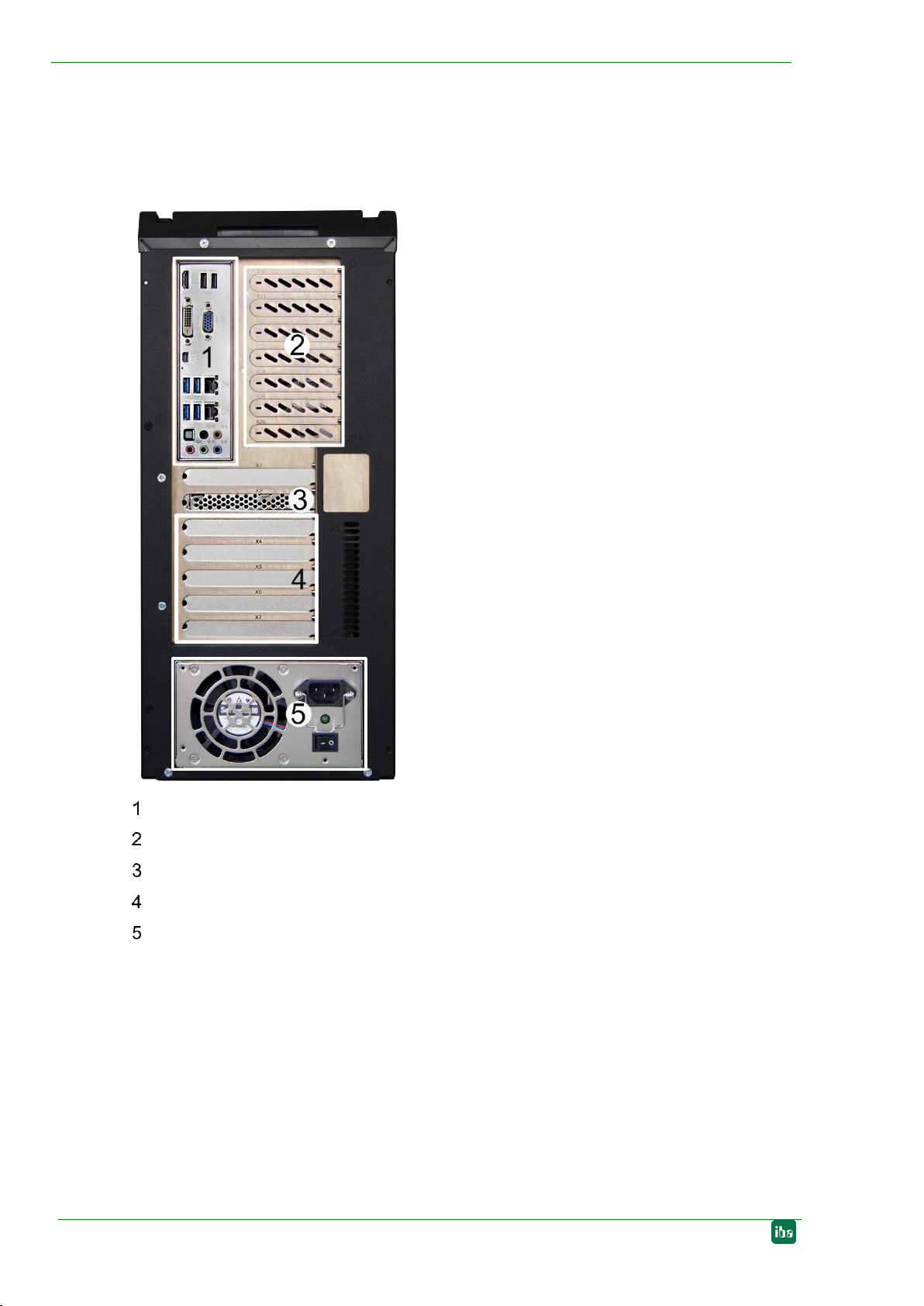

5.3 Rear view
5.3.1 Standard system version
ibaDeskline
Connections for external devices (keyboard, mouse, network etc.)
Slots X21 to X26 (for low-profile iba cards)
Slot X2 for hard disk controller
Slots X3 to X7 (PCIe)
Power supply with switch and panel plug for non-heating appliances

ibaDeskline SAS
Manual
Issue 1.3
13
ibaDeskline PCI
Connections for external devices (keyboard, mouse, network etc.)
Slots X21 to X26 (for low-profile iba cards)
Slot X1 for hard disk controller
Slots X2, X4 to X7 (PCI), whereas X3 (PCIe) for special graphic card
Power supply with switch and panel plug for non-heating appliances

Manual
ibaDeskline SAS
14
Issue 1.3
5.3.2 Version with redundant power supply
RAID systems are equipped with a redundant power supply unit. ibaDeskline is shown
as example below.
Connections for external devices (keyboard, mouse, network etc.)
Slots X21 to X26 (for low-profile iba cards, e. g. output connections of FOB-4i cards)
Slot X2 for hard disk controller
Slots X3 to X7 (PCIe)
2x Power supply with switch and panel plug for non-heating appliances, replaceable

ibaDeskline SAS
Manual
Issue 1.3
15
5.4 Internal view
ibaDeskline
Power supply unit (redundant for RAID systems)
PCIe slots
Hard disk controller
Slots for low-profile iba cards
Drive bracket
Fan ( Ø 12 cm)
Internal USB port (dongle)

Manual
ibaDeskline SAS
16
Issue 1.3

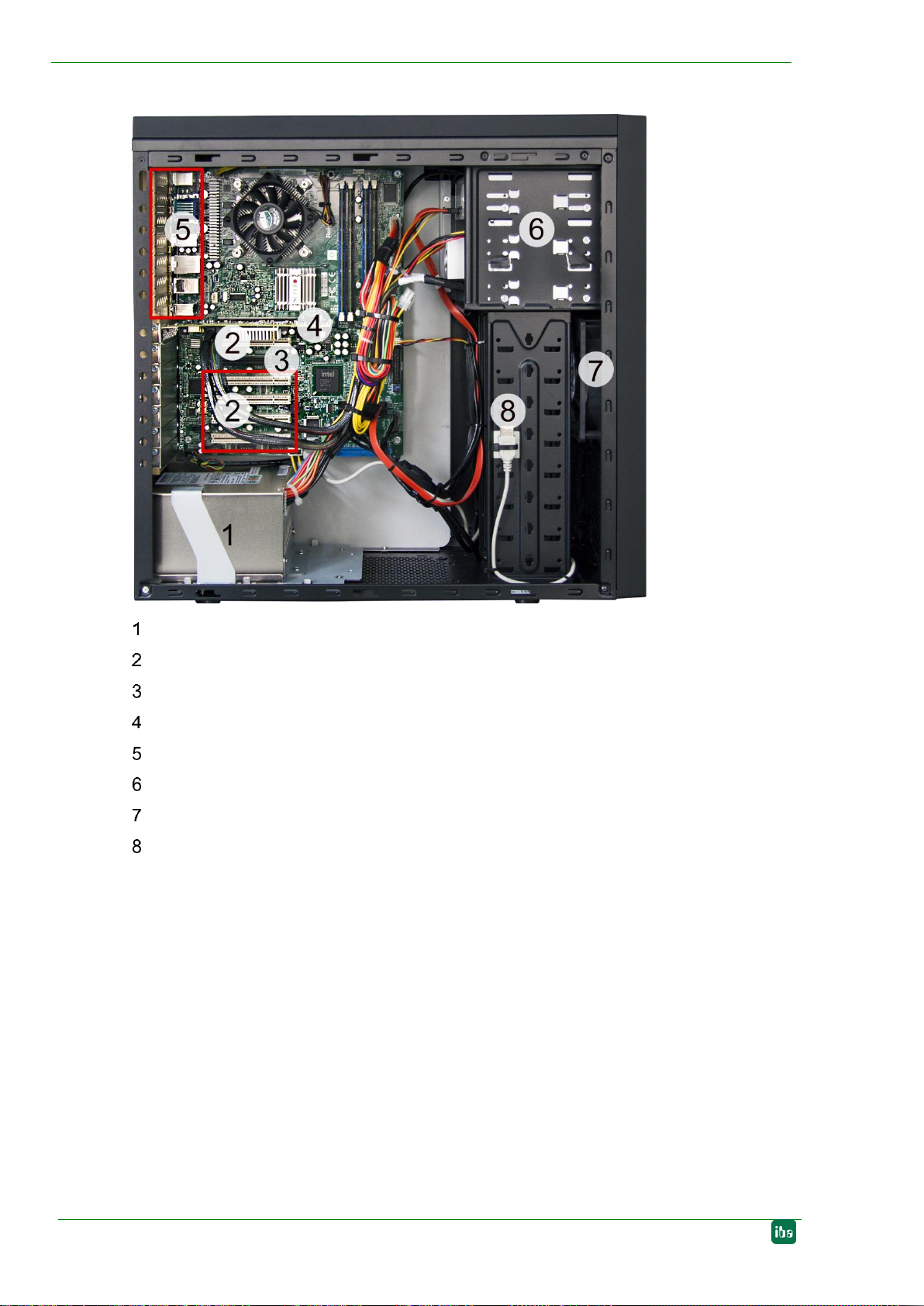

ibaDeskline PCI
Power supply unit (redundant for RAID systems)
PCI slots
Special graphic card, optional
Hard disk controller
Slots for low-profile iba cards
Drive bracket
Fan ( Ø 12 cm)
Internal USB port (dongle)

ibaDeskline SAS
Manual
Issue 1.3
17
5.5 Error monitoring
The temperature and the status of the power supply unit can be monitored with the slot
cards ibaOut-Temp and ibaOut-State. The cards can be ordered separately as acces-
sory. If the card is ordered with ibaDeskline, it is installed by default in slot X21.
Note
The subsequent installation of a card is carried out according to the installation in an
ibaRackline computer. Please refer to the ibaRackline manual.
The status of temperature and power supply unit are indicated each with a bicolored
LED.
LED
Status
Description
TEMP
green
red
Temperature OK
Overtemperature
POWER
green
red
Power supply OK
Power supply error
Redundant power supply: error in one of the two power
supply units

Manual
ibaDeskline SAS
18
Issue 1.3
5.5.1 ibaOut-Temp
ibaOut-Temp provides two relay outputs for temperature and power supply (2-pin con-
nector), which can be used to indicate errors. Both error types are indicated separately.
The switch position of the outputs is as follows:
Status
Switch POWER
Switch TEMP
Power off or power error
closed
open
Power OK, temperature OK
open
open
Power OK, overtemperature
open
closed
Contact loading capacity
Nominal current: 400 mA
Nominal voltage: 60 V
Compatibility to previous models
ibaDeskline computers of older type series provide only one relay output for error indi-
cation. The relay contact is closed when an error occurs, without differentiating between
overtemperature or a power supply error.
ibaOut-Temp can be used in the same way, when both outputs are connected to one
output (parallel circuit).

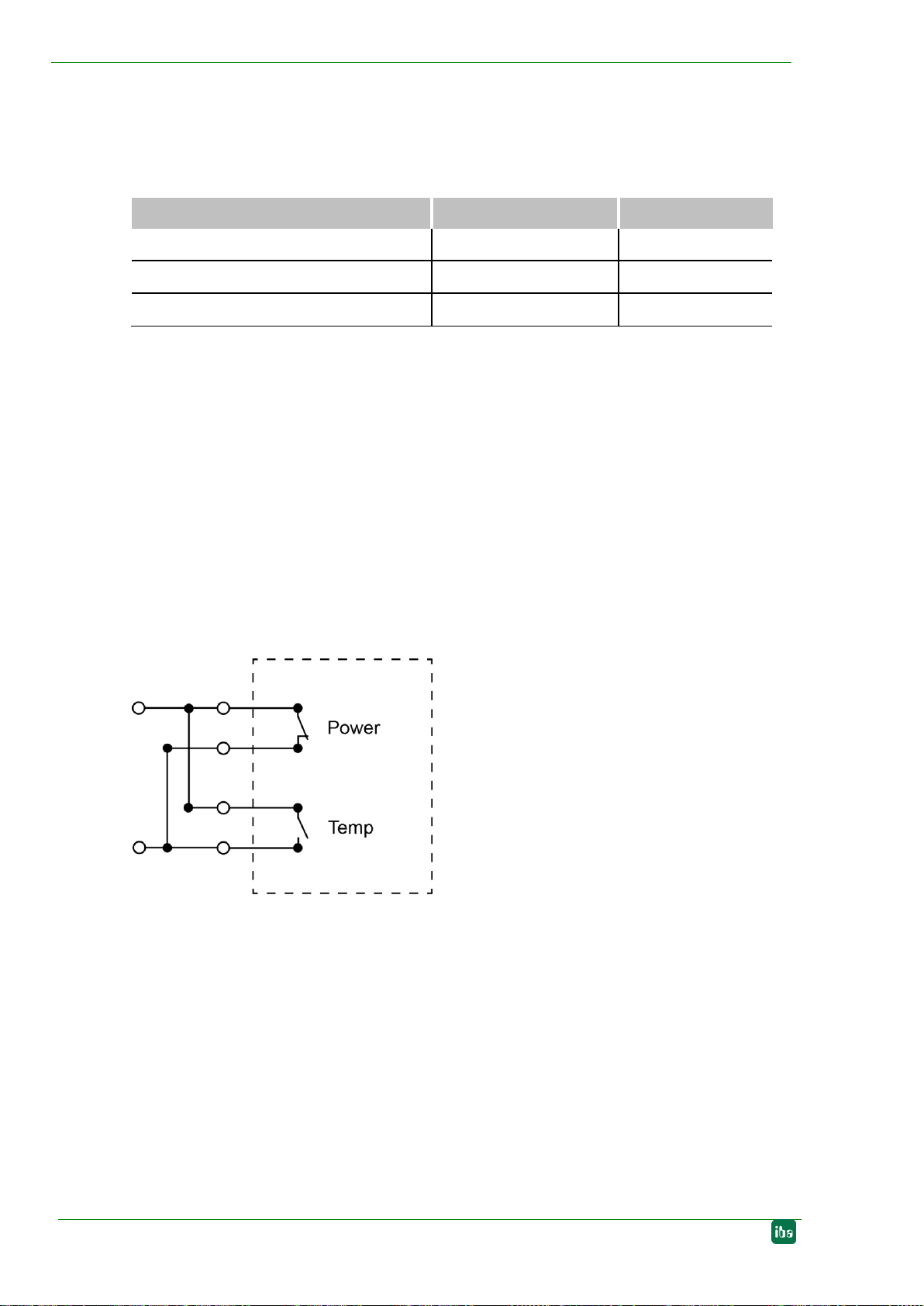

Wiring diagram of the parallel circuit:

ibaDeskline SAS
Manual
Issue 1.3
19
5.5.2 ibaOut-State
ibaOut-State provides an output (6-pin connector) which can be used to indicate errors.
Both error types are indicated separately.
These are the switch positions:
Switch
state
switch
state
Power OK,
temperature OK
Power off or
Power error and
overtemperature
Power error,
temperature OK
Power OK,
overtemperature
Contact loading capacity
Nominal current: 300 mA
Nominal voltage: 220 V DC
Compatibility to previous ibaRackline models
The behavior of ibaOut-State is identical with the previous models with a relay output, if
pin 5 and 6 are used. The relay contact of the previous ibaRackline models is closed
when an error occurs, without differentiating between overtemperature ora power supply
error.

Manual
ibaDeskline SAS
20
Issue 1.3
6 Installation, connection and first switching on
6.1 Safety instructions
Electric Shock!
Never use the device with a damaged mains cable!
Connect the device to one supply voltage only according to specifications on the built-
in power supply unit!
Always use a socket equipped with earthing contact! Use a terminal strip with overvolt-
age protection or an uninterruptible power supply (UPS)!
Connect the device only to earthed power networks (TN-networks according to
VDE 0100 Part 300 or IEC 60364-3)!
The operation via ungrounded networks or networks (IT networks) earthed via imped-
ance is not permitted!
Never put a damaged device into operation!
6.2 Setting up
Place the device only in the location which has the following properties:
Stationary
Shock-free
In the protected room, for example switch cabinet
Dust-free and dry environment
Even and non-slip base
Note
If you embed the device, observe the minimum bending radii of the cables and lines.
The mounting clearance must be at least 150 mm from the rear wall.
Ensure sufficient air circulation.
