IBA ibaRackline User manual

ibaRackline
iba Industrial Computer
Manual
Issue 1.16

Manufacturer
iba AG
Königswarterstr. 44
90762 Fürth
Germany
Contacts
Main office [phone]
Fax [phone]
Support [phone]
Engineering [phone]
E-Mail: [e-mail]
Web: www.iba-ag.com
This manual must not be circulated or copied, or its contents utilized and disseminated,
without our express written permission. Any breach or infringement of this provision will
result in liability for damages.
©iba AG 2021, All Rights Reserved
The content of this publication has been checked for compliance with the described
hardware and software. Nevertheless, deviations cannot be excluded completely so
that the full compliance is not guaranteed. However, the information in this publication
is updated regularly. Required corrections are contained in the following regulations or
can be downloaded on the Internet.
The current version is available for download on our web site http://www.iba-ag.com.
Windows® is a label and registered trademark of the Microsoft Corporation. Other
product and company names mentioned in this manual can be labels or registered
trademarks of the corresponding owners.
Certification
The device is certified according to the European standards and directives. This device
corresponds to the general safety and health requirements. Further international cus-
tomary standards and directives have been observed.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual may cause harmful interference to radio
communications. Operation of this equipment in residential area is likely to cause harmfulinterference in which case the
user will be required to correct the interference at his own expense.
Issue
Date
Revision
Chapter
Author
Version HW /
FW
1.16
03-2021
New motherboard

ibaRackline Manual
Issue 1.16 3
Table of contents
1About this manual ...........................................................................................5
1.1 Target group.................................................................................................. 5
1.2 Designations ................................................................................................. 5
1.3 Symbols used................................................................................................ 6
2Scope of delivery.............................................................................................7
3Versions ...........................................................................................................8
3.1 Factory setting............................................................................................... 8
4Safety instructions ..........................................................................................9
4.1 Designated use ............................................................................................. 9
4.2 Proper installation site................................................................................... 9
5Description ....................................................................................................10
5.1 Front view ................................................................................................... 10

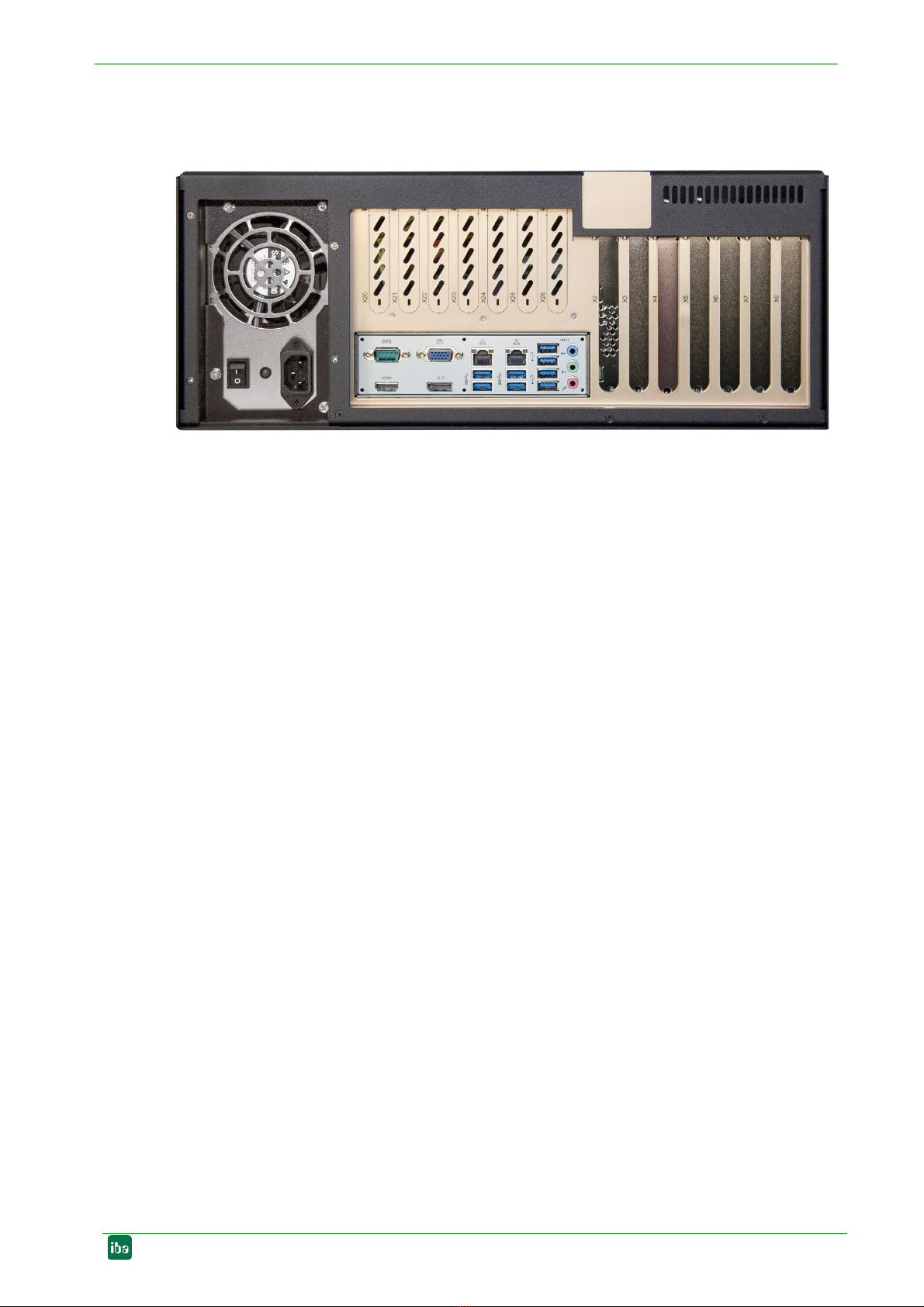

5.2 Rear view.................................................................................................... 11
5.2.1 Standard system version............................................................................. 11
5.2.2 Version with redundant Power Supply (e.g. RAID system) .......................... 11
5.3 Internal view................................................................................................ 12
5.4 Error monitoring .......................................................................................... 13
5.4.1 ibaOut-Te mp ................................................................................................ 13
5.4.2 ibaOut-State................................................................................................ 14
5.5 Default installation position for cards ........................................................... 15
6Installation, connection and first switching on ..........................................16
6.1 Safety instructions....................................................................................... 16
6.2 lnstallation ................................................................................................... 16
6.3 Connection and first switching on................................................................ 16
7Installation of measuring or additional boards...........................................17
7.1 Safety instructions and notes ...................................................................... 17
7.2 Basic procedure .......................................................................................... 17
7.3 Opening the device ..................................................................................... 18
7.4 Installing ibaOut-Temp/ibaOut-State............................................................ 19
7.5 Installing additional fan................................................................................ 22
8Maintenance work .........................................................................................25
8.1 Basic procedure .......................................................................................... 25
8.2 Cleaning or replacing the dust filter ............................................................. 25
8.3 Cleaning and replacing the fan.................................................................... 26
8.4 Replacing the power supply unit.................................................................. 26
8.4.1 Replacing the standard ATX power supply unit............................................ 27
8.4.2 Power supply slide-in module for replacement of redundant
power supply unit ........................................................................................ 28
8.4.3 Replacing the complete redundant power supply unit.................................. 28
8.5 Restoring of a RAID system during operation.............................................. 31
9Installing operating system and iba software.............................................36
9.1 Installation................................................................................................... 36

Manual ibaRackline
4 Issue 1.16
9.2 Installing Windows from the recovery medium ............................................ 36
9.2.1 General....................................................................................................... 36
9.2.2 Select the language .................................................................................... 37
9.2.3 Enter the product key.................................................................................. 37
9.2.4 Partitioning.................................................................................................. 37
9.2.5 Completing installation ................................................................................ 39
9.3 Windows Updates ....................................................................................... 40
9.4 Antivirus Software ....................................................................................... 40
9.5 Installing iba software.................................................................................. 40
10 Device dimensions ....................................................................................... 41
11 Technical data ............................................................................................... 42
11.1 Main data .................................................................................................... 42
11.2 Electronic components and interfaces......................................................... 43
11.3 Products...................................................................................................... 44
12 Support and contact ..................................................................................... 45

ibaRackline Manual
Issue 1.16 5
1 About this manual
This manual describes operation of the industrial PC ibaRackline.
1.1 Target group
This manual addresses in particular the qualified professionals who are familiar with han-
dling electrical and electronic modules as well as communication and measurement tech-
nology. A person is regarded to as professional if he/she is capable of assessing safety
and recognizing possible consequences and risks on the basis of his/her specialist train-
ing, knowledge and experience and knowledge of the standard regulations.
1.2 Designations
The following designations are used in this manual:
Action Designations
Menu command Menu Logic diagram
Call of menu command Step 1 – Step 2 – Step 3 – Step x
Example:
Select menu „Logic diagram – Add –
New logic
diagram
Keys <Key name>
Example: <Alt>; <F1>
Press keys simultaneously <Key name> + <Key name>
Example:
<Alt> + <Ctrl>
Buttons <Button name>
Example:
<OK>; <Cancel>
File names, Paths „File name“, „Path”
Example:
„Test.doc“

Manual ibaRackline
6 Issue 1.16
1.3 Symbols used
If safety instructions or other information are used in this manual, they mean:
The non
-observance of this
safety information may result in an imminent risk of death or
severe injury:
-
By an electric shock!
-
Due to the improper handling of iba software products which are coupled to input and
output procedures with control function!
If you do not observe the safety instructions regarding the process and the system or
machine to be controlled, there is a risk of death or severe injury!
The non
-
observance of this safety information may result in a potential risk of death or
severe injury!
The
non-observance of this safety information may result in a potential risk of injury or
material damage!
Note
An information indicates special requirements or actions to be observed.
Important Note
Information that a special indication has to be observed, e.g. exceptions from the general
rule.
Tip
Tip or example which serves as helpful information or a trick to facilitate the work.
Other documentation
Reference to supplementary documentation or further literature.

ibaRackline Manual
Issue 1.16 7
2 Scope of delivery
After unpacking check the completeness and intactness of the delivery.
The scope of delivery includes:
Industrial Computer ibaRackline
Keyboard
Mouse, optical
Mains cable
Documentation (DVD)
The documentation contains:
Manual (pdf)
Subcontractors' documentation (pdf)
Windows 10 Enterprise Long-Te r m-Servicing Version or Windows Server Version
Recovery DVD (for the ordered Windows version and all associated operating sys-
tem parameters)
iba software, optional order
Hardware driver (motherboard, graphic card)
1 iba software license key (dongle), optional with iba software product and installed
inside of the device on request of the client
Serial number (iba-S/N)

Manual ibaRackline
8 Issue 1.16
3 Versions
ibaRackline (Xeon E, Windows 10 IoT Enterprise Long-Te r m-Servicing Version)
with one hard disk, can be upgraded with up to 7 further hard disks
Enhancement options:
RAID 1 system with 2 hard disks, 1 redundant power supply unit
(The data are mirrored.)
RAID 6 system with 8 hard disks, 1 redundant power supply unit
(The net volume corresponds to the volume of approx. 6 hard disks with simultane-
ous high performance and system stability against failure.)
Server system with Windows Server 2016 or later
ibaRackline with Windows 10
ibaRackline with SSD disk
SSD (for upgrade)
Upgrade to RAID1 system for ibaRackline with SSD
3.1 Factory setting
In delivery state, 2 users with or without password are configured:
User Password
pda
-
Administrator
xadmin
Important note
Change the preconfigured passwords after
starting-up the PC.
This way, unauthorized
usage will be impeded.

ibaRackline Manual
Issue 1.16 9
4 Safety instructions
4.1 Designated use
The device may be used only for the following applications:
Machine test and commissioning of industrial systems
Measurement data logging and analysis
Applications of iba software products (ibaPDA, ibaLogic etc.)
4.2 Proper installation site
The device can be installed only according to manufacturer's specifications:
19“ cabinet
19“ rack line
According to manufacturer's specifications the device can only be installed on an even
non-slip installation surface, for example table or rack.
Electric Shock!
Before opening the device disconnect it from the mains and pull out the mains plug from
the socket equipped with earthing contact!
Never use the device with a damaged mains
cable!
Before opening the device disconnect it from the mains by unplugging the cable from
the socket equipped with an earthing contact and wait for several minutes until the com-
ponents have cooled down! Thus you will avoid injuries due to the electric
shock or
burns!
Connect the device to one supply voltage only according to specifications on the built-
in power supply unit!
Always use a socket equipped with earthing contact! Use a terminal strip with overvolt-
age protection or an uninterruptible power
supply (UPS)!
Always connect the device to earthed power networks (TN
-
networks according to VDE
0100 Part 300 and IEC 60364
-
3)! The operation via ungrounded networks or networks
(IT networks) earthed via impedance is not permitted!
In case of faults, a defective device or a possible defect pull out the mains plug from the
socket equipped with earthing contact!
Never put a damaged device into operation!
Pay attention to sharp edges in the housing!
Never switch off the device by means of the mains switch without previous shutdown of
the device.
Electrostatic discharge!
Touch the components only in electrostatically discharged state!

Manual ibaRackline
10 Issue 1.16
5 Description
5.1 Front view
ibaRackline
(Image without cover panels)
Fan (can be replaced from the front)
USB interface for hidden dongle mounting
USB interface
LEDs (hard disk indicators)
Reset button
Power button
Optical drive with integrated writing function
Plug-in slots for hard disks
Note
On delivery of the device the iba
s
oftware license key is in the documentation or on
client's request plugged
-in in the device.
Display elements
The display consists of 2 LEDs:
LED 1: HDD1 (hard disk 1)
LED 2: HDD2 (hard disk 2)
The hard disk controller is connected to the LED 1 and lights up green in case of hard
disk activity.
The LED 2 is connected only for the RAID systems.

ibaRackline Manual
Issue 1.16 11
5.2 Rear view
5.2.1 Standard system version
ibaRackline
Power supply with switch and panel plug for non-heating appliances
Slots X20 to X26 (iba-cards for rackline slot, e.g. output connection for
ibaFOB-i cards)
Connections for external devices (keyboard, mouse, network etc.)
Hard disk controller
Slots X3 to X7 (PCIe)
Slot X8 (PCI)
5.2.2 Version with redundant Power Supply (e.g. RAID system)
RAID systems are equipped with a redundant power supply unit.
2x Power supply with switch and panel plug for non-heating appliances, replaceable
Slots X20 to X26 (iba-cards for rackline slot, e.g. output connection for
ibaFOB-i cards)
Connections for external devices (keyboard, mouse, network etc.)
Hard disk controller
Slots X3 to X7 (PCIe)
Slot X8 (PCI)

Manual ibaRackline
12 Issue 1.16
5.3 Internal view
ibaRackline
5x PCI Express slots, 1x PCI slot
Hard disk controller
Slots for iba-cards for rackline slot or additional fan (as option)
Power supply unit (for RAID systems redundant)
Drive frame
Fan ( Ø 12 cm), mounting angle for redundant power supply unit
Additional fan (as option)
Hold-down clamp

ibaRackline Manual
Issue 1.16 13
5.4 Error monitoring
Example: ibaOut-Temp card installed in a RAID system
The temperature and the status of the power supply unit can be monitored with the slot
cards ibaOut-Te mp and ibaOut-State. The cards can be ordered separately. If one of the
cards is ordered with ibaRackline, it is installed by default in slot X20. If you want to install
the card later on, refer to chapter 7.4.
The status of temperature and power supply unit are indicated each with a bicolored LED
on the cards.
LED Status Description
TEMP green
red
Temperature OK
Overtemperature
POWER green
red
Power supply OK
Power supply error
Redundant power supply: error in one of the two power
supply units
5.4.1 ibaOut-Temp
ibaOut-Temp provides two relay outputs for temperature and power supply (2-pin con-
nector), which can be used to indicate errors. Both error types are indicated separately.
The switch position of the outputs is as follows:
Status Switch POWER Switch TEMP
Power off or power error closed open
Power OK, temperature OK open open
Power OK, overtemperature open closed
Contact loading capacity
Nominal current: 400 mA
Nominal voltage: 60 V

Manual ibaRackline
14 Issue 1.16
Compatibility to previous ibaRackline models
ibaRackline computers of older type series provide only one relay output for error indi-
cation. The relay contact is closed when an error occurs, without differentiating between
overtemperature or a power supply error.
ibaOut-Temp can be used in the same way, when both outputs are connected to one
output (parallel circuit).
Wiring diagram of the parallel circuit:
5.4.2 ibaOut-State
ibaOut-State provides an output (6-pin connector) which can be used to indicate errors.
Both error types are indicated separately.
These are the switch positions:
Switch state switch state
Power OK,
temperature OK
Power off or
Power error and
overtemperature
Power error,
temperature OK
Power OK,
overtemperature
Contact loading capacity
Nominal current: 300 mA
Nominal voltage: 220 V DC
Compatibility to previous ibaRackline models
The behavior of ibaOut-State is identical with the previous models with a relay output, if
pin 5 and 6 are used. The relay contact of the previous ibaRackline models is closed
when an error occurs, without differentiating between overtemperature or a power supply
error.

ibaRackline Manual
Issue 1.16 15
5.5 Default installation position for cards
On delivery, the data acquisition cards and other additional cards are installed by default
in the slots as described below.
Installation slots for data acquisition cards (X3 – X7)
The cards are installed starting with slot X7 to slot X3
(X7 corresponds to the first card, card no. 0)
Installation slots for cards with rackline slots (X20 - X26)
ibaOut-Te mp or ibaOut-State is installed in slot X20
ibaFOB-4o-D rackline-slot is installed starting with X25 and connected to X7 down-
wards.
ibaFOB-4o-D rackline-slot as sync-out (mirroring output ) is installed in X26 and
connected to the first ibaFOB-#i-D card
Connections of ibaFOB-4o-D with ibaFOB-#i-D input cards:
X25 – X7
X24 – X6
X23 – X5
X22 – X4
X21 – X3
Installation slots for additional network cards
Additional network cards are installed starting with slot X3
GigE cards are installed in the slot X3

Manual ibaRackline
16 Issue 1.16
6 Installation, connection and first switching on
6.1 Safety instructions
Electric Shock!
Never use the device with a damaged mains cable!
Connect the device to one supply voltage only according to specifications on the built-
in power supply unit!
Always use a socket equipped with earthing contact! Use a terminal strip with overvolt-
age protection or an uninterruptible power supply (UPS)!
Connect the device only to earthed power networks (TN
-
networks according to
VDE
0100 Part 300 or IEC 60364-3)!
The operation via ungrounded networks or networks (IT networks) earthed via imped-
ance is not permitted!
Never put a damaged device into operation!
6.2 lnstallation
Note
If you install the device into a 19" cabinet with rotating rack, consider the depth of the
device. Observe
the minimum bending radii of the cables.
1. Place the device from the front onto the 19" rack line.
2. Fasten the device using 4 screws at the 19" rack line.
3. Plug in the mains cable of the device into a socket.
6.3 Connection and first switching on
Note
Before
switching on the device for the first time
check if the power supply is connected
properly and the connecting cable (fiber optic and copper data cable) are plugged. The
device is delivered in a pre
-installed and configured state. You can find the paramete
rs
of the operating system and iba
software in the corresponding manuals or in the o
nline
h
elp.
1. Connect all cables.
2. Switch on the device using the mains switch.
3. Boot the device. Press the power button.
The computer is booted automatically with Windows.
4. Finally, start all iba software applications.

ibaRackline Manual
Issue 1.16 17
7 Installation of measuring or additional boards
7.1 Safety instructions and notes
Electric Shock!
Before opening shut down the device! After that disconnect it from the mains and pull
out the mains plug from the socket equipped with earthing contact!
Wait for several minutes after switching off until the components have cooled down!
Thus you will avoid injuries due to the electric shock or burns!
Pay attention to sharp edges in the housing!
Electrostatic discharge!
Touch the components only in electrostatically discharged state!
Note
If you upgrade the device, observe the instructions in the
subcontractors' documenta-
tion.
Back up all data on an external storage medium.
7.2 Basic procedure
If you carry out any work at the device, always proceed in the following way:
1. Remove all mobile data carriers (DVD, memory cards and so on).
2. Shut down the device.
3. Switch off the device.
4. Unplug the mains cable from the socket.
5. Remove the cover.
6. Carry out upgrade operations.
7. Attach the cover again.
8. Put the device into operation again.

Manual ibaRackline
18 Issue 1.16
7.3 Opening the device
1. Turn the screws located on the upper side of the cover a quarter of a turn counter-
clockwise.
2. Lift the housing cover.

ibaRackline Manual
Issue 1.16 19
7.4 Installing ibaOut-Temp/ibaOut-State
The temperature and the status of the power supply unit can be monitored with the slot
cards ibaOut-Te m p and ibaOut-State, see also chapter 5.4.
The installation procedure is identical for both cards. The following description is based
on the example of ibaOut-Temp.
ibaOut-Temp
Order no. 11.110001
ibaOut-State
Order no. 11.110002
After having opened the housing cover proceed as follows:
1. ibaOut-Temp can be installed in one of the slots X20 to X26 (X20 is recommended).
2. On the backside of the device, break out the cover plate of the slot where the card
is to be installed by means of a screw driver. (Slot X21 in the example below.)
3. Above the slot, there is a screw in an opening, which is used to fix the card later.
Loosen the screw and remove it.

Manual ibaRackline
20 Issue 1.16
Electrostatic discharge!
Touch the components only in electrostatically discharged state
! Hold the card cautious
ly at
the
edges and at the slot bracket.
4. Insert the card in the respective slot. The bar at the bottom is used to fix the card.
5. Fasten the card with the screw removed in step 5.
