iBaby M3 User manual

iBaby
iBaby m monitor onitor
Model:
Model: M3 M3
User Manual
User Manual
“
“The manufacturer is not responsible for any legal The manufacturer is not responsible for any legal
l
liability caused by negligence.” iability caused by negligence.”

iBaby Monitor User Manual
2
Index
1INTRODUCTION ............................................................................................................................4
1.1 PACKAGE CONTENTS.................................................................................................................4
1.2 FUNCTION AND FEATURES.........................................................................................................4
1.3 PRODUCT SPECIFICATIONS........................................................................................................5
2APPEARANCE AND INTERFACE .............................................................................................6
2.1 APPEARANCE .............................................................................................................................6
2.2 BACK PANEL OF THE iBABY MONITOR ......................................................................................7
3!ACCESSING THE IBABY MONITOR OVER A LOCAL AREA NETWORK.......................7!
3.1!LOCAL AREA NETWORK CONNECTION......................................................................................7!
3.2!ACCESSING THE IBABY MONITOR FROM AN IPOD TOUCH,IPHONE OR IPAD .............................8!
3.3 CONFIGURING THE iBABY MONITOR FROM A WINDOWS OC: IP ADDRESS................................8
3.4!ACCESSING THE iBABY MONITOR FROM A PC.........................................................................10!
4!ACCESSING THE iBABY MONITOR OVER THE INTERNET............................................13!
4.1!INTERNET CONNECTION ...........................................................................................................13!
4.2!PORT FORWARDING .................................................................................................................13!
4.3!DDNS......................................................................................................................................13!
4.3.1!Manufacturer’s DDNS........................................................................................................13!
4.3.2!Third Party DDNS ..............................................................................................................14!
5!OTHER SETTINGS......................................................................................................................15!
5.1!NETWORK SETTINGS................................................................................................................15!
5.1.1!Basic Network Settings .......................................................................................................15!
5.1.2!WiFi Settings.......................................................................................................................15!
5.1.3!ADSL Settings .....................................................................................................................16!
5.1.4!UPnP Settings.....................................................................................................................16!
5.1.5!DDNS Settings ....................................................................................................................17!
5.1.6!MSN Settings.......................................................................................................................17!
5.2!ALARM SETTINGS....................................................................................................................17!
5.2.1!Alarm Settings.....................................................................................................................17!
5.2.2!Mail Service Settings ..........................................................................................................19!
5.2.3!FTP Service Settings...........................................................................................................20!
5.2.4!Alarm Server.......................................................................................................................21!
5.3!ADVANCED SETTINGS ..........................................................................................................21!
5.3.1!User Settings.......................................................................................................................21!
5.3.2!Multi Device Settings..........................................................................................................22!
5.3.3!Other Settings .....................................................................................................................22!
5.4!MAINTAINENCE ............................................................ 23ERROR!BOOKMARK NOT DEFINED.!

iBaby Monitor User Manual
3
5.4.1!Device Information .............................................................................................................23!
5.4.2!Time Setting ........................................................................................................................23!
5.4.3!Firmware Upgrade .............................................................................................................24!
5.4.4!Restore Factory Default .....................................................................................................24!
5.4.5!User Browsing Log .............................................................................................................24!
6!CENTRALIZATION CONTROL.................................................................................................24!
7!FAQ ................................................................................................................................................25!

iBaby Monitor User Manual
4
1 Introduction
Your iBaby monitor combines a high-quality digital camera with network connectivity and
a clear image to your iPod Touch, iPhone or iPad, or to a PC. You can connect from a
Local Area Network or over the Internet.
1.1 Package contents
!Camera
!User manual and utility CD
!Power adapter
!Bracket
!Cable
!Antenna
!Quick installation guide
!Set of screws
1.2 Function and Features
!Supports 802.11b/g/n protocols for wireless monitoring.
!Supports TCP/IP network protocols with a built-in Web server. Users can view
streaming video from an iBaby Monitor using an iPod Touch, iPhone or iPad, as well
as from a PC running Internet Explorer or similar browsers.
!A built-in microphone allows users to listen to the room being monitored. Users can
also connect the camera to a speaker to support a two-way intercom.
!The iBaby monitor's pan/tilt function allows horizontal panning of 350°and vertical
movement of 70°.
!The design is attractive and the device is easy to install and use.
!Infrared LED for night vision covers 16 feet (5 meters) of area, for 24-hour monitoring,
even in the dark.
!Motion detection, sound detection and alert pins can be connected to external
sensors for warnings.
!A record of alarms can be sent via email, and also stored on a server.
!Supports Universal Plug and Play (UPnP), allowing for automatic router port
forwarding.
!A Dynamic Domain Name Service (DDNS) address provided with the camera, with an
easy-to-read label at the bottom of each unit, allowing users to monitor their iBaby
monitor over the Web.

iBaby Monitor User Manual
5
1.3 Product Specifications
Image Capture
Sensor
CMOS sensor
Total pixels
300k
Minimum illumination
0 Lux(IR on automatically)
Lens
f=3.6mm, F=2.0, Fixed iris
Pan/Tilt
Pan coverage
350°
Tilt coverage
70°
Assistant
Lighting
10pcs 850nm infrared LEDs, 16
feet (5 meters) of distance
Lighting control
Auto control
Video and Audio
Resolution
640*480(VGA)/320*240(QVGA)/1
60*120(QQVGA)
Compression
MJPEG
Frame rate
30 fps
Bit rate
128 kbps ~ 5 Mbps
Image rotation
Mirror /Flip
Audio compression
ADPCM
Network
Basic protocols
TCP/IP, UDP/IP, HTTP, SMTP,
FTP, DHCP, DDNS, UPnP, NTP,
PPPOE
Other protocols
802.11b/g/n
Other Features
Video control
Supported
Dual-way audio
Supported
Motion detection
Supported
Sound detection
Supported
Triggered actions
Email/FTP/external alarm/send
message to alarm server
User access authority
Three levels
Date / time setting
Supported
Upgrades
Upgrade over the network
DDNS
Included
Hardware Interface
Ethernet
10Base-T/100base-TX
Alarm in
1 channel
Alarm out
1 channel
Audio in
Internal Mic and External Mic
socket x 1
Audio out
Audio Line-out socket x 1
Physical Index
Weight
11.5 ounces (358 grams)
Main body
111mm(L) X 110mm(W) X
126mm(H)

iBaby Monitor User Manual
6
Power
DC 5V
Power consumption
<6W
Operating temperature
104ºF ( 0℃~ 40℃)
Operating humidity
10% ~ 80% non-condensing
Software (iPod
Touch, iPhone or
iPad)
iOS 4.0 or later
Can be downloaded for free from
the Apple App store
Software (PC)
OS Supported
Microsoft Windows 98, 2000, XP,
Vista, Windows 7 or higher.
iOS 4.0 or later
Browser
Internet Explorer 6.0 or higher, or
equivalent browser, such as
Firefox.
Application software
IPCMonitor.exe included
2 Appearance and interface
2.1 Appearance
Figure 1

iBaby Monitor User Manual
7
2.2 Back panel of the iBaby monitor
Figure 2
1）Power Input Socket: Connection for power adaptor. The adaptor‘s output is 5 volts,
1.5 amps.
2）RESET Button: Press the RESET button and hold for 10 seconds. The iBaby
monitor will restart with its factory default settings restored.
3）Wi-Fi Antenna Connector: For installing a Wi-Fi antenna.
4）RJ45 Ethernet Socket: The RJ45 Ethernet socket automatically configures itself for
speeds of either 10 MB or 100 MB.
5）Audio Input Socket: For connecting an external microphone. The built-in
microphone is turned off whenever an external microphone is plugged-in.
6）Audio Output Socket: For use with a headphone or speakers.
7）Alarm Output Socket
8）Alarm Input Pin
3 Accessing the iBaby monitor over a Local Area
Network
3.1 Local Area Network connection
Figure 3

iBaby Monitor User Manual
8
Figure 4
3.2 Accessing the iBaby monitor from an iPod Touch,
iPhone or iPad
You first need to install the iBaby monitor App from the Apple App Store. (Find it by searching
for "iBaby monitor BM.") THIS IS A FREE DOWNLOAD. (Before downloading, first confirm
the iOS on your device is version 4.0 or later. If not, update your iOS.)
After the app has been installed, this icon should appear: .
Launch the iBaby monitor App. The App will search for the camera automatically.
Select the “Set Up” button and follow instructions.
3.3 Configuring the iBaby monitor from a Windows PC: IP
Address
Run “BSearch_en.exe” in the CD. You will see the setting interface shown in Figure 5.

iBaby Monitor User Manual
9
Figure 5
Operation Steps:
1) Click “Search (F3)
2) Choose the device
3) Change the IP address of the camera according to the information in the red frame
on the left. The numbers in the red circles should not match, as your iBaby monitor
should have a different IP number than your PC.
4) For Authentication, enter a user name and password. (The default settings are
user name "admin" and password "123456").
5) Click “Update”
6) Click “Search (F3)”, choose the device, and then click “Browse (F4)”. You will be
able to view the camera, as shown in Figure 6.
NOTES:
1) If you don’t know what IP address to use for “IP config," check “Set IP
automatically,” and the software will fill it in for you.
2) When you run the BSearch_en.exe, any firewall software you might have installed
on your PC may ask you whether the BSearch_en.exe program should be blocked
or not. Choose "unblocked."

iBaby Monitor User Manual
10
Figure 6

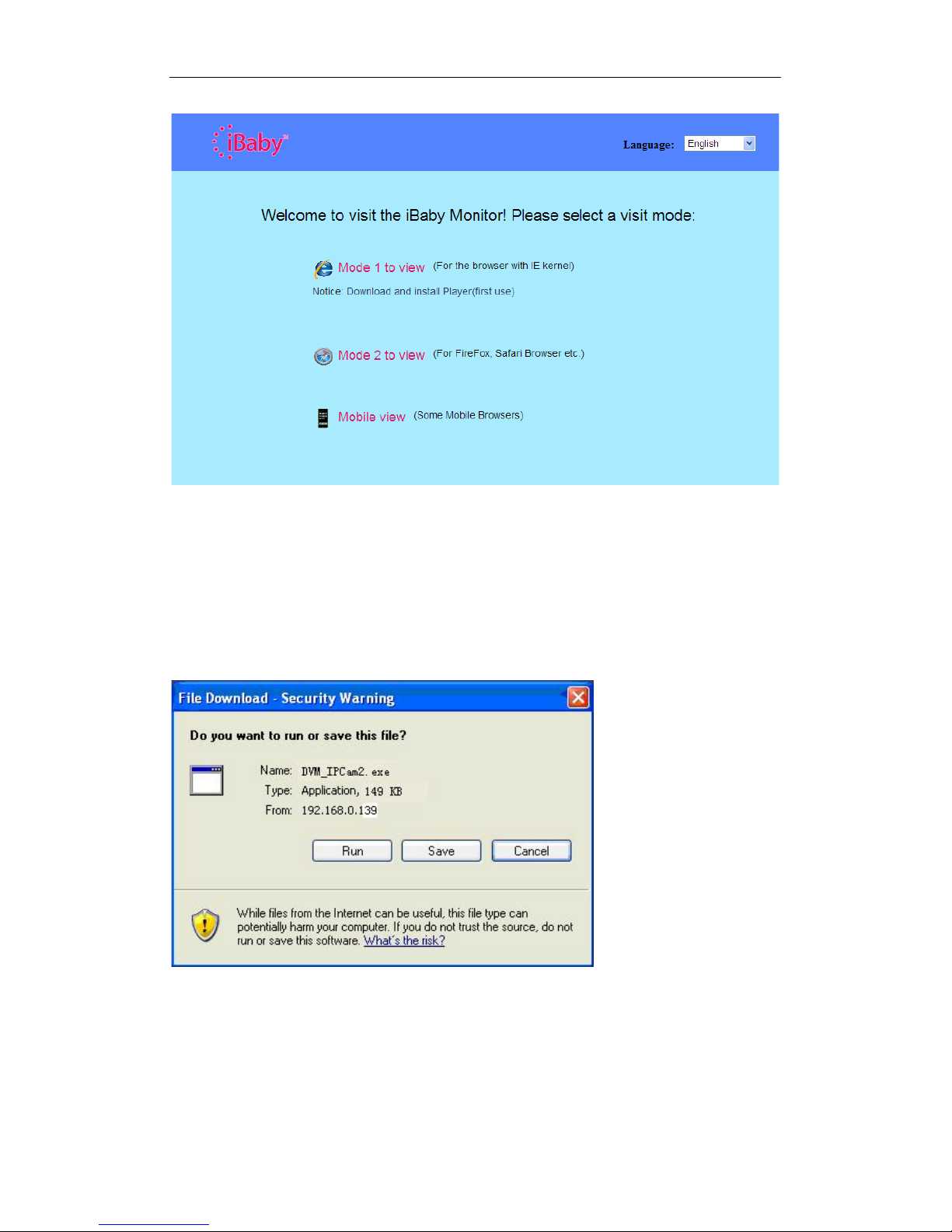

3.4 Accessing the iBaby monitor from a Windows PC
We suggest using Internet Explorer to view your iBaby monitor. First, you will need to
install the player plug-in. To do so, click “Download and install player (first use)”. You'll
then see a dialogue box, as shown in Figure 7. Click Run.
Figure 7
After installing the plug-in, click the “Mode 1 to view” link, shown in Figure 6, to view the
video.

iBaby Monitor User Manual
11
Figure 8
1) Main Menu
The main menu provides links to the different sub-menus of the iBaby monitor software.
2) Status Display Area
This is in the upper right-hand corner of the screen. It shows the status of the device.
"Gray: Not connected.
"Green: Connected.
"Yellow: Improperly configured.
"Red: Alarm.
3) Multi Channel displaying area
Several iBaby monitors can be connected as part of the same system. (See Section
5.3.2 of these instructions.) Video from additional devices will be shown here. Select the
device you wish to control by clicking on it.
These buttons, in the order shown, indicate play, stop, audio, talk, record and take a
snapshot.
Other Settings shown in Figure 9.

iBaby Monitor User Manual
12
Figure 9
4) Pan/Tilt and video control
Using the icons in the Pan/Tilt control area, user can move their iBaby monitor up, down,
left and right. Other controls are available, such as middle, horizontal cruise, vertical
cruise and stop.
These are used to Open IO output and Close IO output.
User can also set the device frame rate, resolution, brightness, contrast and other
parameters.

iBaby Monitor User Manual
13
4 Accessing the iBaby monitor over the Internet
4.1 Internet connection
Figure 10
4.2 Port forwarding
Most current routers have UPnP, or Universal Plug and Play. The default within the
iBaby monitor is for UPnP to be on, meaning that the software takes care of port
forwarding automatically. To configure a port manually, you must first connect to it over
your LAN.
Please consult your router’s User Manual for port forwarding configuration information.
Once port-forwarding is configured, your iBaby Monitor should be accessible over the
Web.
4.3 DDNS
DDNS stands for Dynamic Domain Name Service. Think of it as a URL assigned to your
specific iBaby monitor that allows you to view the monitor from any computer connected
to the Web.
4.3.1 Manufacturer’s DDNS
The device manufacturer has provided a free DDNS. You can find it in the Network menu,
as shown in Figure 11, and on a sticker at the base of the unit.

iBaby Monitor User Manual
14
Figure 11
4.3.2 Third Party DDNS
You can also use a DDNS supplied by a third party. To do so, obtain the DDNS and fill it
in as shown in Figure 12.
Figure 12
Note: If your third-party DDNS does not use Port 80, you need to specify the port when entering
in the DDNS. Do this by appending a colon and then the port number following the entry for the
DDNS. The manufacturer DDNS is not needed to add PORT.

iBaby Monitor User Manual
15
5 Other Settings
5.1 Network Settings
5.1.1 Basic Network Settings
Figure 13 shows how to set up the Basic Network Settings to have an IP address
assigned to your iBaby monitor automatically.
Figure 13
5.1.2 Wi-Fi Setting
If your iBaby monitor is going to be set up over Wi-Fi, use the configuration menu shown
in Figure 14. First, click the “Scan” button to see the available networks. Highlight the
one you wish to use, then check “Using Wireless Lan." Then fill in the SSID, encryption
method and share key or password; you can get this information from your router. Click
“Set” when finished.
Figure 14
Note 1: When the device is connected to both a Wi-Fi and wired network, it will first try to
connect to the wired network. If that connection fails, it will switch to Wi-Fi. The IP
address and port is the same in either case.
Note 2: The iBaby monitor needs to be connected by cable to your router before the
wireless settings described above can be put in place. Once the Wi-Fi settings
have been saved, you can remove the cable, and the wireless connection will
begin operating.

iBaby Monitor User Manual
16
5.1.3 ADSL Settings
Users with ADSL Dialup should configure their device as shown in Figure 15. The user
name and password should be obtained directly from your ADSL service provider.
Once the settings are saved, connect the iBaby monitor directly to the ADSL modem,
and it will be connected to the Internet.
Figure 15
5.1.4 UPnP Setting
If you enable UPnP by checking its box as shown in Figure 16, the iBaby monitor, upon
power-up, will communicate with the router and handle port-forwarding automatically.
Figure 16
Before using UPnP, please make sure your router’s UPnP function has been enabled.
Note that since not all UPnP implementations are the same, and you may discover that
your router doesn't properly support the iBaby monitor. Should this occur, disable UPnP
and assign port-forwarding manually.

iBaby Monitor User Manual
17
5.1.5 DDNS Settings
Please refer Section 4.3.
5.1.6 MSN Settings
Figure 17
iBaby monitor users with an MSN email account can fill in this section if they wish. Fill in User
and Password with respective settings from MSN. Then, fill in any email address to receive
iBaby monitor alerts.
5.2 Alarm Settings
5.2.1 Alarm Settings
1）Motion Detection
The alert on your iBaby monitor can be triggered if motion is detected. The sensitivity of
the motion detector needs to be set, using a number between 1 and 10, with 10 being the
most sensitive.
Users have the option of connecting an external alert to their device with the Alarm
Output Socket shown in Figure 2. Once this external alert is connected, users should
check the “Alarm Input Armed” box. If the external alert detector is "always on" switch
alarm, use the "open” option. If the external alert detector is "always off," choose “close”.
The iBaby monitor alert can also be triggered when sounds are detected. Set the
sensitivity of the device; the higher the number, the more sensitive to noise it will be.

iBaby Monitor User Manual
18
Figure 18
2）Alarm Actions
Several things can happen when an alert is triggered, depending on whether the box for
that action is checked, as shown in Figure 18.
#IO Linkage on Alarm: This triggers whatever external alarm might be plugged
into the iBaby Monitor.
#Send Mail on Alarm. Send an email notification to the supplied email address.
#Upload Image to FTP. This sends still pictures from the camera via FTP. Users
can control the interval at which pictures are sent.
#Enable Alarm Server.
3）Scheduler
Your iBaby monitor can also be set to automatically trigger an alert action at a scheduled
time, including "All the time”. Figure 19 shows how to set up this feature.

iBaby Monitor User Manual
19
Figure 19
5.2.2 Email Service Settings
The iBaby monitor can send an alert to an email address if it is configured as shown in
Figure 20. Be sure to click Save, and then test the system to see if the address is
working properly. Note that after every restart, the device will send its IP address to the
specified email address.

iBaby Monitor User Manual
20
Figure 20
5.2.3 FTP Service Settings
Figure 21
When the alarm is triggered, the iBaby monitor can be configured to snap a picture and
send the image to FTP server. Set up the server information as shown in Figure 21. Click
“Test” to see if the system is configured properly.
The “Upload Image Periodically” setting, if checked, will send an image to the FTP server
periodically, even when no alert has been triggered.
