iBall Slide WQ149R User manual

Introduction
iBall Slide WQ149R HDD Specifications
1
Details
Description
CPU
Intel® Atom™ Processor Z3735F up to 1.83GHz
Memory
2GB DDR3
Storage
32GB Built-in Storage
Micro SD Support up to 64 GB
External Hard disk Support up to 1TB
Operating System
Microsoft Windows10 Home
Network
WCDMA 2100MHz, Data Connectivity only(with Ultra
stick)
Connectivity
WCDMA 2100MHz Data connectivity only (with Ultra
stick), Wi-Fi 802.11 b\g\n, Micro USB OTG, Mini HDMI,
Bluetooth 4.0,USB2.0 port.
Sensor
G-sensor
Camera
5.0 MP Auto Focus Rear camera and 2.0 MP Front
camera for video chatting.
Display
Full Capacitive Multi Touch, 25.65 cm (10.1”) IPS
Screen 1280x800 (10 point capacitive touch)
Support Audio
aac, amr, flac, mp2, mp3, ogg, wav
Support Video
3gp, avi, flv, m4v, mkv, mov
Support Image
bmp, gif, jpeg, png, wbmp

Know Your Device
Front View
2
Battery
7800mAh Polymer battery, 3.7V
Dimension
257mm*172mm*11mm with 600 Gram

1. Front Camera: Abuilt-in webcam that allow you to capture still images,
record videos, and video chat online.
2. Windows 8Touch key: Press to go back to the start screen, or go back to the
last app you opened.
Back View
3

1. Back camera: You can take photo &record videos
2. Open cover: You can open the cover with the help of given option
Over Head View
1. Volume Key: To adjust the system volume (+Volume increase/ -
Volume decrease)
2. Dual Speaker: Produces sound from multimedia files &tones.
4

Bottom View
1. Pogo PIN locking system: Lock with Pogo PIN keyboard which is
provided along with iBall Slide.(WQ149R HDD is provided with HARD
keyboard with External HDD slot)
2. Pogo PIN connectivity: To connect Pogo PIN keyboard for typing without
using device touch screen.(WQ149R HDD is provided with HARD keyboard)
5

1. Power: Power button with battery charge indicator.
Press to power on/ off your iBall Slide, or put it to
sleep/hibernate mode and wake it up from
sleep/hibernate mode.
2. Audio jack (integrated MIC): Connects 3.5mm
earphone to play audio or chat online
3. Mini HDMI: With amini HDMI to HDMI cable (Not
included) it provides an option to connect to video and
audio devices, such as television, or any compatible
digital or audio component that uses aHDMI connection.
4. Micro USB port: With the help of Micro USB OTG cable
it helps to connect to devices such as Pen Drive, External
HDD (up to 500GB), Memory card reader etc.
5. POWER connecter: 2.5MM power connector for
charging iBall Slide.
6: USB port: With normal USB it provides direct
connectivity with additional devices such as Pen Drive,
External HDD (up to 500GB), Memory card reader etc.
7. Microphone: Receives sounds and voices for
recording.
6

1. 3G Ultra-Stick slot: Insert a3G Ultra-stick to further expand the
capabilities of your iBall Slide. You can access the Internet connectivity
with SIM network. (Not included, need to purchase separately)
Battery charge indicator
Avisual indication of the battery’s charging status.
7

Introduction to Desktop
When you turn on your Connect Tablet for the first time you will be asked for
some basic details to get you started. This will make it easier to make the most
of your Apps later on.
Once you have completed the introduction, you’ll see the Windows 10 Start
Screen (shown below). The Start Screen is made up of Tiles for all your
software, including pre‐installed Apps for email and news, as well as your
pictures and music library. When you install more Apps, you can add tiles to the
Start Screen so you can open them easily.
Please note that some Microsoft Apps may require you to create aMicrosoft
Live ID (formerly Skydive) account. Other services or Apps may need their own
user credentials.
8

Navigating the Start Screen
9

Swipe to the right
Swipe to the right from the left‐hand side of the screen to scroll through your
open applications.
Swipe downward
Swipe down from the top of the screen to close an open application.
10

Swipe to the left
Swipe to the left from the right‐hand side of the screen to open the Action
Centre. You can also access the Settings menu of your tablet.
Swipe with your finger
On the Start Screen, slide your finger up and down or left to right to scroll
through the App Tiles.
11

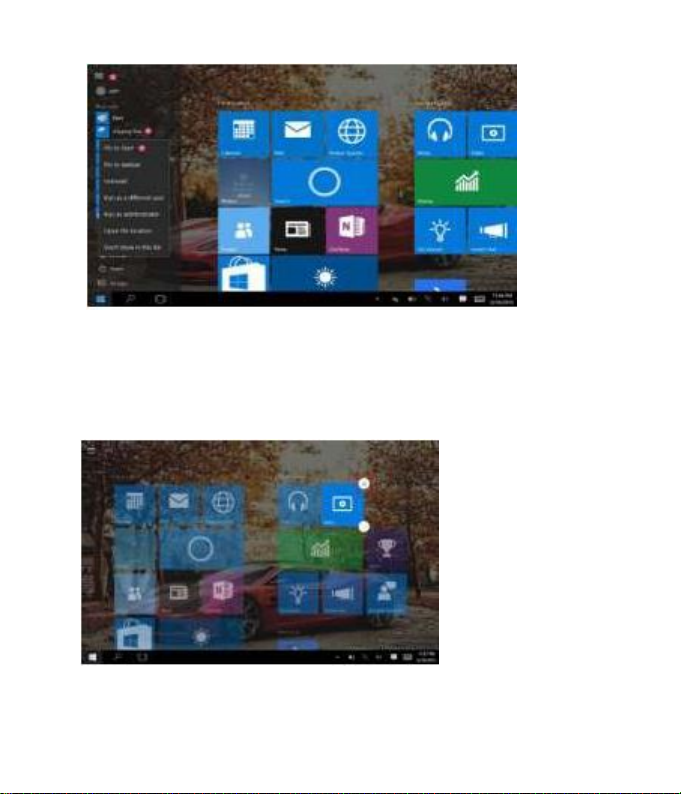

Introduction to App Screen
Besides the applications already fixed on the App Screen, you can customize
the screen by adding Tiles for other applications installed on your Tablet.
To add more applications to the Start Screen, see the steps in the figure below,
1) Click the properties icon
2) Press and hold the App you wish to add
3) Select Pin to start from the sub menu which appears
12

If you want to move Tiles, change tile size or delete acertain application in the
start screen,
(1) Press and hold the App Tile for about one second and then let it go
(2) Select Unpin to delete or select the Resize option to change tile size.
13

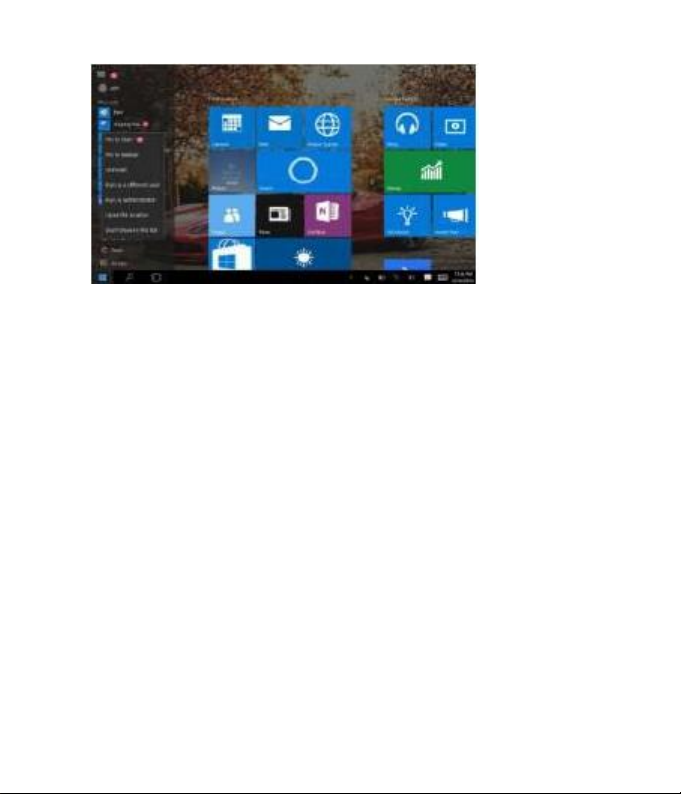

Start menu settings
Your Connect tablet should be in “Windows 10 Tablet mode” already. This
makes it easier to use with your finger. You can check this by swiping in from
the right hand side and see if Tablet Mode is selected (see below). If not, press
this now. If you press the 3small lines in the top left hand corner, you will
access the Start menu with access to further applications, settings and Charms
14

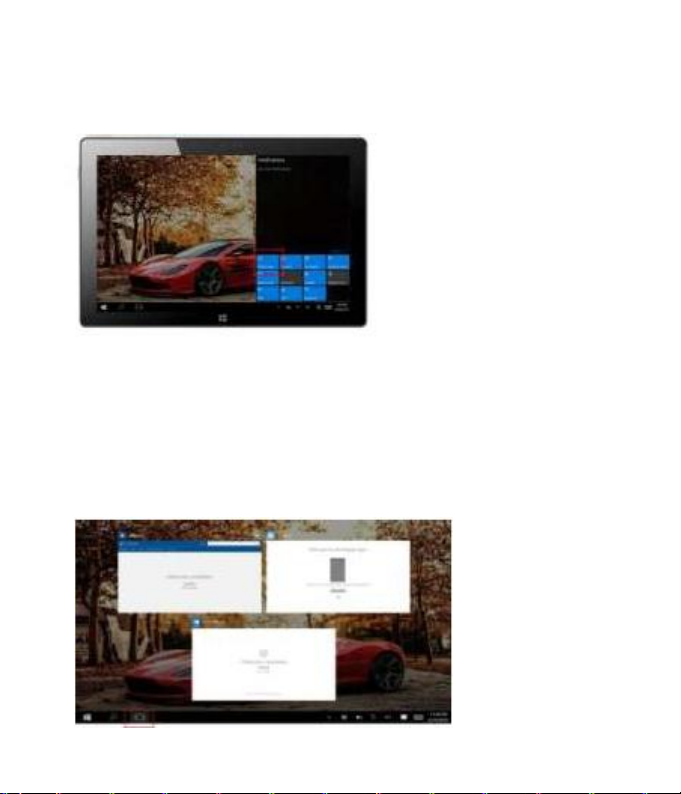

Action Centre Menu
Multitasking screen
Swipe in from the left‐hand side of the screen or click the button (highlighted)
and you will see the running applications. You can tap an application to jump
to it or close an application by pressing the Xabove its screen preview.
15

Basic Operations
From the Start menu, click Power to select the 3power states available ‐
Sleep, Restart and Shut down.
You can also press the Power Button (p7) once to put your Connect Tablet into
sleep mode. Press and hold the Power Button to shut your Connect Tablet
down.
16

Product and safety
information
Warning
Use only chargers, and accessories approved for use with this particular model.
The use of any other types may invalidate any approval or warranty, and may
be dangerous .For availability of approved accessories, please check with your
dealer.
Battery and charger information
Your device is powered by arechargeable Lithium-ion battery. iBall may make
additional battery models available for this device. The battery can be charged
and discharged many times, but it will eventually wear out. When the talk and
standby times are noticeably shorter than normal, replace the battery. Use only
iBall approved batteries, and recharge your battery only with iBall approved
chargers designated for this device. If abattery is being used for the first time or
if the battery has not been used for aprolonged period, it may be necessary to
connect the charger, then disconnect and reconnect it to begin charging the
battery. If the battery is completely discharged, it may take several minutes
17

before the charging indicator appears on the display or before any calls can be
made.
Safety information
1. Please take care not to drop your Connect Tablet and to protect it
against sudden impacts.
2. You should avoid using your Connect Tablet in any environment where the
air is excessively cold, excessively hot (<35 degrees), too humid or too
dusty. Avoid prolonged exposure to direct sunlight.
3. Take care not to use your Connect Tablet in areas with strong magnetic
fields or around abuild‐up of static electricity.
4. Do not splash or immerse your Connect Tablet with liquid. If your
Connect Tablet becomes wet shut it down immediately and do not use
it.
5. If you need to clean your Connect Tablet you should use aclean, lint‐free
18

soft cloth. Do not use and liquids or cleaning agents.
6. No warranty is offered or implied in respect of your data in the event of
damage or afault relating to the use of your Connect Tablet. We
recommend you keep aduplicate back‐up copy of any important data on
your Connect Tablet.
7. Your Connect Tablet contains no user‐serviceable parts. Please do not
attempt to open the case of your Connect Tablet as doing so could be
dangerous and will invalidate your warranty
8. Your Connect Tablet supports awide variety of third‐party peripherals
including mobile data dongles but you should check compatibility and
service provision to make sure they suit your requirements.
9. The battery in your Connect Tablet is not user‐replaceable. Please do not
attempt to use any power source apart from the original charger supplied
with your Connect Tablet.
19

Protect environment
Save energy
You do not need to charge your Slide phone battery so often if you do the
following:
-Close applications and data connections, for example, your Bluetooth
connection, when not in use.
-Deactivate unnecessary sounds, such as touch screen and key tones.
E-Waste
iBall reaffirms its commitment to environmental protection by ensuring proper
disposal of e-waste /e-waste management. iBall has set up collection centers
across India for effective collection of end-of-life products for disposal in asafe
and environmental friendly manner. All you have to do is drop your unwanted
product at any of our collection centers. To know about our collection center
please visit to http://www.iball.co.in/e-waste.
