IBC Water AST0715-940 Manual

AST0715-940 Page 1
WATER SOFTENER
WITH12 DAYSERIES
TIMER CONTROL
INSTALLATION&OPERATING
INSTRUCTIONS
Model : AST0715-940
Serial No: ………………………..
Telephone:[phone] Facsimile:[phone]
Email: [e-mail] Website: www.ibcwater.com.au
FILTRATION &WATERTREATMENTPRODUCTS
forcommercial, industrial andresidential application
Manufacturerand Supplierof

AST0715-940 Page 2
1.Watertobe tested shouldbe taken fromatap afterthe watersoftener
2.Measure10mlof waterintoplasticbottlesupplied (approximately1/3full)
3.Add one Yes/Notablettosamplewater,replacecap and shakeuntil tablet
hascompletelydissolved.
(NOTE:do nothandleYes/Notabletwithfingers)
4.The finalcolourtobe obtained forsoft waterisgreen.(Note:The shade of
green mayvary.)If the colourturnsred,the waterisabove20 mg/lhardness,
thereforeanotherregeneration isrecommended.
5.Rinseplasticbottleaftereachtest hasbeen completed.
6.When used asabove,the tabletschange the colourfromgreen tored ata
hardness of approximately20ppmbased on asamplevolumeof 10mls.
Otherhardness testkitsareavailableformoreaccuratetestingeg.
Hardness Tablets
Directions: Takea50mlsampleofwaterinascrewcapped bottle.Add one (1)
tablettosample,shakeorcrushtodisintegrate.Repeatuntil lasttrace
ofreddishtinge disappears.The finalcolourisusuallyblue butwith
somewateragreyishcoloured end point isobtained.
Using 50mlsample-
Hardness ppm=(numberof tabletsx40)-20
LR(BW)Tablets
Directions: Takea100mlsampleofwaterinascrewcapped bottle.Add one (1)
tablettosample,shakeorcrushtodisintegrate.Repeatuntil lasttrace
ofreddishtinge disappears.The finalcolourisusuallyblue butwith
somewateragreyishcoloured end point isobtained.
Using 100mlsample-
Hardness ppm=(numbertabletsx2)–1
Contact IBCWaterif furtherdetailsarerequired.
HARDNESS TEST

AST0715-940 Page 3
Toascertain DAYS between regeneration periodsthe following dataorestimationsare
required.
(Let Nbe the numberof days tobe calculated)
.1. ðWaterHardness inmg/l call ðH
.2. ðWaterSoftenerHardness RemovalCapacity
fromTable1ingrams call ðC
.3. ðDailyWaterUsage inlitres
call ðD
Forhouseholdsituationsallow250 litresperperson perday.
CALCULATION
N = 1000 xC
DxH
Select nearest lowerwholenumber
If necessaryconsult yourdealerorIBCWaterTreatment foradviceon setting up the
softener.
EXAMPLE
Householdusefor2peopleon 220 mg/lhardwaterusing
ModelAS0715 at 1050 gramscapacity.
N = 1000 x1050
500 x220
= 9.5days
=9days
Note: Maximumnumberof days that can be selected istwelve(12).
WATERSOFTENERCALCULATIONS
MODELAST0715-940

AST0715-940 Page 4
WATERSOFTENER
PERFORMANCEDATASHEET
Automatic
ModelNo.
Capacity&Salt
Dosage
Recommended
Maximum
Service Flow
Rate
PipeSize Resin
Volume
Approx.
Shipping
Weight
(kg)
Space
Required
Minimum Maximum Inlet
Outlet Drain WxDxH
gram/kg gram/kg Flow
LPM mm mm Litres PerKg metres
AST0715-940 525/1 1050/3.6 15 25 12 15 27 0.70 0.50
1.2
CABINET/BRINECHAMBER:POLYMOULDED
OperatingPressure: 140 -690 kPa
Temperature: 5ox50oC
Electrical: 240V50Hz3wattsmaximum
WARNING
Apressurereductionvalveshouldbeinstalledinareasofhighwaterpressure(above690kPa)
Awaterhammerarrestorshouldbeinstalledifwaterhammerprevails.
Caution:Donotusewherewaterismicrobiologicallyunsafeorwithwaterofunknownquality.
FAILURE TOOBSERVE WARNINGSWILL VOID
WARRANTY

AST0715-940 Page 5
INSTALLATION
OF
IBC CABINETWATERSOFTENERUNIT
FITTEDWITHMODEL255 VALVE/940 CONTROL
Check the equipmentupon arrivalfordamage orshortagesand reportsametoourOfficeor
Agent beforestarting.
Position the SoftenerCabinet on afirmfoundation, preferablyconcrete, withsufficientspace
foroperation and maintenance.
STEP 1 Connectinlet, outletpipesand drainline tocontrolvalveasperInstruction
Booklet (page 5, figure3).
Note:The softenerissupplied withthe AutotrolSeries156 Bypass Valveas
standard.
STEP 2 Removelidfrombrine tank.Then connectbrine overflowdrainline towaste
trap.
STEP 3 RefertoInstruction Booklet forstartup procedure(page 6“Placing conditioner
intoService”).
STEP 4 Load recommended quantityofwatersoftenersaltintobrine tankand replace
lid(refertoTable3“Brine TankSalt Loading”).
Table3
MODEL RESINLITRES BRINETANK-SALT
LOADING KG
AST0715-940 15 50

AST0715-940 Page 6
NOTE:
ONANUMBEROFSOFTENERMODELSAND FILTERSITIS
NECESSARYTO PACKAGETHEVALVE WITHTHETOPSTRAINER
SUPPLIEDLOOSE.
ITISIMPORTANTTHATTHISSTRAINERISASSEMBLEDTO THE
VALVE DURING INSTALLATION.
THELENGTHOFTHEINTERNALRISERPIPE ISFACTORY
ADJUSTEDFORTHETANK SIZEPROVIDED.
DO NOTSHORTENTHISPIPE UNDERANYCIRCUMSTANCES
ASSEMBLE TOPSTRAINER
TOVALVE BODY
PUSHAND TWIST
INTERNALRISERPIPE

AST0715-940 Page 7
940I LowVoltageTimerControl
The softenerControlfitted ispowered bya240 to12 Volt Transformer. The Transformer
plugsintoa10amp240volt GPO and the transformerlead plugsintoasocket located on the
back of the timerat the left-hand side. The Transformerisonlysuitableforindoormounting.
Whenorderingspareparts:-Advise thattheTimeristhelow voltagemodel
Salt Dial
IndicatorKnob
Clock Dial
CalendarCapDayPins
(Donot rotateby
hand)
Low VoltageTransformer
Onlyuse theincludedtransformer
forpoweringtheTimer. Connectthe
plugofthetransformercabletothe
matingsocketattherearoftheTimer
housingontheleft-handside.

AST0715-940 Page 8
Water Conditioning ControlSystem
Installation, Operating and MaintenanceManual
Series255 Valve/940 Control

AST0715-940 Page 9
TableofContents
Page
Introduction……………………………………………………………… 10
SuperiorDesign
SuperiorOperation
Installation……………………………………………………………….. 10
Location Selection
WaterLine Connection
DrainLine Connection
Brine Line Connection
Brine TankOverflowLine Connection
ElectricalConnection
PlacingConditionerintoOperation…………………………………. 13
AdjustmentofTimer……………………………………………………. 14
SpecialFeaturesof Timer
AdjustmentofBrineControl ………………………………………….. 14
HowtoSet the Salt Dial
Service ……………………………………………………………………. 15
Removing the TimerAssembly
Removing the ValveAssembly
PreventativeMaintenance …………………………………………..…17
InjectorScreen and Injector
Specifications…………………………………………………….……... 18
PressureGraphs……………………………………………………..…. 19

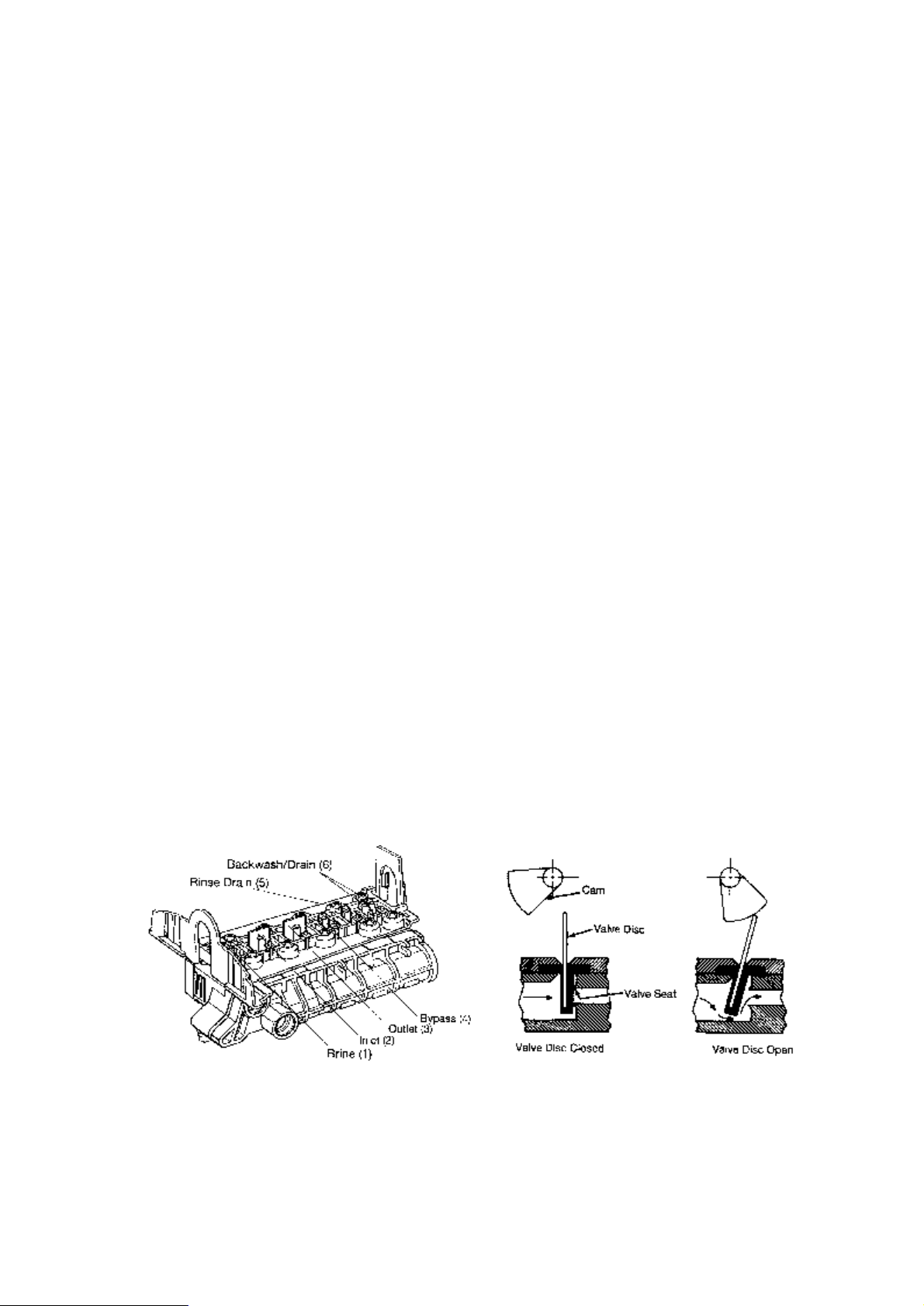

Control Valvingidentification…………………………………………. 20
ValveDisc Operation………………………………………….……….. 20
Flow Diagrams…………………………………………………………... 21
ReplacementParts……………………………………………………... 22
TroubleShooting…………………………………………………….…. 26
DisinfectionofWaterConditioners………………………………….. 27

AST0715-940 Page 10
Introduction
Thankyou forpurchasing awaterconditionersystem
featuring the Series255 withamodel940 Control.
The Model940 Controlprovidesdependabletime
clock based operation. The Series255 valve
combinessimplicitywithreinforced NORYL*
construction toprovide an uncommonlyreliable
appliance. The inherent qualityofthe systemmeans
along lifeofefficient, trouble-free soft water. If
maintenancebecomesnecessary, the Series255/940
Controloffersaunique separation capability
illustrated inthe Servicesection ofthismanual.
Superiordesign
•Singlesynchronouselectricmotor providesall
the powerforthe clock and the operation ofthe
control.
•Electrical wiring isfactory assembled. System
cannot be connected incorrectly.
•Program clock 940 (timer)and 960 Demand
system are interchangeable. Bothunitsprovide
guest regeneration capability.
•System may beindexed manuallywith or
withoutpower toanyone ofitsserviceor
regeneration positions. Legend on timerfaceplate
indicatescontrolvalveposition.
•No moving partsin water stream meansno
closetolerancepartssubject tofouling. Thus, the
systemisespeciallyeffectiveon iron-bearing
water.
•No dynamicseals that couldcauseleakage
through wearorfatigue.
•Control acceptsNORYL*orbrass manifold or
modular bypass valve withoutmodification,
offering completeversatilityand easyplumbing
foranyinstallation.
•Brining control valve builtinto system
eliminatesneed foranybrine valve.
•Drain flow control isbuilt intothe valveto
controlbackwashand fast rinseflowrates.
•NORYLisatrademark ofGEPlastics.
SuperiorOperation
•Directacting system functionsindependentlyof
waterpressure. No pistonsordiaphragmsthat
requireaminimumwaterpressuretooperate.
•Five-cycleoperation providesfordownflow
service, up flowbackwash, downflowbrining,
downflowslowand fast rinse. Asixthposition is
included fortimed refill ofthe brine tank.
•Valve discs are held closed bywater pressure
and therefore, areleaktight. The sealing forces
areincreased asthe waterpressureisincreased.
Valveseatsareinaverticalposition, whichis
design position least vulnerabletoplugging.
•System operation cannotgetoutofphase or
sequence. The controlalwaysreturnstoafixed
serviceposition ofregeneration regardless of
whereinthe regeneration cycleit wasstarted.
•Bypass (unconditioned)water isautomatically
available during regeneration.
Installation
All plumbing and electricalconnectionsmust conform
tolocalcodes. Inspect the unit carefullyforcarrier
shortage orshipping damage.
LocationSelection
•Locateunit asclosetoadrainaspossible
•Ifsupplementary watertreating equipment is
required, makesurethat adequateadditional
spaceisavailable. Locatethe brine tankinan
accessibleplacesothat salt can easilybe added.
•Do not install anyunit closerthan 10ft (3m)of
piping between the outlet ofthe waterconditioner
and the inlet ofthe waterheater. Waterheaters
can transmit heat back downthe coldwaterpipe
intothe controlvalve. Hot watercan severely
damage the controller.
A10ft (3m)totalpipe run (including bends, elbows
etc) isareasonabledistancetoprevent hot water
damage. Apositivewaytoprevent hot waterfrom
flowing fromaheat sourcetothe conditioneristo
install acheck valveinthe soft waterpiping fromthe
conditioner. Ifacheck valveisinstalled, makesure
that the water-heating unit isequipped withaproperly
rated temperatureand pressuresafetyreliefvalve.
Alwaysconformtolocalcodes.
•Do not locatethe unit inan area wherethe temp
everfallsbelow34ºF (1ºC)orover120ºF (49ºC).
•Do not install the unit nearacidoracidfumes.
•Do not exposethe unit topetroleumproducts.

AST0715-940 Page 11
Figure1-Control
Bypass Valve(optional)
AirCheck Brine Tube Fitting
Connection 1/4"
Figure2-TankAdaptor
TankTread 2-1/2" -8maleNPSM
DrainConnection 3/8" or1/2" NPTorBSPT
Outlet Connection 3/4" or1" NPTor
Inlet Connection 3/4" or1" NPTorBSPT

AST0715-940 Page 12
WaterLineConnection
Abypass valvesystemmust be installed toprovide
foroccasionswhen the waterconditionermust isby-
passed forhardwaterorforservicing. The most
common bypass systemsarethe AutotrolSeries156
Bypass Valve, Figure3, and plumbed-inglobe
valves, Figure4. Though botharesimilarinfunction,
the AutotrolBypass offerssimplicityand easeof
operation.
DrainLineConnection
The drainline dischargeswaterand brine during the
regeneration cycles. Typically, the line drainsintoa
floordrainorlaundry tube. Plumbthe drainline
according tolocalcodes, leaving aone ortwoinchair
gap between the end ofthe drainline and the open-
ing, Figure5.
Caution
Never connectthedrain lineinto adrain,
sewer lineortrap. Always allow an airgap
between thedrain lineand thewastewater
to preventthepossibilityofsewagebeing
back-siphoned into theconditioner.
The ideallocation forthe unit isaboveand not more
than 20ft (6.1m)fromthe drain. Forsuchinstallations,
using the appropriateadaptorfitting (not supplied),
connect 1/2in(1.3cm)plastictubing tothe drainline
connection located at the rearofthe control.
Ifthe unit islocated morethan 20ft (6.1m)fromthe
drain, use3/4in(1.9cm)tubing forrunsup to40ft
(12.2m). You mayelevatethe line up to6ft (1.8m)
providing the run doesnot exceed 15ft (4.6m)and the
waterpressureat the conditionerisnot less than
40psi(280kPa). You mayelevatean additional2ft
(61cm)foreachadditional10psi(70kPa)ofwater
pressure. When the drainline iselevated and empties
intoadrainwhichisbelowthe levelofthe control
valve, forma7inch(17cm)loop at the drainend of
the line sothat the bottomofthe loop islevelwiththe
drainline connection. Thisprovidesan adequate
siphon trap. Ifthe drainemptiesintoan overhead
sewerline, asink-type trap must be used.
Note: The aboveinstructionsreflect standard
commercialpractices. Localcodesmayrequire
different installation procedures.
BrineLineConnection
Install the brine tube and connect tothe fitting
connection located on the aircheck on the tank
adaptormodule, see Figure2.
Note: Makesurethat all fittingsand connectionsare
tight sothat prematurechecking doesnot takeplace.
Prematurechecking occurswhen the ball inthe air
check fallstothe bottombeforeall brine isdrawnout
ofthe brine tank. Refertothe Troubleshooting
section inthismanualforadditionalinformation.
BrineTankOverflow LineConnection
Inthe event ofamalfunction, the tankoverflow
connection directsoverflowtothe draininstead of
spilling on the floorwhereit couldcausewater
damage. Completethe following stepstoconnect the
overflowfitting tothe brine tank:
1.Locatethe fitting holeon the side ofthe brine
tank.
Not InBypass InBypass
Not InBypass InBypass
Figure3-AutotrolSeries156 Bypass Valve
Figure4-TypicalGlobe ValveBypass
System
Figure5-AirGap Installation

AST0715-940 Page 13
2.Insert the overflowfitting (not supplied)intothe
tankand tighten withthe plasticthumbnut and
gasket asillustrated inFigure6.
3.Attache alengthof1/2in(1.3cm)tubing (not
supplied)tothe fitting and run tothe drain.
Note: Don not elevatethe overflowline higherthan
3in(7.6cm)belowthe bottomofthe overflowfitting.
Do not tieintothe drainline ofthe controlunit. The
overflowline must be adirect, separateline fromthe
overflowfitting tothe drain, sewerortube. Allowan
airgap asinthe drainline connection, Figure5.
Electrical Connection
Removethe twist tiefromthe powercordand extend
the cordtoitsfull length. Makethe powersource
matchesthe electricalrating ofthe control. Besure
the outlet you select isnot controlled byawall switch.
PlacingConditionerintoOperation
Afterthe waterconditioning systemisphysically
installed, werecommend that the conditionerbe
disinfected beforeit isused totreat potablewater.
Refertothe Disinfection ofWater Conditioners
section inthismanual. Completethe following steps
toplacethe conditionerintoservice.
1.Graspthe indicatorknob on the timer(Figure8)
and rotateit counterclockwise about 45°tothe
back- washposition. You mayfind it helpfulto
removethe rearcover(Figure10)and rotatethe
camshaft counterclockwiseat the sametime.
2.Fill the mineraltankwithwaterbyturning the
watersupplyoff and placing the bypass valve(s)
intothe "not inbypass"position. Open the water
supplyvalvevery slowlytoapproximatelythe 1/4
open position.
Caution
Ifthewater supplyvalve isopened too rapidly
ortoo far, resin may belost. In theBACKWASH
position, you should hear airescaping slowly
fromthedrain line.
3.When all the airispurged fromthe tank(water
beginstoflowsteadilyfromthe drain), slowly
open the mainsupplyvalveall the way. Allowthe
watertorun intothe drainuntil the waterappears
clear. Turnoff the watersupplyand wait forabout
fiveminutestoallowall trapped airtoescape
fromthe tank.
4.Add watertothe brine tank(initialfill). Witha
bucket orhose, add approximately4gallons(15
litres)ofwatertothe brine tank.
5.Tostart up the unit: makesurethe watersupply
valveisinthe full open position. Carefullyrotate
the indicatorknob, Figure8, counterclockwise
until the indicatorpointsdirectlytothe centreof
the REFILL position and holdthereuntil the air
check (Figure7), fillswithwaterand waterflows
through the brine line intothe brine tank. Do not
run the waterintothe brine tankformorethan
one ortwominutes.
Rotatethe indicatorknob counterclockwise until
the indicatorpointstothe centreofthe BRINE/
SLOWRINSE position.
Check the waterisbeing drawnfromthe brine
tank. The waterlevelinthe brine tankwill recede
very slowly. Observethe waterlevelforat least
three minutes. Ifthe waterleveldoesnot recede,
ifit goesup, orifairentersthe aircheck sight
glass and the ball fallsand seats, refertothe
Troubleshooting section inthismanual.
Figure6-OverflowLine Connection
Figure7 AirCheck

AST0715-940 Page 14
Finally, rotatethe indicatorknob counter-
clockwise until the indicatorpointsto
REGENERATIONCOMPLETE. Run waterfrom
anearbycold-waterfaucet until the waterisclear
and soft.
AdjustmentofTimer
1. Setdays ofregeneration (Figure 8).
•Pull all daypinsoutward(awayfromcontrol)
•Depress daypin(s)at day(s)forwhich
regeneration isdesired.
Note: The NEXT DAY daypinisnoted on the timer
face. Depressing thispinwill insureregeneration the
next dayat approximately2:00am. Sincethe calendar
cap progressesclockwise, depressing the daypin
immediatelycounterclockwisewill insureregeneration
the following dayat 2:00 am. Thisprogression is
noted on the timerfaceas"FUTUREDAYS".
2. Setthetime ofday.
•RotateClock Dialuntil the pointerisdirected
at the current time.
Note: Withthe timeofdayproperlyset, the
conditionerwill regenerateat about 2:00 am. Ifyou
prefertohavethe unit regenerateat an earlierorlater
time, simplyset the current time-of-dayaccordingly.
(e.g., Tohavethe unit REGENERATEat 4:00am-2
hourslater-set the clock 2hourslaterthan the actual
time).
Note: Do not rotatethe CalendarCap byhand; the
clock dialindexesit daily. Tomanuallyindexthe
CalendarCap, rotatethe Clock Dialclockwiseone
completeturnforevery daytobe indexed.
Special Features ofTimer
GuestCycle. When abnormallyhigh waterusage
exhauststhe waterconditioner'scapacityahead of
schedule, an extraregeneration can be achieved by
turning the indicatorknob counterclockwise to
START, Figure8. It will takeafewminutesforregen-
eration tobegin. The normalregeneration schedule
will not be disrupted.
Manual Regeneration. Electricityisused onlytorun
the timerand torotatethe camshaft. All other
functionsareoperated bywaterpressure. Therefore,
inthe event ofapoweroutage, all the various
regeneration positionsmaybe dialled manuallyby
rotating the indicatorknob counterclockwise.
Manualtimecycle:
BACKWASH……………………..14 minutes
BRINEAND SLOWRINSE……. 52 minutes
FAST RINSE…………………….. 6minutes
REFILL…………………………… Read time
Off Salt Dial
AdjustmentofBrinecontrol
All modelsmaybe tuned toproducemaximumto
minimumconditioning capacitiesbyadjusting the Salt
Dial(Figure9). The Salt Dialcontrolsthe amount of
salt used perregeneration. When desired, the
minimumsetting maybe used ifthe frequency of
regeneration isincreased tocompensateforthe lower
regenerated conditioning capacity.
How toSettheSaltDial
Withthe indicatorknob inthe REGENERATION
COM-PLETEposition (Figure8), rotatethe Salt Dial
counter-clockwiseat least one full turntocancelout
the previoussetting. Alight clicking will be replaced
byaheavierclicking when the previoussetting is
cancelled. Then, rotatethe Salt Dialtothe propersalt
setting.
The numberson the dialare"minutes"ofwaterflow
tothe brine tank. When using the .4gpmBrine Refill
Control, eachminutecorrespondsto1.2poundsof
salt. The sizeofthe brine controlisembossed on the
refill cap. The embossed numbercorrespondstothe
gpmflowcontrol. Example: 33 correspondsto.33
Salt Dial IndicatorKnobClock Dial
CalendarCap
DayPins
(Do not rotatebyhand)
Salt Dial
IndicatorKnob

AST0715-940 Page 15
gpmflowcontrol. One gallon ofwaterwill dissolve3.0
poundsofsalt.
Tocalculatethe timeforbrine refill, it isnecessary to
determine the needed poundsofsalt and divide that
numberbythree (3poundspergallon)and alsodivide
bythe flowcontrolgpm. The result isthe timesetting
inminutesforbrine refill. Besuretoround off timesto
the nearest minute
Reference Table1 forcommon settings.
Service
RemovingtheTimerAssembly
Completethe following stepstoremovethe timer
assemblyforservicing:
1.Unplug the powercord.
2.Removethe rearcoverbypushing back on the
tab provided on the coverwithyourthumb, Figure
10. Next, lift the coveroff the valve.
3.Toremovethe camshaft (orreinstall it), the ribon
the shaft must be pointing straight up. Thisoccurs
when the indicatorknob isrotated tothe refill
position. Press downon the back ofthe camshaft
todisengage it fromthe rear"hoop"ofthe top
plate, Figure11.
MODELAST0715-940 WATERSOFTENER
HARDNESS REMOVAL
CAPACITYINGRAMS SALTUSAGE
INKILOGRAMS SALTDIAL SETTING TIME INMINUTES
525 (MIN) 1.0 3
700 1.6 4
825 2.2 6
1050 (MAX) 3.6 9
NOTE:-THISSOFTENERISFITTEDWITHTHE
0.33 G.P.MBRINEREFILL CONTROL
Figure10

AST0715-940 Page 16
4.Slide the camshaft back, disengage it fromthe
timer, Figure12.
5.Lift the timeroff the valve, Figure13.
6.Toreplacethe timer, reversethe above
Procedure.
Note: The camshaft and the timerindicatorknob
need tobe positioned correctlybeforethe
camshaft can be installed. Rotatethe camshaft
suchthat the locating ribispointing straight up.
The timerindicatorknob must be inthe REFILL
position when installing the camshaft. Slide the
camshaft intothe timer. It maybe necessary to
rock the timerslightlytokeythe camshaft intothe
timer. When the camshaft isslidintoplace, lift he
back ofthe camshaft up whilerotating the
indicatorknob toseat the camshaft inthe top
plate"hoop".
RemovingtheValveAssembly
Completethe following stepstoremovethe valve
assembly:
1.Unplug the powercord.
2.Shut off the watersupplyorplaceinbypass
3.Relievethe systempressurebyopening the rinse
drainvalve(the fifthvalveback fromthe timer)
withascrewdriver, Figure14.
4.Removethe locking barscrew, Figure15.
Figure11
Figure12
Figure13
Figure14

AST0715-940 Page 17
5.Applydownwardhand pressureon the valveand
removethe locking bar, Figure16.
6.Using the rocking motion, lift the valvefromthe
tankadaptor, Figure16. Ifthe o-ring sealscome
off withthe valveput themback intothe tank
adaptorsockets. Lubricatethe o-ringswith
silicone lubricant.
Note: Petroleumbased lubricantswill damage
the
Plasticvalveand o-rings.
Reversethe proceduretoreplacethe valves.
PreventativeMaintenance
InjectorScreenandInjector
The injectoristhe component whichcreatesthe
vacuumnecessary todrawthe brine intothe water
conditioner. Clean the injectorand injectorscreen at
least onceayearinordertomaintainproper
operation ofthe conditioner. Somelocationsmay
requiremorefrequent injectorand screen servicing.
RefertoFigure17 and completethe following steps
toclean the injectorscreen and injector:
1.Unplug the powercord.
2.Shut off the watersupplyorput the bypass-
valve(s)intothe bypass position and removethe
rearcover, Figure10.
3.Relievesystempressurebyopening the rinse
drainvalve(the fifthvalveback fromthe control)
withascrewdriver, Figure11.
4.Using ablade screwdriver, unscrewand remove
the injectorscreen and injectorcap.
5.Clean screen withafine brush. Flushwithwater
until clean.
6.Using aneedle-nosepliers, pull the injector
straight out.
7.Flushwaterintothe injectorscreen recess ofthe
valvebodytoflushdebrisout through the injector
recess.
8.Clean and flushthe injector. Lubricatethe o-rings
on the injector, injectorcap and injectorscreen
withsilicone lubricant.
9.Reinstall the injector(small and first), injectorcap
and injectorscreen.
Figure15
Figure16
Figure17
Caution
Do notovertighten theplasticcap. Seathe
cap lightlyinto position. Overtightening can
cause breakageoftheplasticcap which may
notbeevidentimmediately

AST0715-940 Page 18
10.Slowlyopen the watersupplyvalveorreturnthe
bypass valve(s)tothe not inbypass"position.
11.Reconnect electricpower, and reset the timeof
day.
HydrostaticTest Pressure……………………………………………………………………………. 300 psi
(2069kPa)
Working Pressure………………………………………….. 20 to127 psi(138 to876 kPa), 100 psimaxin
Canada
Voltage ……………………………….. 24V50 Hz, 24V60 Hz, 100V50 Hz, 100V60 Hz, 230V50 Hz, 115V60
Hz
Current ……………………………………………………………………………………………………………….. 50
mA
Operating Temperature…………………………………………………………………..…34°F (1°C)to120°F
(49°C)
Humidity………………………………………………………………...…………….10% to100%, condensing
allowed
PressureTankThread ………………………………………………………………………………… 21/2in-8
NPSM
Brine Line Thread ………………………………………………………………………………………... 1/4inNPT
male
DistributorTube DiameterRequired …………………………………………………………. 13/16 inO.D. (20.6
mm)

AST0715-940 Page 19
DistributorTube Length…………………………………………... 11/4in(31.8mm)higherthan top ofmineral
tank
StandardManifoldConnection ……………………… 3/4inNPT inlet-outlet, 1/2inNPT draininNORYL
manifold,
3/8inNPT draininbrass
manifold
OptionalManifoldConnections…………… 1inNPT inlet-outlet, 1/2inNPT drain; 3/4inBSPT inlet-outlet, 3/8
in
BSPT drain; 1inBSPT inlet-outlet, 1/2in. BSPT
drain
OptionalBypass Valve……………….. 3/4in(19.1mm)or1in(25.4mm)coppertailpiece, 1/2inNPT male
drain
ValveModule, TankAdaptor, OptionalBypass Valve…………………………………………… Reinforced
NORYL
Inlet-Outlet Manifold………………………………………………………………………... Brass orreinforced
NORYL
RubberParts………………………………………………………………………. Compounded forcoldwater
service
Injectorsize"A"White…………………… Nozzle0.042 in(1.1mm)diameter, Throat 0.089 in(2.3mm)
diameter
Injectorsize"B"Blue …………………….. Nozzle0.052 in(1.3mm)diameter, Throat 0.099 in(2.5mm)
diameter
Injectorsize"C"Red …………………… Nozzle0.059 in(1.51 mm)diameter, Throat 0.099 in(2.5mm)
diameter
BackwashControllersAvailablefor………………………………………………………... 6, 7, 8, 9, 10, 12, 13, 14
in
(15.2, 17.8, 20.3, 22.9, 25.4, 30.5, 33.0, 35.6cm)diametermineral
tanks
All sized toflow4.5gpm/sqft (183 l/min/m2)ofbed
area
PressureGraphs

AST0715-940 Page 20
Control Valving Identification ValveDisc Operation
