iBell Tools MC25-84 User manual

MARBLE CUTTER
MC25-84

1

2
1. GENERAL POWER TOOL SAFETY WARNINGS __________
2. MARBLE CUTTER SAFETY WARNINGS_________________
3. PRODUCT OVERVIEW _________________________________
4. PRODUCT SPECIFICATIONS ___________________________
5. SETUP _________________________________________________
6. PRODUCT FUNCTIONS AND ASSEMBLY________________
7. GENERAL OPERATION ________________________________
8. TROUBLESHOOTING __________________________________
TABLE OF CONTENTS
IBL MC25-84
3
6
8
9
9
10
14
17

3

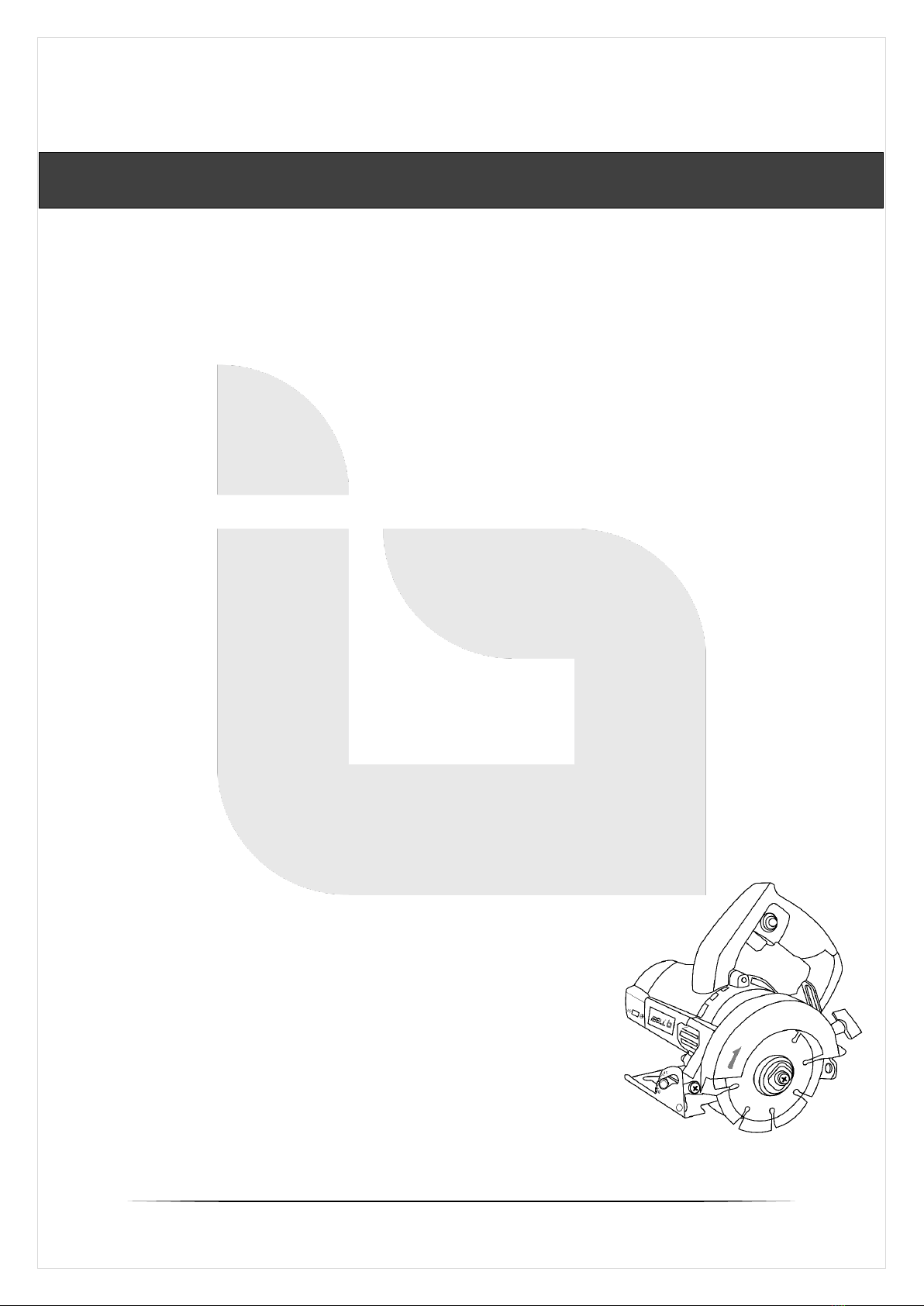

Keep work area clean and well lit. Cluttered or dark areas invite
accidents.
Do not operate power tools in explosive atmospheres, such as
in the presence of flammable liquids, gases or dust. Power
tools create sparks which may ignite the dust or fumes.
Keep children and bystanders away while operating a power
tool. Distractions can cause you to lose control.
Power tool plugs must match the outlet. Never modify the plug
in any way. Do not use any adapted plugs with earthed(grounded)
power tools. Modified plugs and un-matching outlets will increase
the risk of electric shock.
Avoid body contact with earthed or grounded surfaces, such as
pipes, radiators, ranges and refrigerators. There is an increased
risk of electric shock if your body is earthed or grounded.
Do not expose power tools to rain or wet conditions. Water
entering a power tool will increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep it away from heat, oil, sharp edges
or moving parts.
When operating a power tool outdoors, use an extension cord
suitable for outdoor use. Use of a cord suitable for outdoor use
reduces the risk of electric shock.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING! Read all safety warnings, instructions,
illustrations and specifications provided with this power tool.
Failure to follow all instructions listed below may result in
electric shock, fire and/or serious injury. Save all warnings and
instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool
WORK AREA SAFETY
ELECTRICAL SAFETY
IBL MC25-84

4
Stay alert, watch what you are doing and use common sense
when operating a power tool. Do not use a power tool while you
are tired or under the influence of drugs or alcohol. A moment of
inattention while operating power tools may result in serious
personal injury.
Use personal protective equipment. Always wear eye protection.
Protective equipment such as a dust mask, non-skid safety shoes,
hard hat, or hearing protection used for appropriate conditions will
reduce personal injuries.
Prevent unintentional starting. Ensure the switch is in the off-
position before connecting to power source and/or battery pack,
picking up or carrying the tool.
Remove any adjusting key or wrench before turning the power
tool on. A wrench or a key left attached to a rotating part of the
power tool may result in personal injury.
Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected
situations.
Dress properly, say no to loose clothing or jewellery. Keep your
hair, clothing away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction
and collection facilities, ensure these are connected and
properly used. Use of dust collection can reduce dust-related
hazards.
Have your power tool serviced by a qualified repair-person
using only identical replacement parts.This will ensure that the
safety of the power tool is maintained.
When servicing a power tool, use only identical replacement
parts. Follow instructions in the maintenance section of this
manual. Use of unauthorized parts or failure to follow maintenance
instructions may create a risk of shock or injury.
PERSONAL SAFETY
IBL MC25-84
SERVICE

5
Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer
at the rate for which it was designed.
Do not use the power tool if the switch does not turn it on and
off. Any power tool that cannot be controlled with the switch is
dangerous and must be repaired.
Disconnect the plug from the power source and/or the battery
pack from the power tool before making any adjustments,
changing accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool
accidentally.
Store idle power tools out of the reach of children and do not
allow persons unfamiliar with the power tool or these
instructions to operate the power tool. Power tools are dangerous
in the hands of untrained users.
Keep cutting tools sharp and clean. Properly maintained cutting
tools with sharp cutting edges are less likely to bind and are easier
to control.
Keep handles and grasping surfaces dry, clean and free from oil
and grease. Slippery handles and grasping surfaces do not allow
for safe handling and control of the tool in unexpected situations.
Even if you are operating this product in accordance with all the
safety requirements, potential risks of injury and damage remain.
The following dangers can arise:
Health defects resulting from vibration emission if the product is
being used over long periods of time or not adequately managed
and properly maintained.
Injuries and damage to property due to broken cutting attachments
or the sudden impact of hidden objects during use.
Danger of injury and property damage caused by other objects or
due to natural reactions or calamities.
POWER TOOL USE AND CARE
IBL MC25-84
RESIDUAL RISKS

6
Keep your hands away from cutting area and the blade. Hold the
power tool by insulated gripping surfaces only and second hand
on motor housing. Keep your body positioned to either side of the
blade, but not in line with the blade.
Do not hold the material to be worked in your hands, it’s
important that the material be adequately clamped down, reducing
the contact with the body and the possibility of losing control.
Do not operate the tool on surfaces under which there might be
electrical wires, and water or gas pipes. The contact with wires
or water might cause electrical shocks. The motor generates sparks
that, if in contact with flammable gases, might cause explosion.
Always use blades (cutting wheel) of correct sizes and with
round holes. *Suitable blade might be available with the product,
use of it is highly recommended. Use only diamond cutting
wheels for your power tool. Blades with shapes that don’t match
the backing flange on which they’ll be assembled will work in an
irregular way, causing loss of control of the tool.
Do not overload your tool, use it only for the adequate purpose.
Using the power tools for purposes that are different from what is
indicated in this manual (refer ‘Intended Use’) might lead to
hazardous situations.
Wait for the blade to come to a complete stop, note that there is
a period of inertial movement before the tool stops, after it’s
turned OFF.
The use of this tool create and/or spread dust that may cause
serious and permanent respiratory injuries. To reduce the
exposure to these substances, work in well-ventilated places and
always use dust mask.
Wear ear protectors. Exposure to noise can cause hearing loss.
Wear safety goggles or eye protection when using this power
tool. For additional protection against electric shock, be sure to
wear rubber gloves.
MARBLE CUTTER SAFETY WARNINGS
IBL MC25-84

7
Never force the tool. Forcing the tool can cause uneven cuts,
loss of accuracy, and possible kickback. Push the tool forward at
a speed so that the blade cuts without slowing.
When operating the tool, keep the cord away from the cutting
area and position it so that it will not be caught on the work piece
during the cutting operation.
Blade depth and adjusting locking knob must be tight and
secure before making cut. If blade adjustment shifts while
cutting, it may cause binding and kickback.
Never attempt to cut with the tool held upside down in a
vice/workbench. This is extremely dangerous and can lead to
serious accidents.
When using the water feed, be careful not to let water get into
the motor. If water runs into the motor, an electric shock hazard
may result. Do not stand in water when operating the power tool.
Keep the power tool dry when applying water to the cutting
wheel. Do not touch the plug with wet hands. Keep bystanders
away from water and electricity.
Keep bystanders a safe distance away from work area. Anyone
entering the work area must wear personal protective equipment.
Fragments of work piece or of a broken cutting wheel may fly away
and cause injury beyond immediate area of operation.
Make sure the cutting wheel is not contacting the work piece
before the switch is turned on. Wait until the cutting wheel attains
full speed before cutting. Stop operation immediately if you notice
anything abnormal.
Always wait until the power tool has come to a complete stop
before placing it down. Do not stop the cutting wheel by lateral
pressure on the disc.
When an extension cord is required you must ensure it has the
correct ampere rating for your power tool and that it is in a safe
electrical condition. Fully unwind the extension cords inorder to
avoid potential overheating.
WARNING! Misuse or failure to follow the safety rules stated in
this instruction manual may cause serious personal injury.
IBL MC25-84

8

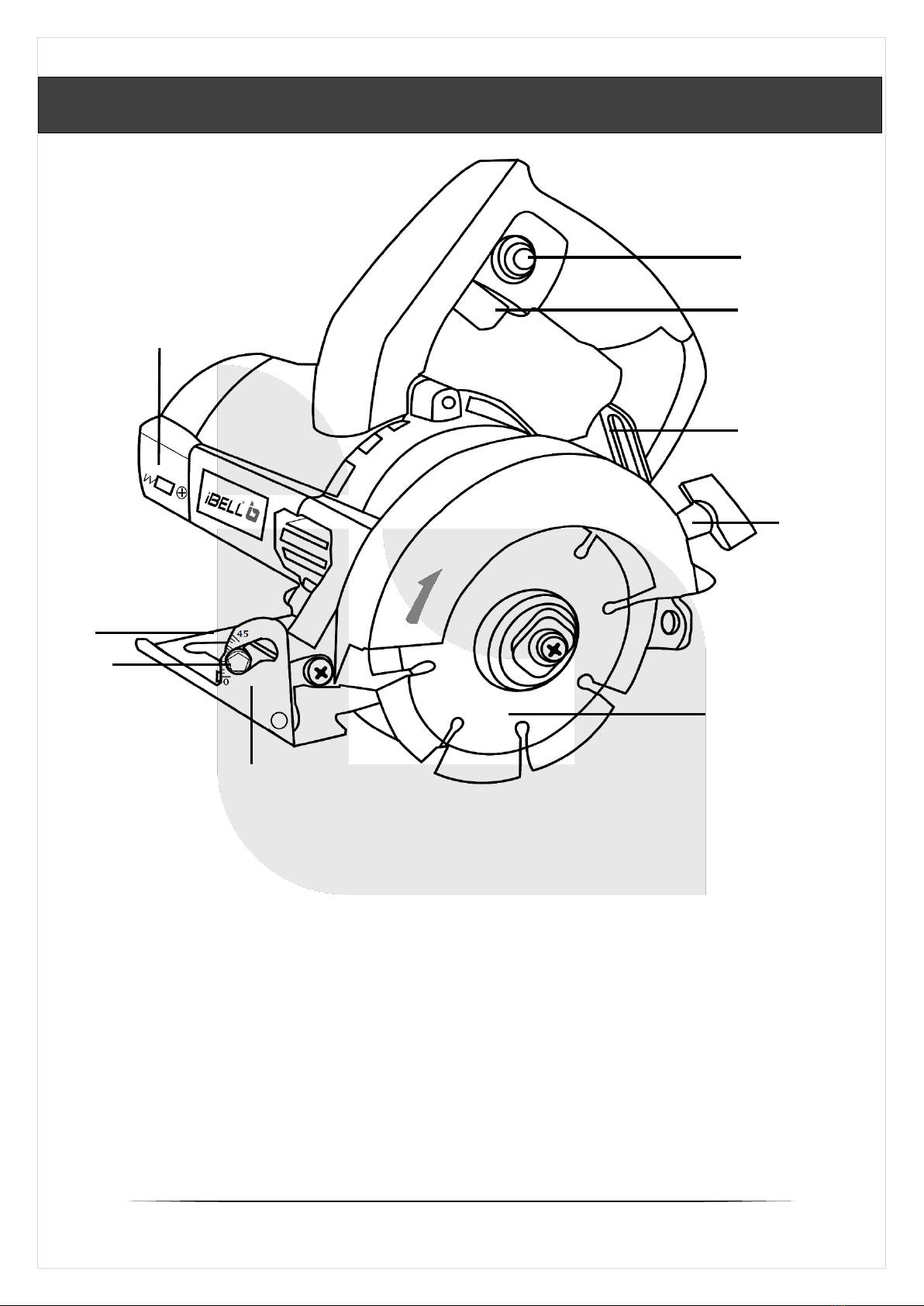

PRODUCT OVERVIEW
1. Base plate
2. Bevel locking bolt
3. Bevel scale plate
4. Cutting wheel
5. Cutting depth
locking knob
IBL MC25-84
1
2
3
4
5
6
7
8
9
6. Cutting depth guide
7. ON/OFF switch
8. Lock on button
9. Carbon brush
compartment

9
Rated voltage
Rated Input Power
Rated no load speed
Weight
Cutting wheel diameter
Max. Cutting depth
Protection class
Unpack all parts and lay them on flat, stable surface. Remove all
packing materials. Make sure the delivery contents are complete
and free of any damage. If you find that parts are missing or
show damage, do not use the product but contact your dealer.
Check if the tool is in good conditions by performing a quick
visual inspection. Ensure that you have all the accessories and
tools needed for assembly and operation.
This also includes suitable personal protective equipment.
: 230V~50Hz
: 1300W
: 13000 rpm
: 2.85 Kg
: 125 mm
: 38 mm
: Class II
SETUP
UNPACKING AND ENSURING
WARNING! The product must be fully assembled before
operation! Do not use a product that is only partly assembled or
assembled with damaged parts! Follow the assembly instructions
step-by-step and use the pictures provided as a visual guide to
easily assemble the product!
IBL MC25-84
PRODUCT SPECIFICATIONS

10
This marble cutter is designed for light professional use; used
horizontally on a solid base and it should be used for wet
cutting mineral materials such as marble, granite, etc.
This can also be used for cutting other materials including wood,
metal etc., (light use only). The design allows good control over
the angle and the depth of reach at all times.
We can make a clean cut so that the end product needs a lesser
amount of finishing. By using the proper blade and this machine,
we can do the marble cutting in the least time.
It is a powerful and compact tool for cutting that works quite
precisely and fast. We can adjust the plate to make angled cuts as
well.
The cutting wheel has a position that gives the best reach to the
work piece and improves the efficiency of cutting. *We can
interchange the blades to suit different work pieces. The blade is
spindle mounted so we can fix and remove it fast.
(refer the assembly section below)
INTENDED USE
PRODUCT FUNCTIONS AND ASSEMBLY
To start the tool, simply press the
trigger switch (7). Tool speed is
increased by increasing pressure on the
switch trigger. For continuous operation,
press the lock on button (8) as well.
Release the trigger switch to stop.
ON/OFF TRIGGER SWITCH AND LOCK BUTTON
WARNING! Before plugging in the tool, always check that the
switch trigger actuates properly and returns to the "OFF" position
when released.
7
8
IBL MC25-84

11
Before adjusting the depth of cut, ensure that the power tool is
facing away from you. Then:
The cutter can be adjusted to cut at angles between 0° and 45°.
Always make a trial cut in a scrap piece of material along a
guideline to determine how much you should offset the cutting
wheel from the guideline to make an accurate cut.
ADJUSTING THE CUTTING ANGLE (BIVELLING)
IBL MC25-84
ADJUSTING THE CUTTING DEPTH
Loosen the depth locking knob (5)
on the depth guide (6).
Hold the base plate flat against the
edge of the work piece and lift the
body of the power tool until the
cutting wheel is at the desired
depth of cut. Using a depth gauge,
we can determine cutting depth.
Then secure the base by tightening
the depth locking knob.
2
3
I
II
5
6

12
For bevelling (angle cutting), follow the steps below:
Loosen the bevel locking bolt (2) on the bevel scale plate (3) on
the front of the base plate.
Tilt the body of the tool until the required angle is reached using
the bevel scale as a guide.
Tighten the bevel locking bolt to secure the base plate.
Loosen the locking bolt on the depth guide and move the base
plate so that the cutting depth is less than or equal 20mm. Then
tighten the locking bolt to secure the base plate.
If the cutting depth is more than 20mm, the outer flange may hit
the work piece when you perform the bevel cut.
Diamond cutting wheel of 125 mm should be used. Only use
sharp and undamaged cutting wheels. Cracked or distorted cutting
wheels must be replaced immediately.
Follow the steps and figure below for mounting/ replacing:
Place the tool on its side on a flat surface. Hold the outer flange
with the spanner wrench provided.
Loosen the hex bolt clockwise with the socket wrench provided.
Remove the bolt and outer flange. Remove the cutting wheel from
the inner flange and pull it out.
Do not touch the blade with your bare hand immediately after
cutting, it may be extremely hot and could burn your skin. Put on
a pair of gloves when removing a hot blade.
Clean the flanges thoroughly before mounting the cutting wheel.
Mount the new or existing cutting wheel onto the spindle and
against the inner flange.
Replace the outer flange and tighten the hex bolt anticlockwise.
MOUNTING/ REPLACING THE CUTTING WHEEL
IBL MC25-84
NOTE: The direction in which the cutting wheel rotates has to be the
same as the direction of the arrow marked on the guard.
After replacing the cutting wheel, make sure that the cutting wheel
runs freely by turning the cutting wheel by hand.

13
Connect one end of the vinyl tube into the adaptor and other one
firmly to the water pipe, to form the water pipe assembly.
Loosen the locking knob on the depth guide and move the base
down. Install the water pipe assembly on the blade case by
loosening the screw and then tightening the assembly with it.
Connect it tightly on a faucet (tap) to feed water, Adjust the
amount of water flow by simply adjusting the regulator.
IBL MC25-84
INSTALLING WATER PIPE
I
II
III
IV
IHex socket bolt
II Outer flange
III Cutting wheel
IV Inner flange
Tightening and loosening is based
on the direction of rotation marked
IWater pipe
II Vinyl tube
III Adaptor
IV Faucet
I
II
III
IV
Tightening the water pipe assembly

14
Hold the power tool firmly. Align the front part of the tool with
the cut line on the work piece. Set the base plate on the work
piece to be cut without the cutting wheel making any contact.
Then turn the power tool on and wait until the cutting wheel
attains full speed.
Now simply move the power tool forward over the work piece
surface, keeping it flat and advancing smoothly until the cutting
is completed. Keep your cutting line straight and your speed of
advance uniform (to make the cut line continuous).
The depth of cut can be adjusted by the depth locking knob and
depth guide. Adjusting the bevel locking bolt, bevelling can be
scaled up to 45° (Refer above for the assembly).
If wet cutting is desired, turn the water supply valve to start
water flow.
For cutting deeper than 20 mm, make two or more notches to
prevent the motor from obscuring. Since excessive cutting may
cause overload of the motor, the depth of cut should not be more
than 20 mm at a pass. When you wish to cut more than 20 mm
deep, make a couple of passes with progressively deeper settings.
GENERAL OPERATION
NOTE: Always switch the product off, disconnect the product from the
power supply and let the product cool down before performing
inspection, maintenance and cleaning work! Only perform repairs and
maintenance work according to these instructions! All further works
must be performed by a qualified specialist!
IBL MC25-84
WARNING! Never twist or force the tool in the cut. This may
cause motor overload and/or a dangerous kickback, resulting in
serious injury to the operator.
This power tool should only be used on horizontal surfaces.
Do not use a deformed or cracked blade. Replace it with a new one.
Draw a guideline along the desired line of cut before beginning
your cut. Also, guide the power tool evenly and with light feed in
the cutting direction.

15
Keep the tool clean. Keep the ventilation slots clean and free
from obstructions. If available, blow compressed air into the
vents to clear any internal dust (safety goggles must be worn
when undertaking this process). Accumulation of dust in the
motor or on the base may cause a malfunction of the tool.
Never use water or chemical cleaners to clean your tool.
Wipe it clean with a dry cloth. Your power tool requires no
additional lubrication.
Cleaning covers or guards; When accumulation of dust on the
cover looks excessive, loosen the clamp and remove the cover.
Wash off accumulation of dust inside the cover and wipe it and
reinstall. Cleaning of the wheel could be done as well.
We recommend using the original package for covering the
product or suitable means to protect it against dust.
Before and after each use, check the product and accessories (or
attachments) for wear and damage.
Inspecting cutting wheel; Check the cutting blade or wheel
carefully for cracks or damage before and after each use.
Continuing to use a dull blade may cause a dangerous kickback
and/or motor overload. Dressing could be suitable or replace with
a new blade as soon as it no longer cuts effectively.
Dressing diamond wheel: If the cutting action of the diamond
wheel begins to diminish, use an old discarded coarse grit grinder
wheel for dressing (There are other means as well).
Inspecting the supply cord; Do not pull or carry the tool by the
electric cord or allow its contact with edges, sharp elements,
rough surfaces, oil or chemicals that may damage its flexible and
insulating properties. If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
CLEANING AND STORAGE
MAINTENANCE AND REPAIR
IBL MC25-84

16
Inspecting carbon brushes; The motor employs carbon brushes
which are consumable parts. Keep the brushes clean so that they
move freely on the support. Remove and check the carbon
brushes quite often. To inspect or replace the carbon brushes, use
a screwdriver to remove the rear cover and take out the carbon
brushes. Replace when they wear down to an extended limit since
an excessively worn carbon brush results in motor trouble.
Both carbon brushes should be replaced at the same time.
Use only identical carbon brushes.
The accessories or attachments included with the tool are
recommended only for use with this product. The use of any
other accessories or attachments might present a risk of injury to
persons. Only use accessory or attachment for its stated purpose.
This product does not contain any parts that can be repaired
by the consumer. Contact an authorised service centre or a
similarly qualified person to have it checked and repaired.
Carbon Brush
compartment
IBL MC25-84

17
Suspected malfunctions are often due to causes that the users can
fix themselves, therefore check the product using this section.
Problem
Possible Cause
Solution
1. Product
does not start
1.1 No power supply
1.2 Product damaged
1.3 Short circuit in
motor winding.
1.4 Wear out of carbon
brush.
1.1 Check the plug
1.2 Check it by a
technician
1.3 Replace stator or
rotor by technician.
1.4 Replace carbon
brush by technician.
2. Excessive
sparkling
during
running
2.1 Ring fire caused
by short circuit in
rotor or stator
winding.
2.2 Under pressure in
carbon brush
spring.
2.1 Check or replace
rotor/stator by
technician.
2.2 Replace carbon
brush by technician.
3.Unsatisfactory
result (Poor
cutting quality)
3.1 Improper
installation of
cutting blade.
3.2 Damaged/Worn
out cutting blade.
3.1 Reinstall cutting
blade.
3.2 Replace cutting
blade.
4. Excessive
noise during
no load
running
4.1 Motor bearing
damage.
4.1 Replace bearing by
a technician.
5. Machine
overheating
5.1 Overload running.
5.2 Motor bearing
damage.
5.1 Conduct the
operation correctly.
5.2 Check or replace it
by technician.
TROUBLESHOOTING
WARNING! All further inspection and repair work must be
performed by an authorised service centre or a qualified technician!
IBL MC25-84

18
Do not dispose this product by normal household waste, but take it to a collection
point and recycling of electrical and electronic equipment. This is indicated by the
symbol on the product, user manual or packaging. Re-use, material utilization or
other forms of old appliances, you make an important contribution in protecting our
environment.
Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist. Check
with your Local Authority or local store for recycling advice.
CONTACT US
HiTech Machineries & Equipments
IV/540E, Thottumugham, P.O, Aluva
Ernakulam(Dist), Kerala, India- 683105
Toll Free : 1800 103 4090
Whatsapp : [phone]
Website : www.ibelltools.com
Email : [email protected]
