iBell HG20-82 User manual

HEAT GUN
HG20-82

1

2
1. GENERAL POWER TOOL SAFETY WARNINGS __________
2. HEAT GUN SAFETY WARNINGS ________________________
3. PRODUCT SPECIFICATIONS ___________________________
4. PRODUCT OVERVIEW _________________________________
5. PRODUCT FUNCTIONS AND ASSEMBLY________________
6. GENERAL OPERATION ________________________________
7. TROUBLESHOOTING __________________________________
TABLE OF CONTENTS
IBL HG20-82
3
6
7
8
10
11
13

3
Keep work area clean and well lit. Cluttered or dark areas invite
accidents.
Do not operate power tools in explosive atmospheres, such as
in the presence of flammable liquids, gases or dust. Power
tools create sparks which may ignite the dust or fumes.
Keep children and bystanders away while operating a power
tool. Distractions can cause you to lose control.
Power tool plugs must match the outlet. Never modify the plug
in any way. Do not use any adapted plugs with earthed(grounded)
power tools. Modified plugs and un-matching outlets will increase
the risk of electric shock.
Avoid body contact with earthed or grounded surfaces, such as
pipes, radiators, ranges and refrigerators. There is an increased
risk of electric shock if your body is earthed or grounded.
Do not expose power tools to rain or wet conditions. Water
entering a power tool will increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep it away from heat, oil, sharp edges
or moving parts.
When operating a power tool outdoors, use an extension cord
suitable for outdoor use. Use of a cord suitable for outdoor use
reduces the risk of electric shock.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING! Read all safety warnings, instructions,
illustrations and specifications provided with this power tool.
Failure to follow all instructions listed below may result in
electric shock, fire and/or serious injury. Save all warnings and
instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
WORK AREA SAFETY
ELECTRICAL SAFETY
IBL HG20-82

4
Stay alert, watch what you are doing and use common sense
when operating a power tool. Do not use a power tool while you
are tired or under the influence of drugs or alcohol. A moment of
inattention while operating power tools may result in serious
personal injury.
Use personal protective equipment. Always wear eye protection.
Protective equipment such as a dust mask, non-skid safety shoes,
hard hat, or hearing protection used for appropriate conditions will
reduce personal injuries.
Prevent unintentional starting. Ensure the switch is in the off-
position before connecting to power source and/or battery pack,
picking up or carrying the tool.
Remove any adjusting key or wrench before turning the power
tool on. A wrench or a key left attached to a rotating part of the
power tool may result in personal injury.
Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected
situations.
Dress properly, say no to loose clothing or jewellery. Keep your
hair, clothing away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction
and collection facilities, ensure these are connected and
properly used. Use of dust collection can reduce dust-related
hazards.
Have your power tool serviced by a qualified repair-person
using only identical replacement parts.This will ensure that the
safety of the power tool is maintained.
When servicing a power tool, use only identical replacement
parts. Follow instructions in the maintenance section of this
manual. Use of unauthorized parts or failure to follow maintenance
instructions may create a risk of shock or injury.
PERSONAL SAFETY
IBL HG20-82
SERVICE

5
Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer
at the rate for which it was designed.
Do not use the power tool if the switch does not turn it on and
off. Any power tool that cannot be controlled with the switch is
dangerous and must be repaired.
Disconnect the plug from the power source and/or the battery
pack from the power tool before making any adjustments,
changing accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool
accidentally.
Store idle power tools out of the reach of children and do not
allow persons unfamiliar with the power tool or these
instructions to operate the power tool. Power tools are dangerous
in the hands of untrained users.
Keep handles and grasping surfaces dry, clean and free from oil
and grease. Slippery handles and grasping surfaces do not allow
for safe handling and control of the tool in unexpected situations.
Even if you are operating this product in accordance with all the
safety requirements, potential risks of injury and damage remain.
The following dangers can arise:
Health defects resulting from vibration emission if the product is
being used over long periods of time or not adequately managed
and properly maintained.
Injuries and damage to property due to broken cutting attachments
or the sudden impact of hidden objects during use.
Danger of injury and property damage caused by other objects or
due to natural reactions or calamities.
POWER TOOL USE AND CARE
IBL HG20-82
IBL DS80-70|90
RESIDUAL RISKS

6
WARNING! Misuse or failure to follow the safety rules stated in
this instruction manual may cause serious personal injury.
A fire could arise if this hot air gun is not used with care.
Remember that hidden areas such as those behind walls, ceilings,
floors, boards and other panels may contain flammable materials
that could accidentally ignite while stripping paint. Such a fire
would not be readily apparent, and could cause considerable
damage and danger of injury.
Do not place your hand over the air vents, nozzles or block the
vents in any way. The nozzle and other accessories of this tool
become extremely hot during use. Let these parts cool down before
touching. Always switch the tool OFF before putting it down. Do
not leave the tool unattended while it is switched ON.
Do not point the hot air steam at people. Be sure to direct the hot
air blast in a safe direction; away from flammable objects.
Do not look directly into the metal nozzle when the machine is
switched on. Do not hold the metal nozzle too close to the work
as the air flow will be restricted and may cause the hot air gun to
overheat (Position the nozzle at least 25mm from the work surface).
Do not apply heat to any one area for a long period of time. Do
not allow heat to be directed onto the power cable.
Do not use this product as hairdryer, to cook or warm food. Do
not allow children to operate or play with the heat gun.
When an extension cord is required, please ensure it has the correct
ampere rating for the power tool and that it is in a safe electrical
condition. Fully unwind the cords to avoid potential overheating.
Be constantly aware the tool can ignite flammable materials,
and soften or melt others. Regardless of the task you are
performing, shield or keep away these materials that are close to
the work area. Avoid poking anything down inside the nozzle.
Do not use the heat gun in combination with chemical strippers.
When this is used as a paint stripper, Clean dry paint from the
nozzle after use and your scraper blade frequently during use.
Remove the plug from the socket before carrying out any
adjustment, servicing or maintenance.
HEAT GUN SAFETY WARNINGS
IBL HG20-82

7
: Class II
: 0.67 Kg
Rated voltage
Rated Input Power
Temperature
Air Flow
Protection class
Weight
This Heat gun is an electric device used to emit a stream of hot
air, usually at temperatures between 100 °C and 550 °C, which
can be held by hand. Heat guns are used in various fields:
physics, material science, chemistry, engineering, and other
laboratory and workshop settings.
The following includes the major applications of a heat gun:
Drying paint, varnish colour shade samples, filler, adhesives
and construction joints.
Drying wet timber prior to filling.
Removing stickers, Waxing and de-waxing.
Shrinking PVC wrapping and insulation tube. Bending plastic
pipes and sheets.
Joining adhesives- Large-surface gluing with contact adhesives,
activation of pressure-sensitive adhesives, acceleration of
bonding processes, releasing of bonding points as well as
releasing or bonding of edge band.
Loosening rusted or tightly-fastened nuts and bolts.
Welding of thermoplastic polymer, flooring materials of PVC
and PVC-coated fabric.
Soldering plumbing joints, tin, special silver solder, SMD
(Surface mounted device) elements and cable lugs.
Disinfection: With hot air of 550ºC, animal sties, stables of
bacteria, woodworm infestation can be removed or controlled.
: 230V~50Hz
: 2000W
: 1. 350ºC |2. 550ºC
: 1. 250 L/min |2. 550 L/min
PRODUCT SPECIFICATIONS
INTENDED USE

8
PRODUCT OVERVIEW
2
3
1. Hot air nozzle
2. Three position (0-1-2) switch
3. Air intake vents
1
IBL HG20-82
ON/OFF, air flow and
temperature control
WARNING! The product must be fully assembled before operation! Do
not connect the product to power supply before it is completely
assembled! Use the above picture as a guide for its components!

9
NOZZLES (Available with the product)
Hook nozzle:
This nozzle disperses the heat flow
evenly around the whole work piece. It is
ideal for defrosting frozen pipes,
soldering pipe work, bending plastics and
heat-shrinking electrical parts.
Deflector nozzle:
This nozzle directs a long, narrow heat
pattern to the work surface. This is ideal
for removing paint or varnish from large,
flat surfaces such as skirting boards, doors,
stairs, etc. It should be used in conjunction
with a flat scraper.
Glass protection nozzle:
This deflects the heat away from glass or
other fragile areas and back into the work
piece. This is ideal for window sills, ledges
and frames.
Concentrator nozzle:
This nozzle directs a concentrated heat
flow to the work piece. It is ideal for use
when removing paint in irregular corners,
moulding, beading, or wherever precise
paint removal is required.
IBL HG20-82

10
Position
Temperature
Air flow
1
350ºC
250
L/min
2
550ºC
550
L/min
PRODUCT FUNCTIONS
3-POSITION SWITCH
IBL HG20-82
2
The switch (2) has three positions. To put into operation, press the
switch to position ‘1’, ‘2’. To switch OFF, press the switch to the
stop at position ‘0’.
For setting the air flow and temperature, the switch can be set to
two blower steps. Suitable air flow and temperature combinations
can be selected according to the applications.
Position 1 (low temperature and air flow) is suitable for bending
plastic and heating shrinking plastic. Position 2 (high temperature
and air flow) is suitable for stripping paint and defrosting pipes.
NOTE: The ideal temperature should first be determined by
performing a test. You should start with a low temperature setting.
The working temperature can vary depending on the properties of the
work. The distance between the nozzle and work is dependent on the
material to be processed.
NOTE: When the heater is overloaded, the unit switches it OFF
automatically, however, the blower continues to run. When the unit has
cooled to operating temperature, the heater switches ON again.

11
The Heat Gun has many applications such as paint stripping, heat
shrinking tubing, bending plastic pipes, drying materials, welding
plastics, breaking down glues and adhesives and defrosting pipes
and so on. (Detailed list is mentioned in the ‘intended use’section, any
application other than these are not recommended)
The operation is quite simple, you ON the device and select a
suitable position for the suitable temperature and air flow.
According to the applications, the provided four nozzles (Hook,
Deflector, Glass protection and Concentrator) can be used.
(Detailed explanation for each nozzle is given in the ‘product overview’)

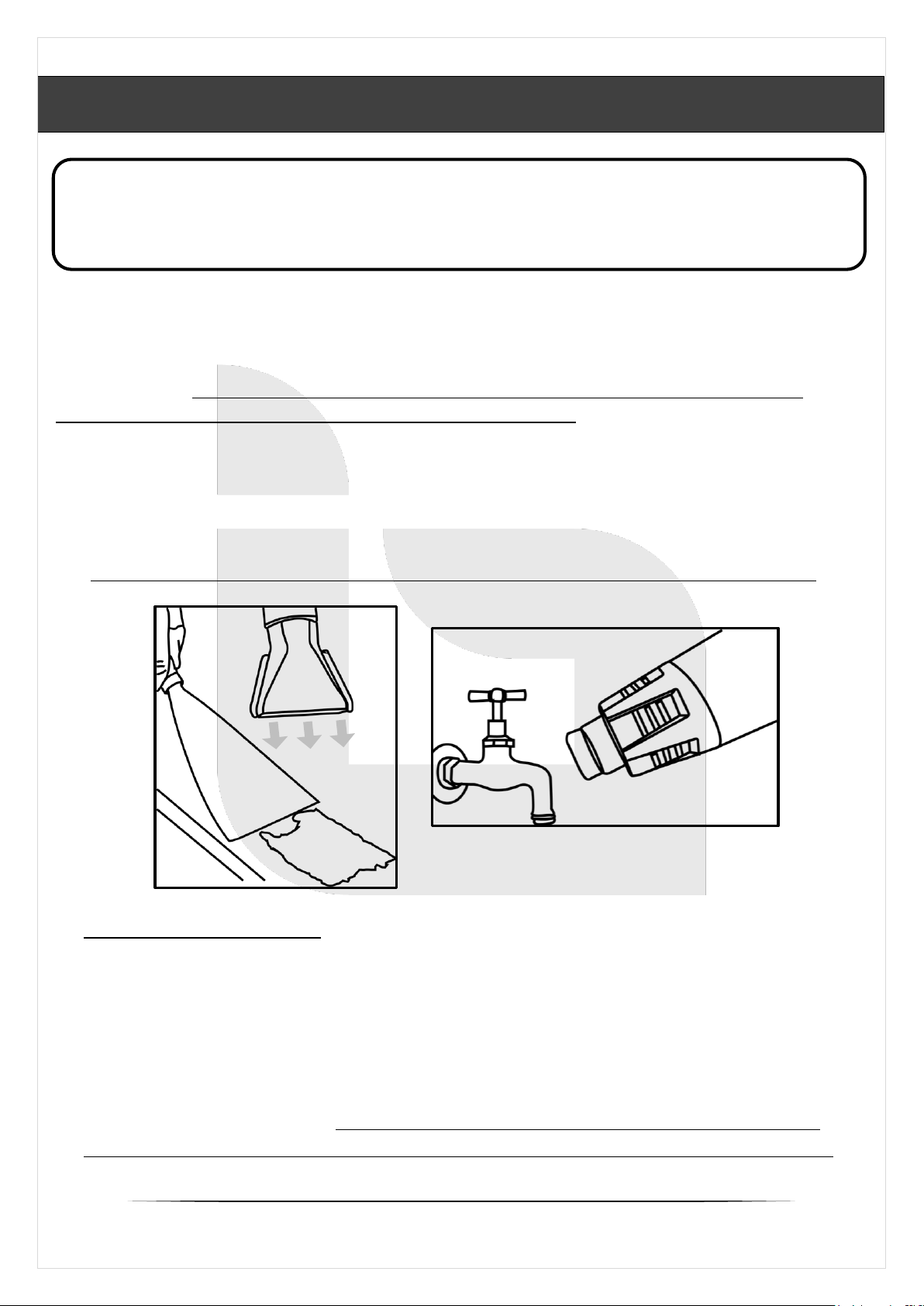

For removing paint, turn ON the tool and hold the nozzle about
25mm (2.5 cm) from the surface to be stripped. Give the unit
about 15-20 seconds running time to reach its full heat potential.
The paint being heated will usually begin to blister when it
reaches the proper temperature for stripping. When it reaches
this point begin scraping with smooth, even strokes. Move the
unit slightly ahead of the scraper to assure that the paint being
stripped is softened. Best results will be achieved if the gun is
moved slowly, constantly, side to side to evenly distribute heat.
GENERAL OPERATION
WARNING! Refer page no.6 for specific instructions before operation.
Heat guns should be held at an angle of approximately 45º from the
work and never keep in one place for more than a few seconds.
IBL HG20-82

12
This heat gun is designed to remove both oil based and latex
based paints. It will not remove stains or primer coats that have
impregnated the wood grain. Scrape (scratch) paint as soon as it
softens, it will soon cool and harden again. Clean the edge of
your scraper often to retain a clean, sharp edge.
For removing paint from window frames, always use the glass
protection nozzle. Ensure you have the nozzle facing the correct
way to deflect the heat away from the glass before you switch on.
Rotate the gun or nozzle 90º as you move to horizontal or vertical
bead. Paint can be removed from profile surfaces by using a
shave hook and/or a soft wire brush. Do not concentrate the tools
heat on a window pane or other glass surface as excessive heat
may crack the glass.
For bending plastic tube, choose the Hook nozzle and fit over
heat outlet. Turn the gun upside down and secure on a work-
bench with the nozzle pointing upwards. Heat the tube evenly by
moving from side to side and bend to required shape.
For shrink seating electrical cables, choose the Hook nozzle and
fit over heat outlet. Select a heat-shrinkable sleeve with a
diameter matching that of the work, evenly heat the sleeve.
Be constantly aware that this tool can ignite flammable
materials and soften or melt others.
Before and after each use, check the product and accessories (such
as application tools) for wear and damage.
While cleaning, use only mild soap and damp cloth to clean the
tool. Never let any liquid get inside the tool; never immerse any
part of the tool into a liquid.
Never clean nozzle or air holes in the gun with sharp metal
objects. Do not use solvents or lubricants containing silicone.
MAINTENANCE AND CLEANING
IBL HG20-82

13
Inspecting the supply cord; Do not pull or carry the tool by the
electric cord or allow its contact with edges, sharp, rough
surfaces that may damage its flexible and insulating properties.
Keep the air vents of the gun clean at all times. If possible,
prevent foreign matter from entering the vents.
The use of any accessory not recommended for use with this tool
could be hazardous. Always unplug the tool before attaching or
removing accessories. Do not remove accessory tips until the tool
has cooled to room temperature.
Suspected malfunctions are often due to causes that the users can
fix themselves, therefore check the product using this section.
Problem
Possible Cause
Solution
1. Gun will
not start.
1.1 Not plugged in.
1.2 Blown circuit fuse.
1.3 Circuit breaker is
tripped.
1.4 Cord or switch is
damaged.
1.1 Plug tool into a
working outlet.
1.2 Replace circuit fuse.
1.3 Reset circuit breaker.
(If the gun repeatedly causes
the circuit fuse to blow or
breaker to trip, discontinue
use immediately and have it
serviced at our service
centre or authorized
servicer)
1.4 Have the cord or
switch checked by a
qualified technician, if
required replace it.
TROUBLESHOOTING
IBL HG20-82

14
Do not dispose this product by normal household waste, but take it to a collection
point and recycling of electrical and electronic equipment. This is indicated by the
symbol on the product, user manual or packaging. Re-use, material utilization or
other forms of old appliances, you make an important contribution in protecting our
environment.
Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist. Check
with your Local Authority or local store for recycling advice.
CONTACT US
HiTech Machineries & Equipments
IV/540E, Thottumugham, P.O, Aluva
Ernakulam(Dist), Kerala, India- 683105
Toll Free : 1800 103 4090
Whatsapp : [phone]
Website : www.ibelltools.com
Email : [email protected]
