IBM NuPRO-630 User manual

NuPRO-630
Pentium
®
-II Bus-100MHz VGA
Full Size All-in-one PC/104 VGA CRT Interface
Supports DMA33 WDT DOC USB IrDA
PICMG Bus Industrial Single Board Computer

© Copyright 1999
All Rights Reserved.
Manual Rev 1.0, February 22.1999
This manual is copyrighted and all rights are reserved. It is not allow any non authorization in
copied, photocopied, translated or reduced to any electronic or machine readable in whole or in
part form without prior written consent from the manufacturer.
In general, the manufacturer will not be liable for any direct, indirect, special, incidental or
consequential damages arising from the use of inability to use the product or documentation,
even if advised of the possibility of such damages.
The proprietary information contains in this document is protected by the copyright. All rights
are reserved. It is not allow any non authorization in copied, photocopied, translated or reduced
to any electronic or machine readable in whole or in part form without prior written consent
from the manufacturer except for copied retained by the purchaser for backup purposes.
The manufacturer keeps the rights in the subject to change the contents of this manual without
prior notices in order to improve the function design, performance, quality and reliability. The
author assumes no responsibility for any errors or omissions, which may appear in this manual,
nor does it make a commitment to update the information contained herein.
Trademarks
IBM PC is a registered trademark of International Business Machines Corporation.
ALi is a registered trademark of ALi Corporation.
AWARD is a registered trademark of AWARD International Inc.
NuPRO is a registered trademark of ADLink Technology Inc.
All other trademarks, products and or product's name mentioned herein are mentioned for
identification purposes only, and may be trademarks and/or registered trademarks of their
respective companies or owners.

Contents • i
Contents
CHAPTER1 GENERAL INFORMATION...............................................................1-1
1.1 MAJOR FEATURES..............................................................................................1-2
1.2 SPECIFICATIONS..................................................................................................1-3
1.3 DELIVERY PACKAGE ..........................................................................................1-4
CHAPTER2 HARDWARE INSTALLATION.........................................................2-1
2.1 CAUTION OF STATIC ELECTRICITY................................................................2-1
2.2 CAUTION ON UNPACKING AND BEFORE INSTALLATION............................2-2
2.3 NUPRO-630’S LAYOUT......................................................................................2-3
2.4 QUICK LISTING OF JUMPERS.............................................................................2-3
2.5 QUICK LISTING OF CONNECTORS.....................................................................2-4
2.6 JUMPER SETTING DESCRIPTION......................................................................2-5
2.7 SETTING THE BUS-CLOCK FREQUENCY .........................................................2-6
2.8 FREQUENCY MULTIPLIER SETTING...............................................................2-6
2.9 SETTING THE RTC CONFIGURATION..............................................................2-7
2.10 SYSTEM MEMORY DRAM...............................................................................2-7
2.11 ATX/AT POWER SELECT .................................................................................2-7
2.12 WATCH-DOG TIMER.........................................................................................2-8
2.13 PCI VGA CONTROLLER (NUPRO-630 ONLY)...............................................2-9
2.14 DISKONCHIPADDRESS SETTING..............................................................2-10
CHAPTER3 CONNECTION......................................................................................3-1
3.1 POWER AND FAN CONNECTORS......................................................................3-1
3.2 IDE'S LED, KEY-LOCK AND RESET BUTTON..................................................3-2
3.3 EXTRA SPEAKER CONNECTOR.........................................................................3-2
3.4 PCI E-IDE DRIVE CONNECTOR .........................................................................3-3
3.5 PS/2 POWER ON/OFF CONTROL.......................................................................3-4
3.6 PARALLEL PORT CONNECTOR.........................................................................3-5
3.7 THE FLOPPY DISK DRIVE CONNECTOR..........................................................3-5
3.8 SERIAL PORTS CONNECTORS............................................................................3-6
3.9 KEYBOARD CONNECTORS.................................................................................3-8
3.10 PS/2 MOUSE 6-PIN MINI-DIN CONNECTOR..................................................3-8
3.11 VGA-CRT CONNECTOR...................................................................................3-9
3.12 IR CONNECTOR...............................................................................................3-10

ii • Contents
3.13 USB PORTS CONNECTOR...............................................................................3-10
CHAPTER4 AWARD BIOS SETUP........................................................................4-1
4.1 MAIN MENU........................................................................................................4-2
4.2 STANDARD CMOS SETUP .................................................................................4-3
4.3 BIOS FEATURES SETUP .....................................................................................4-4
4.4 CHIPSET FEATURES SETUP...............................................................................4-5
4.5 INTEGRATED PERIPHERALS..............................................................................4-6
4.6 POWER MANAGEMENT SETUP ........................................................................4-7

General Information 1-1
Chapter-1
General Information
The NuPRO-630 is a bus-100MHz ALi®BX-Level chipset design PICMG bus
Pentium®II Industrial Single Board (I.S.B.) CPU card with features combine together
to make it an ideal all-in-one industrial single board computer, enhanced I/O effects
with VGA interface on-board.
The NuPRO-630 also provides one set of PC/104 bus for 8/16-bit industrial
application with based on PC/104 standard bus.
Withonboard DMA33of mode4 toIDE driveinterface architecture,the NuPRO-630
supports with maximum 33.3 MB/sec in data transfer rating to 4 pieces IDE drive
connection.DesignwithALi™M1621BX-Level core logic chipset supports all series
Pentium®II operating at 233MHz, 266MHz, 300MHz, 333MHz, 400MHz and
450MHz.Theon-boardS3®86C375VGA chipset supports up to 1280 x 1024 256
colors display resolution. And it also provides one extra 10-pin connector for
internal VGA connection.
The advanced PICMG bus add-on connection of NuPRO-630 allows user could easily
obtainbothISA's16-bitandPCI's32-bit full set signals from a full size PICMG slot for
suitable plug into system with 8/16/32-bit ISA and-or PCI slots operating. The
NuPRO-630 provides with three pieces 168-pin DIMM sockets support up to
1.5GBytes of main system memory.
A single Flash chip holds the system BIOS, and you can easy update the Flash BIOS by
theUtilityUpdate. Advanced USBandIRports also provideforfasterand easily indata
transmission. You can also use the DOS version of the "DiskOnChip" socket by
issuing commands from the DOS prompt without the necessity of other software
supports up to 72MB.
If a non-expect program cause halts, the onboard watchdog timer will automatically
reset the CPU or generate an interrupt. The watchdog is designed with hardware only
and doesn’t need any arithmetical functions of a real -time clock chip. This ensures the
reliability in an unmanned or standalone system.

1-2General Information
1.1 Major Features
üPICMG bus supported.
üPC/104 bus connector for 8/16-bit supported.
üOneaxial-horizontaltypeSlot-1socketforIntel™ Pentium
®II 233∼450 MHz
Processors.
üALi™ M1621 BX-Level chipset.
üThree pieces DIMM sockets supports DRAM up to 1.5 GB.
üFast PCI DMA33 controller supports four IDE drives include large hard disks,
CD-ROM and tape backup etc.
üPnP I/O address & IRQ selection
üTwo high-speed RS-232 serial ports with 16C550 UART 16-byte FIFO.
üOne enhanced bi-directional parallel port supports SPP/EPP/ECP.
üOn-board PS/2 Keyboard and PS/2 Mouse connector.
üOn-board S3®86C375 SVGA adapter.
üDiskOnChipSocket supports memory size up to 72 MB.
üOn-board two USB ports and one IrDA port.
üBuild-in one industrial WDT Watch-Dog-Timer.
üAWARD PnP Y2K Flash BIOS.

General Information 1-3
1.2 Specifications
²CPU:One Intel Pentium®II 233/266/300/333/400/450MHz.
²Bus interface: PICMG bus, PC/104 bus.
²Chipset: ALi™ M1621 BX-Level with bus-100MHz facility.
²Data bus: 64-bit
²Processing ability: 64-bit
²SVGAController:S3®86C375 chipset with 2MB memory supports CRT up to
1280x1024 256 colors. Provides internal 10-pin VGA connector.
²PCI Enhanced IDE Interfaces: Supports four IDE drives modes 3&4 with
DMA33 function provide data transfer rate up to 33MB/Sec.
²RAM memory: Three pieces 168-pin DIMM sockets provide up to 1.5 GBytes.
²Cache memory: Slot-1 socket supports Intel's Pentium®II CPU with build-in
512KB Pipeline burst cache memory.
²Floppy disk drive interface: Supports up to two floppy disk drives.
²Parallel port: One bi-directional parallel port. Supports SPP/ECP/EPP.
²Serial ports: Two RS-232 ports. Both use 16C550 UART with 16-byte FIFO.
²BIOS:AWARD PnP Y2K Flash BIOS.
²Watchdogtimer:Hardware circuit can be set by 1, 2, 10, 20, 110, or 220 seconds
period Reset or NMI were generated when CPU did not periodically trigger the
timer.
²DMA channels: 7
²Interrupt levels: 15
²Keyboard:6-pinminiDINconnectoror5-pinheadersupports standardPC/AT
keyboard.
²Mouse: 6-pin mini DIN connector support PS/2 type mouse.
²USB:Supports 2 USB header.
²IR interface: Supports one lrDA TX/RX header.

1-4General Information
²Flash memory Disk: Socket for DiskOnChip™ (DOC), support up to 72MB
Flash memory disk.
²Extra Power Input: Provides one 4-PIN extra DC +5V/+12V power input
connector.
²CMOS:Real-time clock/calendar and battery backup by DS12B887 or equivalent
device.
²Power supply voltage: +5V (4.75 to 5.25V), +12V, -12V.
²Max. Power requirement: +5V @12A(266MHz), +12V@20mA,
-12V@20mA.
²Operating temperature: 0-55°C (CPU need cooler)
²Board size: 13.26"(L) x 4.8" (W) (337mm x 122mm)
TheNuPRO-630provideswithVGAInterface,supports DMA33, WDT, DOC, USB and
IrDA.
The NuPRO-631 design is same as NuPRO-630 but without VGA interface.
1.3 Delivery Package
The delivery package of NuPRO-630 includes all following items:
ROne NuPRO-630 Industrial Single Board
ROne Printer & COM Ports Bracketed Flat Cable
ROne IDE port Flat Cable
ROne FDD port Flat Cable
ROne PS/2 to Standard DIN type Keyboard Transfer Cable
RManual & Utility CD-ROM
RUser’s Manual
Pleasecontactwithyourdealerif anyoftheseitemsaremissingor damagedwhen
purchasing. And please keep all parts of the delivery package with packing
materials in case of you want to ship or store the product in feature.

Hardware Installation 2-1
Chapter-2
Hardware Installation
This chapter provides the information on how to install the hardware of
NuPRO-630. At first, please follow up sections 1.3, 2.1 and 2.2 in check the
delivery package and carefully unpacking. Following after, the jumpers setting of
switch, watchdog timer and the DiskOnChipaddress selection etc.
2.1 Caution of Static Electricity
The NuPRO-630 has been well package with an anti-static bag in protect its
sensitive computer components and circuitry from the damage of static electric
discharge.
Note: DO NOT TOUCH THE BOARD OR ANY OTHER SENSITIVE
COMPONENTS WITHOUT ALL NECESSARY ANTI-STATIC
PROTECTION.
You should follow the steps as following to protect the board in against the
static electric discharge whenever you handle the board:
1. Please use a grounding wrist strap on whoever needs to handle the
NuPRO-630. Well clip the ALLIGATOR clip of the strap to the end of the
shieldedwireleadfroma groundedobject.Pleaseputonandconnect thestrap
before handle the NuPRO-630 for harmlessly discharge any static electricity
through the strap.
2. Pleaseuseanti-static pad for put any components or parts or tools on the pad
whenever you work on them outside the computer. You may also in use the
anti-static bag instead the pad. Please ask from your local supplier in help up
your necessary parts on anti-static requirement.

2-2Hardware Installation
2.2 Caution on Unpacking and Before Installation
First of all, please follow with all necessary steps of section 2.1 in protection the
NuPRO-630 from electricity discharge. With refer to section 1.3, please check the
delivery package again with following steps:
1. UnpackingtheNuPRO-630, keep well storage of all packing material, manual
and diskette etc. if has.
2. Is there any components lose or drop from the board? DO NOT INSTALL
IF HAPPENED.
3. Is there any visual damaged of the board? DO NOT INSTALL IF
HAPPENED.
4. Well check from your optional parts (i.e. CPU, SRAM, DRAM, ROM-Disk
etc.) for completed setting all necessary jumpers setting to jumper pin-set and
CMOS setup correctly. Please also reference to all information of jumpers
setting in this manual.
5. Wellcheckfromyourexternal devices(i.e.Add-On-Card, Driver Type etc.) for
completed add-in or connection and CMOS setup correctly. Please also
reference to all information of connector connection in this manual.
6. Please keep all necessary manual and diskette in a good condition for your
necessary re-installation if you change your Operating System or whatever
needs.

Hardware Installation 2-3
2.3 NuPRO-630’s Layout
NuPRO-630’s Layout
2.4 Quick Listing of Jumpers
JP1 ( 1-2 ON ) —Bus-Clock Select
JP3 ( 3-4,7-8 ON ) —Frequency Multiplier setting of System Bus to
Processor Core
JP4 ( 1-2 OFF ) —RTC Clear Jumper
JP5 ( 1-2 ON ) —WATCHDOG Active Select
JP6 ( 5-6 ON ) —Time scale of Watch-Dog Timer
JP7 ( 1-2 ON ) —DiskOnChip™ Address setting
JP8 ( 2-3 ON ) —ATX/AT Power Select

2-4Hardware Installation
2.5 Quick Listing of Connectors
BZ1: ON-BOARD BUZZER
CN1: INTERNAL 5-PIN KEYBOARD CONNECTOR
CN2: RESET PIN
CN3: SPEAKER CONNECTOR
CN4: KEYLOCK CONNECTOR
CN5: HDD LED CONNECTOR
CN6: PS/2 POWER SWITCH CONNECTOR
CN7: POWER 4-PIN CONNECTOR
CN9: 1st IDE CONNECTOR
CN10: 2nd IDE CONNECTOR
CN13: PARALLEL PORT CONNECTOR
CN16: FDD CONNECTOR
CN17: INTERNAL VGA LCD CONNECTOR (HEADER 25x2)
CN18: COM2 (HEADER 5x2)
CN19: USB PORTS CONNECTOR
CN20: EXTERNAL COM1 CONNECTOR (DB9)
CN21: IR CONNECTOR (6-PIN)
CN22: EXTERNAL VGA CONNECTOR (DB15)
CN23: EXTERNAL MINI-DIN PS/2 MOUSE CONNECTOR
CN24: EXTERNAL MINI-DIN PS/2 KEYBOARD CONNECTOR
CN26: EXTERNAL COM2 CONNECTOR (DB9) (NuPRO-630P only)
CN35: FAN POWER CONNECTOR
LD1: ON-BOARD POWER-ON LED INDICATOR
U17: DiskOnChip™ SOCKET

Hardware Installation 2-5
2.6 Jumper Setting Description
A jumper pin-set is ON as a shorted circuit with a plastic cap inserted over two
pins. A jumper pin-set is OFF as a open circuit with a plastic cap inserted over
one or no pin(s) between pins. The below figure 2.2 shows the examples of
different jumper pin-set setting asON or OFF in this manual.

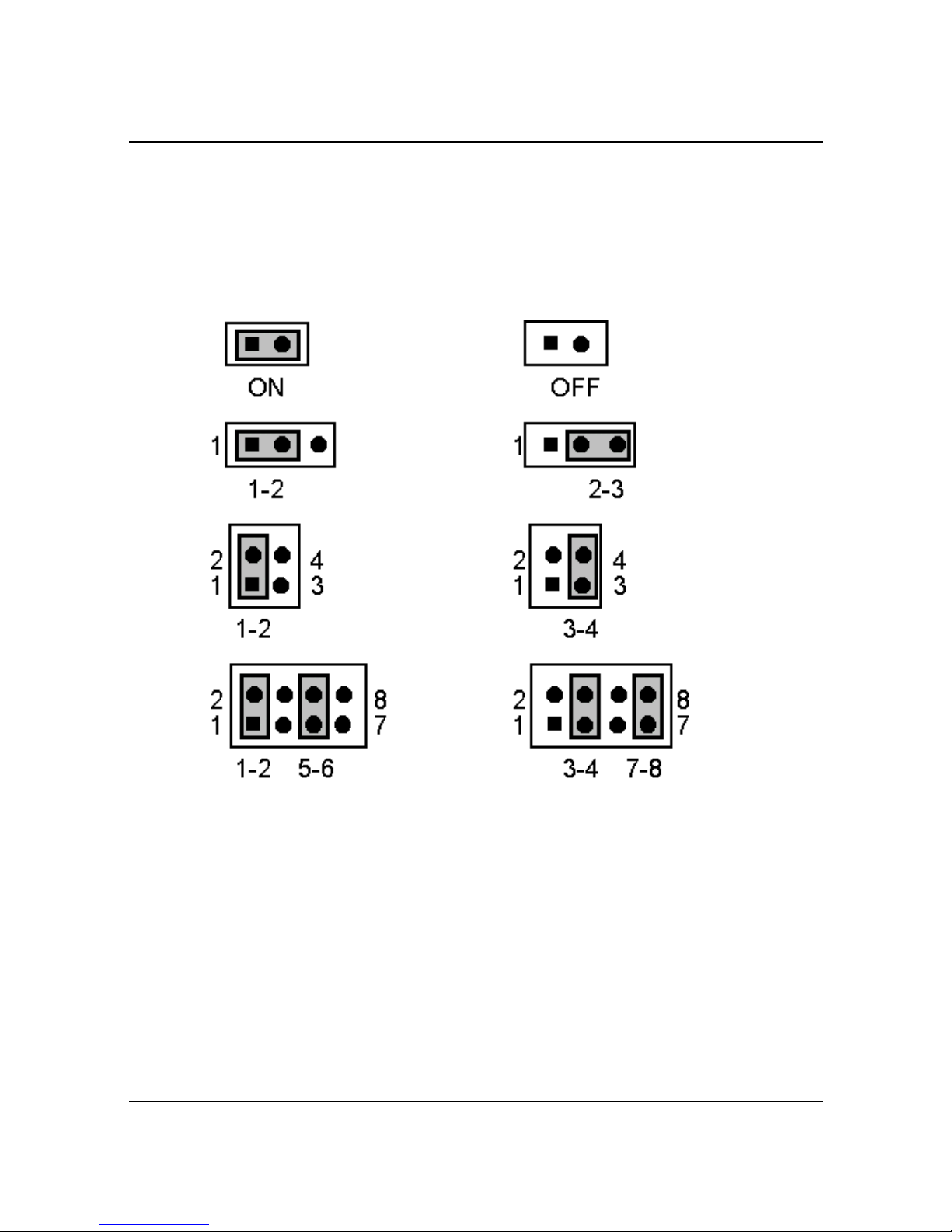

Figure 2.2
All jumper pin-set already has its default setting with the plastic cap inserted as
ON,orwithouttheplasticcapinsertedasOFF.Thedefault setting may reference
in this manual with a " * " symbol in front of the selected item.

2-6Hardware Installation
2.7 Setting the Bus-Clock Frequency
The NuPRO-630 provides all necessary by jumper setting in using Bus-Clock
frequency as the system bus clocking with JP1 setting as following:
lBus-Clock Frequency Setting of JP1:
Bus-Clock Frequency JP1
* 100MHz 1-2
66MHz 2-3
2.8 Frequency Multiplier Setting
The NuPRO-630 provides JP3 for define the selection of the Frequency
Multiplier value of system bus to processor core in following table:
lFrequency Multiplier Setting of JP3:
Frequency Multiplier:
( System Bus to Processor Core ) 7-85-63-41-2
2x ON ON ON ON
2.5x ON ON ON OFF
6x ON ON OFF ON
6.5x ON ON OFF OFF
3x ON OFF ON ON
* 3.5x ON OFF ON OFF
7x ON OFF OFF ON
7.5x ON OFF OFF OFF
4x OFF ON ON ON
4.5x OFF ON ON OFF
8x OFF ON OFF ON
1.5x OFF ON OFF OFF
5x OFF OFF ON ON
5.5x OFF OFF ON OFF
Reserved OFF OFF OFF ON
The bus-clock is setting by JP1 and JP2 The default setting is for Intel Pentium®II
350MHz processor.

Hardware Installation 2-7
2.9 Setting the RTC Configuration
TheNuPRO-630provides asettingforthe selectionofthe RTCClearJumper by
JP4 setting as following:
lCMOS Setting of JP4:
CMOS Clear Jumper JP4
Normal * OFF
Clear CMOS ON
2.10 System Memory DRAM
The NuPRO-630 provides a wide range on-board DRAM memory by three
pieces DIMM sockets (DIMM-1, DIMM-2, DIMM-3) request the access time
shouldmeetPC-100standard.. Themaximumcapacityofthe onboardmemory
is 1.5GBytes.
See the figure on section 2.3 for get the identifying the banks.
2.11 ATX/AT Power Select
The NuPRO-630 provides a selection by a three-pin jumper JP8 for setting the
power supply type in using.
lATX/AT Power Select Setting of JP8:
Power Supply In Using JP8
AT Power Supply * 2-3
ATX Power Supply 1-2

2-8Hardware Installation
2.12 Watch-Dog Timer
TherearethreeaccesscyclesofWatch-Dog Timer as Enable, Refresh and Disable.
The Enable cycle should proceed by READ PORT 443H. The Disable cycle
should proceed by READ PORT 043H. A continue Enable cycle after a first
Enable cycle means Refresh.
Once if the Enable cycle activity, a Refresh cycle is request before the time-out
period for restart counting the WDT Timer's period. Otherwise, it will assume
thattheprogram operationisabnormal when thetimecounting over theperiod
preset of WDT Timer. A System Reset signal to start again or a NMI cycle to the
CPU comes if over.
The JP5 is using for select the active function of watch-dog timer in disable the
watch-dogtimer,orpresettingthewatch-dog timer activity at the reset trigger, or
presetting the watch-dog timer activity at the NMI trigger.
lJP5 : Watch-Dog Active Type Setting
JP5 DESCRIPTION
*1-2System Reset
2-3Active NMI
OFF disable Watch-dog timer
lJP6 : WDT Time -Out Period
PERIOD 1-23-45-67-8
*1 sec OFF OFF ON OFF
2 sec OFF OFF ON ON
10 sec OFF ON OFF OFF
20 sec OFF ON OFF ON
110 sec ON OFF OFF OFF
220 sec ON OFF OFF ON
The Watch-dog timer is disabled after the system Power-On. The watch-dog
timer can be enabled by a Enable cycle with reading the control port (443H), a
Refresh cycle with reading the control port (443H) and a Disable cycle by reading
theWatch-dog timer disable control port (043H). After a Enable cycle of WDT,
user must constantly proceed a Refresh cycle to WDT before its period setting
comes ending of every 1, 2, 10, 20, 110 or 120 seconds which pre-setting by JP6.

Hardware Installation 2-9
If the Refresh cycle does not active before WDT period cycle, the on board WDT
architecture will issue a Reset or NMI cycle to the system.
The Watch-Dog Timer iscontrolled by two I/O ports.
443H I/O Read The Enable cycle.
443H I/O Read The Refresh cycle.
043H I/O Read The Disable cycle.
The following sample programs showing how to Enable, Disable and Refresh
the Watch-dog timer:
WDT_EN_RF EQU 0443H
WDT_DIS EQU 0043H
WT_Enable PUSH AX ; keep AX DX
PUSH DX
MOV DX,WDT_EN_RF ; enable the watch-dog timer
IN AL,DX
POP DX ; get back AX, DX
POP AX
RET
WT_Rresh PUSH AX ; keep AX, DX
PUSH DX
MOV DX,WDT_ET_RF ; refresh the watch-dog timer
IN AL,DX
POP DX ; get back AX, DX
POP AX
RET
WT_DISABLE PUSH AX
PUSH DX
MOV DX,WDT_DIS ; disable the watch-dog timer
IN AL,DX
POP DX ; get back AX, DX
POP AX
RET
2.13 PCI VGA Controller (NuPRO-630 Only)
TheNuPRO-630hasbuilt-inaS386C375VGAControllerwithon-board 2 MB
memory, support resolutions up to 1280 x 1024 256 colors, reserved internal
10-pin VGA-CRT header connector.
To get more VGA drivers information, please refer to the S3’s internet addre ss:
WWW.S3.COM

2-10 Hardware Installation
2.14 DiskOnChipAddress Setting
TheNuPRO-630 provides a U17 socket for install the DiskOnChipmodule.
A JP7 may select the starting memory address of the DiskOnChip(D.O.C.)
for avoid the mapping area with any other memory devices. If you have another
extra memory devices in the system with the same memory, neither the
NuPRO-630nor the extra memory devices will function normally. Pleasesetting
both at different memory address mapping.
lJP7 : DiskOnChip  Address
Memory Address Mapping JP7
D000 * 1-2
D800 3-4
E000 5-6
E800 7-8
*) : default setting
The D.O.C. function allows the system in using without FDD nor HDD. The
D.O.C. may formatting as driver C: or driver A:. User may also easily uses the
DOS's commands such as FORMAT, SYS, COPY, XCOPY, DISCOPY and
DISKCOMP etc. This is means that the D.O.C. may uses as driver-A if the
system without FDD-A for ambient application. Please contact with your
supplier for different size D.O.C. module.

Connection 3-1
Chapter-3
Connection
This chapter gives all necessary information of the peripheral's connections,
switches and indicators.
3.1 Power and FAN Connectors
The NuPRO-630 provides one 4-pin DC-Power connector as following CN7
pininformation.Andalsoprovidesone3-pin fan out connector at solder side as
following CN35 pin information.
lCN7 : 4-PIN POWER CONNECTOR
PIN NO. DESCRIPTION
1Vcc
2GND
3GND
4+12V
lCN35 : 3-PIN FAN IN/OUT CONNECTOR
PIN NO. Type DESCRIPTION
1To FAN GND
2To FAN +12V
FAN Activity Indicator
Low High
3From
FAN FAN Running FAN Stop
Theinputpin-2 ( +12V ) is a DC power to FAN. The pin-3 ( Indicator ) shows
out the activity of the FAN. “Low” means that the FAN is in running, “High”
means that the FAN is stop.

3-2Connection
3.2 IDE's LED, Key-Lock and Reset Button
TheNuPRO-630has one LED ( LD1 ) indicates out power-on status. And the
followingprovidesthepininformationforIDE'sLEDindicator,Key-Lock and
Reset Button connections from CN5, CN4 and CN2.
lCN5 : IDE LED connector
PIN NO. DESCRIPTION
1+5V
2HDD ACTIVE#
lCN4 : POWER LED & KEYLOCK
PIN NO. DESCRIPTION
1POWER LED ANODE
2NC
3GROUND
4KEYLOCK
5GROUND
lCN2 : RESET BUTTON
PIN NO. DESCRIPTION
1EXTERNAL RESET
2GROUND
3.3 Extra Speaker Connector
TheNuPRO-630hasanon-boardbuzzer(BZ1). And it also provides the CN3
in allows user to connecting to the external speaker.
lCN3 : Speaker Connector
PIN NO. DESCRIPTION
1SPEAKER SIGNAL
2NC
3GROUND
4+5V
