ICARO paragliders Loxia User manual

This manual is copyrighted.
Partial reproduction is allowed only
after prior approval by
ICARO paragliders, all other rights
are reserved.

Page 2
Verification of Checks and repairs
LOXIA
Serial number: ……………………….……………
First check by ICARO / date: ….…………………
………………………….
Name/ Stamp
Check (C)
Repair (R) Which repair/ Check? Check valid until? Performed by/ date
Check (C)
Repair (R) Which repair/ Check? Check valid until? Performed by/ date
Check (C)
Repair (R) Which repair/ Check? Check valid until? Performed by/ date
Check (C)
Repair (R) Which repair/ Check? Check valid until? Performed by/ date

Page 3
TABLE OF CONTENTS
VERIFICATION OF CHECKS AND REPAIRS .................................................. 2
TO GET TO KNOW YOUR YOUR LOXIA SP ..................................... 6
TECHNICAL DATA.................................................................................... 6
ADJUSTMENT OF LOXIA ........................................................................ 6
FLYING WITH THE LOXIA................................................................ 12
CARE INSTRUCTIONS, REPAIRS, INSPECTION ................FEHLER!
TEXTMARKE NICHT DEFINIERT.
CARE INSTRUCTIONS ........................................................................... 12
REPAIRS............................................................................................. 13
INSPECTION ........................................................................................ 13
TERMS OF THE GUARANTEE........................................................ 13
ANNEX ............................................................................................. 15
CHECK SHEET ..................................................................................... 17

Page 4
Congratulations on buying your
LOXIA
harness and welcome the family
of ICARO - pilots!
Before you get to know your system please read the
manual, there is important information inside.
This manual gives you information on the entire specific and general
characteristics of the harness.
All technical data and instructions in this manual were drawn up with great care.
ICARO Paragliders cannot be made responsible for any possible errors in this
manual.
Should you decide to sell this harness at a later date, please pass on this manual
to the new owner.
No guarantee of any kind can be made against accidents, injury, equipment
failure, and/or death. It is assumed that the pilot is in possession of the necessary
qualifications and provisions of any relevant laws are observed.
The use of this harness is entirely at your own risk.
Every pilot bears the responsibility of his/her own safety. The manufacturer or
distributor assumes no responsibility for accidents occurring while using it.
Do not fly unless you are personally willing to assume all risks inherent in the sport
of paragliding and all responsibility for any property damage, injury, or death,
which may result from use of this sport.
Your harness is made with great care and state of the art, tested according
European Standards EN 1651:19991, and Notification of the Federal Aviation
Administration of Germany 2Is pattern tested as harness with foamed rubber
protector is suitable for training and tandem flying.
It is strictly prohibited to fly the harness
•with damaged carbines, belts, buckles or protector
•outside the specified weight range
•in aerobatics
•This product has been designed exclusively for paragliding. Any other
activity such as skydiving or base jumping is absolutely forbidden.
1Harnesses –Requirements and test methods
2„Directives about airworthiness for hang- and paragliders (LTF NfL II 91/09)“.

Page 5
All technical data and instructions in this manual were drawn up with great care.
ICARO Paragliders cannot be made responsible for any possible errors in this
manual.
Important information in this manual is written in fat cursive writing.
Any important changes to this manual will be published in our homepage
(www.icaro-paragliders.de).
Should you decide to sell this harness at a later date, please pass on this manual
to the new owner.
Each alteration is dangerous and reactions are not predictable. Your
harness will lose its pattern test result and guarantee.
The manufacturer or distributor assumes no responsibility for accidents
occurring while using it.
Every pilot must ensure that the harness is properly checked at regular
intervals.
Environmental aspects:
The materials of which a harness is made require a special waste disposal. So
please send disused ICARO - harnesses back to us. We will care about a
professional waste disposal without costing for you.
Please do our nature-near sport in a way which does not stress nature and
environment!
Please do not walk beside the marked ways, do not leave your litter, do not make
unnecessary loud noises and respect the sensitive balance in the mountains.
Especially at the launch site consideration is needed!
This manual is copyrighted.
Partial reproduction is allowed only after prior approval by
ICARO paragliders, all other rights are reserved.

Page 6

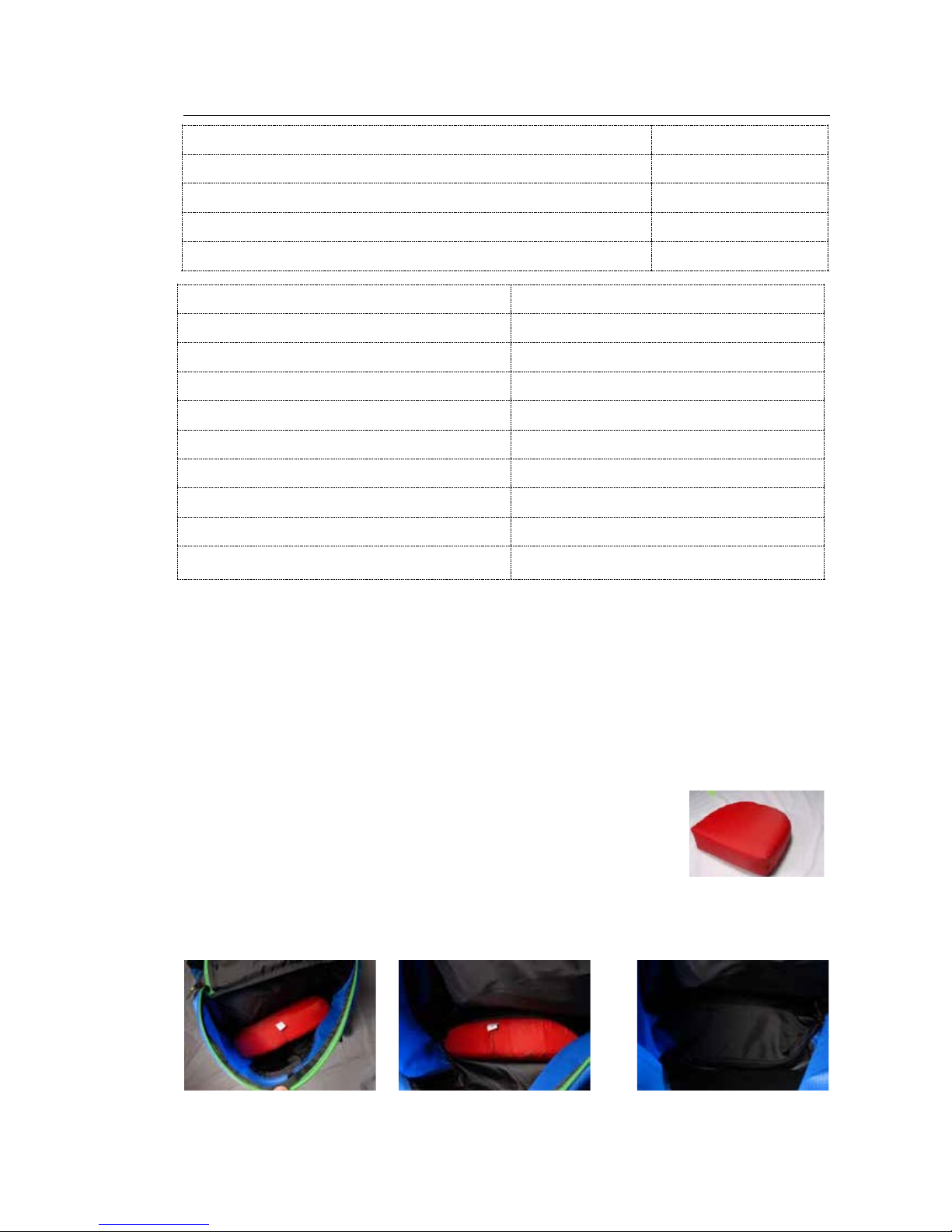

I. To get to know your LOXIA
Allowed for training
yes
Allowed /certified for flying with passengers
yes / yes
Allowed /certified for aerobatics
no/ no
Allowed /certified for towing
no/ no
Allowed /certified for flying with motor drive
no/ no
Technical data
Size one size
Pilot size (cm) 170 - 195
Karabiner highs (cm) 40
Seat length (cm) 47
Harness weight (kg) 3,65
Maximum capacity (kg) 100
Protector Airbag
Adjustment of the rescue system back
Check interval 2 years
With the LOXIA you are equipped with a tandem harness for pilots designed with
an integrated reserve parachute pocket and an airbag protection. This harness is
targeting intensive professional use.
Its split-leg system enables the pilot to quickly adopt a comfortable seating posture
with the passenger between the legs immediately after takeoff and facilitates the
running phase as well.
The following harness can also be used in solo flights. It is equipped with a split-
leg self-stabilizing system buffering the overall flight handling.
For optimal comfort the harness offers an automatic ventral
buckle, rectangular push-through leg straps buckles, ventral
width adjustment, leaning setting, shoulders strap adjustment
and a “mini bump”.
Open the Mini-Bump zip located at the bottom of the dorsal pocket. Insert the Mini-
Bump through the dorsal pocket and slide it behind the reserve parachute
pocket.When done, close the Mini-Bump pocket.

Page 7
Position setting
The harness can be adjusted in many ways to the individual needs and
likings of each pilot. We advise each pilot to take time to get acquainted to
the harness.
This will reward the pilot with an excellent sitting comfort. To carry out the
adjustments we advise to hang the harness in a simulator.
Leaning angle setting
Pull up to release. Set the angle of leaning by
tightening the snapper (towards a more vertical
position) or the black webbing (towards a more
horizontal position),
Shoulder straps adjustment
Tighten the shoulder straps by pulling the finger loop
down.
When adopting a reclined flying posture, the
shoulder straps must enhance in-flight comfort
levels by supporting the upper back. The shoulder
straps support, greatly helps the comfort level.
It should be set precisely. You must find the correct
tension between the side and shoulder straps
adjustments.
Adjustment of chest straps
The adjustment of the harness chest strap controls
the distance between karabiners and affects the
handling and stability of the glider.
Excessive tightening the chest strap increases stability but also the risk of twists
following glider collapse, and it also increases the frequency of getting collapses
due to poor feedback from the glider.
The risk of twisting is also strongly affected by the seating position of pilot. Flying
in a laid back (reclined) position makes it much more difficult to react in time to
prevent riser twisting.
With the chest strap in a more closed position the glider also has more tendency to
maintain a stable spiral, lengthening of the chest strap gives more feedback from
the glider but decreases stability.
ICARO paragliders recommends 38 – 46 cm. During flight you can change the
position.
Each setting of the harness must be done
with mounted protector, rescue system and
must be symmetrical on both sides!

Page 8
II. Rescue system
There are two loops on the container of the rescue system for mounting the handle
of the rescue system, one in the middle and one at the side. ICARO Paragliders
commends to connect the handle to the central loop and make a lark’s head
knot with the handle.
Fasten tightly the lark’s head knot and verify the solidity of the link.
Adjustable reserve parachute pocket
The reserve parachute pocket volume is variable in size. You first must adjust its
volume according to that of your reserve parachute.
The pocket volume can slightly be increased by using the lateral flaps external
grommets. The harnesses are delivered by default, with the “small” volume setting.
Pull on the rear flap, remove the elasticated cord from it grommet. Push the piece
of line/cord, underneath the connection strap, then through the external grommet.

Page 9

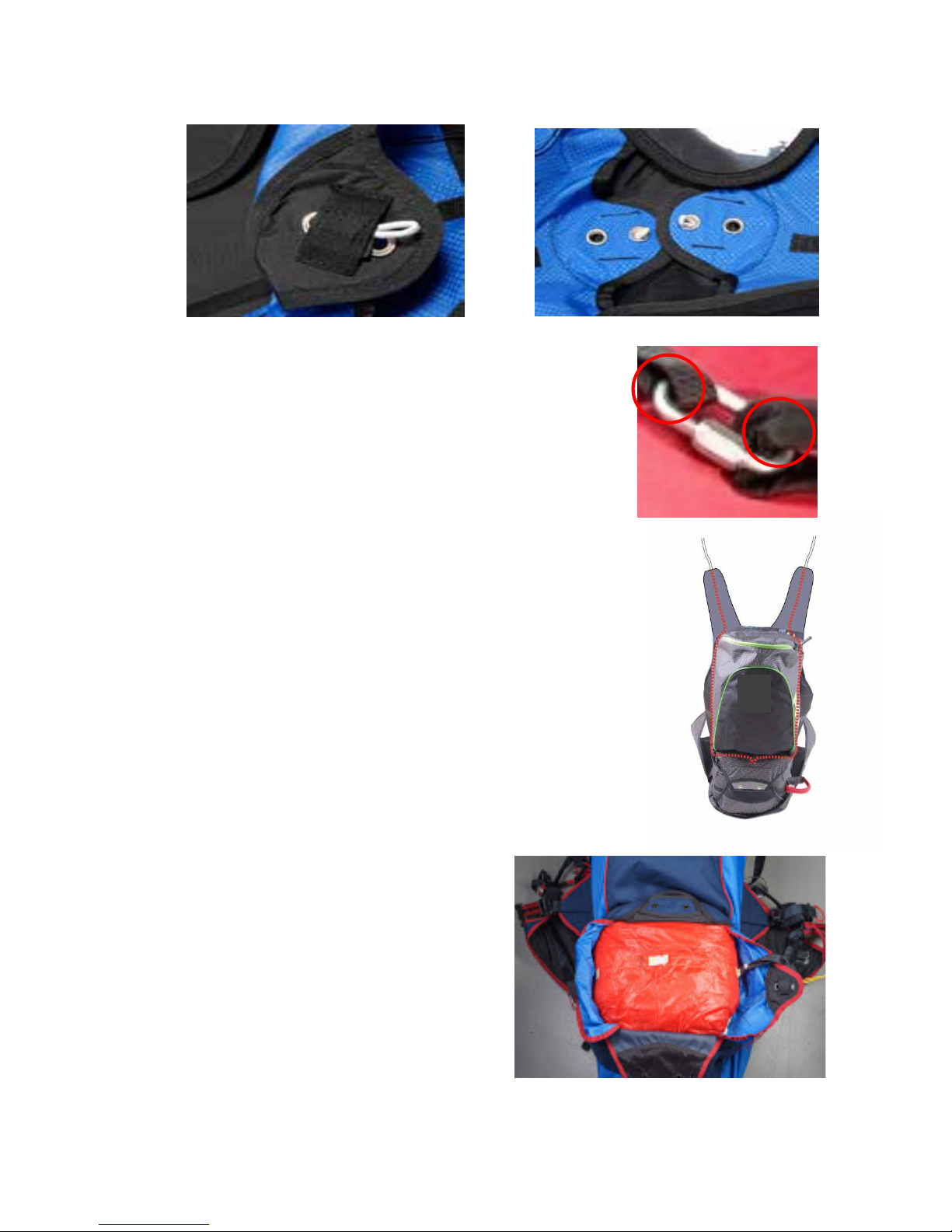

Reserve parachute installation
Connect the rescue connecting lines with the
center line of the rescue system. For connecting use
a fixable 24 KN- snap hook with a diameter of 8 mm. It
is very important that the snap hook cannot twist to
prevent traverse stress of the snap hook.
Therefore use cable fixer, adhesive tape or strong
rubber bands and pull it above and below the snap
hook around the belts.
Install the rescue connecting lines left and right
inside the lateral guiding sleeves.
The risers come out of each strap guide.
Connect the risers atop each spreader-bar
(main hooking location or on the allocated space/
strap) with a Maillon rapide trapeze stainless
steel 6 mm + the flexible elastic rings.
Insert the rescue system
Insert the reserve parachute inside the
harness parachute pocket by opening
all the flaps.
The POD must be positioned with the
handle at the top with risers and lines at
the bottom. Push the risers through the
guiding sleeves ( the risers must be
located behind the parachute ).

Page 10

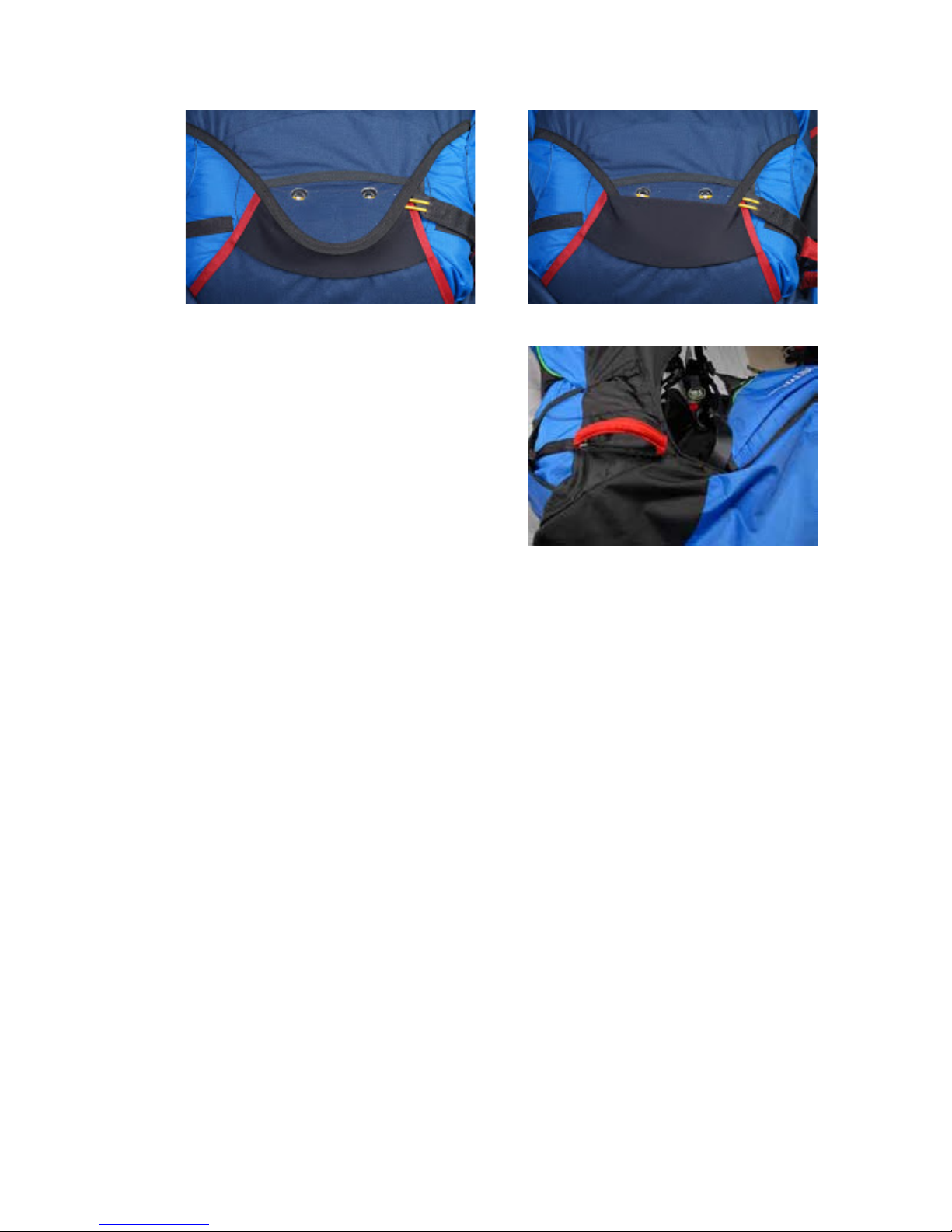

Push the packing cords through the
elasticated loops and the lower flap
grommet.
Push the packing cord through the
upper flap grommet.
Now close the flap grommets and push
the short yellow cable through the first
elasticated loop and the longer yellow
cable through the second elasticated
loop.
Pull out the packing cord gently.
The yellow cable locks the reserve
parachute pocket flaps in place
Check before every flight for the
yellow cable to be properly inserted
through the two elasticated loops
keeping the reserve parachute pocket
securely.

Page 11
. Close the protective cover and tuck it inside its lower stretchable pocket.
Position the handle in its folding sleeve.
It may not protrude from the harness.
Upon setup completion, conduct an
extraction sequence during a hang-test to
verify that all works properly before
duplicating the installation procedure
again...
Compatibility- check
A control of every new combination of rescue system and harness/outer container
has to be carried out by either the producer of the harness or the rescue system or
an authorized person (dealer or flight instructor). The activation of the rescue
system in flight position has to be correct and in conformity to the construction
guidelines.
The check has to be recorded in the documentation of the rescue system.
The throwing movement should be practiced every time the rescue system
is repacked.
IMPORTANT POINTS TO LOOK OUT FOR:
Check (steady)
•connection of the rescue system to your harness
•connection of the harness and deployment handle
•the closing splint must be held with a special thread
•aluminum karabiners; aluminum might get micro cracks from impacts during
use
line from the fixing loops is removed (after each packing)
Check compatibility of rescue system and harness
Before each start with your glider you have to check the container is
closed!!!

Page 12
III. Flying with LOXIA
Conduct a thorough pre-flight check before each takeoff.
•Fasten and securely lock the leg and chest-strap buckles.
•Double check that all buckles are fully locked and secured by pulling firmly on
them. Check that no line, tab or cloth is stuck / jammed in the buckles
•Be absolutely certain for the reserve parachute handle to work freely without
anything impeding its proper functioning.
•Check the harness and carabiners completeness.
•Be certain for the reserve parachute pocket to be properly closed with its
handle securely in place.
•Check that your harness adjustments have not changed.
•Check the connection risers / harness as well as the self-locking carabiners
locked and secured ).
•Takeoff is a simple and straight forward. The transition from running to seating
is easy.
•Do not push yourself inside the seat with the toggles still connected to your
hands. There would be a risk of increasing the angle of attack, slowing the
wing down with a possible stall taking place as a result.
•Stretch your legs and adopt an upright position in order to run and dissipate
horizontal speed.
•With a split-leg harness, adopting a standing/upright posture may feel more
difficult to achieve than with a seat-plate outfitted harness. Straightening/
stretching the legs fully will
Do not land whilst in the seated position, this is dangerous.
IV. Care and repair Instructions
Care Instructions
Packing the harness is similar to all the other harnesses. To maintain your harness
in good condition, please ensure that the harness does not get dragged along the
ground, the karabiner does not get hit against rocks and avoid over exposure to
sunlight, heat or humidity.
If you wish to clean your harness it is best to use warm water and a soft sponge.
Store your harness in a dry and dark place, ideally between 5° and 30° Celsius.
Do not store it near chemicals or petrol.
If you will not fly for longer period, take it out of its pack.
Avoid storing your harness for days at a time in a hot car.
If the harness has become wet, lay it out so that air can get to all areas of the
fabric, also your second chance.
It may take several days for your harness and your rescue system to dry out
completely especially the lines of the rescue system, which take longer than

Page 13
the fabric. Do not fold and store your rescue system prematurely if it not
completely dry. Mildew may damage your harness and your rescue system.
Repairs
The seal of approval can only be preserved if original parts are used. If you
discover any damaged parts to the harness which might impede
deployment, pleases end it back to the manufacturer to be repaired.
Repairs can only be carried out by the manufacturer or from the
manufacturer authorized persons.
The aluminum karabiners should be changed every two years at the latest as the
aluminum might get micro cracks from impacts during use.
Inspection
After 24 months, it is important to have your harness inspected by a trained
ICARO technician.
Without regular certified inspections, your harness will loose its certification
and guarantee.
Only an authorized technician who has been trained by ICARO paragliders is
authorized to sign and date the harness certification label and sign the manual.
V. Terms of guarantee
ICARO paragliders guarantees 24 month for the proper processing, an operation
within the allowable limits of proper operation and the fulfillment of the eligibility
criteria of harness equipment at the time of first delivery by ICARO paragliders.
Guarantee is only valid for ICARO
products with LTF/ EN certification.
What is covered by the guarantee?
Provided that ICARO paragliders accept the fault the guarantee contains all
necessary spare parts related to the replacement or repair of defective parts and
working time.
ICARO paragliders accept no freight costs (outbound and return transportation).
What are the conditions of the guarantee?
•ICARO paragliders needs to be informed immediately after the discovery of a
defect and the defective product must be sent to us for testing.
•The harness was used in normal circumstances and maintained according to
the instructions. This includes in particular the careful drying, cleaning and
storage.
•The harness is used only within the applicable guidelines and all rules have
been complied with all times.
•All flights must be accounted for within the flight book.

Page 14
•There were only original spare parts used and checks, exchange and / or
repairs were conducted by an authorized dealer or by ICARO Paragliders
company / person and properly documented.
•A fully and correctly completed guarantee card must be sent at least 6 weeks
after buying the glider to ICARO paragliders commercial. Alternatively can this
be sent via the appropriate online form on www.icaro-paragliders.com.
What is excluded from guarantee?
•Harnesses
•that are used for training purposes, Acro or other official competitions,
•which were involved in an accident,
•which have been changed by yourself,
•that were not purchased from an authorized dealer / flight school,
•where the required inspection intervals were not met and the verification of
the harness was not conducted by a ICARO paragliders authorized
operation / person
•Damage
•which has occurred due to improper treatment (i.e. storage in humidity, heat
or direct sunlight)
•caused by solvents, salt water, insects, sun, sand, humidity or “debag-
jumps”.
•caused by force majeure.
•caused by the paramotor (Oil, fuel, damage in cause of the prop)
•Parts that need to be replaced due to normal wear and tear,
•Discoloration of the cloth material used,
In case of a concluded claim the period of guarantee carries on. The period of
guarantee and the connected claim are not prolongated and are only valid until the
original date of expiry. The freight costs (transport to and from) are not paid by
ICARO paragliders.

Page 15
Annex
Please fill in the guarantee card which you find on our homepage
www.icaro-paragliders,com and send it to us.
Check sheet for harnesses
Client (Name, Address):
Type / size / year of construction :
Serial number:
Certification number:
Date of last inspection:
Memos
yes
no
Seat strap
system
Visible damages?
Areas of abrasion?
Seat board
Visible damages?
Positioning of the straps ok?
Straps
Visible damages?
Course of the straps?
Seams ok?
Buckles and
carbines
Visible damages?
Condition (closing properties,
operation) ok?
main carbines (condition, age)
Operativeness ok?
Protectors
Airbag -/
Foamed
material
Visible damages?
Seams ok?
Valve ok?
Tightness airbag/ foam protector
sheeting?
Conditions of any reinforcements ok?
Speed bar
Visible damages?
Fixing rubber ok??
Return pulleys ok?
Lines ok?
Rescue system
Visible damages?
Identification plate ok?
V-lines
Handle fitted and connected?
Container properly closed?
Backpack
(reversible
harnesses)
Visible damages?
Zip ok?
Buckles ok?
Seams ok?
Compatibility check effected?
Additional repairs carried out? Which?
Type label affixed?
Inspection stamp affixed?
Overall result
Next inspection:
As new
Very good
Next inspection when using
the harness commercial:
Used
Much used
certification only for one year
not airworthy
Date, name and signature of the checker

Page 16
Dispatch protocol / Delivery content
Handle
Seat Board
Carabiners
Manual
....................... ..............................
Date Signature
